Week-3 Challenge: ADVISOR Tool

Ans1

For ev default file with 500 kg cargo mass, we are checking that it can travel 45 km or not with FTP drive cycle mode

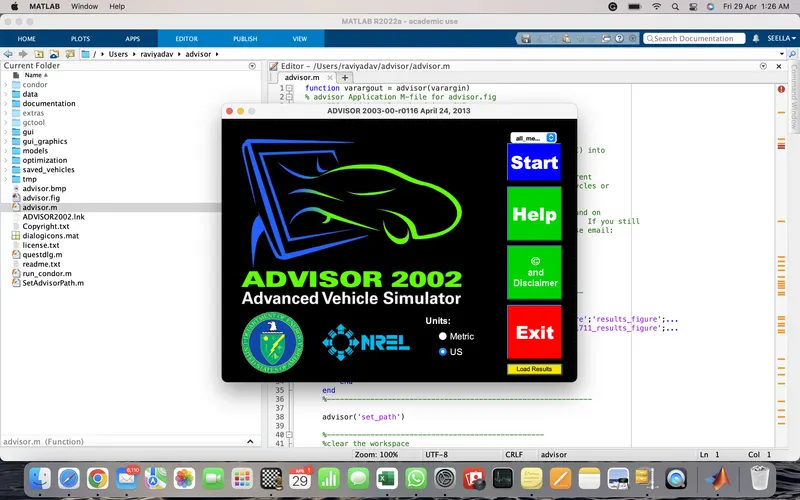

here we have changed the US to metric mode so that we can get all units in mks then I have started the simulation

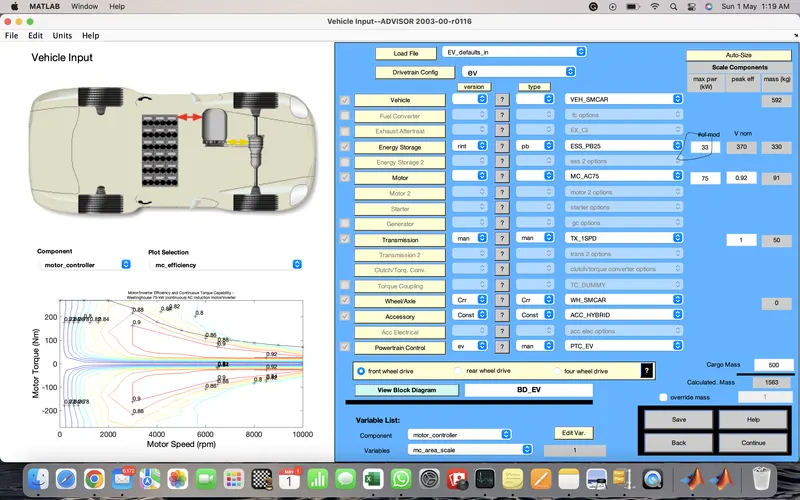

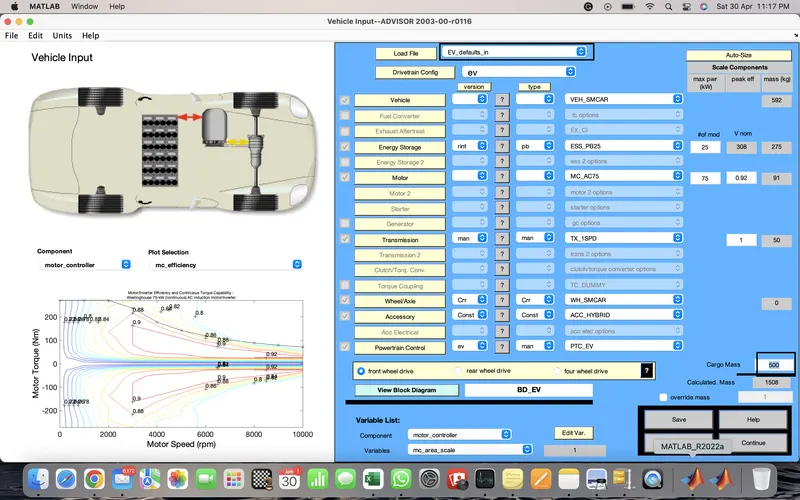

And new window has popped up and I have changed the load file to ev default in and cargo mass as 500kg

and press continue

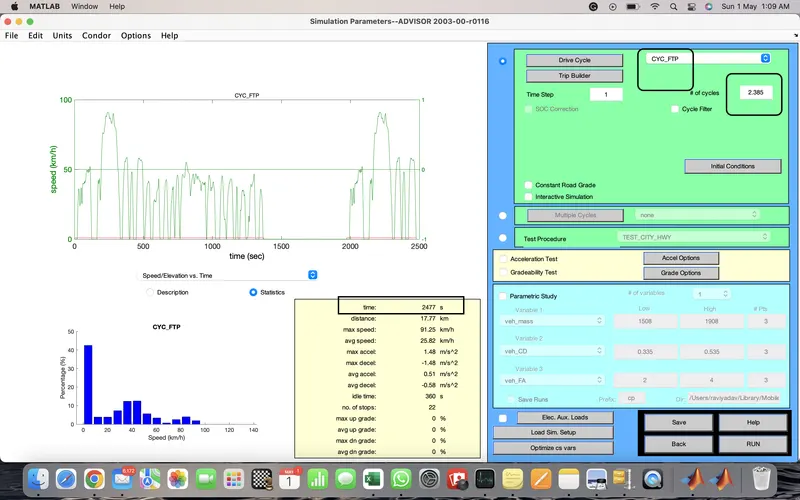

As shown below here I changed the drive cycle to cyc_ftp mode and I have kept the number of cycles as 2.385 so that we

should get exactly 45km because with one cycle it will go 17.77km as shown below

now I have run the simulation

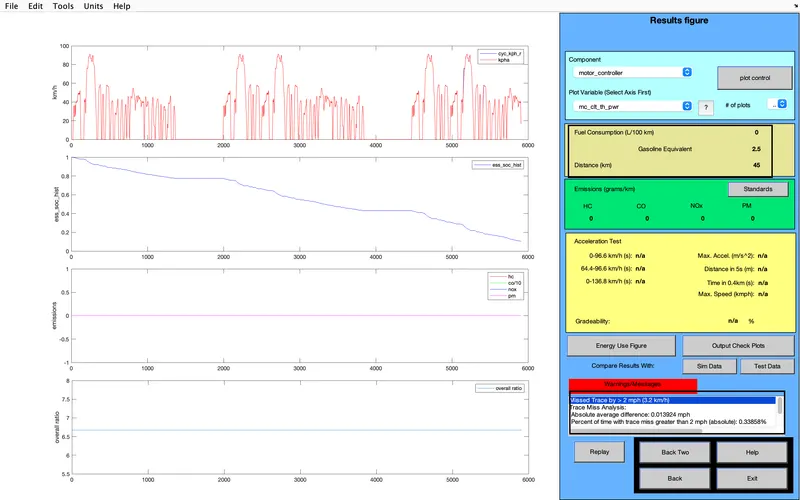

OUtput

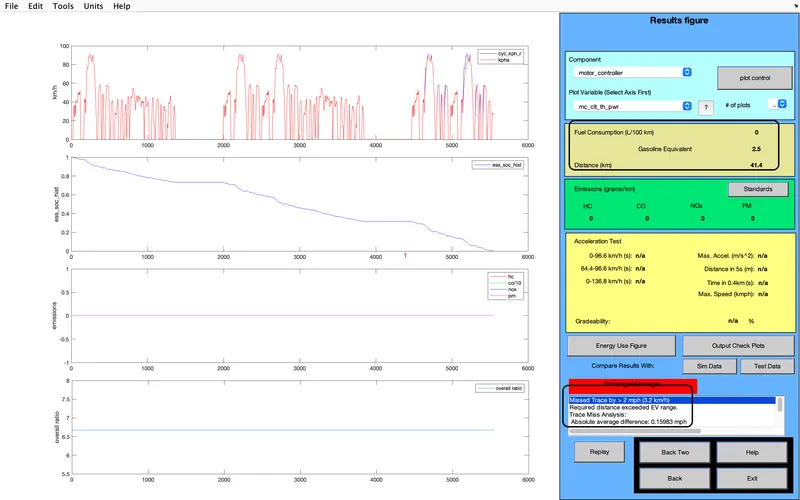

Here it's showing warning as the battery capacity has less we need to increase battery capacity

to travel 45 km and with this much power we are just able to go 41.4km as shown below

when power stored in the battery is about to finish then the engine will stop because it is a pure electric vehicle we

need to charge to utilize again otherwise, we need to increase battery capacity so that it travels 45km without being charged again

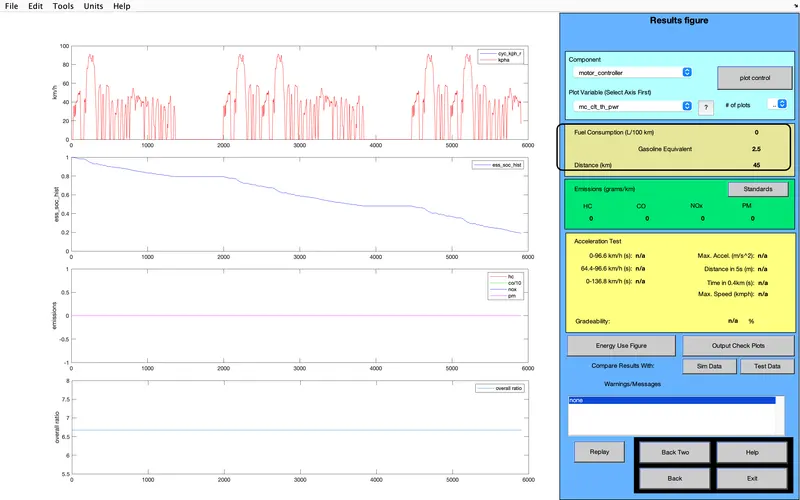

If I will increase the battery limit then this warning message will not show

Ans2

now we are just changing the battery capacity and observing the output

25 mod

output-

28 mod

output

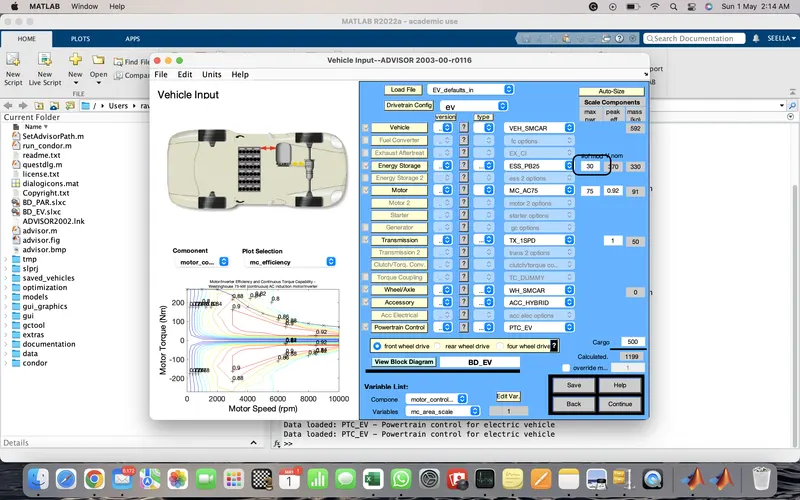

30 mod capacity battery

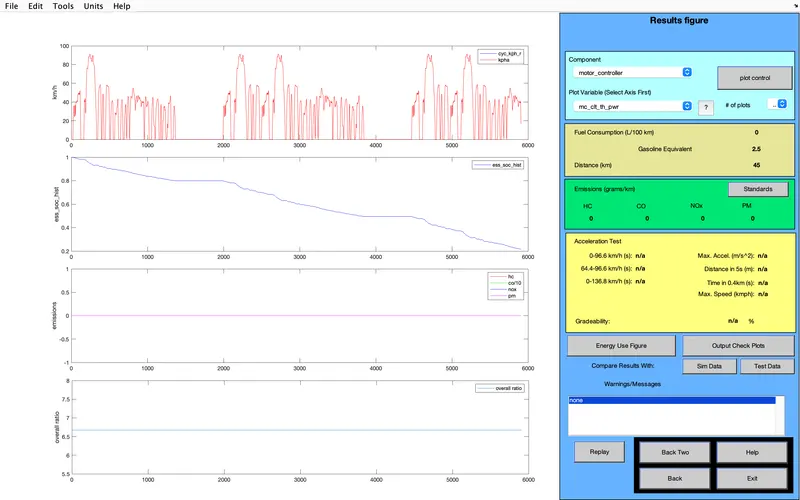

output

33 mod capacity battery

output-

Ans3

Gradeability test with PRIUS_Jpn_defaults_in file and Compare results

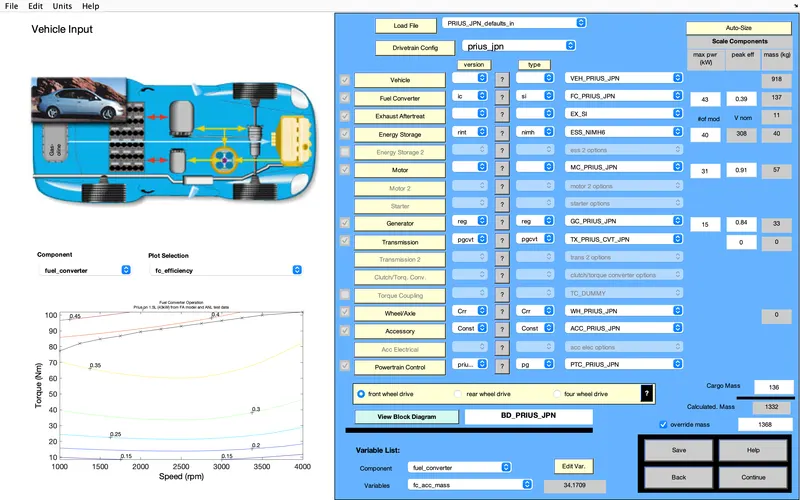

I have changed the load file as PRIUS JPN DEFAULTS IN and pressed continue

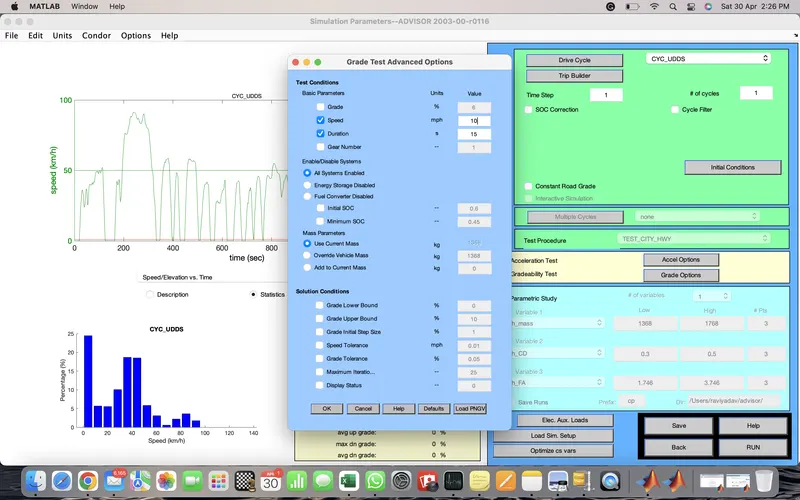

after the new window is shown I have clicked on the grade option after that I clicked on all system enable

then selected ok after that I have run the program

I have kept the speed at 10mph and duration at 15s

I have kept the speed at 10 mph and duration at 15s

gradibility=32.8%

I have kept the speed at 15mph and the duration as 15

gradibility=27%

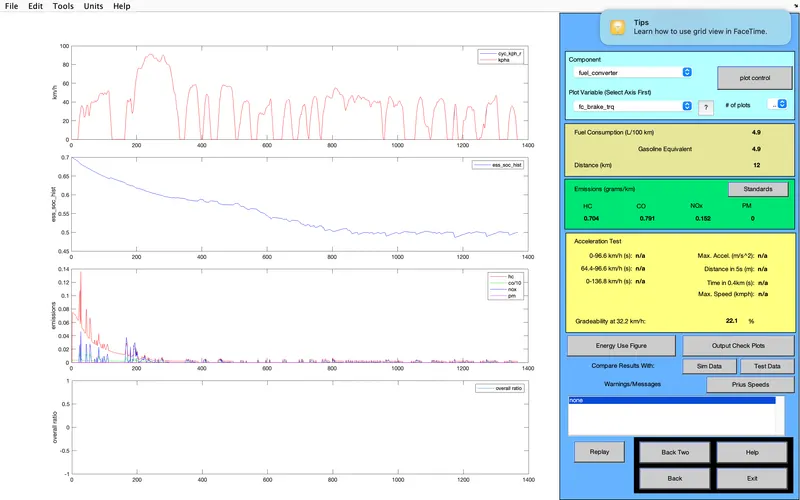

I have kept the speed to 20mph and the duration to 15s

I have kept the speed to 20mph and the duration to 15s

gradibility=22.1%

I have kept the speed at 10mph and the duration as 15

gradibility=33.7%

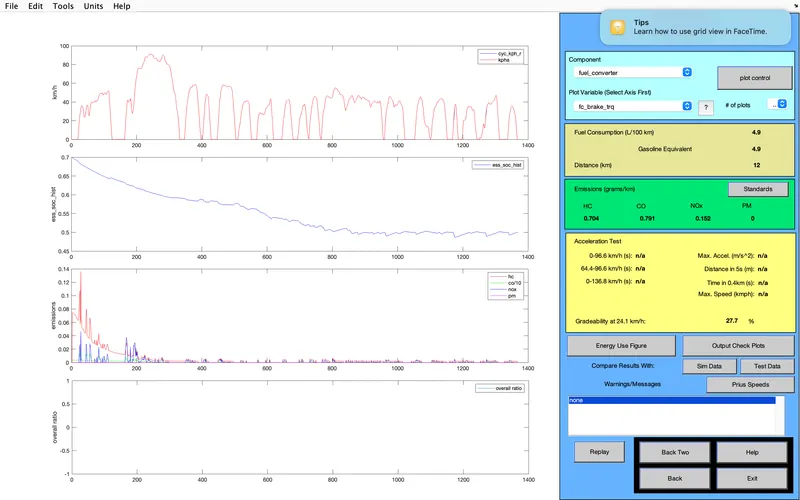

I have kept the speed to 10mph and the duration to the 20s

I have kept the speed to 10mph and the duration to the 20s

gradibility=27.7%

I have kept the speed to 20mph and the duration to the 20s

gradibility=22.9%

for duration=15s

• speed (mph) gradability

10 32.8%

15 27%

20 22.1%

for duration=20s

• speed (mph) gradability

10 33.7%

15 27.7%

20 22.9%

In the above table, we can understand that as we are increasing duration we are getting gradability value more than

the previous vale and also if we are increasing our speed then gradability is going to reduce continually that we can observe

with above data
