Week-3 Challenge: ADVISOR Tool

1.

For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with an FTP drive cycle? Conclude your observations.

ANS:

The cargo mass is changed to 500kg

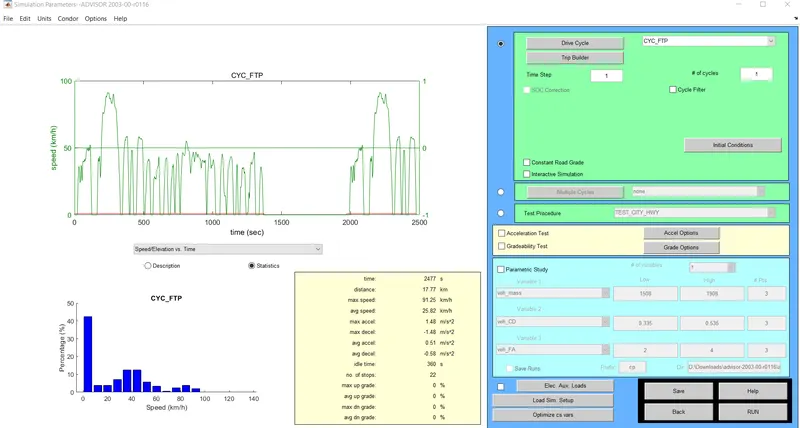

The distance traveled is 17.7km

When the drive cycle is changed to 3, still the vehicle is unable to travel 45kms. It is only able to travel 41.4kms

2. Changing battery capacity:

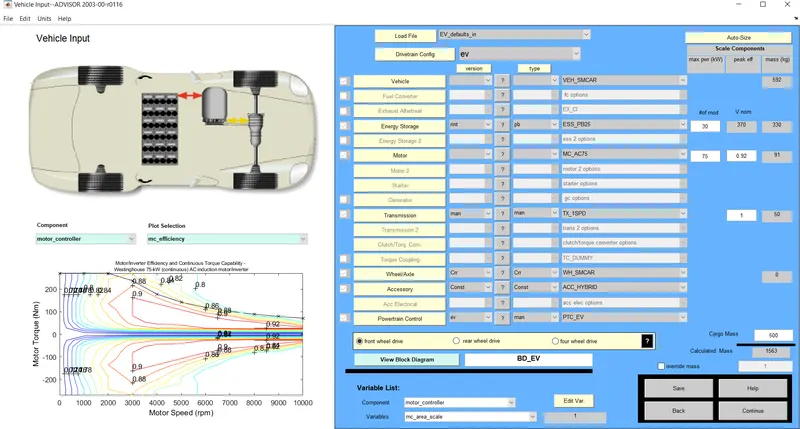

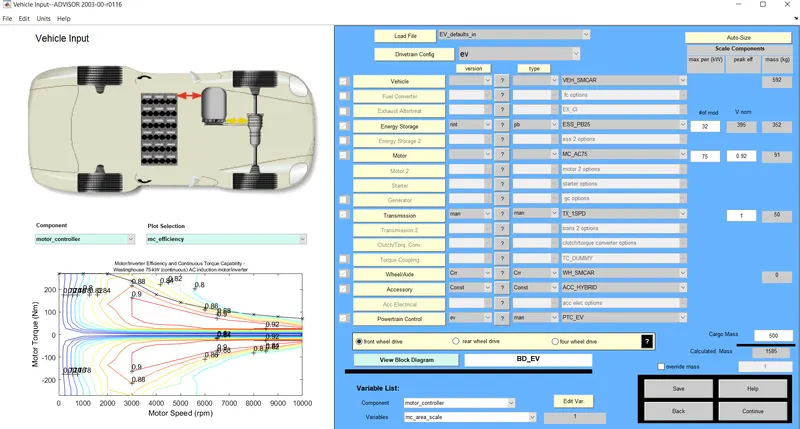

2a. When battery # of the mod is changed to 30, the vehicle travels a distance of 49.1kms

2b. When the # of the mod is changed to 32, the vehicle travels a distance of 52.5kms

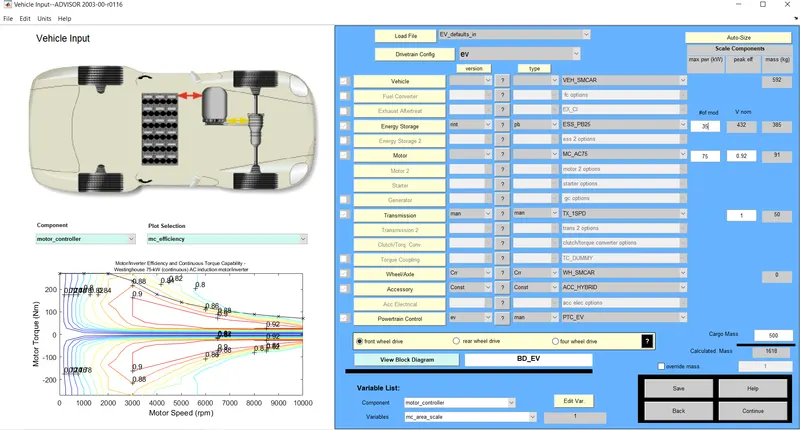

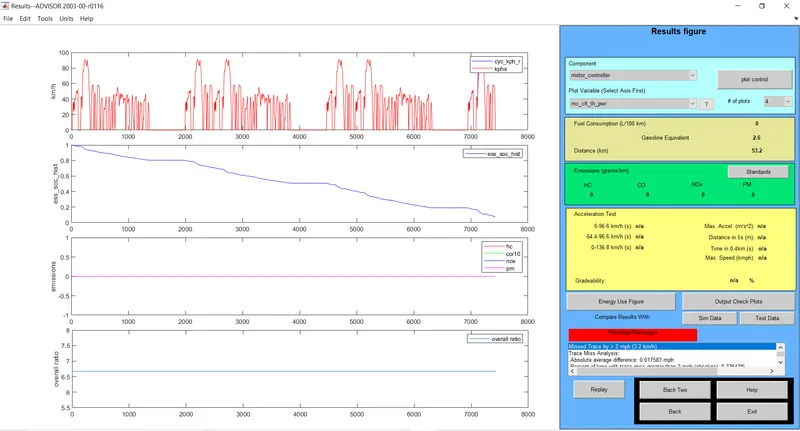

2c. When the # of mod is changed to 35, the vehicle travels a distance of 53.2

3. Gradability test with Prius

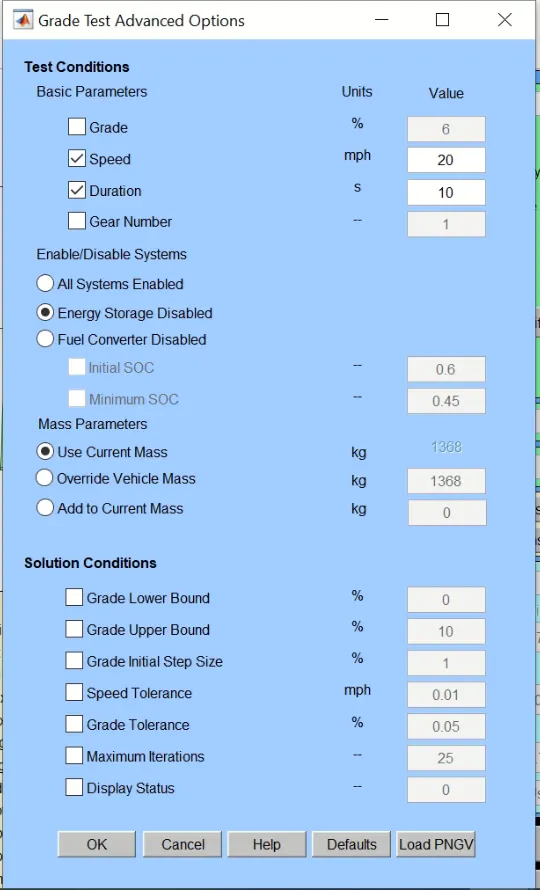

3a. When the speed is 20mph, there is no gradability

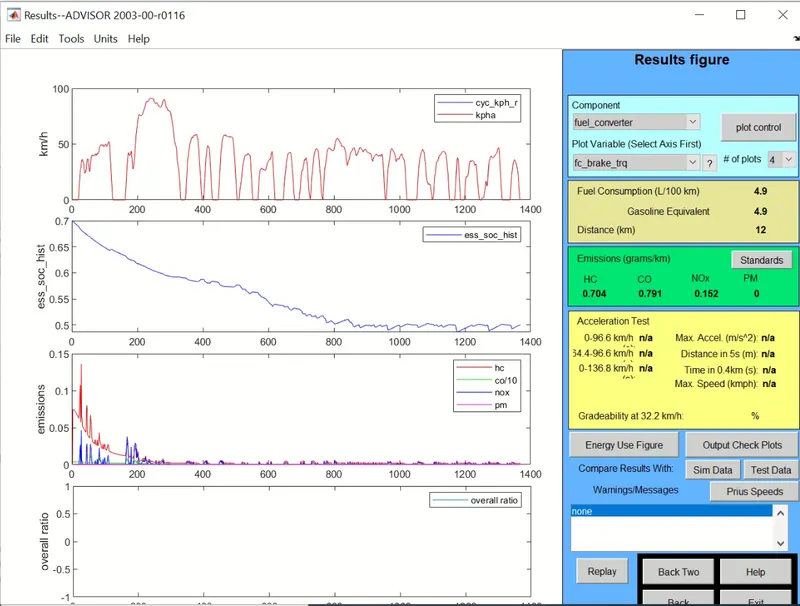

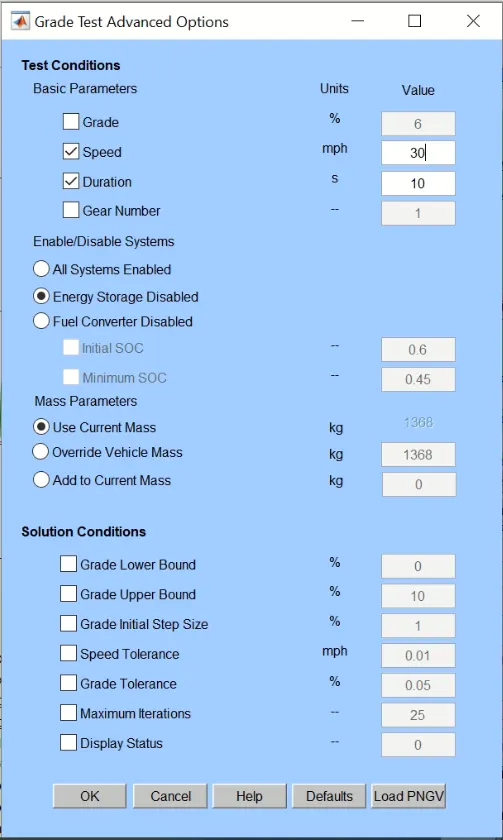

3b. When the speed is 30mph, the gradability is 2.5%

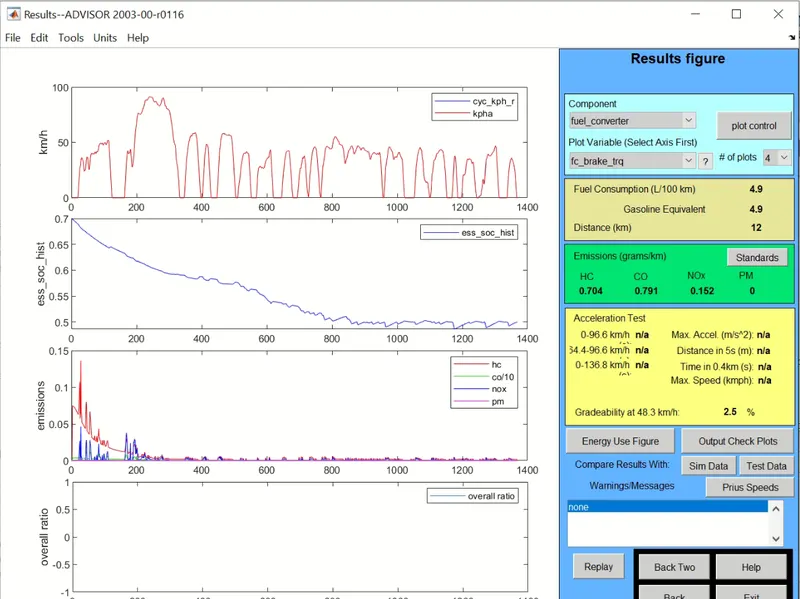

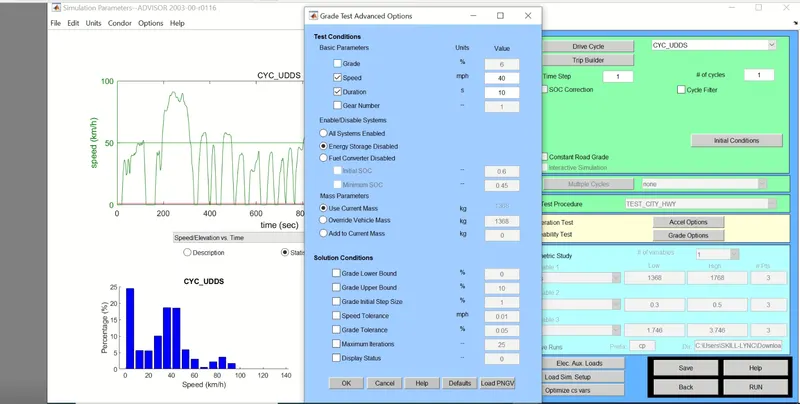

3c. When the speed is 40mph, the gradability is 2.5%

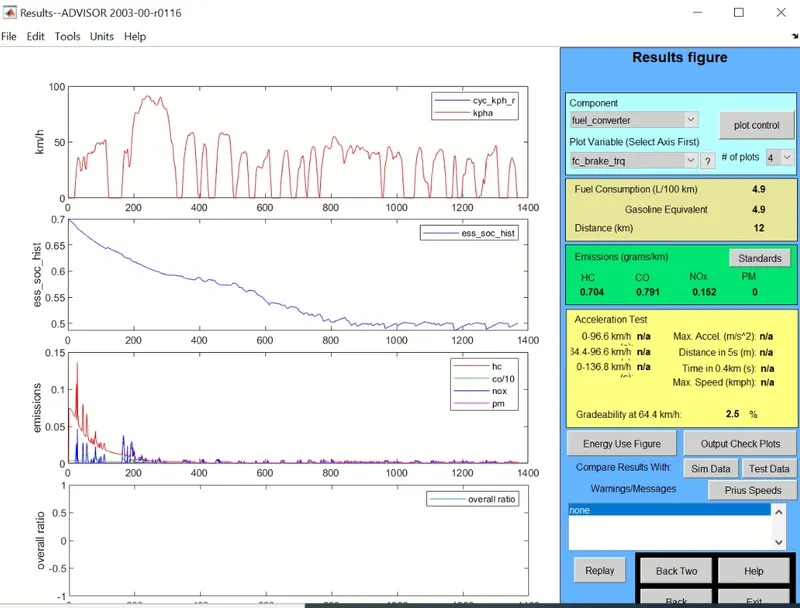

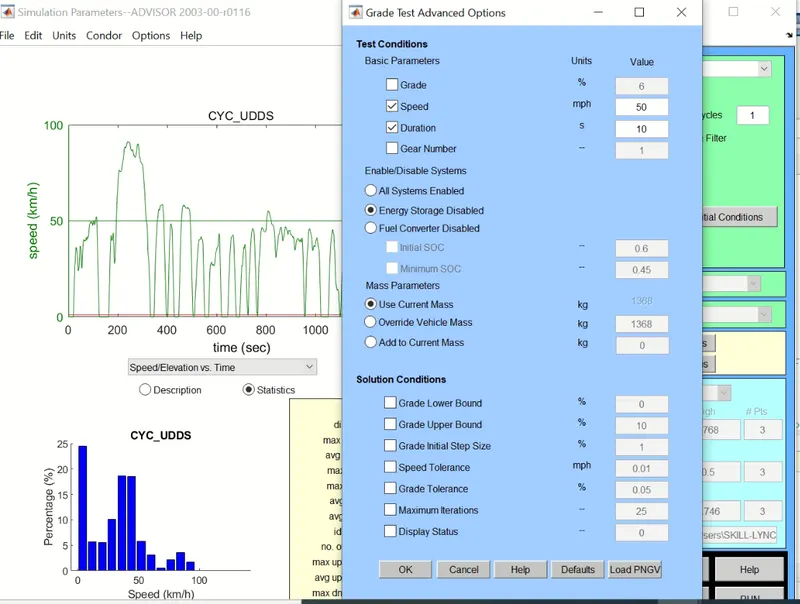

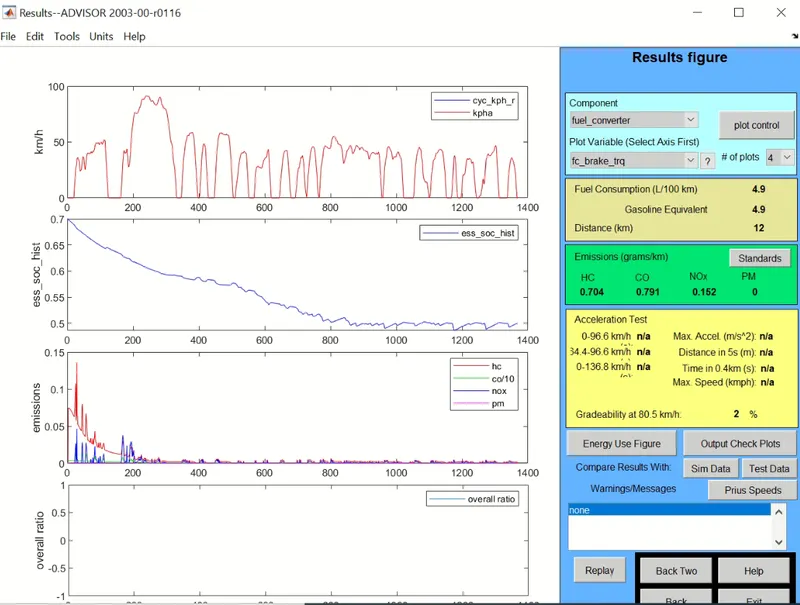

3d. When the speed is 50 mph, the gradability is 2%

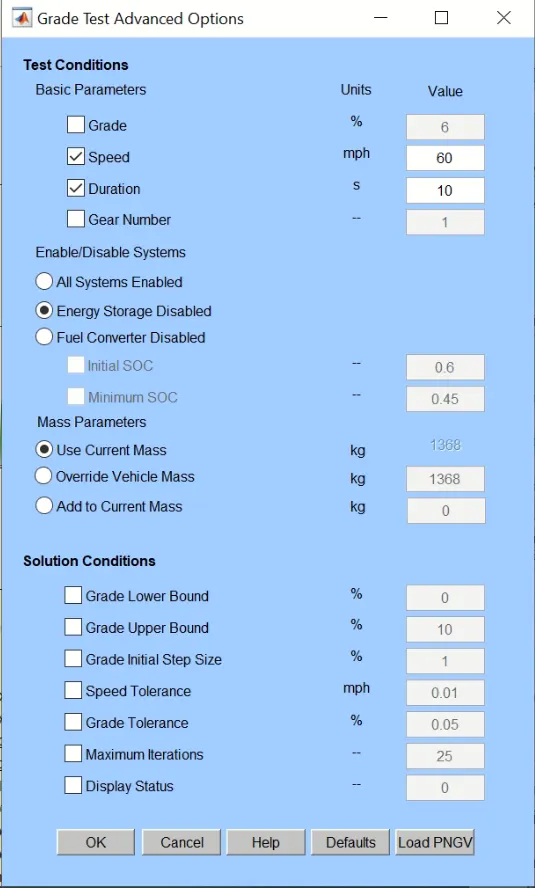

3d. When the speed is 60mph, the gradability is 1.5%.

Conclusion: We can hereby conclude that if the speed increases, the gradability decreases.
