ADVISOR Tool

1.

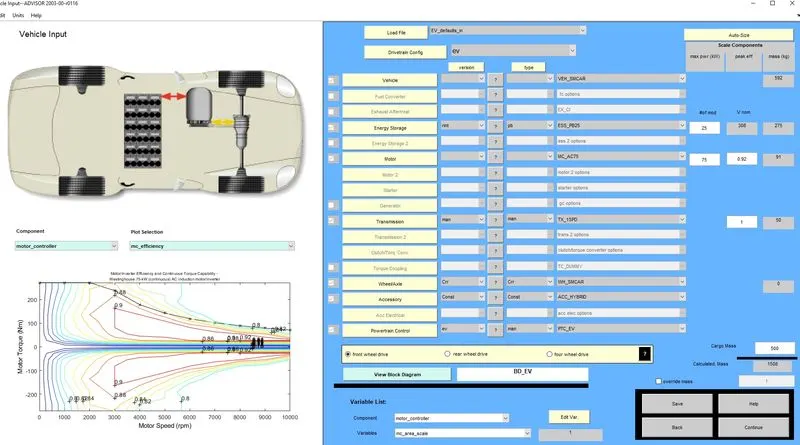

• EV_defaults_in file
• cargo mass is 500 kg

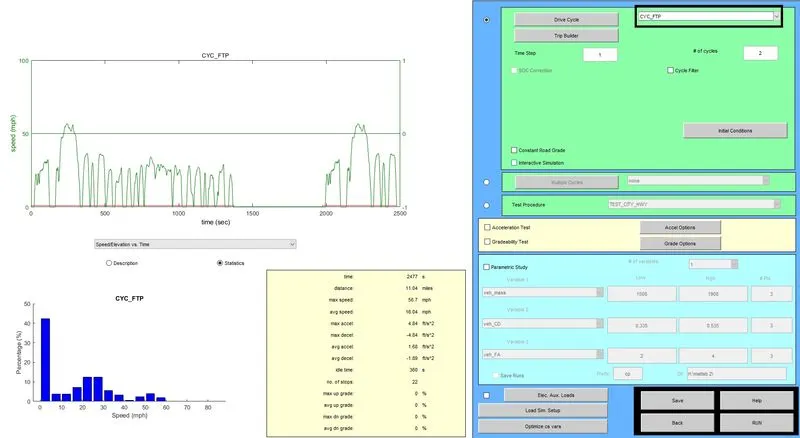

• Change the drive cycle to FTP

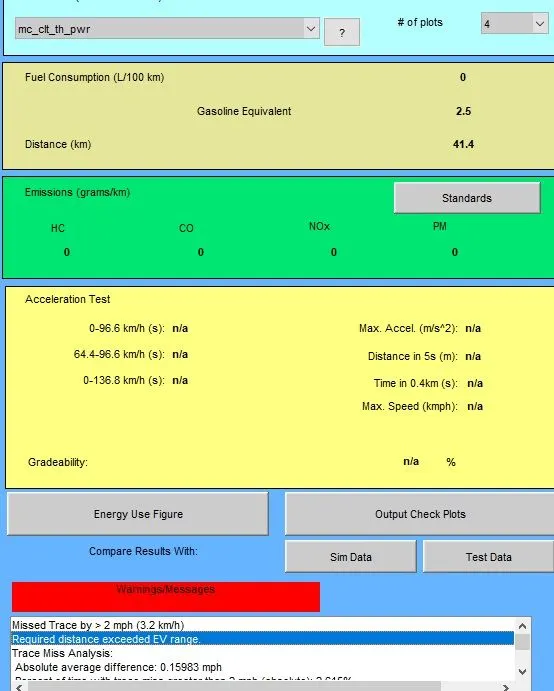

• RESULTS:

CONCLUSIONS: the car won't able to travel 45km.

1. the maximum distance the car could travel is only 41.4km
2. you can look into the warnings "required distance exceeded EV range.

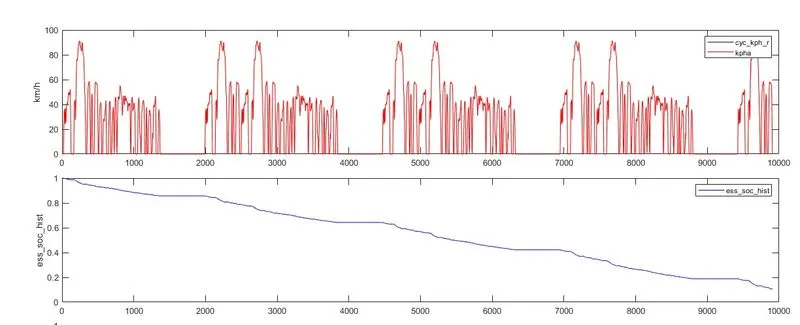

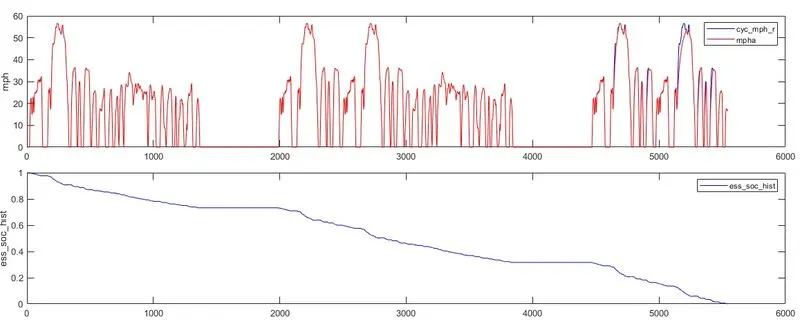

3. ess_soc_test graph shows that the state of charge tends to zero before the simulations ends.

2.

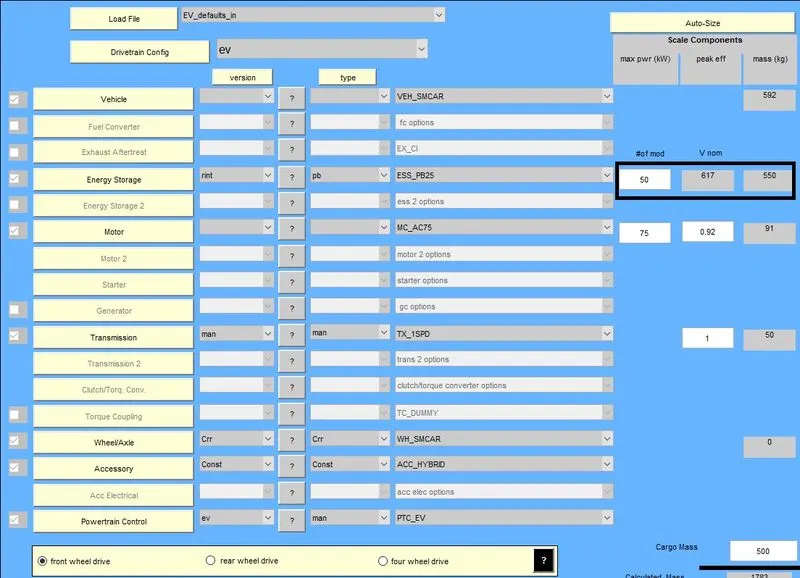

• doubled the value of mod i.e from 25 to 50
• and the resulting voltage was 617 volts nom

results:

conclusions: the car can easily travel 45 km.

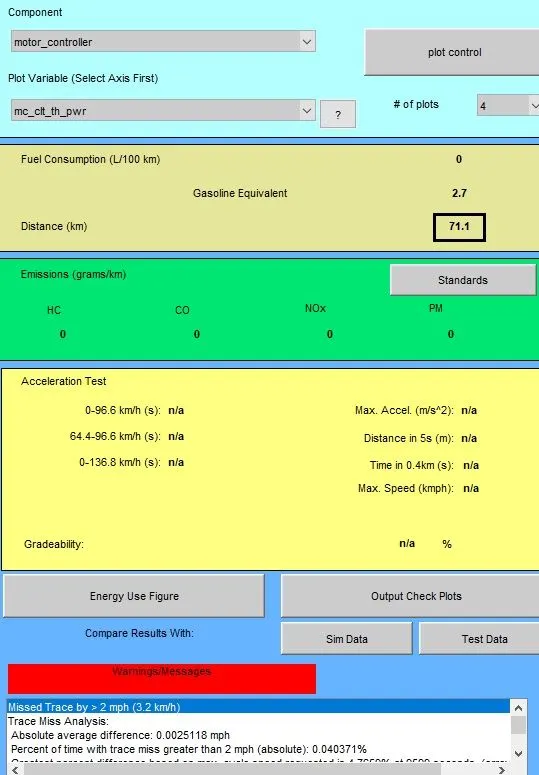

• After changing the battery value you can observe the total distance travelled is 71.1km
• you can look into the warnings there are no warning relating to the range.
• ess_soc_test graph shows that the state of charge is not tending to zero before the simulation time.

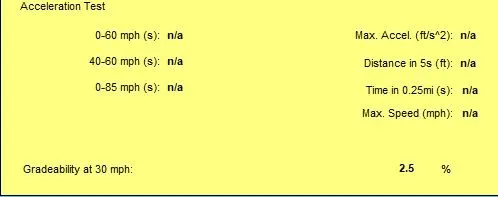

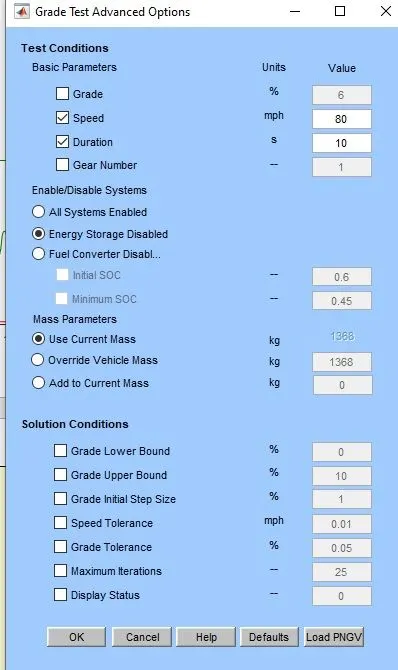

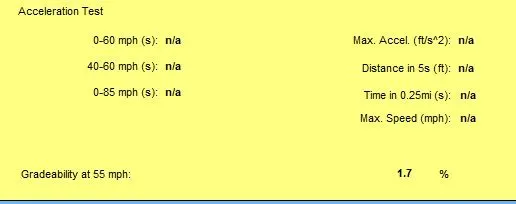

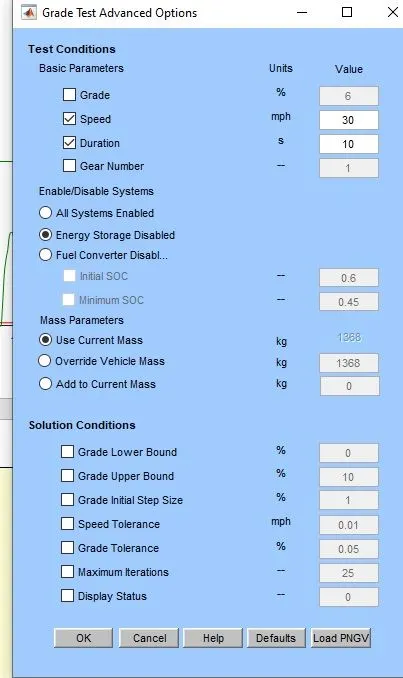

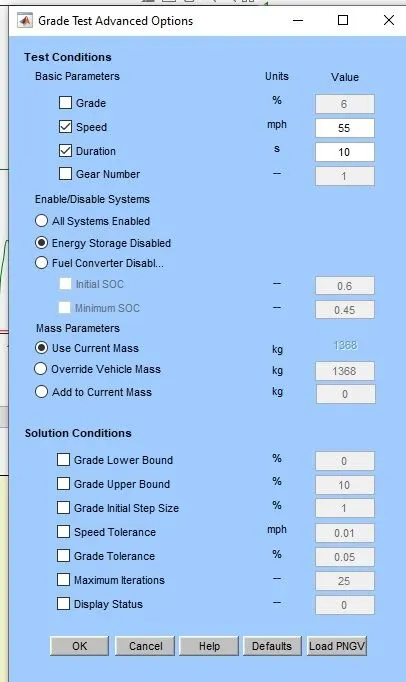

3.

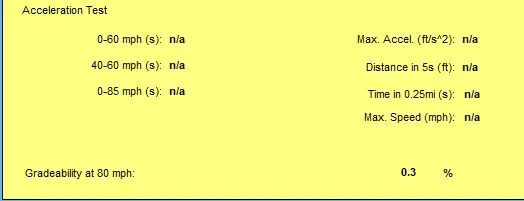

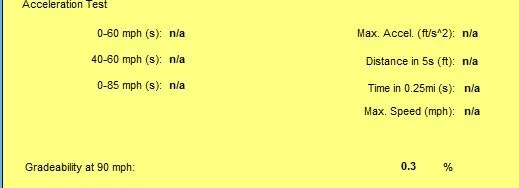

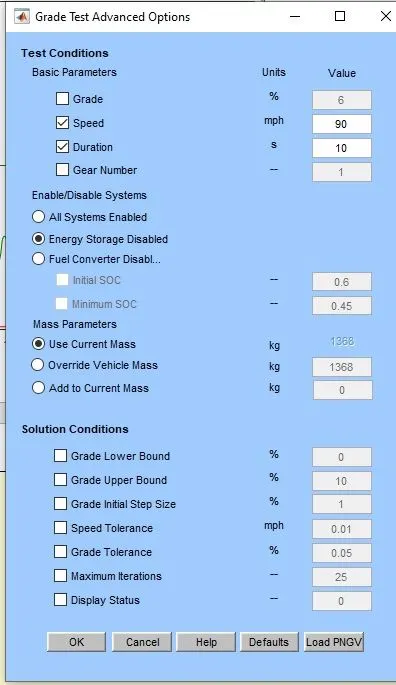

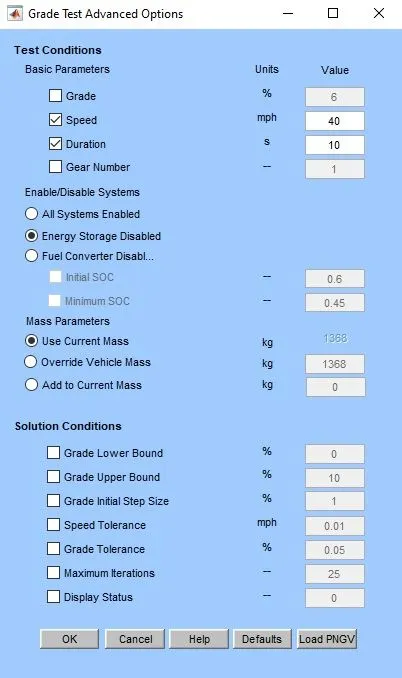

case-1

case-2

case-3

case-4

case-5

conclusions:

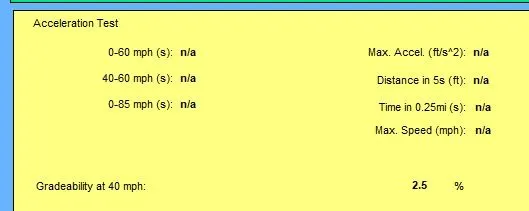

• you can observe that when the gradability is less with the same power higher speed can be achieved. because there is less inclination
