Week 3 - Adiabatic Flame Temperature calculation

BBhavin Patel1 Mar 2022

Aim-1)Adiabatic flame temperature variation with equivalence ration (constant volume)

2)Adiabatic flame temperature variation with equivalence ration (constant pressure)

3)Adiabatic flame temperature variation with alkane,alkene,alkyne.

Introduction

Adiabatic Flame Temperature:

  • For a combustion process that takes place adiabatically with no shaft work, the temperature of products is referred to as adiabatic flame temperature can be achieved for given reactants.
  • Heat transfer, incomplete combustion, and dissociation all result in lower temperatures.
  • The maximum adiabatic flame temperature for given reactants occurs for stoichiometric combustion.

Stochiometric combustion:

  • stoichiometric combustion is the theoretical combustion where the reactants burn completely.
  • During the stoichiometric combustion maximum possible heat is generated for given reactants.
  • The fuel:air or fuel:oxidiser ratio is for the stoichiometric combustion is called stoichiometric ratio.

Equivalence Ratio:

  • The equivalence ratio of fuel is the ratio of [fuel:oxidiser] to [stoichiometric fuel/oxidiser].
  • if phi=1 stoichiometric combustion
  • phi<1 lean combustion
  • phi>1 rich combustion
#Adiabatic flame temperature variation with equivalence
#ratio for CH4(constant volume)

from enum import auto
import matplotlib.pyplot as plt
import cantera as ct
import numpy as np

#defining the coefficients of reactants
CH4_coeff_r=[5.14987613E+00,-1.36709788E-02,4.91800599E-05,-4.84743026E-08,1.66693956E-11,-1.02466476E+04,-4.64130376E+00]
O2_coeff_r =[3.78245636E+00,-2.99673416E-03,9.84730201E-06,-9.68129509E-09,3.24372837E-12,-1.06394356E+03, 3.65767573E+00]
N2_coeff_r =[0.03298677E+02, 0.14082404E-02,-0.03963222E-04,0.05641515E-07,-0.02444854E-10,-0.10208999E+04,0.03950372E+02]
CO2_coeff_p=[3.85746029E+00, 4.41437026E-03,-2.21481404E-06, 5.23490188E-10,-4.72084164E-14,-4.87591660E+04,2.27163806E+00]
H2O_coeff_p=[3.03399249E+00, 2.17691804E-03,-1.64072518E-07,-9.70419870E-11,1.68200992E-14,-3.00042971E+04, 4.96677010E+00]
N2_coeff_p =[0.02926640E+02, 0.14879768E-02,-0.05684760E-05,0.10097038E-09,-0.06753351E-13,-0.09227977E+04, 0.05980528E+02]
O2_coeff_p =[3.28253784E+00, 1.48308754E-03,-7.57966669E-07,2.09470555E-10,-2.16717794E-14,-1.08845772E+03, 5.45323129E+00]
CO_coeff_p=[2.71518561E+00 ,2.06252743E-03,-9.98825771E-07, 2.30053008E-10,-2.03647716E-14,-1.41518724E+04 ,7.81868772E+00]

#function to calculate enthalpy with arguments temperature and coefficient
def h(T,coeff):

    #universal gas constant J/mol K
    R=8.314
    # extracting the coefficient for enthalpy
    a1=coeff[0]
    a2=coeff[1]
    a3=coeff[2]
    a4=coeff[3]
    a5=coeff[4]
    a6=coeff[5]
    return(a1+(a2*T/2)+a3*pow(T,2)/3+a4*pow(T,3)/4+a5*pow(T,4)/5+a6/T)*R*T

def f(T,phi):

    #calculating the enthalpy of reactant
    T_r=298.15
    #universal gas constant J/mol K
    R=8.314
    h_ch4_r=h(T_r,CH4_coeff_r)
    h_O2_r=h(T_r,O2_coeff_r)
    h_N2_r=h(T_r,N2_coeff_r)
    h_r=h_ch4_r+h_N2_r+h_O2_r

    #calculating the enthalpy of products
    h_O2_p=h(T,O2_coeff_p)
    h_N2_p=h(T,N2_coeff_p)
    h_CO2_p=h(T,CO2_coeff_p)
    h_H2O_p=h(T,H2O_coeff_p)
    h_CO_p=h(T,CO_coeff_p)
    h_p=h_CO2_p+h_N2_p+h_O2_p

    if (phi<1):
        # combustion equation for lean mixture that means for the equivalence
        # ratio less than one
        # combustion equation for lean mixture,extra O2 is formed on product side
        # ""CH4 + (2/phi)*[O2+3.76N2]---->CO2 +2*H2O +(7.52/phi)*N2+(2/phi  -2)*O2"
        h_r=h_ch4_r+(7.52/phi)*h_N2_r+(2/phi)*h_O2_r
        h_p=h_CO2_p+(7.52/phi)*h_N2_p+(2/phi -2)*h_O2_p+2*h_H2O_p
        n_p=(1+(7.52/phi)+(2/phi -2)+2)
        n_r=1+(7.52/phi)+(2/phi)

    elif(phi>1):
        # combustion equation for rich mixture that means for the equivalence
        # ratio greater than one
        # combustion equation for rich mixture,extra O2 is formed on product side
        # ""CH4 + (2/phi)*[O2+3.76N2]---->(4/phi -3)CO2 +2*H2O +(7.52/phi)*N2+(4 -4/phi)*CO""
        h_r=h_ch4_r+(7.52/phi)*h_N2_r+(2/phi)*h_O2_r
        h_p=(4/phi -3)*h_CO2_p+(7.52/phi)*h_N2_p+(4-4/phi)*h_CO_p+2*h_H2O_p
        n_r=1+(7.52/phi)+(2/phi)
        n_p=(4/phi -3)+(7.52/phi)+(4-4/phi)+2

    else:
        #  stoichiometric combustion equation for the CH4
        # "" CH4 + 2*[O2+3.76N2]---->CO2 + 2*H2O + 7.52*N2  ""
        h_r=h_ch4_r+(7.52)*h_N2_r+(2)*h_O2_r
        h_p=h_CO2_p+(7.52)*h_N2_p+2*h_H2O_p
        n_r=1+(7.52/phi)+(2/phi)

    #for the reaction
    #enthalpy of product and the enthalpy of reactants is same
    #so h_r = h_p
    return (h_r-h_p)-R*((n_r*T_r)-(n_p*T))

# defining the derivative of the function for NR method of root finding
def fprime(T,phi):
    return((f(T+1e-6,phi)-f(T,phi))/1e-6)

T_guess=2000
tol=1e-6
ct=0
alpha=0.5
T=[]
phi=np.linspace(0.1,1.8,80)
for i in phi:
    while(abs(f(T_guess,i))>tol):
        T_guess=T_guess-alpha*((f(T_guess,i))/(fprime(T_guess,i)))
    ct=ct+1
    T.append(T_guess)

plt.plot(phi,T,color="red",label="NR method")

# program using the cantera
import cantera as ct
import numpy as np
T=[]
for j in phi:
    n_CH4=1
    n_O2=2/j
    n_N2=7.52/j
    n_t=n_CH4+n_N2+n_O2
    gas=ct.Solution('gri30.yaml')
    gas.TPX=298.15,101325,{'CH4':n_CH4/n_t,'O2':n_O2/n_t,'N2':n_N2/n_t}  #X for the mole fraction
    gas.equilibrate('UV','auto')  # equilibrium with internal energy and specific volume fixed
    T.append(gas.T)

plt.plot(phi,T,color="blue",label="cantera")

plt.xlabel("Equivalence Ratio")
plt.ylabel("Adiabatic flame temperature")
plt.legend()
plt.show()

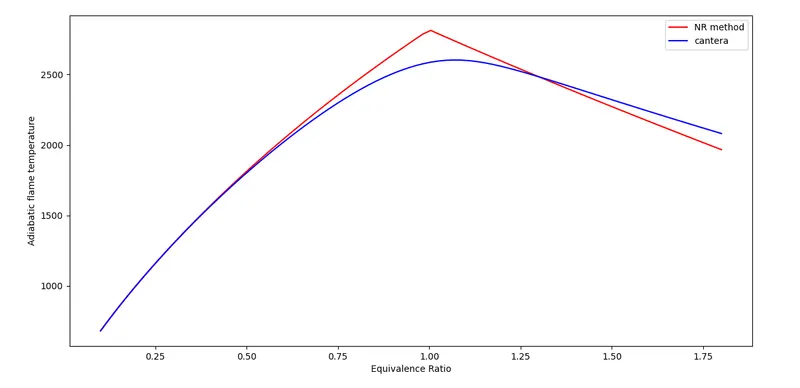

From the plot we can see that adiabatic flame temperature for the cantera is lower than the NR method.

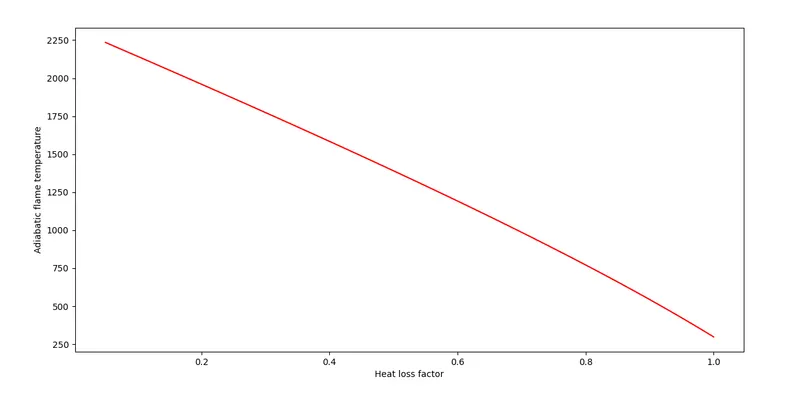

#Adiabatic flame temperature variation with heat loss factor
# for CH4(constant pressure)


import matplotlib.pyplot as plt
import cantera as ct
import numpy as np

#defining the coefficients of reactants
CH4_coeff_r=[5.14987613E+00,-1.36709788E-02,4.91800599E-05,-4.84743026E-08,1.66693956E-11,-1.02466476E+04,-4.64130376E+00]
O2_coeff_r =[3.78245636E+00,-2.99673416E-03,9.84730201E-06,-9.68129509E-09,3.24372837E-12,-1.06394356E+03, 3.65767573E+00]
N2_coeff_r =[0.03298677E+02, 0.14082404E-02,-0.03963222E-04,0.05641515E-07,-0.02444854E-10,-0.10208999E+04,0.03950372E+02]
CO2_coeff_p=[3.85746029E+00, 4.41437026E-03,-2.21481404E-06, 5.23490188E-10,-4.72084164E-14,-4.87591660E+04,2.27163806E+00]
H2O_coeff_p=[3.03399249E+00, 2.17691804E-03,-1.64072518E-07,-9.70419870E-11,1.68200992E-14,-3.00042971E+04, 4.96677010E+00]
N2_coeff_p =[0.02926640E+02, 0.14879768E-02,-0.05684760E-05,0.10097038E-09,-0.06753351E-13,-0.09227977E+04, 0.05980528E+02]
O2_coeff_p =[3.28253784E+00, 1.48308754E-03,-7.57966669E-07,2.09470555E-10,-2.16717794E-14,-1.08845772E+03, 5.45323129E+00]
CO_coeff_p=[2.71518561E+00 ,2.06252743E-03,-9.98825771E-07, 2.30053008E-10,-2.03647716E-14,-1.41518724E+04 ,7.81868772E+00]

#function to calculate enthalpy with arguments temperature and coefficient
def h(T,coeff):

    #universal gas constant J/mol K
    R=8.314
    # extracting the coefficient for enthalpy
    a1=coeff[0]
    a2=coeff[1]
    a3=coeff[2]
    a4=coeff[3]
    a5=coeff[4]
    a6=coeff[5]
    return(a1+(a2*T/2)+a3*pow(T,2)/3+a4*pow(T,3)/4+a5*pow(T,4)/5+a6/T)*R*T

def f(T,HLF):

    #calculating the enthalpy of reactant
    T_r=298.15
    h_ch4_r=h(T_r,CH4_coeff_r)
    h_O2_r=h(T_r,O2_coeff_r)
    h_N2_r=h(T_r,N2_coeff_r)

    #calculating the enthalpy of products
    h_O2_p=h(T,O2_coeff_p)
    h_N2_p=h(T,N2_coeff_p)
    h_CO2_p=h(T,CO2_coeff_p)
    h_H2O_p=h(T,H2O_coeff_p)
    #  stoichiometric combustion equation for the CH4
    # "" CH4 + 2*[O2+3.76N2]---->CO2 + 2*H2O + 7.52*N2  ""

    h_r=h_ch4_r+(7.52)*h_N2_r+(2)*h_O2_r
    h_p=h_CO2_p+(7.52)*h_N2_p+2*h_H2O_p

    # calculating maximum heat loss
    n_CH4=1
    n_N2=7.52
    n_O2=2
    n_H2O=2
    n_CO2=1
    Qmax=n_CH4*h(T_r,CH4_coeff_r)+n_O2*h(T_r,O2_coeff_r)+n_N2*h(T_r,N2_coeff_r)-n_CO2*h(T_r,CO2_coeff_p)-n_H2O*h(T_r,H2O_coeff_p)-n_N2*h(T_r,N2_coeff_p)
    Heat_loss=Qmax*HLF
    return h_p-h_r+Heat_loss


def fprime(T,HLF):
    return((f(T+1e-6,HLF)-f(T,HLF))/1e-6)

T_guess=5000
tol=1e-6
ct=0
alpha=0.5
T=[]
HLF=np.linspace(0.05,1,100)
for i in HLF:
    while(abs(f(T_guess,i))>tol):
        T_guess=T_guess-alpha*((f(T_guess,i))/(fprime(T_guess,i)))
        ct=ct+1
    T.append(T_guess)
print(ct)
plt.plot(HLF,T,color="red",label="NR method")
plt.show()

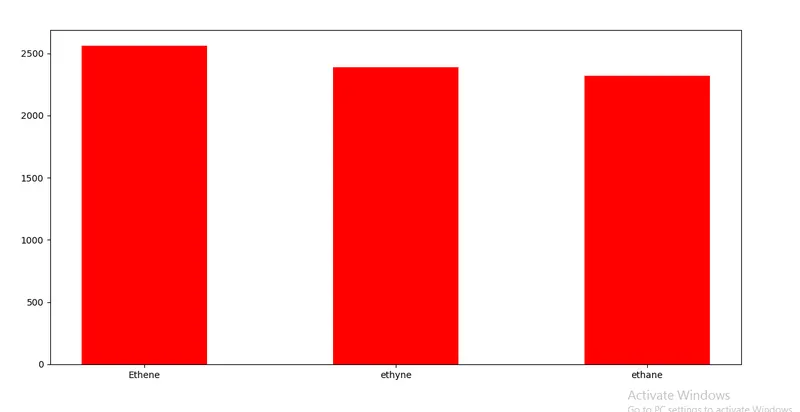

AFT VARIATION FOR ALKANE,ALKINE,ALKYNE

# AFT variation for the alkane,alkine,alkyne
# for 2 carbon


from turtle import color
import matplotlib.pyplot as plt
import numpy as np

CH4_coeff_r=[5.14987613E+00,-1.36709788E-02,4.91800599E-05,-4.84743026E-08,1.66693956E-11,-1.02466476E+04,-4.64130376E+00]
O2_coeff_r =[3.78245636E+00,-2.99673416E-03,9.84730201E-06,-9.68129509E-09,3.24372837E-12,-1.06394356E+03, 3.65767573E+00]
N2_coeff_r =[0.03298677E+02, 0.14082404E-02,-0.03963222E-04,0.05641515E-07,-0.02444854E-10,-0.10208999E+04,0.03950372E+02]
CO2_coeff_p=[3.85746029E+00, 4.41437026E-03,-2.21481404E-06, 5.23490188E-10,-4.72084164E-14,-4.87591660E+04,2.27163806E+00]
H2O_coeff_p=[3.03399249E+00, 2.17691804E-03,-1.64072518E-07,-9.70419870E-11,1.68200992E-14,-3.00042971E+04, 4.96677010E+00]
N2_coeff_p =[0.02926640E+02, 0.14879768E-02,-0.05684760E-05,0.10097038E-09,-0.06753351E-13,-0.09227977E+04, 0.05980528E+02]
O2_coeff_p =[3.28253784E+00, 1.48308754E-03,-7.57966669E-07,2.09470555E-10,-2.16717794E-14,-1.08845772E+03, 5.45323129E+00]
CO_coeff_p=[2.71518561E+00 ,2.06252743E-03,-9.98825771E-07, 2.30053008E-10,-2.03647716E-14,-1.41518724E+04 ,7.81868772E+00]
C2H6_coeff_r=[4.29142492E+00,-5.50154270E-03 ,5.99438288E-05,-7.08466285E-08, 2.68685771E-11,-1.15222055E+04 ,2.66682316E+00]
C2H4_coeff_r=[3.95920148E+00,-7.57052247E-03 ,5.70990292E-05,-6.91588753E-08, 2.69884373E-11, 5.08977593E+03 ,4.09733096E+00]
C2H2_coeff_r=[8.08681094E-01 ,2.33615629E-02,-3.55171815E-05,2.80152437E-08,-8.50072974E-12, 2.64289807E+04,1.39397051E+01]
#function to calculate enthalpy with arguments temperature and coefficient
def h(T,coeff):

    #universal gas constant J/mol K
    R=8.314
    # extracting the coefficient for enthalpy
    a1=coeff[0]
    a2=coeff[1]
    a3=coeff[2]
    a4=coeff[3]
    a5=coeff[4]
    a6=coeff[5]
    return(a1+(a2*T/2)+a3*pow(T,2)/3+a4*pow(T,3)/4+a5*pow(T,4)/5+a6/T)*R*T
# general combustion equation for the combustion
# C2Hy+(2+y/4))(O2+3.76N2)------>2CO2+yH2O+(2+y/4)(3.76N2)

# calculating the enthalpy of rectants
def H(T,y):
    T_r=298.15
    h_C2H2_r=h(T_r,C2H2_coeff_r)
    h_C2H6_r=h(T_r,C2H6_coeff_r)
    h_C2H4_r=h(T_r,C2H4_coeff_r)
    h_N2_r=h(T_r,N2_coeff_r)
    h_O2_r=h(T_r,O2_coeff_r)
    h_O2_r=h(T,O2_coeff_p)
    h_N2_p=h(T,N2_coeff_p)
    h_CO2_p=h(T,CO2_coeff_p)
    h_H2O_p=h(T,H2O_coeff_p)


    if y==2:
        n_C2H2_r=1
        n_C2H4_r=0
        n_C2H6_r=0
        n_O2_r=(2+y/4)
        n_N2_r=(2+y/4)*3.76
        n_H2O_p=y
        n_N2_p=(2+y/4)*3.76

    elif y==4:
        n_C2H2_r=0
        n_C2H4_r=1
        n_C2H6_r=0
        n_O2_r=(2+y/4)
        n_N2_r=(2+y/4)*3.76
        n_H2O_p=y
        n_N2_p=(2+y/4)*3.76

    else:
        n_C2H2_r=0
        n_C2H4_r=0
        n_C2H6_r=1
        n_O2_r=(2+y/4)
        n_N2_r=(2+y/4)*3.76
        n_H2O_p=y
        n_N2_p=(2+y/4)*3.76

    h_r=n_C2H2_r*h_C2H2_r+n_C2H4_r*h_C2H4_r+n_C2H6_r*h_C2H6_r+n_O2_r*(h_O2_r)+n_N2_r*h_N2_r
    h_p=2*h_CO2_p+n_H2O_p*h_H2O_p+n_N2_p*h_N2_p
    Qmax=n_C2H4_r*h(T_r,C2H4_coeff_r)+n_C2H2_r*h(T_r,C2H2_coeff_r)+n_C2H6_r*h(T_r,C2H6_coeff_r)+n_O2_r*h(T_r,O2_coeff_r)+n_N2_r*h(T_r,N2_coeff_r)-2*h(T_r,CO2_coeff_p)-n_H2O_p*h(T_r,H2O_coeff_p)-n_N2_p*h(T_r,N2_coeff_p)
    Heat_loss=Qmax*0.35   # heat loss factor is 35%

    return h_p-h_r+Heat_loss

def Hprime(T,y):
    return (H(T+1e-6,y)-H(T,y))/1e-6
T_guess=1500
T=[]
tol=1e-6
y=[2,4,6]

for i in y:
    while((abs(H(T_guess,i))>tol)):
        T_guess=T_guess-H(T_guess,i)/Hprime(T_guess,i)
    T.append(T_guess)
print(T)

fuel=['Ethene','ethyne','ethane']

fig,ax=plt.subplots()
bars=ax.bar(fuel,T,width=0.5,color='red')
plt.show()

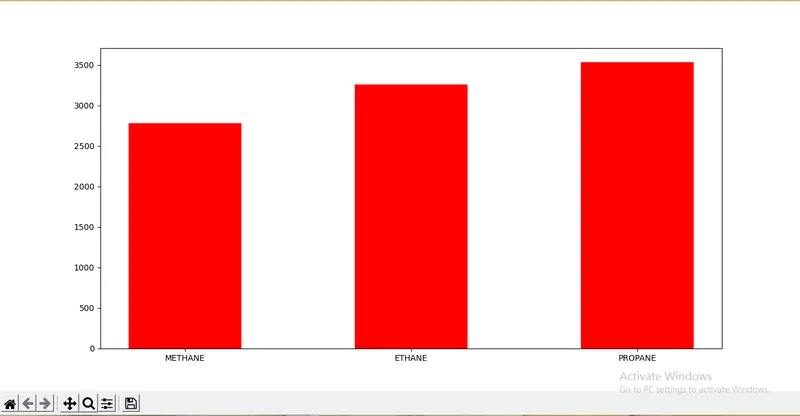

AFT VARIATION FOR ALKANE OF CARBON CHAIN 1,2,3

# AFT variation for the alkane,METHANE,ETHANE,PROPANE
# for 2 carbon


from turtle import color
import matplotlib.pyplot as plt
import numpy as np

CH4_coeff_r=[5.14987613E+00,-1.36709788E-02,4.91800599E-05,-4.84743026E-08,1.66693956E-11,-1.02466476E+04,-4.64130376E+00]
O2_coeff_r =[3.78245636E+00,-2.99673416E-03,9.84730201E-06,-9.68129509E-09,3.24372837E-12,-1.06394356E+03, 3.65767573E+00]
N2_coeff_r =[0.03298677E+02, 0.14082404E-02,-0.03963222E-04,0.05641515E-07,-0.02444854E-10,-0.10208999E+04,0.03950372E+02]
CO2_coeff_p=[3.85746029E+00, 4.41437026E-03,-2.21481404E-06, 5.23490188E-10,-4.72084164E-14,-4.87591660E+04,2.27163806E+00]
H2O_coeff_p=[3.03399249E+00, 2.17691804E-03,-1.64072518E-07,-9.70419870E-11,1.68200992E-14,-3.00042971E+04, 4.96677010E+00]
N2_coeff_p =[0.02926640E+02, 0.14879768E-02,-0.05684760E-05,0.10097038E-09,-0.06753351E-13,-0.09227977E+04, 0.05980528E+02]
O2_coeff_p =[3.28253784E+00, 1.48308754E-03,-7.57966669E-07,2.09470555E-10,-2.16717794E-14,-1.08845772E+03, 5.45323129E+00]
CO_coeff_p=[2.71518561E+00 ,2.06252743E-03,-9.98825771E-07, 2.30053008E-10,-2.03647716E-14,-1.41518724E+04 ,7.81868772E+00]
C2H6_coeff_r=[4.29142492E+00,-5.50154270E-03 ,5.99438288E-05,-7.08466285E-08, 2.68685771E-11,-1.15222055E+04 ,2.66682316E+00]
C3H8_coeff_r=[0.93355381E+00 ,0.26424579E-01, 0.61059727E-05,-0.21977499E-07 ,0.95149253E-11,-0.13958520E+05, 0.19201691E+02 ]
#function to calculate enthalpy with arguments temperature and coefficient
def h(T,coeff):

    #universal gas constant J/mol K
    R=8.314
    # extracting the coefficient for enthalpy
    a1=coeff[0]
    a2=coeff[1]
    a3=coeff[2]
    a4=coeff[3]
    a5=coeff[4]
    a6=coeff[5]
    return(a1+(a2*T/2)+a3*pow(T,2)/3+a4*pow(T,3)/4+a5*pow(T,4)/5+a6/T)*R*T
# general combustion equation for the combustion
# C2Hy+(2+y/4))(O2+3.76N2)------>xCO2+yH2O+(2+y/4)(3.76N2)

# calculating the enthalpy of rectants
def H(T,x):
    T_r=298.15
    h_CH4_r=h(T_r,CH4_coeff_r)
    h_C2H6_r=h(T_r,C2H6_coeff_r)
    h_C3H8_r=h(T_r,C3H8_coeff_r)
    h_N2_r=h(T_r,N2_coeff_r)
    h_O2_r=h(T_r,O2_coeff_r)
    h_O2_r=h(T,O2_coeff_p)
    h_N2_p=h(T,N2_coeff_p)
    h_CO2_p=h(T,CO2_coeff_p)
    h_H2O_p=h(T,H2O_coeff_p)

    n_CH4_r=1
    n_C3H8_r=0
    n_C2H6_r=0
    n_O2_r=(5+x)/2
    n_N2_r=((5+x)/2)*3.76
    n_H2O_p=2*x+2
    n_N2_p=((5+x)/2)*3.76
    n_CO2_p=x

    h_r=n_CH4_r*h_CH4_r+n_C3H8_r*h_C3H8_r+n_C2H6_r*h_C2H6_r+n_O2_r*(h_O2_r)+n_N2_r*h_N2_r
    h_p=n_CO2_p*h_CO2_p+n_H2O_p*h_H2O_p+n_N2_p*h_N2_p
    Qmax=n_C3H8_r*h(T_r,C3H8_coeff_r)+n_CH4_r*h(T_r,CH4_coeff_r)+n_C2H6_r*h(T_r,C2H6_coeff_r)+n_O2_r*h(T_r,O2_coeff_r)+n_N2_r*h(T_r,N2_coeff_r)-n_CO2_p*h(T_r,CO2_coeff_p)-n_H2O_p*h(T_r,H2O_coeff_p)-n_N2_p*h(T_r,N2_coeff_p)
    Heat_loss=Qmax*0.35   # heat loss factor is 35%

    return h_p-h_r

def Hprime(T,x):
    return (H(T+1e-6,x)-H(T,x))/1e-6
T_guess=1500
T=[]
tol=1e-6
x=[1,2,3]
for j in x:
    while((abs(H(T_guess,j))>tol)):
        T_guess=T_guess-H(T_guess,j)/Hprime(T_guess,j)
    T.append(T_guess)
    print(T)

fuel=['METHANE','ETHANE','PROPANE']

fig,ax=plt.subplots()
bars=ax.bar(fuel,T,width=0.5,color='red')
plt.show()

Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
