Week -2 Make a Simulink model of Doorbell using a solenoid block and Use a thermistor to sense the temperature of a heater & turn on or turn off the fan

Objective: 1.  Which types of power converter circuits are employed in electric and hybrid electric vehicles?    2.  An Electric Vehicle's powertrain with a 72V battery pack in shown in the diagram below. The duty ratio for acceleration operation is 'd1' and for the braking operation the duty…

Objective: 1.  What is the difference between the mapped and dynamic model of engine, motor and generator? How can you change the model type? 2.  How does the model calculate miles per gallon? Which factors are considered to model fuel flow? 3.  Run the HEV ReferenceApplication with WOT drive cycle. Change…

Aim: Use the ADVISOR tool and perform the simulation of the vehicle by changing parameters.   Objective: 1.   For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations. 2.   In the above…

Aim: Study the modeling of a CVT Baja All-Terrain Vehicle.   Objective:  Study the Baja ATV model without a dashboard. Study the Baja ATV model with a dashboard. Study the Baja ATV model with a lookup table without a dashboard. Study the Baja ATV model with a lookup table with a dashboard.   Theory:…

Aim: Implement control logic of a “washing machine” using Stateflow as per given sequence and make a Simulink chart for the “Gear shift” logic as per given conditions. Objective: Implement control logic of a “washing machine” using Stateflow as per given sequence:  If the power…

Aim: Simulation of water reservoir system using MATLAB. Objective:     1. The objective of Water Reservoir Simulation is to calculate all the important variables which affect the performance of the water reservoir system. The simulation should follow these conditions:  Conditions:   While…

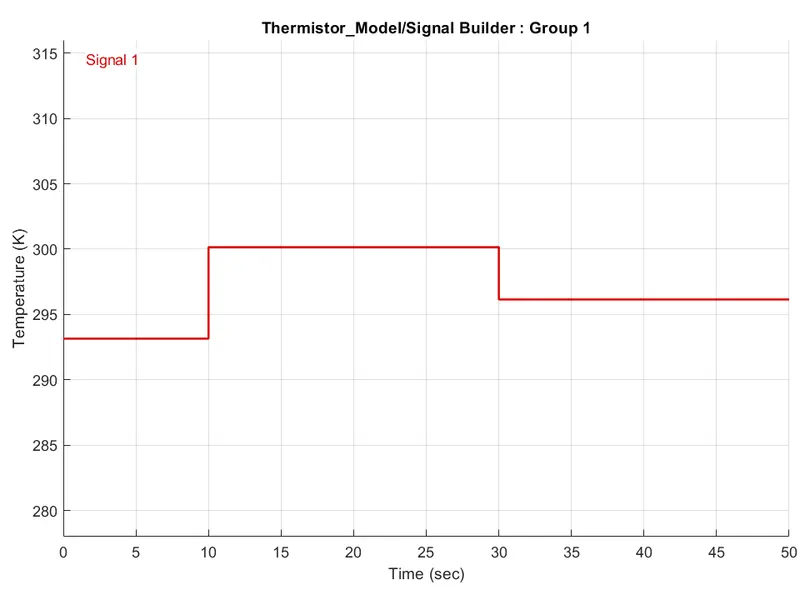

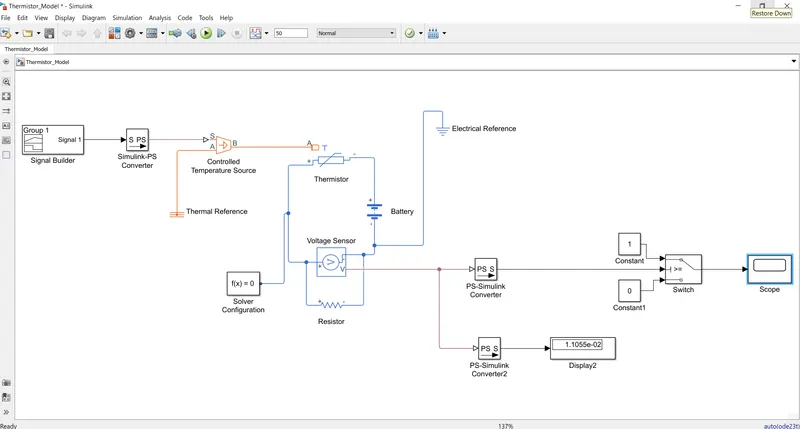

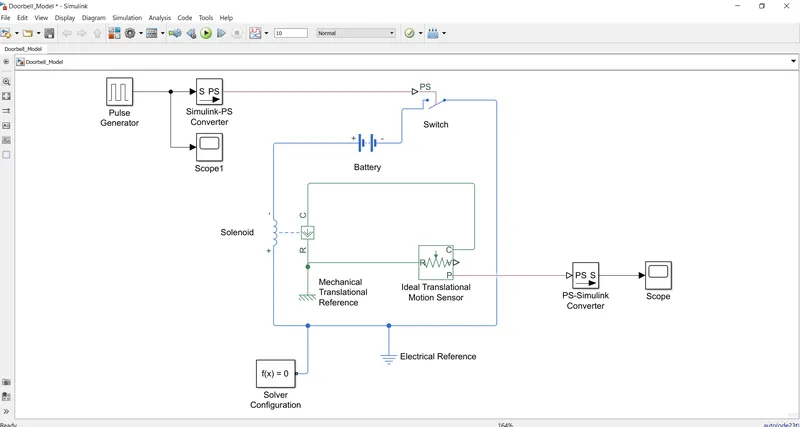

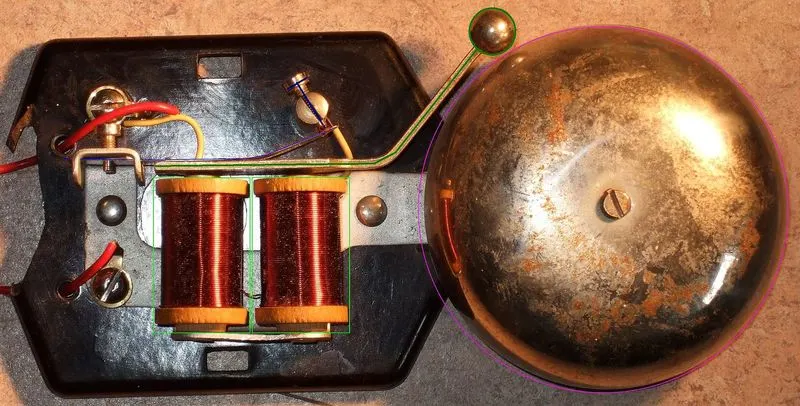

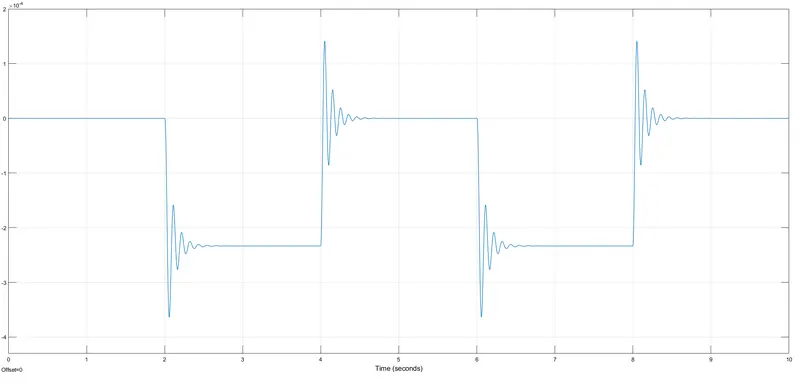

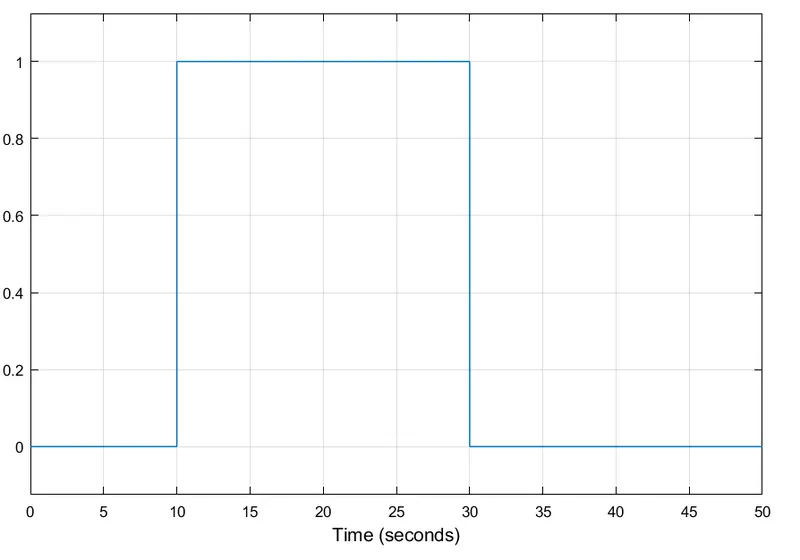

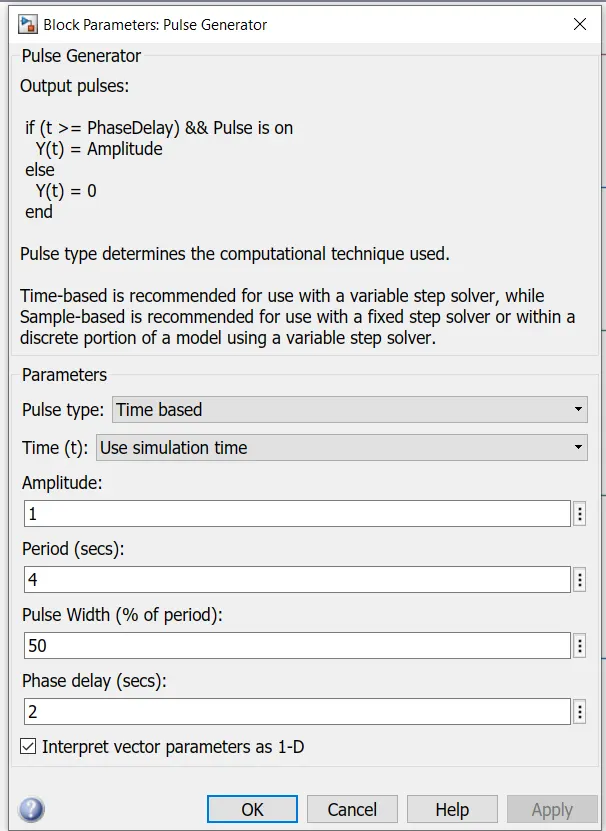

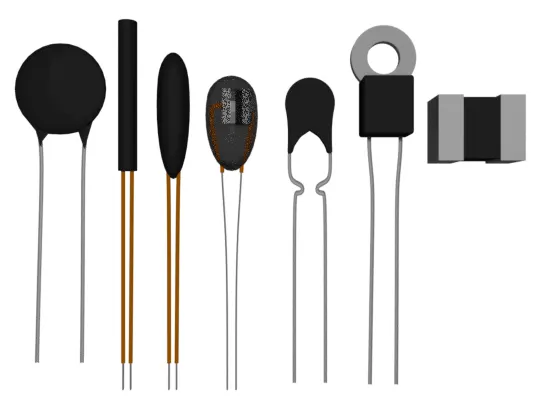

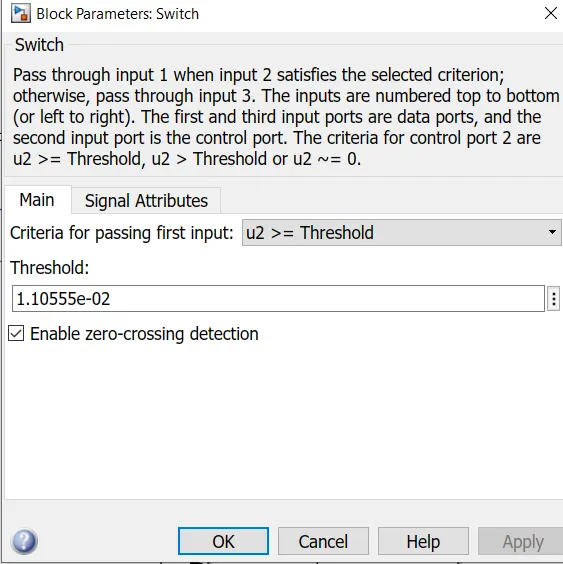

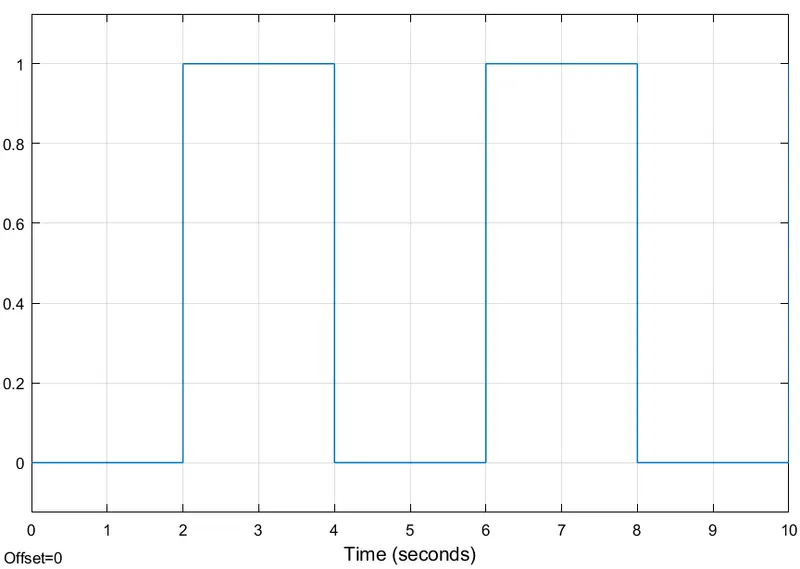

Aim: This challenge aims to make a Simulink model of a doorbell using a solenoid block and make another Simulink model where a thermistor will be used to sense the temperature of a heater & turn it on or turn it off the fan.   Objective:  1. Make a Simulink model of Doorbell using a solenoid block with…

Aim: The aim of this project is to learn and understand the concept of Rankine Cycle Simulator using MATLAB. Objective: Create a Rankine Cycle Simulator using MATLAB. Calculate the state points of the Rankine Cycle based on user inputs.  Plot the corresponding T-s and h-s plots for the given set of inputs. Title and…

Aim: The aim of this challenge is to learn and understand the parsing of data (NASA thermodynamic) and extract the coefficients to calculate the thermodynamic properties of each individual species. Governing Equation: The equation to calculate the Specific Heat, Enthalpy and Entropy of each species is given below. The…

Aim: To understand the concept of genetic algorithm, stalagmite function and ways to optimize.   Governing Equations:                                                      …

AIM: Write a program that solves the ODE for simple pendulum mathematical model and simulate the pendulum motion. GOVERNING EQUATIONS:                                                      …
