Following blocks are used in Simulink to make this project Pulse Generator Switch Battery Electrical Reference Solenoid Mechanical Translational Reference Ideal Translational Motion Sensor Solver Configuration Scope INPUT PULSE RATE The graph will show the cycle- OUTPUT Here can sense the Physical moment…
Priyal Choudhary
updated on 14 Jun 2022

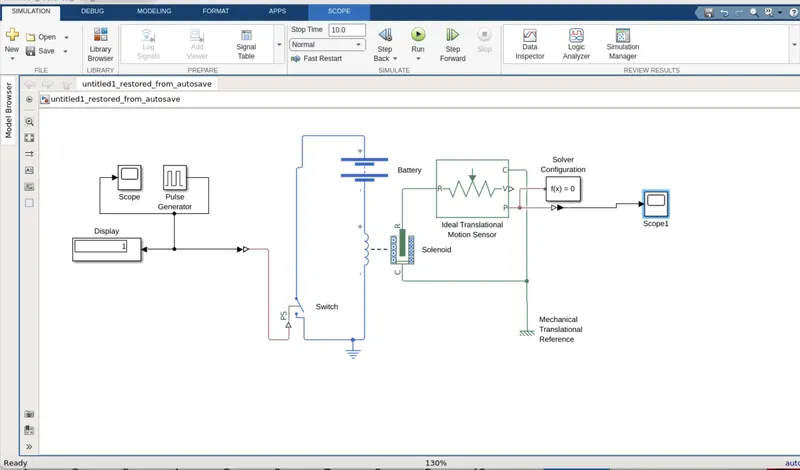

Following blocks are used in Simulink to make this project
Pulse Generator
Switch
Battery
Electrical Reference
Solenoid
Mechanical Translational Reference
Ideal Translational Motion Sensor
Solver Configuration
Scope
INPUT PULSE RATE

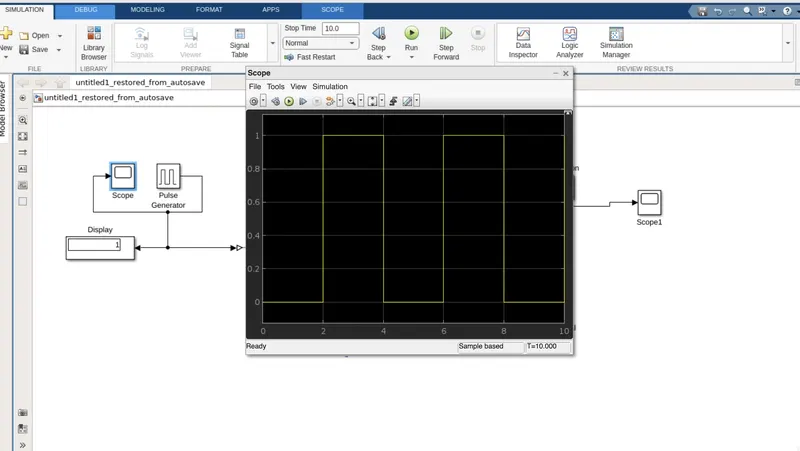

The graph will show the cycle-
OUTPUT

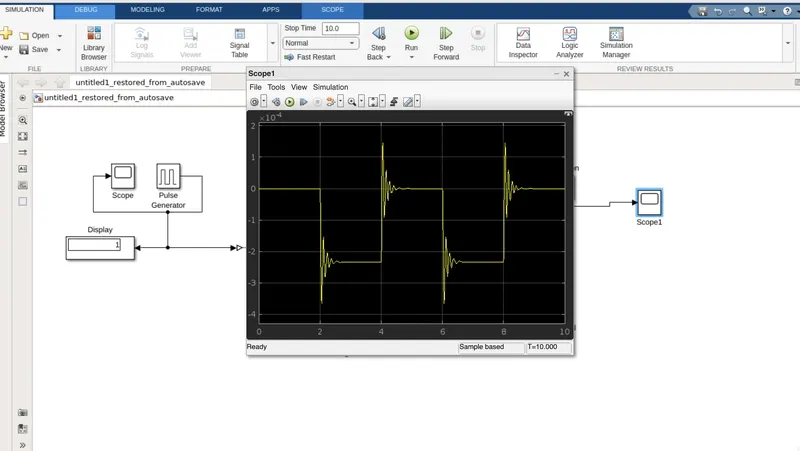

Here can sense the Physical moment of the Plunger as result shown below the graph-
