Design and Developement of B-Piller Cover using Class A Surface and Master Section Development

AIM:To Create a Solid Body of B Piller Cover using Catia v5 Tool using give A Class Surface and Adding thickness to it.Also to create a Ribs and Locators as per the given Master section

SUMMARY:

This Project explain in brief regarding the Design life cycle followed in automotive industry by working on Practical Model B Piller Cover which is a Car interior trim Part.In this Report we have explain about the steps followed to create a solid body of the piller Cover taking Class A Surface as Input and Creating a Tooling axis and B surface with resect to the Class A Surface and Creation of Class C Surface and also the Draft Analysis.The attachment features also designed and reported as per given master section considering all the design rules for the creation of ribs and doghouse.

• What is Master Section?

Master sections are the guides for design requirements which decide the component packaging after technical (Styling, Concept or Class-A) surfaces.

Following is the general workflow that is followed for the design and development of interior and exterior automotive trims in OEMs.

The styling and design teams at automotive OEM’s always walk an extra mile to make the best looking interior and exterior automotive trims. But, when it comes to engineering for feasibility study, there are various constraints that are not well thought and analyzed due to time constraints. As a result, the best-looking styling gets compromised in the production vehicle. Above shown workflow the initial activity of styling and Class A Surface modelling is done by the client and the rest of the activity is done by ASI with client representatives at every stage of development.

To support OEM’s overcome such challenge of delivering competitive and superlative quality automotive trims, we have come up with a methodical approach that focuses on the major selling points of the vehicle. The approach is explained through following 3 blogs:

Block-1: Class A Surface engineering feasibility check & feedback.

Block-2: Matching concept design in detail.

Block-3: Master sections, Detailed Design considerations, B-Surface Modelling, Supplier Feedback & drawing release.

OVER VIEW OF DESIGN LIFE CYCLE:

• Reserach

The research design refers to the overall strategy that you choose to integrate the different components of the study in a coherent and logical way, thereby,ensuring you will effectively address the research problem; it constitutes the blueprint for the collection, measurement, and analysis of data.

• Design Requirements:

The design requirements for a product are based on the wants and needs of the intended customer. These wants and needs must be identified by the company making the product, and they are often communicated by the target customer in nontechnical and sometimes vague terms.

• Feasibility:

In some cases, a feasibility study is carried out after which schedules, resource plans and estimates for the next phase are developed.he feasibility study is an evaluation and analysis of the potential of a proposed project to support the process of decision making. It outlines and analyses alternatives or methods of achieving the desired outcome. The feasibility study helps to narrow the scope of the project to identify the best scenario. A feasibility report is generated following which Post Feasibility Review is performed.

• Concept Generation:

A concept study is often a phase of project planning that includes producing ideas and taking into account the pros and cons of implementing those ideas. This stage of a project is done to minimize the likelihood of error, manage costs, and evaluate the potential success of the intended project. In any event, once an engineering issue or problem is defined, potential solutions must be identified. These solutions can be found by using ideation the mental process by which ideas are generated.It can be done normally by Clay Modelling.

• Prelimnary/Class A Surface Design:

The preliminary design, or high-level design includes often bridges a gap between design conception and detailed design,particularly in cases where the level of conceptualization achieved during ideation is not sufficient for full evaluation. So in this task, the overall system configuration is defined, and Schematics, diagrams,and layouts of the project may provide early project configuration.During detailed design and optimization, the parameters of the part being created will change, but the preliminary design focuses on creating the general framework to build the project on.This is also Called as CLASS A SURFACE DESIGN.Styling or A class surface are the terms used in plastic product design. That mean the surface of a component which is smooth( aesthetic) or visible side to human eye after the part is assembled.Class A Surface is s shown in picture below

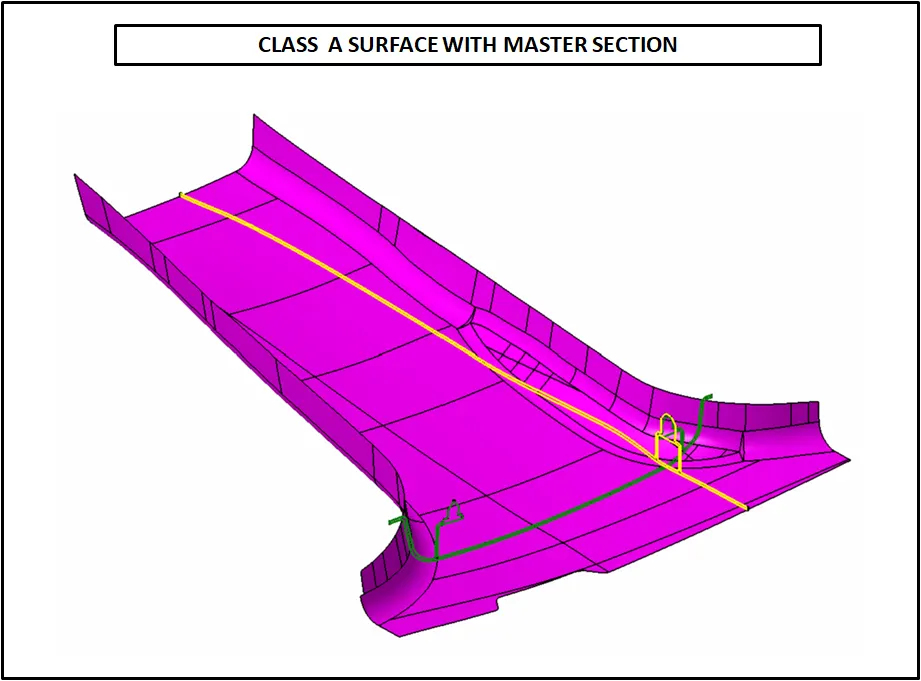

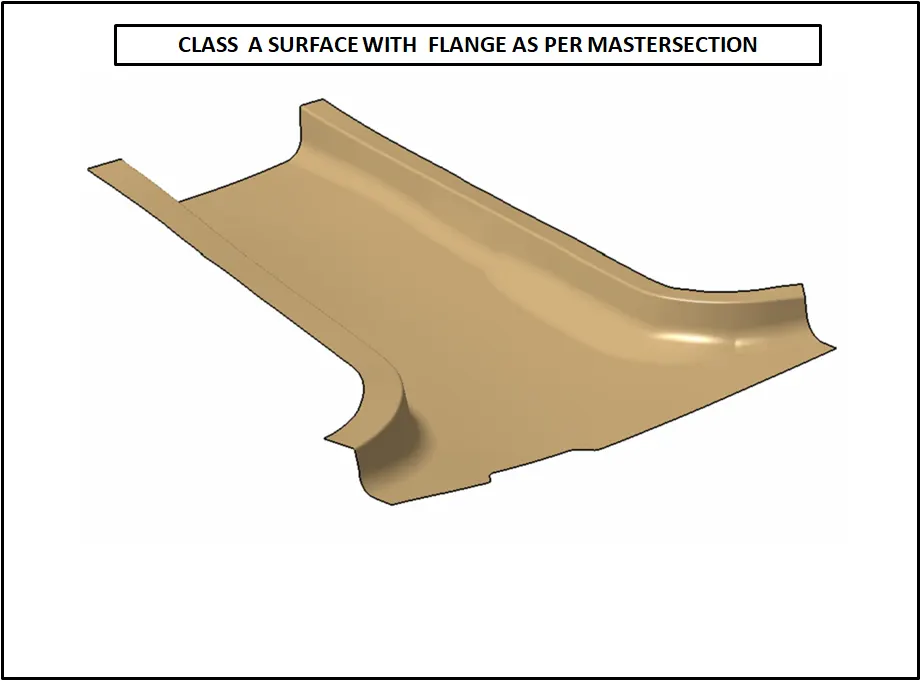

Fig 1 Class A Surface along with Master Section

• Detailed Design:

This may consist of procurement of materials as well. This phase further elaborates each aspect of the project/product by complete description through solid modelling, drawings as well as specifications.Computer Aided Design (CAD) programs have made detailed design phase more efficient. For example, a CAD program can provide optimization to reduce volume without hindering a part's quality. It can also calculate stress and displacement using the finite element method to determine stresses throughout the part.This involves the Creation of Tooling Axs ,B Class and C Class Surface Creation with repect to the Class A Surface and also Considering the Draft angle.Design Engineer role is rominent in this stage.

Design Engineers will study the Input Class A Surface whch is developed by the prelimnary design team and the procedure folowed in creatio of the Switch bazel are as below:

1)Tooling Axis

Tooling Aaxis is nothing but the direction in which the Core and Cavity Opens and Closes.Design Engineer works is to Analyse the Class A Surface and find out the best possible tooling direction keeping in mind all the draft angle is with respect to the tooling axis so that the Component can be easily ejected from the moulds.

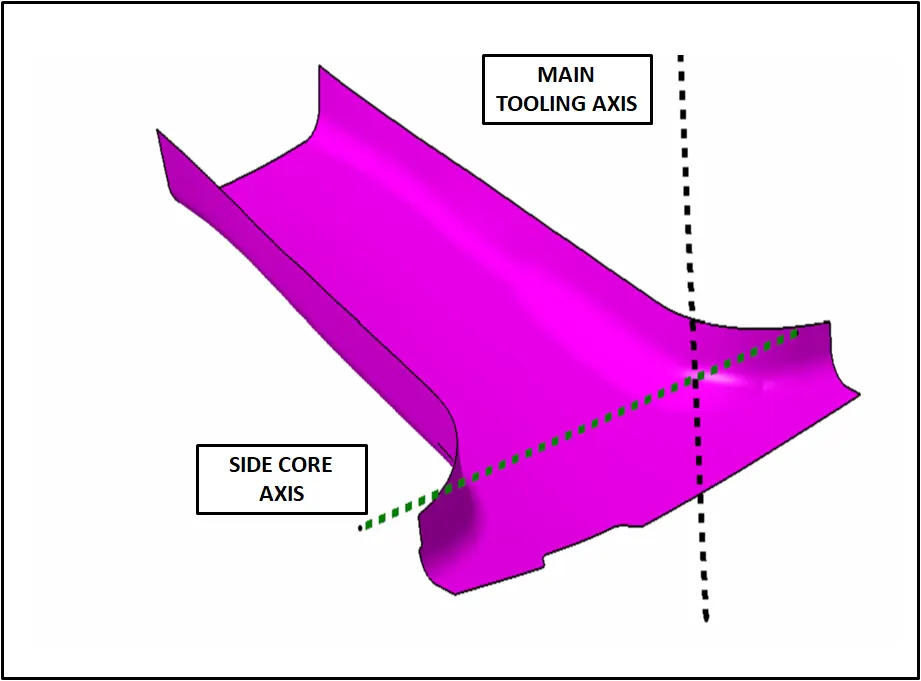

Fig 2 Tooling Axis

2)B Class Surface Creation

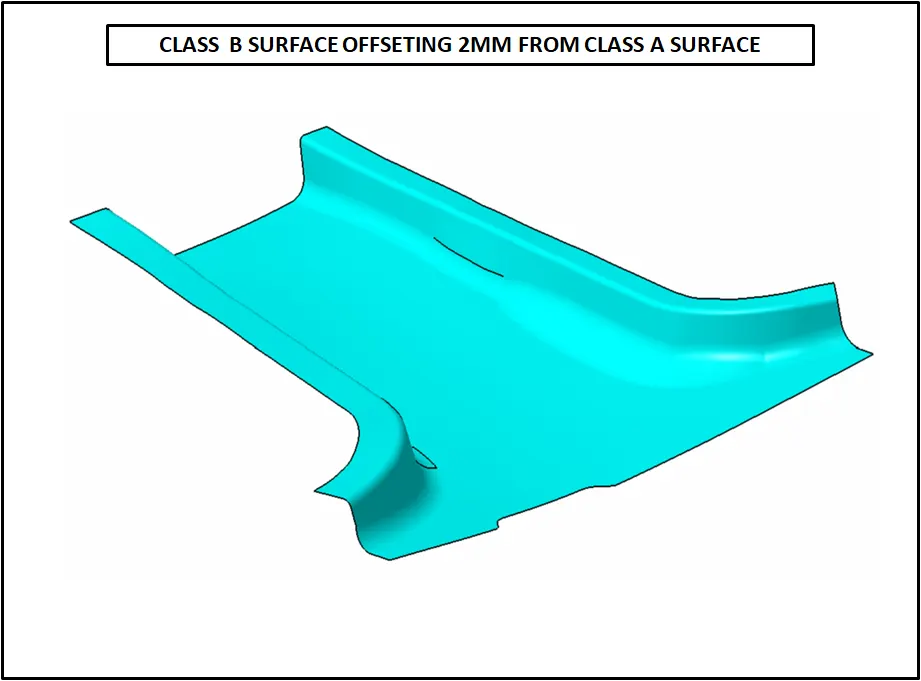

Once after getting the tooling axis we need to create the B Surface which is Parallel to the Class A Surface at the distance of the thickness of the component.It also includes the Each and Every Edges,Fillets,feature which is thee in Class A Surface.In the Switch Bazel the B Surface are at the proportionate distance of 2.5mm from the Class A Surface.

3)C Class Surface Creation

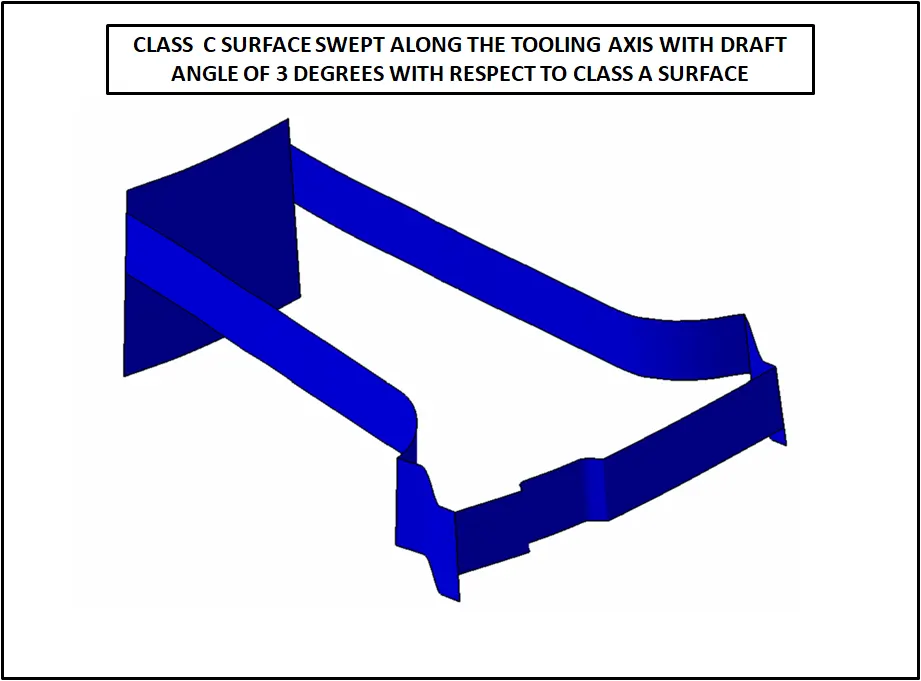

Class C Surface is Swept along the boundry of the Class A at an angle perpendicular to the CLASS A Surface with respect to the Tooling Axis Direction with a Nominal Draft angle of 3 degree.

4)Combining CLASS A,B and C Surfaces to get a Closed Surfaces

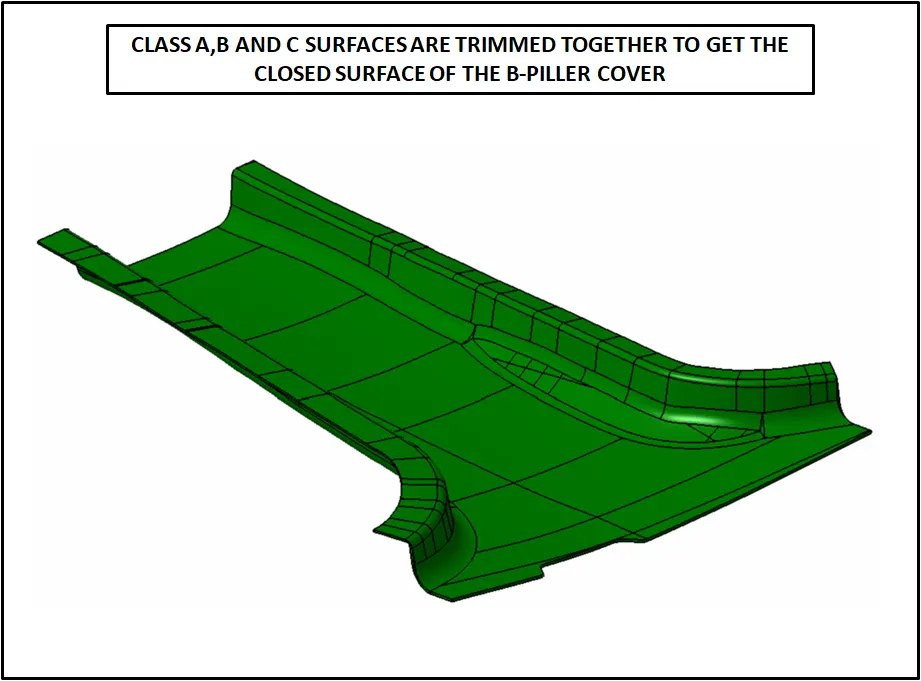

Once after Creating the Class B and Class C,First Join the Class A and Class C Surface together with a Connexity of Surface less than 0.003mm and The Surfaces are Merged.Merged Surfaces are than to be trimmed with Class b Syrfaces to get a Closed surface.

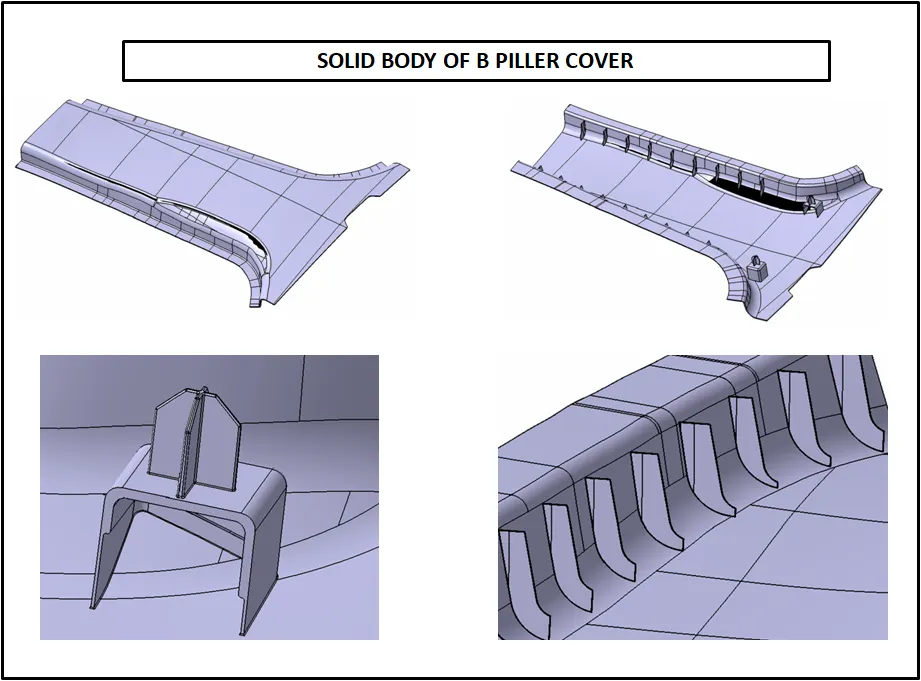

Once done withe the generative sheet design,Switch to Part design and Add the Thickness to the Closed Surface in order to get the Closed Volume Body as shown in the figure.

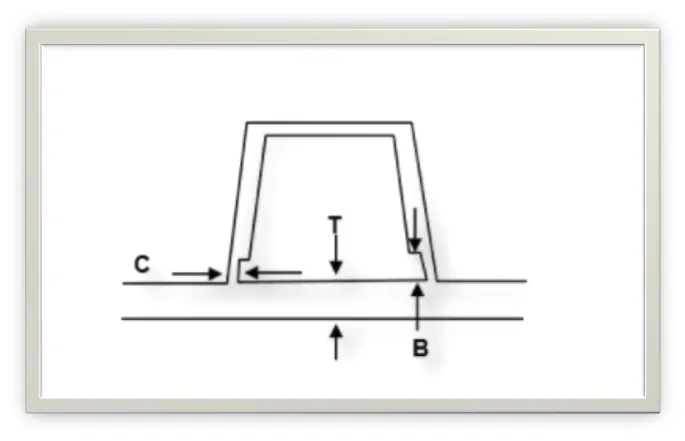

6)Creation of Ribs and Dog house

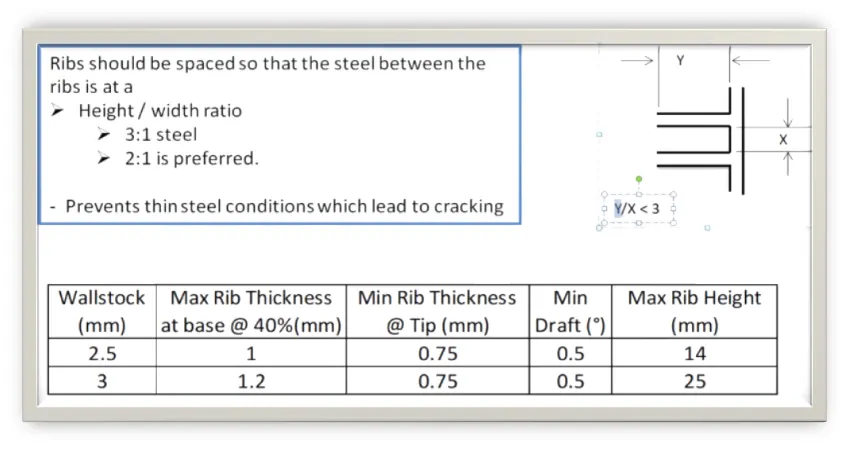

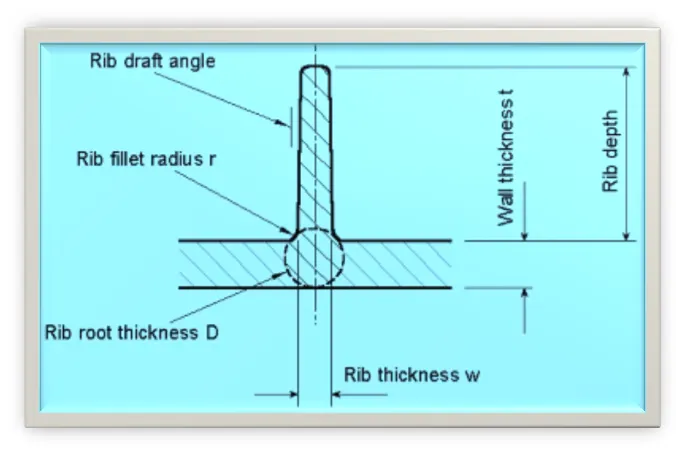

Ribs provide a economical stiffness and strength in molded parts without increasing overall wall thickness.They also facilitate,

1. Locating and arresting the components of an assembly.
2. Providing allignment in mating parts
3. Actong as stops and guides for the mechanisms.

Proper rib design involves 5 main issues:

1. Thickness
2. Height
3. Location
4. Quantity
5. Manufacturability

5)Draft Analysis

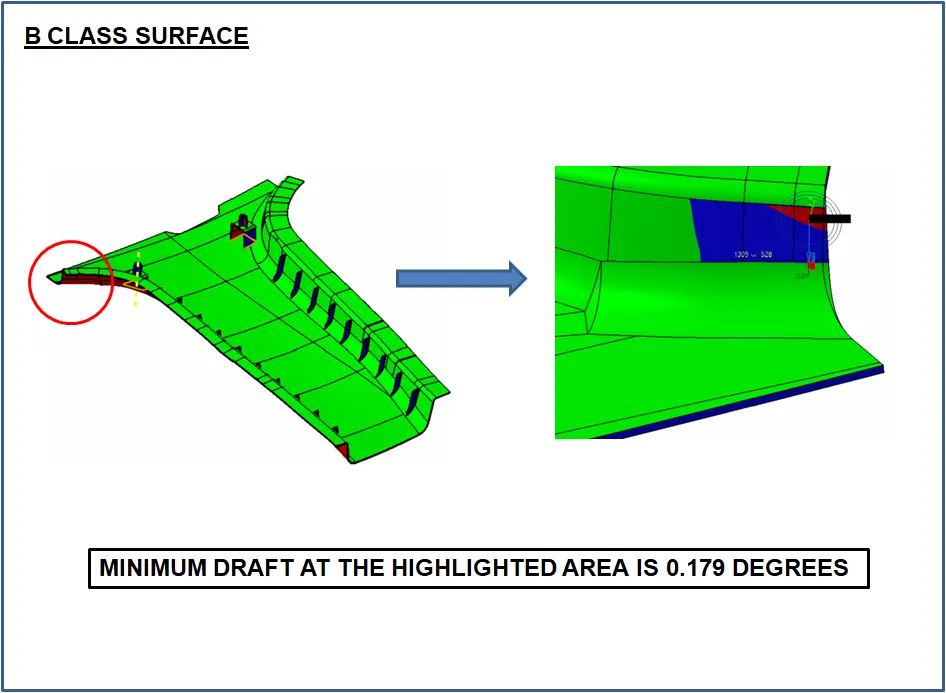

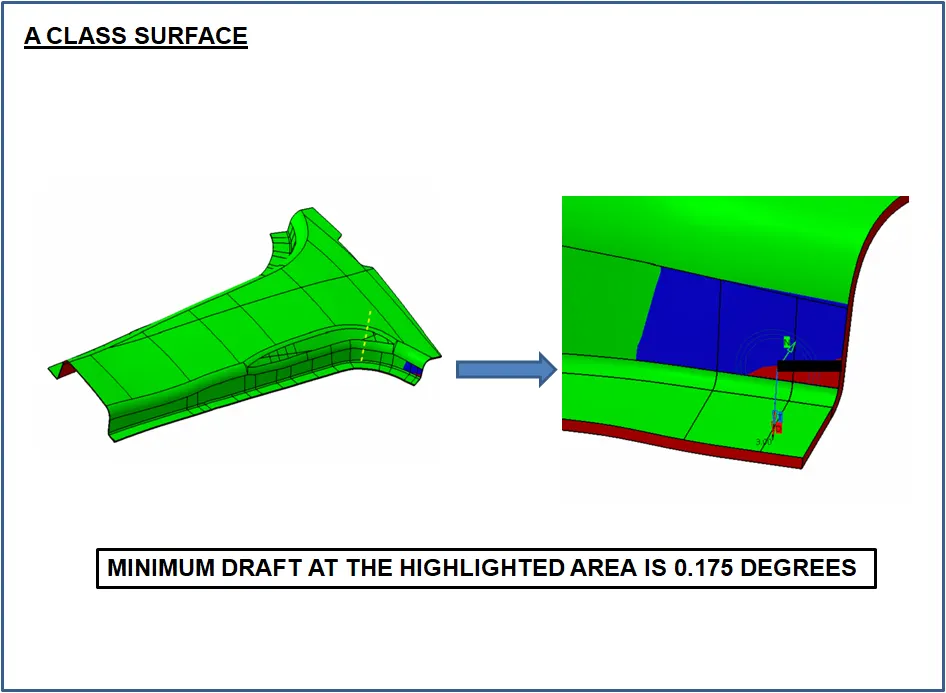

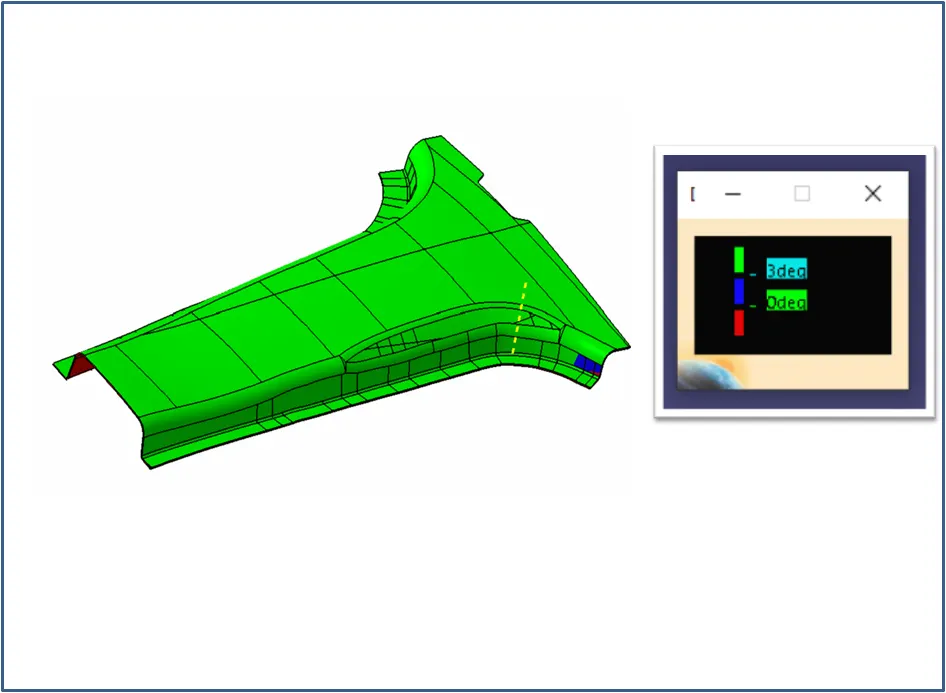

Parts Cannot be ejected from the tool if it is at 90 degree surface.for the reason,A small Draft angle is to be provide for each and every surface s of the Component in order to easy removal of component from the moulds without any defects.Draft is the angle in which the part is tapered to aloow it to release.Most of the part require minimum 1/2 degree to 1 degree however 3 degrees are wudely accepeted in plastic component design.Draft Analysis is the technique used to analise weather our designed product are manufacturable with required conditions or not.

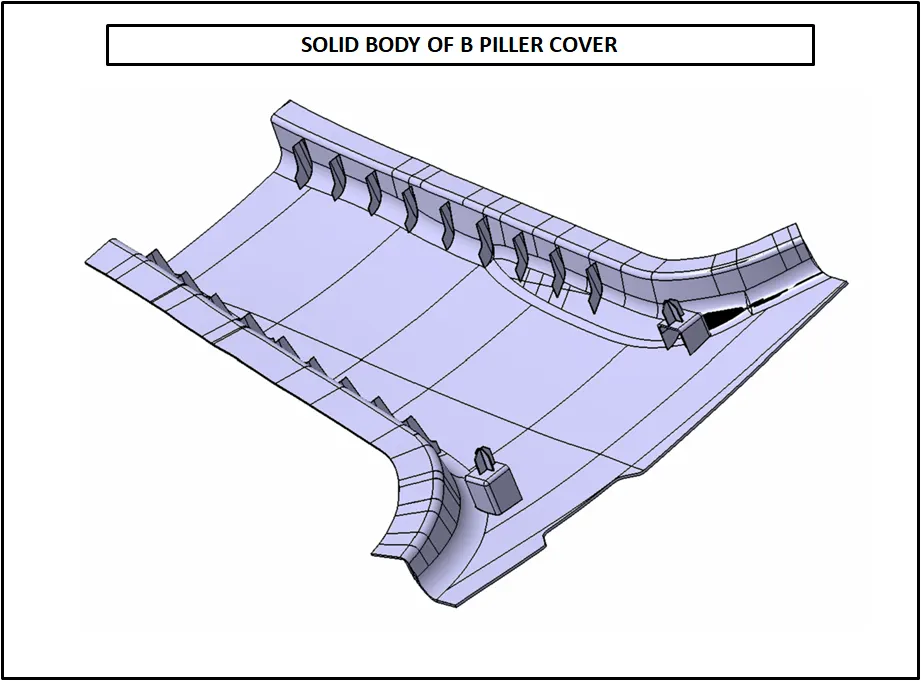

Final Output:

Conclusion:

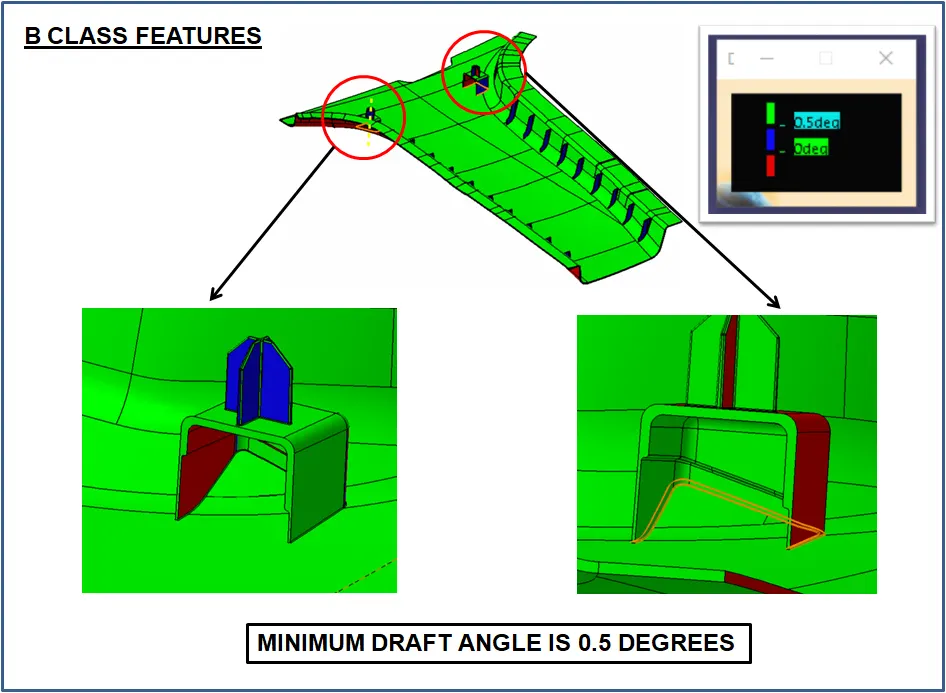

Thus the Interior trim of the Car B-Piller Cover is designed using the given A Class Surface as the Input and B and C Class Surfaces are created with respect to the A Class Surface.By using the Given Master section attachment features i.e. Ribs and doghouse created considering all the design rules for creation of Ribs and Doghouse.Also carried out the draft analysis to check weather the Component is easily manufacturable or not with the given draft of 3 degrees for the surfaces and 0.5 degress for the ribs.With all these datas and report we can conclude that the Draft Analysis is Very important to design any Plastic Component because when we making a part that will be molded, the analysis will verify that all surfaces are favorable for being pulled from a cavity.It may also highlight or give insight to "trouble" areas.
