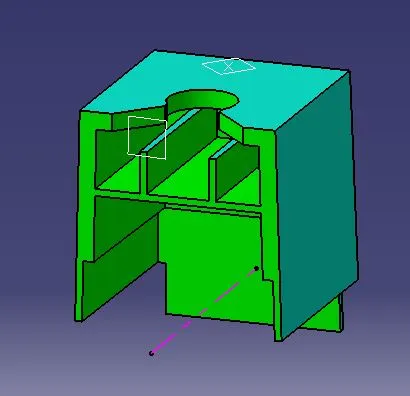

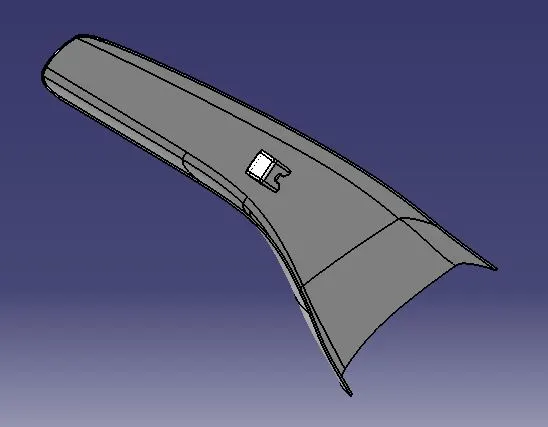

A PILLAR DESIGN WITH MASTER SECTION

INPUT:-

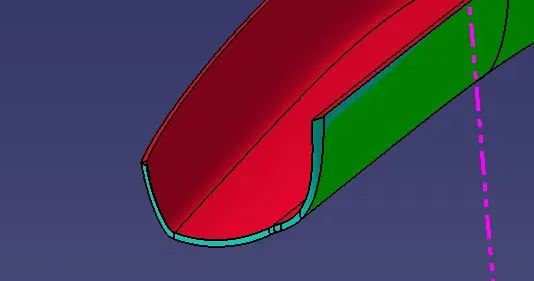

CORRECTION OF CLASS A SURFACE

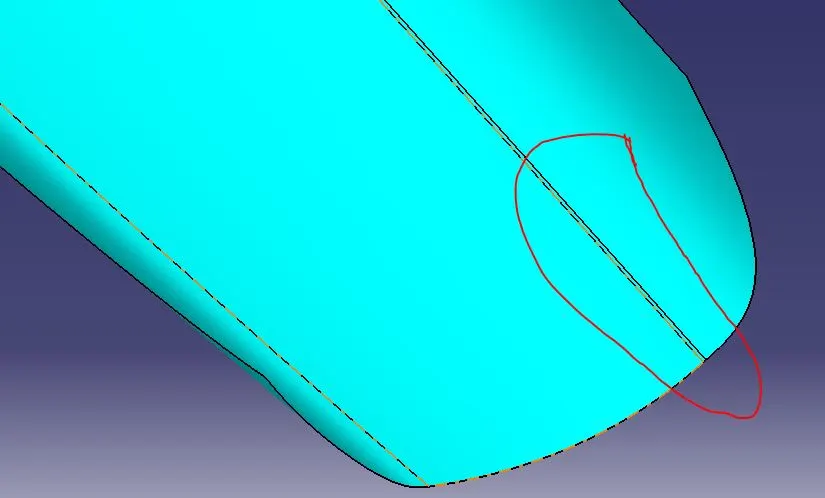

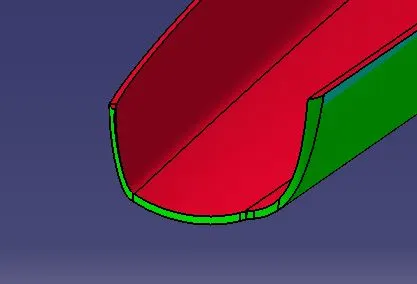

PROBLEM OCCURED IN THIS REGION

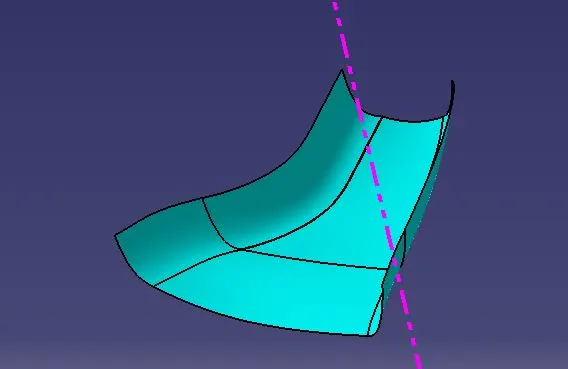

RESOLVED CLASS A SURFACE

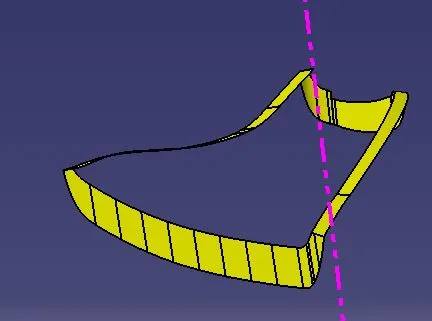

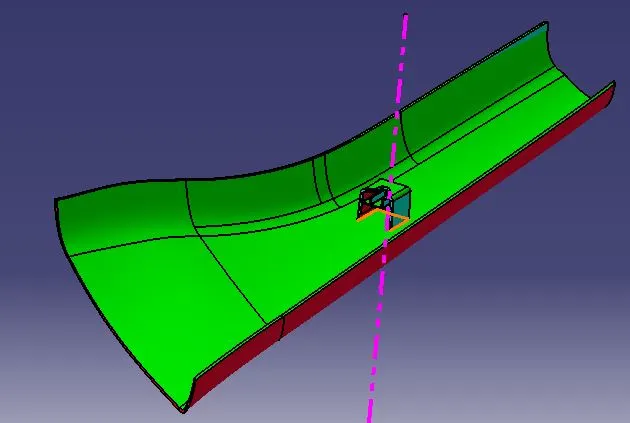

MAIN TOOLING AXIS

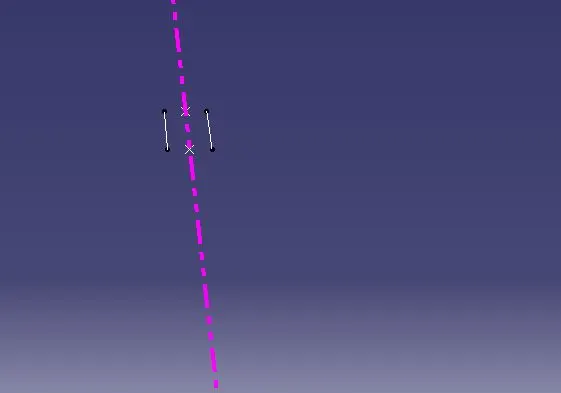

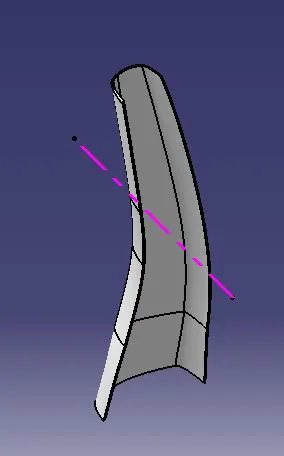

TOOLING AXIS IS CREATED BY SIMPLY EXTRACTING 2 ANGLED EDGES OF MASTERSECTION 2

WITH TWO POINTS WHICH ARE TAKEN FROM THOSE 2 EXTENDED EDGES.

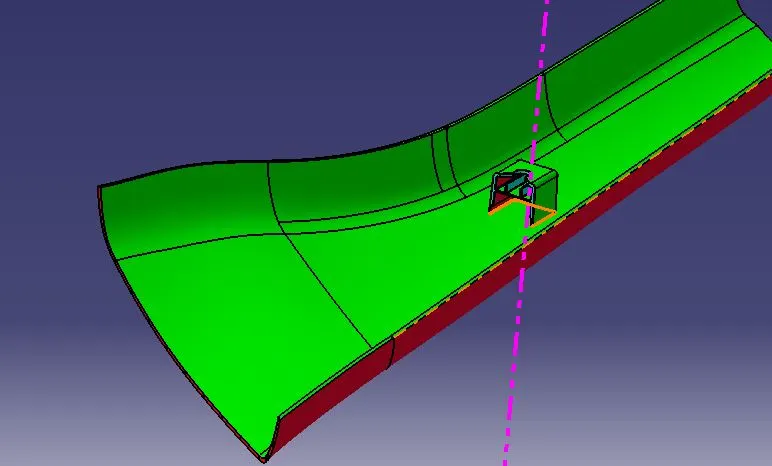

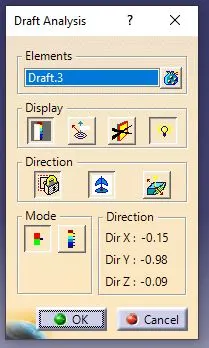

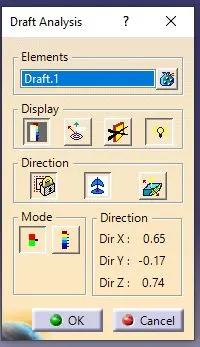

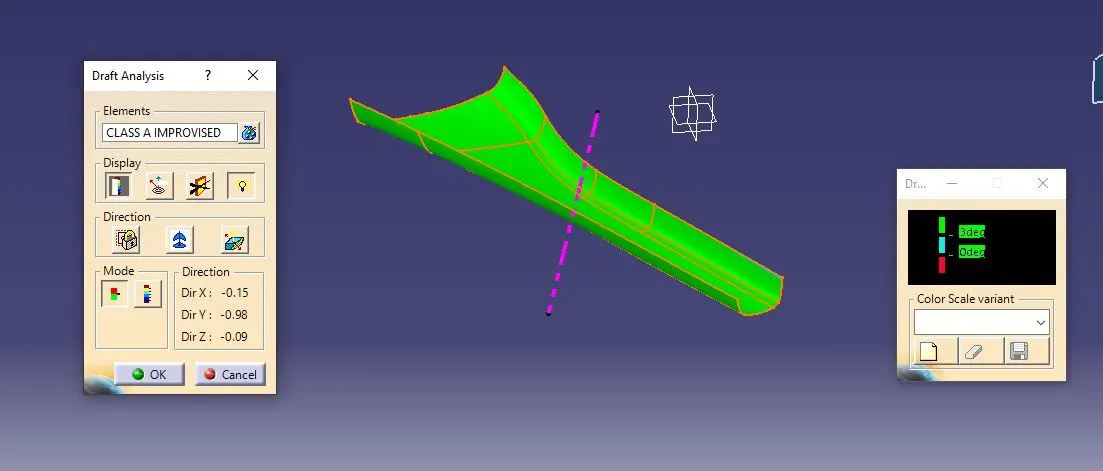

DRAFT ANALYSIS ON CLASS A

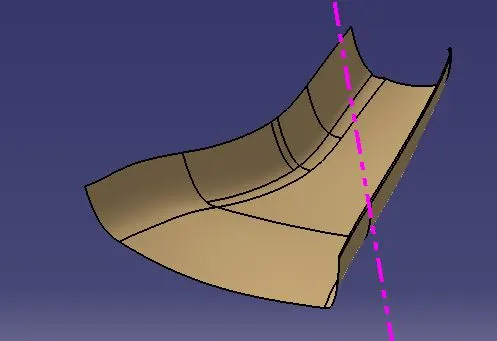

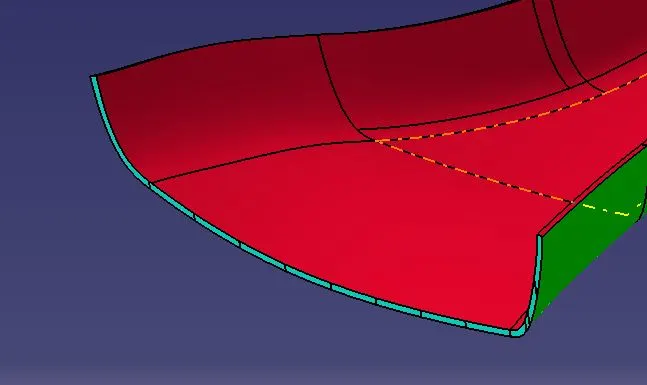

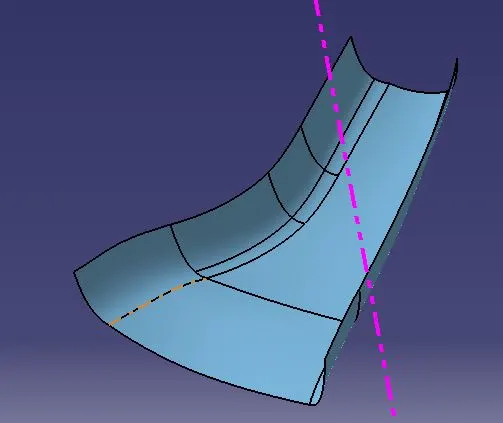

CLASS B SURFACE

CLASS C SURFACE

CLASS A & C JOIN

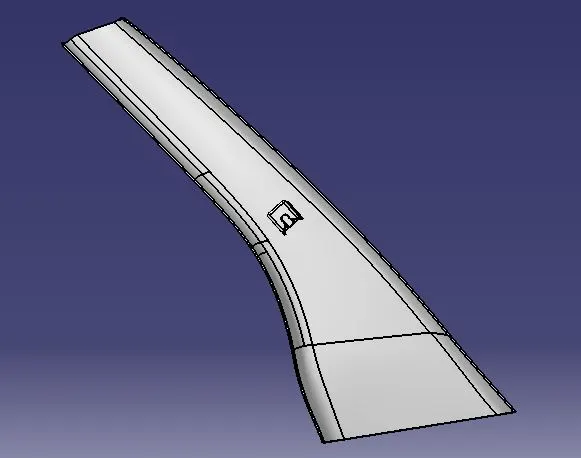

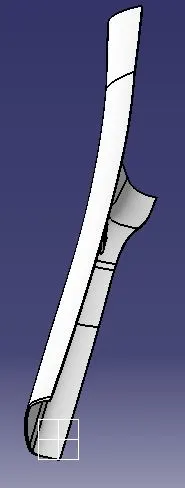

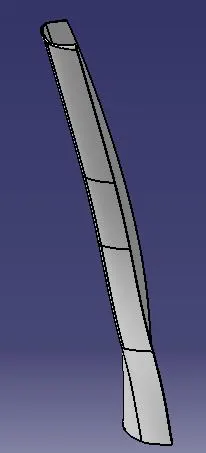

FINAL TRIM CLOSED SURFACE OUTPUT

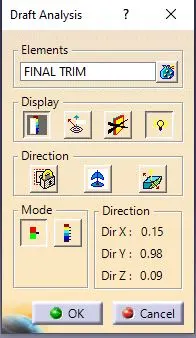

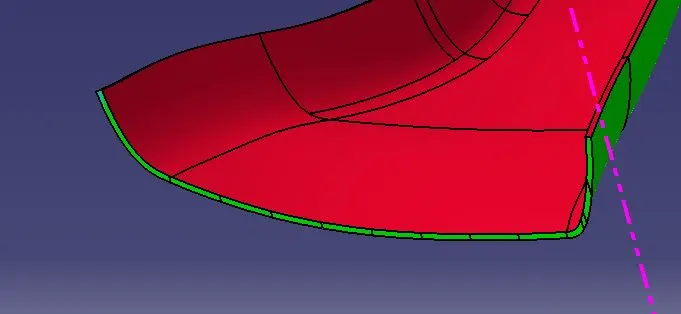

DRAFT ANALYSIS RESULT ON FINAL TRIM

FOR 2.9 DEG

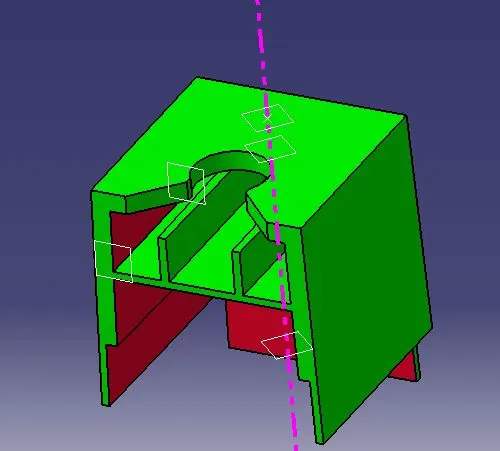

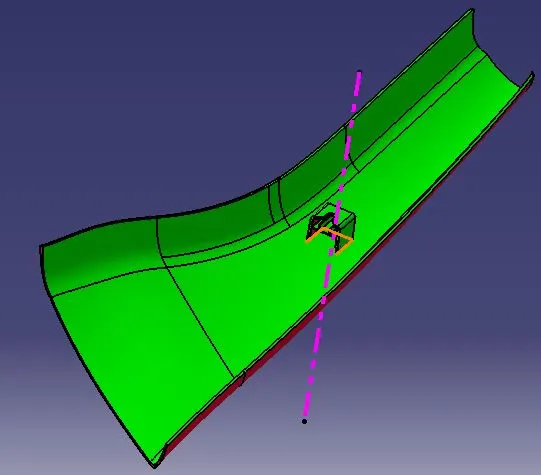

DRAFT ANALYSIS RESULTS ON DOGHOUSE CREATED FROM PROVIDED DATA OF MASTERSECTION

FOR SIDE CORE AXIS

FOR MAIN AXIS

DRAFT ANALYSIS RESULTS ON FINAL COMPONENT

FOR 3 DEG

FOR 1.5 DEG

FOR 0.5 DEG

VIEWS

ISOMETRIC VIEW FRONT VIEW

TOP VIEW RIGHT SIDE VIEW
