Week 7 Challenge - Assembly Workbench

QUICK RETURN MOTION MECHANISM

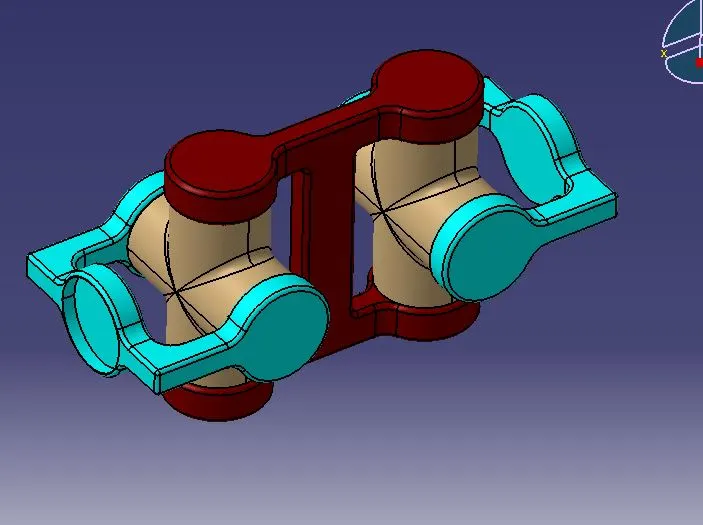

CV JOINT

PART MODELING:-

1. SKETCHES ARE CREATED ON POSITIONED SKETCH.
2. PART ARE MODELED IN SUCH A WAY THAT MOST OF THEM ARE CREATED WITH THE USE OF SINGLE SKETCHES SO THAT IT COULD BE EASILY CHANGEABLE.

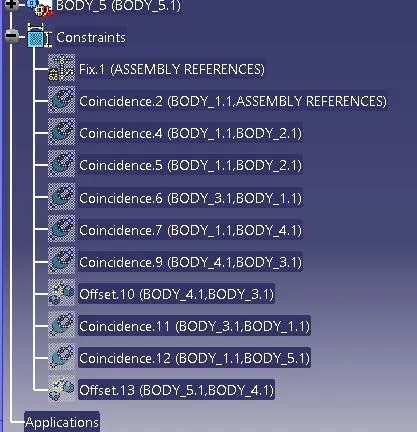

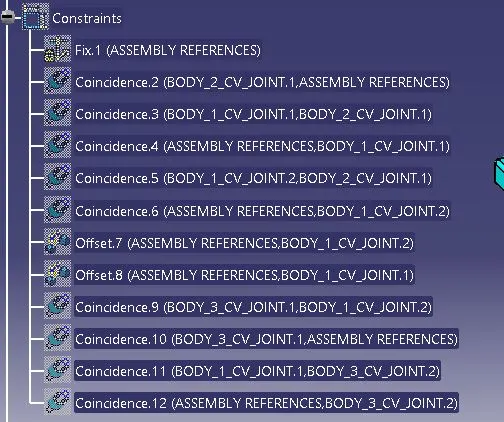

ASSEMBLY:-

• ASSEMBLIES ARE DONE WITH THE HELP OF PUBLISHED REF. ELEMENTS FROM EVERY PART & REFERENCE ELEMENT PART GENERATED IN ASSEMBLY ENVIRONMENT.
• WHILE CONSTRAINIG IN ASSEMBLY ONLY PLANES & AXES ARE USED FOR SOLID ASSEMBLY.
