Week 11 - Project - A pillar Design with Master Section
Week 11 - Project - A pillar Design with Master Section
Aim:
Objectives:
- A detailed report should be done explaining the draft analysis and the tooling axis creation.
- Create the surfaces using the given master dections.
- An explanation should be given on the way of creating the tooling axis, particularly the Bisecting method.
REPORT:

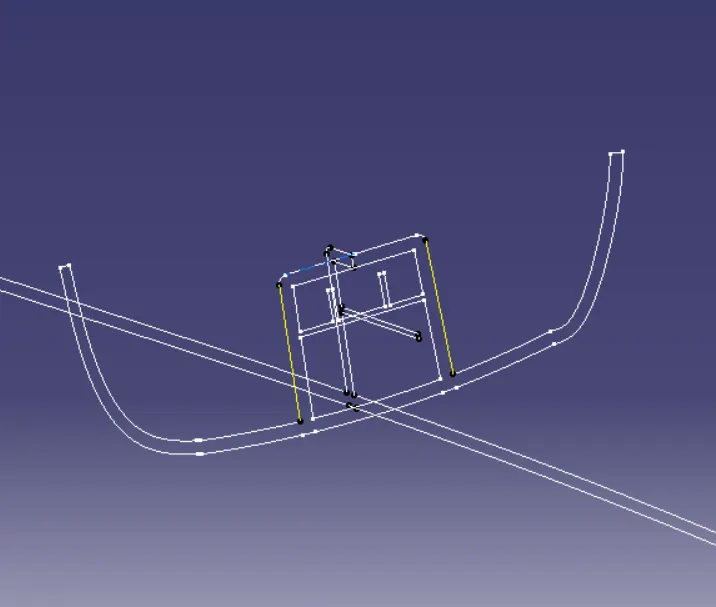

TOOLING AXIS:

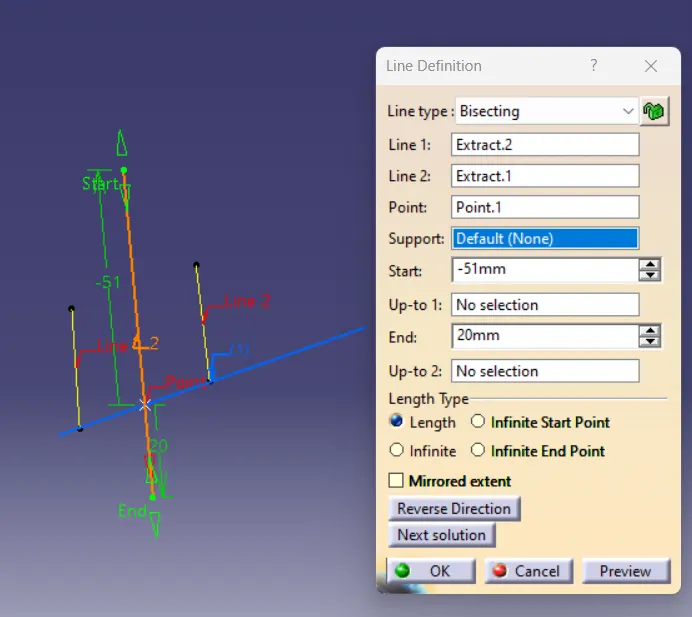

As the master section for the part is given and it contains a dog house we need to clear draft for them also. So extract the two lines at the edges of the dog house and create a bisecting line for both of them. Check the draft is clearing with the given line which is the created tooling axis.

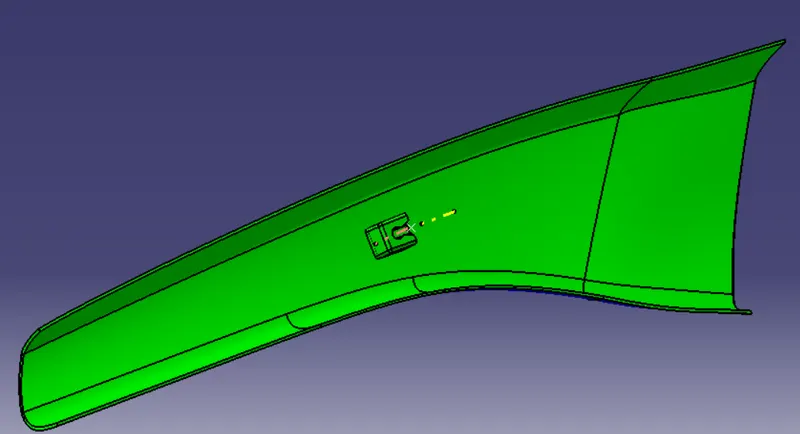

Draft Analysis of Class A surface
Draft analysis is performed over Class A surface and every surface is obtained as clearing.

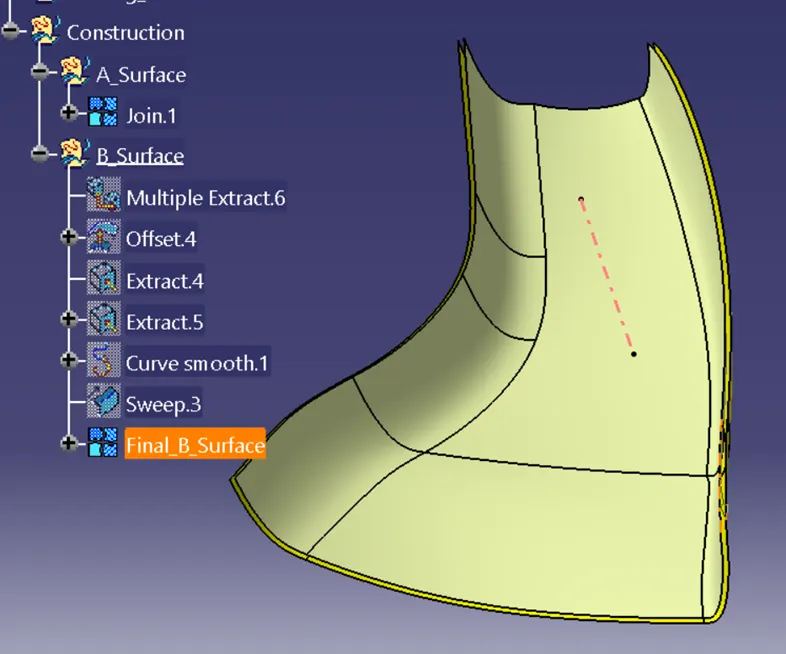

Creation Of Class B Surface
- Now, Class B surface has to be created. For this, multiple extract is used to extract surface in a single operation. Surfaces obtained are the offsetted for 2.5mm.
- The Unfilled areas have to be filled with sweep surface with the help of profile and guide curve and join them together.
- Check the B surface by boundary command to make sure there is no gap in the surface.
Creation Of Class C Surface
- Now class C surface has to be created and it is created from the boundaries obtained from the Class A surface. This boundary is provided as the input curve for sweep command. Using sweep command, class C surface is created.
- Appropriate sweep is the provided considering the flash and considering manufacturing procedures. Surfaces are extrapolated if necessary.
- Closed surface command is performed with the help of part workbench and later the draft analysis is performed.

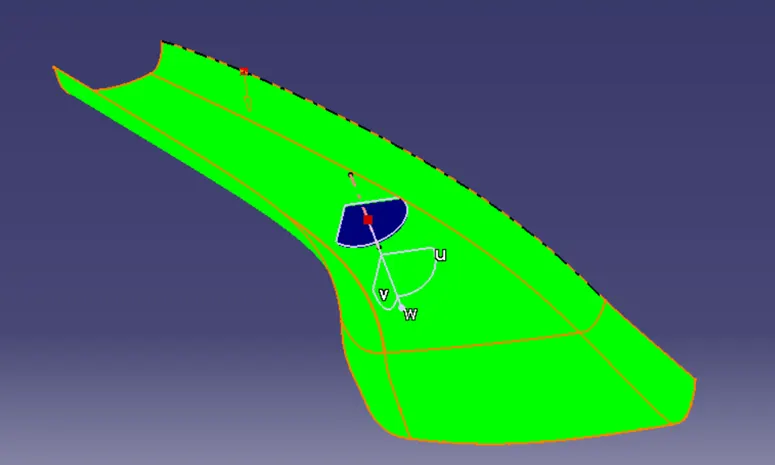

Draft Analysis Of the Closed Body
Creation Of Slider Direction
- Create a point at the midpoint of the top edge of the dog house opening.
- Create a line normal to the front surface.
- Check the draft analysis.

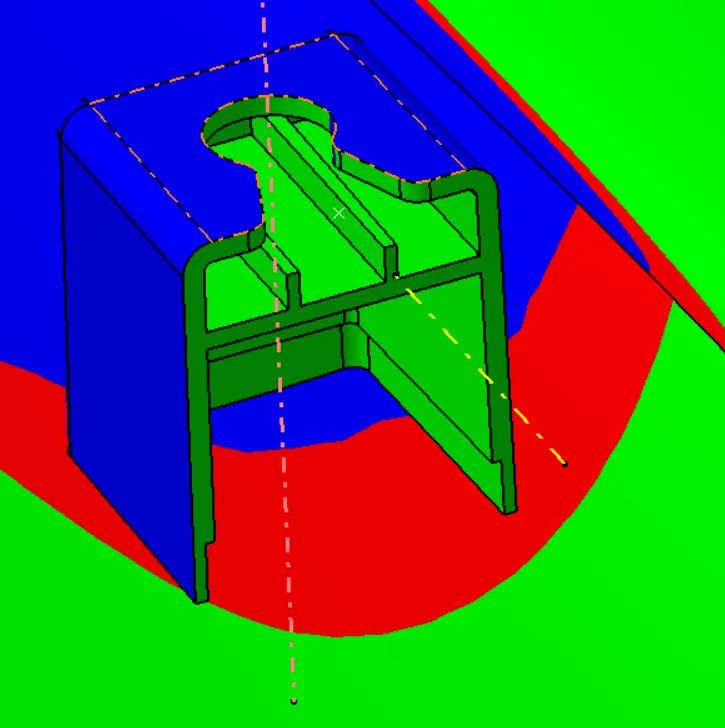

Slider Draft Analysis For Dog House

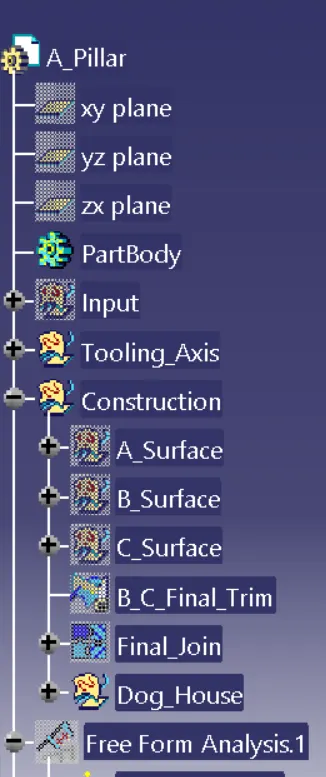

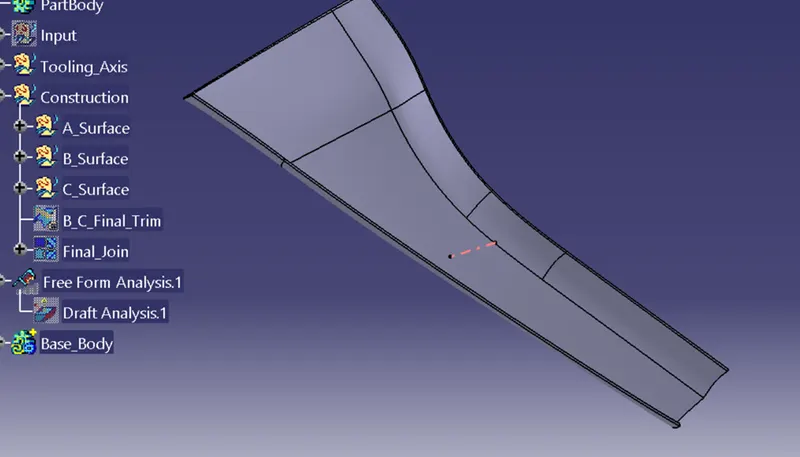

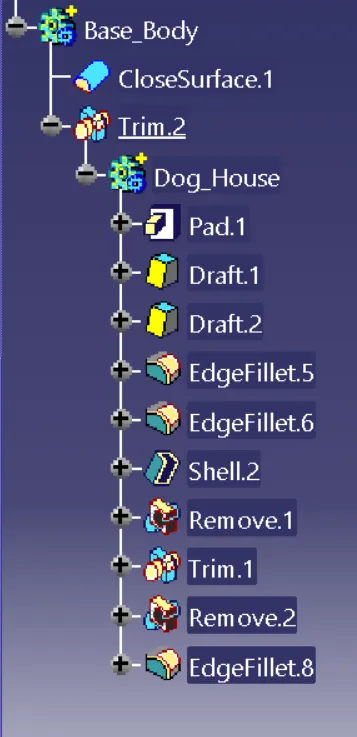

Tree Structure

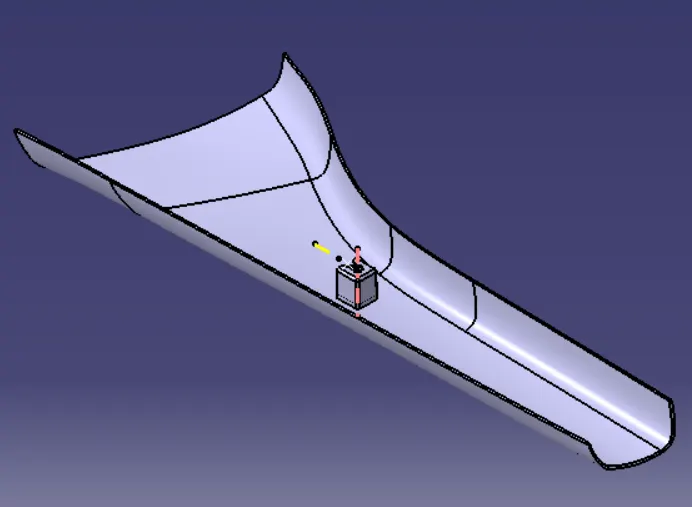

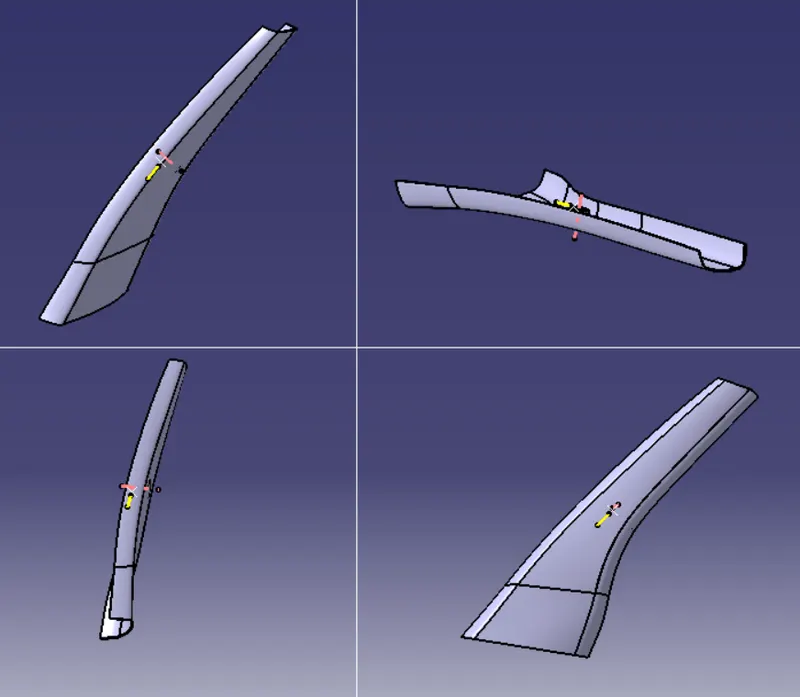

Final Part
