Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

DOOR TRIM

ATTACHMENT FEATURE CREATION DOG HOUSE

• Dog house is an engineering feature used in plastic trim design.
• Dog houses are used as supporting feature.
• Dog house are provide to avoid Sink Marks in the Plastic trim design.
• We cannot Design aa screw boss which is longe in size. It might break if its longer, to overcome this situation we design dog house and over that we provide screw bosses which gives strength to the platic product.

REQUIRED OUTPUT

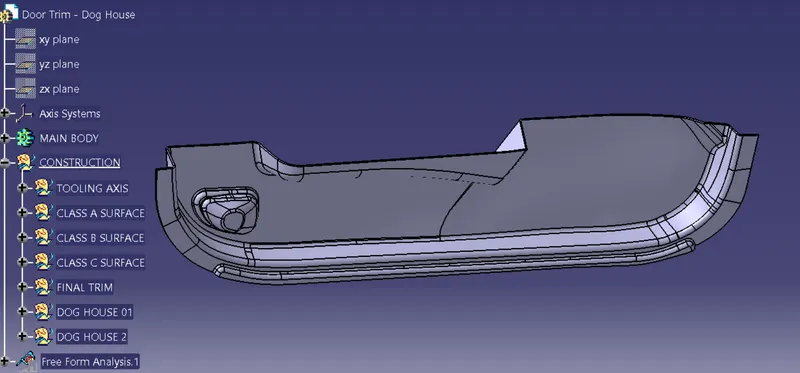

TREE STRUCTURE

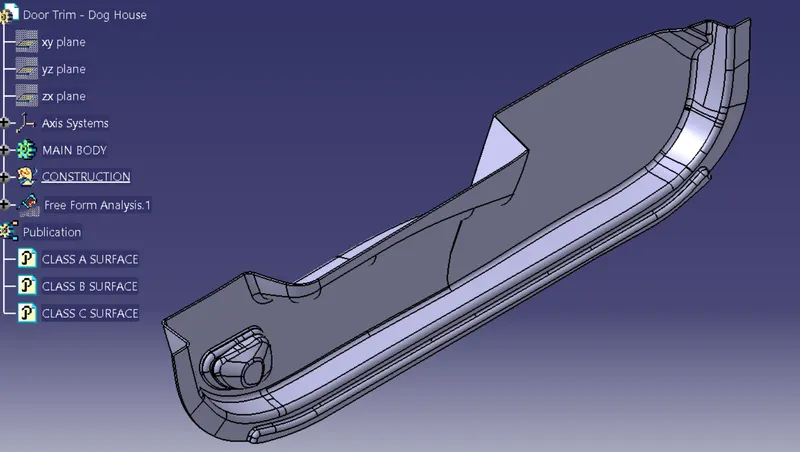

DOOR TRIM

THICKNESS OF THE DOOR TRIM - 2.5MM.

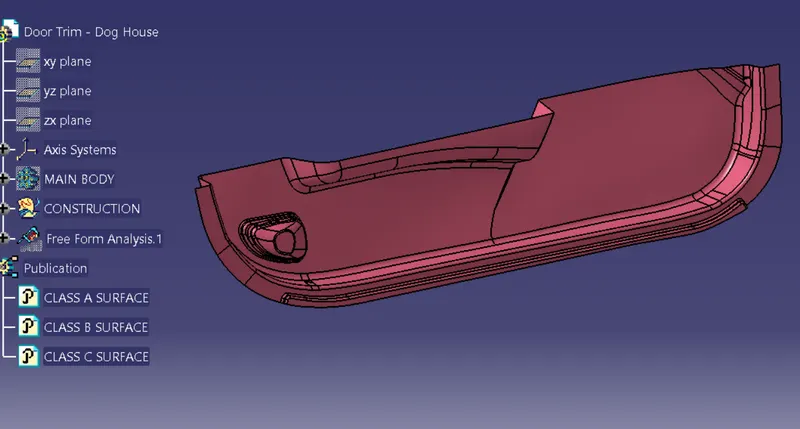

CLASS A SURFACE

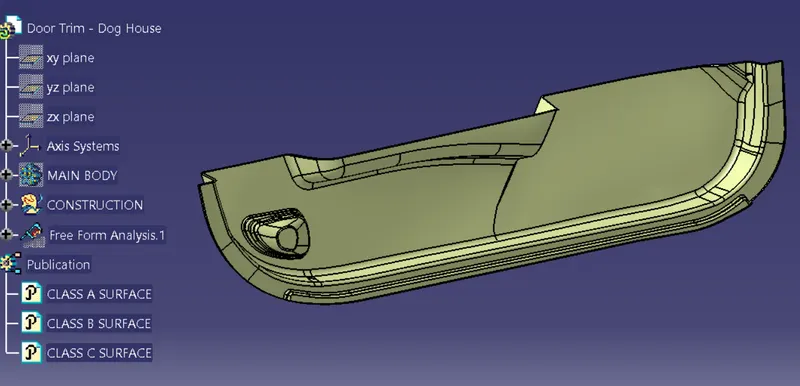

CLASS B SURFACE

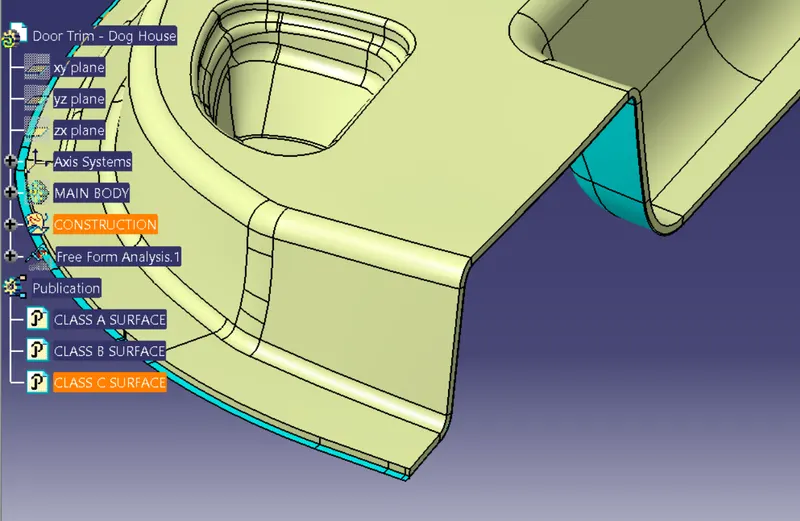

CLASS C SURFACE

CLASS B AND CLASS C SURFACE

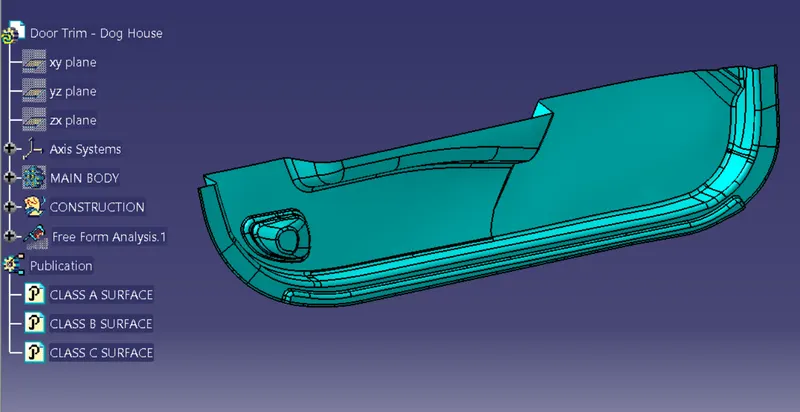

CLOSE SURFACE OF DOOR TRIM

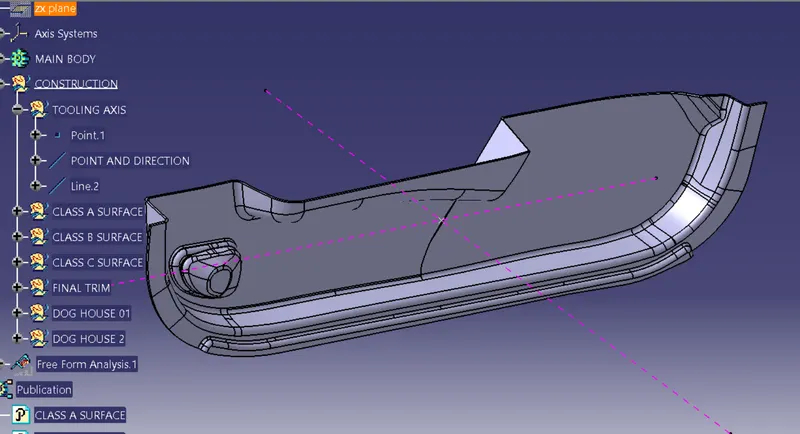

TOOLING AXIS

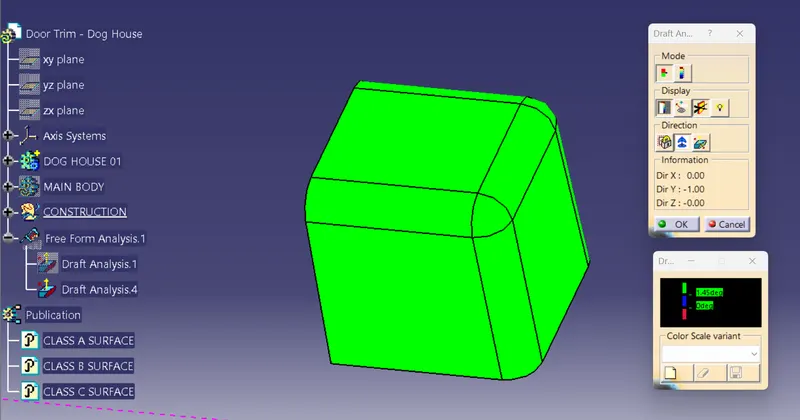

DRAFT ANALYSIS

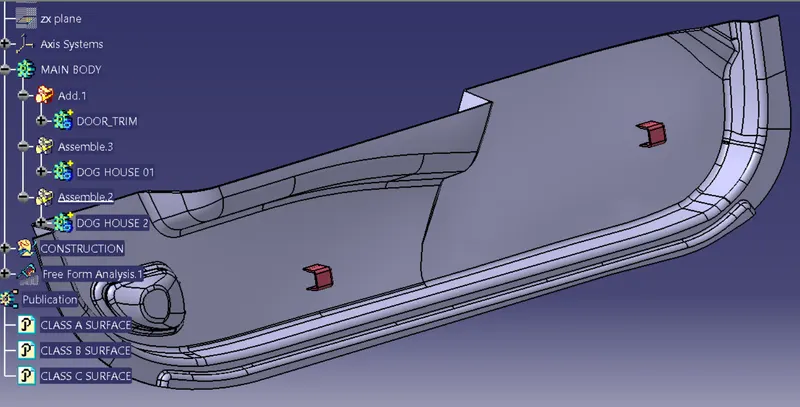

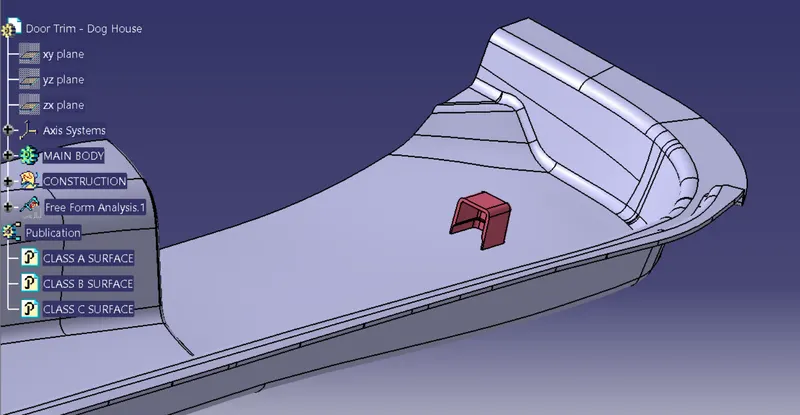

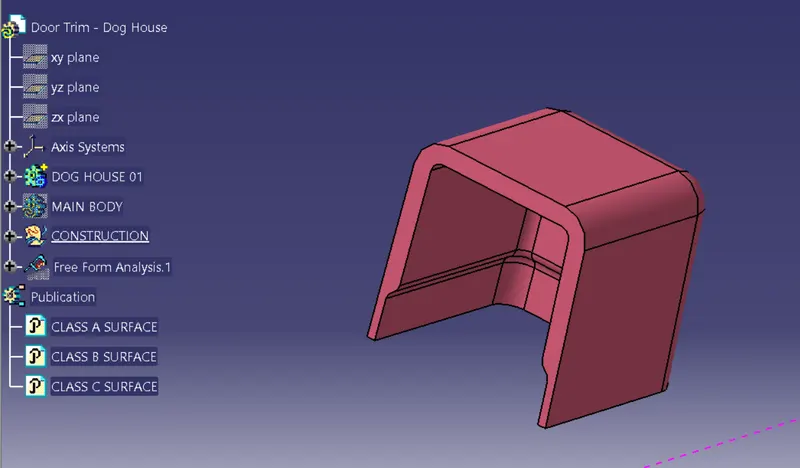

DOG HOUSE

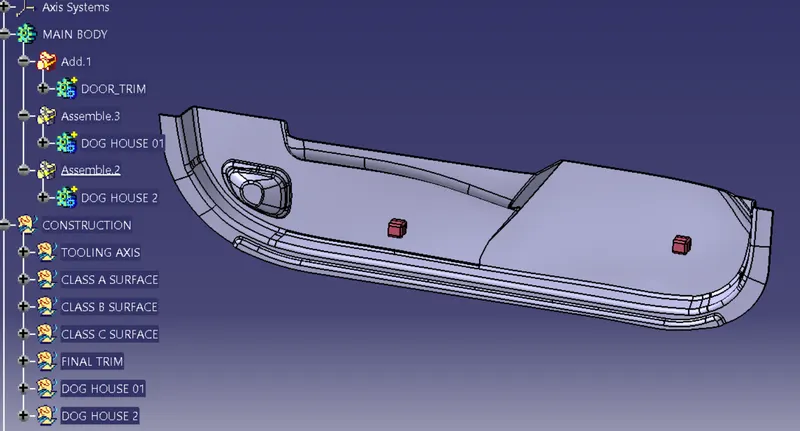

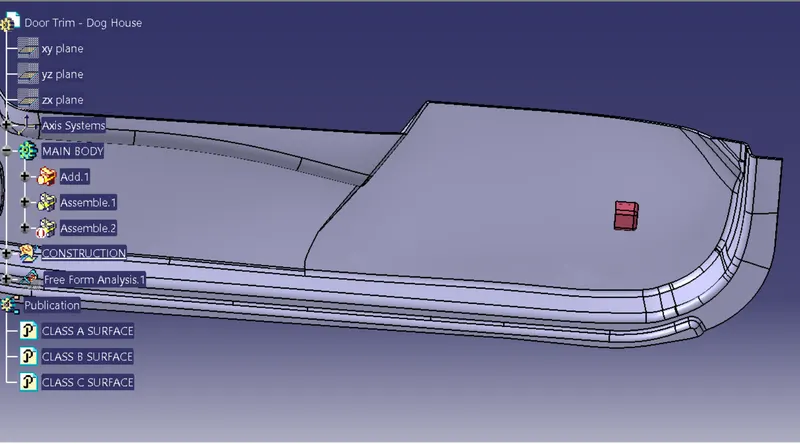

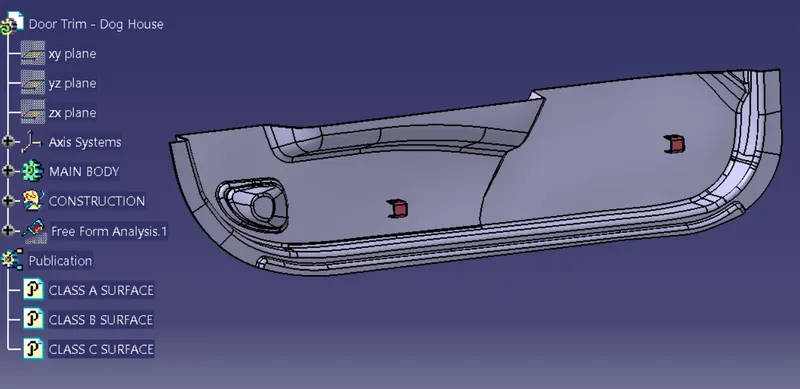

DOG HOUSE ATTACTED TO THE DOOR TRIM

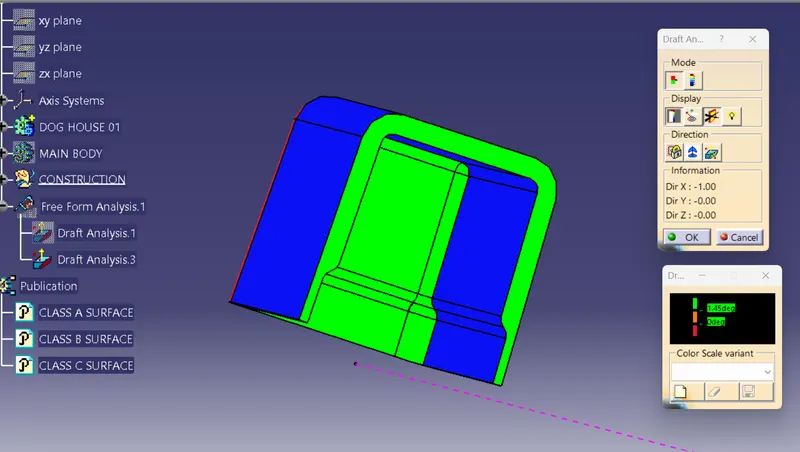

DRAFT ANALYSIS 01

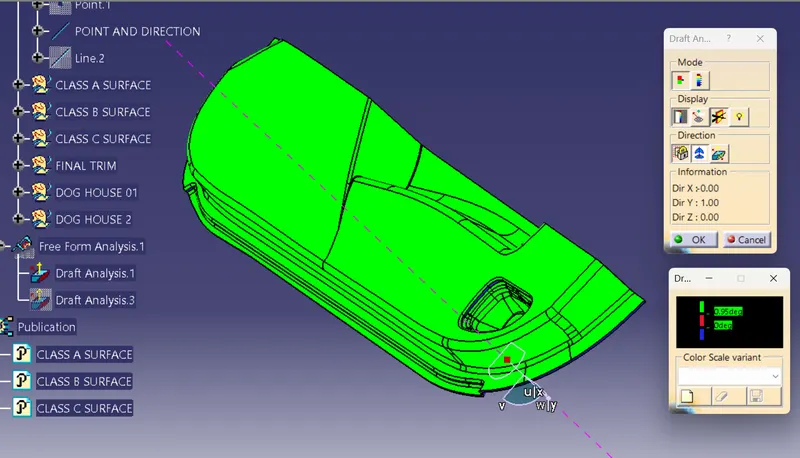

DRAFT ANALYSIS 02

CONCLUSION

THUS, WE HAVE SUCCESSFULLY DESIGNED AND ATTACHED THE DOG HOUSE TO THE DOOR TRIM.
