Week 10:- 2D Detailing Challenge

AIM Draft a Key Sheet for the Complete Fixture assembly created in challenge 8. Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8

    • Kondapparajan N

      updated on 25 Apr 2023

    AIM

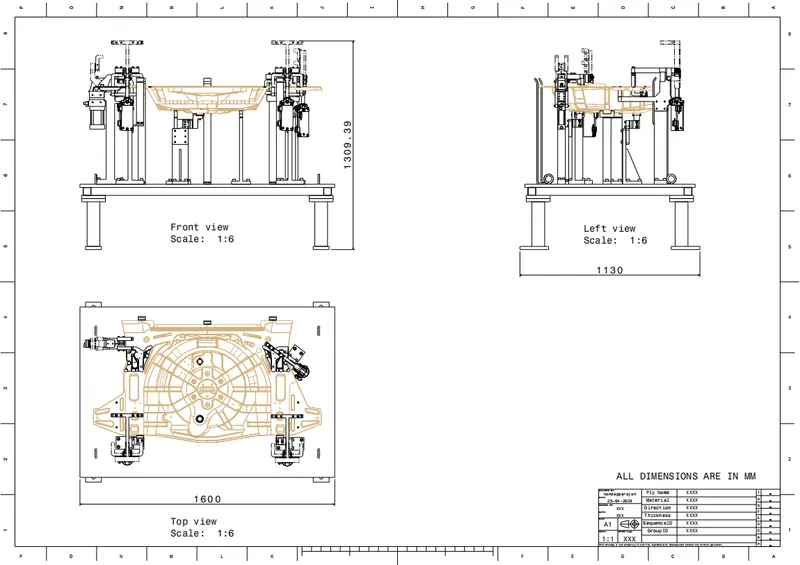

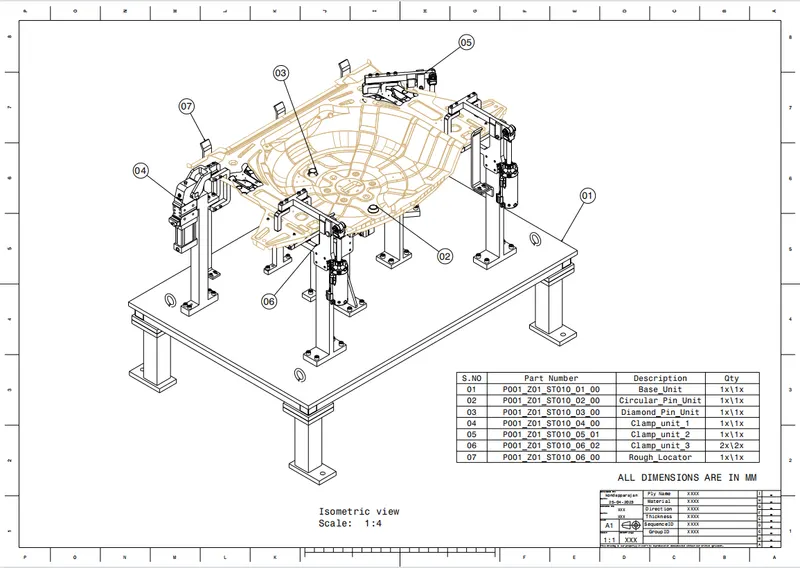

    • Draft a Key Sheet for the Complete Fixture assembly created in challenge 8.

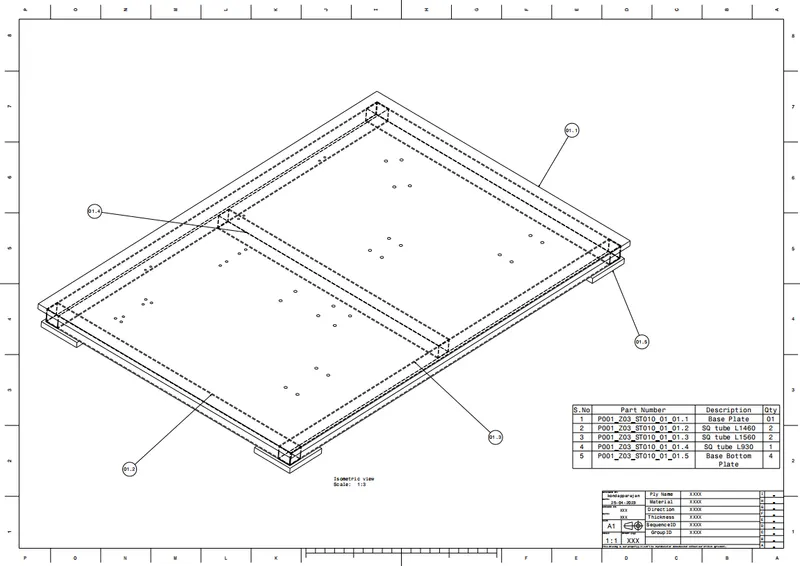

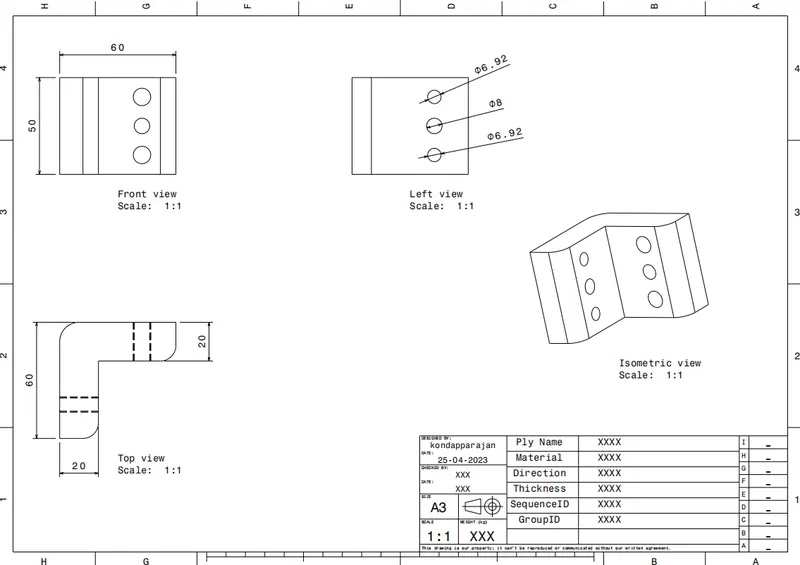

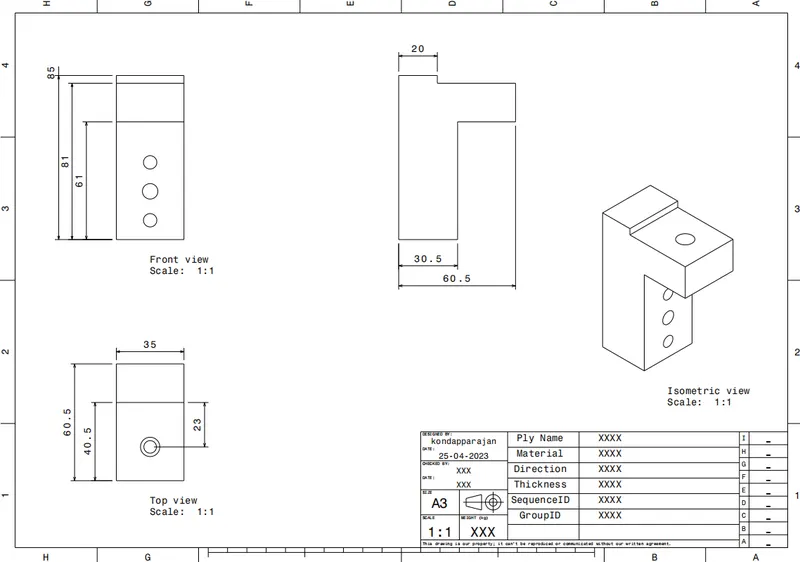

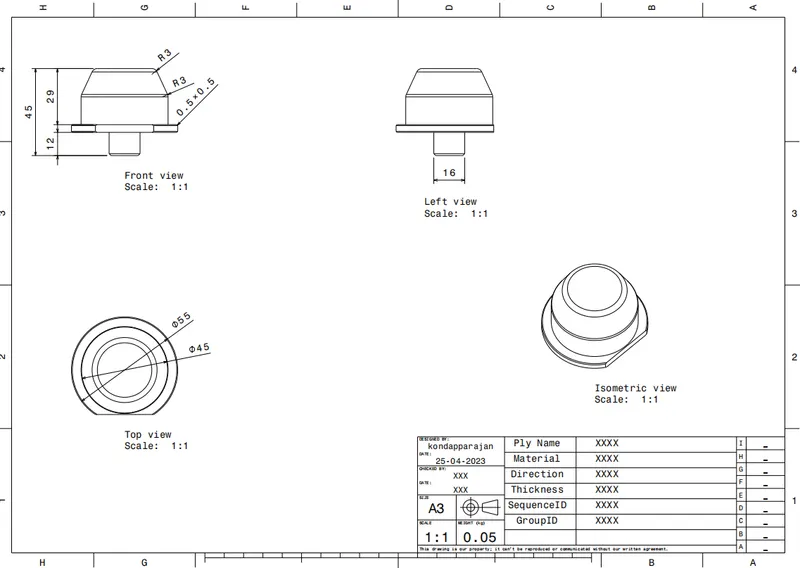

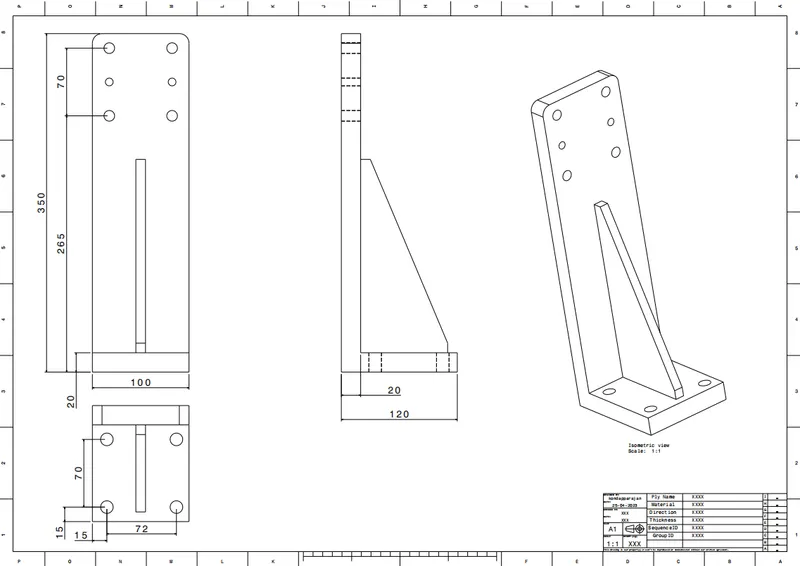

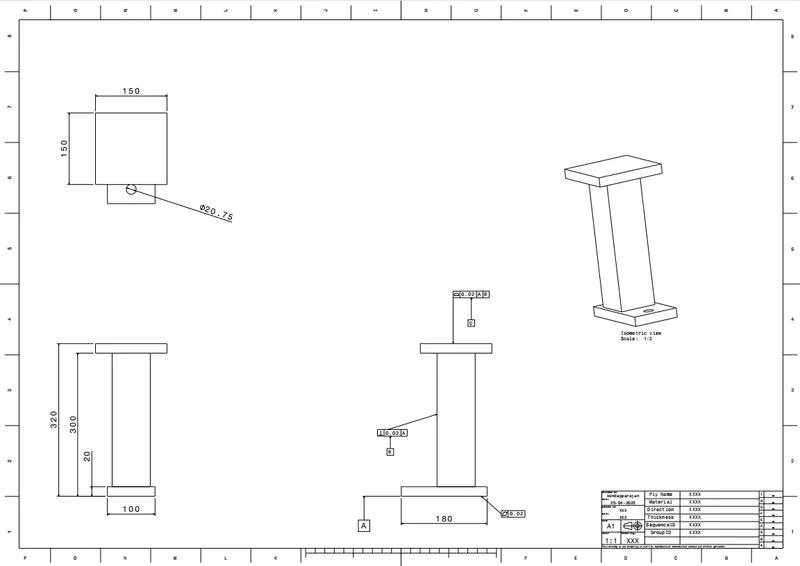

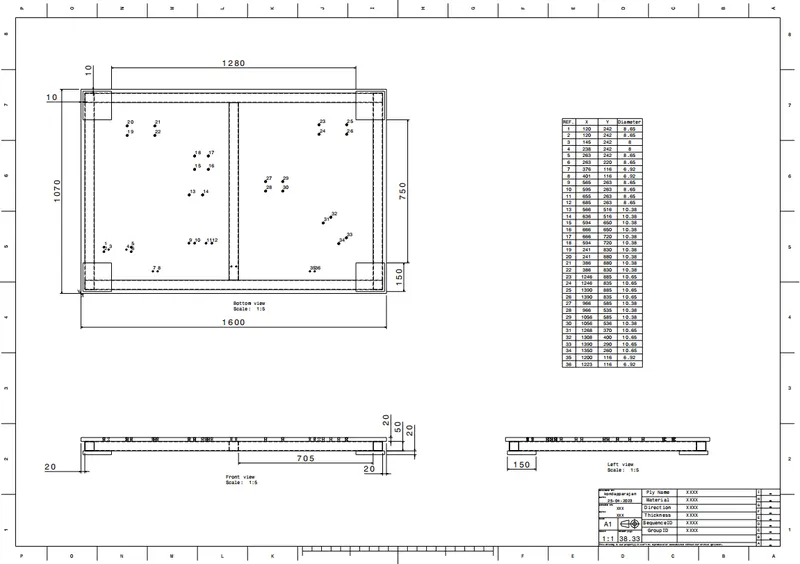

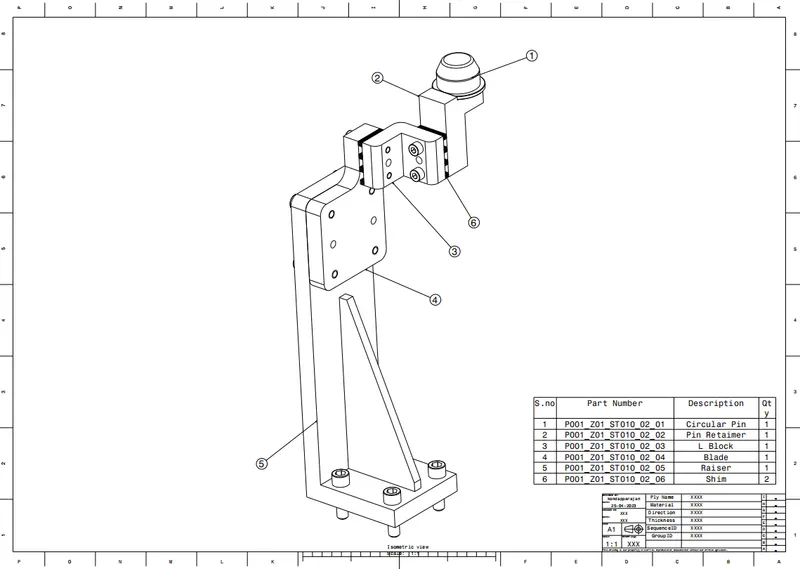

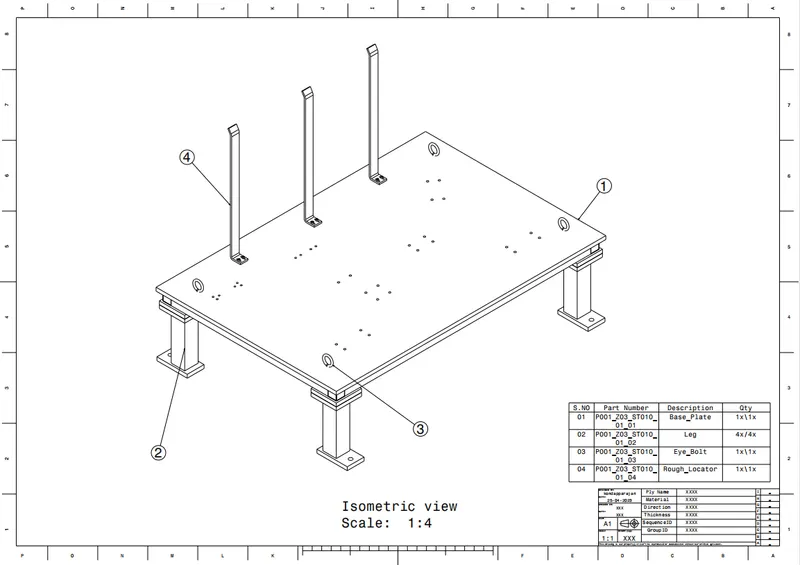

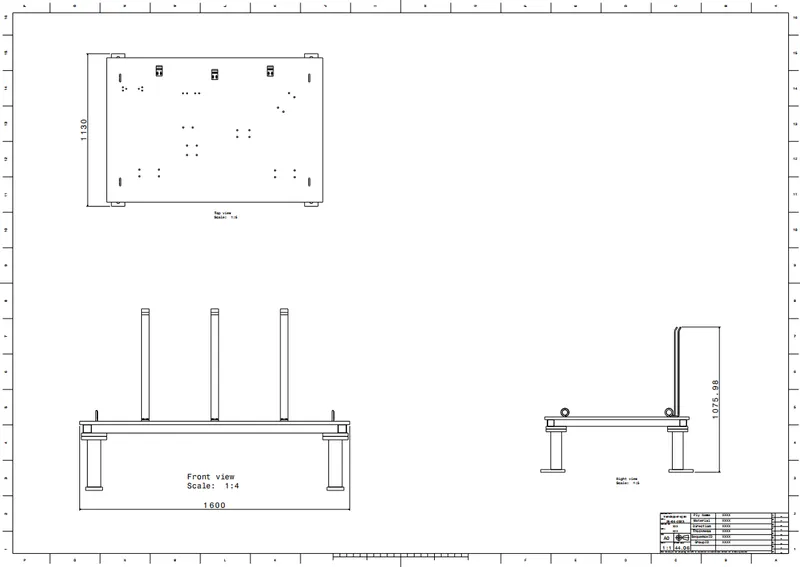

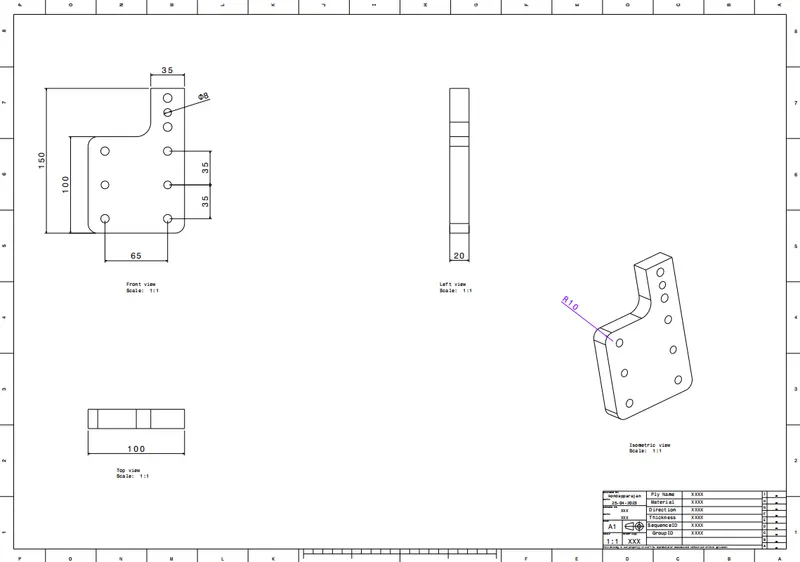

    • Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8
