Week 1 Understanding Different Battery Chemistry

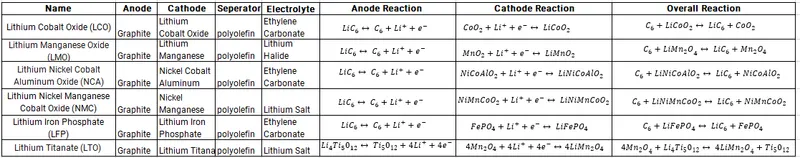

Q1=Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO type of lithium ion cells.Give your detailed explanation on it

Ans=

Lithium-ion batteries are the most commonly used source of power for modern electronic devices.Lithium ion batteries are batteries that function based on the transfer of lithium ions between a cathode and an anode.Lithium ion batteries have higher specific energies than batteries made from other materials such as zinc and lead due to the relatively light weight and low density of lithium. Lithium batteries are also more stable over charge/recharge cycles due tothe small radii of lithium ions, which causes fewer disruptions of the electrode structure during ion transfer. Lithium ion batteries commonly use graphite and cobalt oxide as additional electrode materials.Lithium ion batteries work by using the transfer of lithium ions and electrons from the anode to the cathode. At the anode, neutral lithium is oxidized and converted to Li+ These Li+ions then migrate to the cathode, where they are incorporated into LiCoO2 This results in the reduction of Co(IV) to Co(III) when the electrons from the anode reaction are received at the cathode. Because lithium is involved in the reactions atboth electrodes, the battery can be recharged by running the reactions in reverse

during the discharging process the negative electrod give up electrons to the external circuit during the charging process the negative electrodes acceots electrons from the external circuit during the discharging process it is the anode during the charging process it is the cathode but most still call it anode

during the discharging process the positive electrode accept electrons from the electron circuit during the charging process the positive. during the charging process the positive electrode give up electrons to the external circuit it is the anode but most still call it cathode

commercially superior with superior performance (specific energy, energy density )

Types of Li-ion cell -

1] Lithium cobalt oxide (LCO)-

Lithium cobalt oxide batteries are manufactured from lithium carbonate and cobalt and are also known as lithium cobaltate or lithium-ion cobalt batteries. These batteries are used in cell phones, laptops, and electronic cameras because of their high specific energy. They have a cobalt oxide cathode and a graphite carbon anode, and lithium ions migrate from the anode to the cathode during discharge, with the flow reversing when the battery is charged.

This battery has a few disadvantages, including short battery life and low specific power. We also want to let you know that these batteries are not as safe as other varieties. Despite this, they are a popular choice for cell phones and other portable electronic devices because of their properties

2] Lithium Manganese Oxide (LMO)-

Lithium manganese oxide batteries are sometimes known as lithium manganate or lithium-ion manganese batteries, or li-manganese or manganese spinel batteries. The technology for this sort of battery was initially discovered in the 1980s manufactured the first commercial lithium-ion cells using lithium manganese oxide as the cathode material in 1996. High-temperature stability distinguishes lithium manganese oxide batteries from others, which are also safer than other lithium-ion battery types. As a result, they’re frequently found in medical equipment and devices, but they can also be used in power tools, electric motorcycles, and other applications. Lithium manganese oxide batteries can also be used to power laptop computers and electric vehicles.

3] Lithium iron phosphate(LFP)-

Phosphate is used as a cathode in lithium iron phosphate batteries, often known as li-phosphate batteries. They have low resistance qualities, which improve their thermal stability and safety.

Durability and a long lifecycle are other advantages – fully charged batteries can be kept with no effect on the battery’s overall charge life. When the lengthy battery life of Li-phosphate batteries is considered, they are frequently the most cost-effective option. The lower voltage of the lithium-phosphate battery, on the other hand, means that it has less energy than other lithium batteries.As a result, these batteries are frequently used in electric bikes and other applications requiring a long lifecycle and high levels of safety. These batteries are also commonly used in electric vehicles.

4] Lithium Nickel Manganes cobalt oxide (NMC)-

Lithium Nickel manganese Cobalt Oxide batteries, often known as NMC batteries, are constructed of a variety of materials that are universal in lithium-ion batteries. A cathode constructed of a mix of nickel, manganese, and cobalt is included.

NMC batteries, like other lithium-ion battery types, can have a high specific energy density or a high specific power. They can’t have both features, though. This battery is most commonly seen in power tools and automobile powertrains .60% nickel, 20% manganese, and 20% cobalt

5] Lithium nickel cobalt aluminum oxide (NCA)-

NCA batteries, or lithium nickel cobalt aluminum oxide batteries, are making their way in electric vehicles and grid storage. Although NCA batteries are not widely used in consumer electronics, they have great potential in the automobile industry. NCA batteries offer a high-energy choice with a long lifespan, but they are less safe than other lithium-ion battery types and are rather expensive. To ensure driver safety, NCA batteries must be accompanied by monitoring systems. Given the widespread use of NCA batteries in electric vehicles, demand for these batteries may increase as the number of electric vehicles grows.

6] Lithium Titanate (LTO)-

its superior nanotechnology, the lithium-titanate battery has an extremely rapid recharge time.These batteries could be used for military and aerospace applications, as well as storing wind and solar energy and constructing smart grids. Furthermore, according to Battery Space, these batteries could be employed in power system system-critical backups.

Compare the differences between each type of Li+ion batteries based on their characteristics
