Week -2
voltage senesor
10-Q1(ans)=When a coil passing current over iron is wrapped and when electric current is passed through that iron coil, it acts as an electromagnetic. And there is a clapper in the circuit of this bill which is very close to the alarm bell.The solenoid is an electromagnet with wire winding and a small metal piston inside it. ... When electric current flows through the wire, an electromagnetic field is generated which pulls the metal piston towards it. The metal piston hits the tone bar located on both sides of the arrangement.Now we set up the Simulink and simscape block setup for the solenoid doorbell. We need to understand what are the blocks involved and why they are involved. What are their characteristics and what role they play in the doorbell simulation?
used to matlab tools
1-Puise Generator
2-Simulink p-s converter
3-battery
4-switch
5-electrical Reference
6-Solver
7-Configuration
8-Mechanical Translation reference
9-solenoid
10-ideal translational motion sensor
11-ps- simulink converter
12-display

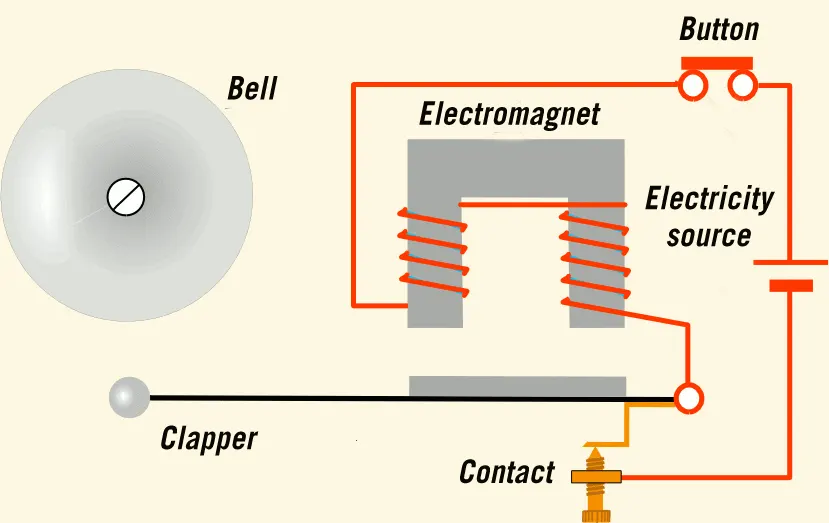

the circuit the iron electric carrier is coilled and attached to a clapper as well as a battery and a swith when the swtch is connected to the battery electric current start flowing in the coil wrappd in separate iron to behave like a magnet and it attracts the clamper towards itself and due to which sound is produced and when the clapper hits the bell it breaks that circuit formthe middle and the electrical current stops and as soon as it is back on the clapper and comcompletes the circuit the electric charge starts flowing again the magnetic property is generated this battery and the circuit and in terconnected
Q2(ans)= used to Matlab tools name
1-simulimk-ps converter
2-thermal reference
3-repeating sequence stair
4-controlled temperature source
5-solver configuration
6-thermistor
7-resistor
8-battery
9-voltage sensor
10-electrical reference
11-ps- simulink converter
12-constant1
13-constant3
14-ps-simulink converter
15-switch
16-scpe
