Week 1 : Exploring the GUI of GT-POWER

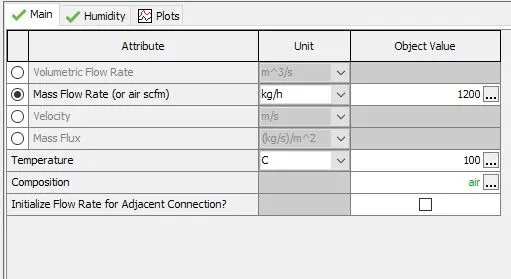

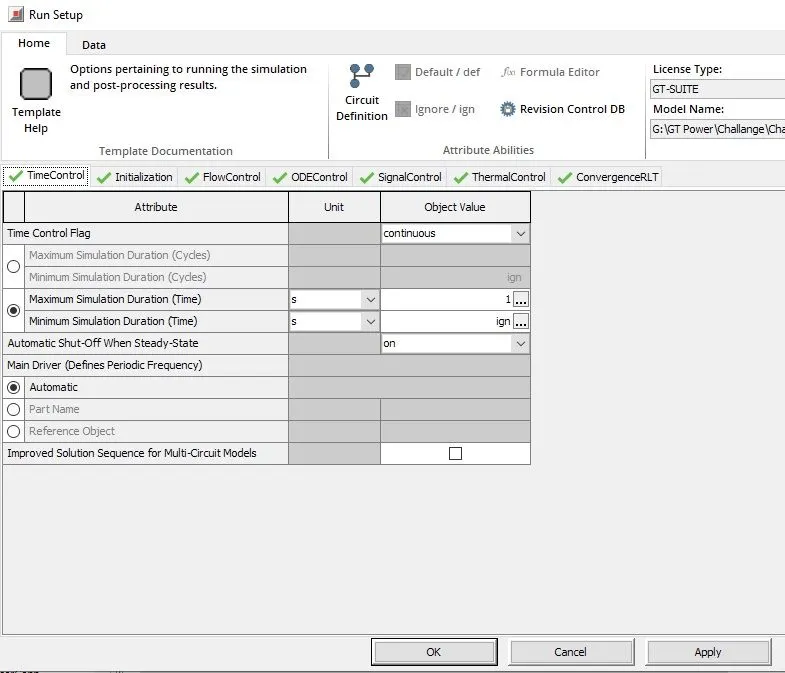

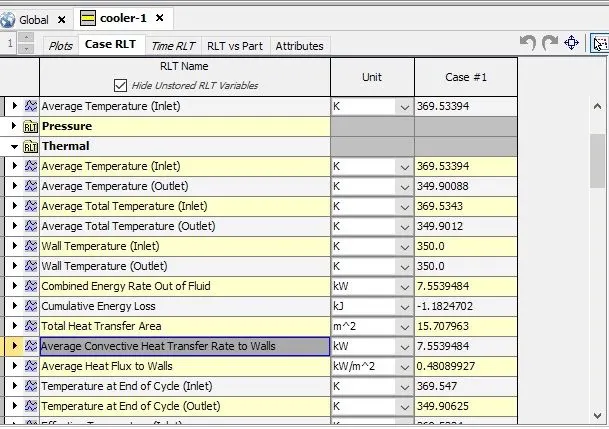

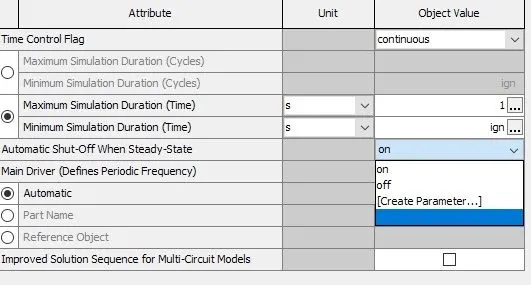

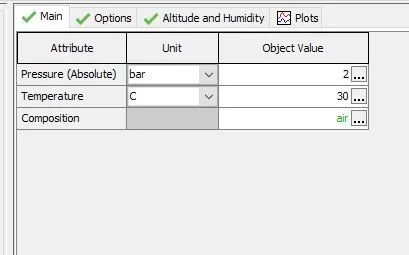

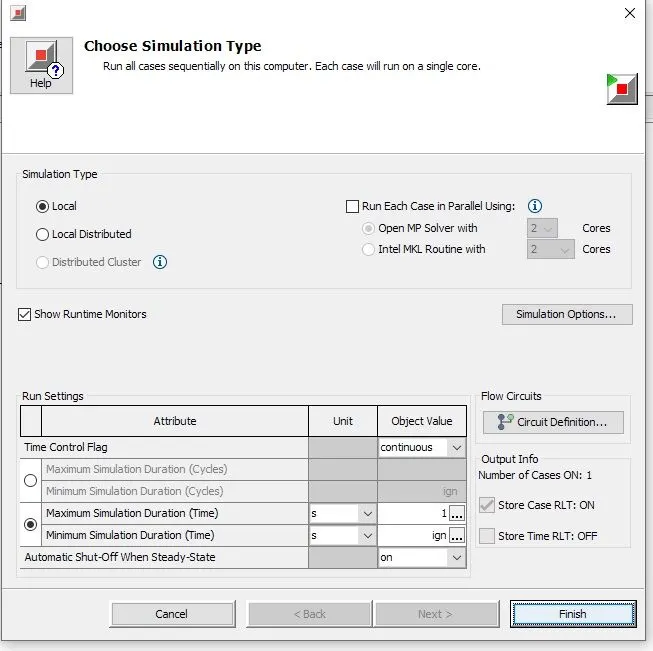

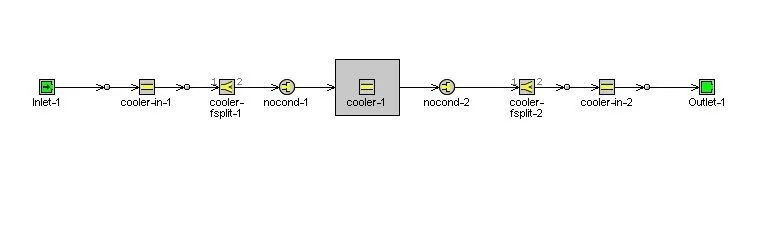

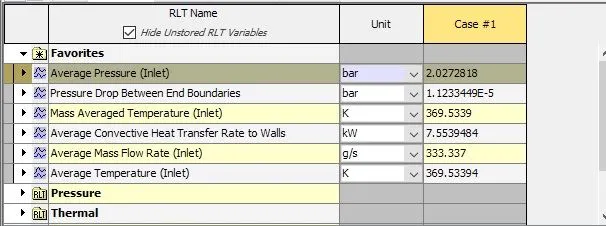

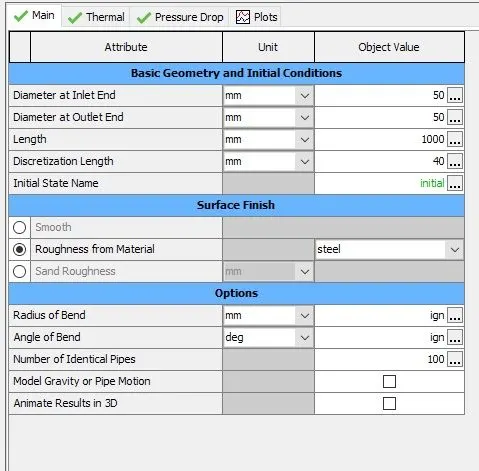

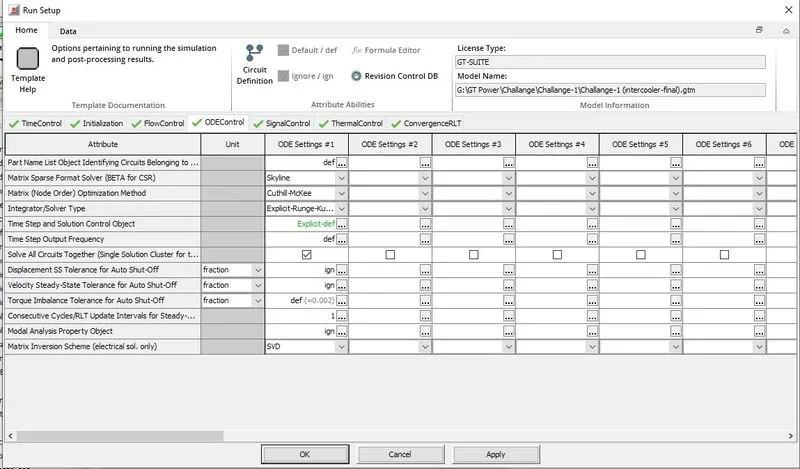

Q:-Tutorial- single cyl DI add case 2 with discretization length 0.1 mm for intake runner and compare with default case 1 Parameters-Torque, BSFC, max cylinder pressure simulation time   Ans:- As shown below, the case setup of CI Single cylinder Engine in which air enter at ambient temperature and Pressure …

Q:-Explore tutorial number 9 and write a detailed report (50 marks) Ans:- Tutorial 9 shows the case setup given below is GDI SI engine FRM  Model. It is Gas direct injection model inwhich fuel is injected into comsution chamber during compression Stroke to make Homogenous mixture. It is fast running model so…

Q:-List down different TC and locate examples from GT Power Ans:- Turbocharger is used to increase boost Pressure of air intering into Cylinder. It increase air density of inlet air and more air provided for combustion.It increase 15% of Power output of Engine There are three type of Turbocharger configuration as…

1.Compare SI vs CI and list down differences (assignment no 2-SI) Ans:- The operating principle of SI Engine and CI Engine is totally Different.   SI Engine  CI Engine (1) SI Engine is Spark Ignition Engine i.e there is spark Plug to Ignite mixture of Air and  Combustion Fuel Gasoline. CI Engine is Self…

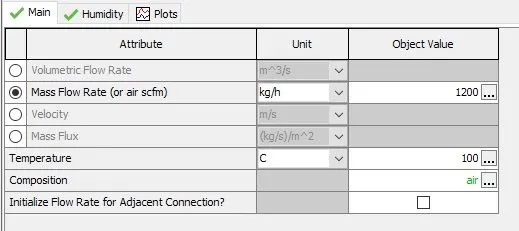

Q.Run the case at 1800 rpm and list down important parameters (20 Marks) air flow rate BMEP BSFC In-cylinder pressure   Ans:- The case setup is single cylinder SI Engine as shown Below. This case is load from Tutorial -Engine Performance-1Cyl SI Engine.   The intial Inlet condition of air is as shown below Pressure…

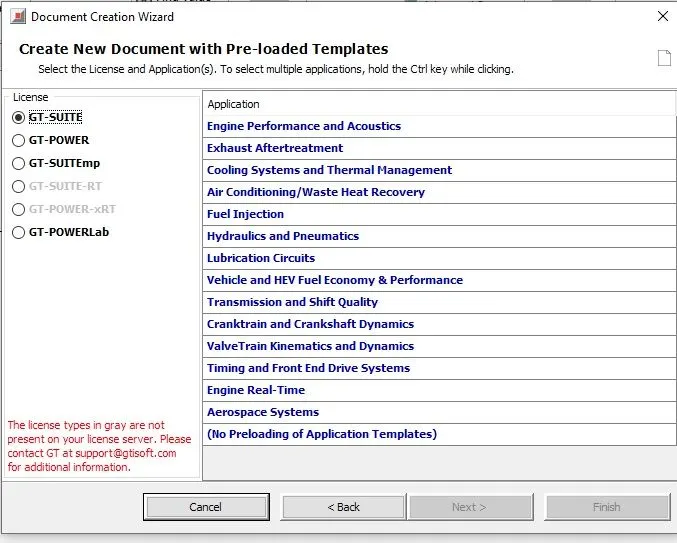

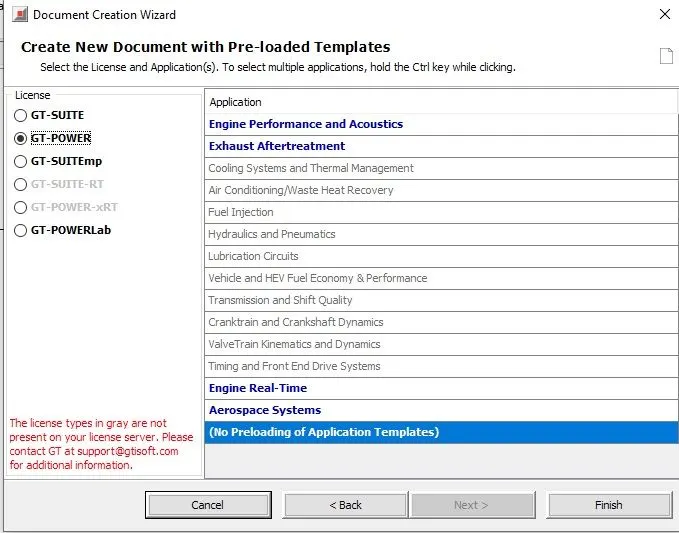

Q Explore the GUI of GT SUITE and list down modules available with brief description Ans:- GT Suite is the CAE simulation tool with capabilities and libraries aimed at  a vide range of application and industries. It offer engineering funtionalities ranging from fast concept design to detailed system or sub system/component…

Problem:- Aim of Problem is to study Port fuel injection SI Engine with Bore 86mm,Stroke 90mm and Connection Rod length 180mm Running at 3000RPM.Calculate Parameters given Below:- 1. What is the compression ratio of this engine? 2. Why do we need a wall heat transfer model? Why can't we predict the wall temperature from…

  RANS derivation written on Document file and Document file is attached with this challange.

Problem:- Objective of this Challange is to set Shock Tube simulation. Plot the pressure and temperature history in the entire domain - Explain the result.Plot the cell count as a function of time - Explain the result.It is expected to show the mesh generation using PARAVIEW.   Solution :- Shock waves are formed…

Challange :- Conjugate Heat Transfer of a Turbulance flow moving through a Pipe.Reynolds Number is 7000,Turbulency Modelling K-Epsilon,Supercycling Parameters, Add Y+ additional 3D output,Grid dependence Test show that the outlet temperature converges to a particular value,Set supercyle stage interval to 0.01,0.02…

Problem:- Define Shock wave and Boundry condition for shock wave.In the Prandtl Meyer shock problem, look at the effect of SGS temperature value on cell count and the shock location.   Solution:- Boundry condition There are Different boundary conditions in the fluid simulation Problem. (1) Velocity Boundry conditions…

Problem:- Create Transient state flow simulation over throttle body and create velocity, pressure, mass flow contour and line plotings and show animation of throttle valve. Solution:- Set up case study of flow over throttle valve in transient state. Transient solver is used when there is movement in a body over which flow…

Problem:- Steady state simulation for flow over throttle Body when it is fully open and show pressure and velocity graphs, glyph and stream line motion.   Solution:- Set up case of throttle valve fully open and set initial conditions as follows Species:- Air flow over Throttle valve Boundry conditions:-  Inlet…
