Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1) AIM: Export the Revit architecture and structure model to Navisworks Cache file.

INTRODUCTION: Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings.

Before exporting revit file into naviswork enviroment, make sure you download naviswork export utility file in your computer.

PROCEDURE:

• first open revit architectural file of week 7.

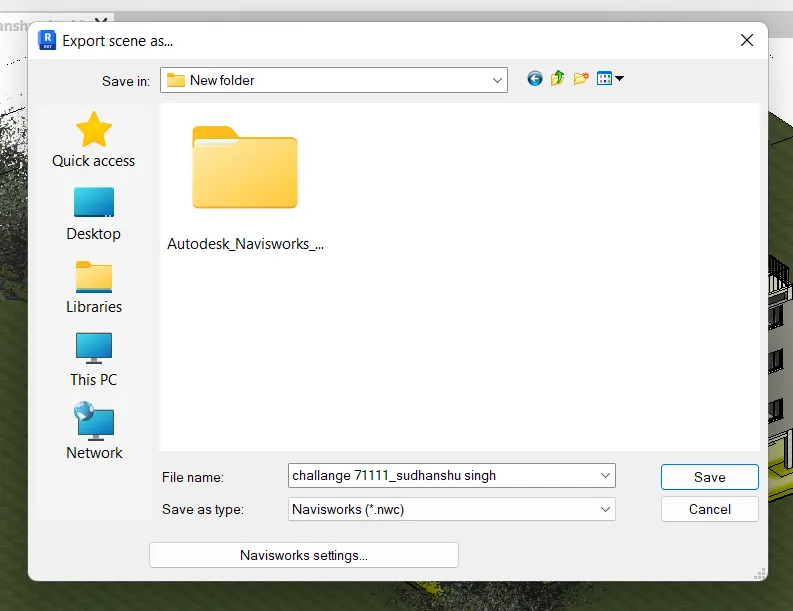

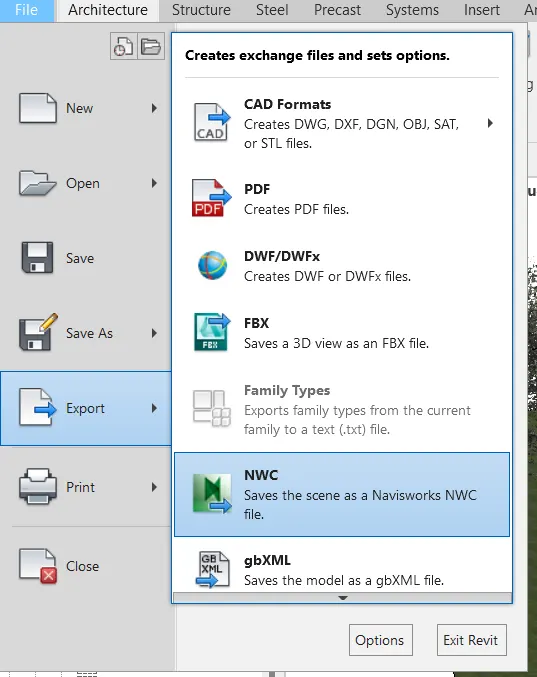

• go to file> export> NWC.

• save this naviswork file in appropate location.

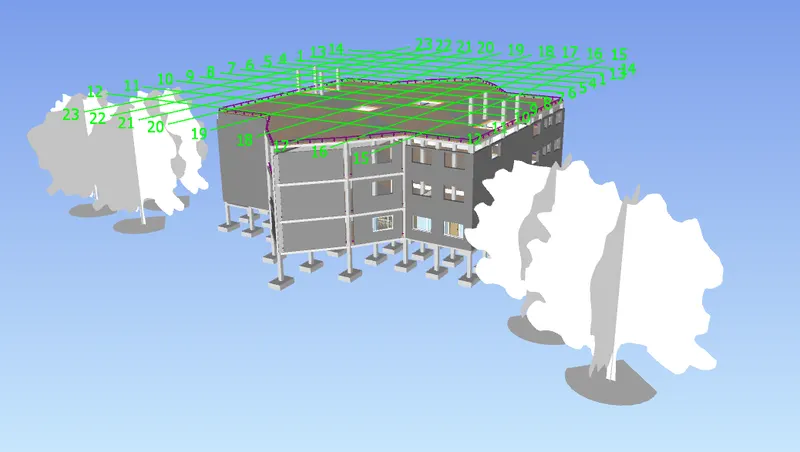

• now open naviswork 2023
• go to file> open> select file> press ok.

RESULT:

THIS IS NAVISWORK SOFTWARE ENVIROMENT.

2) AIM: Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file.

INTRODUCTION:Using NAVISWORK 2023 software,you can walk through building and review your project .

PROCEDURE:

• open naviswork 2023
• go to file> open> select file> press ok.

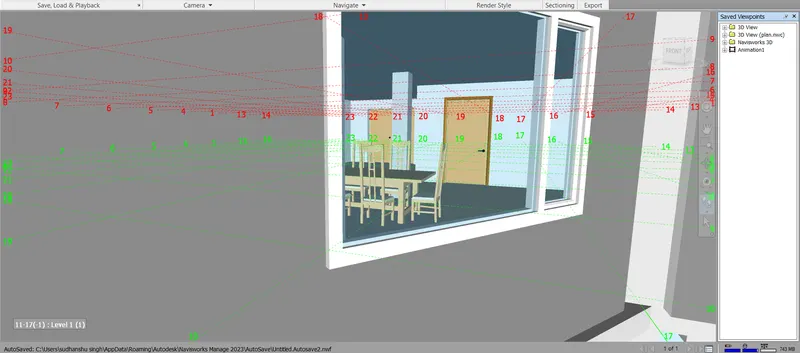

• now go to viewport> walk

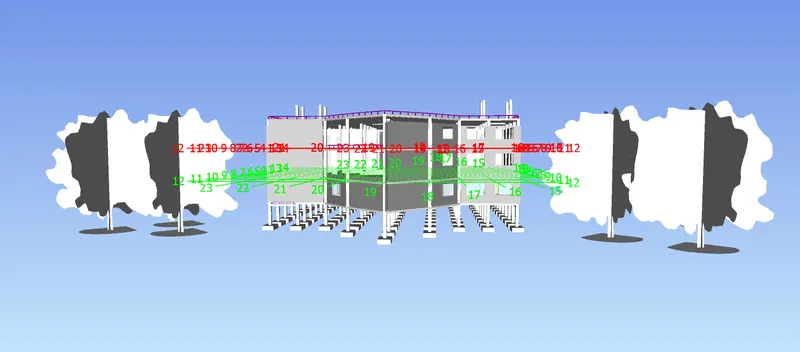

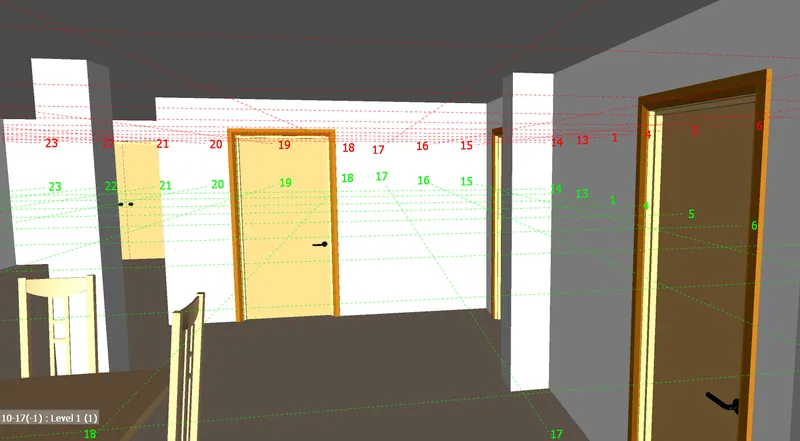

• then start walking and see your design.

• now go to viewport> save viewport.

• now start recoard your walk way.

RESULT:

3) AIM: Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.

INTRODUCTION: Using NAVISWORK 2023 software,you can walk through building and review your project .

PROCEDURE:

• open naviswork 2023
• go to file> open> select file> press ok.

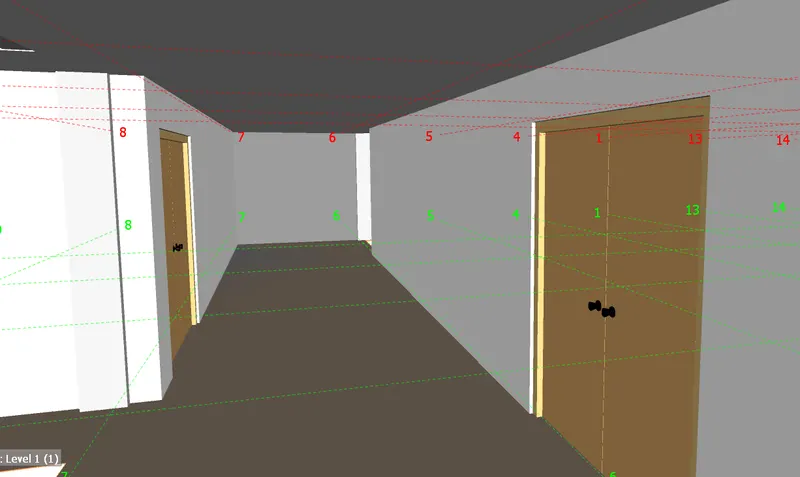

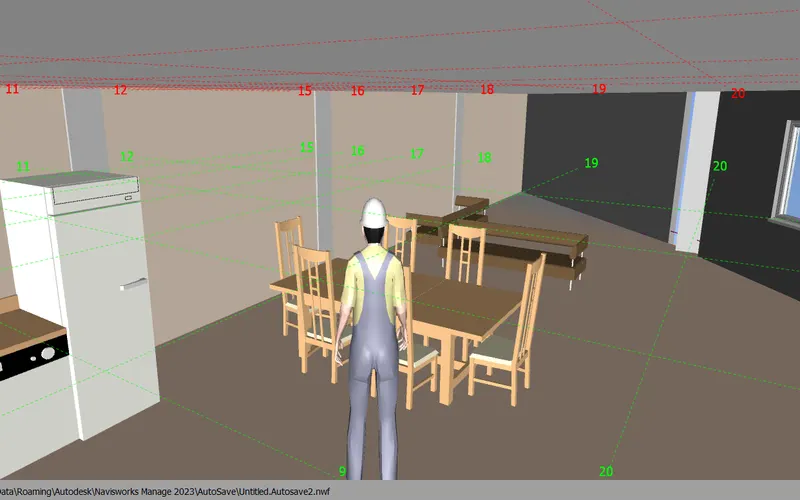

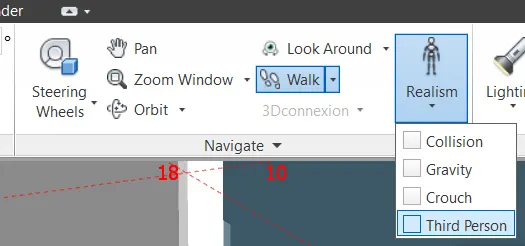

• Now go to viewport> navigate> realism> third person.

• now select viewport and start walking as third person mode.

• now go to viewport and record and save folder.

RESULT:

4) AIM: Create a clash detection test between the two models.

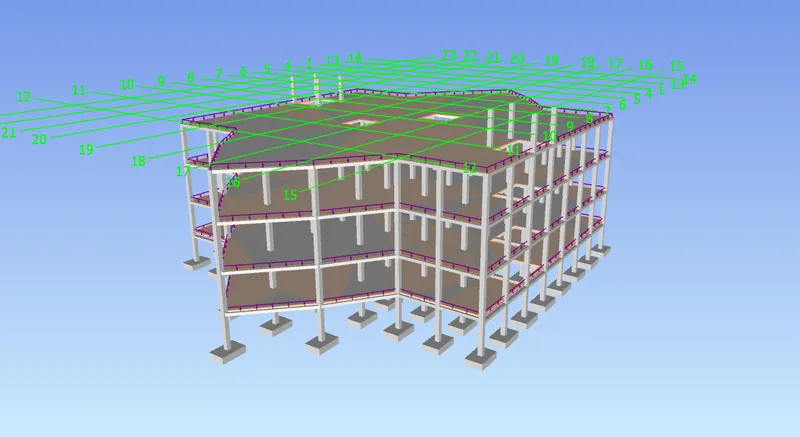

INTRODUCTION: Embed both architecture and structure *.nwc file to your Navisworks file.

a. Run the Clash Detection Test.

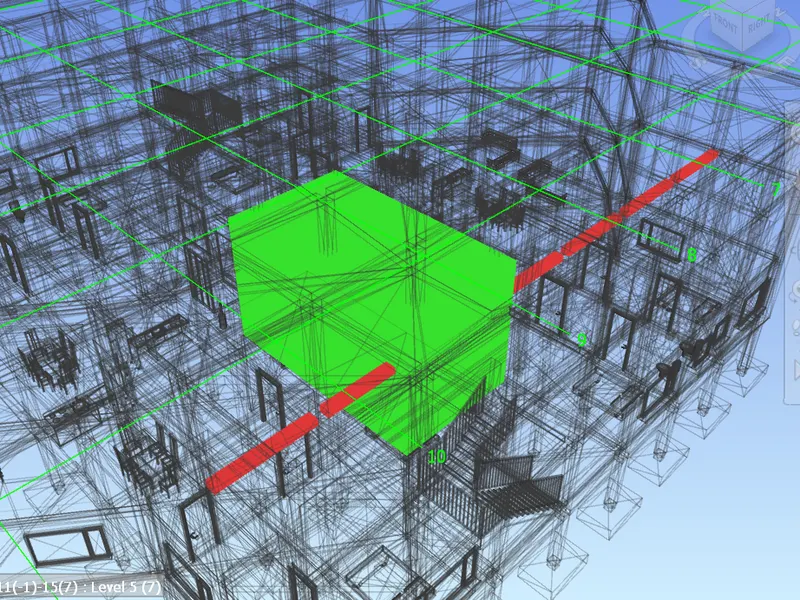

b. Study the clashes between the two models.

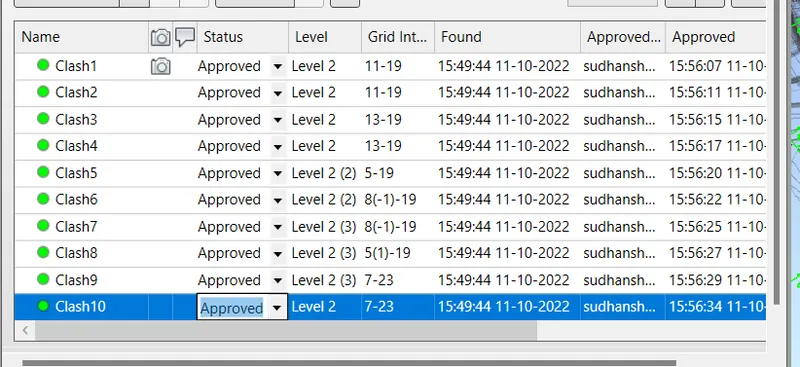

c. List which of the clashes could be approved.
d. List which of the clashes could be neglected ( will be taken care later).

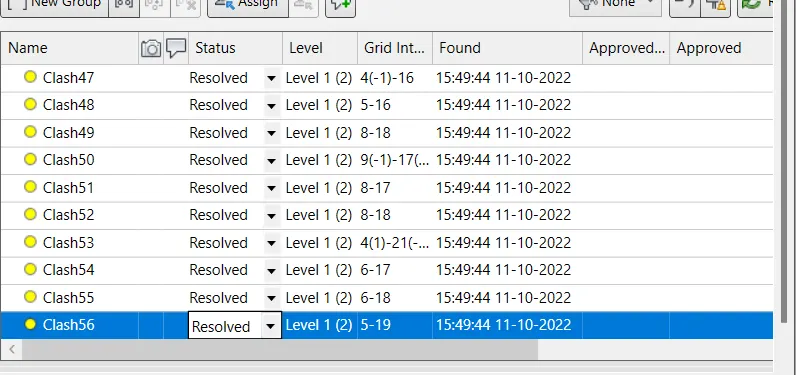

e. List which of the clashes can be resolved.
f. Save the results after color coding the clashes to the Navisworks file.
g. In case of resolution annotate the clash and save the view to defined views in Navisworks.

PROCEDURE:

• first import structural file in this software.

• after that go to append>open the architectural file.

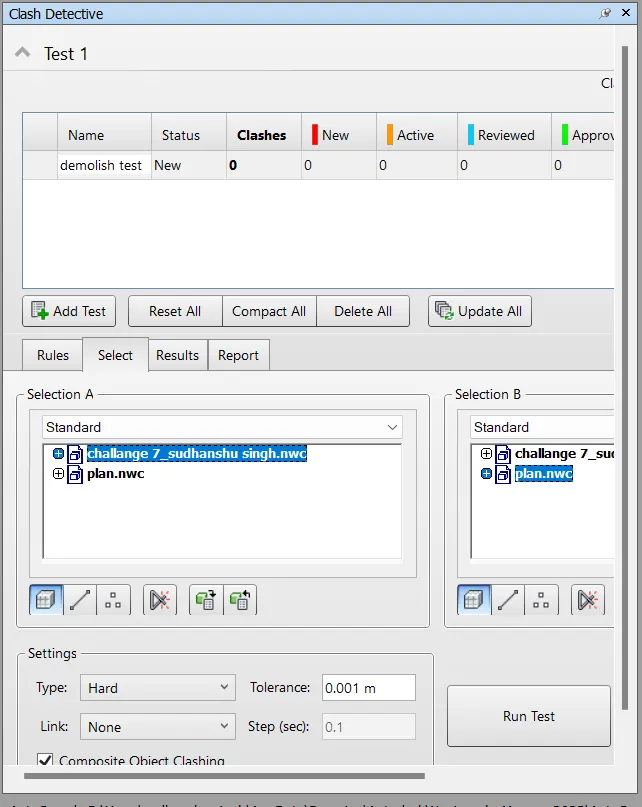

• go to home tab> clash Deactive> okk.

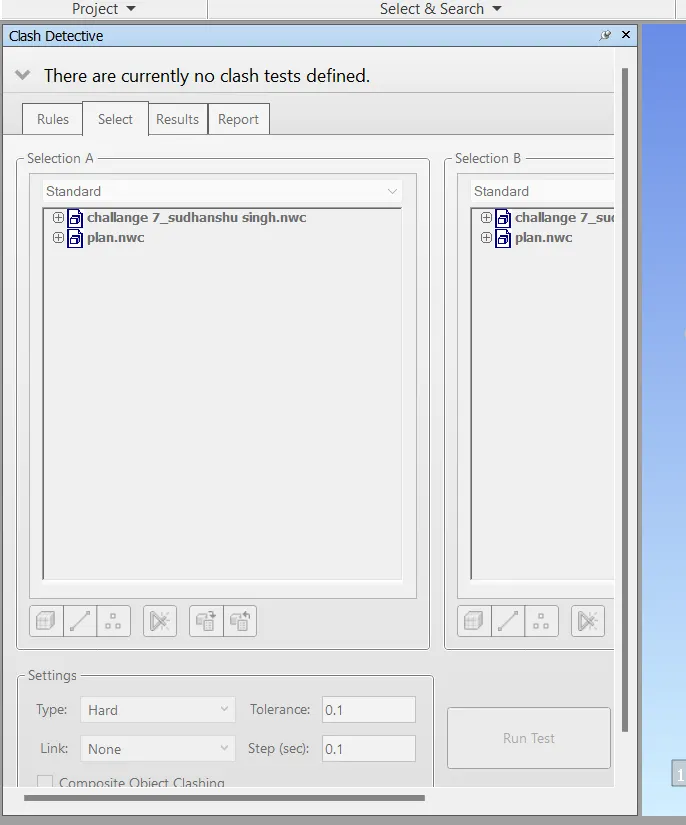

• choose structural for class detection.And run the test.

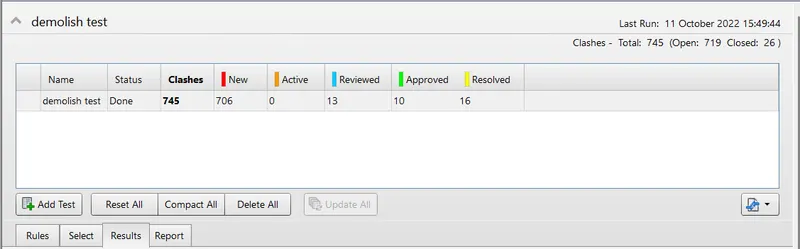

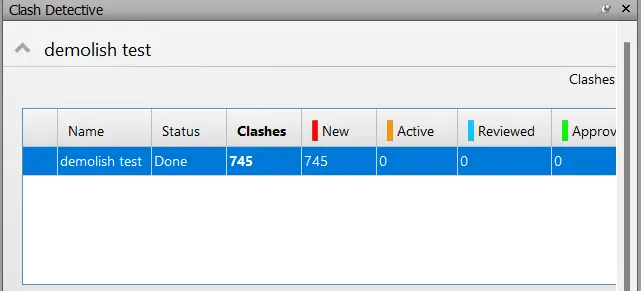

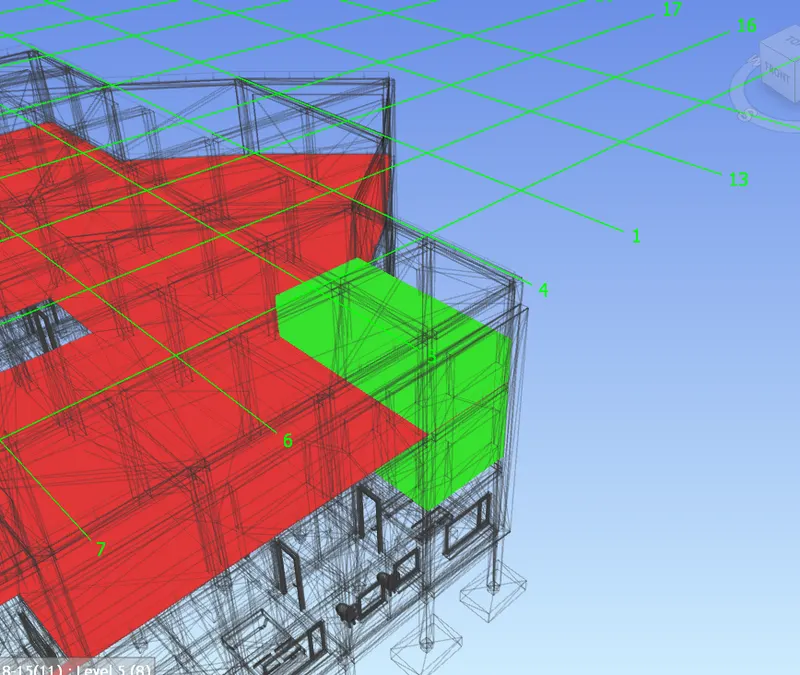

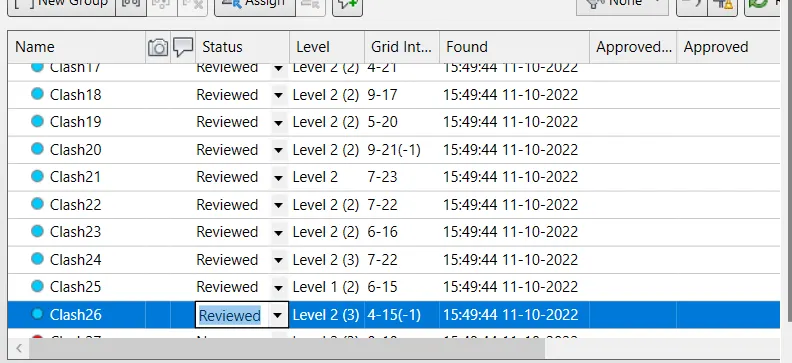

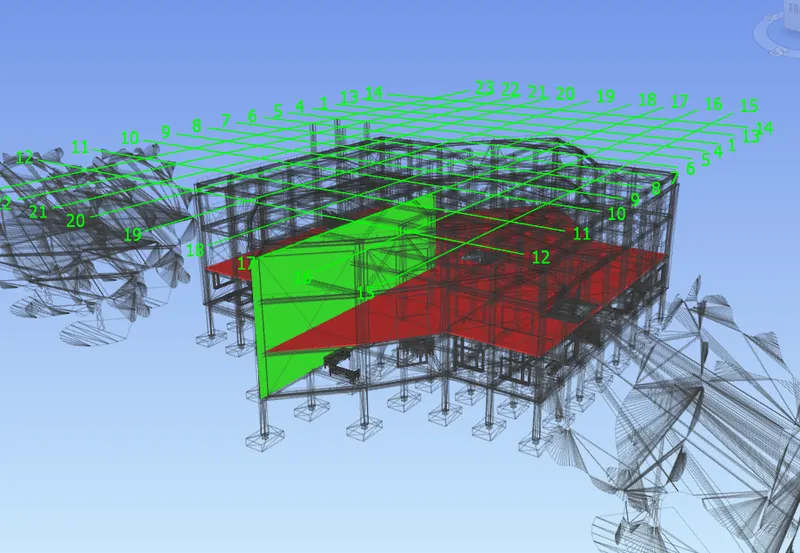

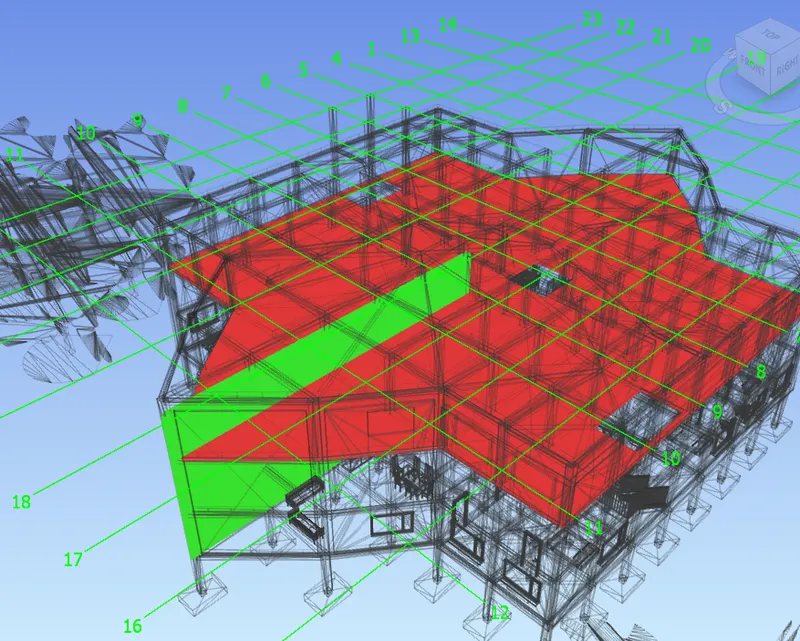

• now after test 745 clashes are active.

RESULT:

• List which of the clashes could be approved.

• List which of the clashes could be neglected

• List which of the clashes can be resolved.

• Save the results after color coding the clashes to the Navisworks file.

5) AIM:Using the Timeliner feature in Navisworks prepare a schedule for the project

INTRODUCTION: Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.

PPROCEDURE:

• • first import structural file in this software.



  • after that go to append>open the architectural file.

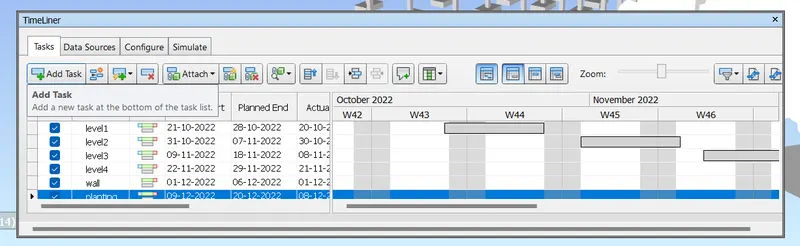

  • go to home tab> timeliner> okk.Then this dialogue box appared.

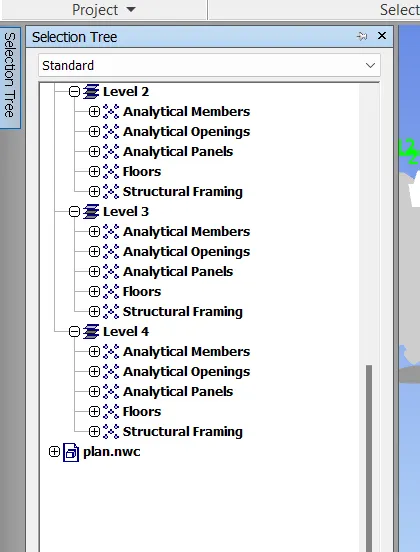

• before adding task in it. select " selection tree". so that you can attatch the file in given task.

• now start adding task> set time duration for each type of construction

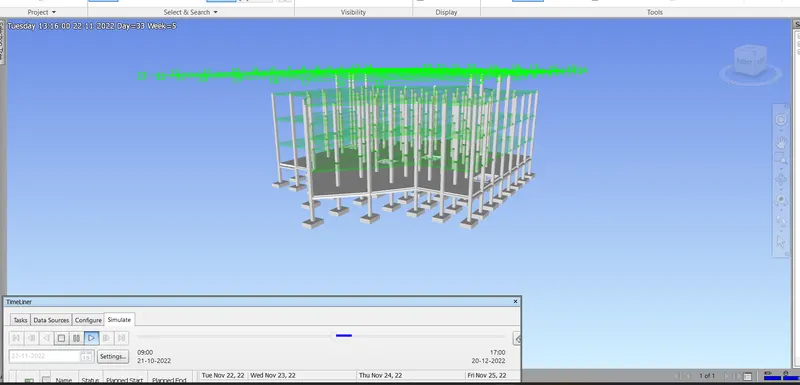

• now simulate the timeliner

RESULT:
