Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork
AIM
Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class
INTRODUCTION
Autodesk Revit is a BIM(Building Information Modelling) software civil engineers, architects, mechanical,electrical,plumbing(MEP)engineers
Here we are using Autodesk naviswork exporter
NWC file exporter is used
PROCEDURE
Step 1:Open Revit software
Open the structural file saved

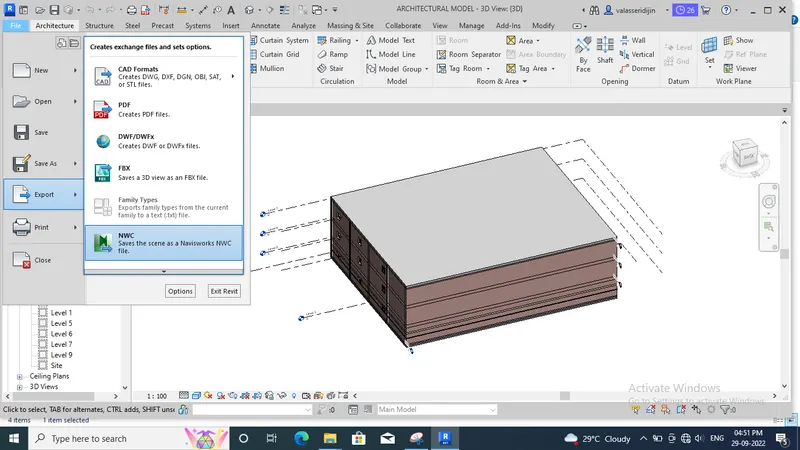

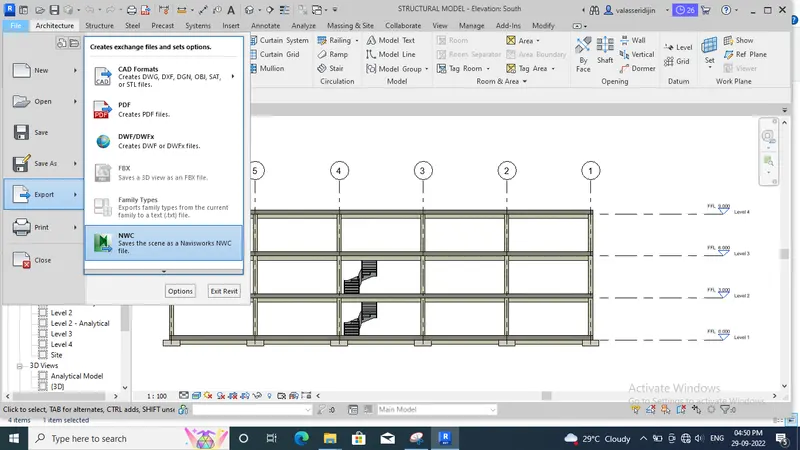

From file select export option
Select NWC
Step 1:Open Revit software
Open the architectural file saved
From file select export option
Select NWC
RESULT

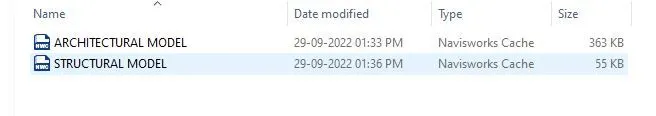

The structural and architectural files are exported to NWC file format
AIM
Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
INTRODUCTION
Autodesk Revit is a BIM(Building Information Modelling) software civil engineers, architects, mechanical,electrical,plumbing(MEP)engineers
Here we are using Autodesk naviswork Manage
Navisworks allows users to open and combine 3D models, navigate around them in real-time and review the model using a set of tools including comments, redlining, viewpoint, and measurements.
Tools used
Navigation tool
Animation
Record
Save viewport
PROCEDURE
Step 1:Open Autodesk Naviswork software
Open the NWC architectural file
Using zoom tool get into the building
Step 2:Select View point

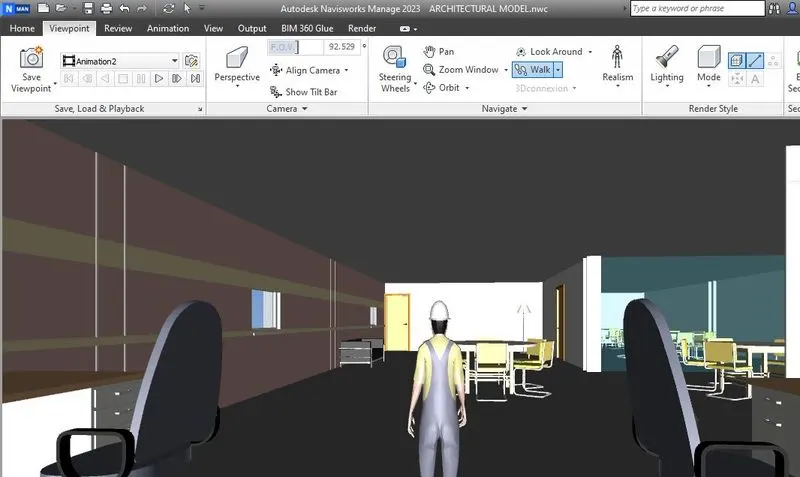

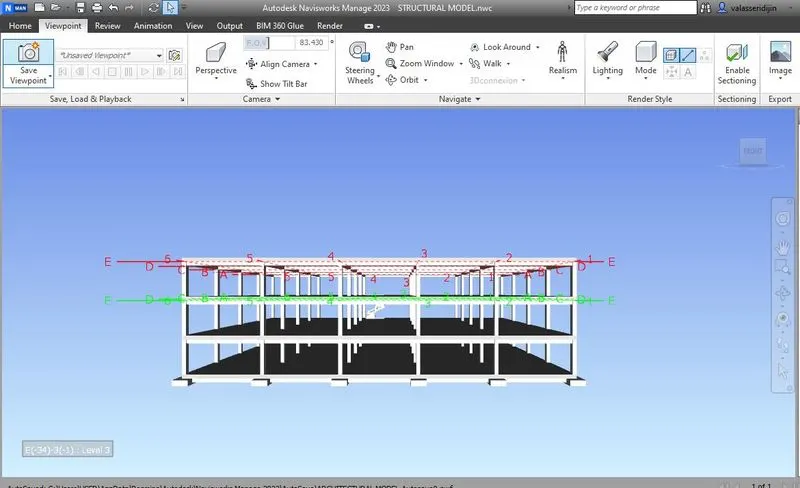

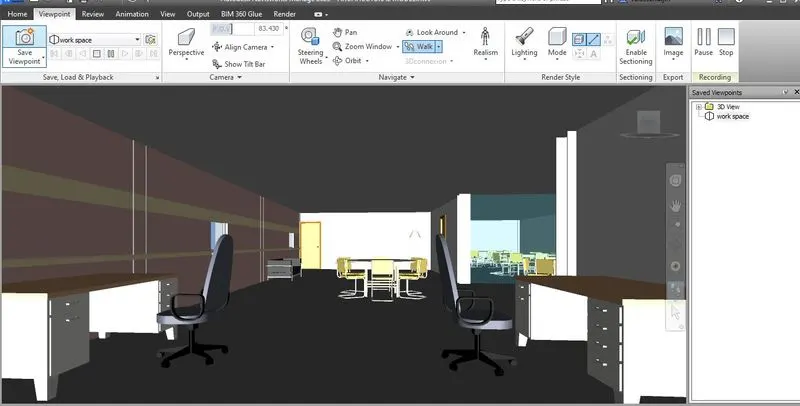

Select walk option
Step 3:Select Save view point and save the view
Select navigation
Select Record on save view point

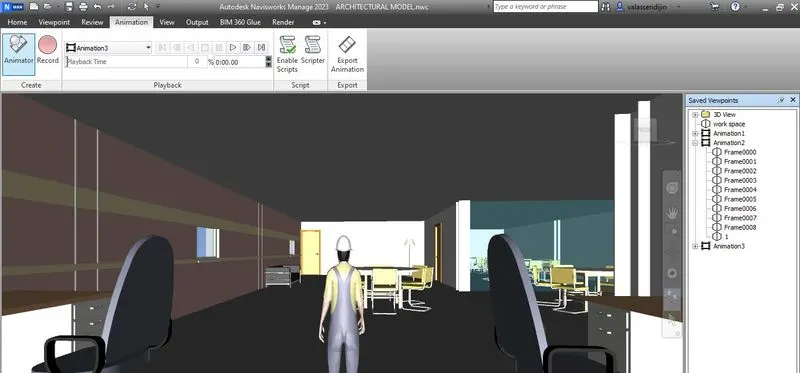

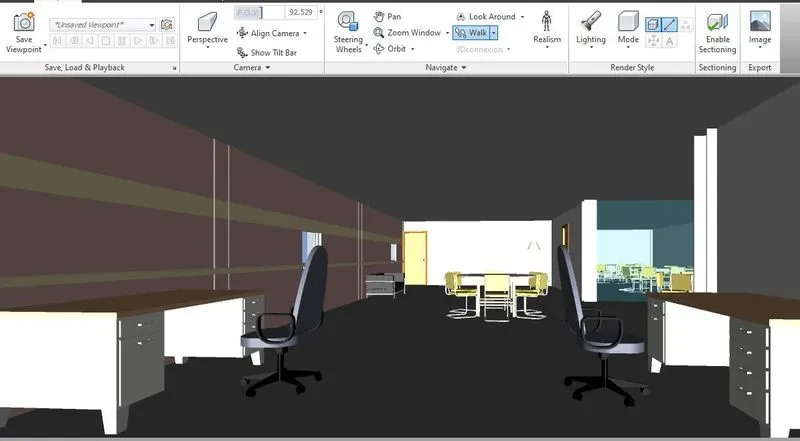

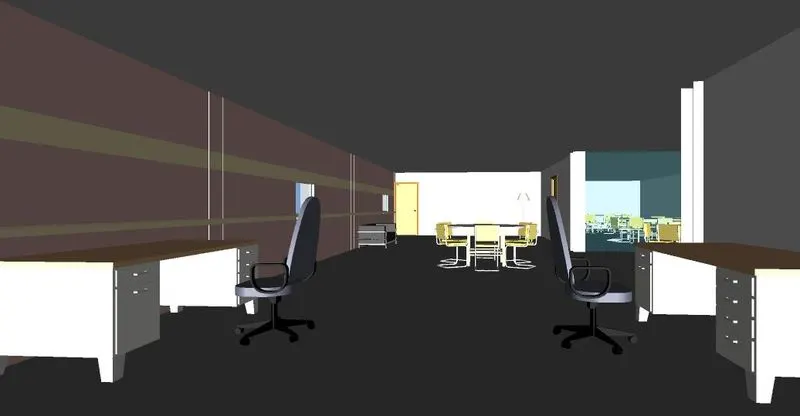

Navigate through the room
Step 4:To play the animation

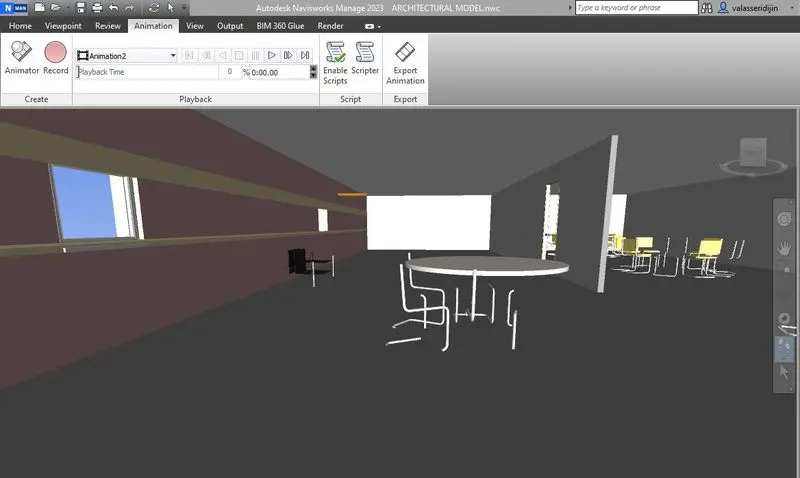

Select Animation tab
Select the saved video
Click on the play button
Step 5:To export the video into the system

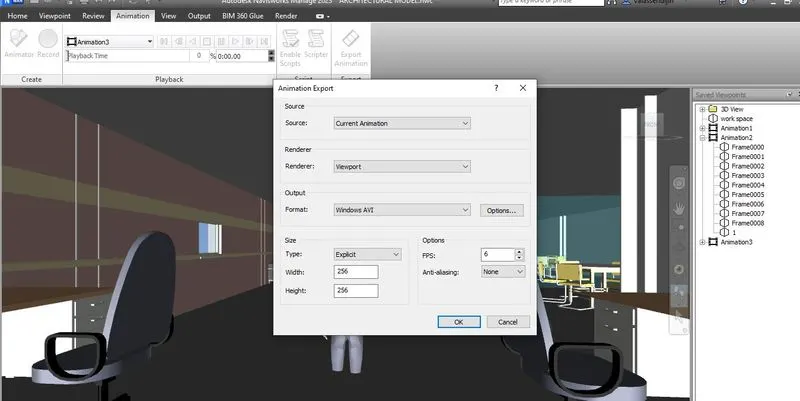

Select export option
Select the video format
Click ok
RESULT
File is imported to naviswork
Using navigation tool walk through the building and saved the animated video
AIM
Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file
INTRODUCTION
Autodesk Revit is a BIM(Building Information Modelling) software civil engineers, architects, mechanical,electrical,plumbing(MEP)engineers
Here we are using Autodesk naviswork Manage
Navisworks allows users to open and combine 3D models, navigate around them in real-time and review the model using a set of tools including comments, redlining, viewpoint, and measurements.
Tools used
Navigation tool
Realism
Animation
Record
Save viewport
PROCEDURE
Step 1:Open Autodesk Naviswork software
Open the NWC architectural file
Using zoom tool get into the building
Step 2:Select View point
Select Realism tool

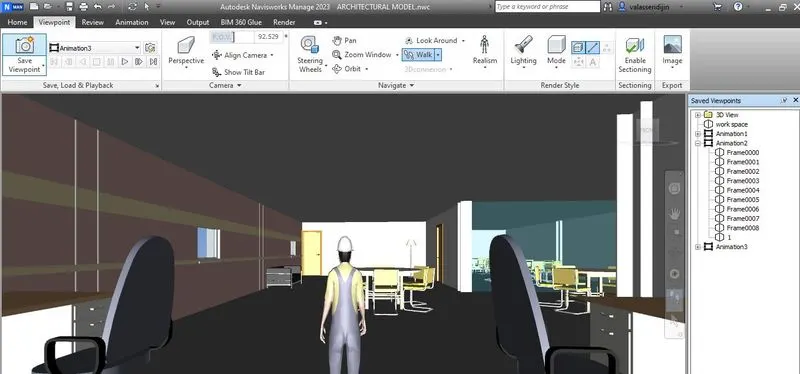

Select Third person
Step 3:Select Save view point and save the view
Select navigation
Select Record on save view point

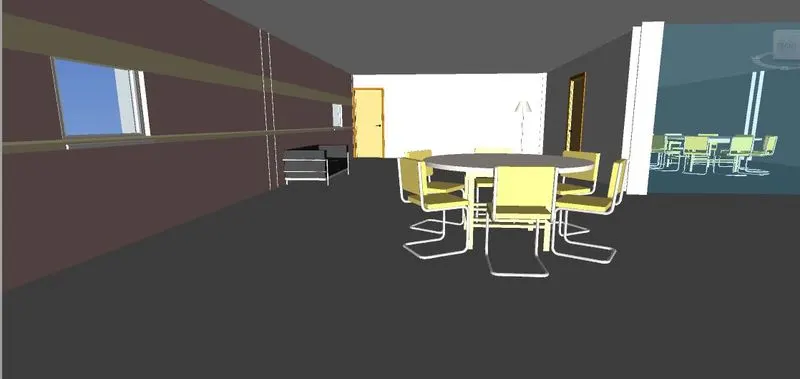

Navigate through the room
Step 4:To play the animation
Select Animation tab
Select the saved video
Click on the play button
Step 5:To export the video into the system

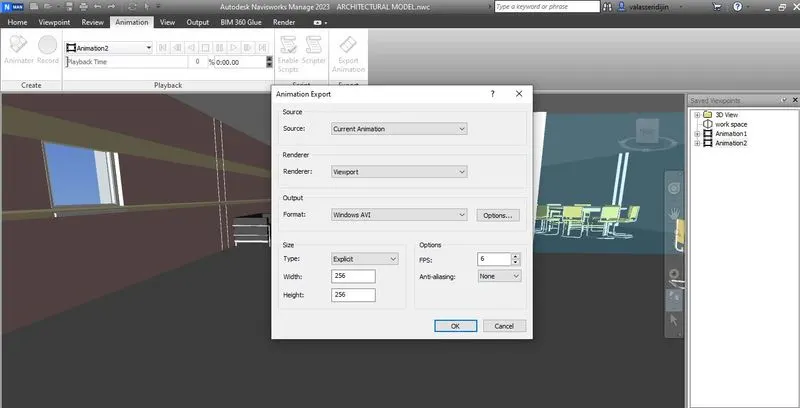

Select export option
Select the video format
Click ok
RESULT
Using Realism feature navigated through the building
And exported the video to the system
AIM
Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
- Run the Clash Detection Test
- Study the clashes between the two models
- List which of the clashes could be approved
- List which of the clashes could be neglected ( will be taken care later)
- List which of the clashes can be resolved
- Save the results after color coding the clashes to the Navisworks file
- In case of resolution annotate the clash and save the view to defined views in Navisworks
INTRODUCTION
Autodesk Revit is a BIM(Building Information Modelling) software civil engineers, architects, mechanical,electrical,plumbing(MEP)engineers
Here we are using Autodesk naviswork Manage
Navisworks allows users to open and combine 3D models, navigate around them in real-time and review the model using a set of tools including comments, redlining, viewpoint, and measurements.
Here we are using the clash detecting feature of Autodesk naviswork Manage
Tools used
Navigation tool
Clash detective
PROCEDURE
Step 1:Open Autodesk Naviswork software
Open the NWC structural file

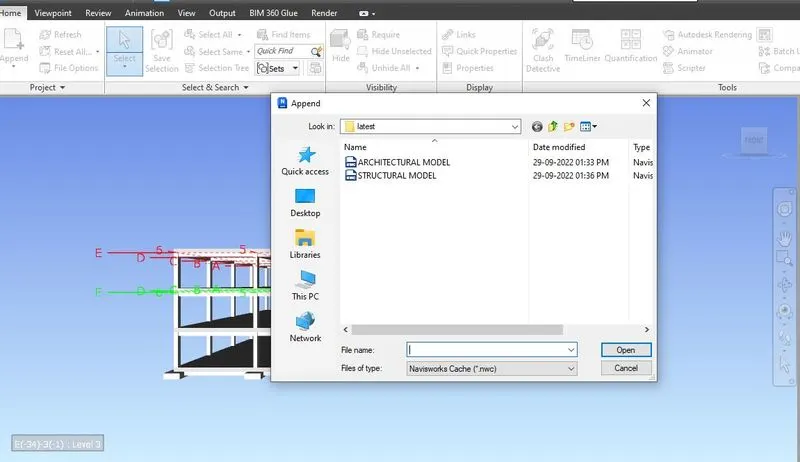

Step 2:Click on Append Tool
Select architectural file
Open the file
Step 3:Click on Home tab

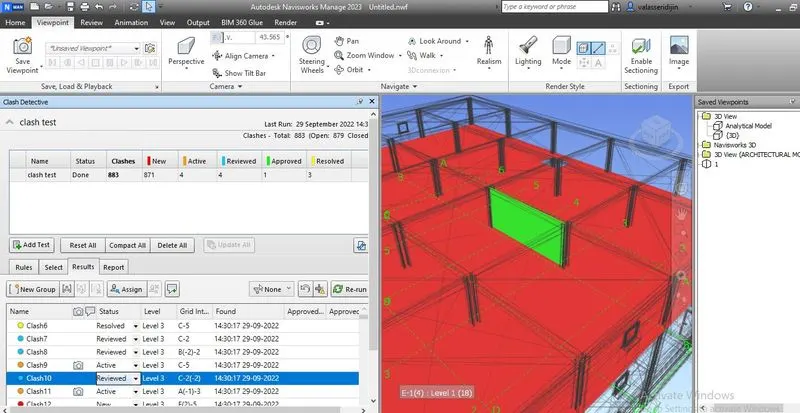

Select Clash Detective tab
Name the test

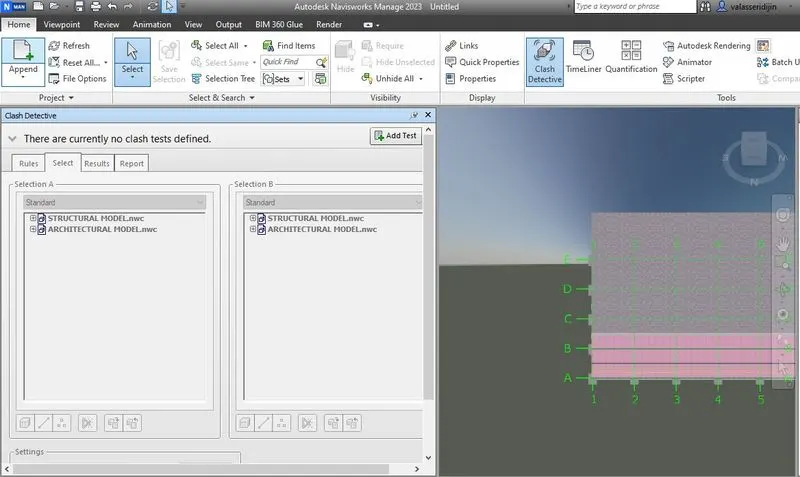

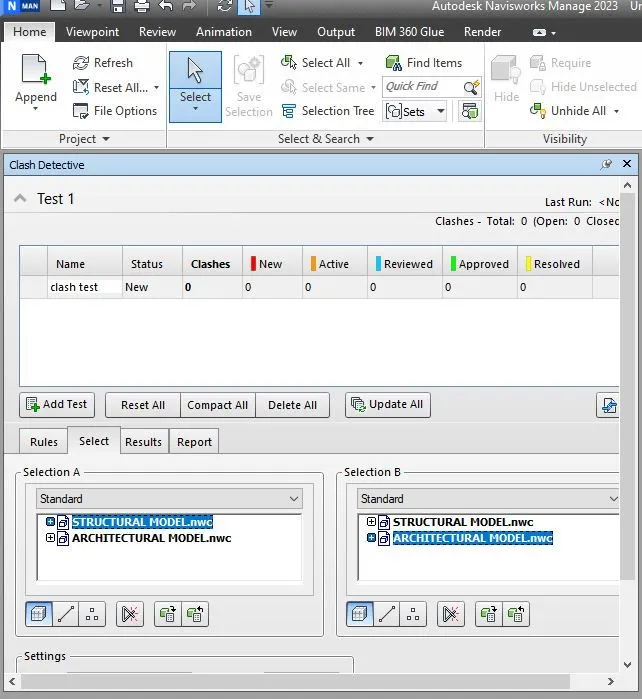

Step 4:Select structural from selectin A
Select architectural from selectin B
Select surface option

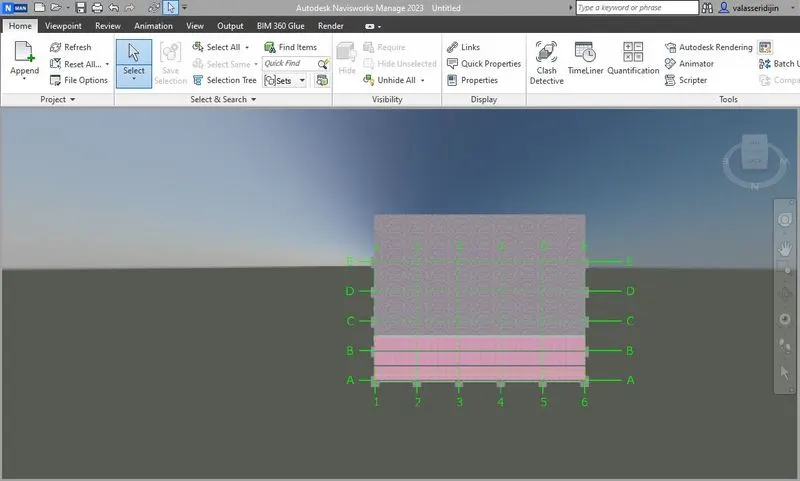

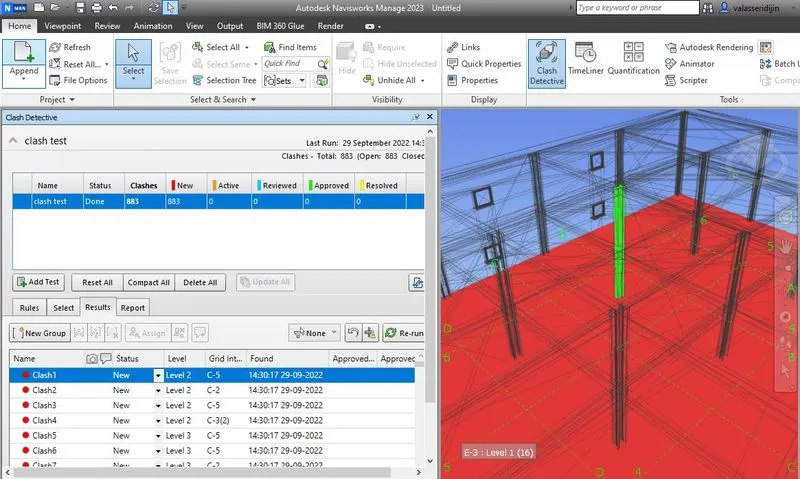

Click on Run Test

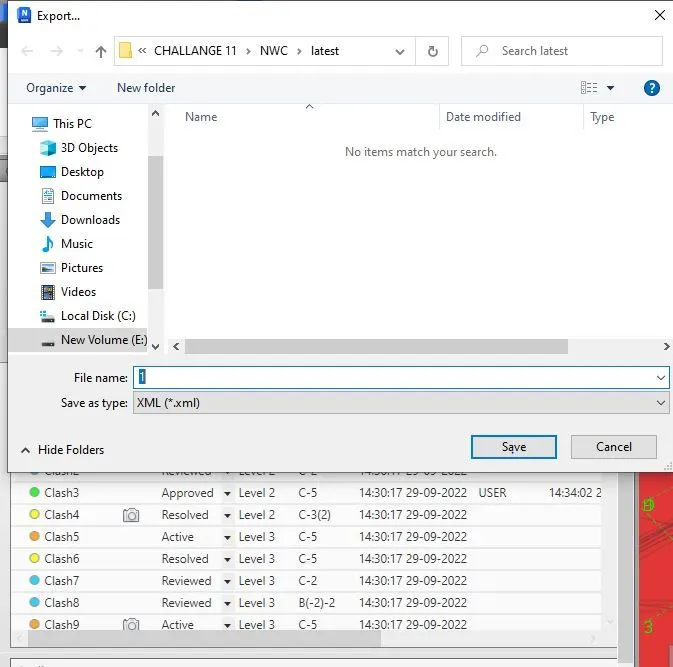

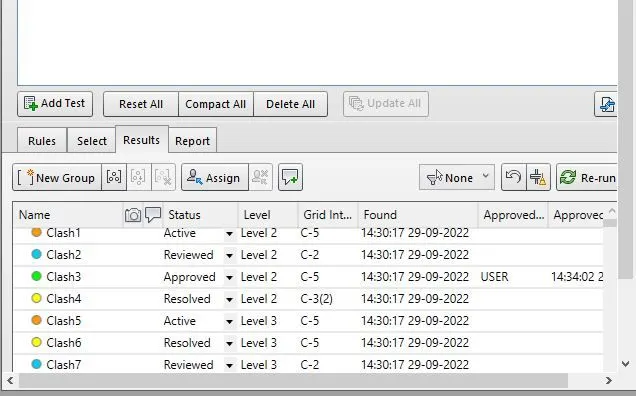

Step 5:By selecting the status in results we can change the status of the clash
The clashes could be approved
The clashes could be neglected ( will be taken care later)
The clashes can be resolved
Step 6:Select the clash
Select viewpoint and save the view of the clash
RESULT
Clash Test is conducted
Listed the results and the result is saved
AIM
Using the Timeliner feature in Navisworks, prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file
INTRODUCTION
Autodesk Revit is a BIM(Building Information Modelling) software civil engineers, architects, mechanical,electrical,plumbing(MEP)engineers
Here we are using Autodesk naviswork Manage
Navisworks allows users to open and combine 3D models, navigate around them in real-time and review the model using a set of tools including comments, redlining, viewpoint, and measurements.
Here we are using the Timeliner feature of Autodesk naviswork Manage
This feature is used for making the schedule of the work
Tools used
Timeliner
PROCEDURE
Step 1:Step 1:Open Autodesk Naviswork software
Open the NWC architecture file

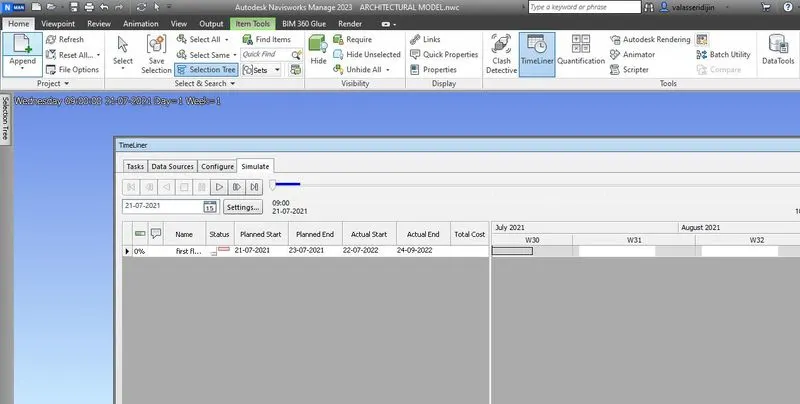

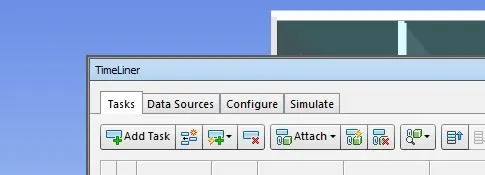

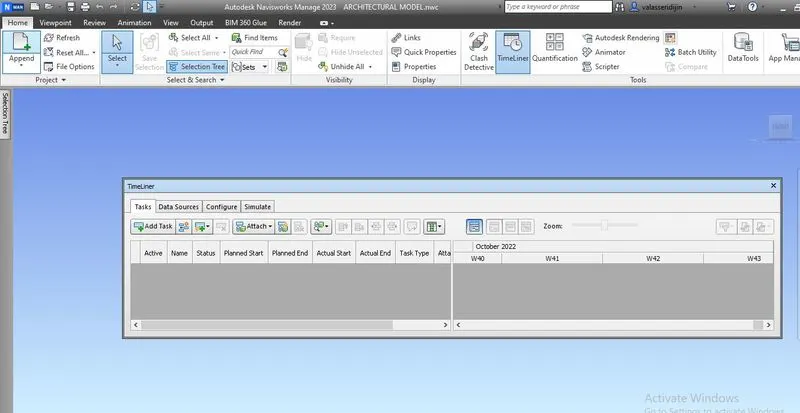

Step 2:Select Timeliner feature
Step 3:Select selection tree
By selecting the task from selection tree
Add task to the timeliner
Step 4:Add all task one by one

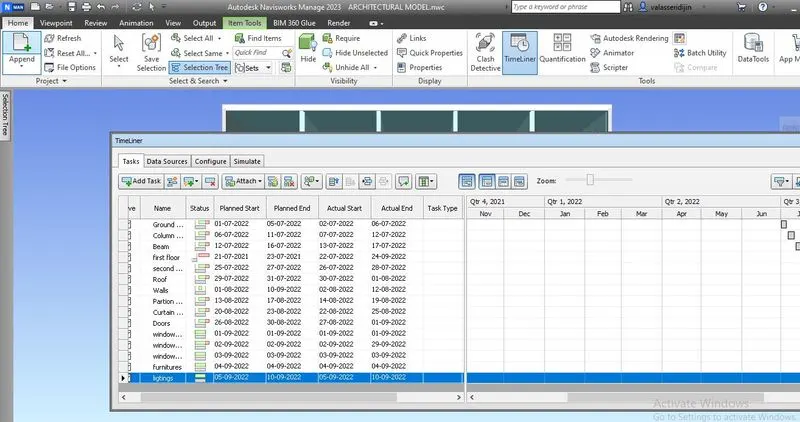

Enter the datas
Planned start
Planned end
Actual start
Actual end
Add all the dates to the events
Step 5:Select a event on timeliner
Select same on the selection tree
Click attach on the timeliner
Click on assign to the selection
Step 6:To see the animation of the events
Select stimulate option in timeliner
Click on the play button

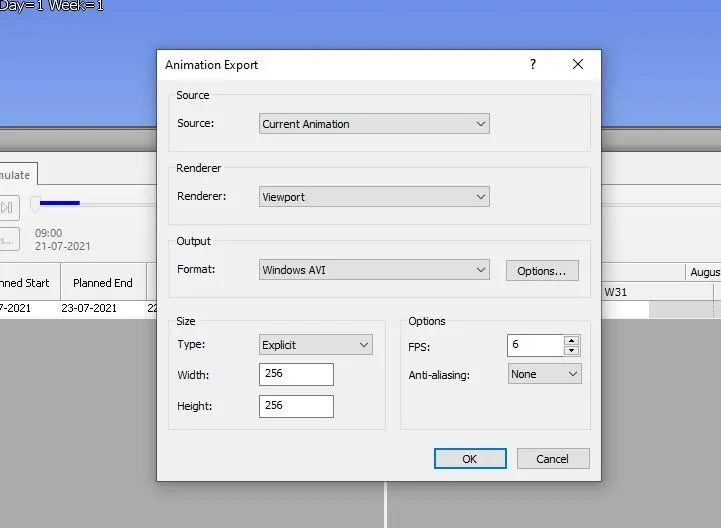

Step 7:Select export option in timeliner
Select the video format
Click on ok
RESULT
Scheduled the project ,simulated the task completion as a visual simulation
And the timeline simulation is saved to Navisworks file
