Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

AIM:

To export th revit Architecture and structure model to navisworks.

PROCEDURE:

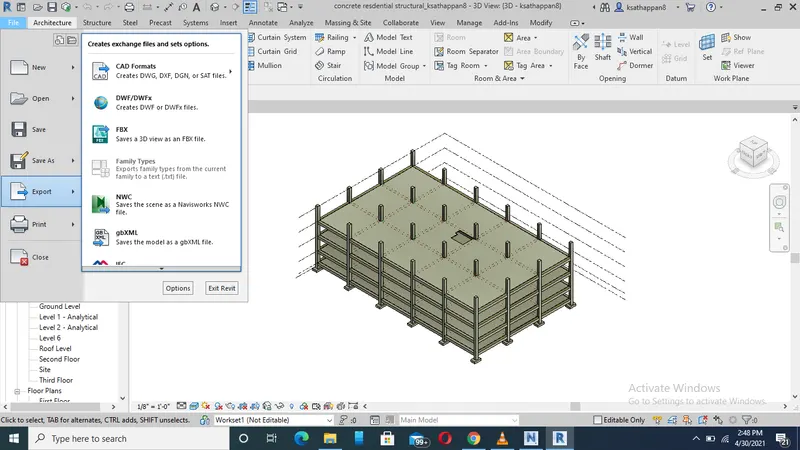

* Open the Architecture/ Structure project model and click the EXPORT option in file option in revit window.

* Choose the Export type for NWC type and click it.

* Choose the file for locate the NWC file.

RESULT:

Export the Architecture/Structure file to Navisworks file.

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

AIM:

To use navigate tool to walk aroud the model and walk through the rooms created and record your moving as animation in your navisworks file

PROCEDURE:

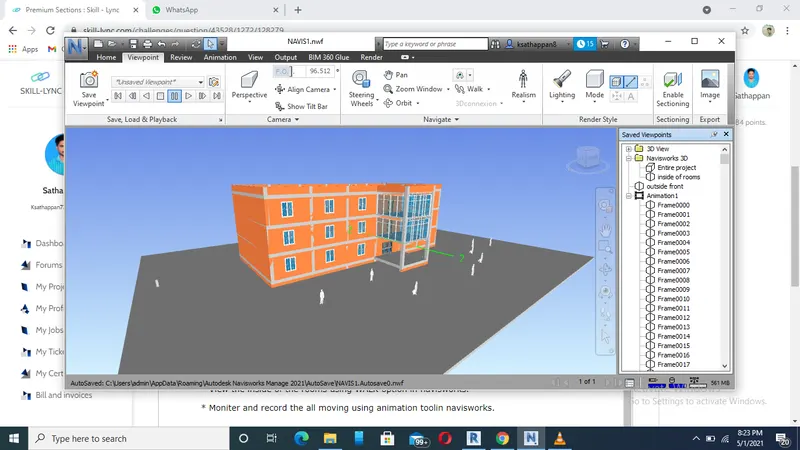

* Open the model in navisworks manage.

* Change the view of model using navigate tool.

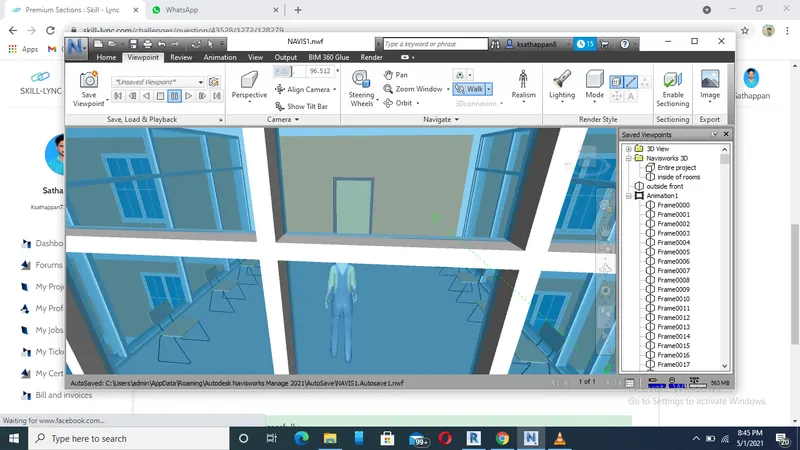

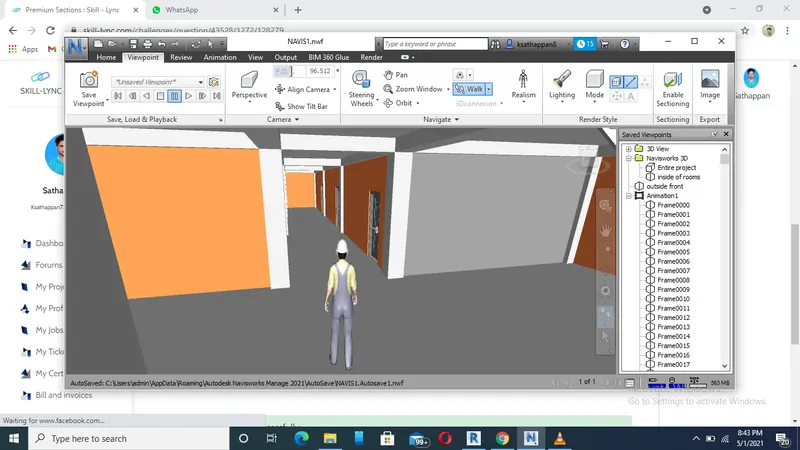

* View the inside of the rooms using WALK option in navisworks.

* Moniter and record the all moving using animation toolin navisworks.

RESULT:

use navigate tool to walk aroud the model and walk through the rooms created and record your moving as animation in your navisworks file .

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

AIM:

To use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

PROCEDURE:

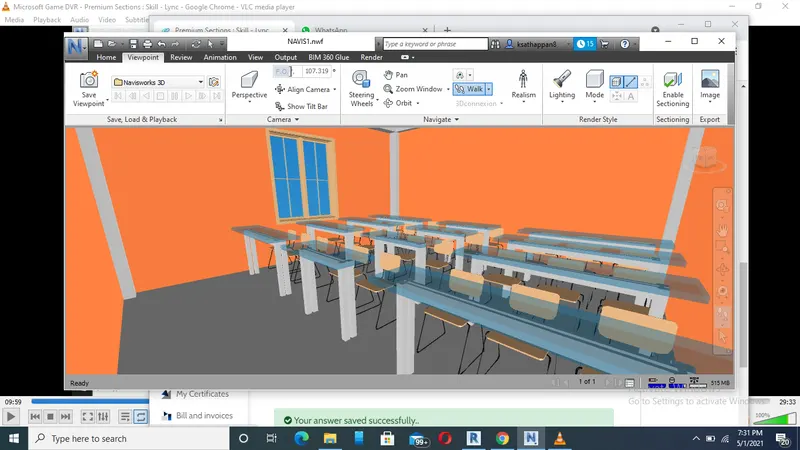

* To click the realism feature and choose the third person view walk through the model.

* Save the viewpoint or record the movings as animation in navisworks.

* Export the animation using export option .

RESULT:

use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks

AIM:

To embed both architecture and structure nwc file to in navisworks file.Create a clash detectin test between the two models.

PROCEDURE:

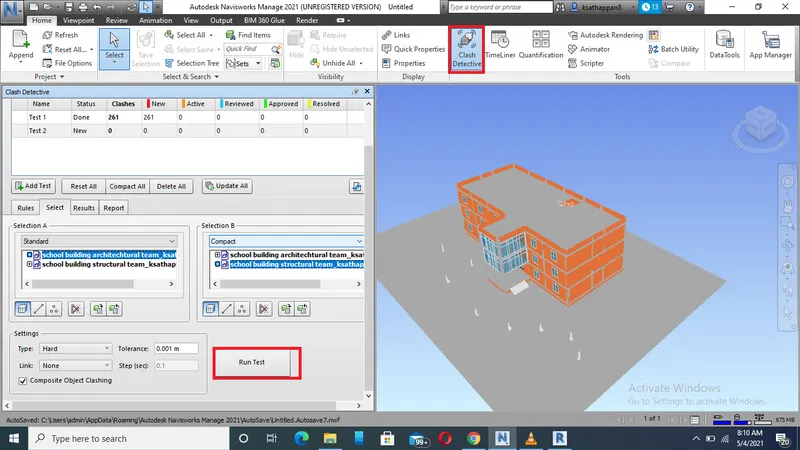

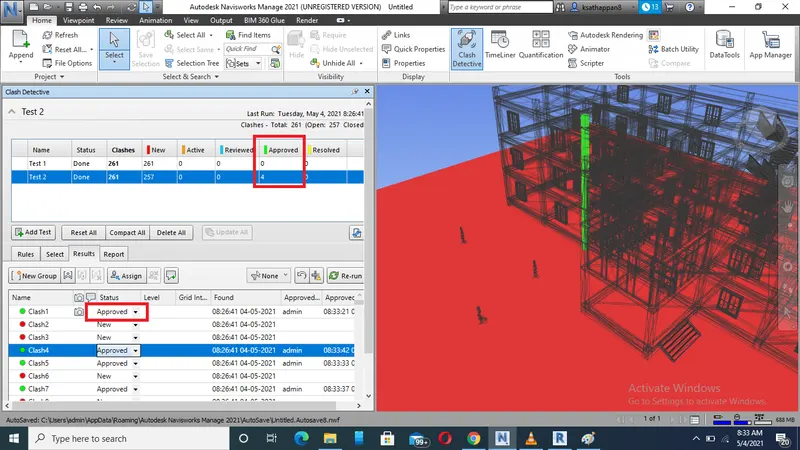

a. Run the Clash Detection Test

* Open the architecture nwc file in navisworks .

* Next APPEND the other structure file .Click the CLASH DETECTIVE option in naisworks window .

* Add the test between architecture and structure model .

* Click the RUN TEST option and start the test.

b. Study the clashes between the two models

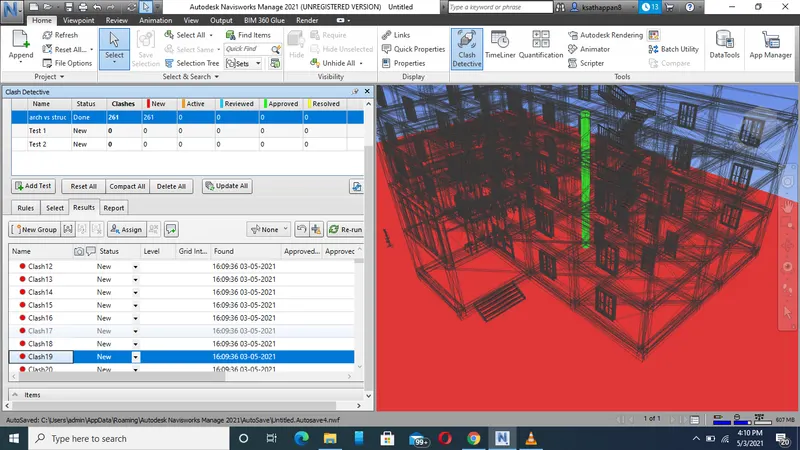

* write the test name and start the test clashes list automatically berween two models .

* Check the clashes one by one and change the status after check up.

c. List which of the clashes could be approved

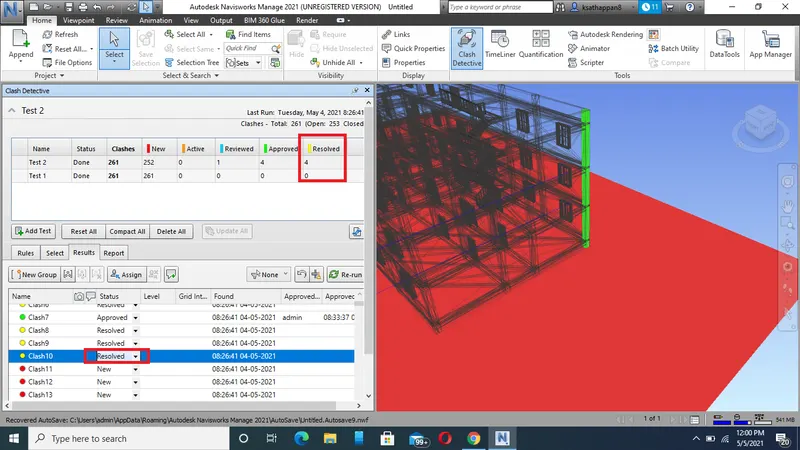

* Some times clashes are needed for the model so after the check up change the clashes are approved in status column in clashes schedule.

d. List which of the clashes could be neglected ( will be taken care later)

* Neglected the unneccesary clashes

e. List which of the clashes can be resolved

* some clashes can be change so that clashes are resolved.

RESULT:

Embed both architecture and structure nwc file to in navisworks file.Create a clash detectin test between the two models.

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

AIM:

To Using the Timeliner feature in Navisworks prepare a schedule for the project development for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.

PROCEDURE:

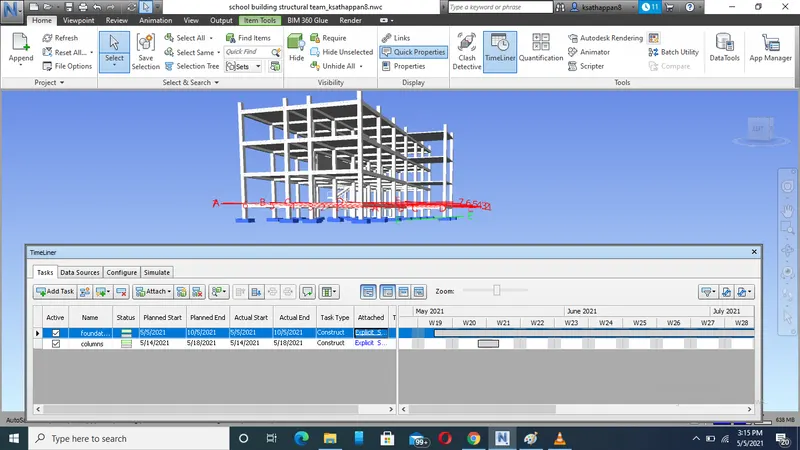

* Open the nwc file and click the timeliner option in home tap.

* Prepare the project start date and finishing date and create the complete time managment schedule.

RESULT:

Using the Timeliner feature in Navisworks prepare a schedule for the project development task and time management schedule.
