REVIT_3D Rendering of a House plan_Project 1

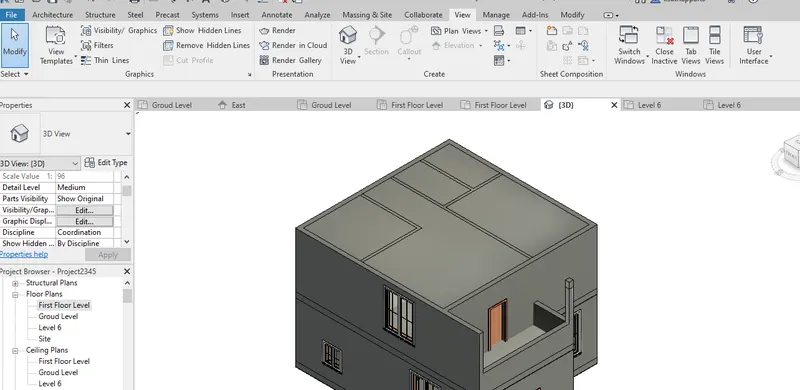

1) Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level
AIM:
To model a ceiling about to the first floor level above the walls using the architectural tab.
PROCETURE:
* Open the Architectural tap and click ceiling categarie.
* Click the boundary line sketch option in modify tap.And draw the ceiling boundary line.
RESULT: model a ceiling about to the first floor level above the walls using the architectural tab.Submit the latout.

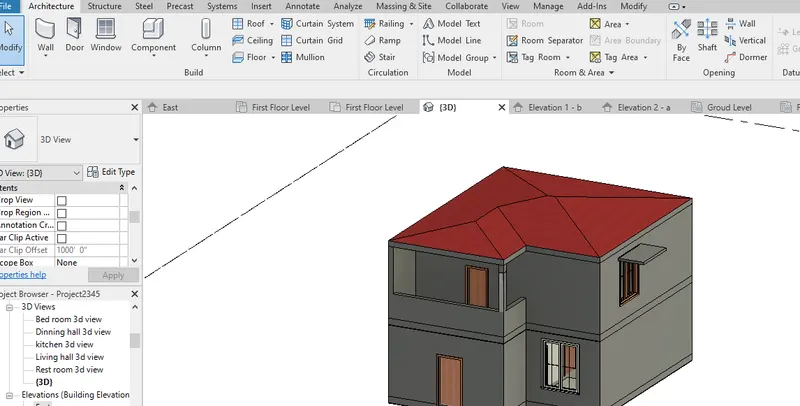

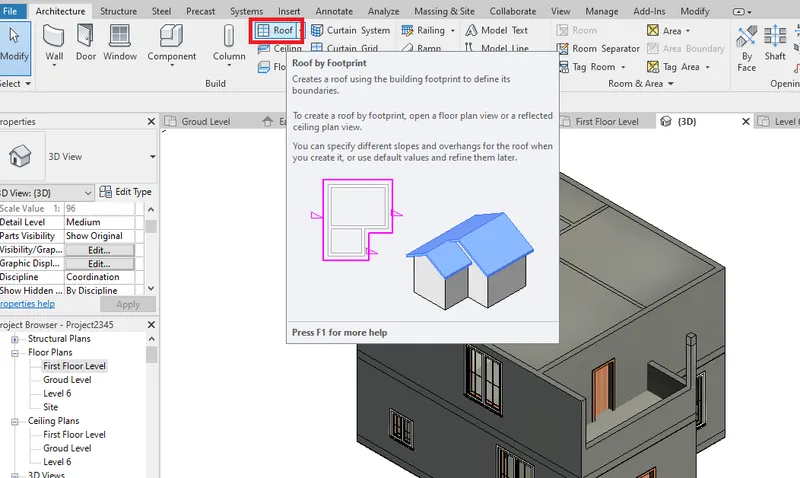

2) Model a roof above the ceiling by selecting the footprints of ceiling. Using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees
AIM:
To model a roof above the ceiling select the footprints of ceiling. Using the adjustment tool bars adjust the roof slope to 10 degrees.
PROCEDURE:
* Click the roof categarie and choose the roof type in roof categarie.
* Click the roof boundary draw option in modify tap.And draw the roof boundary line.
* Adjust the roof slope using slope option in the property prowser of roof.
RESULT:
To model a roof above the ceiling select the footprints of ceiling. Using the adjustment tool bars adjust the roof slope to 10 degrees.Submit the layout.
3) Using the file saved from week 2 to 4, create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls , floors and all the components placed within the building
b. Structure plan must have details of only walls, floors and columns
AIM:
To create a plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to architecture and structural plans.
a. Architecture plan must have walls , floors and all the components placed within the building
b. Structure plan must have details of only walls, floors and columns
PROCEDURE:
* Open the view tap and click the plan view option creat the plan views.
* Choose type of views Architectural,structural or site lan views.
* Modify the view elements overide the visibility graphics in property browser .
a. Architecture plan must have walls , floors and all the components placed within the building

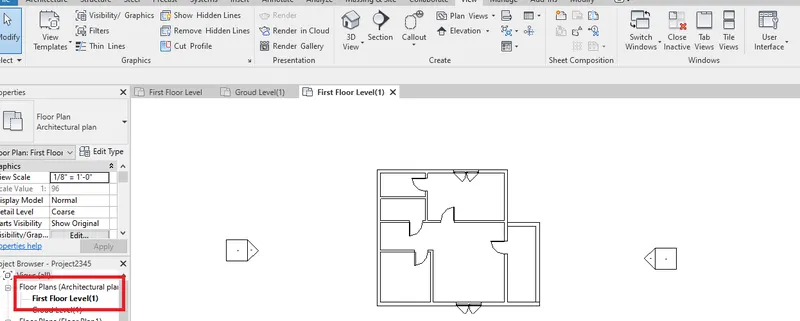

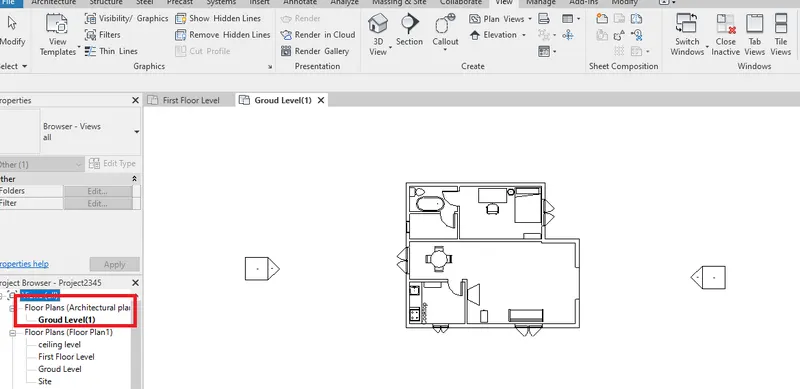

* Open the Architectural plan view and overide the visibility of elements.

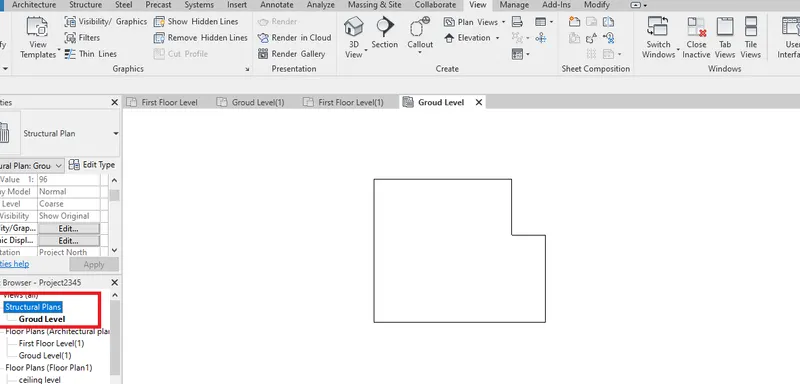

b. Structure plan must have details of only walls, floors and columns

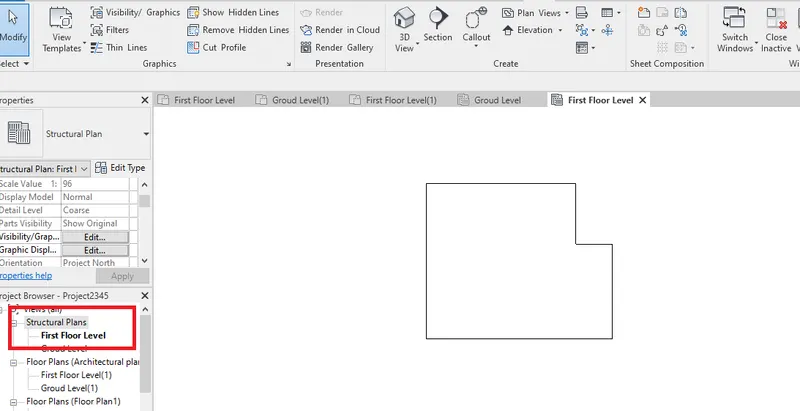

* Open the structural plan view and overide the visibility of elements.
RESULT:
Submit a plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to architecture and structural plans.
4) Using annotate tool bar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
AIM:
To add diamensions to all the walls and floors with reference to the longitudinal and transverse grids using Annotate tool bar. To submit the layout.
PROCEDURE:

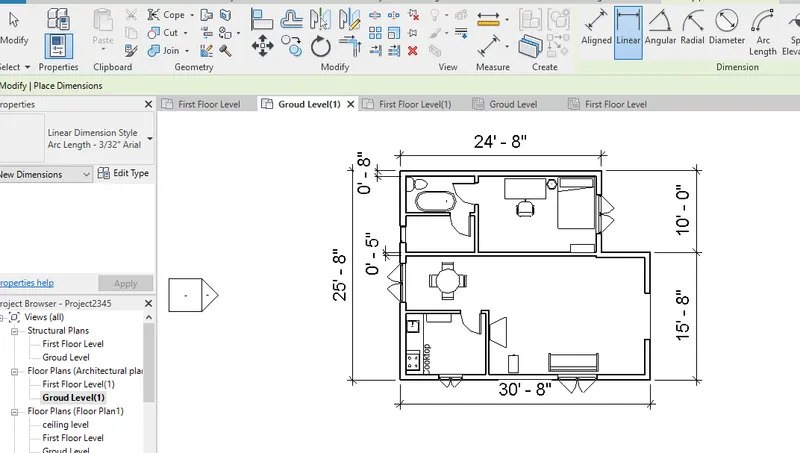

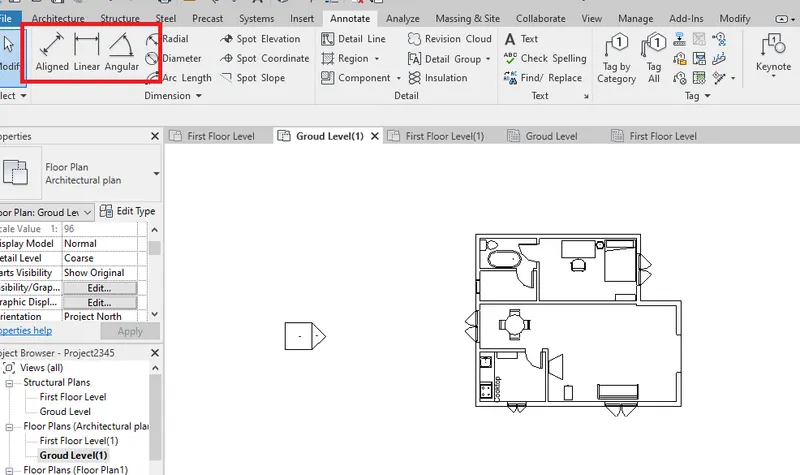

* Open the annottate tab to click the diamention draw option and draw the diamention of the plan.
RESULT:
Add diamension to all the walls and floors with reference to the longitudinal and transverse grids using Annotate tool bar. submit the layout.

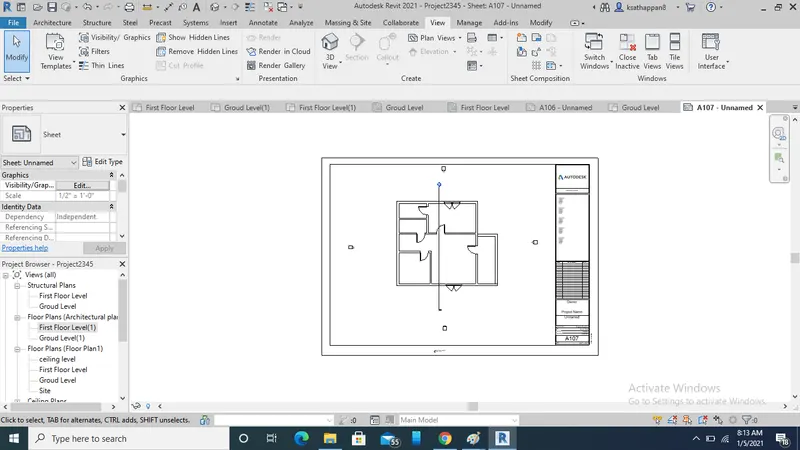

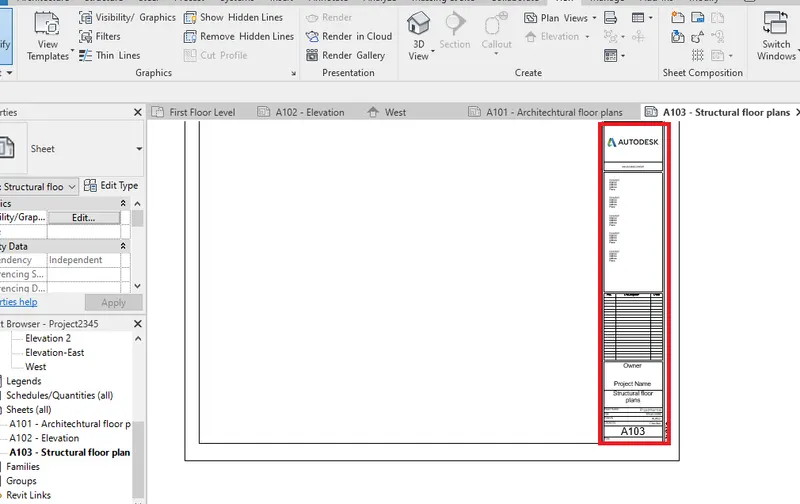

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
AIM:
To create a sheet template from the view tab and adjust the parameter on the sheet to add appropriate views.
PROCEDURE:

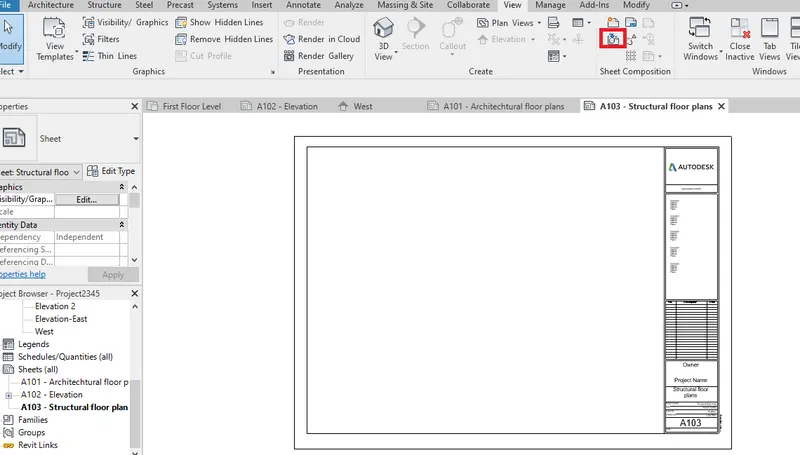

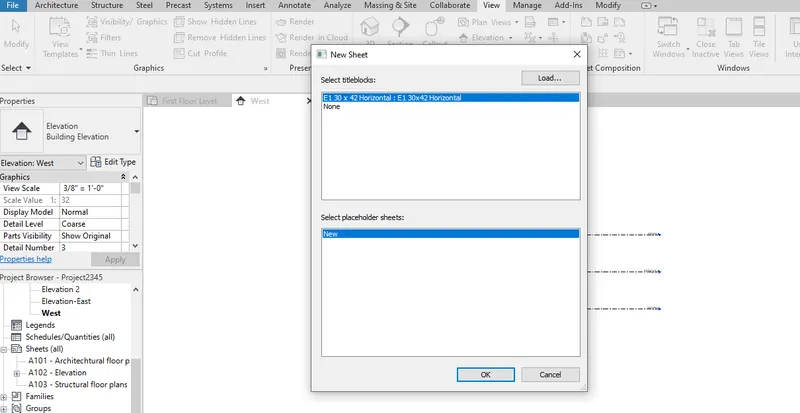

* Open the view tab and click the sheet option create the new sheet template.
* click the place view option in view tab.Place the view in the sheet
* Adjust the parametr on the sheet to add appropriate views.
\
RESULT:
Create a sheet template and adjust the parameter on the sheet.submit the layou

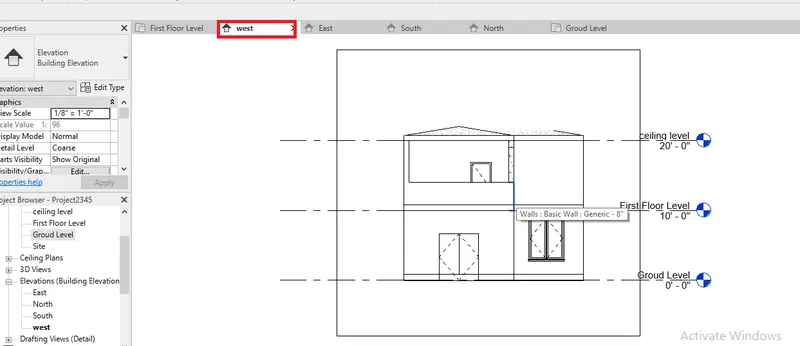

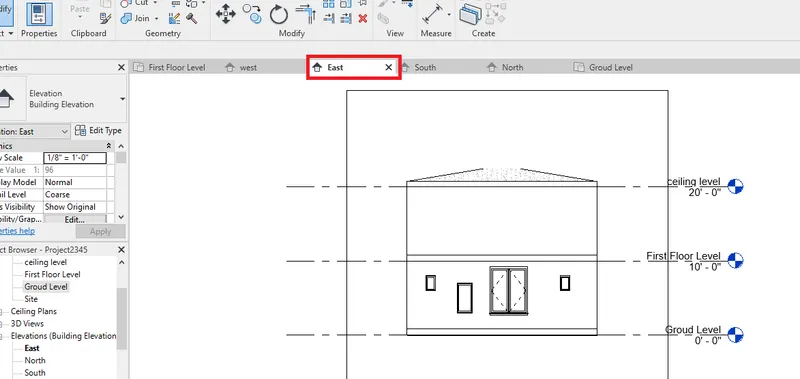

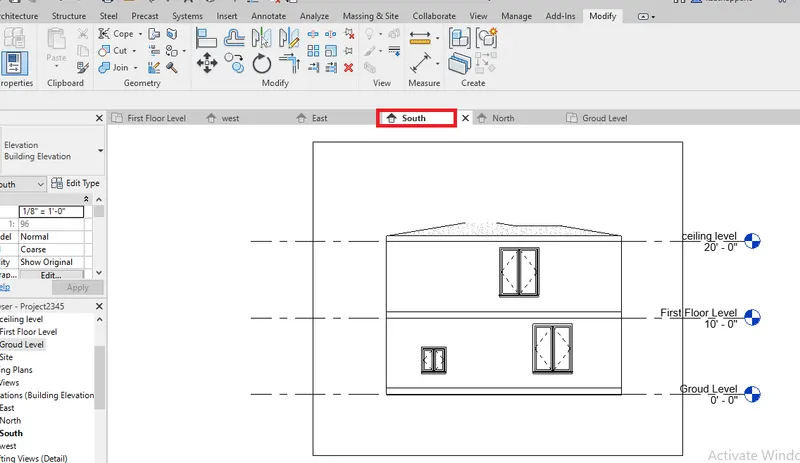

6) Using the elevation tab create the elevation views, looking at your building from East, North, South and West
AIM:
To create the elevation views using the elevation tab ,show building from east, north,south and west.
PROCEDURE:

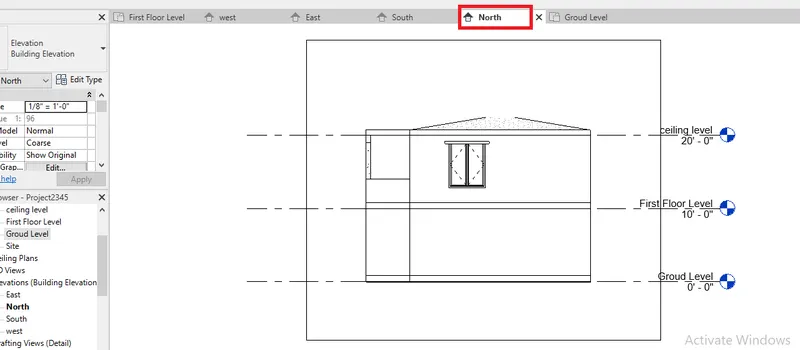

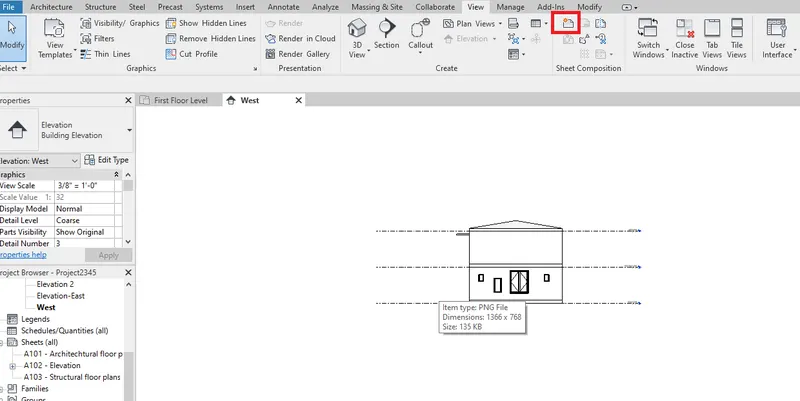

* Open the view tab and click the elevation view open the elevation template.
* Open the various elevation views in project browser.
RESULT:
Create a elevation of building views for east,west,south,north.Submit the layout.

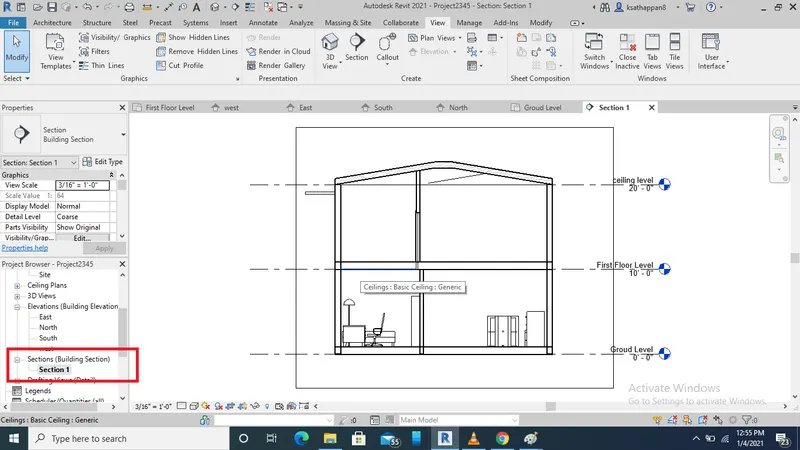

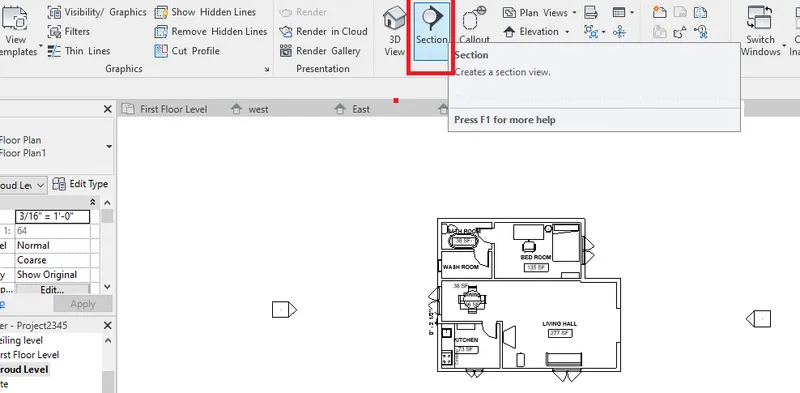

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
AIM:
To produce section cut through each room either cutting across longitudinally or in a transverse direction.
PROCEDURE:
* Open the view tab click the section option and open it.

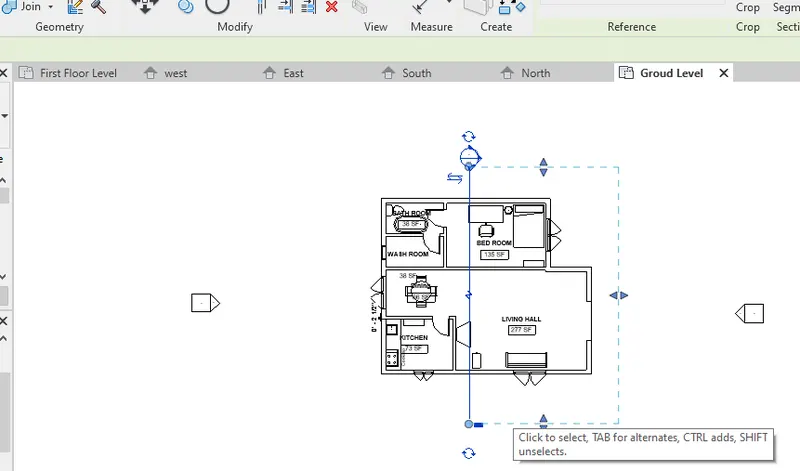

* Draw the section line in a plan view.open the section view in project browser tab.
RESULT:
Create a section view and show the componets inside of the building.
9) Using the sheet template produced create multiple sheets as follows
a. A 101 – Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102 – First Floor Structural Plan
f. S 103- Roof Framing Plan

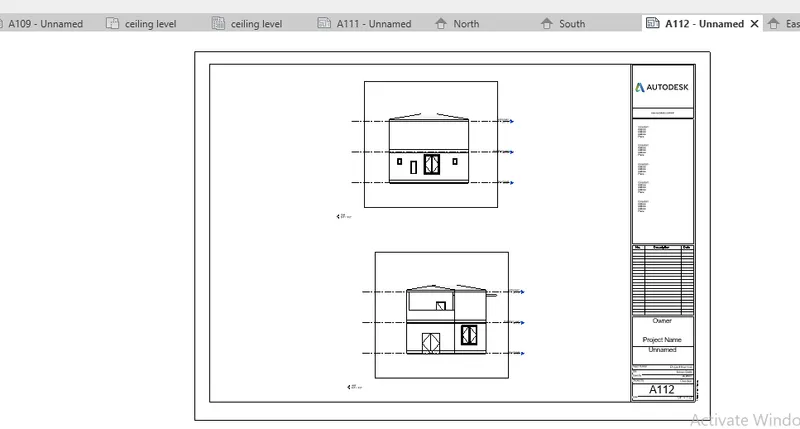

g. A-201 – North South Elevations

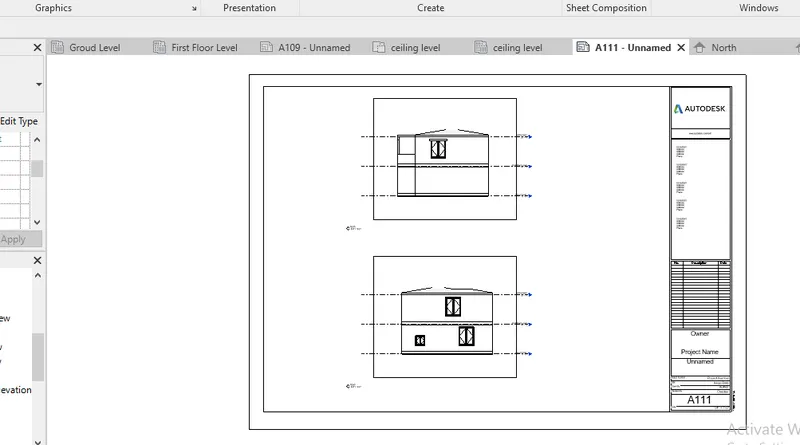

h. A-202- East West Elevations
AIM:
To create the multible sheet using the sheet template.
PROCEDURE:
a. A 101 – Ground Floor Architecture Plan

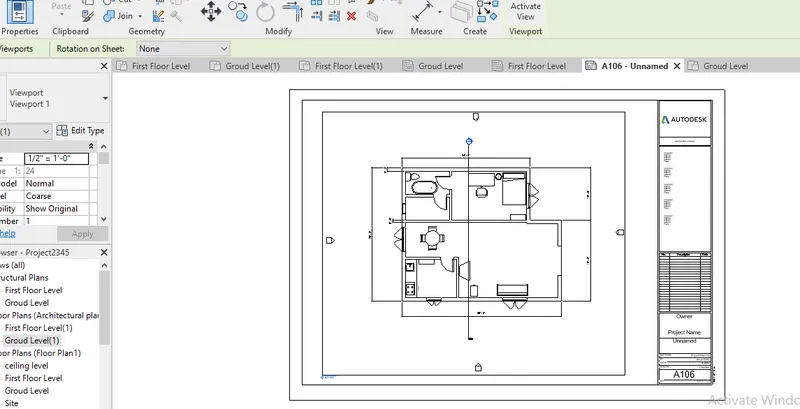

* Create the sheet for Ground floor Architectural plan using sheet template.
b. A 102- First Floor Architecture Plan

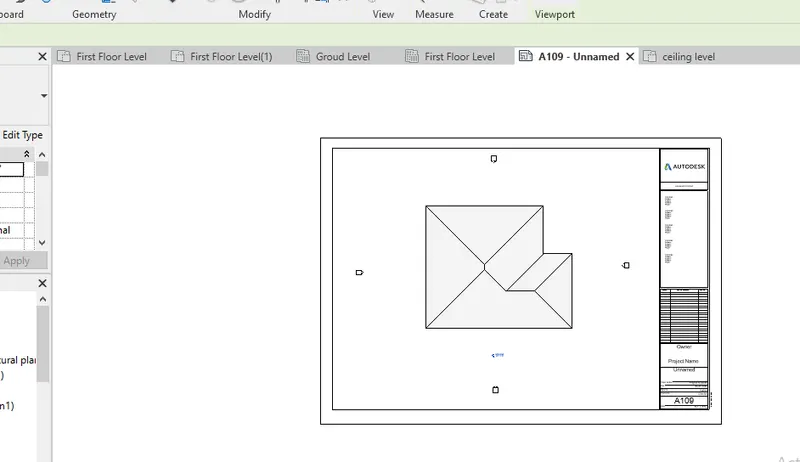

c. A 103- Roof Plan
g. A-201 – North South Elevations
h. A-202- East West Elevations
RESULT:
Create the sheet template for muliple views. Submit the layout.
10) Create a camera specific view or a 3D view in each room ( living, dining, bed room ) . Based on the views create new shet of sheets starting A-501 (you can add as many sheets after , 502, 503.. n)to place the 3D view images.Produce the sheets as a part of project drafting.
AIM:
To create a new sheet for camera views of rooms (living,dinning,bed room).To create a sheet for 3D view of project.
PROCEDURE:
* Click the sheet option in view tab.And create the sheet .
* Click the place view option insert the view in the sheet template.

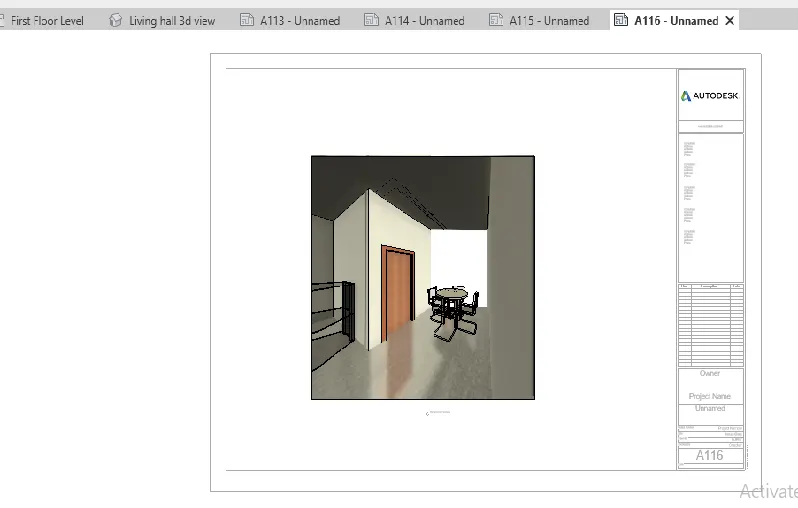

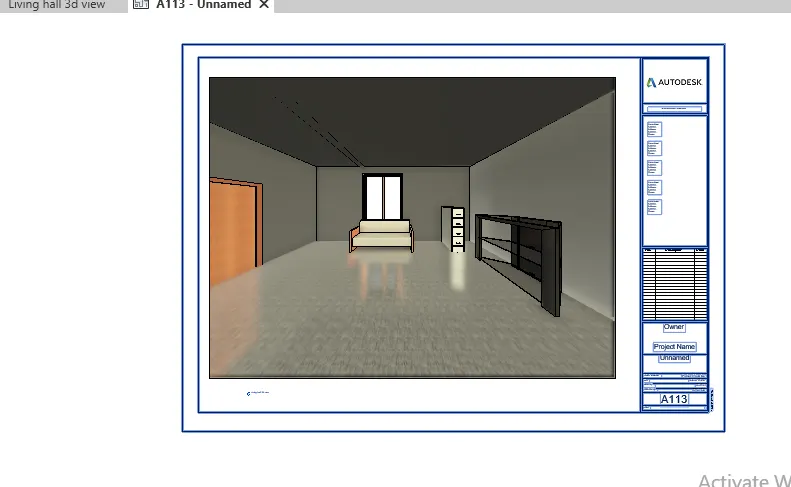

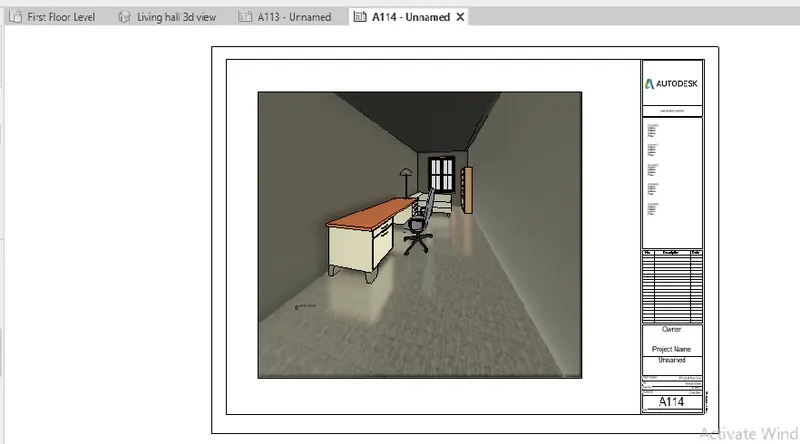

* camera view of living room:
Camera view of bed room:
Camera view of dinning hall:

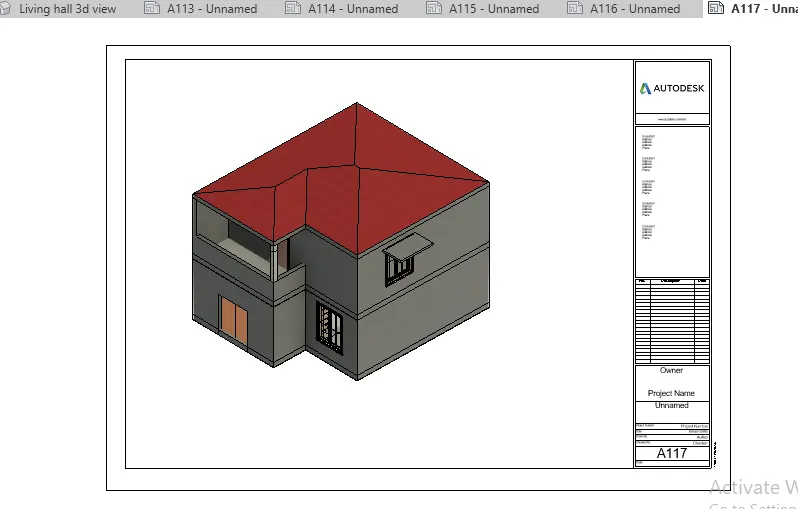

create a sheet for 3D view of hole building:
RESULT:
Create a sheet templete for all camera views and 3D views of building.
