REVIT_Usage of Elements & Properties_Week 3
1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2
AIM:
To create a floor layout in the ground floor level using floor tool under architecture tab and select the floor type and thichness using the property browser.
PROCETURE:
Step1: Open the last saved layout file,click on the OPEN option.
Step2: Choose the wall type and thickness using property browser.

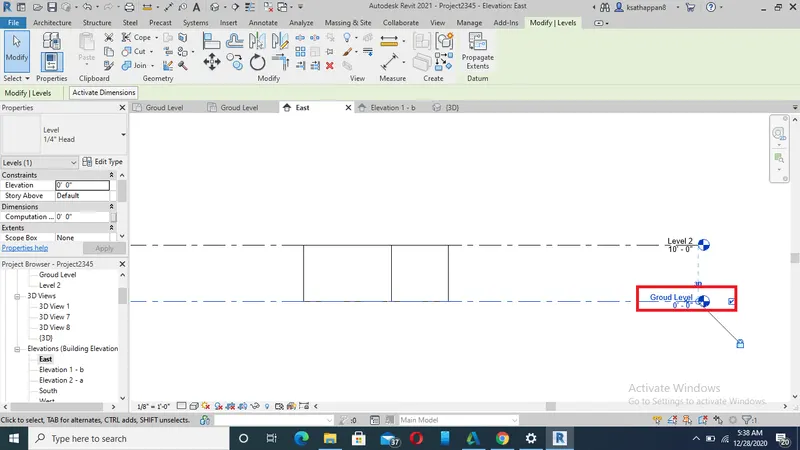

Step3: Create a layout level and keep the name Ground level.

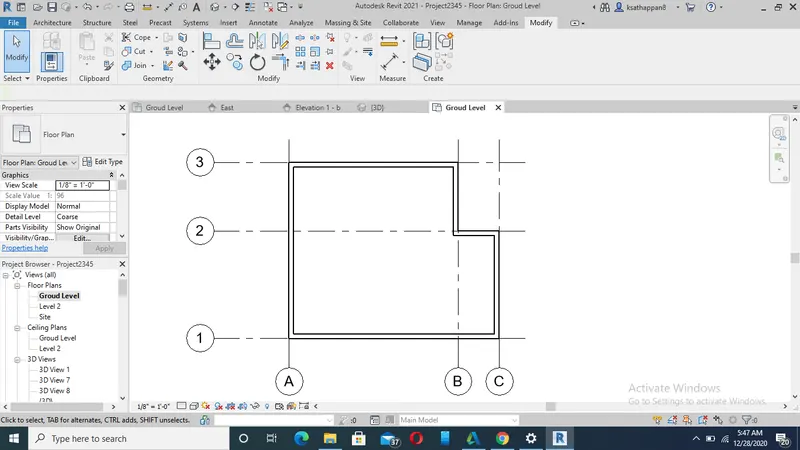

Step4: Align the grid lines in the layout.
Result:
Creat a layout and maintain the base level of layout in Ground level,Create and align the grid lines.Submit the particular layout.

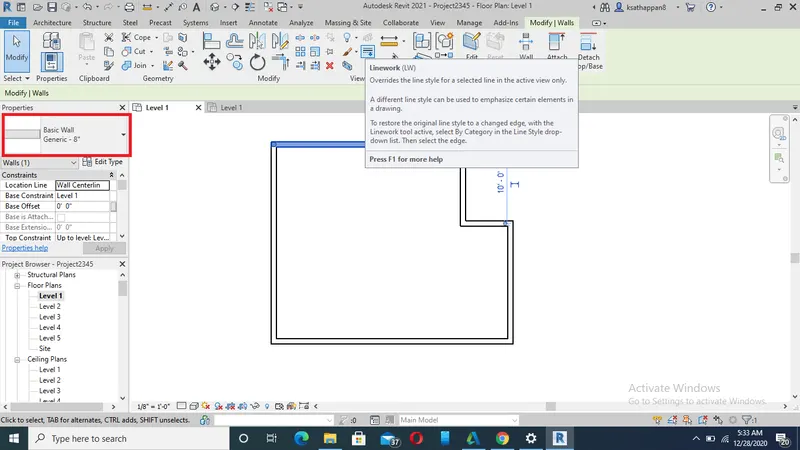

2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
b. Which option is convenient for modeling walls, By Height or By Depth?
AIM:
To create a walls based on the floor boundary line,and select the material and thickness for a walls,using property browser. constrained the top and bottom level of walls using poperty browser.
PROCETURE:
Step1: Click the wall categarie and create the wall and select the wall type and thickness using property browser.

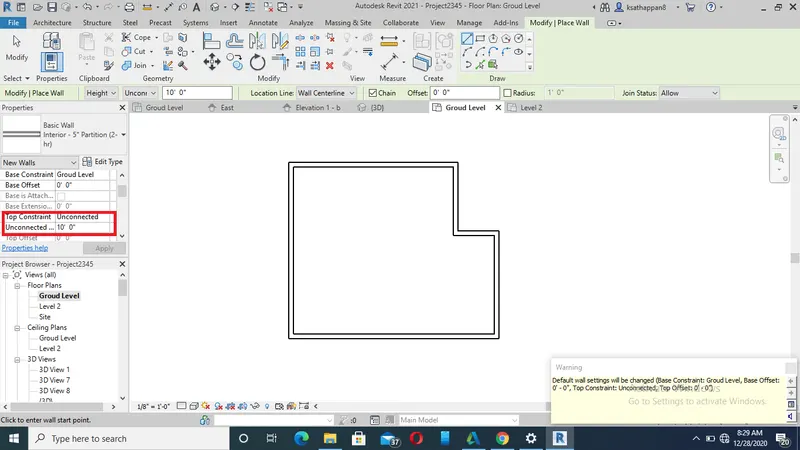

Step2: Click the unconstrained hieght option in the property browser and create the wall top height.
RESULT:
create a walls based on the floor boundary line,and select the material and thickness for a walls,using property browser. constrained the top and bottom level of walls using poperty browser.submit the layout.
a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
* wall connect the particular level ,easy to modeling the walls.
b. Which option is convenient for modeling walls, By Height or By Depth?
* Height option is convenient for modeling walls.
3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level
AIM:
To copy a model elements in ground floor level and past to First Floor Level.Using modify tab in copy and past option use that elements.
PROCETURE:

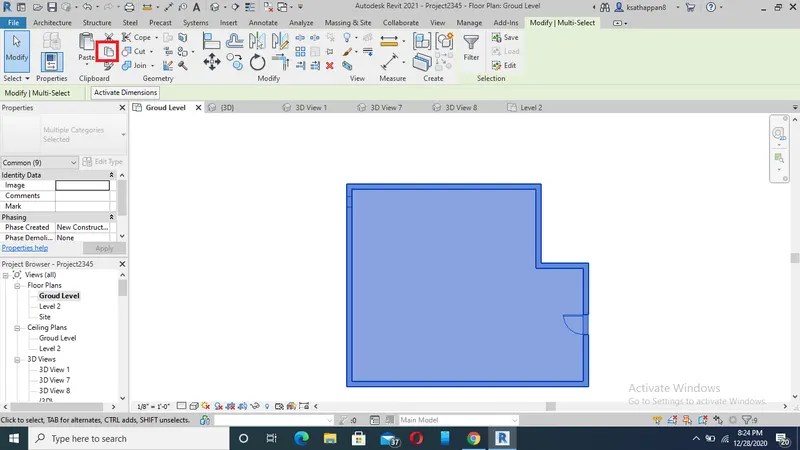

Step1: Select the model elements in Ground Floor Level and click the copy to clipboard in the modify option.

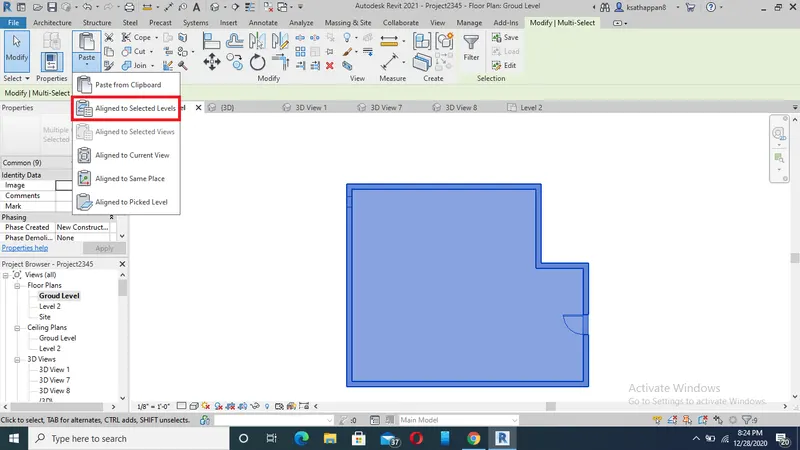

Step2: Click the past option in modify tab and choose option past to the aligned levels.

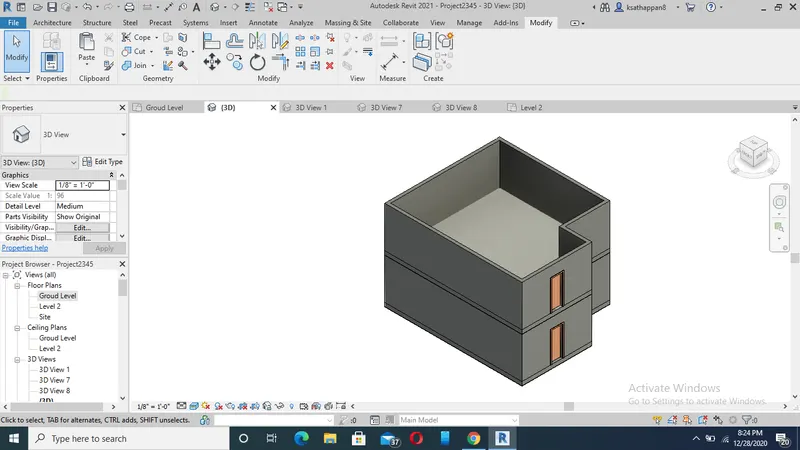

Step3: Past the elements in First Floor Level.
RESULT:
copy a model elements in ground floor level and past to First Floor Level.Using modify tab in copy and past option use that elements.submit the layout.

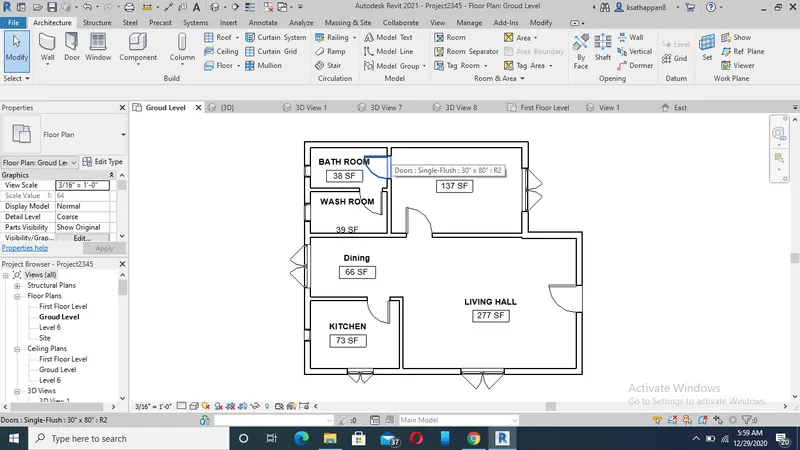

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)
AIM:
To create a partition separate walls into the Residential layout . The following rooms are created.
PROCETURE:
Step1: Create the partition wall to select the wall types and thickness using property browser
Step2: Create room name and diamention using Room Tag family.
RESULT:
create a partition separate walls into the Residential layout. Submit the related layout.
5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model
a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets

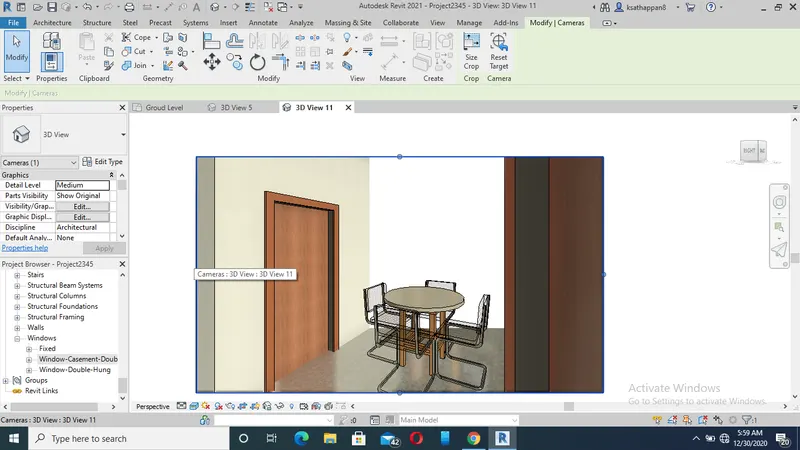

c. The Dining Room must include a table and chairs serving the purpose of eating

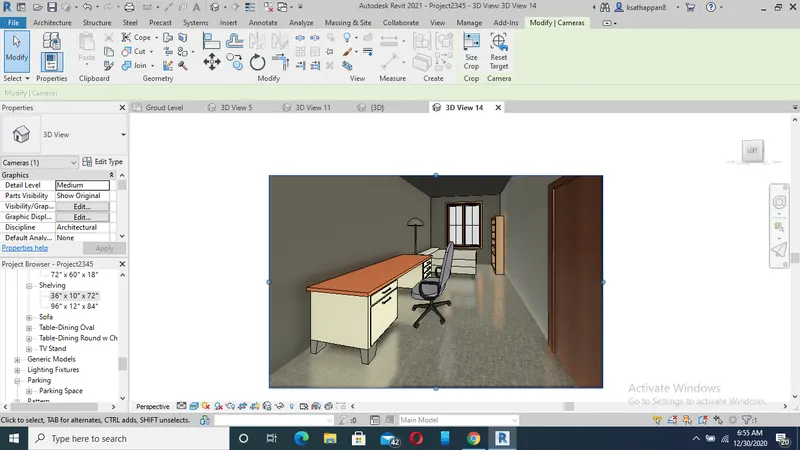

d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair

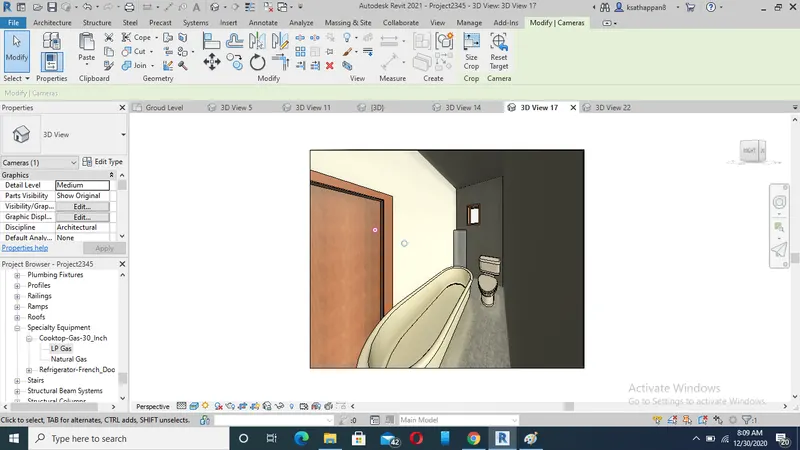

e. Rest room should include bath tub and plumbing fixtures discussed in class

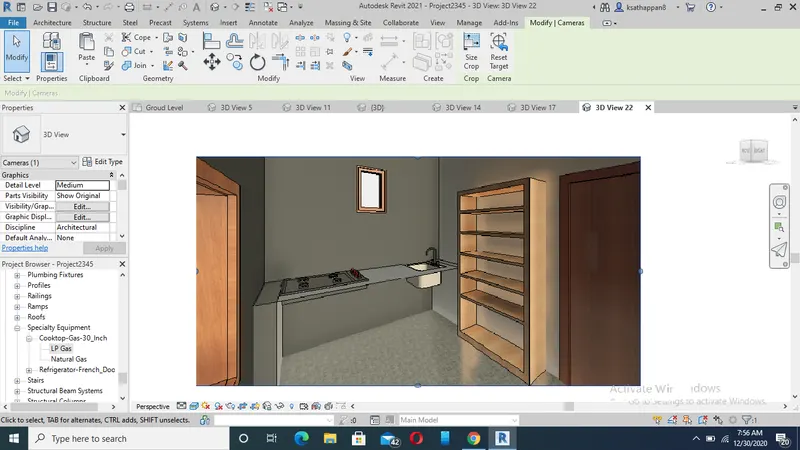

f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes

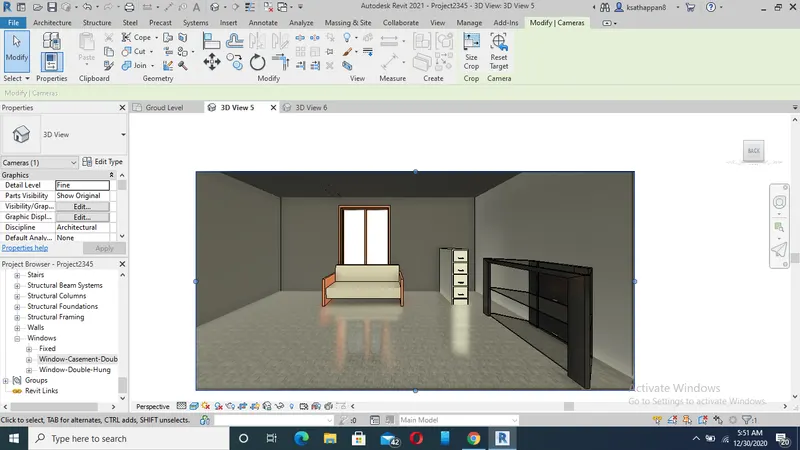

All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model
a. Place Doors and windows in the wall at appropriate locations
AIM:
To place the doors and windows in the wall suitable locations.To insert the all rooms model elements in the rivit librarie.
PROCETURE:
Step1: Click the DOOR categarie,Select the door type and diamentions using property browser.
Step2: Click the WINDOW catagerie,select the type and thickness of window using property browser.
Step3:
Step3: Click the load familys in the INSERT tab.
Step4: Insert the all room model elements and drag into the layout.
RESULT:
place the doors and windows in the wall suitable locations. Insert the all rooms model elements in the rivit librarie. Submit the layout all.
