Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class ?

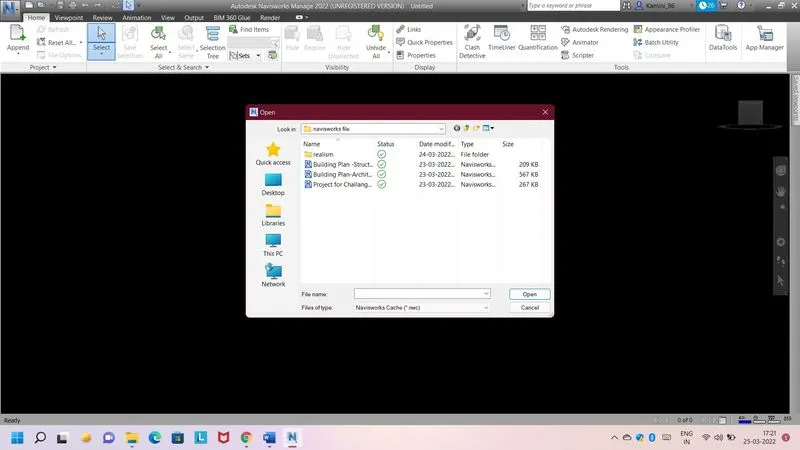

Ans: Aim- Revit File export in Nwc File-

Procedure- Go to revit software and open week 8 Architectural model and go to file menu and select export option and choose nwc file and save this filen in appropriate location and then go to nevisworks manage and go to open option and choose appropriate file.

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file ?

Ans= Aim- Enter and move in model by Walk through and create animation-

Procedure- In navisworks manage software open nwc file and go to door by mouse scroll and enter room, then choose walk option, save view point and rename this and on recording and walk through by scroll .

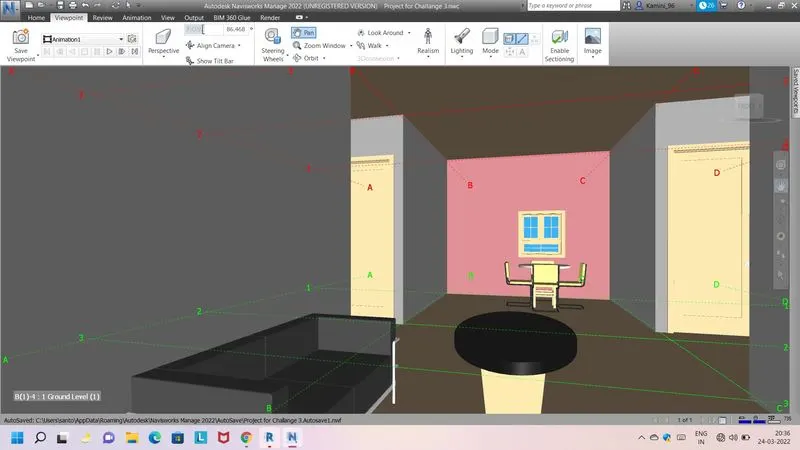

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file ?

Ans= Aim - Use Realism Feature to walk through the model.

Procedure - In naviswork open nwc file and go to door and enter room by scroll and then choose relism option and select third person option and select walk option and move by scroll and record animation.

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks

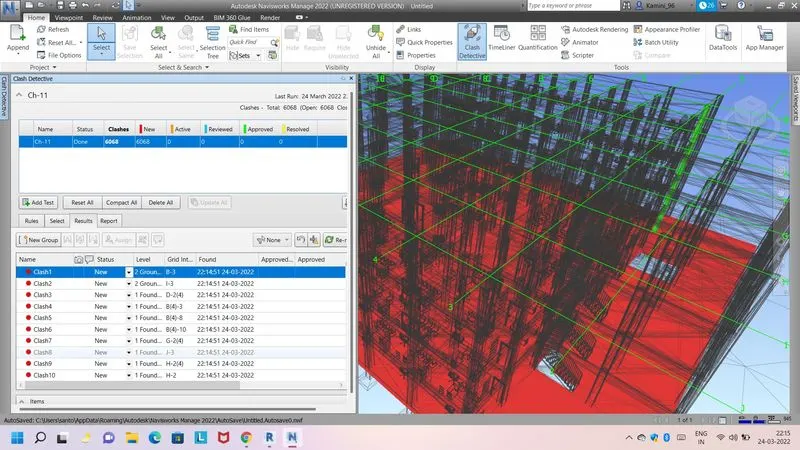

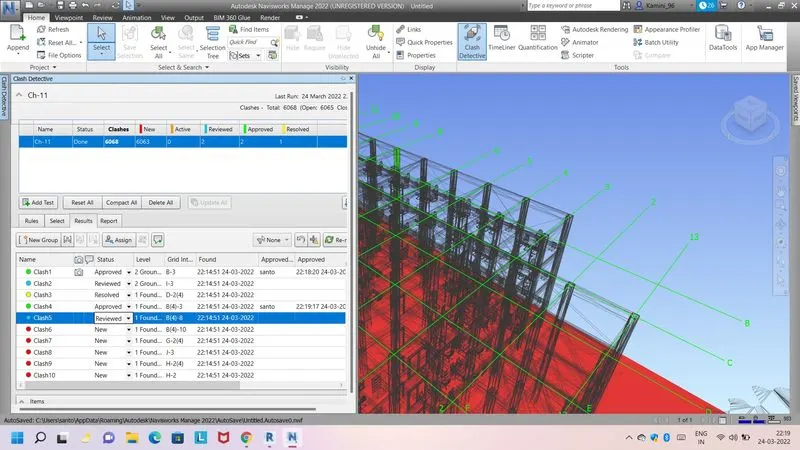

Ans = Aim- Clash Detection test between the two models -

Procedure - in navisworks open Architectural nwc file then go to apendex and choose structural file and go to clash detection option option so coming detection window - go add test renamed test-choose section A architectural and section B structural then select surface option then go to run test - found 6068 nos clash, go to clash-1 status option and select any option reviewe, Approved,resolved etc.

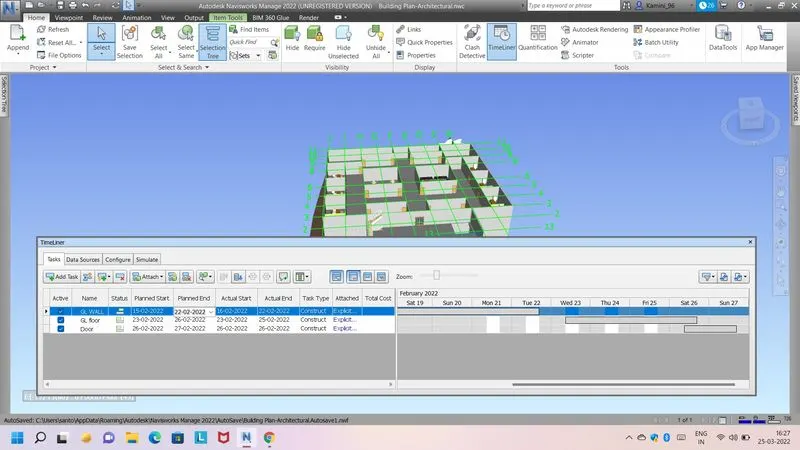

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file ?

Ans-

Aim- Prepare a schedule by using the timeliner feature in navisworks

Procedure- in navisworks open nwc file in home tab select selection tree option and then go to timeliner option and enter so open selection tree window and timeliner window, here go to add task and named task and enter plan start and end date and actual start and end date, then go to selection tree window and choose apporipriate task and go to timliner window attached option and attach current selection in this procedure create all task and then go to simulation option and play .
