Understanding the concepts on Degrees of Freedom

AIM

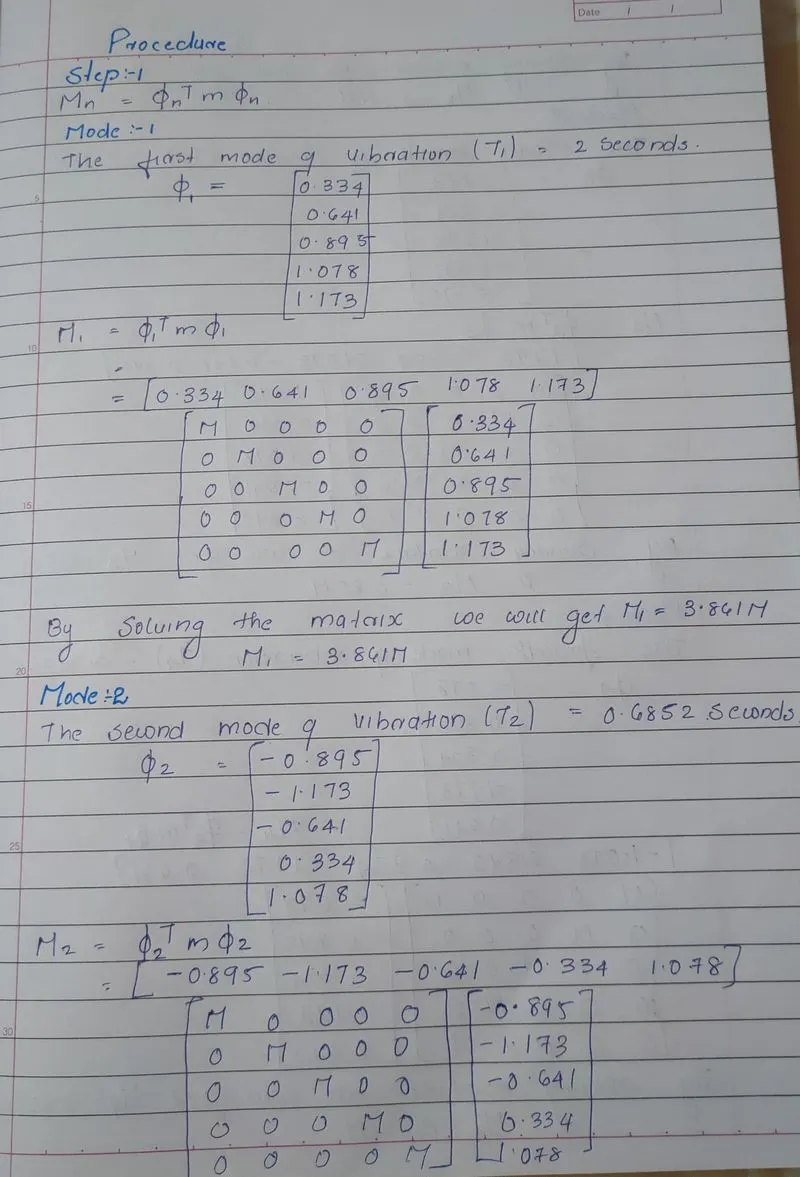

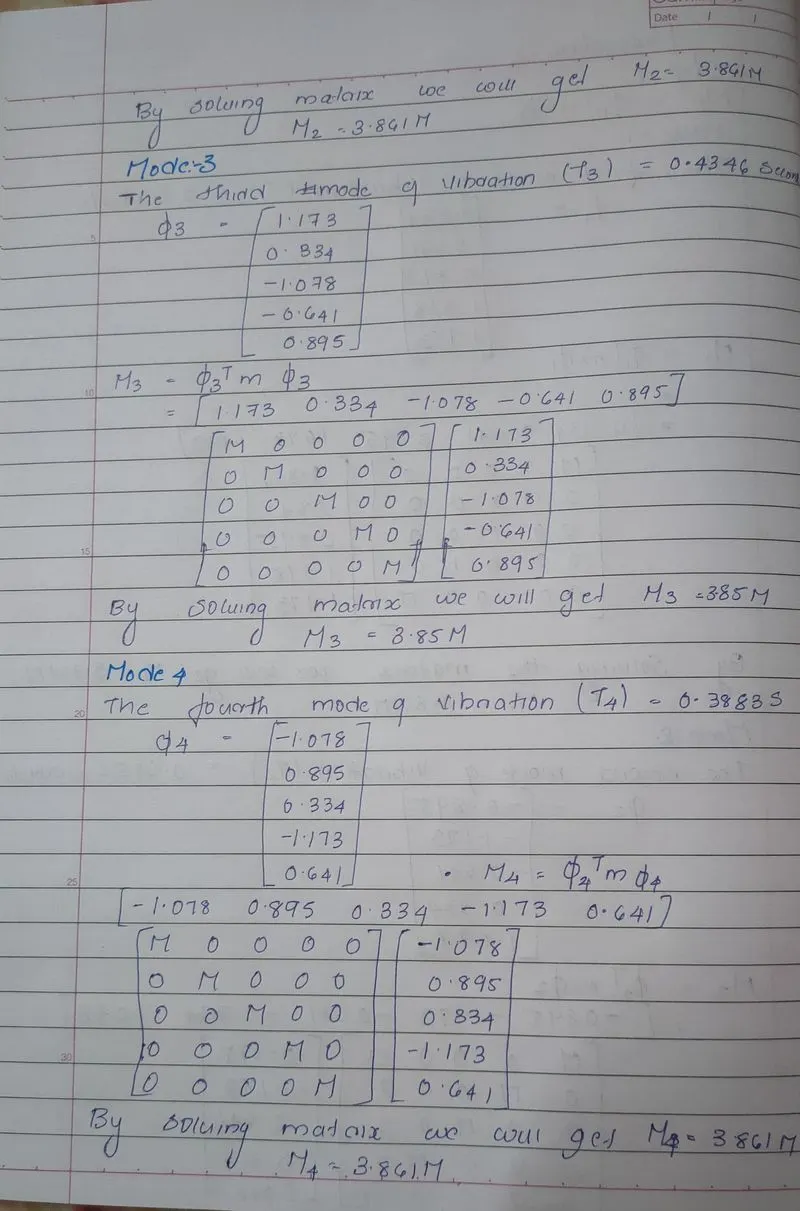

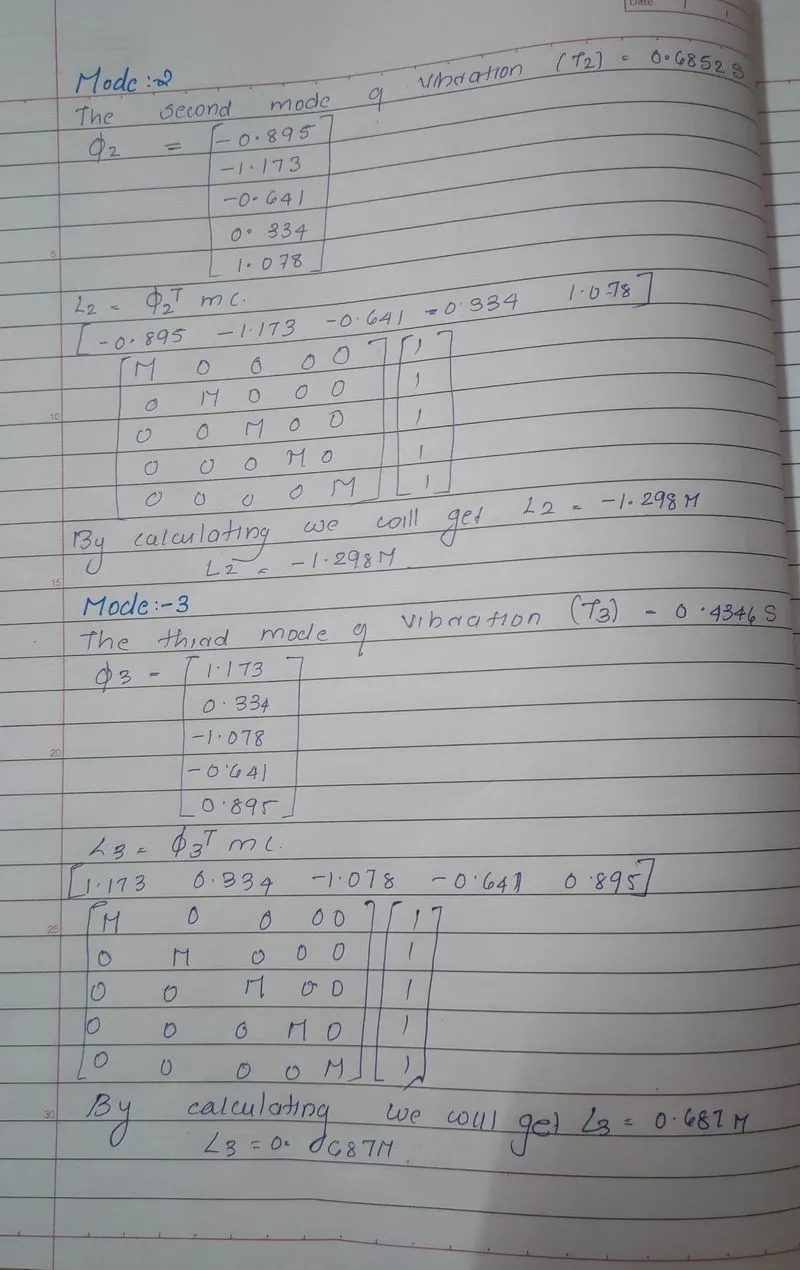

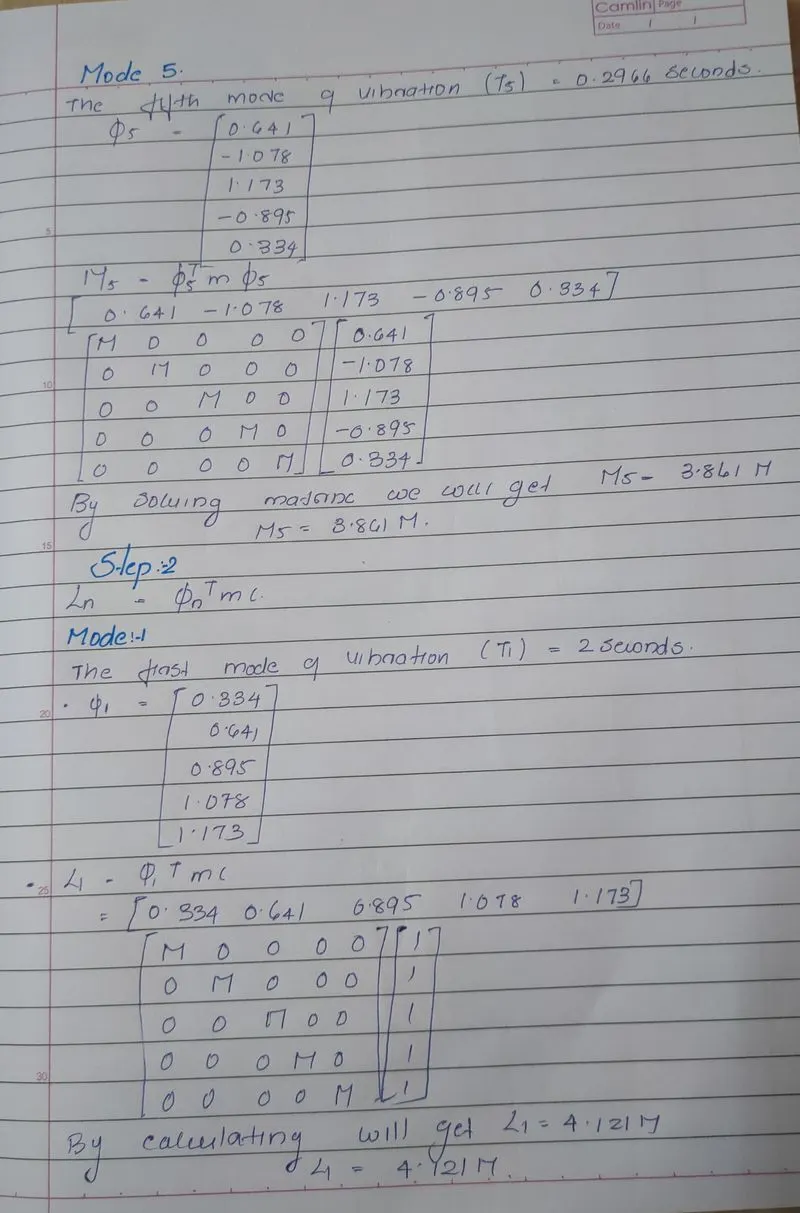

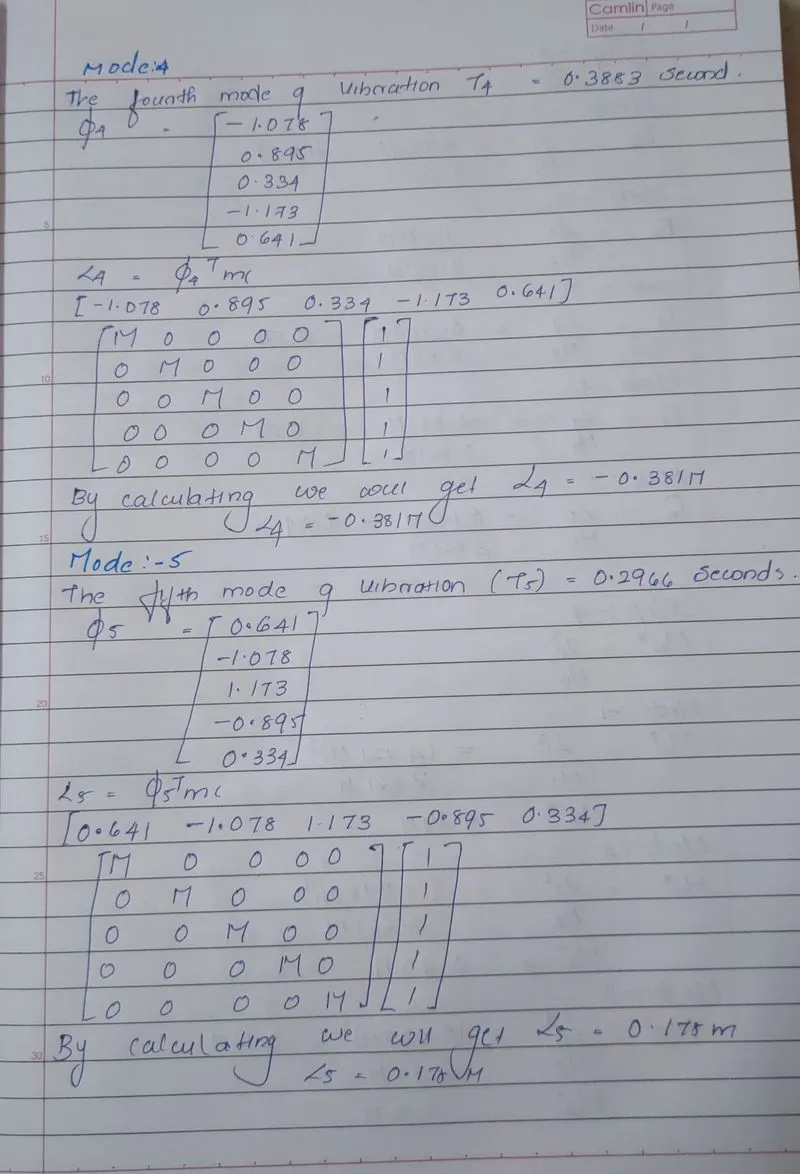

• To compute L_n , M_n and Γ_n for each of the five modes are to be computed.

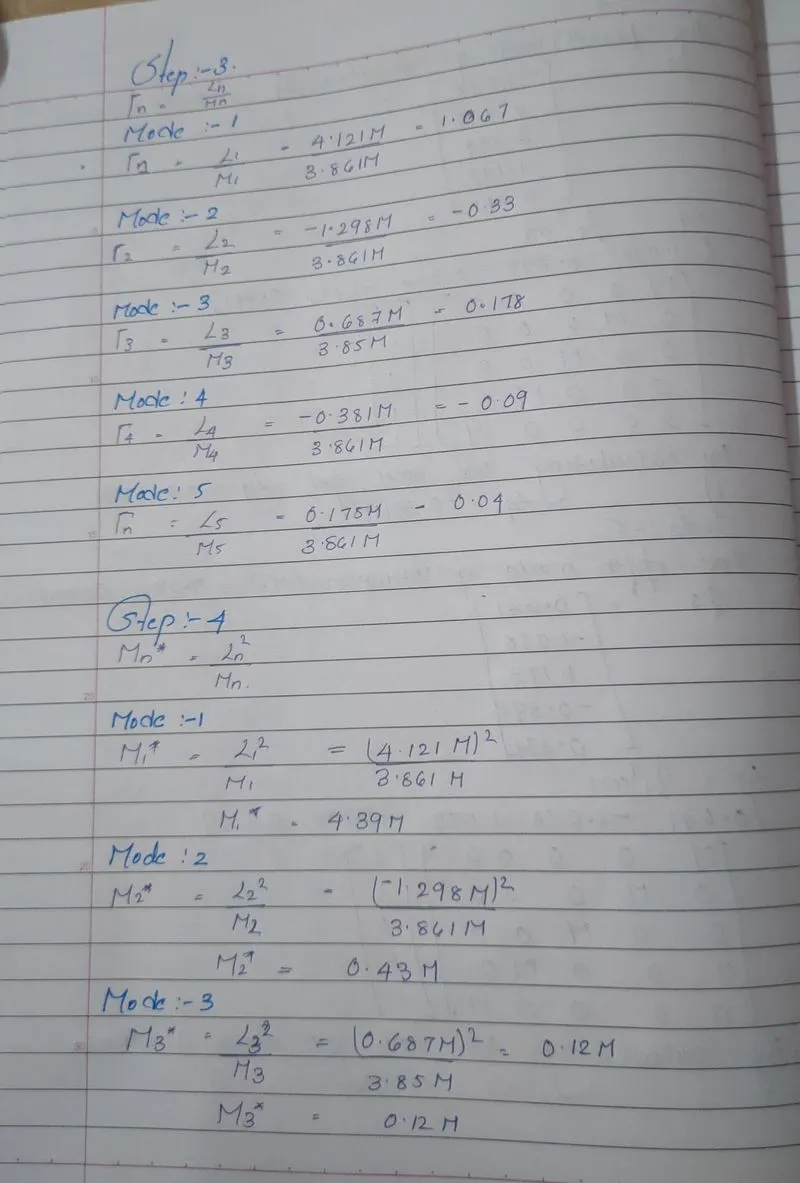

• To calculate the effective modal mass M_n* and the modal mass participating ratio for the 5 modes.

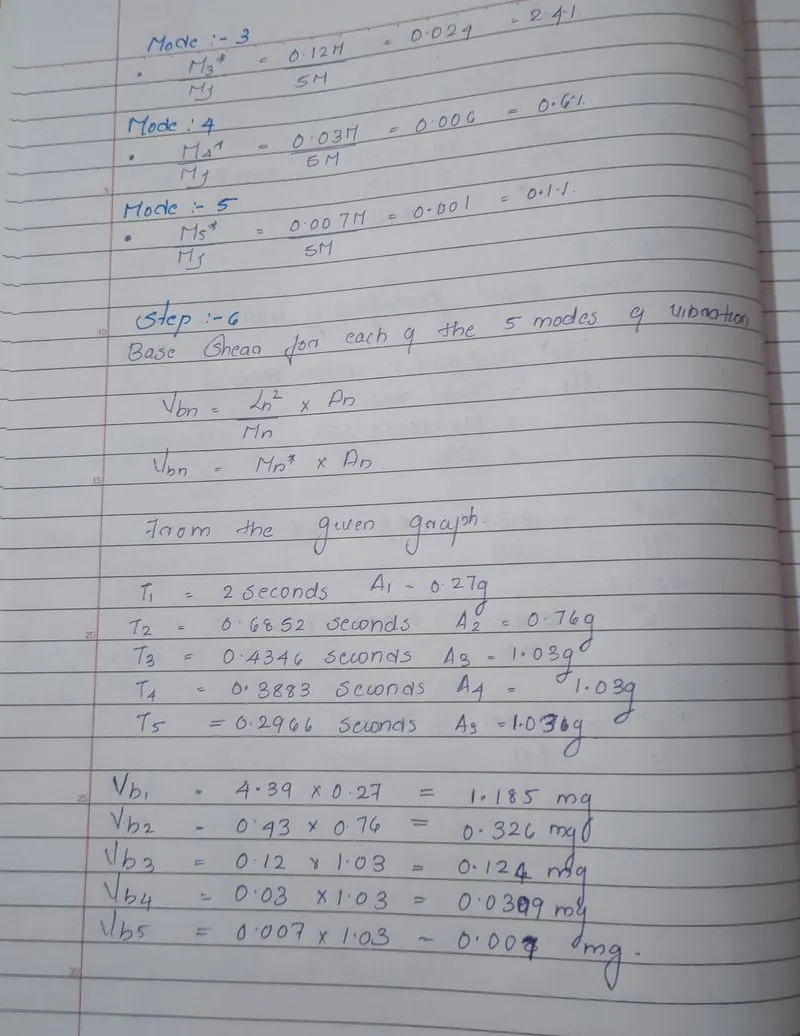

• To obtain the base shear for each of the 5 modes of vibration and the combined base shear as per SRSS rule.
• To find How many modes are to be considered such that a modal mass participating ratio of 90% is obtained.

RESULT

• Calculated L_n , M_n and Γ_n for each of the five modes

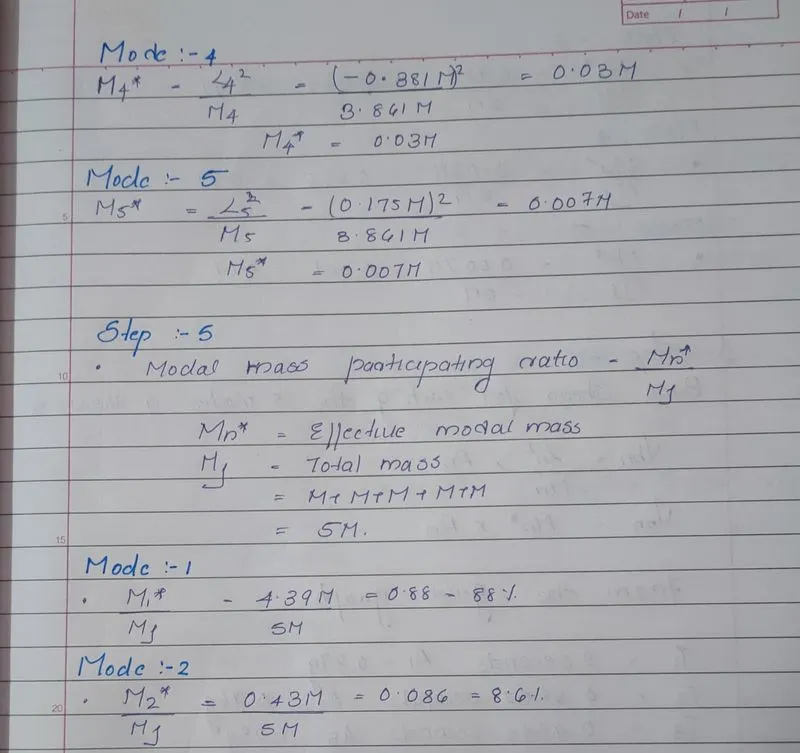

• Calculated the effective modal mass M_n* and the modal mass participating ratio for the 5 modes.

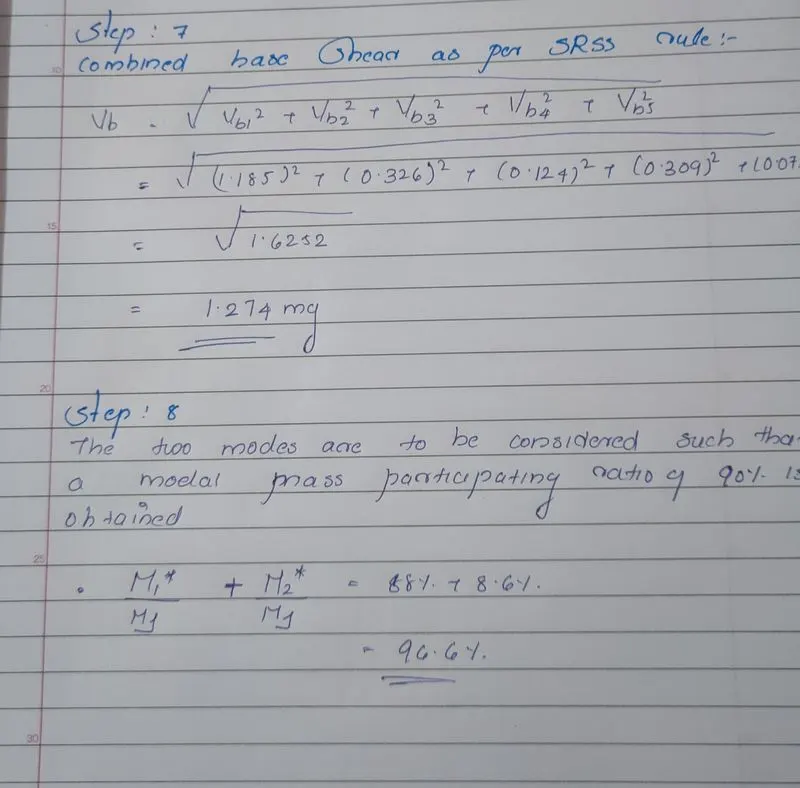

• Calculated base shear for each of the 5 modes of vibration and the combined base shear as per SRSS rule.
• The two modes are to be considered such that a modal mass participating ratio of 90% is obtained
