Understanding the concepts on Degrees of Freedom

Question 1:

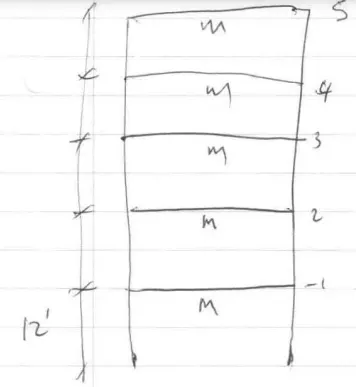

A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration T_n and their corresponding mode shapes, φ_n has been derived.

1ans)

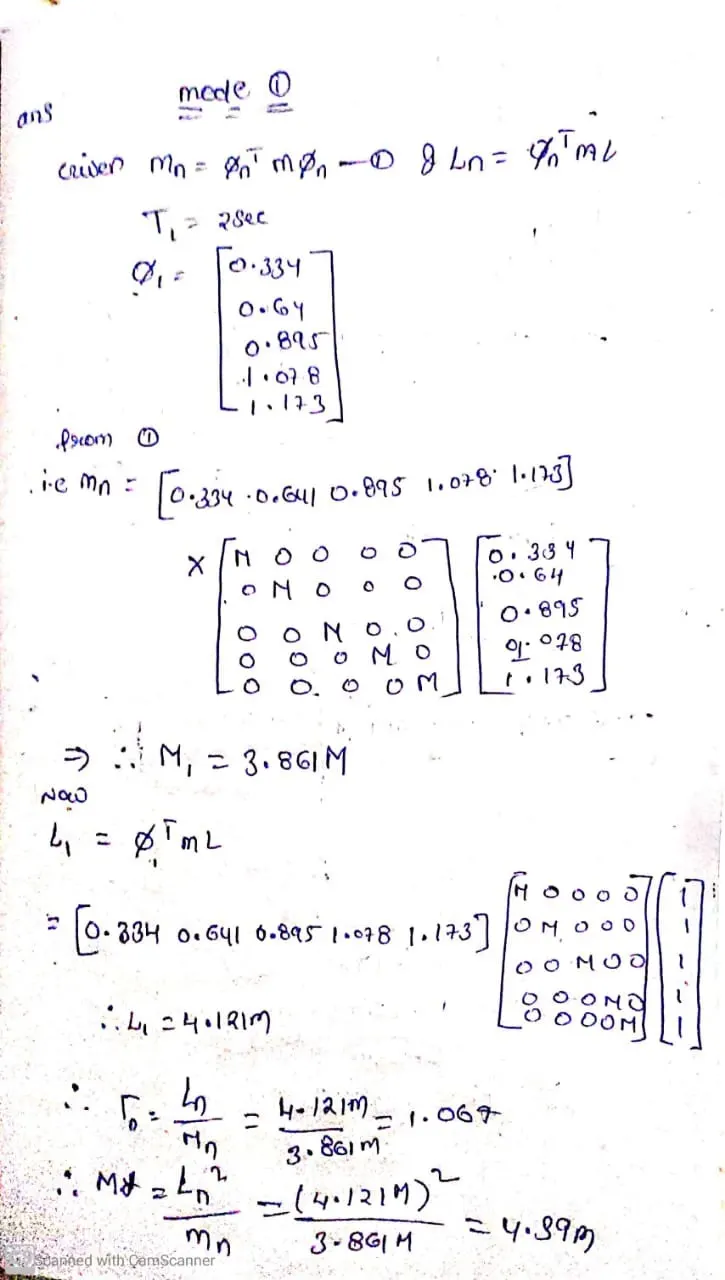

now for mode1

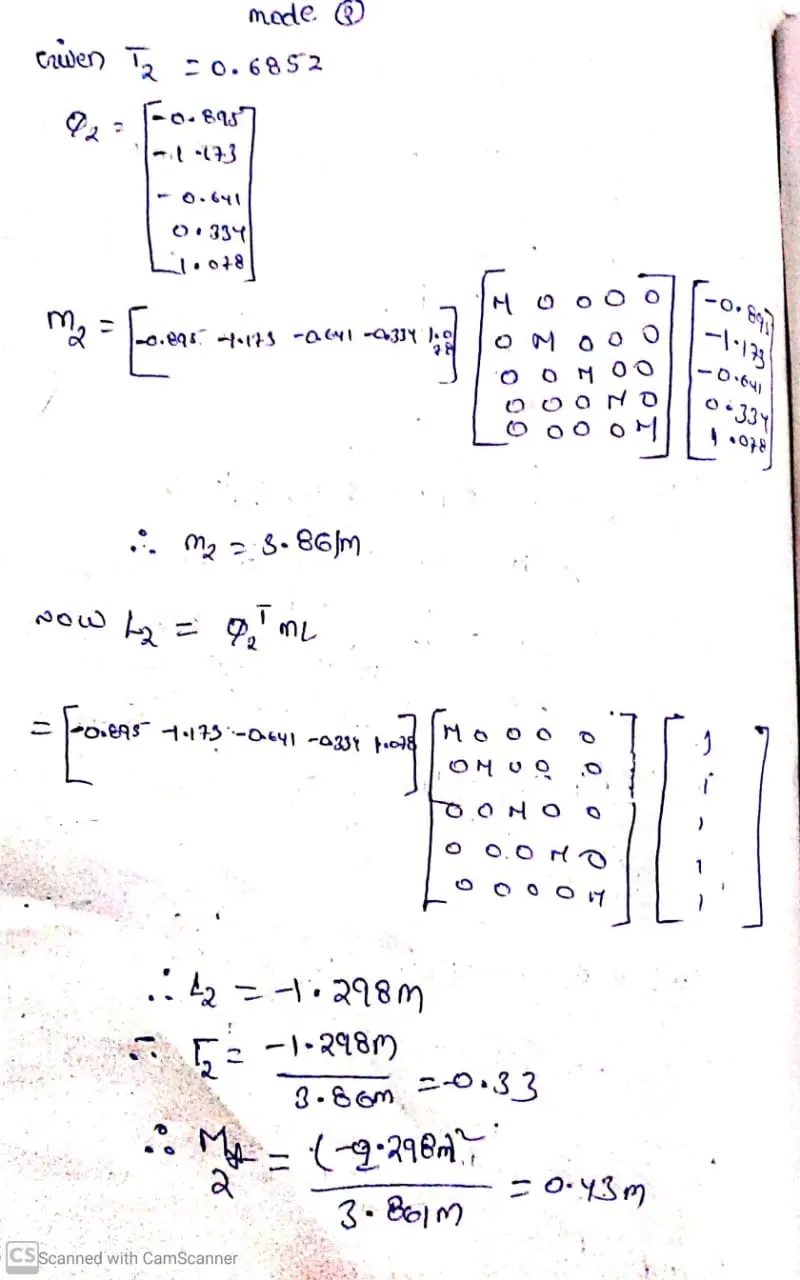

now for mode2

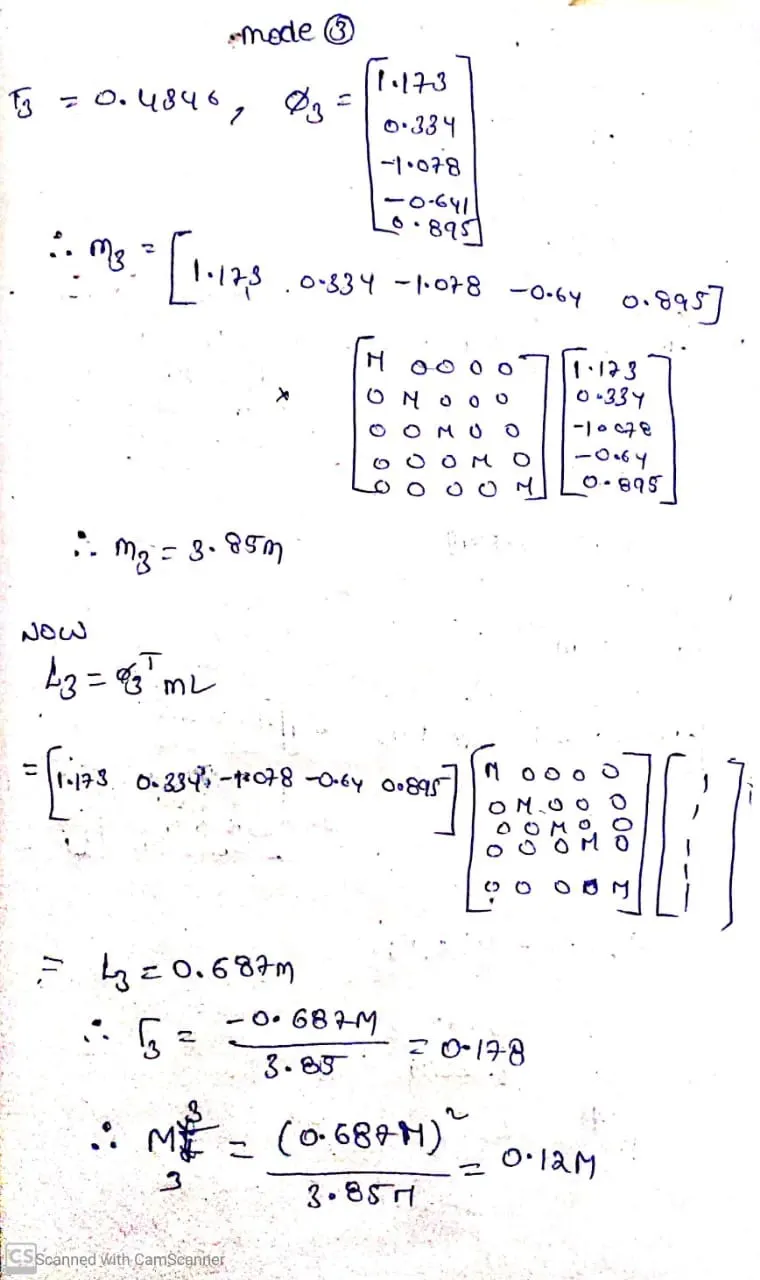

now for mode3

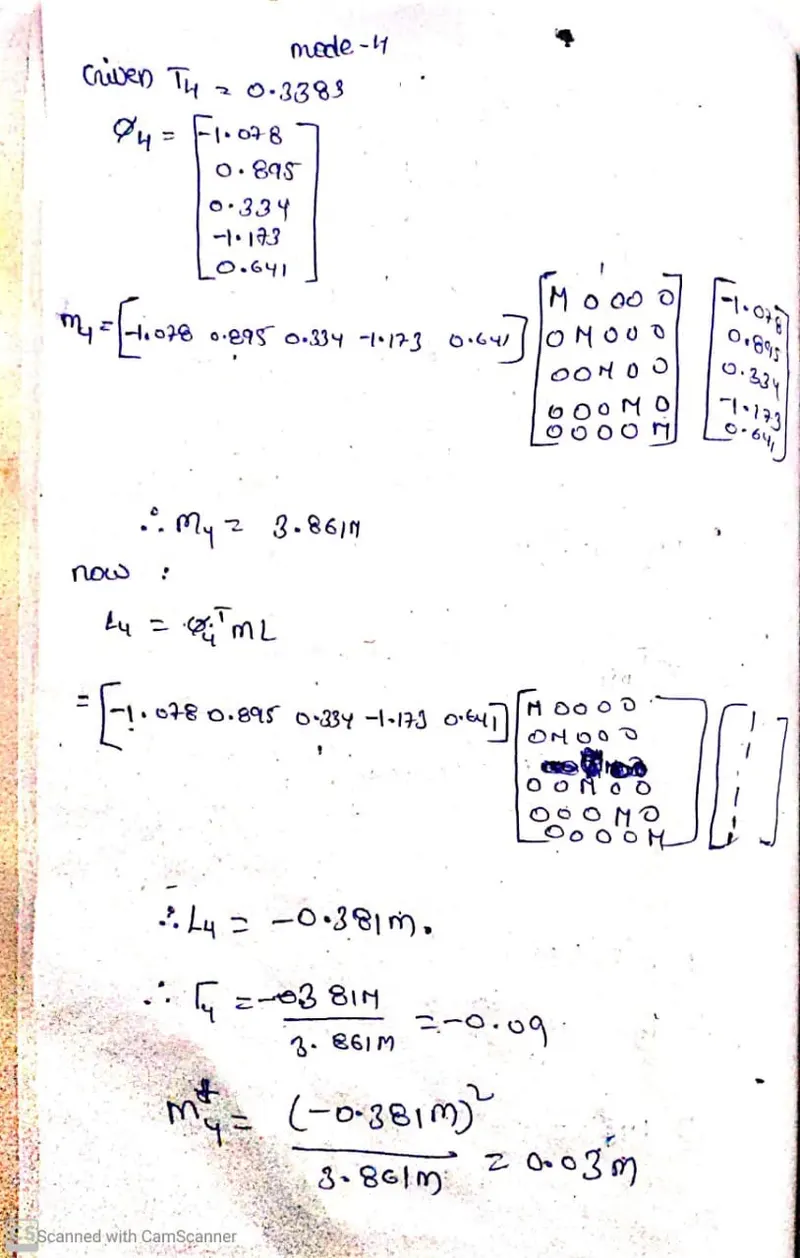

mode4

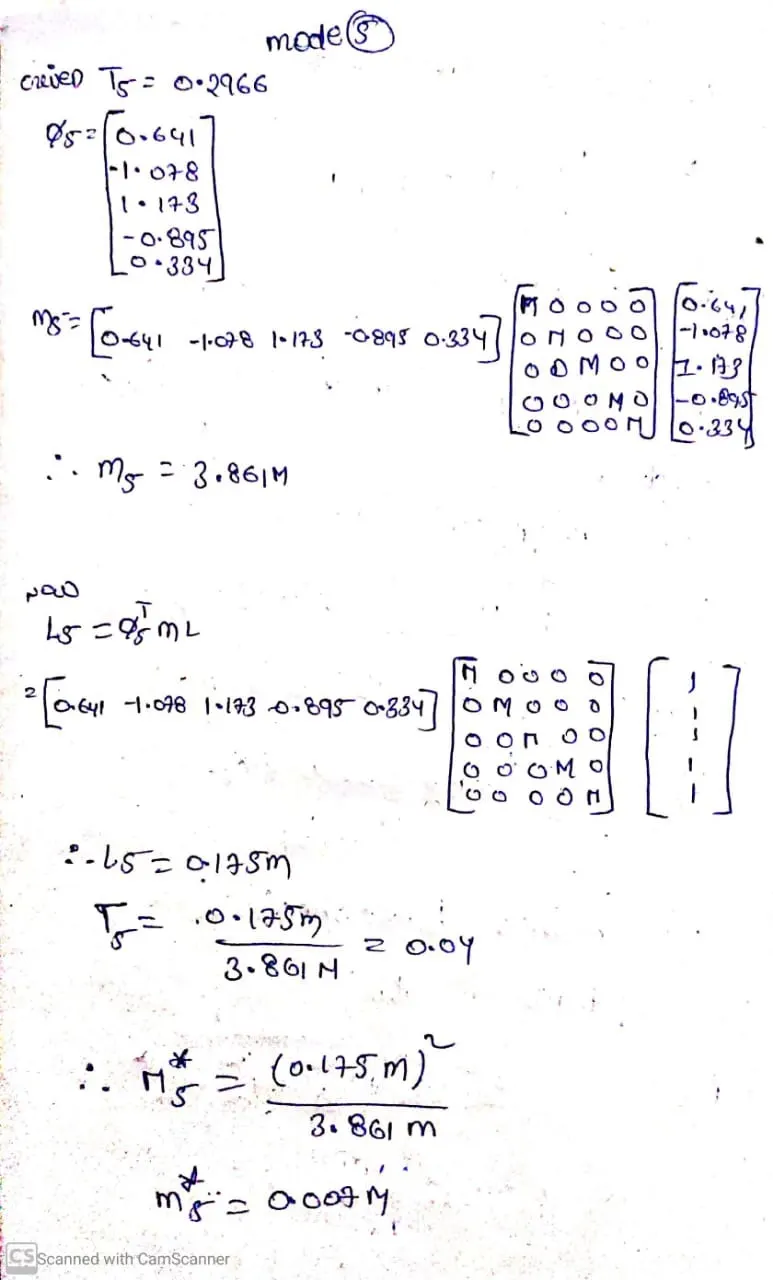

mode5

1b)

• Finally, obtain the base shear for each of the 5 modes of vibration and the combined base shear as per SRSS rule. The pseudo acceleration design spectrum to obtain the base shear for each mode is provided below.
•

ans)

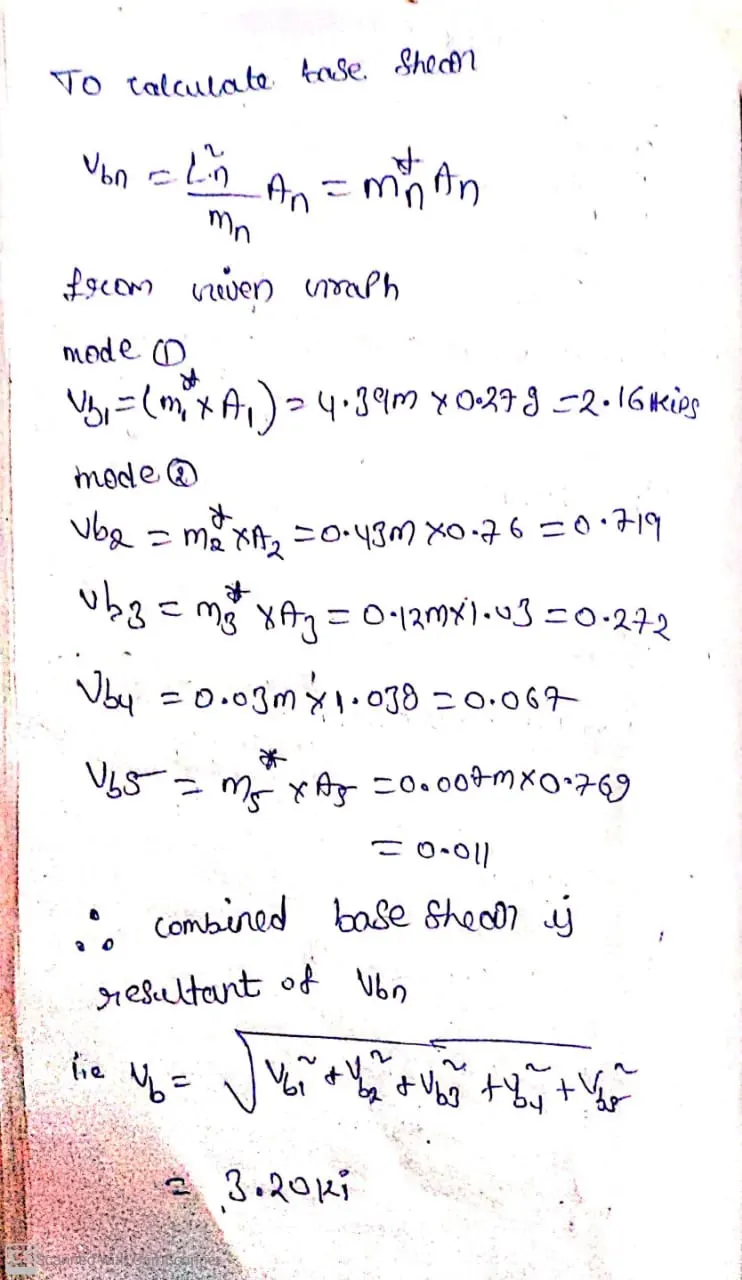

the base shaer for each 5modes are following

1c)

• How many modes are to be considered such that a modal mass participating ratio of 90% is obtained?

ans)

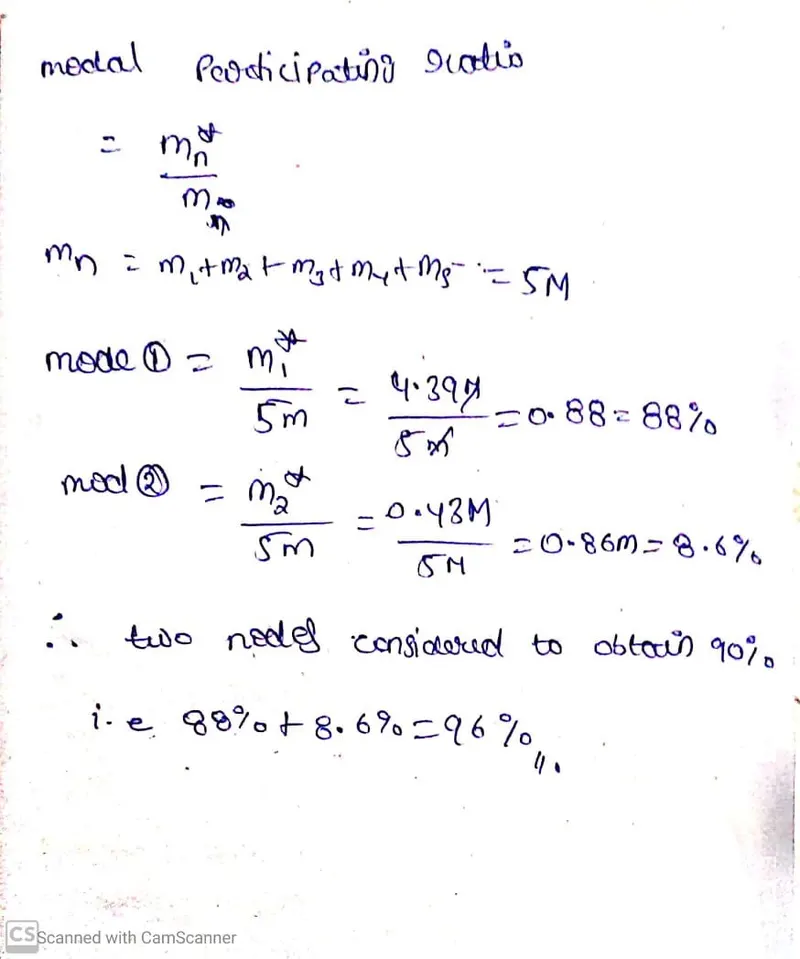

to calculate mdal participating ratio as follows
