Underbody Coating

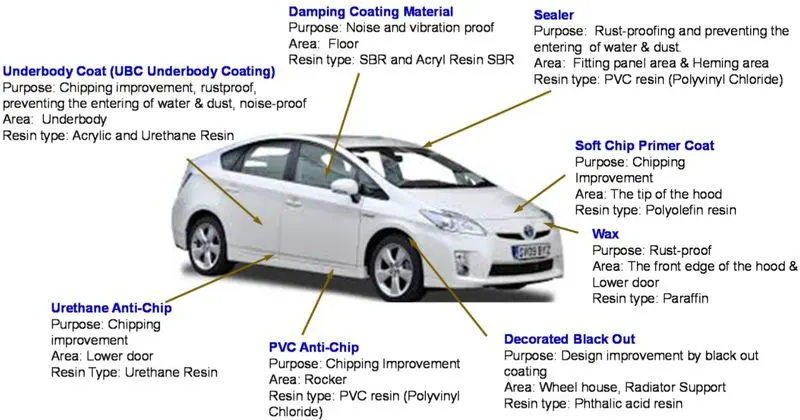

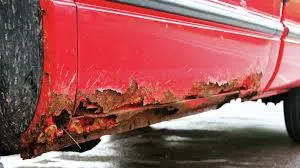

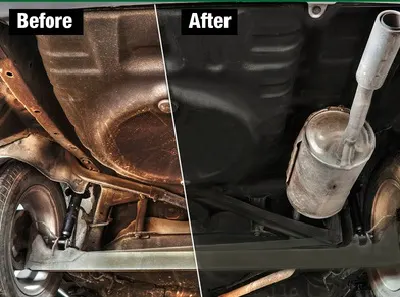

INTRODUCTION A car’s underbody is exposed to the most wear and tear caused by muddy water, potholed roads, stones, and other obstacles on the road. Because it’s not in plain sight, we often do not see the damage. In Indian road conditions, a car’s underbody is most prone to corrosion. Underbody coating…

BENCHMARKING  OBJECTIVE The main objective of this report is to benchmark with presently available cars in the market for the following case. Mr D.S. Pughazhyendhii is a married man who lives in Bangalore which is a highly crowded city. His Family comprises five members including his wife, a five-year-old boy, his father,…

AIM:-   To make the 3D part from the given 2D drawings and to make the assembly of it and to make the drafting. QUICK RETURN MECHANISMA quick return mechanism is used where the rotary inputs are provided to get the reciprocating motion as the output. They were achieved by constraining the relative motion of the…

  AIM : Developing Master Section on Car's Central Pillar with Engineering Fearures.                                         THEORY : Pillars are the vertical or nearly vertical supports of a car's…

AIM : Creating Locators and Heat Stakes for the Door Applique.  THEORY : Locators : Locators are the attachment in the plastic component which guide the component to get fitted into other surfaces going through clearance holes, there are mainly four and two way locators. 4-way mean you prevent movement at 2 axis (+X, -X,…

AIM: Creating Screw Boss and Doghouse on Centre Console Coin Holder. General Guidelines for Bosses:   Draft  - 0.5 degrees on the walls of boss   Thickness -  Typically 40% * of the nominal wall at the base.   Height to Diameter Ratio -  3:1   Radii - 0.25mm maximum…

AIM:  To Creating the Door Arm Rest component through the given Class-A surface of 2.5 mm thickness with the tooling axis meeting the requirements of the draft angle and at the end performing the Draft analysis on the model.                                 PROCEDURE REQUIRED DRAFT ANALYSIS: STEP 1: Ensure there is no gap…

AIM: Create the rib for the Centre console coin holder                                            THEORY : When should Ribs be added? Ribs play the most valuable supporting role in many plastics applications.…

AIM: To Create the Core and Cavity blocks for the Switch Bezel Design.   PROCEDURE FOR CREATING CORE :  STEP 1: Extract Boundary from A class. STEP 2: Extrapolate the boundary. STEP 3: Unhide the C surface. STEP 4: Trim extrapolated surface with C surface. STEP 5: Unhide class…

AIM: Creating the Center Console Coin Holder design through the given Class-A surface of 2.5 mm thickness with the tooling axis meeting the requirements of the draft angle and at the end performing the Draft analysis on the model. PROCEDURE REQUIRED DRAFT ANALYSIS:  STEP 1: Ensure there is no gap…

AIM:- To Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  Take the Thickness of the component to be 2.5…

AIM:- To Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.    PROCEDURE FOR DRAFT ANALYSIS:  STEP…

AIM:- To Create the tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model. OBJECTIVE:-  The main objection is to perform draft analysis to check if the part has the given draft in its all face and to determine the tooling axis. Draft angle…

ANSWER 1:- AIM:- To Implement control logic of a “washing machine” using Stateflow as per the given sequence. GIVEN CONDITIONS:-   If the power supply is available, the system gets activated  If the Water supply is not available, stop the process & indicate through LED Soaking time should be 200s…

                                                                           Main Project –          …

                                                                                        MINI PROJECT …

Aim:- To solve the following objectives based on the above circuit diagram. Objectives:- Identify each of the major elements in the above automotive wiring diagram. Explain the purpose and working of any three elements briefly If the total load is 10A from the battery, what should be the fuse rating? If 500W is the load,…

AIM:- To understand the concept of the genetic algorithm by referring to various sources before you attend this challenge. Look out for information regarding the stalagmite function and ways to optimize it. OBJECTIVE:- To write a code in MATLAB to optimize the stalagmite function and find the global maxima of…

AIM:- To write a code in MATLAB to parse the NASA thermodynamic file data and then calculate the thermodynamic properties of all the species.   OBJECTIVE:- To write a function that extracts the 14 coefficients and calculates the enthalpy, entropy, and specific heats for all the species in the data file. You will be…

AIM:- To simulate the pendulum in MATLAB to solve the second-order equation of the pendulum and to plot the angular displacement and angular velocity. OBJECTIVE:- The objective is to write a program that solves the following ODE. This ODE represents the equation of motion of a simple pendulum with damping.   THEORY:-…

AIM:- To Carry out a system-level simulation of an all-terrain vehicle and to prepare a technical report explaining the model properties and their results. OBJECTIVE:- Carry out a system-level simulation of an all-terrain vehicle. Prepare a technical report explaining the model properties & comments on the results. All-terrain…

AIM:- To make a simulink model of Doorbell using solenoid block. SITUATION:-  Create a situation where the switch is closed for 2 seconds and then released. Observe the physical movement of the plunger.  BLOCKS USED IN THE MODEL:- Pulse generator Scope Battery Solenoid Simulink-PS converter Electrical plain switch…
