Underbody Coating

Underbody Coating: Underbody coating is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile. It is normally sprayed or painted on when the car is just out of the dealership and is clean. But even if you are getting the undercoating applied after a couple of years, it’s fine too. This is because it can prevent further damage to the undercarriage. The main purpose of undercoating is to check rust especially in the body components like frame rails along with other exposed metal parts. Underbody coating can also reduce wear and tear. In Indian road conditions, a cars underbody is most prone to corrosion. Underbody coating provides long term protection from corrosion to car’s underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion.

Benefits

• Minimizes Sound: It minimizes the sound from underneath the car resulting a noiseless, smooth driving experience.

• Heat Insulation: It insulates the interior of the car from extreme temperatures from beneath the vehicle providing a comfortable cabin experience.

• Anti-chipping property: If any stone hits the coating it does not get chipped away hence protects the underbody from exposure to water.

1. Need of underbody coating:

Undercoating is designed to help lengthen the life of a car by preventing rust and other corrosion issues. An undercoating is great, especially in an environment that is not always dry, such as in Seattle. Moisture can get trapped in and around components of vehicles, resulting in rust.

Defination of Under body Coating:

Underbody coating is a thick cladding (typically made of rubber) that is placed uniformly to the car’s underside. When the automobile is fresh off the lot and spotless, it is usually sprayed or painted on. But it’s acceptable if you apply the undercoating after a couple of years. This is because it might protect the undercarriage from additional harm.

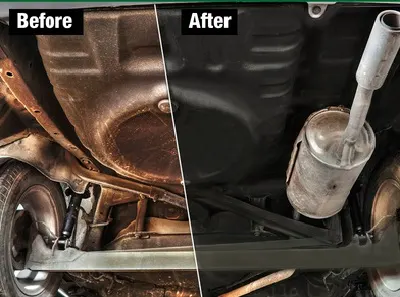

The below picture for reference that how looks car underneath before under coat and after undercoat,

Underbody coating means a coating that is applied over a topcoat to wheel wells, the inside of door panels or fenders, the underside of a trunk or hood, or the under- side of motor vehicles or mobile equipment for the purposes of protection or noise reduction.

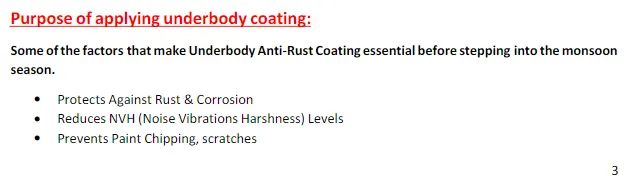

Purpose of Under body Coating(Summarised):

In Indian road conditions, a cars underbody is most prone to corrosion. Underbody coating provides long term protection from corrosion to car’s underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion. Following other basic purpose which helps to improve the vechile quality and better user experiences,

• To minimize the sound which from underneath of the car.
• To insulate the interior of the car from extreme temperature which enter from underneath of the car.
• To protect the under body from exposure of water.

Types of Undercoating

Now let us look at the various kinds of automotive underbody coating you can go for, for your vehicle.

1. Rubberized Underbody Coating


   This is generally thought of as the best underbody coating for your car. It preserves the underbody well, protecting it from scratches. Applying this to the undercarriage is not much of a hassle either.

2. Wax Based Underbody Coating


   This – more or less – ephemeral undercoating will wear away in a few months’ time. On the upside, wax-based undercoating puts up a big fight against moisture. It is also the most affordable option out there.

3. Asphalt Based Automotive Undercoating


   Best suited for lorries, trucks and large vehicles this provides a greater degree of protection compared to rubber-based coatings. However, asphalt-based coatings contain little amounts of rubber for sound-insulation purposes. The process of applying this coating is a bit time-consuming though.

4. Polyurethane Underbody Coating

   This coating closes up splits and fractures on the underbody of the vehicle. It offers up good protection against corrosion and also bonds with the metal. Unlike in the case of asphalt-based coating, you can paint over the polyurethane coating.

Advantages of Undercoating

Now we will tell you why you should consider investing in a vehicle underbody coating.

• Fights Rust


  It plays an important role in keeping corrosion at bay. Underbody coating can come in handy especially if you live near the sea, where there is too much humidity, and rusting is just one of those everyday things. You should also seriously consider undercoating if you reside in a place where it snows in winter.

• Absorbs Noise

  Believe it or not, very thick undercoating can soften the noises that reach the cabin. Since the undercoating is often made up of rubber it absorbs some of the rackets. The occupants of the car could spare themselves of the road noises – at least up to a certain extend.

• Reinforcement


  If your car comes with stock underbody coating, using another coating on top of it, is not going to hurt. It will offer additional reinforcement, protecting the underbody from water, road debris, gravel and small pebbles. There would also be a lesser chance for the factory coat to flake away.

• Prolong Car’s Life


  Good undercoating not only defends the underbody from corrosion but also protects the engine and transmission as well! Less rusting coupled with slower wear and tear can surely add years to the lifespan of your vehicle. There would be fewer dents, dings and scratches on the undercarriage for you to fret about.
