Underbody Coating

UNDERBODY COATING

Underbody coating:

Underbody coating is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile. It is normally sprayed or painted on when the car is just out of the dealership and is clean. But even if you are getting the undercoating applied after a couple of years, it’s fine too. This is because it can prevent further damage to the undercarriage.

Purpose of the underbody coating:

The main purpose of undercoating is to check rust especially in the body components like frame rails along with other exposed metal parts. Underbody coating can also reduce wear and tear.

Necessity:

In Indian road conditions, a cars underbody is most prone to corrosion. Underbody coating provides long term protection from corrosion to car’s underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion.

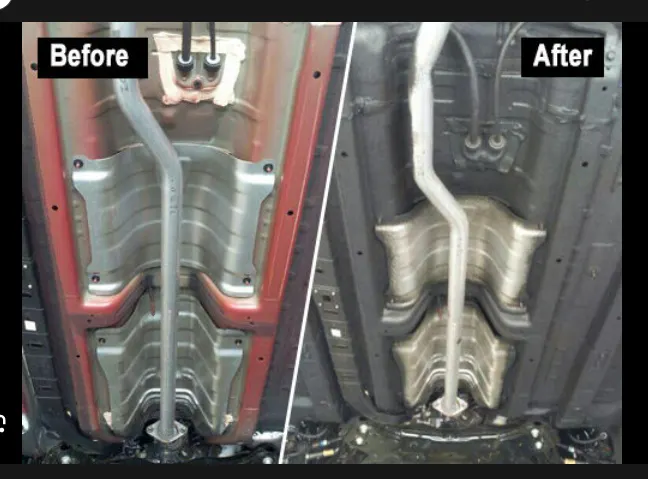

before and after images of the car with and without underbody coating

Types of Undercoating

1. Rubberized Underbody Coating


   This is generally thought of as the best underbody coating for your car. It preserves the underbody well, protecting it from scratches. Applying this to the undercarriage is not much of a hassle either.

2. Wax Based Underbody Coating


   This – more or less – ephemeral undercoating will wear away in a few months’ time. On the upside, wax-based undercoating puts up a big fight against moisture. It is also the most affordable option out there.

1.

1. Asphalt Based Automotive Undercoating


   Best suited for lorries, trucks and large vehicles this provides a greater degree of protection compared to rubber-based coatings. However, asphalt-based coatings contain little amounts of rubber for sound-insulation purposes. The process of applying this coating is a bit time-consuming though.

2. Polyurethane Underbody Coating

   This coating closes up splits and fractures on the underbody of the vehicle. It offers up good protection against corrosion and also bonds with the metal. Unlike in the case of asphalt-based coating, you can paint over the polyurethane coating.

Benefits:

• Minimizes Sound: It minimizes the sound from underneath the car resulting a noiseless, smooth driving experience.

• Heat Insulation: It insulates the interior of the car from extreme temperatures from beneath the vehicle providing a comfortable cabin experience.

• Anti-chipping property: If any stone hits the coating it does not get chipped away hence protects the underbody from exposure to water.

PROS OF UNDERCOATING:

Now we will tell you why you should consider investing in a vehicle underbody coating.

• Fights Rust


  It plays an important role in keeping corrosion at bay. Underbody coating can come in handy especially if you live near the sea, where there is too much humidity, and rusting is just one of those everyday things. You should also seriously consider undercoating if you reside in a place where it snows in winter.

• Absorbs Noise

  Believe it or not, very thick undercoating can soften the noises that reach the cabin. Since the undercoating is often made up of rubber it absorbs some of the rackets. The occupants of the car could spare themselves of the road noises – at least up to a certain extend.

• Reinforcement


  If your car comes with stock underbody coating, using another coating on top of it, is not going to hurt. It will offer additional reinforcement, protecting the underbody from water, road debris, gravel and small pebbles. There would also be a lesser chance for the factory coat to flake away.

• Prolong Car’s Life


  Good undercoating not only defends the underbody from corrosion but also protects the engine and transmission as well! Less rusting coupled with slower wear and tear can surely add years to the lifespan of your vehicle. There would be fewer dents, dings and scratches on the undercarriage for you to fret about.

CONS OF UNDERCOATING:

Apart of all the advantages some of the cons prevail in the underbody coating of the car the main disadvantage of the underbody coating is when the vehicle is already decomposed with rust the underbody coating will not assure the proper protection , first we need top remove the rust completely and then apply the underbody coating which is more expensive

Applying Undercoating At Home

Once you've selected the best undercoating for your vehicle, make sure your work area is clean, well-ventilated, and has adequate lighting. Wearing a dust mask and old protective clothing is advised. Make sure it's a nice day with low humidity if you're working outside, and if inside, deep-clean your area to ensure it's free of dust or any other debris that could become trapped in the undercoating.

• As always when it comes to updating your vehicle or using any sort of coating, remove the rust completely FIRST and then proceed. Rust removal is easily achieved by sandblasting or sanding, depending on the area and the extent of the rust.

• Once you've removed the rust and prepped your undercarriage for coating, give it a quick rinse and let it dry to ensure you aren't further trapping any contaminants on your vehicle's underbelly. Using a degreaser to clean the metal first is also recommended.

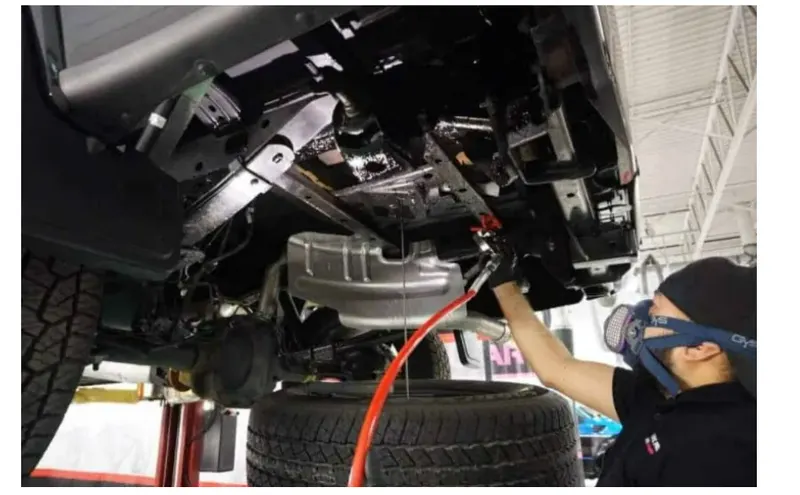

• Most undercoating is generally applied with a spray gun. A disposable spray gun will work best; once the undercoating hardens, it becomes very difficult to clean the gun even with a lot of thinner. A Schutz disposable spray gun is the best option.

• No matter what type of vehicle undercoating you've selected, two coats will provide the optimum protection. Allow ample dry time between coats.

• Let the undercoating cure completely (usually overnight) before driving your vehicle on the road.
