Underbody Coating

AIM :-

Study the underbody coating used in automobile industries.

OBJECTIVE :-

Study about types of underbody coating and its advantages and disadvantages.

UNDERBODY COATING :-

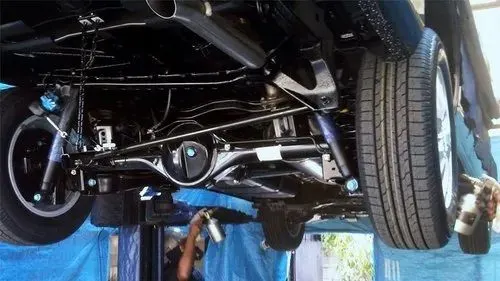

Underbody coating is a layer of protection applied to the underside of a vehicle to protect it from damage from debris, salt and other hard materials on the road. It is generally a thick rubberized coating which is sprayed or brushed on the vehicle chassis.

The underbody coating provides a barrier against humidity and rust, which can significantly damage the vehicle chassis and other components. It also reduces road noise and enhances the overall sustainability of the vehicle.

Underbody coating is especially important for vehicles that are frequently driven on rough or gravel roads or in areas with harsh winter weather conditions, where salt and other chemicals are used to melt ice and snow on the roads.

It is typically recommended to apply underbody coating during the initial stages of a vehicle's life to ensure maximum protection and to reapply it periodically as needed to maintain its effectiveness.

TYPES :-

Underbody coatings are used to protect the underside of a car against corrosion, abrasion and other types of damage. There are a number of different types of underbody coverings, including:

1. Rubber Underlayment: This type of underlayment is made from rubber or rubber-like materials that provide a durable and flexible layer of protection against road debris, moisture and rust. It is commonly used on wheel wells, landing gear and vehicle structures.

2. Asphalt-based underlayment: This type of underlayment is composed of asphalt and other petroleum-based materials. It offers a thick impermeable layer of protection against moisture and road salt, but it may be more brittle than the rubberized undercoat and may crack over time.

3. Wax-based undercladding: This type of undercladding is made of wax and other oil-based materials. It provides a thin layer of protection against humidity and road salt, but is less durable than rubberized or asphalt-based underlayments.

4. Polyurethane Underlayment: This type of underlayment is manufactured from a polyurethane compound that provides a thick and durable layer of protection against rust, corrosion and road debris. It is commonly used in industrial and commercial applications where enhanced protection is needed.

5. Ceramic-based underlayment: This type of underlayment is made from ceramic materials that provide a high degree of protection against corrosion, abrasion and heat. It is often used in high performance vehicles as well as racing cars.

Overall, the choice of bedding will depend on the specific needs of the vehicle and the environment in which it will be conducted.

ADVANTAGES :-

Undercoating, also referred to as undercoating, is a protective coating applied to the underside of a vehicle to prevent damage from rust, corrosion and other environmental factors. Here are a few advantages of underbody covering.

1. Rust and corrosion protection: The underside of a vehicle is very susceptible to rust and corrosion, especially if exposed to harsh weather conditions and road salt. The underside liner provides a barrier between the metal surface and the elements, preventing the formation of rust and corrosion.

2. Soundproofing: Underlying coatings also help to reduce noise and vibration from road noise and dents. This is particularly important for all-terrain vehicles and trucks that spend a lot of time in rough terrain.

3. Improved durability: By preventing rust and corrosion, the underlying coating prolongs the life of a vehicle. This is of particular importance for older vehicles, which are more susceptible to rust and corrosion.

4. Improved resale value: Undercoated vehicles tend to have a higher resale value as they are better protected against rust and corrosion.

5. Easy Maintenance: Underbody coatings are easy to maintain, and they require minimal upkeep. You only have to wash the bottom of the vehicle regularly to keep it clean.

Overall, the underlying coating is an investment for any vehicle owner who wants to protect their vehicle against rust, corrosion and other environmental factors.

DISADVANTAGES :-

Underbody coverings are applied on the underside of vehicles to protect against corrosion, abrasion and other types of damage. While there are several advantages to these coatings, there are also some drawbacks. Below are some drawbacks of undercoating:

1. Moisture trapping: One of the major drawbacks of the underlying coatings is that they can trap moisture against the vehicle's metal surface. If moisture is trapped beneath the coating, it can lead to corrosion and rust, which can damage the vehicle's chassis and chassis.
2. Difficult to remove: The underlying liners are designed to be durable and durable, making them difficult to remove once they have been applied. This can make it challenging to repair the vehicle's landing gear or perform maintenance tasks that require access to the metal surfaces.
3. High Cost: Undercoating can be relatively costly, especially if applied by a professional. The cost of the coating itself, along with the labour needed to apply it, can make this option less affordable than other forms of vehicle protection.
4. Reduced energy efficiency: Some chassis coatings can weigh down the vehicle, which can reduce its overall energy efficiency. This is because the extra weight requires more power to move the vehicle, which may lead to higher fuel consumption.
5. Difficulty detecting damage: Since underbody coatings cover the metallic surfaces of the vehicle, it may be difficult to detect damage or corrosion that may occur under the coating. This may make it more difficult to perform routine maintenance or identify problems before they get more serious.
