Underbody Coating

• What is underbody coating?

1. Underbody Coating which is protects the ground surface of the vehicle from corrosion.

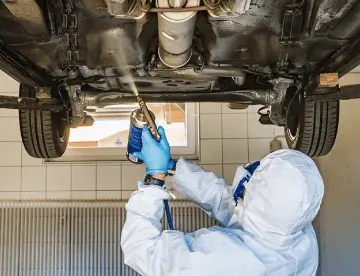

2. It is normally sprayed or painted on the car. This coating provides long-term protection to the underbody components.
3. It also protects parts like frame rails and other inner cavities that are not physically accessible but are prone to corrosion.
4. Underbody coating can also reduce the wear and tear of the vehicle in a long term.
5. We all know that our road conditions are different from state to state. so this is an important protection for our vehicle

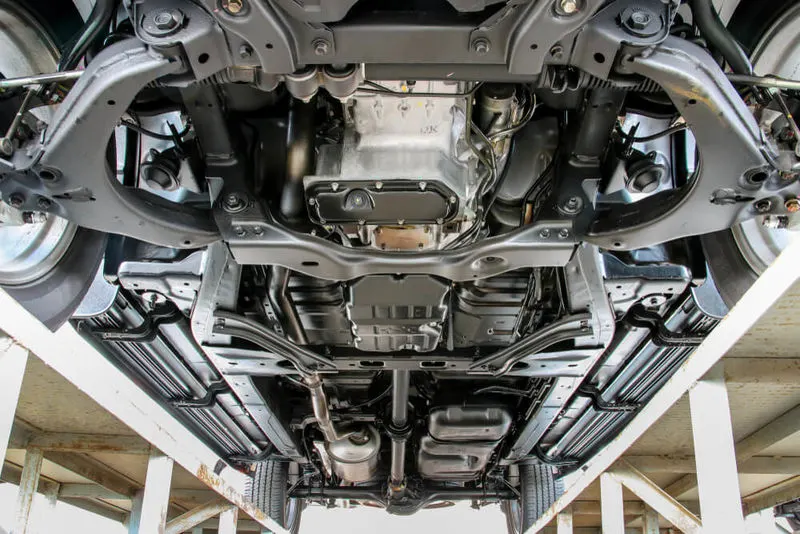

Undercoating can be applied as a liquid, typically sprayed or brushed on and then allowed to dry. It helps to protect the axle, engine, brake system, transmission, exhaust and fuel systems, suspension parts, gas tank, and floorboards.

There are several types of undercoating and their specific brand examples currently available on the market.

1. Wax or Paraffin-based Undercoating

It is the preferred undercarriage coating for cars often driven on highways and normal roads. Sometimes referred to as wax-based undercoating, it provides sufficient guard for cars in fairly moist regions.However, keep in mind that it will wear off quicker than other types of undercoating

Advantages:

• Readily flows into seams to guarantee any exposed and prone surfaces are protected
• The most inexpensive undercoating option
• Conveniently available in spray guy canisters or aerosol cans

Disadvantages:

• Wears off quicker in comparison to other types
• Unlike the rubberized type, it does not really dry
• Needs to be stripped and reapplied at least once a year as soon as signs of wear and tear start to show

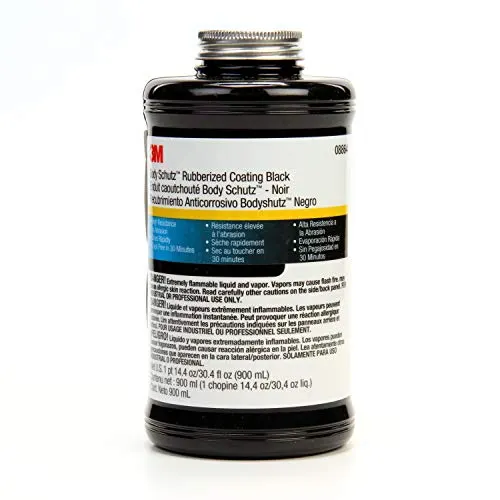

2. Rubberized Undercoating

Rubberized Undercoating is easy to apply and offers sound cushioning as well as protection from dust, moisture, and dings or dents. Ideal for cars driven in rough terrain, as its name suggests, this undercarriage coating involves applying a rubber agent to the underbelly

Advantages:

• Easy to apply
• Quickly applied with no fuss
• Undercoat can be painted for a neat finish
• Truly dries to a soft rubbery finish that prevents further rust, damage, or moisture seepage

3. Polyurethane Undercoating

The polyurethane used in this product is a high-quality and durable material that is perfect for any weather condition. It is ideal for standard vehicles. Uses a polyurethane-based sealant that comes in canisters ready to be loaded into a spray gun and sprayed to guard the undercarriage of your vehicle.

Advantages:

• It has a long lifespan and is resistant to wear and tear
• Quick and simple to remove, as it sands easily
• Trickles into cracks and rusty spots already present on the underbelly of your car and fills them, hence protecting the underlying metal

Disadvantages:

• For better adherence, needs undercarriage preparation before application
• Requires time-consuming etching with primer to bare metals

4. Asphalt-Based Undercoating

It reportedly has the most damage-resistant properties. Although asphalt-based undercoating is ideal for trucks and all-terrain vehicles, it will also help protect your car, truck, motorcycle, and heavy machinery from the elements. It last long and is best for endurance vehicles that have to undergo heavy road use.

When it comes to large trucks, heavy machinery and all-terrain vehicles, asphalt-based undercoating provides added durability against rocks, chips, and moisture

Advantages:

• Formulated to protect from dirt, rust, and corrosion, it normally has a shelf life of up to two years. Sold in five-gallon containers
• Provides extra durability as it is the strongest and thickest undercoating available

Disadvantages:

• It takes time to harden and so requires more cure time than the other three types
• For best used only for the undercarriages of utility vehicles and trucks
• The only type of undercoating with a limited warranty

5. Water-based Undercoating

Water-based undercoating is a protective layer that helps your car stay protected from harsh weather conditions. It is made from an advanced polymer that is non-toxic and environmentally friendly.

The product can be applied to any surface, including metal, plastic, rubber, and glass. It will keep your car protected from rust, salt, and moisture. This undercoating provides a protective barrier that lasts for only a year-depending on where you drive your car.

Advantages:

• Thin-set, it takes a short time to dry
• Can be done at home

Disadvantages:

• It requires frequent repetition as it’s not very durable
• It cannot repel ice and water like petroleum-based undercoating

6. Petroleum-Based Undercoating

Petroleum-based undercoating is a heavy, viscous oil-based liquid product that provides an effective barrier against moisture and corrosion.The liquid dries and hardens to provide tough, durable, and long-lasting protection against moisture and corrosion.

Advantages:

• Has greater deflective abilities for road salts and grime
• Repels ice and water because of its petroleum base

Disadvantages:

• Requires annual replacement

Pros of under-body coating

• Minimizes Sound: It minimizes the sound from underneath the car resulting in a noiseless, smooth driving experience.

• Heat Insulation: It insulates the interior of the car from extreme temperatures from beneath the vehicle providing a comfortable cabin experience.

• Anti-chipping property: If any stone hits the coating it does not get chipped away hence protecting the underbody from exposure to water.

Cons of under-body coating

• It is less helpful if corrosion is already present.
• It adds weight to the vehicle.
• An undercoating is not impervious to damage.
• It must be reapplied every 3 to 5 years for the best results.
