To Design RC column and beam for RC residential structure using TSD

Aim: To design the RC columns and beams based on the analysis.

Procedure:

Designing Columns:

• Open the previous Tekla file.

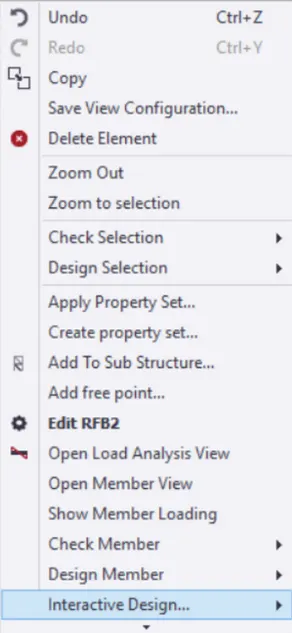

• Now right click the on member to be designed, and then select interactive design and select static.
• Select Static from the Interactive Design, after that, a dialogue box appears.

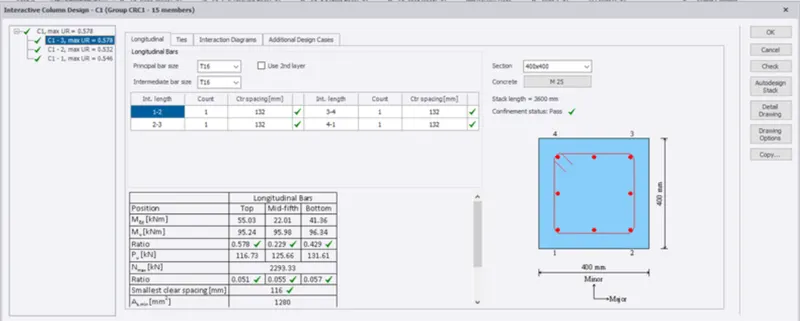

• This dialogue box shows the bar detailing and whether the member has passed or not.
• If there is any failure in any column, which can seen as a red mark in the left side, it can be corrected by increasing the size of member.

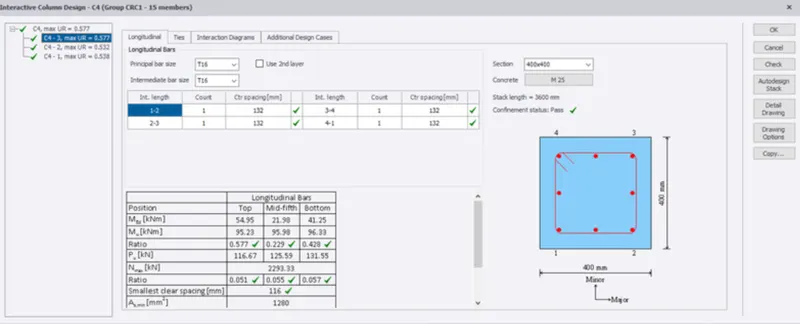

• then follow the same procedure for remaining columns.

Design of Beams

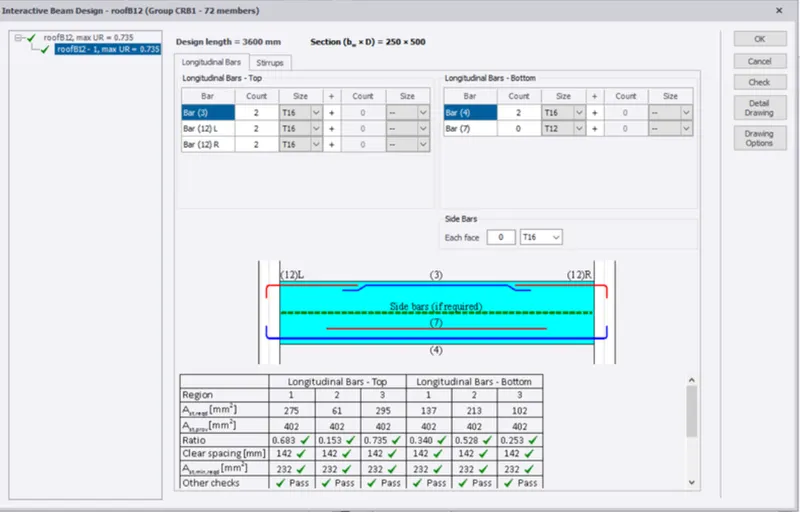

• Similar to the columns, right click on one beam , select interactive design and the select static.
• If there is no irregularities in the bar, it will be shown as green.

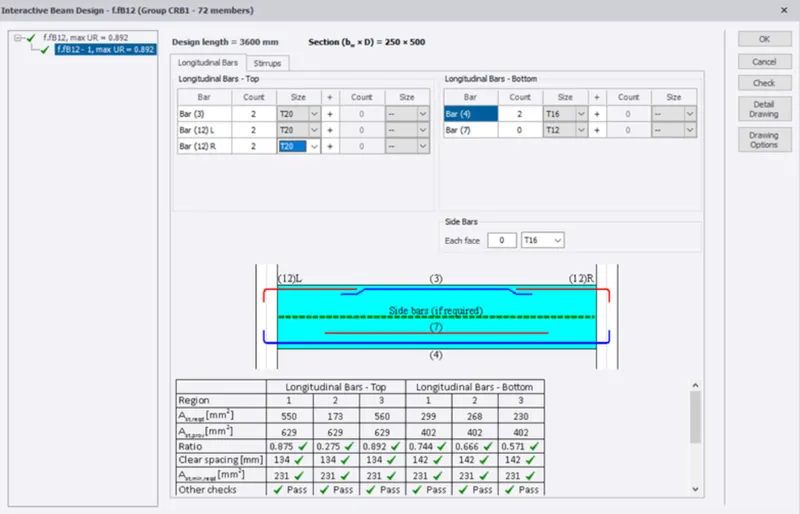

• if it shown red means that is fsilure,so then we have to rectify the beam by incresing the no.of reinforement bars or dia of bars.oe else we can also make change in the size of the member.

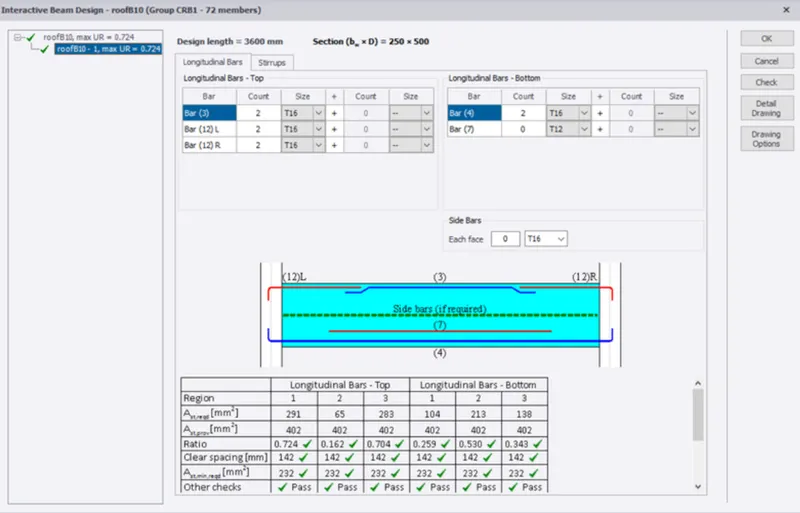

• similarly follow th esame procedure for remaining beams.

RESULTS :

• one the designing of all the members are completed, we have to check the all members have passed or not ,
• for that see the status ,hence the analysis is ok.
