Supervised Learning - Classification Week 7 Challenge
1) Pros and cons of SVM
SVM
1) SVM stands for support vector machines.SVM is simple and provides good accuracy with less computational power, SVM is also used for regression but is widely applied for classification projects. There are several hyperplanes possible to classify the data points, but the optimal hyperplane is the one with the maximum margin.
2) The name support vector machines is because the data points closest to the hyperplane are called support vectors as these points decide the optimal position of hyperplanes. changing the position of the support vector will change the position orientation of the hyperplane and also these support vectors are used to maximize the margin.
1)Pros:
1)It works really well with a clear margin of separation
2)It is effective in high-dimensional spaces.
3) It is effective in cases where the number of dimensions is greater than the number of samples.
4) It uses a subset of training points in the decision function (called support vectors), so it is also memory efficient
2)Cons:
1) It doesn’t perform well when we have large data set because the required training time is higher
2) It also doesn’t perform very well when the data set has more noise i.e. target classes are overlapping
3)SVM doesn’t directly provide probability estimates, these are calculated using an expensive five-fold cross-validation. It is included in, the related SVC method of the Python scikit-learn library.
4) SVM algorithm is not suitable for the large data set
5) As the support vector classifier works by putting data points, above and below the classifying hyperplane there is no probabilistic, explanation for the classification.
2) Apply SVM to the “Surface defects in stainless steel plates” dataset and evaluate it
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sn
import scipy.stats as stats
steel = pd.read_csv( 'faults.csv')

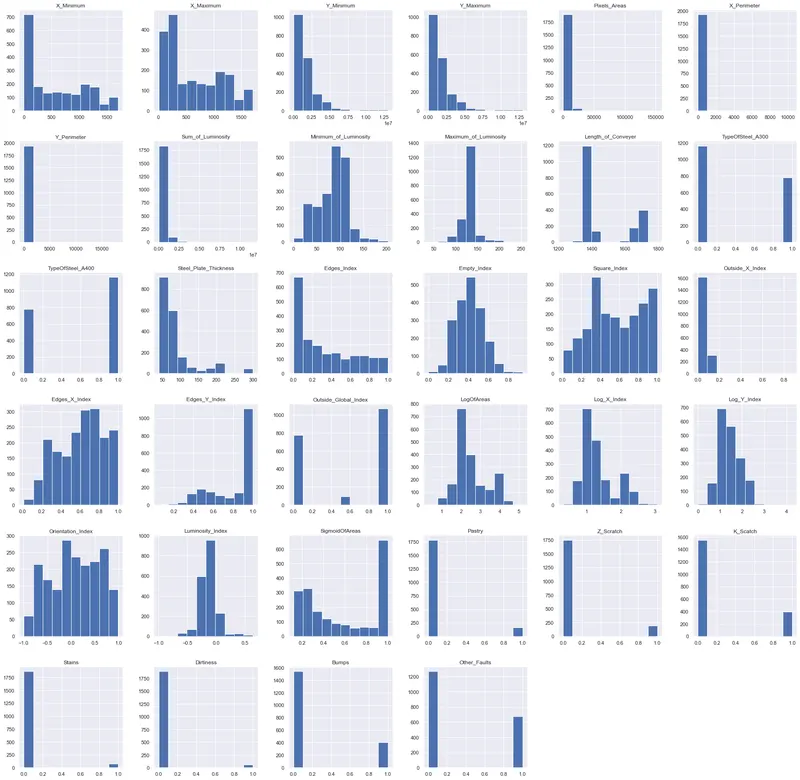

steel.hist(figsize=(30,30))
plt.show()
print('steel head command = ', steel.head())
steel head command = X_Minimum X_Maximum Y_Minimum Y_Maximum Pixels_Areas X_Perimeter \ 0 42 50 270900 270944 267 17 1 645 651 2538079 2538108 108 10 2 829 835 1553913 1553931 71 8 3 853 860 369370 369415 176 13 4 1289 1306 498078 498335 2409 60 Y_Perimeter Sum_of_Luminosity Minimum_of_Luminosity \ 0 44 24220 76 1 30 11397 84 2 19 7972 99 3 45 18996 99 4 260 246930 37 Maximum_of_Luminosity ... Orientation_Index Luminosity_Index \ 0 108 ... 0.8182 -0.2913 1 123 ... 0.7931 -0.1756 2 125 ... 0.6667 -0.1228 3 126 ... 0.8444 -0.1568 4 126 ... 0.9338 -0.1992 SigmoidOfAreas Pastry Z_Scratch K_Scatch Stains Dirtiness Bumps \ 0 0.5822 1 0 0 0 0 0 1 0.2984 1 0 0 0 0 0 2 0.2150 1 0 0 0 0 0 3 0.5212 1 0 0 0 0 0 4 1.0000 1 0 0 0 0 0 Other_Faults 0 0 1 0 2 0 3 0 4 0 [5 rows x 34 columns]
print('steel describe command = ',steel.describe())
steel describe command = X_Minimum X_Maximum Y_Minimum Y_Maximum Pixels_Areas \
count 1941.000000 1941.000000 1.941000e+03 1.941000e+03 1941.000000
mean 571.136012 617.964451 1.650685e+06 1.650739e+06 1893.878413
std 520.690671 497.627410 1.774578e+06 1.774590e+06 5168.459560
min 0.000000 4.000000 6.712000e+03 6.724000e+03 2.000000
25% 51.000000 192.000000 4.712530e+05 4.712810e+05 84.000000
50% 435.000000 467.000000 1.204128e+06 1.204136e+06 174.000000
75% 1053.000000 1072.000000 2.183073e+06 2.183084e+06 822.000000
max 1705.000000 1713.000000 1.298766e+07 1.298769e+07 152655.000000
X_Perimeter Y_Perimeter Sum_of_Luminosity Minimum_of_Luminosity \
count 1941.000000 1941.000000 1.941000e+03 1941.000000
mean 111.855229 82.965997 2.063121e+05 84.548686
std 301.209187 426.482879 5.122936e+05 32.134276
min 2.000000 1.000000 2.500000e+02 0.000000
25% 15.000000 13.000000 9.522000e+03 63.000000
50% 26.000000 25.000000 1.920200e+04 90.000000
75% 84.000000 83.000000 8.301100e+04 106.000000
max 10449.000000 18152.000000 1.159141e+07 203.000000
Maximum_of_Luminosity ... Orientation_Index Luminosity_Index \
count 1941.000000 ... 1941.000000 1941.000000
mean 130.193715 ... 0.083288 -0.131305
std 18.690992 ... 0.500868 0.148767
min 37.000000 ... -0.991000 -0.998900
25% 124.000000 ... -0.333300 -0.195000
50% 127.000000 ... 0.095200 -0.133000
75% 140.000000 ... 0.511600 -0.066600
max 253.000000 ... 0.991700 0.642100
SigmoidOfAreas Pastry Z_Scratch K_Scatch Stains \
count 1941.000000 1941.000000 1941.000000 1941.000000 1941.000000
mean 0.585420 0.081401 0.097888 0.201443 0.037094
std 0.339452 0.273521 0.297239 0.401181 0.189042
min 0.119000 0.000000 0.000000 0.000000 0.000000
25% 0.248200 0.000000 0.000000 0.000000 0.000000
50% 0.506300 0.000000 0.000000 0.000000 0.000000
75% 0.999800 0.000000 0.000000 0.000000 0.000000
max 1.000000 1.000000 1.000000 1.000000 1.000000
Dirtiness Bumps Other_Faults
count 1941.000000 1941.000000 1941.000000
mean 0.028336 0.207110 0.346728
std 0.165973 0.405339 0.476051
min 0.000000 0.000000 0.000000
25% 0.000000 0.000000 0.000000
50% 0.000000 0.000000 0.000000
75% 0.000000 0.000000 1.000000
max 1.000000 1.000000 1.000000
[8 rows x 34 columns]

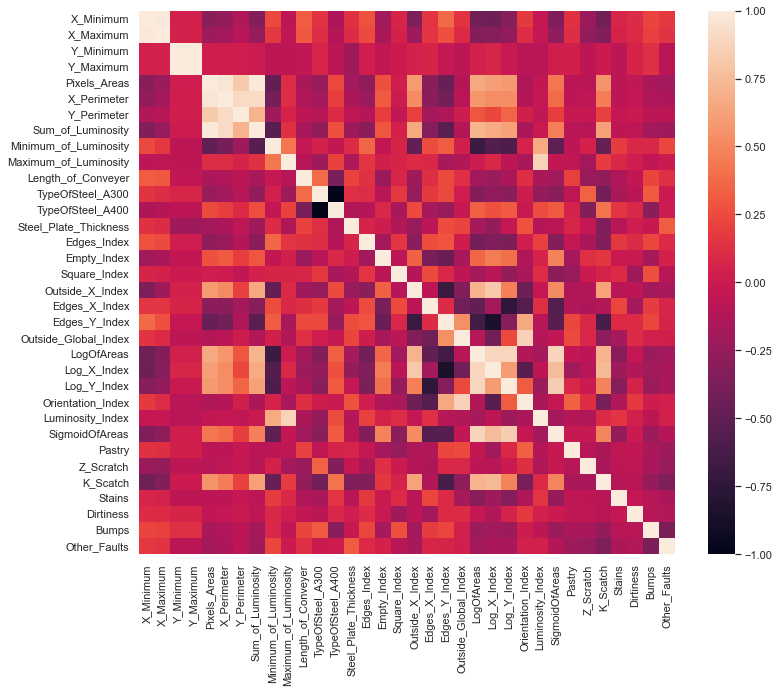

# heatmap Visualization
sns.set(rc={'figure.figsize':(12,10)})
corr = steel.corr()
sns.heatmap(corr, xticklabels=corr.columns.values,yticklabels=corr.columns.values)
plt.show()
# Divide the dataset into features and faults
fault = steel.values
fault_data=steel[["Pastry","Z_Scratch","K_Scatch","Stains","Dirtiness","Bumps","Other_Faults"]]
features = fault[:,0:27]
x=pd.DataFrame(features)
print(fault_data)
Pastry Z_Scratch K_Scatch Stains Dirtiness Bumps Other_Faults 0 1 0 0 0 0 0 0 1 1 0 0 0 0 0 0 2 1 0 0 0 0 0 0 3 1 0 0 0 0 0 0 4 1 0 0 0 0 0 0 ... ... ... ... ... ... ... ... 1936 0 0 0 0 0 0 1 1937 0 0 0 0 0 0 1 1938 0 0 0 0 0 0 1 1939 0 0 0 0 0 0 1 1940 0 0 0 0 0 0 1 [1941 rows x 7 columns]
from sklearn import svm
model=svm.SVC(C=1,gamma="auto",kernel="linear")
# Convert to single column
faults_single = []
for i in range(fault_data.shape[0]):
if fault_data["Pastry"].values[i]==1:
faults_single.append("Pastry")
elif fault_data["Z_Scratch"].values[i] == 1:
faults_single.append("Z_Scratch")
elif fault_data["K_Scatch"].values[i] == 1:
faults_single.append("K_Scatch")
elif fault_data["Stains"].values[i] == 1:
faults_single.append("Stains")
elif fault_data["Dirtiness"].values[i] == 1:
faults_single.append("Dirtiness")
elif fault_data["Bumps"].values[i] == 1:
faults_single.append("Bumps")
else:
faults_single.append("Other_fault")

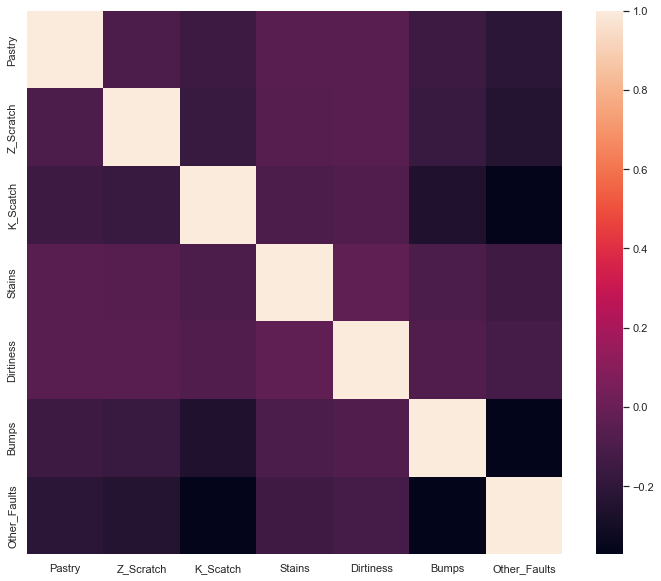

# heatmap visualization
sns.set(rc={'figure.figsize':(12,10)})
corr = fault_data.corr()
sns.heatmap(corr,xticklabels=corr.columns.values,yticklabels =corr.columns.values)
plt.show()
# Covert to single column with transpose
fault_single_col = []
for i in range(fault_dataframe.shape[0]):
if fault_dataframe["Pastry"].values[i] == 1:
fault_single_col.append("Pastry")
elif fault_dataframe["Z_Scratch"].values[i] == 1:
fault_single_col.append("Z_Scratch")
elif fault_dataframe["K_Scatch"].values[i] == 1:
fault_single_col.append("K_Scatch")
elif fault_dataframe["Stains"].values[i] == 1:
fault_single_col.append("Stains")
elif fault_dataframe["Dirtiness"].values[i] == 1:
fault_single_col.append("Dirtiness")
elif fault_dataframe["Bumps"].values[i] == 1:
fault_single_col.append("Bumps")
else:
fault_single_col.append("Other_Faults")

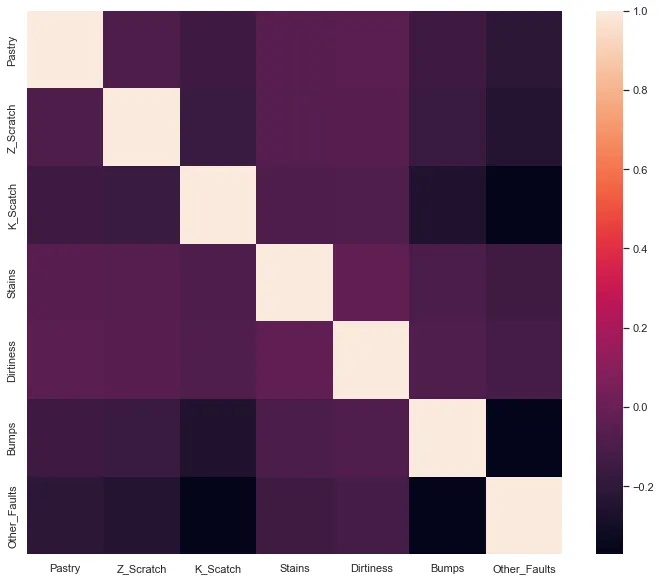

# heatmap Visualization
sns.set(rc={'figure.figsize':(12,10)})
corr = fault_dataframe.corr()
sns.heatmap(corr, xticklabels=corr.columns.values,yticklabels=corr.columns.values)
plt.show()
fault_single =np.array(faults_single)
print(fault_single.shape)
faultstype = pd.DataFrame({'faults':fault_single})
print(faultstype)
(1941,)
faults
0 Pastry
1 Pastry
2 Pastry
3 Pastry
4 Pastry
... ...
1936 Other_fault
1937 Other_fault
1938 Other_fault
1939 Other_fault
1940 Other_fault
[1941 rows x 1 columns]

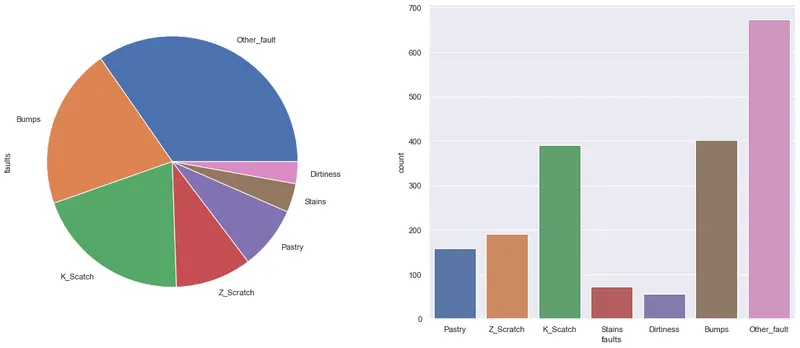

# countplot visualization
fig, ax=plt.subplots(1,2,figsize=(20,8))
faultstype['faults'].value_counts().plot.pie(ax=ax[0])
sns.countplot(x='faults',data=faultstype, ax=ax[1])
plt.show()
sc=StandardScaler()
X=sc.fit_transform(x)
x_train, x_test,y_train,y_test =train_test_split(X, faultstype, test_size =0.40, random_state =1000)
from sklearn.svm import SVC
model =SVC(C=1,gamma ="auto",kernel ="linear")
print(model.fit(x_train,y_train))
print(model.score(x_test,y_test))
SVC(C=1, gamma='auto', kernel='linear') 0.6975546975546976
y_predict =model.predict(x_test)
from sklearn import metrics
cm=metrics.confusion_matrix(y_test,y_predict)
print(cm)
[[ 87 0 0 56 6 0 4] [ 0 6 0 12 1 0 0] [ 4 0 138 4 0 0 0] [ 62 6 9 182 18 2 5] [ 11 1 0 17 32 0 2] [ 0 0 0 1 0 29 0] [ 5 0 1 7 1 0 68]]

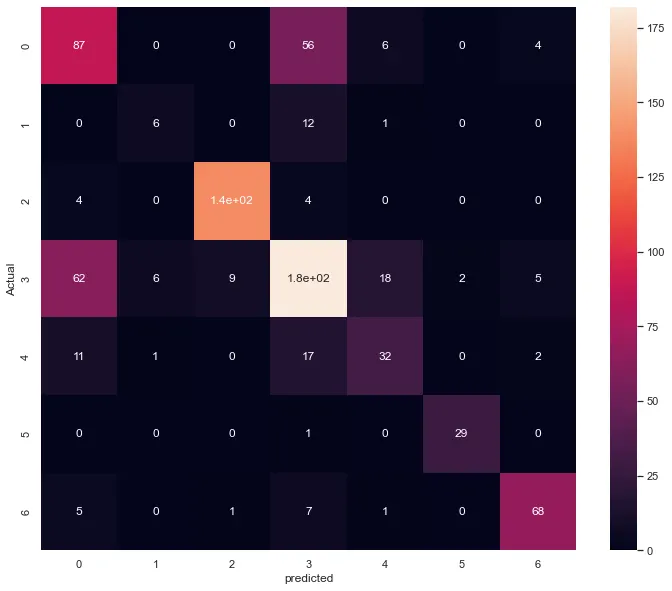

# heatmap visualization
sns.set(rc={'figure.figsize':(12,10)})
sns.heatmap(cm,annot=True)
plt.xlabel("predicted")
plt.ylabel("Actual")
plt.show()
