ROOF DESIGN

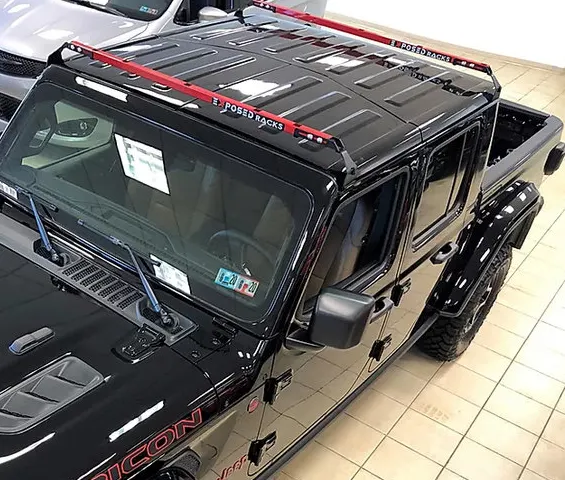

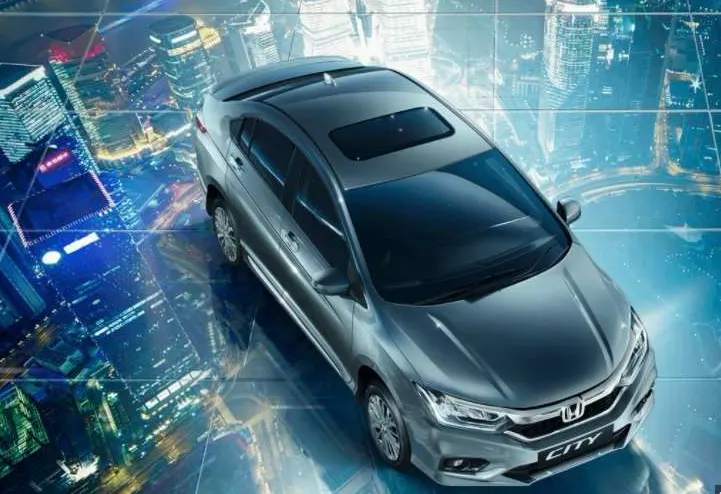

Introduction Of Car Roof

A car roof is the uppermost part of a vehicle that covers the interior and passengers from the elements . It is essential component of a car's structure that provides support and aerodynamic stability.

Over the years, car roof designs have advances , with manufacturers introducing innovative features to improve functionality and aesthetic appeal. today, cars roofs play a vital role in the overall design and style of a car and they are critical in ensuring the comfrot and safety of passengers

Types of car roofs

The most common types of car roofs :

• Hard Top Roofs:A hardtop roof is a fixed, permanent roof made of metal, fiberglass, or plastic. This type of roof is typically heavier and more expensive than other types of car roofs, but it offers superior insulation and noise reduction. Hardtop roofs can be fully or partially retractable, depending on the model of the car.

• Soft Top Roofs: A soft top roof, also known as a convertible roof or ragtop, is made of fabric or vinyl and can be manually or electronically retracted. Soft top roofs are lightweight and easy to use, and they provide an open-air driving experience. However, they can be less secure and less insulated than hardtop roofs.

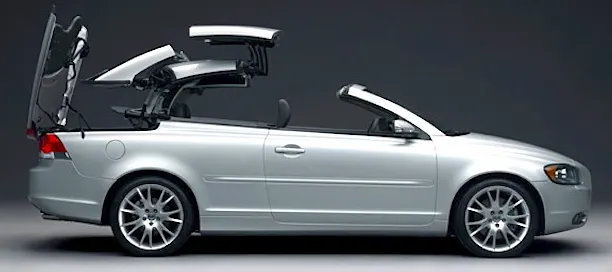

• Retractable Roofs:Retractable roofs are a type of car roof that can be opened or closed, either partially or fully, using a motorized mechanism or manually. Retractable roofs are typically found on convertible cars or on certain models of hardtop cars

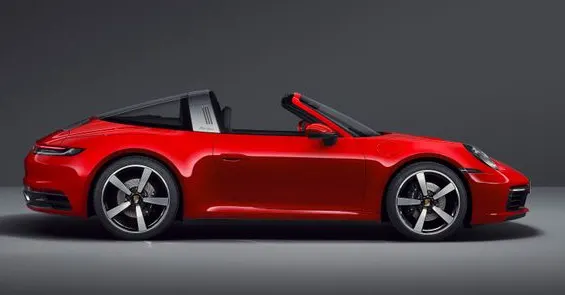

• Targa Roofs: A Targa roof is a removable hardtop that leaves a portion of the car's roof in place, typically over the passenger compartment. Targa roofs are common on sports cars and provide the open-air driving experience of a convertible while retaining some of the structural rigidity of a hardtop

• Panoramic Roofs:A panoramic roof is a large, fixed glass panel that spans the length of the car's roof. This type of roof provides a sweeping view of the sky and can create a feeling of openness and spaciousness inside the car.

• Sun Roofs:A sunroof is a panel that slides open or tilts upward to let in sunlight and fresh air. Sunroofs can be either manually or electronically operated and can be installed on hardtop or soft top roofs

Criteria for Designing a Car Roof

• Structural intergrity: The roof must be strong enough to support the weight of the car and protect the occupants in the event of rollover or impact.The roof must meet safety standards and regulations set by goverment agencies Bow roof
• Aerodynamics:The roof design must be aerodynamic to reduce wind resistance and improve fuel efficiency and performance.The shape of the roof should be carefully designes to minimize drag and noise
• Weight: the roof should bee made of lightweight material to reduce the overall weight of the car which improves performance and fuel efficiency
• Style The roof design should be aesthetically pleasing and complement the overall design of the car .the design shoulg also consider brand identity and customer preferences
• Interior Space: The roof design should maximize the interior space of the car while also providing adequate headroom for the occupants
• Funtionality :The roof design should accommodate any additional features such as sunroof roof racks or other accessories.The roof should also provide provide protection from the elements and be easy to operate.

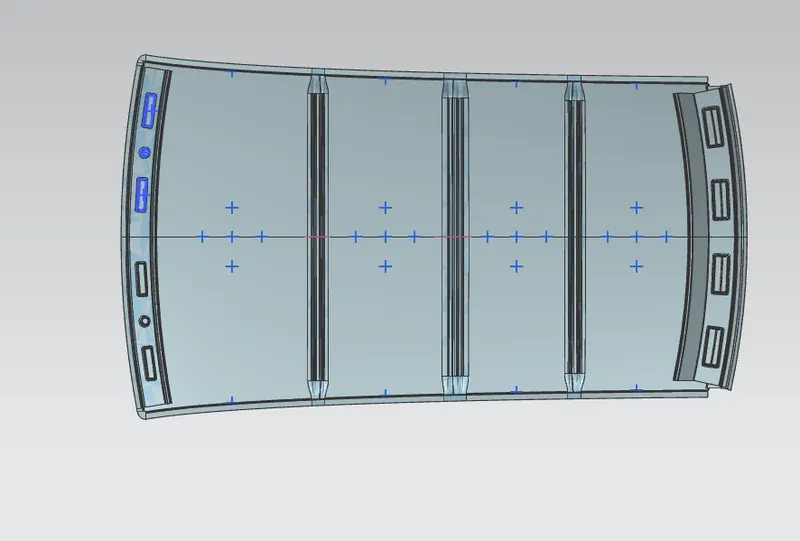

Components of Car Roof:

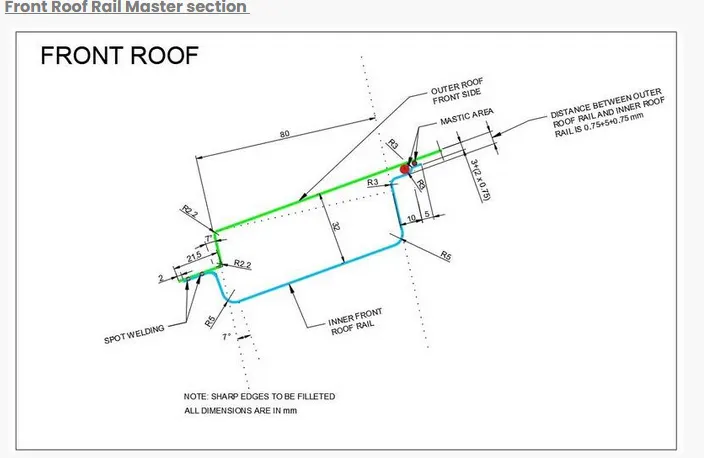

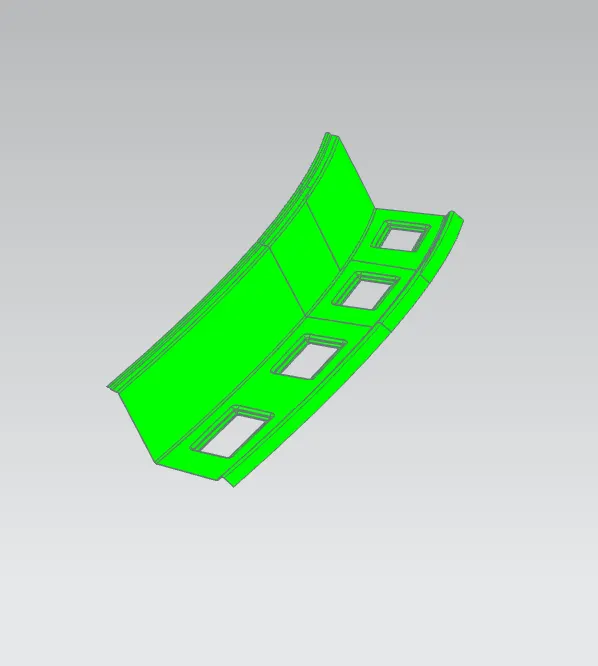

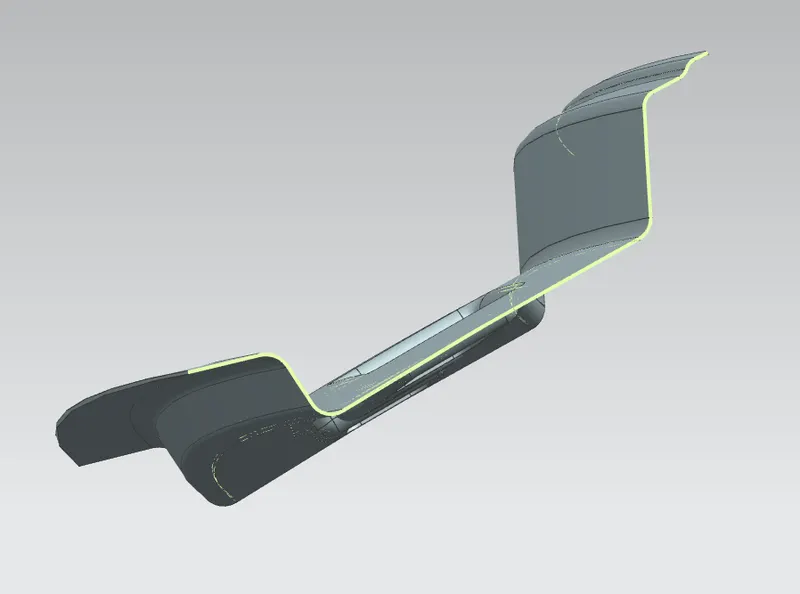

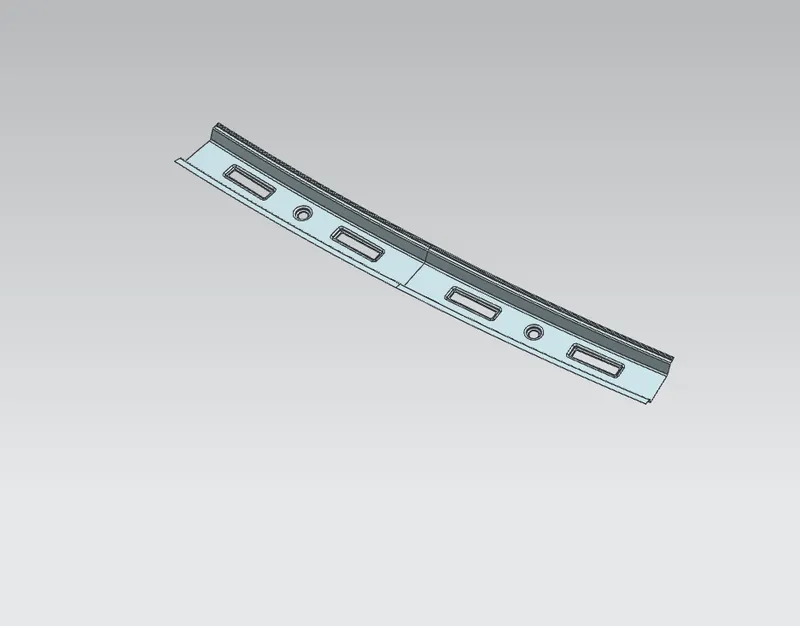

Front Roof Rail: A front roof rail is a structural component that runs along the front edge of the car roof and connects the roof to the windshield pillars . It provides support to the roof and helps distribute the load in the event of a roolover or impact.

Front roof rails are typically made of high strength stell , aluminum or other materials that offer stregth and rigidity while keeping the weight to a minimum.The rails are usually integrated into the car's body structure and are designed to work in conjuction with othersafety system, such as airbags and side impact protection

In addition to providing structural support front roof rails may also serve additional function, such as providing attachments points for roof rack sunroof or other accessories .The desihnof the front roof rail must consider these additional functions while maintaining the necessary stregth and rigidity required or safety

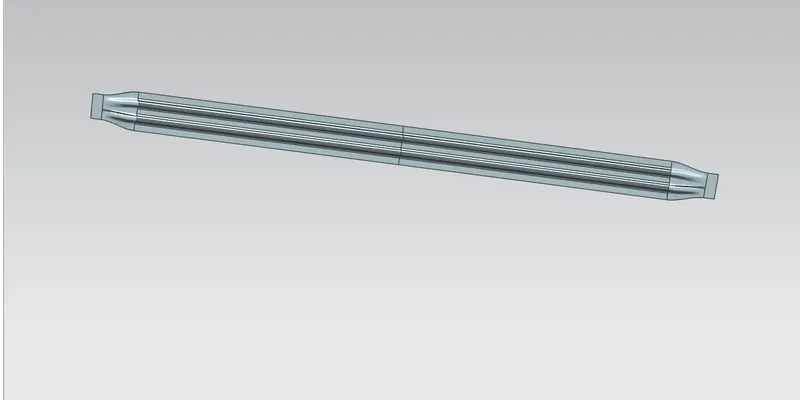

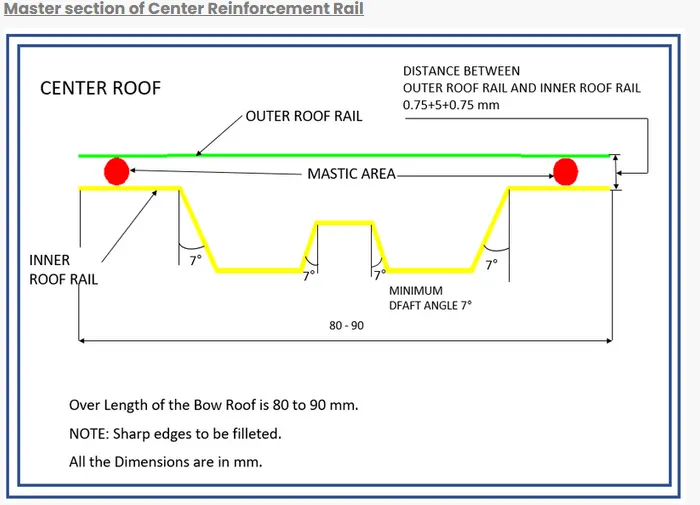

Center Bow Roof Rail Of Car:

The center bow roof rail is another structural compoent of the car roof, located in the middle of the roof structure.It is also typically made of steel or aluminum and is design to provide additional support and rigidity of the roof

The center bow roof rail connect the front and rear portions of the roof structure, typically by attaching to the A pillar and Bpillars of the car.It is designed to disbute the weight of the roof evenly across the car structure which helps to prevents the roof collapsing in the events of therollover accident.

In addition to providing structural support the cebter bow roof rail also plays arole in the design and functionality of the car roof .It may provide mounting points for the accessories such as roof racks and it can also house componentss such as sunroof or other roof mounted features.

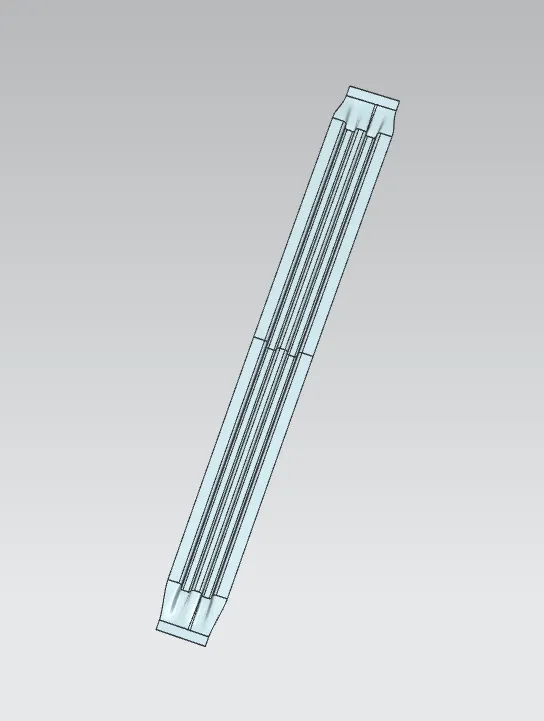

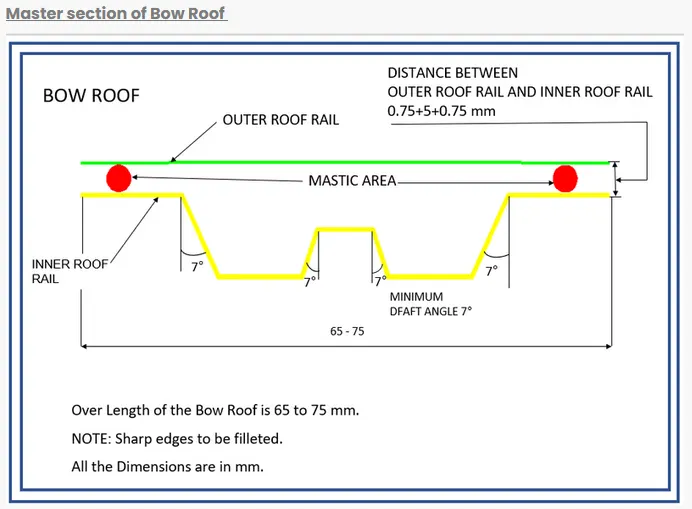

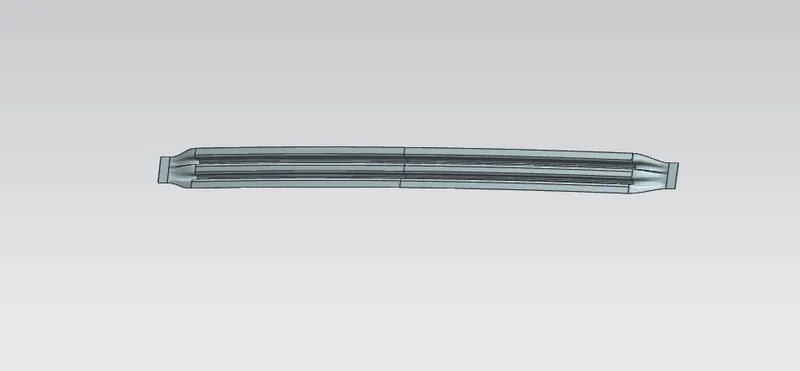

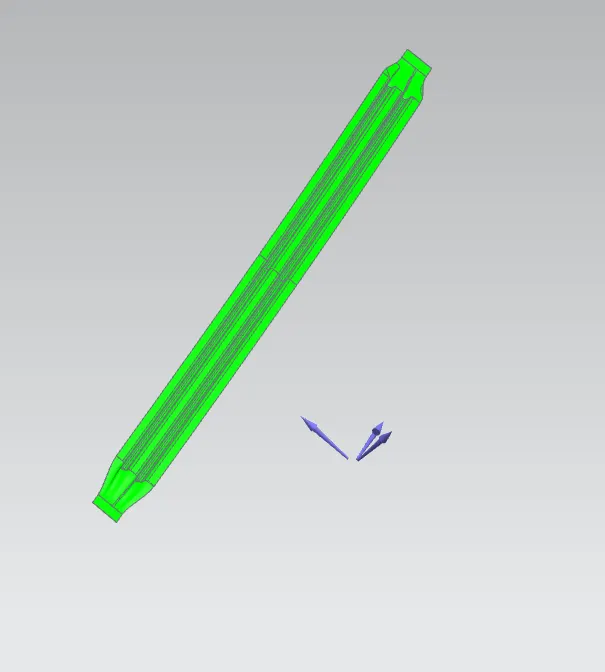

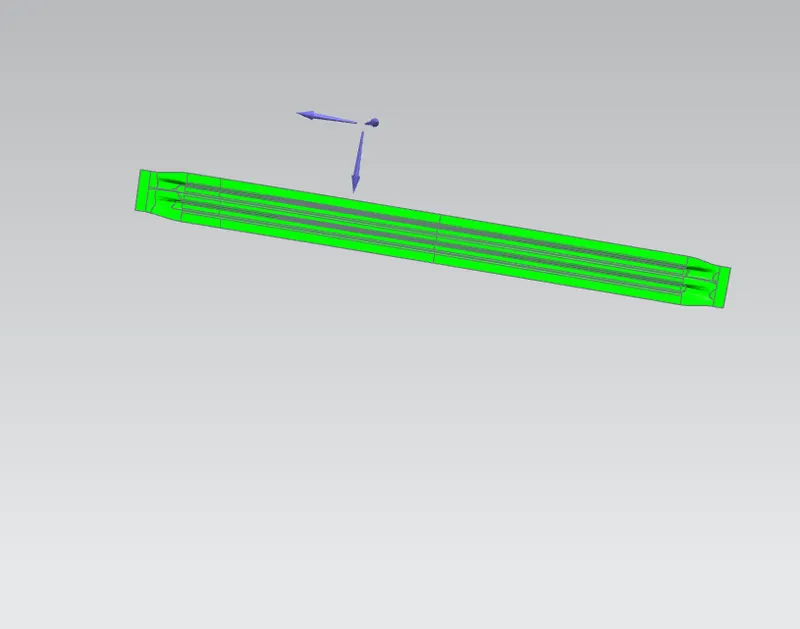

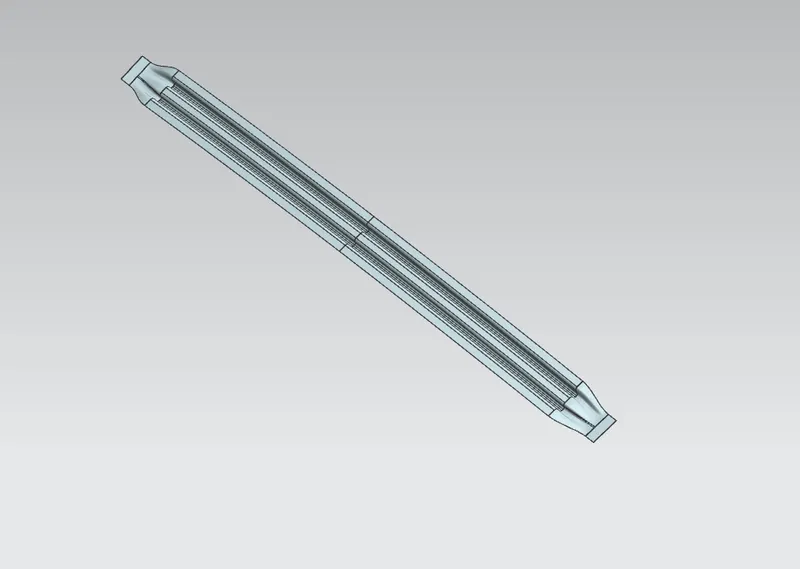

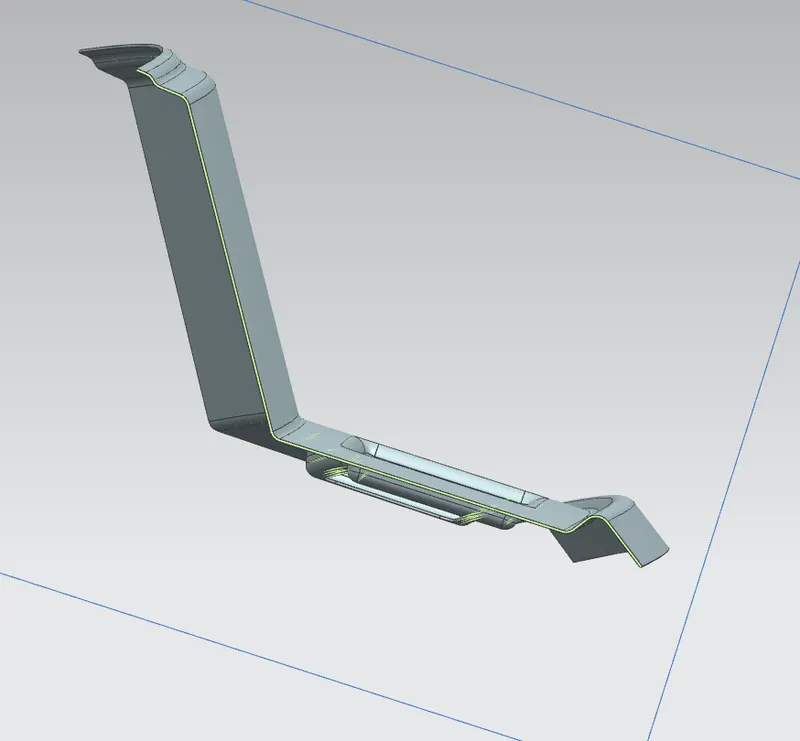

Bow Roof Rail Of Car:

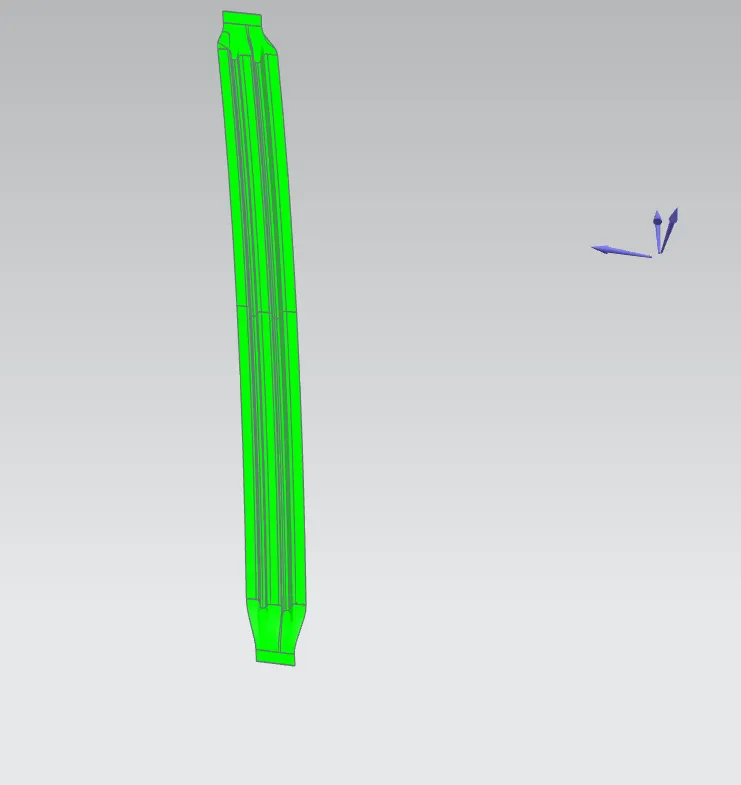

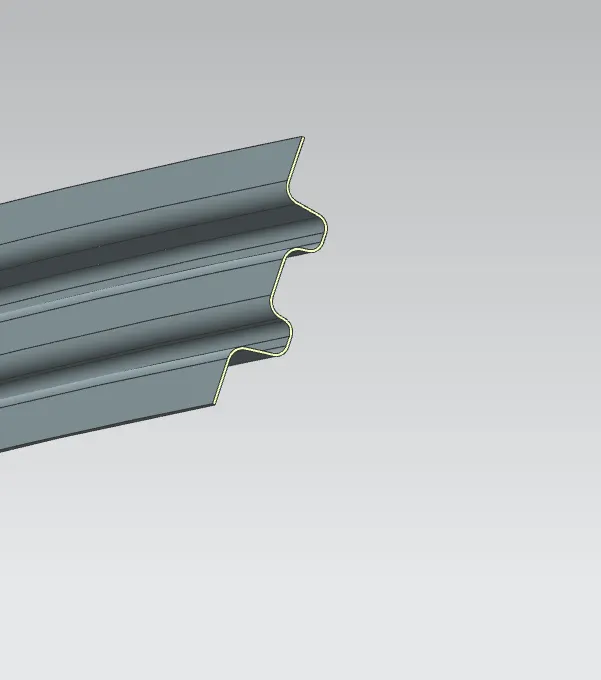

A bow roof rail is a structural component of the car roof that helps to provide rigidty and support to the roof structure .It typically runs along the sides of the car roof and is curved in shape. There are typically three bow roof rails in a car roof design the front bow center bow and rear bow roof rails.The front and rear bow roof rails are located at the front and rear of the rooff structure while the center bow roof rail is located in the middle of the roof structure.

The bow roof rails are typically made of steel or aluminum and desihned to with stand the weight of the car and provide protection in the event of a rollover accident.They are designed to distribute the weight of the roof evenly across the car structure which helps to prevents the roof from collapsing in the event of a rollover accident.

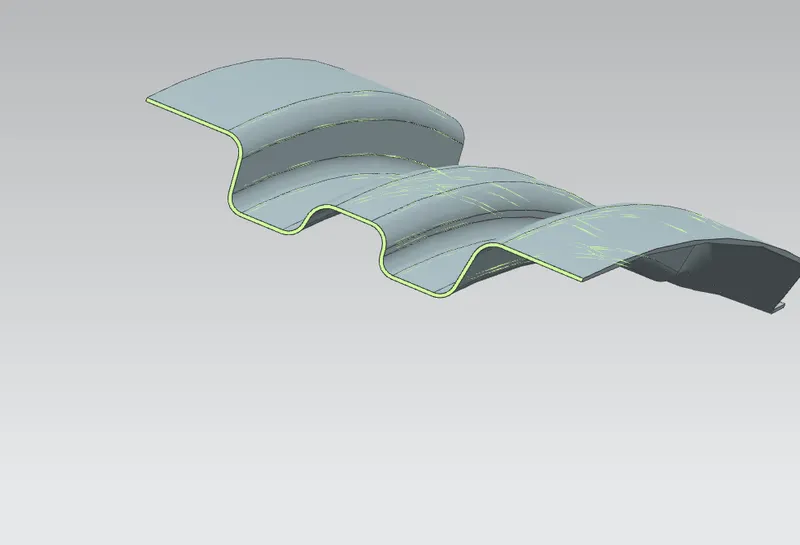

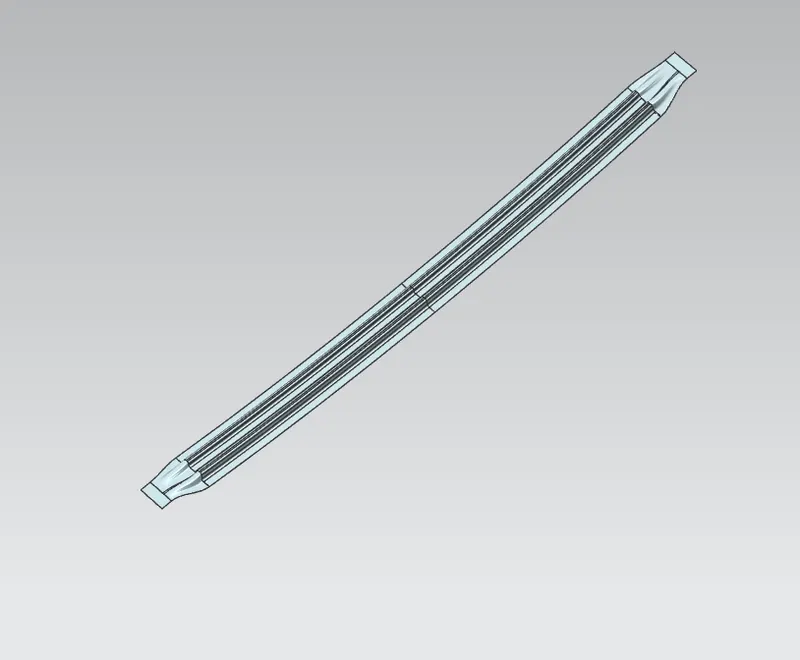

FRONT BOW RAIL

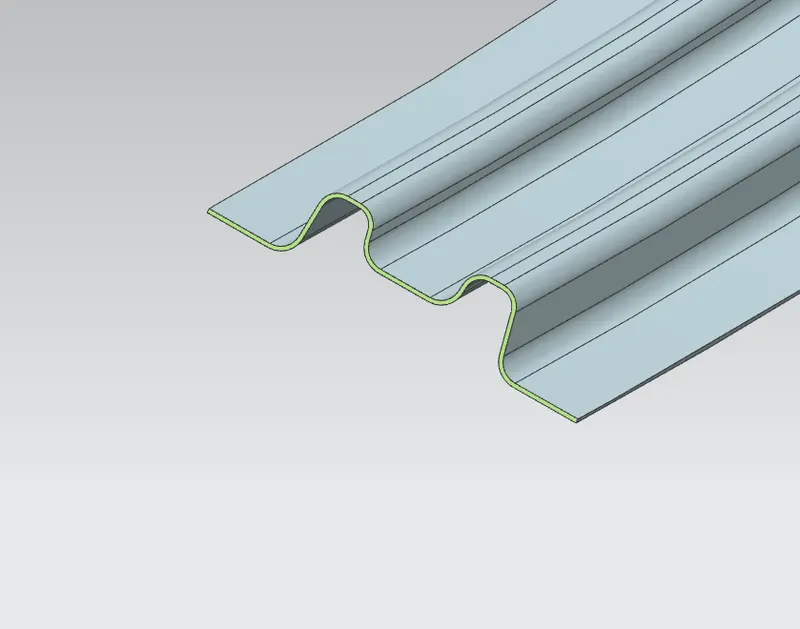

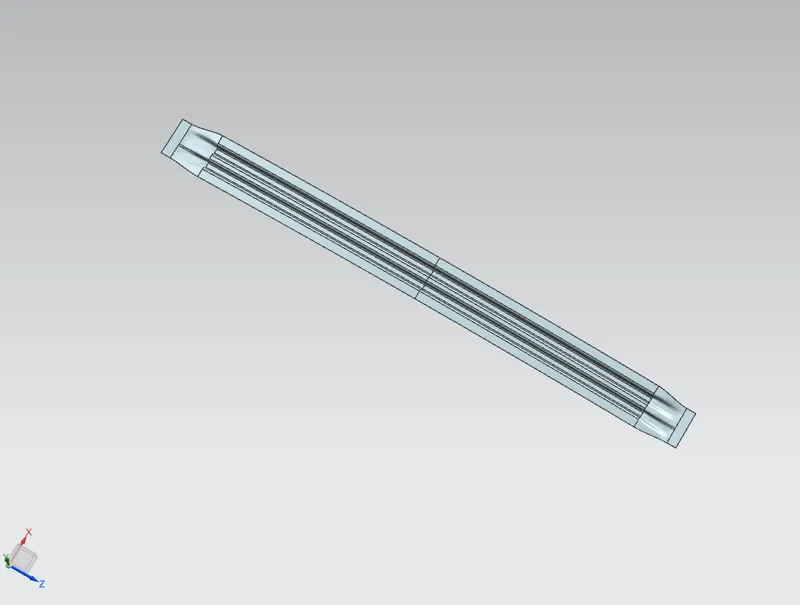

BACK BOW ROOF

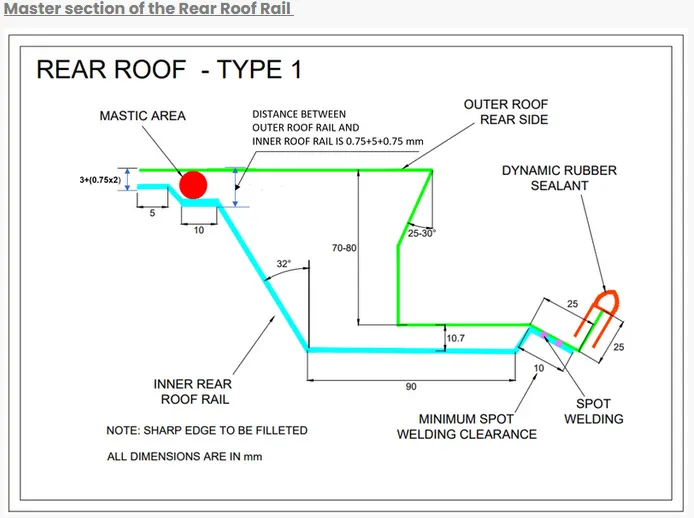

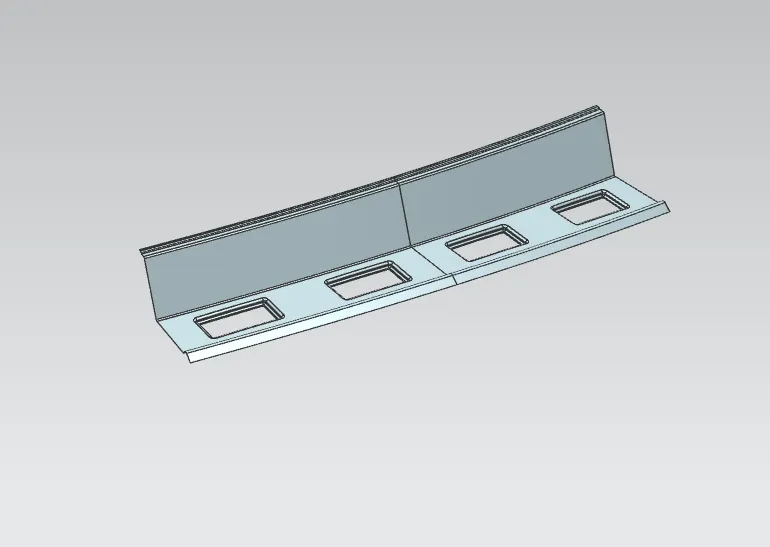

REAR ROOF RAIL

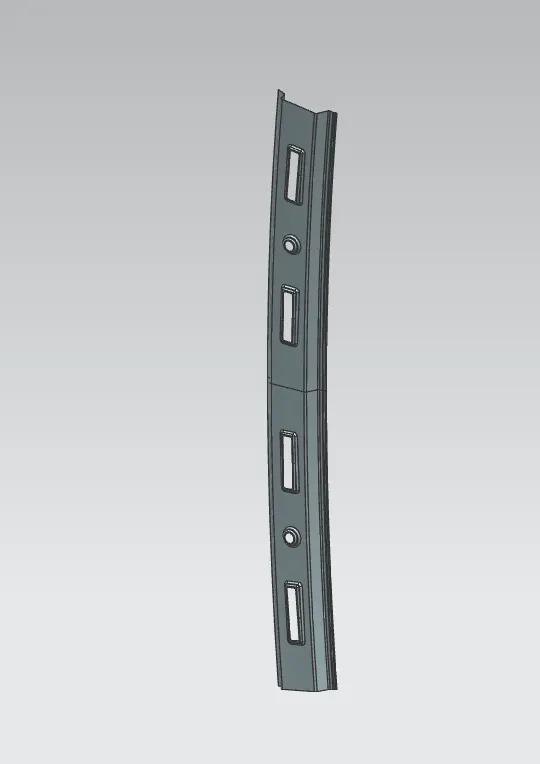

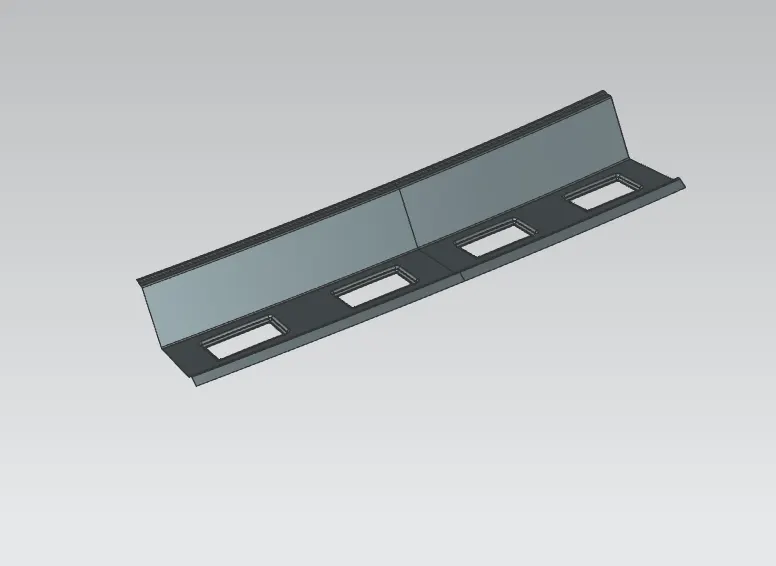

The rear roof rail of a car is the longitudinal bar that runs along the length of the roof on the rear portion of the car .It is one of the two roof rail with the other being the front roof rail that runs along the front portion of the car

The rear roof rail serves several purposes .Firstly it provides a mounting point for roof racks and back door allowing the car to carry additional cargo on the top The specific design and placement of the rear roof rail can vary depending on the make and model of the car as well as specific design of the roof .Some cars may have aroof rail that is integrated into the overall design of the roof, while others may have amore distinct standalone rail that runs along the rear portion of the roof

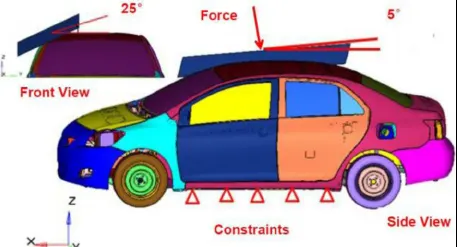

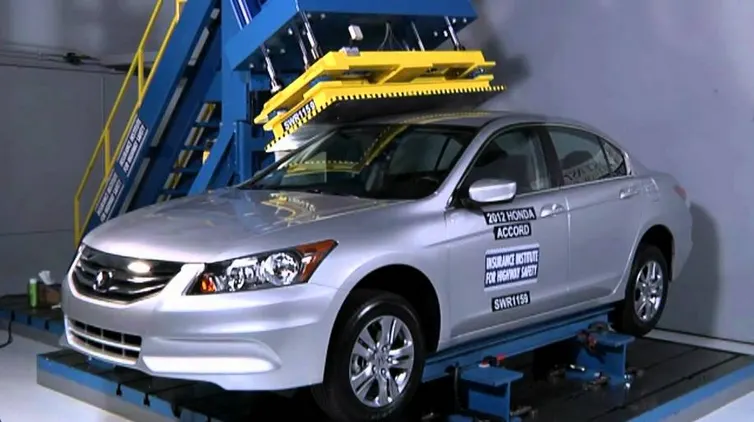

ROOF CRUSH TEST

The purpose of a roof crush test is to evaluate the strength and structural integrity of a car's roof in the event of a rollover accident. During the test, the car is placed on its side and a metal plate is slowly lowered onto the roof at a controlled rate of speed and force.

The test typically involves two phases: a static loading phase and a dynamic loading phase.

During the static loading phase, a force is applied to the center of the roof until a specified deformation is reached. This deformation is typically 5 inches (127 mm) for passenger cars and 3.5 inches (89 mm) for light trucks and SUVs.

During the dynamic loading phase, a force is applied to the roof at a controlled rate of speed until it either reaches a specified force level or the roof deforms by a specified amount (usually 5 inches). The maximum force that the roof can withstand before reaching the deformation limit is recorded.

The test is repeated on both sides of the car to evaluate the roof's strength and stability in the event of a rollover from either side.

The results of the test are typically used to determine a car's safety rating. The National Highway Traffic Safety Administration (NHTSA) uses a 5-star safety rating system that includes a rollover rating based on the car's performance in roof crush tests. The rating ranges from 1 to 5 stars, with 5 stars indicating the highest level of safety.

It's important to note that different cars may perform differently in roof crush tests due to differences in design and materials. Car manufacturers may use different materials and structural design to improve the safety of their vehicles' roofs. As such, it's important to consider the results of multiple tests and evaluations when assessing a car's safety.

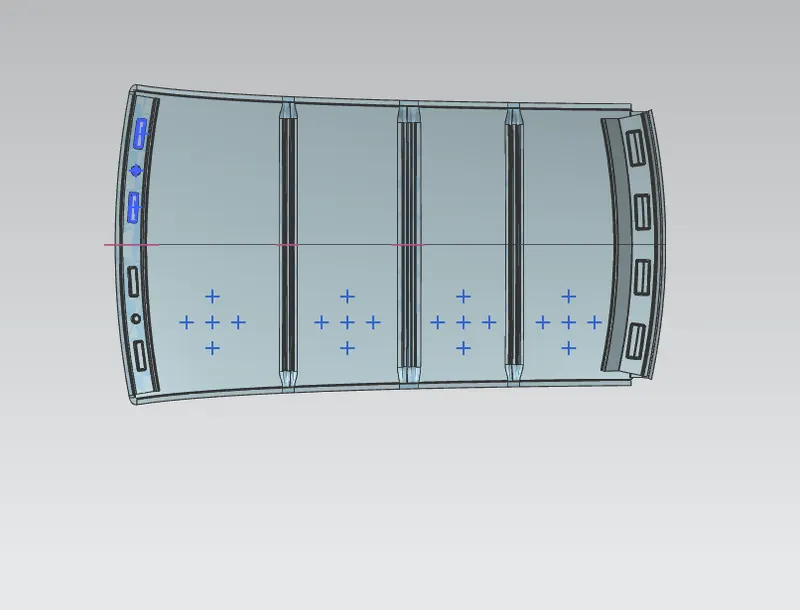

HEAT DISTORTION STUDY

The heat distortion study is important in the use of sheet meatal .The heat distortion temperature is a temperature limit over which the material cannot be used for structural purposes.This study is used to anticipate the heat distortion temperature at which the material begins to soften when subjected to a constant load at an incresing temperature.Based on the heat distortion temperature this research will estimate the bow roof position which helps to reinforce the roof in oeder to avoid bending or damades on ther roof

RESULT

ROOF RAILS	RX[mm]	RY[mm]	L	T[MM]	I[MM]	W	RESULT
FRONT ROOF-BOW FRONT	5692.17	3011.175	2029.24	0.75	516.51	1.78	OK
BOW FRONT-CENTER ROOF	4728.744	7173.288	2029.24	0.75	388.55	2.05	OK
CENTERROOF-BOW REAR	3891.582	11018.644	2029.24	0.75	327.62	2.006	OK
BOW REAR-REAR ROOF	3283.623	14558.883	2029.24	0.75	349.30	1.922	OK

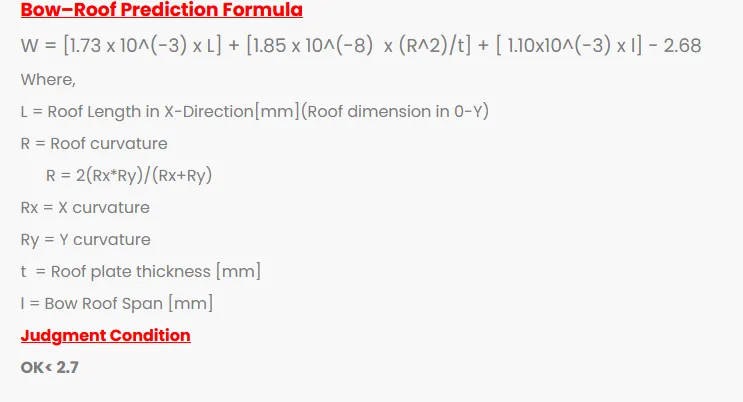

FROM the table all W values are <2.7 so all the bow roof are placed in right area

SNOW LOAD CRITERIA

The snow load criteria are standards and guidelines used to design car roof that can withstand the weight of the snow and ice during winter weather conditions .The amount of snow load that a car roof can handle depends on a variety of factors including the structural integrity of the roof the materiakls used in it contruction and the slope or angle of the roof.

RESULT

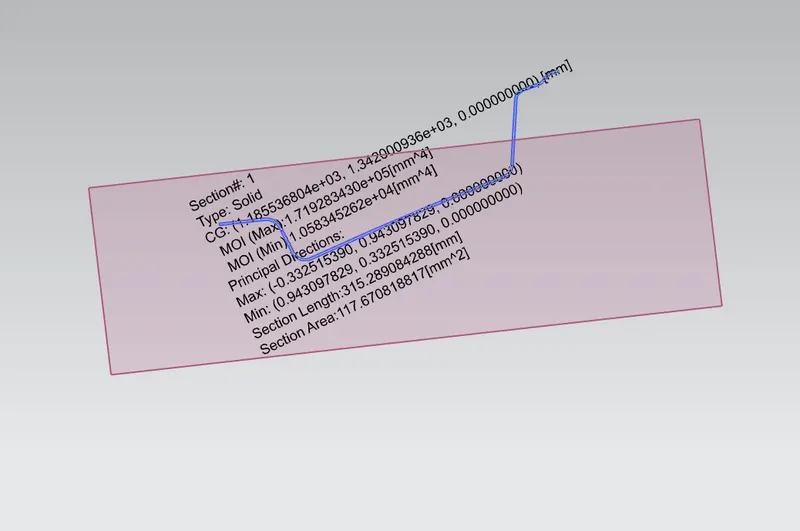

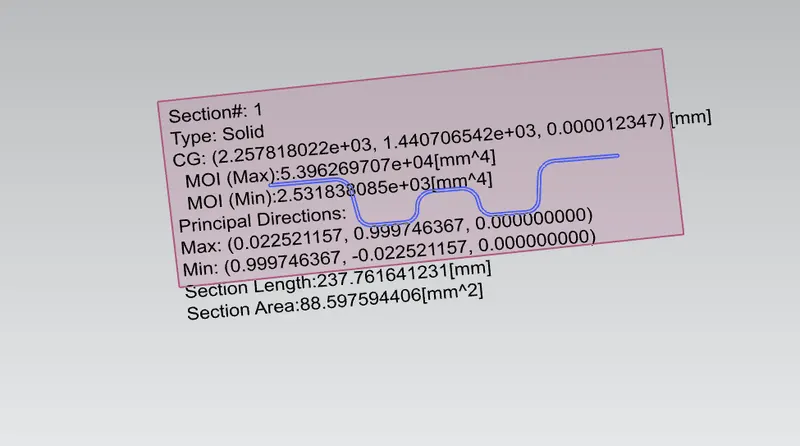

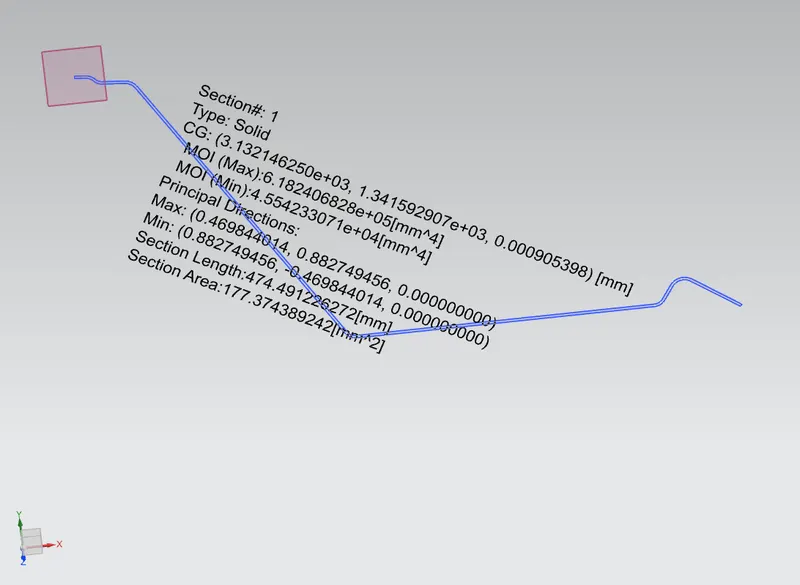

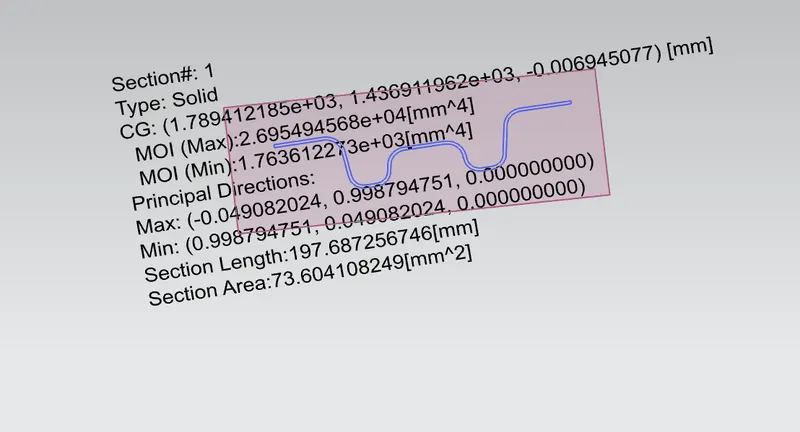

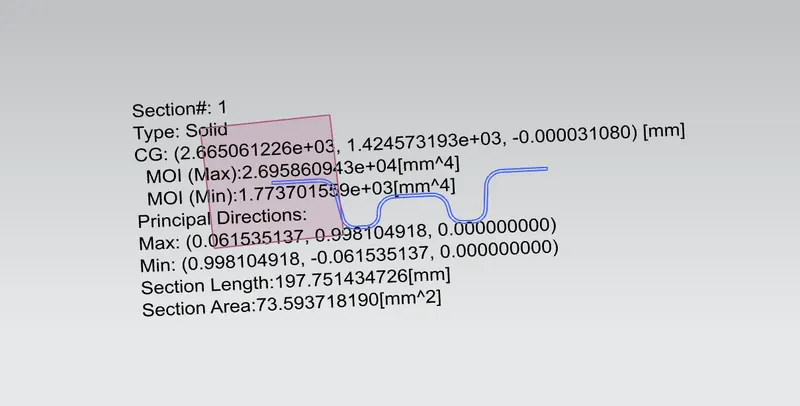

ROOF RAILS	IY[MM^4]	Y[MM]	LY[MM]	LX[MM]	L1[MM]	L2[MM]	RX[MM]	RY[MM]	MY[MM]	S[MM]	a	Qr	RESULT
FRONT ROOF-BOW FRONT	1763.61	608.0049	1958.818	1127.6751	608.0049	468.7303	4271.064	3023.789	821300.98	538.36	1.04	13.3	OK
BOW FRONT-CENTER ROOF	2531.83	1076.7352	1958.818	1078.5501	468.7203	407.3997	3841.538	7140.953	949769.061	438.05	1.10	9.76	OK
CENTER ROOF-BOW REAR	1773.70	1483.349	1958.818	1056.1250	407.3997	474.6835	4309.173	11624.97	7052856.46	441.03	0.78	4.56	OK

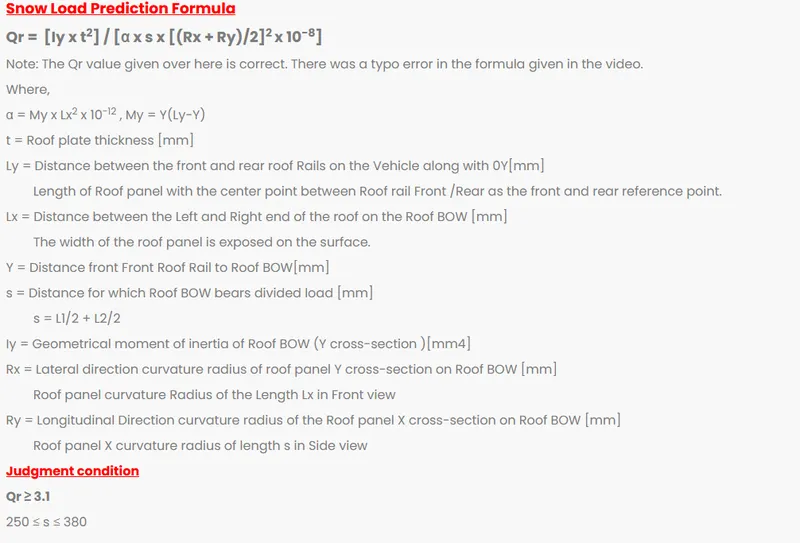

The Qr value is great than or equal to 3.1 the roof structure is pass the snow load condition
