Roof challenge

THE ROOF ASSEMBLY

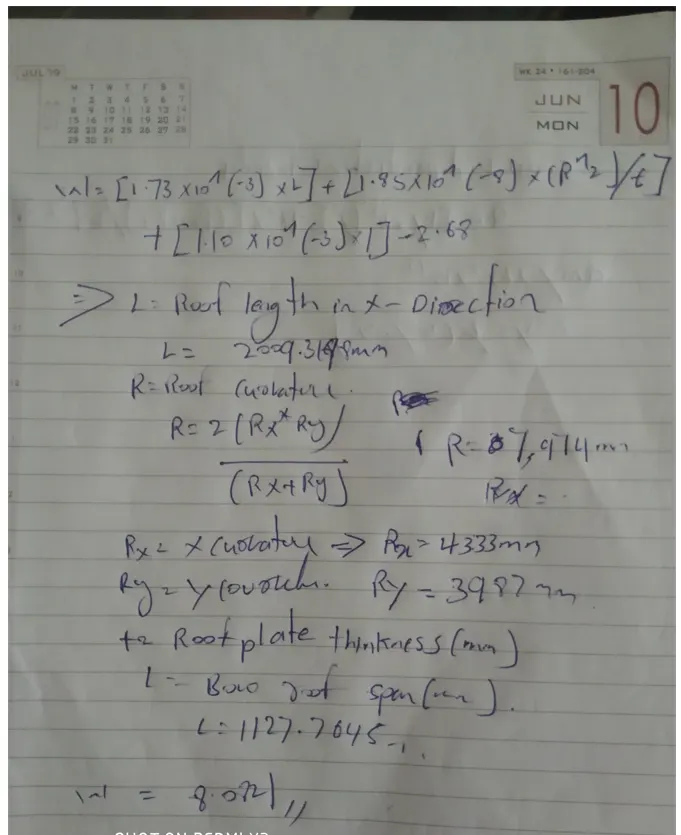

INTRODUCTION:IN this introduction we are saying that what are the tools we used for making of the roof_assembly.and calculating the few valves of the roof_assembly.roof is the major part of the car desing in the roof desing we can approch adifferent models that we need

CONTENT : in this we are saying that

CONTENT

1. INTRODUCTION
2. ASSEMBLY FLOW
3. DESING
4. DESING APPROACH
5. CAD APPROACH
6. CONCLUSION

the desing of the roof assembly with the help of the few tools,and the above process.

DESING: there are few parts in the roof_assembly_desing. are bow_roof,bow_roof_2,centeral_plane and the rear _roof ,front_roof thses are the parts we desing during the roof_assembly.

FRONT_ROOF : the front roof is having the different dimensions with the offsets roof plane,we need to take the offset of the roof _plane of 32mm than the front roof part will desing useing the roof_plane ,and having the angles.

the thicken process is done on the front roof plane

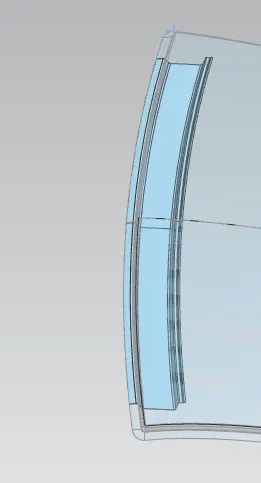

BOW_ROOFS :bow roof is the part of the roof assembly,thereare the two bow roofs in the roof assembly depending on the desing we can take the more number of bow roof. the desing of the bow roof we need to do the offset of the roof_plane with thr some dimensions and takein the use of the tools that are the throght-curves.this is used for the jioning the offset_plane. This process is take palce in the desing of the bow roof .

THE bow roof 2 is also having the same process that which is used for the making of the biow roof. with this we are desing the two bow roof in thr roof_assembly with the same dimensions.the thickn process is appllied on the bow_roofs.

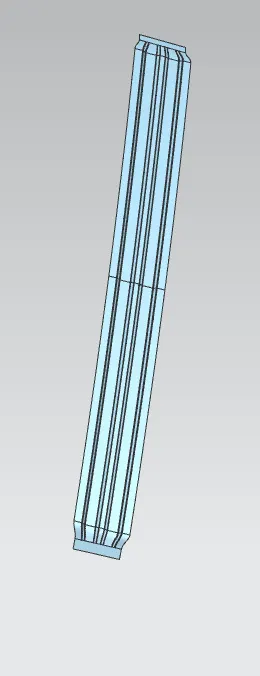

THIS IS THE BOW ROOF DESING

CENTERAL-PLANE: the centeral plane is also called as the reniforcement. desing of the centeral plane is same process that is used in the bow roof desing.in this we are inceresing the dimensions of the centeral plane. and offset of 1.5m it is applied at the ends of the centeral plane.

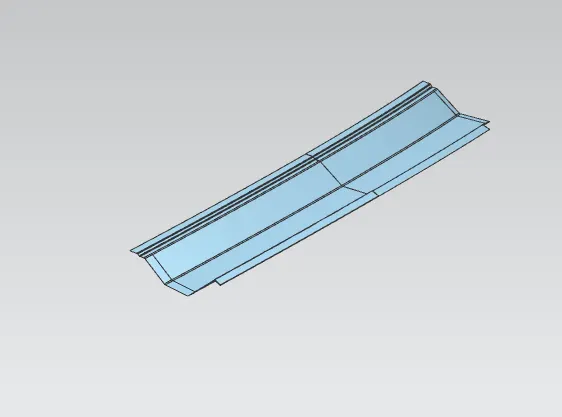

this is the centeral_plane of thr roof _assembly_desing

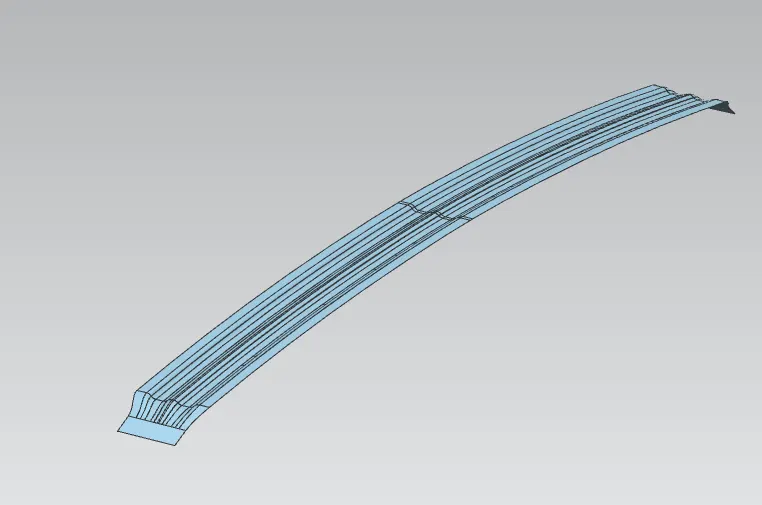

REAR ROOF: desing of the rear roof is same as the front roof plane.the rear roof desing is dependes on the back door desing .

CAD approachs are useing the different tools that are used in the roof assembly desing.

• are:
• skech tool
• surface tool
• curve tool
• assembly tool
• analysis
• offset surface
• offset curve on the surface

thses are the tool are used in the desing of the roof assembly

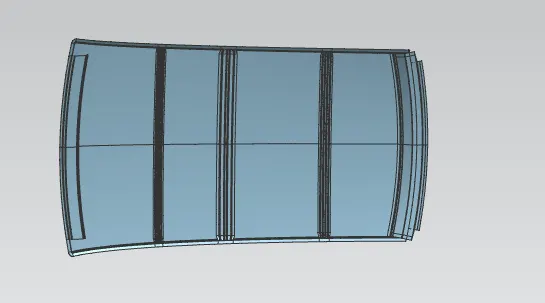

THE ROOF_ASSEMBLY IS

CONCLUSION: the conclusion is this final roof _assembly
