Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

TITLE OF THE PROJECT :Bracket the titale of the project

ODJECTIVE : The objective of the project is to finding the commands are used to making of the bracket withe the given dimensions as per the requidment

INTRODUCTION : The introduction is about the what are the commands we are used and steps that are invalid in making the bracket.There are few commands will be used are skech,normal cutout,bead,unbend,rebend,this are used with the different dimensions which are given by the challenge .Few steps to be flowed during the making of the bracket ,first we need to use the skech command to making of the 2D skech which is given than we need to start the flange on the 2D skech.

After the flange we need to start the normal cutout to do the nromal cutout we need to draw the another 2Dskech with the different dimensins.

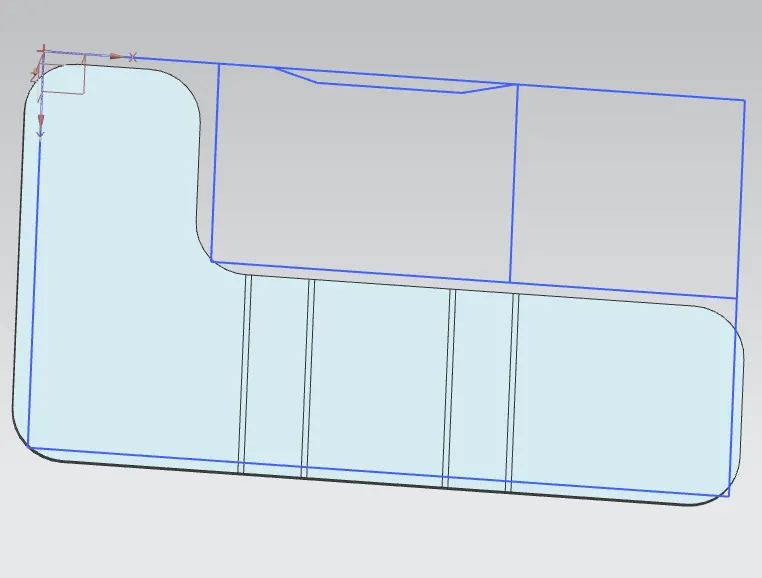

again we are appling the command flange on 2D skech than we can see the complete image on the screen with the flange, now we appling the normal cutout on the surface we can find the normal cutout on the image after that we are starting the bead on the surface to perform the bead we need to unbend the total surface than we can get the bead on the surface which we are seleted.

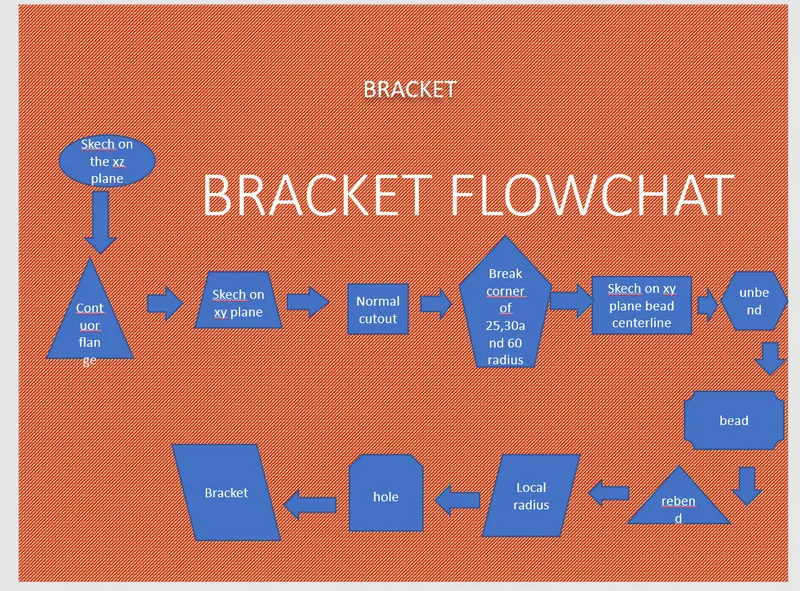

DESING METHODOLOGY :flowchat

DESCRIPTION :skech =this will used to making of the 2D shapes with the given dimensions in this we used 340mm of horiznetal line,20mm of vertical line,radius of 40and30,angle of 140 used in skech 70mm of midplane.

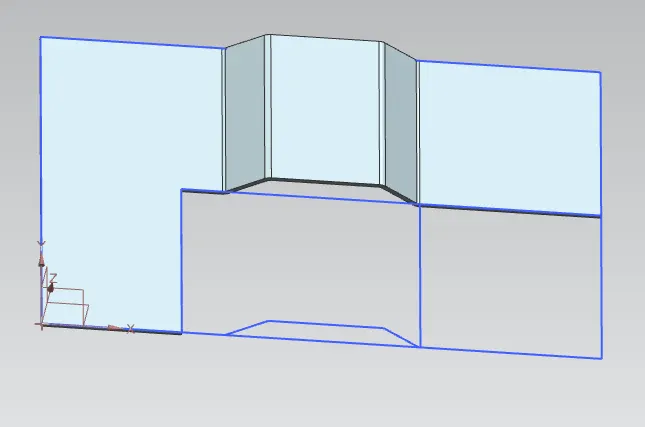

FLANGE : after the 2d sjech we are used the flange . the flange command we having the dimensions of depthand the thickness of 20mm and 3mm

NORMALCUTOUT: the normal cutout is one command that wiil used to making of the cutting the part which is seleted on thr skech with the dimensions

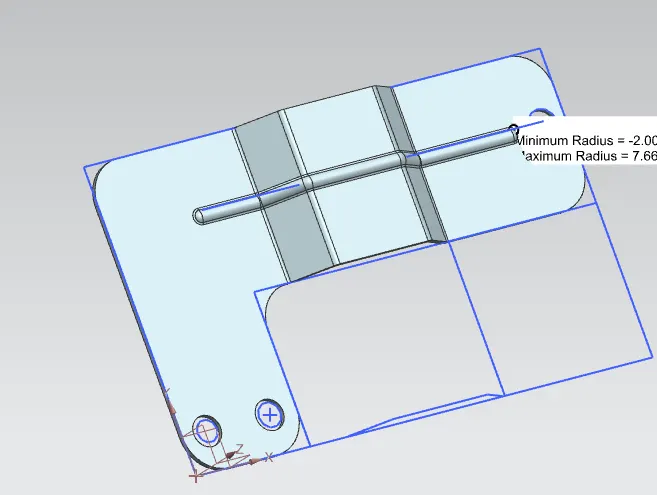

BEAD:this will used for making of bead on the surface with the dimensions that are given. for this bead we need to use the unbeandcommand which is used to making skech on the 2d surface

bead = it is for making the any parts on the surface

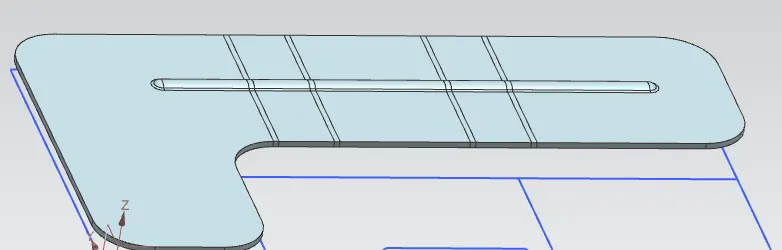

unbend = it is for the unbend the total image. to make the any skech on the surface

rebend = it is used for the rebend the total skech

conculsion: is the how to making of the bracket with the dufferent commands.
