Roof challenge
Report on roof
Objective:
- To design the Automotive Roof based on the given styling surface and to analyse the prepared model to check the manufacturability and the feasibility of the design.
- To perform the section modulus study for the master sections and create for the Front roof rail, Rear roof rail, Bow roofs and centre roof rail.
- To create the Ditch area and to perform the draft analysis.
ROOF:
An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements.
The roof itself may be constructed of soft or rigid material. Soft-tops are made of vinyl, canvas or other textile material; hard-top convertibles have roofs made from steel, aluminium, plastic or carbon fibre composites. Your vehicle can also become ruined in an accident. Though a defect may seem insignificant at first, it can lead to serious consequences. Whether your roof was dented due to downfall or roughed up in a collision, it is urgently necessary to find a replacement for it. The roof panel is attached to the BIW of the car with the help of front and rear roof rail. This attachment is done with the help of sealants. Bow roofs 1 & 2 are attached depending upon the length of the roof along with the central roof rail.
Longer the roof, more the number of roof rail. Other dimensions like strength and material is governed by the factors like head room, overall space, visibility, ergonomics and the rules and regulations of the states where it is sold.
DESIGN CONSIDERATIONS:
- Visibility criteria
- Head clearance
- Curvature study

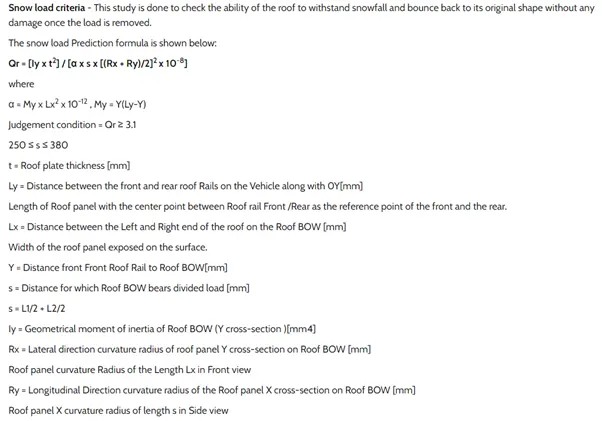

- Heat Distortion and Snow load criteria
- Material thickness
Material Properties:
Density: 7890 kg/m3
Young's modulus: 210000Mpa
Poisson's ration: 0.3
Yield stress: 210 Mpa
Metal Roof Mass : 11.2kgs
Thickness : 0.75mm
Joining process : Metal roof with spotweld connections.

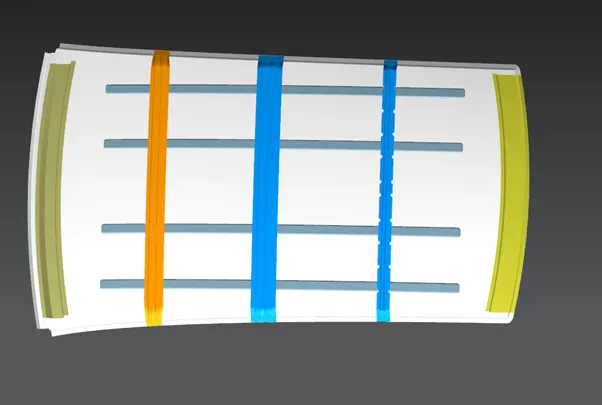

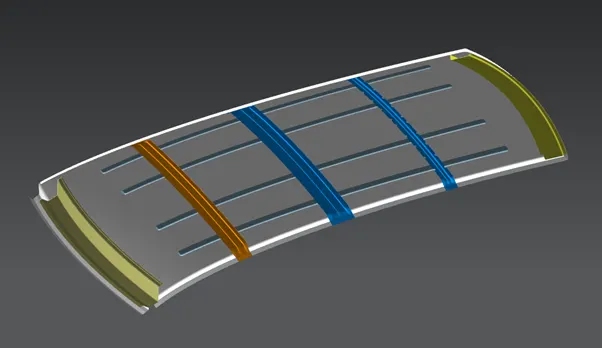

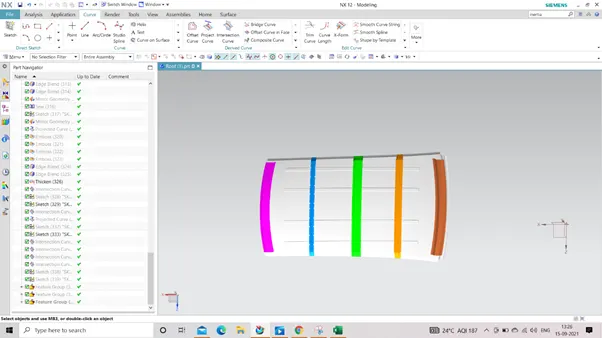

ASSEMBLY COMPONENTS OF ROOF:

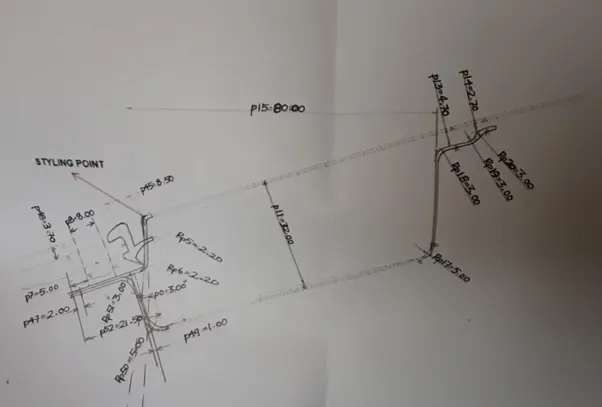

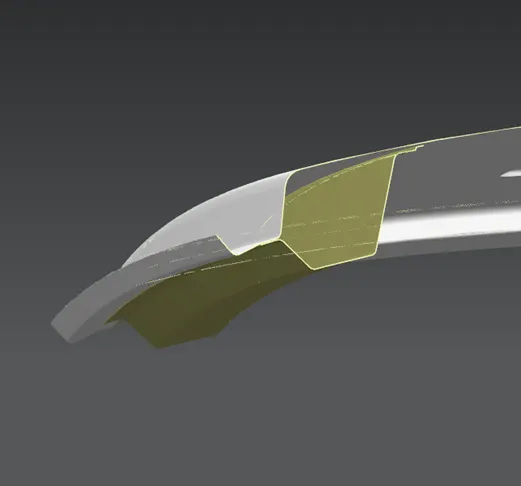

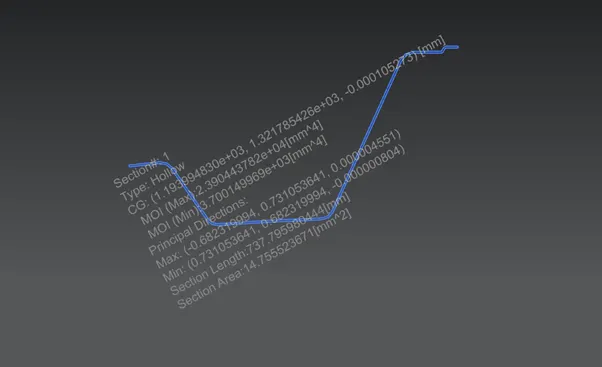

MASTER SECTION OF FRONT ROOF RAIL

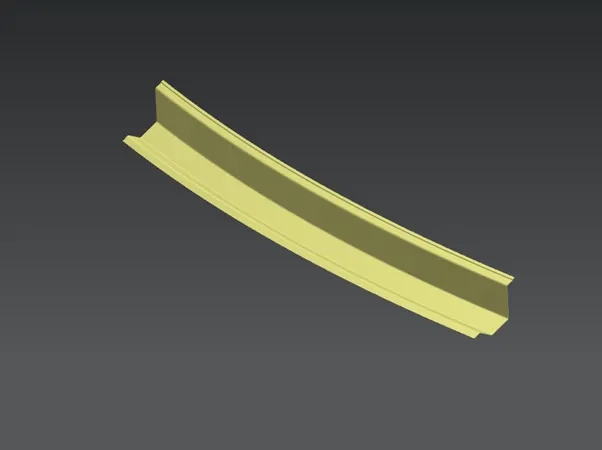

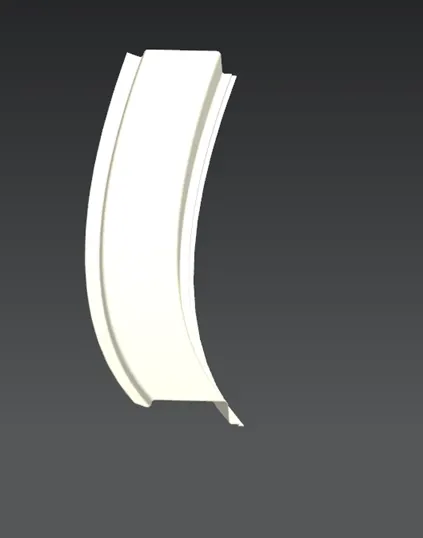

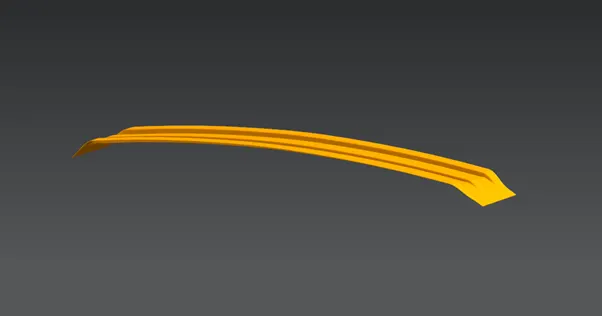

FRONT ROOF RAIL:
It is the support that is joined with the windshield glass, body side outer and inner panels. It is usually made from bodyside outer scrap and therefore the thickness of the rail is 0.75mm.
A draft angle of 3-5 degree is provided for deep drawing operation. The visibility criteria and headroom clearance of the passengers are taken into consideration for the bottom most flange. Windshield end and the roof end are spot welded and the other end of the front roof rail is joined with the roof using mastic sealants for increased strength.

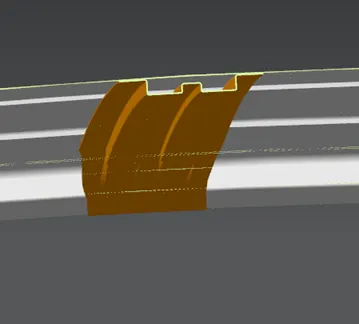

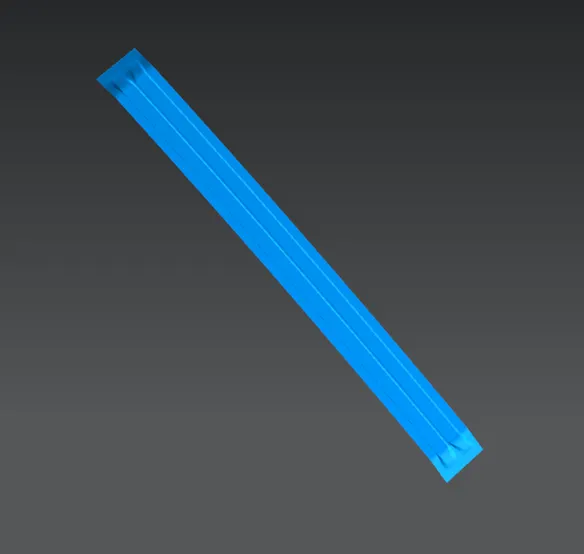

Bow roof 1
It is an additional stiffening member, used in the roof assembly for the localized strength improvement and it is joined directly to the roof itself with several spot welding and mastic sealants.3
Bow roof 2

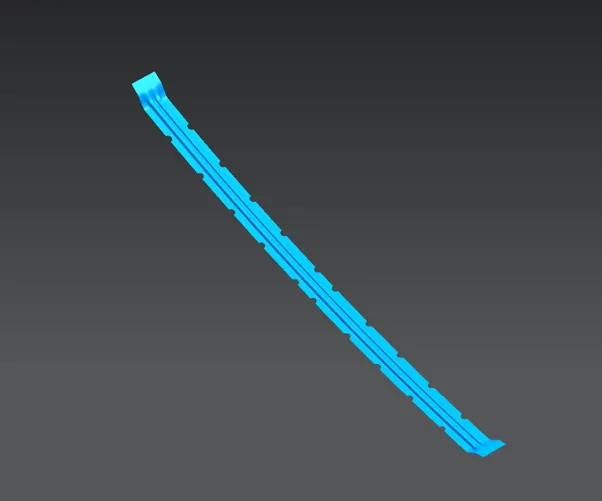

CENTER ROOF RAIL:
Centre roof rail or reinforcement centre is used as a cross member between bodyside left hand and right hand respectively. In some cases, the reinforcement centre is not joined with the roof and in some other cases, it is made to join in both roof and bodyside. The reinforcement centre and Bow roof are joined either spot weld or by mastic sealants.
REAR ROOF RAIL:
Back Door and the Rear Roof rail got attached here with the help of masting sealants.
| maintained 0.75 mm thickness for the rear of rail, Why because if we use more than 0.75 mm means there is increase in overall weight of the car leads to low performance, need more power, simply weight of the car increases.
This 0.75mm is the perfect and standard thickness for the automotive sheet metal components. Thickness for automotive Sheetmetal components vary from 0.65 mm to 0.75 mm. It is the support that is joined to the backdoor, the bodyside outer and the inner panels. Inputs from the backdoor design is also taken to accommodate the required clearance along with headroom clearance and rear visibility criteria while designing the rear roof rail. Spot welds are applied at the backdoor end of the rail and other end is joined with the roof.| provided Some embosses for the extra strength for the front roof rail. We giving embosses for the strength to the component.

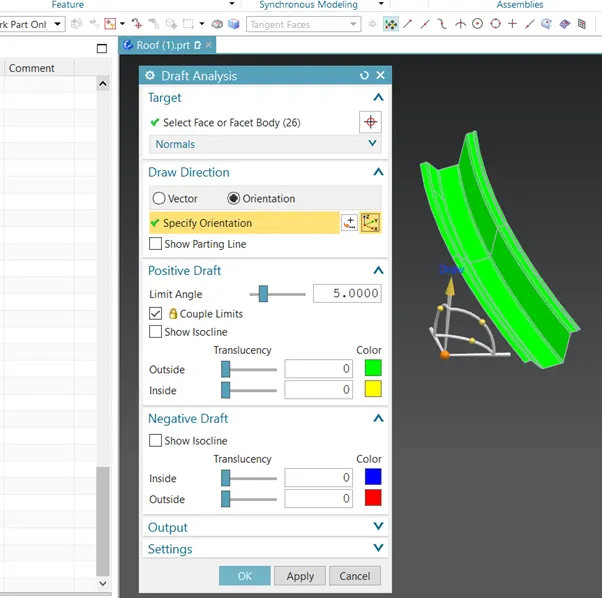

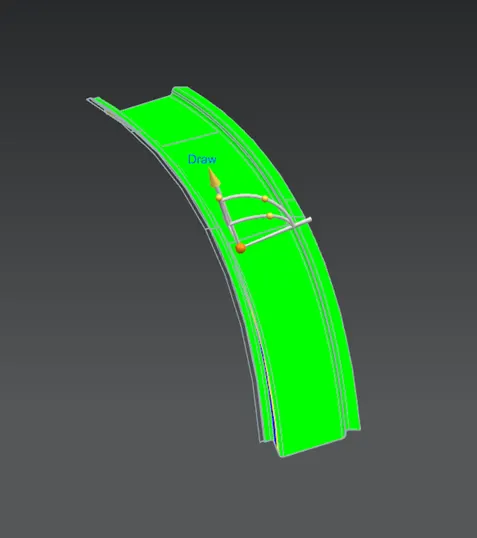

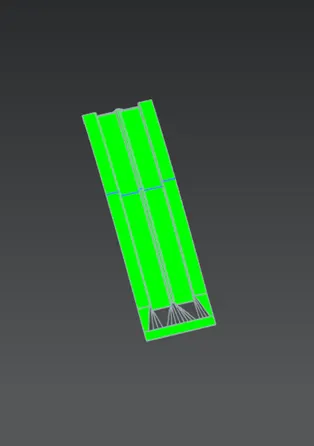

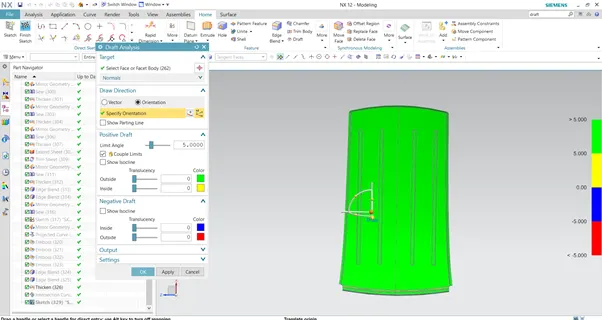

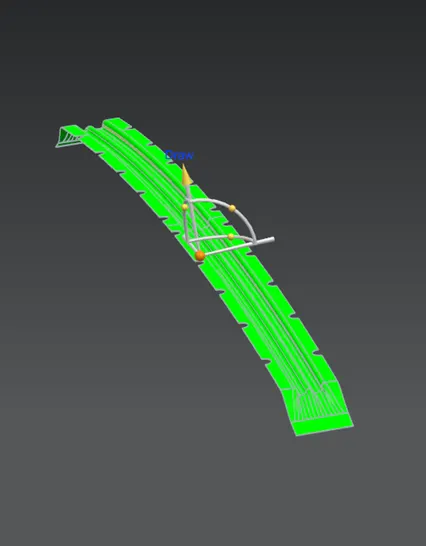

DRAFT ANALYSIS:
Draft analysis is a method of checking the draft angle on various faces of a part with a particular direction. Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on colour ranges identifying zones on the analysed element where the deviation from the draft direction at any point, corresponds to specified values.
Draft analysis of parts is below;

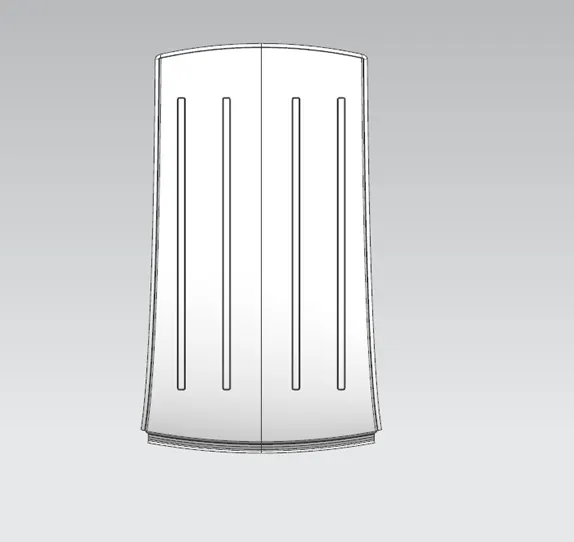

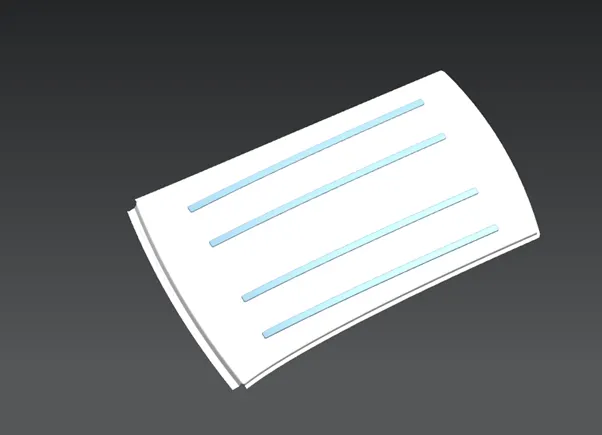

ROOF
BOW ROOF 1
CENTRE ROOF
FRONT RAIL ROOF
REAR RAIL ROOF
HEAT DISTORTION CURVATURE STUDY:
The heat distortion study plays an important role in sheet metal usage. Heat distortion temperature is a temperature limit above which the material cannot be used for structural applications. This study is used to predict the heat distortion temperature at where the material starts to soften when exposed to a fixed load at elevated temperature. In order to avoid bending or damages on roof, based on heat distortion temperature, this study will predict the bow roof position on the roof to strengthen the roof.
Curvature study on the roof:
Bow — roof prediction Formula is given as
W = 1.73x10%-3 x L+1.85x10%-8 x (R%2)/t + 1.10x10%-3 x | - 2.68
Where
L = Roof Length in X — Direction (mm) (Roof dimension in 0-Y)
R = Roof curvature
R = 2(Rx * Ry) / (Rx + Ry)
Rx = X curvature
Ry = Y curvature
t = Roof plate thickness (mm)
l= Bow Roof Span (mm)
Judgement condition: ok < 2.7mm < NG

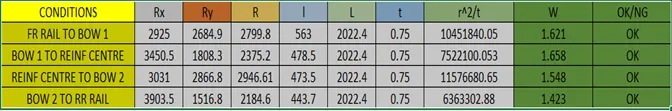

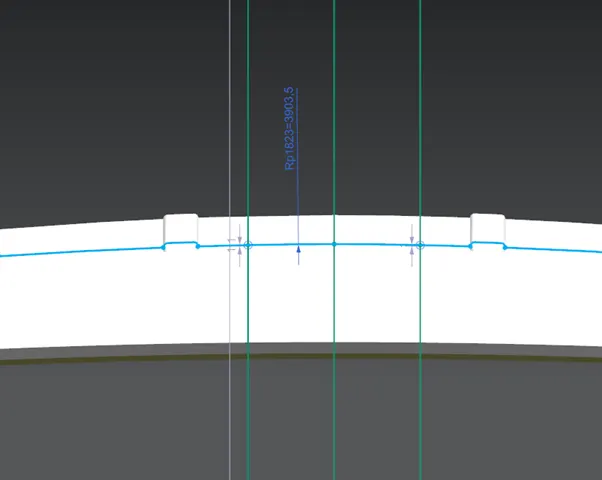

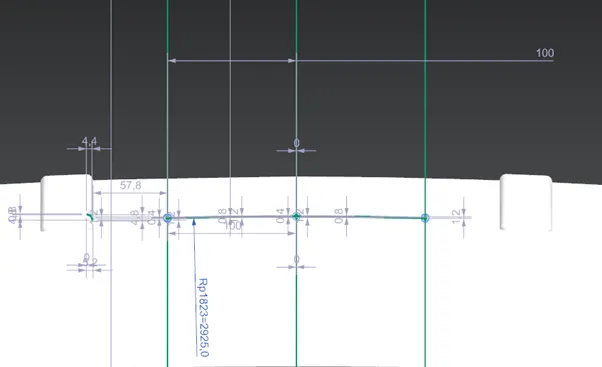

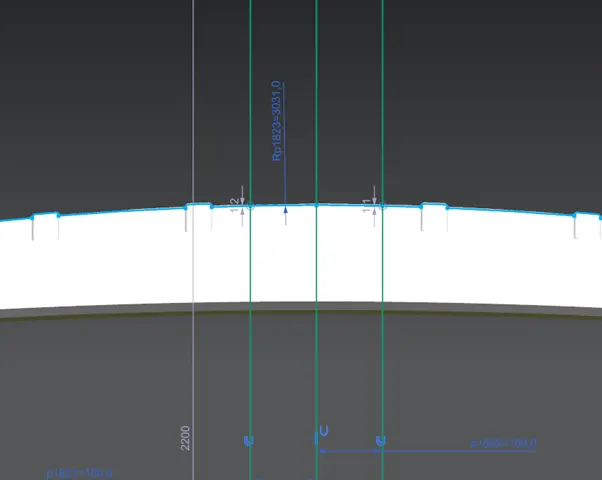

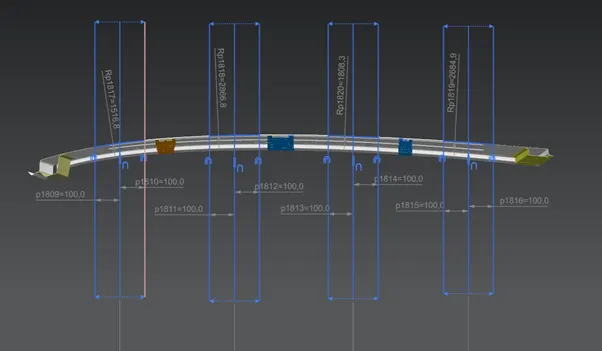

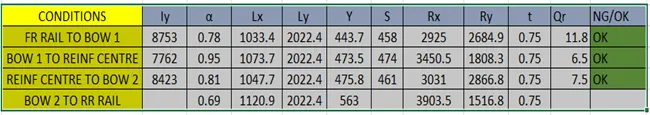

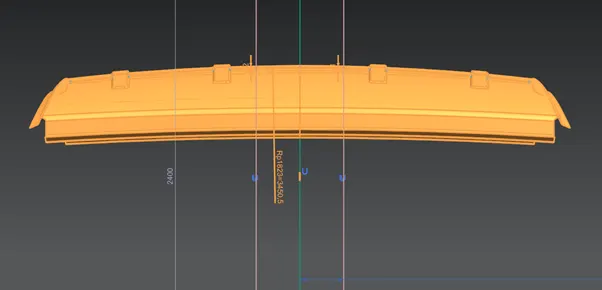

RX AT DIFFERENT CONDITIONS
We have already found the value of Rx , Ry, Ly and s value. Now we have to find Lx value at different conditions and put all the value in the given formula.

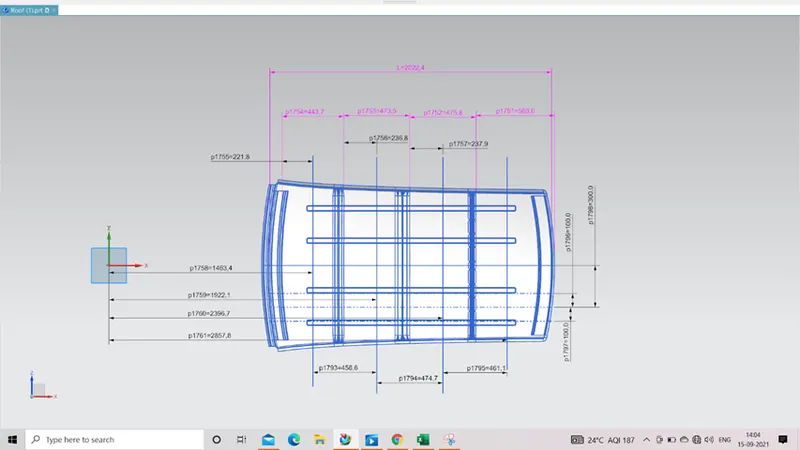

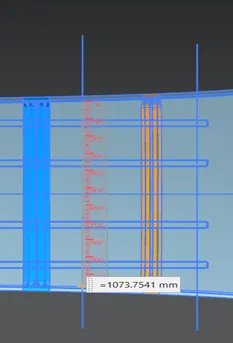

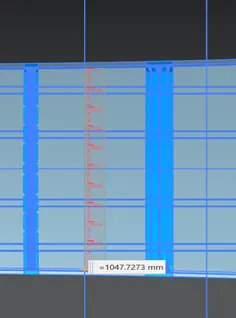

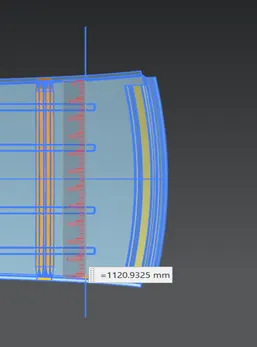

Lx at different locations

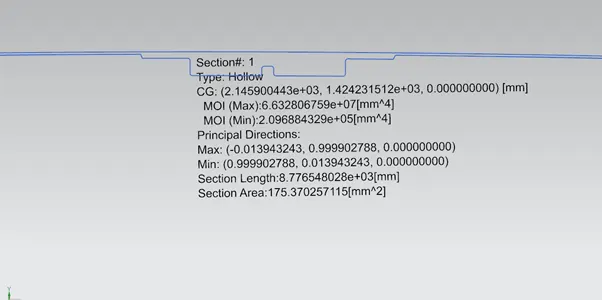

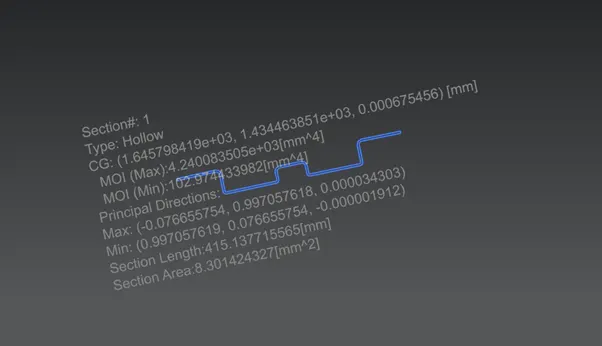

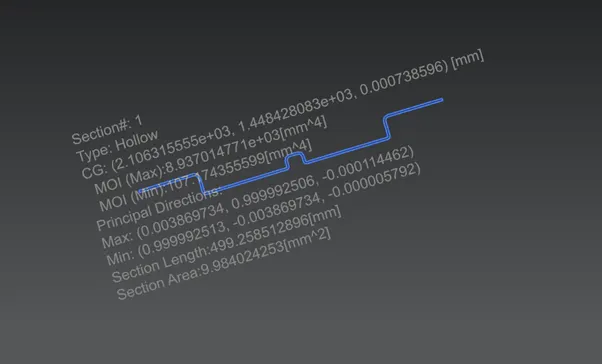

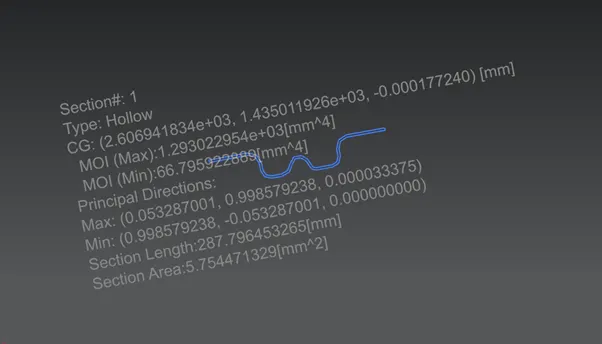

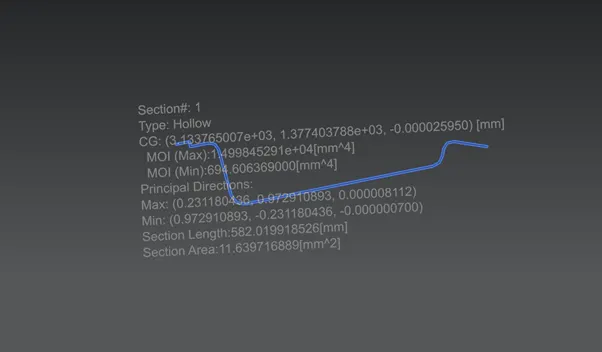

Inertia analysis of different parts along OY.
Bow Roof 1
Bow Roof 2
Front rail
Reinforcement centre
Outer panel
Rear rail
Conclusion
We have created bow roofs, front rail and rear rail for our roof, and did analysis for the position of our bow roofs based on the curvature study on the basis of heat distortion and snowed criteria. As well as Found section inertia of different parts and done draft analysis.
