Project 2 Adaptive Cruise Control

Main Project – Adaptive Cruise Control (ACC)

AIM:

To Create a Model And logic of Adaptive Cruise Control feature as per the given Requirement using MATLAB Simulink.

Objective of Main Project:

1. Developing Adaptive Cruise Control feature as per the Requirement Document using MATLAB Simulink.
2. Follow all the MBD related processes: Requirement Tagging & Traceability, SLDD creation, Configuration Parameter changes, Model Advisor check & Code Generation.
3. In Configuration Parameters: enable “Support Floating Numbers” under Code Generation settings.
4. Use Embedded Coder to generate the code.
5. If choosing code generation, Storage class for Input signals: ImportedExtern; Storage class for Output signal: Export to File; Storage class for local signals: localizable; Storage class for calibration signals: Const.
6. Choose sample time for all signals as 0.01s

THEORY:

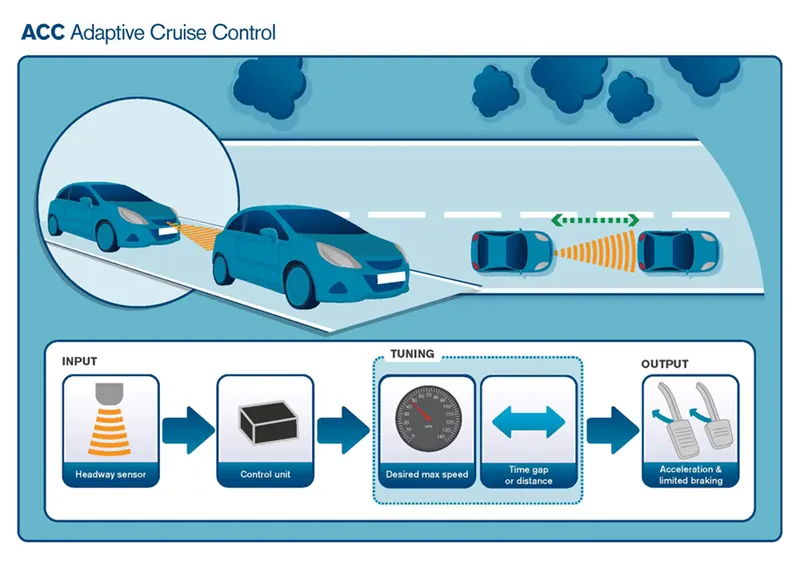

Adaptive Cruise Control Feature for passenger cars allows the host vehicle to adapt to the speed in line with the flow of traffic. Driving in heavy traffic or keeping a safe distance to the preceding vehicle calls for a high level of concentration. The Adaptive Cruise Control feature can reduce the stress on the driver by automatically controlling the vehicle speed & maintaining a predefined minimum distance to the preceding vehicle. As a consequence, the driver enjoys more comfort & can concentrate on the road little better.

A radar sensor is usually at the core of the Adaptive Cruise Control. Installed at the front of the vehicle, the system permanently monitors the road ahead. As long as the road ahead is clear, cruise control feature maintains the speed set by the driver. If the system spots a slower vehicle within its detection range, it gently reduces speed by releasing the accelerator or actively engaging the brake control system. If the vehicle ahead speeds up or changes lanes, the cruise control automatically accelerates to the driver’s desired speed.

Standard Adaptive Cruise Control can be activated from speeds of around 30 km/h (20 mph) upwards and supports the driver, primarily on cross-country journeys or on freeways. The cruise control stop & go variant is also active at speeds below 30 km/h (20 mph). It can maintain the set distance to the preceding vehicle even at very low speeds and can decelerate to a complete standstill. When the vehicle remains stopped longer, the driver needs only to reactivate the system, for example by briefly stepping on the gas pedal to return to cruise control mode. In this way, cruise control stop & go supports the driver even in heavy traffic and traffic jams.

Since Adaptive Cruise Control is a comfort and convenience system, brake interventions and vehicle acceleration only take place within defined limits. Even with Adaptive Cruise Control switched on, it remains the driver’s responsibility to monitor the speed and distance from the vehicle in front.

Creating Simulink model of ACC algorithm

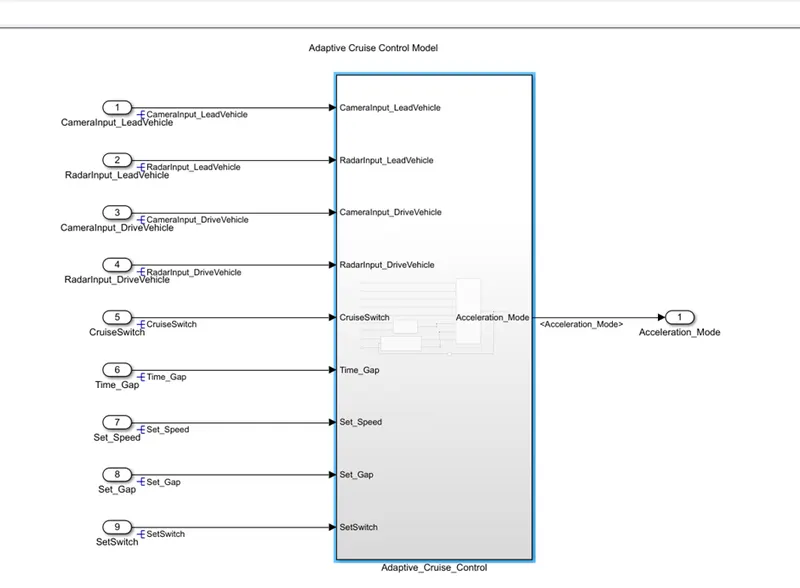

We start modelling the algorithm by creating a subsystem named Adaptive_Cruise_Control with 9 input parameters and one output parameter which is the final vehicle acceleration response.

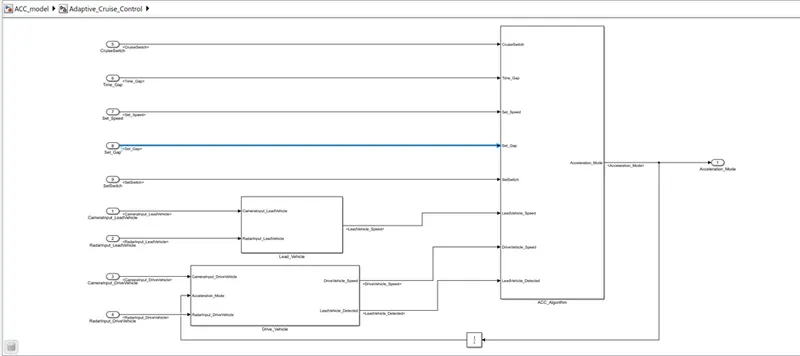

Inside this subsystem, three more subsystems are created for the three provided requirements namely Lead_Vehicle, Drive_Vehicle, and ACC_Algorithm.

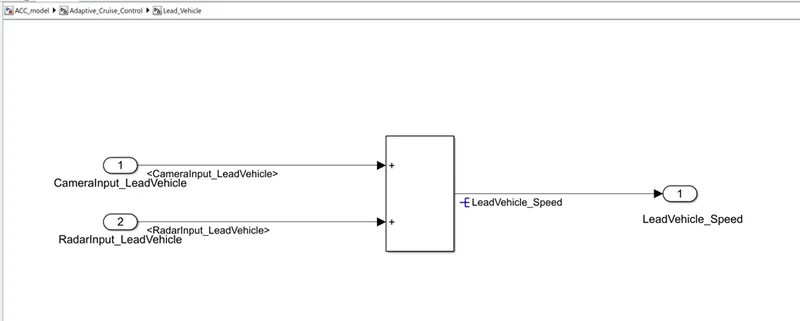

Lead_Vehicle subsystem: The camera and radar inputs values are taken as inputs and Lead vehicle speed will be the output as specified in requirement1.

Requirement 1– Lead Vehicle:

• Lead Vehicle is a vehicle which is driving in the road ahead of our drive vehicle. Two input signals (Signal Name: CameraInput_LeadVehicle & RadarInput_LeadVehicle).
• Ideally sensor fusion techniques will be deployed to process & analyze data from camera & radar. For complexity reasons, let’s not adapt to any such algorithms.
• We can simply add both the radar & camera inputs & the corresponding output is read as Speed profile output (Signal Name: LeadVehicle_Speed).
• Speed data of the lead vehicle is critical in implementing the Adaptive Cruise Control algorithm.

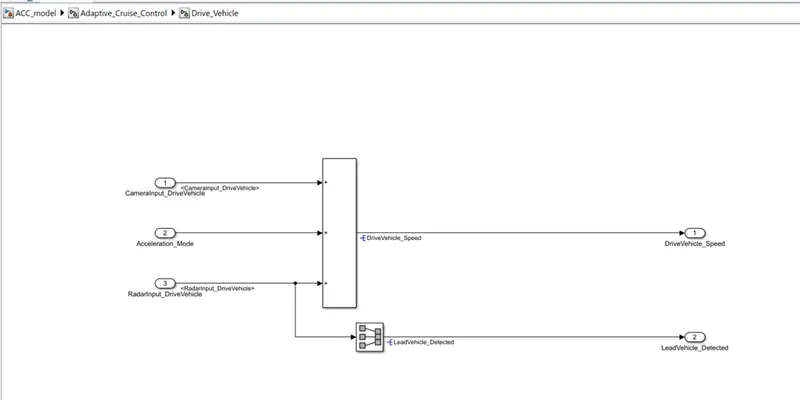

Drive vehicle subsystem: This block follows the conditions of Requirement2 and takes 3 input values for Camera input, radar input, and acceleration mode. There will be 2 outputs of drive vehicle speed and lead vehicle detection signal.

Requirement 2 – Drive Vehicle:

• Drive Vehicle is the vehicle driven by the user & this is the vehicle which has ACC algorithm in it.
• Like the Lead Vehicle, Drive Vehicle algorithm also has 2 input signals (Signal Name: CameraInput_DriveVehicle, RadarInput_DriveVehicle) & one signal coming as an Input to this subsystem (Signal Name: Acceleration_Mode) – three inputs into this requirement in total.
• Like the above requirement, sensor fusion techniques will also be deployed here, for complexity reasons we are ignoring them.
• Two output signals come from this subsystem (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected).
• Signal DriveVehicle_Speed is summation of three input signals mentioned above & LeadVehicle_Detected is renamed from Input Signal RadarInput_DriveVehicle by mere use of Signal Conversion block.

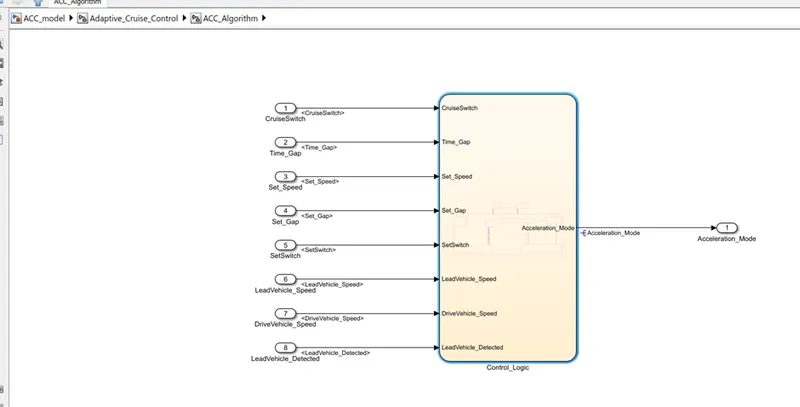

ACC_Algorithm subsystem: This subsystem is developed on the Requirement 3 and is made using the concept of stateflow. It takes 8 inputs and gives the acceleration mode as the final output.

Requirement 3 – Adaptive Cruise Control Algorithm:

• Adaptive Cruise Control feature has 3 major modes of operation: OFF Mode, STANDBY Mode & ON Mode. This particular requirement has to be implemented as state machine logic in Simulink.
• The input signals to this state machine system are (Signal Name: Time_Gap, Set_Speed, Set_Gap, CruiseSwitch, SetSwitch).
• Also, the output signals (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected) from requirement-2 is fed back as an input signal into this state machine block.
• Additionally, output signal (Signal Name: LeadVehicle_Speed) from requirement-1 is given as an input signal to this state machine block as well.
• Output from this subsystem is a signal (Signal Name: Acceleration_Mode) which governs the vehicular speed of the drive vehicle which automatically adjusts its speed & velocity to match the lead vehicle.

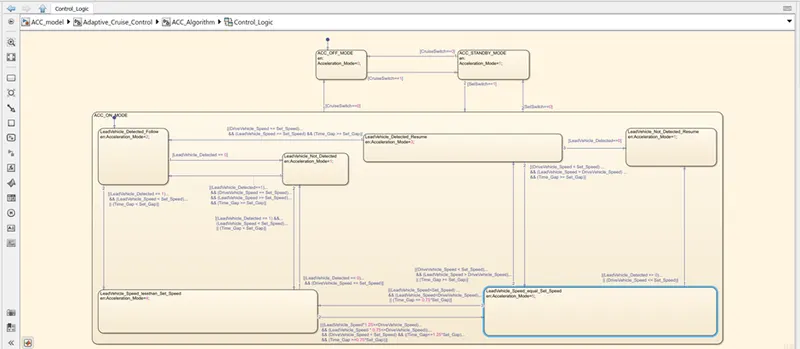

ACC_Algorithm Stateflow diagram: The Stateflow chart is developed based on the 6 sub-requirements specified in Requirement 3.

Requirement 3a – ACC OFF MODE state logic:

• This is the default state inside state machine logic. Output signal Acceleration_Mode is at value 0 in this state.
• This state is governed by input signal CruiseSwitch.
• If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode

Requirement 3b – ACC STANDBY MODE state logic:

• This is the second activated state inside state machine logic. Output signal Acceleration_Mode is at value 1 in this state.
• This state is governed by both input signals CruiseSwitch & SetSwitch.
• If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode
• If SetSwitch is equal to 1, state ACC ON mode will get activated. If SetSwitch is equal to 0, state ACC STANDBY mode will get activated.

Requirement 3c – ACC ON MODE state logic:

This state will be activated when input signal SetSwitch is equal to 1. There are 6 sub states to this state logic: They are:

• LeadVehicle_Detected_Follow (Default)
• LeadVehicle_Not_Detected
• LeadVehicle_Detected_Resume
• LeadVehicle_Not_Detected_Resume
• LeadVehicle_Speed_lessthan_Set_Speed
• LeadVehicle_Speed_equal_Set_Speed

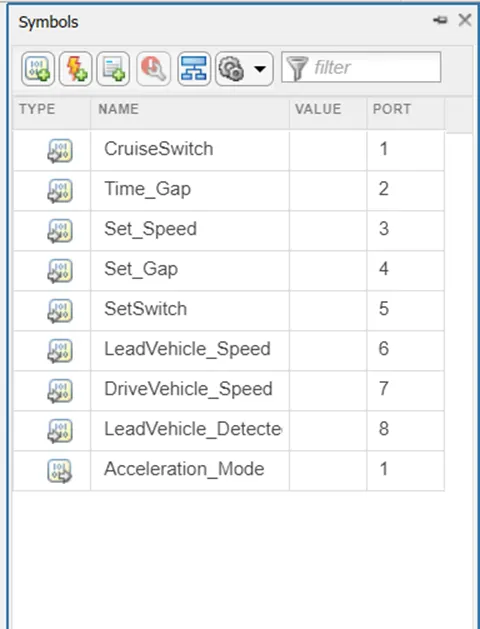

Stateflow symbols plane,

Requirement 3c (i) – LeadVehicle_Detected_Follow (ACC ON MODE):

• This is the default sub state inside ACC ON MODE state. Output signal Acceleration_Mode is equal to 2.
• Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Not_Detected; Input signal condition LeadVehicle_Detected == 0.
• Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Speed_lessthan_Set_Speed; Input Signals condition (LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap).

Requirement 3c (ii) – LeadVehicle_Not_Detected (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 1.
• Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Detected_Follow; Input signals condition [(LeadVehicle_Detected==1) && (DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
• Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Speed_lessthan_Set_Speed; Input signals condition [(LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap)]

Requirement 3c (iii) – LeadVehicle_Detected_Resume (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 3.
• Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Detected_Follow; Input signals condition [(DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
• Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Not_Detected_Resume; Input signal condition LeadVehicle_Detected==0.
• Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Speed_equal_Set_Speed; Input Signal condition [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) && (Time_Gap >= Set_Gap)]

Requirement 3c (iv) - LeadVehicle_Not_Detected_Resume (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 1.

Requirement 3c (v) - LeadVehicle_Speed_lessthan_Set_Speed (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 4.
• Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Not_Detected; Input signal condition [(LeadVehicle_Detected == 0) && (DriveVehicle_Speed == Set_Speed)]
• Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Speed_equal_Set_Speed; Input signals condition [((LeadVehicle_Speed*1.25>=DriveVehicle_Speed) && (LeadVehicle_Speed * 0.75<=DriveVehicle_Speed)) && (DriveVehicle_Speed < Set_Speed) && ((Time_Gap<=1.25*Set_Gap) && (Time_Gap >=0.75*Set_Gap))]

Requirement 3c (vi) - LeadVehicle_Speed_equal_Set_Speed (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 5.
• Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Not_Detected_Resume; Input signal conditions is [(LeadVehicle_Detected == 0) || (DriveVehicle_Speed <= Set_Speed)]
• Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Detected_Resume; Input signal conditions [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) || (Time_Gap >= Set_Gap)]
• Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Speed_lessthan_Set_Speed; Input signals conditions [(LeadVehicle_Speed<="" em="">

Signal resolving and propagation

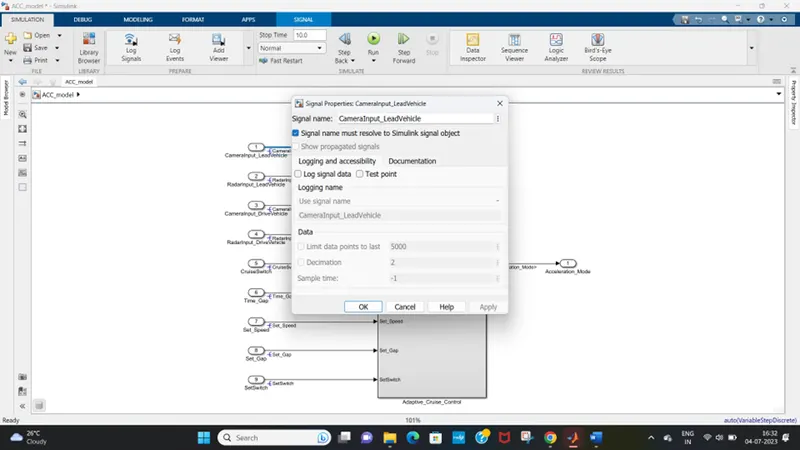

Signal to resolve: Right Click on the signal > properties > check the resolve signal box > OK.

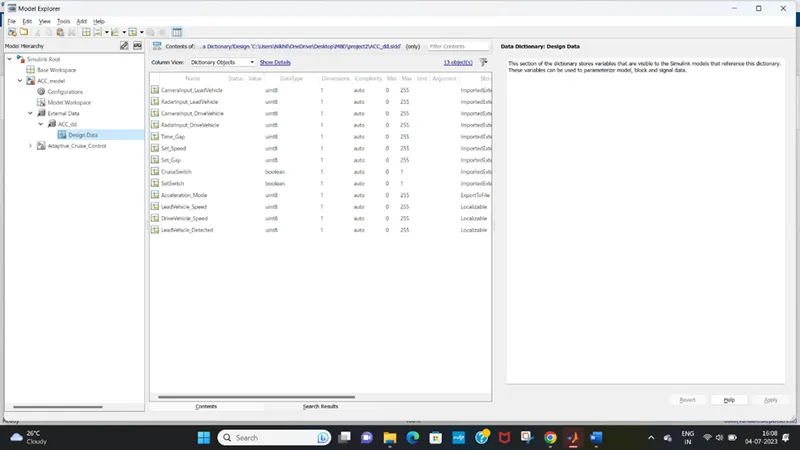

Creating a SLDD File,

To Create .SLDD File Go to Modelling and click Link To Data Dictionary and External and Click on NEW and create a ACC_dd_sldd file.And in Model Explorer under Model Hierarchy External Data, ACC_dd_Sldd, Design Data Add all the Given Input and Output Signal data as per the requirement.

The storage class of input signals is defined as imported extern and the local signals are defined as localizable and the output signals are defined as export to file.

Configuration of Solver settings and Code generation

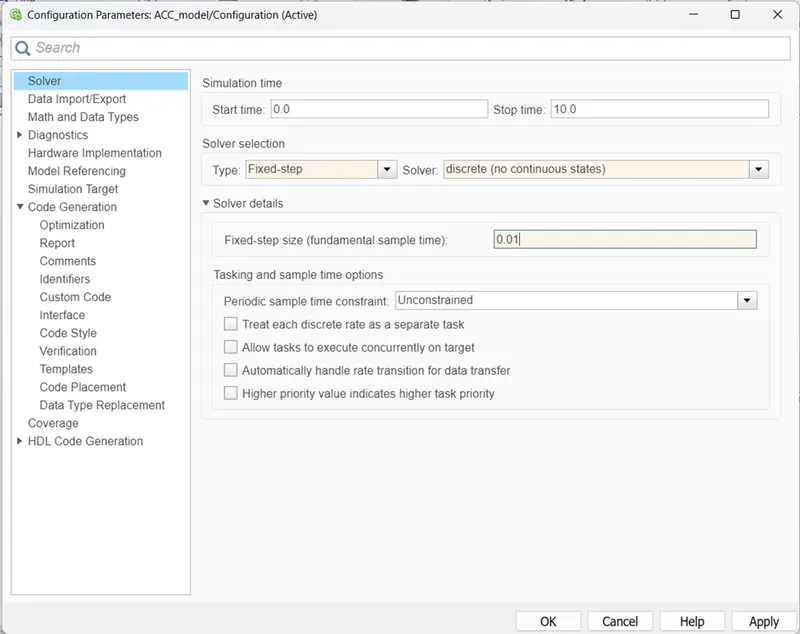

In solver selection, the solver type is set as fixed-step discrete and step size is set as 0.01seconds.

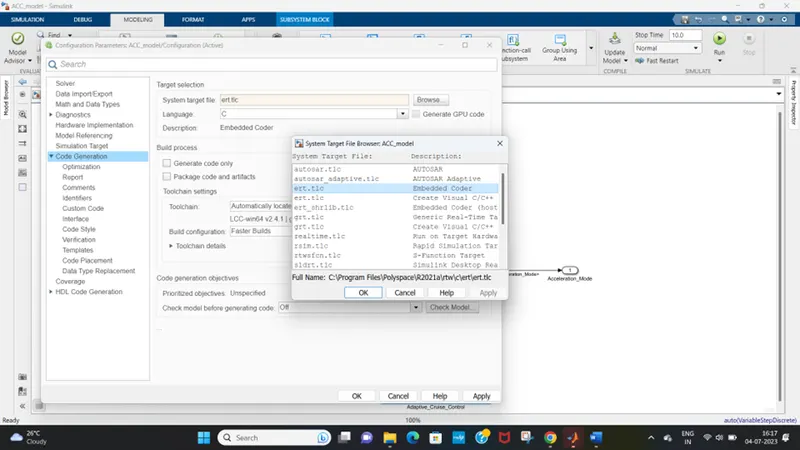

In the model configuration setting, in code generation select system target file as embedded coder,

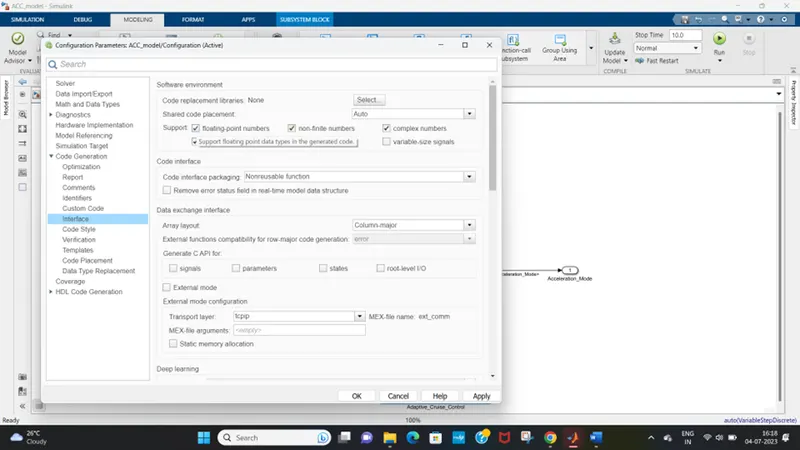

In the interface option in software environment section, enable “Support Floating Numbers”

Requirement Tagging

Require tagging is the process of linking the model with a document or a file that explains the model requirements by just clicking on the name. The Word document with requirement details is opened. Select the heading and highlight it.

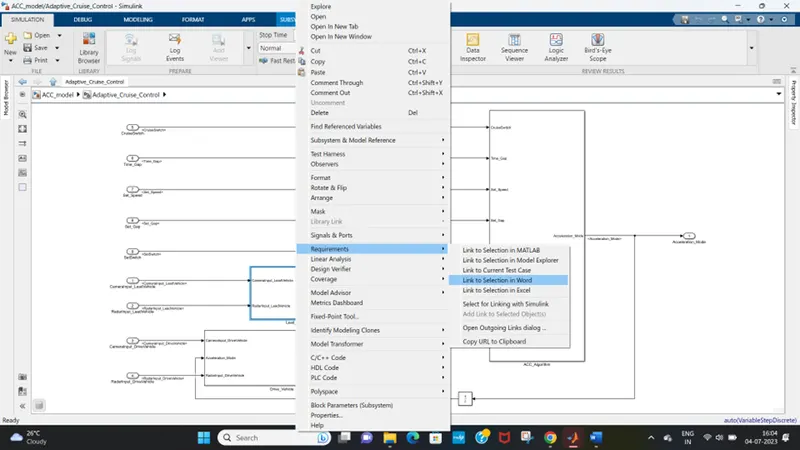

Right Click on the subsystem that explains the highlighted portion > requirements > Link to selection in word

Similarly for all the requirements the tagging is done.

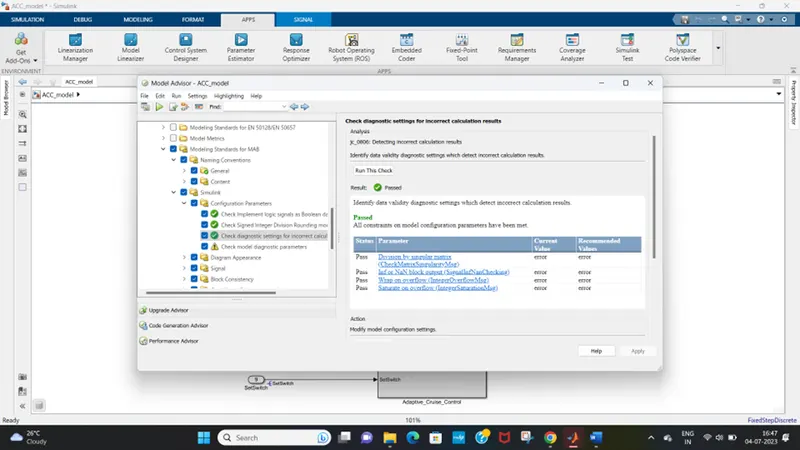

Model advisor check

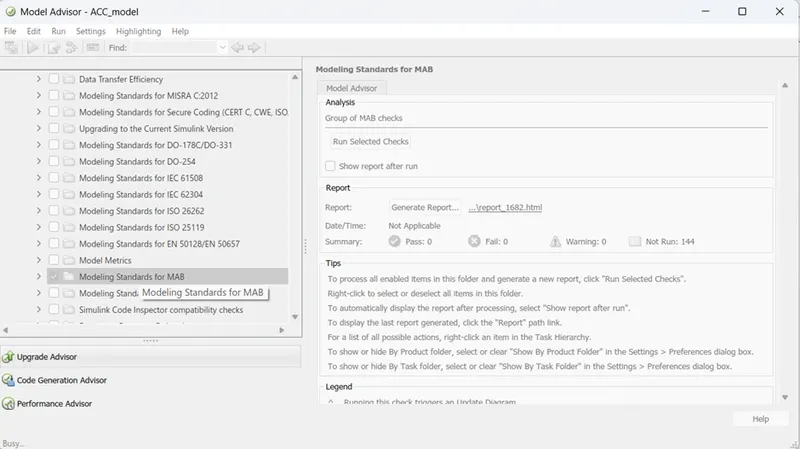

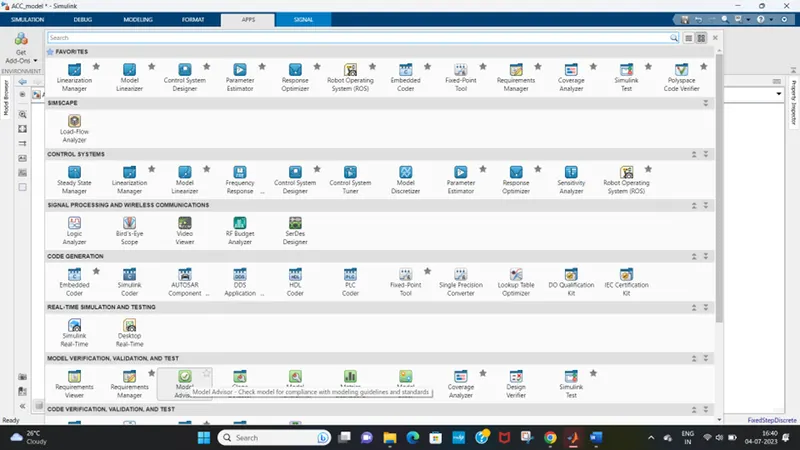

In the app section going to model advisor

And selecting the top level in hierarchy,

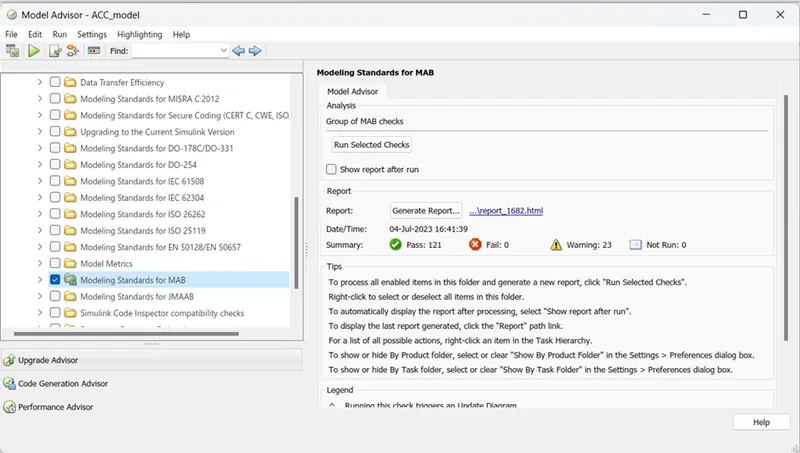

The advisor check is carried out for MAB guidelines,

The check was done and no error were observed, however there were some warnings observed during the check as shown below,

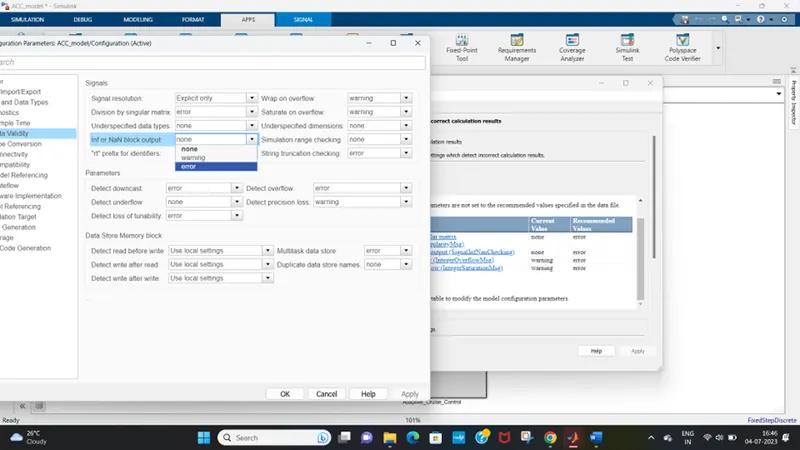

Some of the warnings were resolved by changing as per the suggestions from advisor,

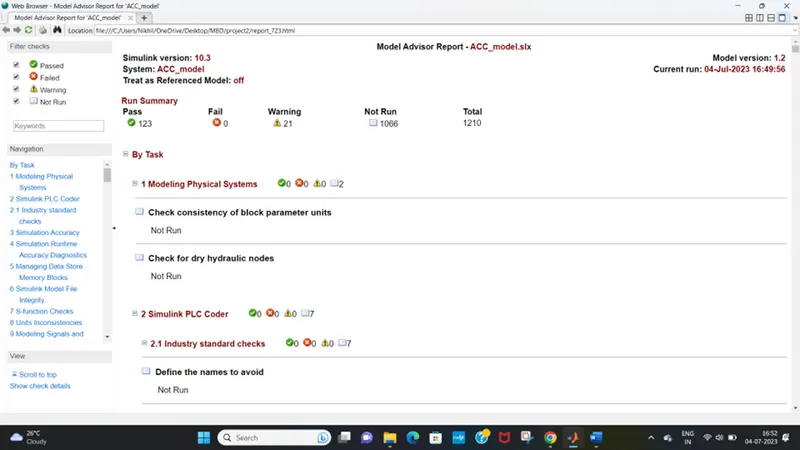

The possible changes are made as the warning count is reduced. The report is generated and stored in the same folder.

Code generation:

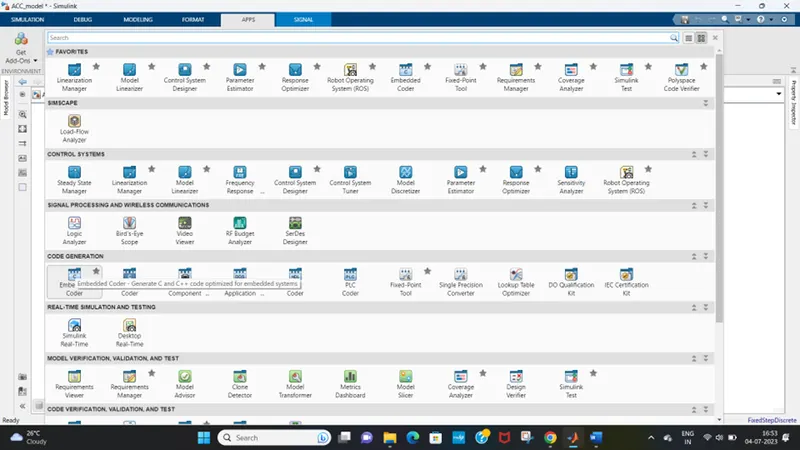

From the apps, goto embedded coder app,

Further then clicking on build option the code is generated and the supporting files are saved in the Matlab current directory.

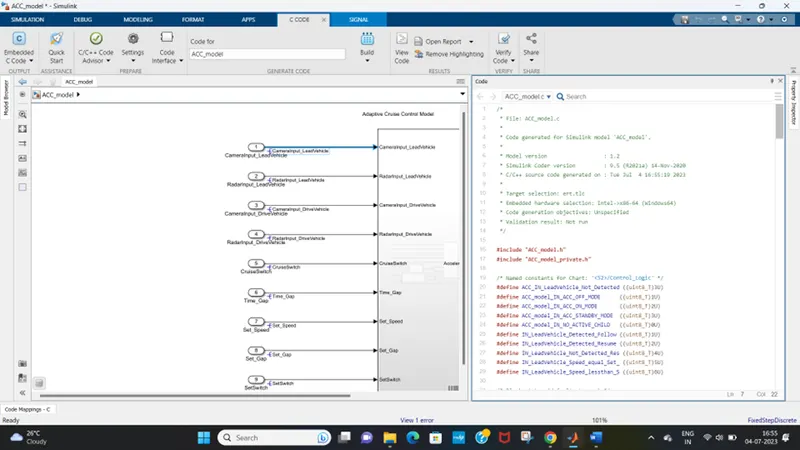

The C code is generated and the same is displayed in the right hand side in the above image.

The C code generated is attached below.

/*
 * File: ACC_model.c
 *
 * Code generated for Simulink model 'ACC_model'.
 *
 * Model version                  : 1.2
 * Simulink Coder version         : 9.5 (R2021a) 14-Nov-2020
 * C/C++ source code generated on : Tue Jul  4 16:55:19 2023
 *
 * Target selection: ert.tlc
 * Embedded hardware selection: Intel->x86-64 (Windows64)
 * Code generation objectives: Unspecified
 * Validation result: Not run
 */

#include "ACC_model.h"
#include "ACC_model_private.h"

/* Named constants for Chart: '<S2>/Control_Logic' */
#define ACC_IN_LeadVehicle_Not_Detected ((uint8_T)3U)
#define ACC_model_IN_ACC_OFF_MODE      ((uint8_T)1U)
#define ACC_model_IN_ACC_ON_MODE       ((uint8_T)2U)
#define ACC_model_IN_ACC_STANDBY_MODE  ((uint8_T)3U)
#define ACC_model_IN_NO_ACTIVE_CHILD   ((uint8_T)0U)
#define IN_LeadVehicle_Detected_Follow ((uint8_T)1U)
#define IN_LeadVehicle_Detected_Resume ((uint8_T)2U)
#define IN_LeadVehicle_Not_Detected_Res ((uint8_T)4U)
#define IN_LeadVehicle_Speed_equal_Set_ ((uint8_T)5U)
#define IN_LeadVehicle_Speed_lessthan_S ((uint8_T)6U)

/* Block states (default storage) */
DW_ACC_model_T ACC_model_DW;

/* Real-time model */
static RT_MODEL_ACC_model_T ACC_model_M_;
RT_MODEL_ACC_model_T *const ACC_model_M = &ACC_model_M_;
real_T rt_roundd_snf(real_T u)
{
  real_T y;
  if (fabs(u) < 4.503599627370496E+15) {
    if (u >= 0.5) {
      y = floor(u + 0.5);
    } else if (u > -0.5) {
      y = u * 0.0;
    } else {
      y = ceil(u - 0.5);
    }
  } else {
    y = u;
  }

  return y;
}

/* Model step function */
void ACC_model_step(void)
{
  /* local block i/o variables */
  uint8_T LeadVehicle_Speed;
  uint8_T DriveVehicle_Speed;
  uint8_T LeadVehicle_Detected;
  int32_T tmp;
  int32_T tmp_0;
  uint8_T tmp_1;
  uint8_T tmp_2;

  /* Sum: '<S4>/Add' incorporates:
   *  Inport: '<Root>/CameraInput_LeadVehicle'
   *  Inport: '<Root>/RadarInput_LeadVehicle'
   */
  LeadVehicle_Speed = (uint8_T)((uint32_T)CameraInput_LeadVehicle +
    RadarInput_LeadVehicle);

  /* Sum: '<S3>/Add' incorporates:
   *  Inport: '<Root>/CameraInput_DriveVehicle'
   *  Inport: '<Root>/RadarInput_DriveVehicle'
   *  UnitDelay: '<S1>/Unit Delay'
   */
  DriveVehicle_Speed = (uint8_T)((uint32_T)(uint8_T)((uint32_T)
    CameraInput_DriveVehicle + Acceleration_Mode) + RadarInput_DriveVehicle);

  /* SignalConversion: '<S3>/Signal Conversion' incorporates:
   *  Inport: '<Root>/RadarInput_DriveVehicle'
   */
  LeadVehicle_Detected = RadarInput_DriveVehicle;

  /* Chart: '<S2>/Control_Logic' incorporates:
   *  Inport: '<Root>/CruiseSwitch'
   *  Inport: '<Root>/SetSwitch'
   *  Inport: '<Root>/Set_Gap'
   *  Inport: '<Root>/Set_Speed'
   *  Inport: '<Root>/Time_Gap'
   */
  if (ACC_model_DW.is_active_c3_ACC_model == 0U) {
    ACC_model_DW.is_active_c3_ACC_model = 1U;
    ACC_model_DW.is_c3_ACC_model = ACC_model_IN_ACC_OFF_MODE;
    Acceleration_Mode = 0U;
  } else {
    switch (ACC_model_DW.is_c3_ACC_model) {
     case ACC_model_IN_ACC_OFF_MODE:
      Acceleration_Mode = 0U;
      if (CruiseSwitch) {
        ACC_model_DW.is_c3_ACC_model = ACC_model_IN_ACC_STANDBY_MODE;
        Acceleration_Mode = 1U;
      }
      break;

     case ACC_model_IN_ACC_ON_MODE:
      if (!CruiseSwitch) {
        ACC_model_DW.is_ACC_ON_MODE = ACC_model_IN_NO_ACTIVE_CHILD;
        ACC_model_DW.is_c3_ACC_model = ACC_model_IN_ACC_OFF_MODE;
        Acceleration_Mode = 0U;
      } else if (!SetSwitch) {
        ACC_model_DW.is_ACC_ON_MODE = ACC_model_IN_NO_ACTIVE_CHILD;
        ACC_model_DW.is_c3_ACC_model = ACC_model_IN_ACC_STANDBY_MODE;
        Acceleration_Mode = 1U;
      } else {
        switch (ACC_model_DW.is_ACC_ON_MODE) {
         case IN_LeadVehicle_Detected_Follow:
          Acceleration_Mode = 2U;
          if (LeadVehicle_Detected == 0) {
            ACC_model_DW.is_ACC_ON_MODE = ACC_IN_LeadVehicle_Not_Detected;
            Acceleration_Mode = 1U;
          } else if (((LeadVehicle_Detected == 1) && (LeadVehicle_Speed <
                       Set_Speed)) || (Time_Gap < Set_Gap)) {
            ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_lessthan_S;
            Acceleration_Mode = 4U;
          }
          break;

         case IN_LeadVehicle_Detected_Resume:
          Acceleration_Mode = 3U;
          if ((DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >=
               Set_Speed) && (Time_Gap >= Set_Gap)) {
            ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Detected_Follow;
            Acceleration_Mode = 2U;
          } else if ((DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed >
                      DriveVehicle_Speed) && (Time_Gap >= Set_Gap)) {
            ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_equal_Set_;
            Acceleration_Mode = 5U;
          } else if (LeadVehicle_Detected == 0) {
            ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Not_Detected_Res;
            Acceleration_Mode = 1U;
          }
          break;

         case ACC_IN_LeadVehicle_Not_Detected:
          Acceleration_Mode = 1U;
          if ((LeadVehicle_Detected == 1) && (DriveVehicle_Speed == Set_Speed) &&
              (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)) {
            ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Detected_Follow;
            Acceleration_Mode = 2U;
          } else if (((LeadVehicle_Detected == 1) && (LeadVehicle_Speed <
                       Set_Speed)) || (Time_Gap < Set_Gap)) {
            ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_lessthan_S;
            Acceleration_Mode = 4U;
          }
          break;

         case IN_LeadVehicle_Not_Detected_Res:
          Acceleration_Mode = 1U;
          break;

         case IN_LeadVehicle_Speed_equal_Set_:
          Acceleration_Mode = 5U;
          if ((LeadVehicle_Detected == 0) || (DriveVehicle_Speed <= Set_Speed))
          {
            ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Not_Detected_Res;
            Acceleration_Mode = 1U;
          } else if (((DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed >
                       DriveVehicle_Speed)) || (Time_Gap >= Set_Gap)) {
            ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Detected_Resume;
            Acceleration_Mode = 3U;
          } else if (((LeadVehicle_Speed < Set_Speed) && (LeadVehicle_Speed <
                       DriveVehicle_Speed)) || ((int32_T)rt_roundd_snf(0.75 *
                       (real_T)Set_Gap) == Time_Gap)) {
            ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_lessthan_S;
            Acceleration_Mode = 4U;
          }
          break;

         default:
          /* case IN_LeadVehicle_Speed_lessthan_Set_Speed: */
          Acceleration_Mode = 4U;
          if ((LeadVehicle_Detected == 0) && (DriveVehicle_Speed == Set_Speed))
          {
            ACC_model_DW.is_ACC_ON_MODE = ACC_IN_LeadVehicle_Not_Detected;
            Acceleration_Mode = 1U;
          } else {
            tmp = (int32_T)rt_roundd_snf((real_T)LeadVehicle_Speed * 1.25);
            tmp_0 = (int32_T)rt_roundd_snf(1.25 * (real_T)Set_Gap);
            if (tmp < 256) {
              tmp_1 = (uint8_T)tmp;
            } else {
              tmp_1 = MAX_uint8_T;
            }

            if (tmp_0 < 256) {
              tmp_2 = (uint8_T)tmp_0;
            } else {
              tmp_2 = MAX_uint8_T;
            }

            if ((tmp_1 >= DriveVehicle_Speed) && ((int32_T)rt_roundd_snf((real_T)
                  LeadVehicle_Speed * 0.75) <= DriveVehicle_Speed) &&
                (DriveVehicle_Speed < Set_Speed) && (Time_Gap <= tmp_2) &&
                (Time_Gap >= (int32_T)rt_roundd_snf(0.75 * (real_T)Set_Gap))) {
              ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Speed_equal_Set_;
              Acceleration_Mode = 5U;
            }
          }
          break;
        }
      }
      break;

     default:
      /* case IN_ACC_STANDBY_MODE: */
      Acceleration_Mode = 1U;
      if (!CruiseSwitch) {
        ACC_model_DW.is_c3_ACC_model = ACC_model_IN_ACC_OFF_MODE;
        Acceleration_Mode = 0U;
      } else if (SetSwitch) {
        ACC_model_DW.is_c3_ACC_model = ACC_model_IN_ACC_ON_MODE;
        ACC_model_DW.is_ACC_ON_MODE = IN_LeadVehicle_Detected_Follow;
        Acceleration_Mode = 2U;
      }
      break;
    }
  }

  /* End of Chart: '<S2>/Control_Logic' */
}

/* Model initialize function */
void ACC_model_initialize(void)
{
  /* (no initialization code required) */
}

/* Model terminate function */
void ACC_model_terminate(void)
{
  /* (no terminate code required) */
}

/*
 * File trailer for generated code.
 *
 * [EOF]
 */

Conclusion:

• The adaptive cruise control is modeled in Simulink as per the given requirements and MBD guidlines
• Performed requirement tagging on the requirement subsystem blocks
• Solver and code generators are configured
• SLDD file is created and linked to the model also the signals are resolved and propagated
• Model advisor report is generated and verified
• C-code for the model is generated and attached

The Simulink model, the model word document, SLDD file , and advisor report are attached in the form of a zip file below. Along with the model and supporting files.
