Project 2

Electrical define and Catalogue creation:

1. Creating mid-point on connector connection mating face

2. Creating axis in mid-point

• Y axis - Mating direction
• X axis - Locking direction
• Z axis - Up direction

3. Creating mid-point on connector connection bundle entry face

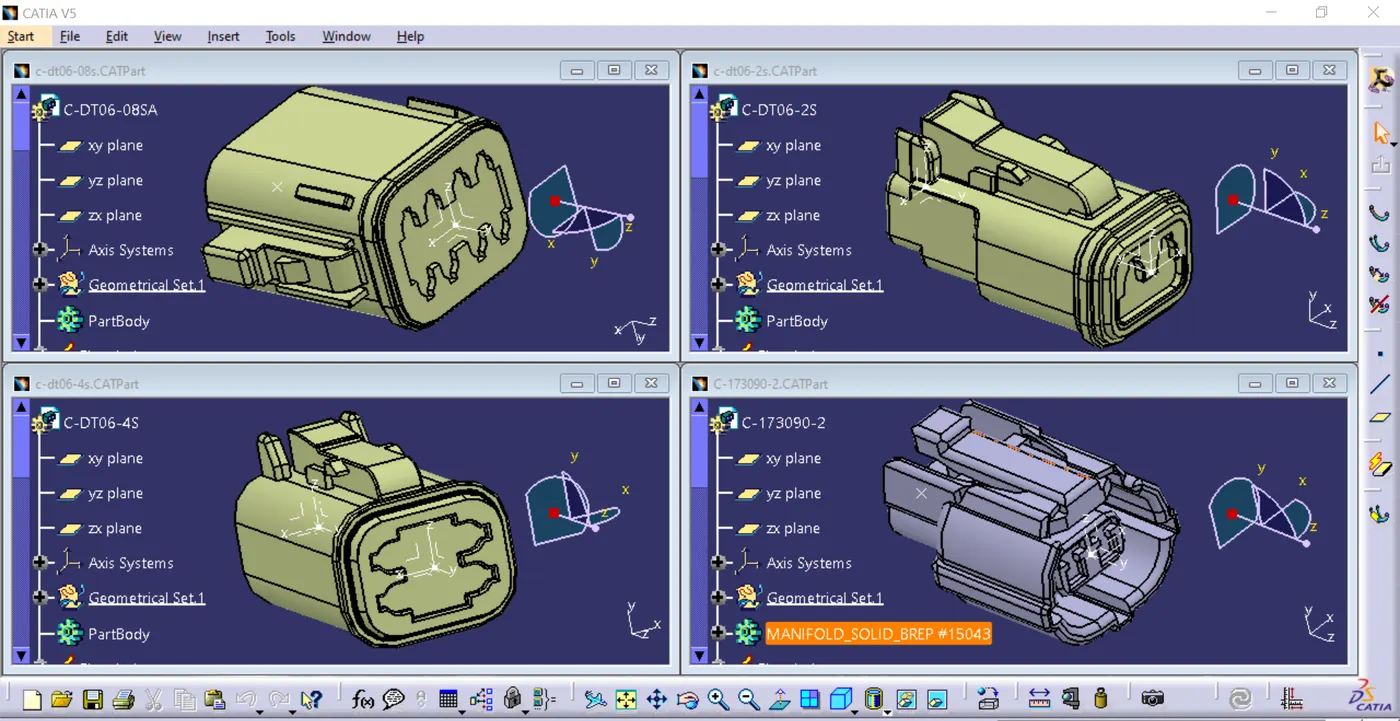

4. Define given geometry as a connector

5. Define bundle connection point

6. Define connector connection point

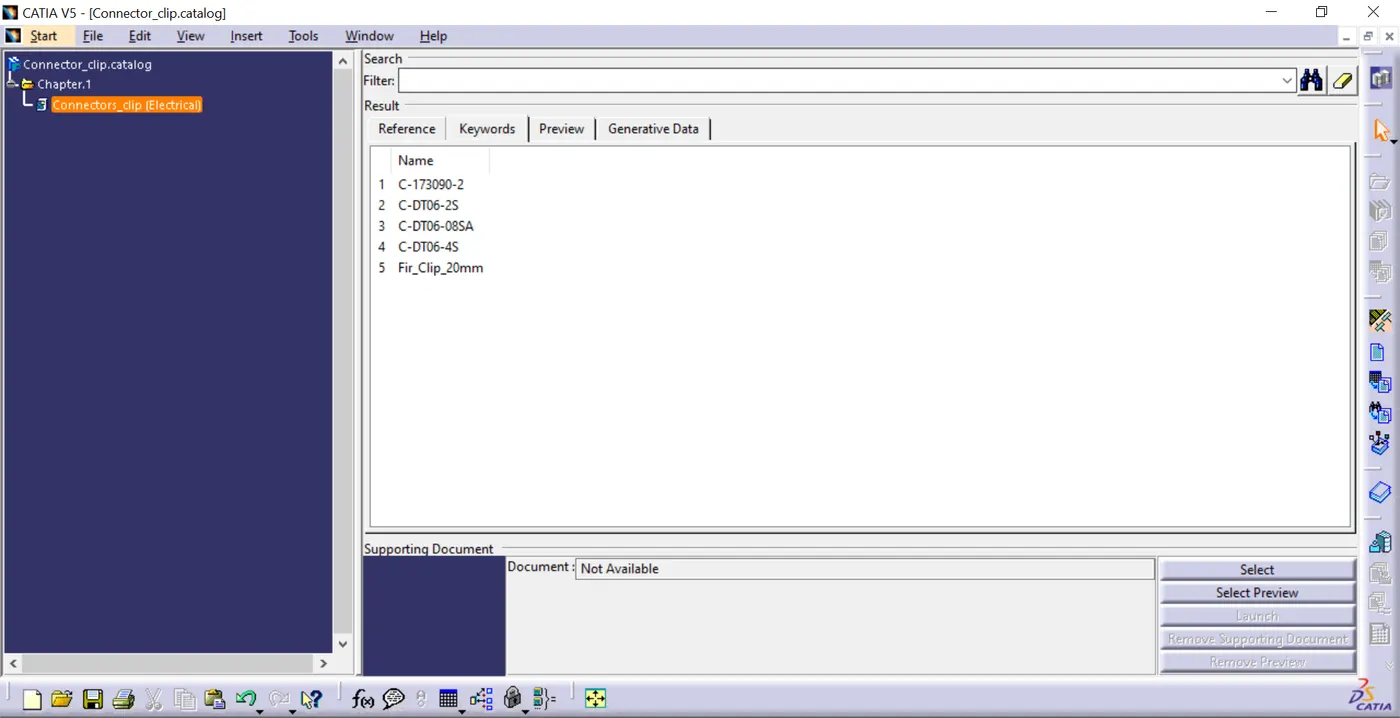

Prepared the catalogue for the same:

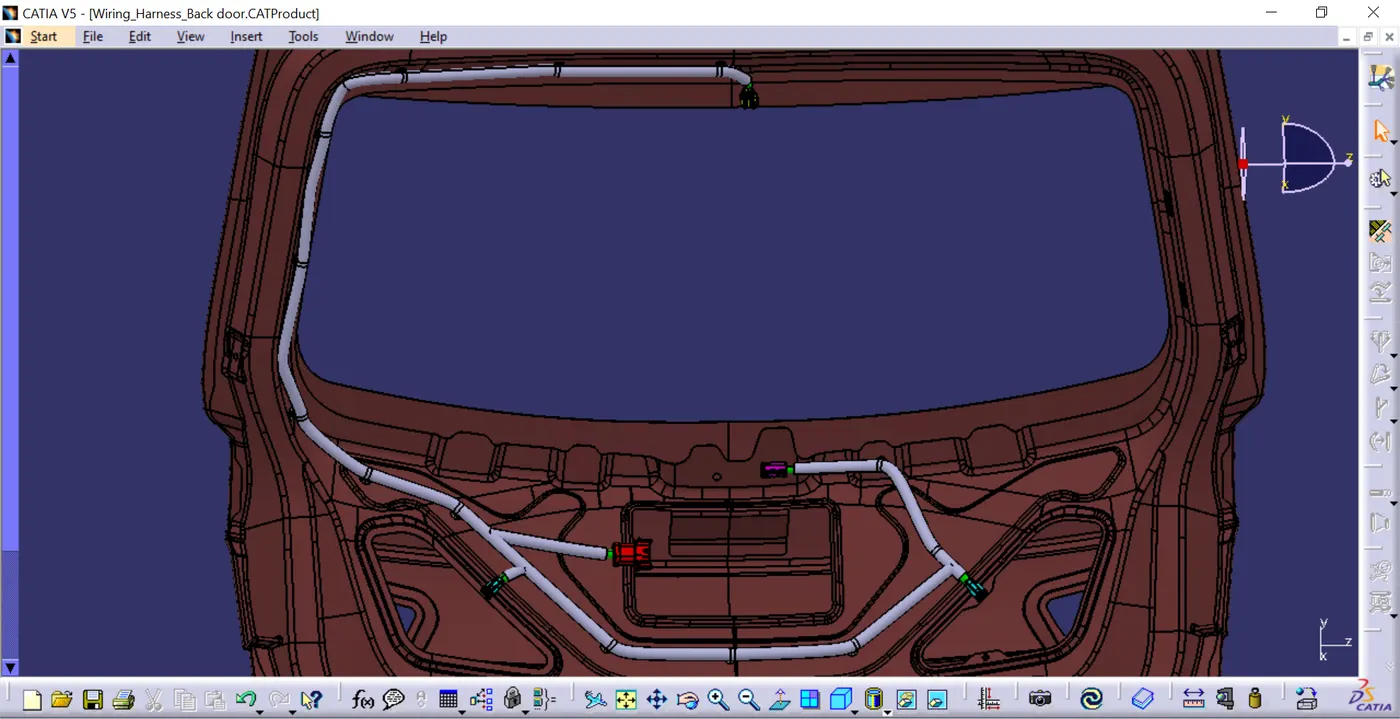

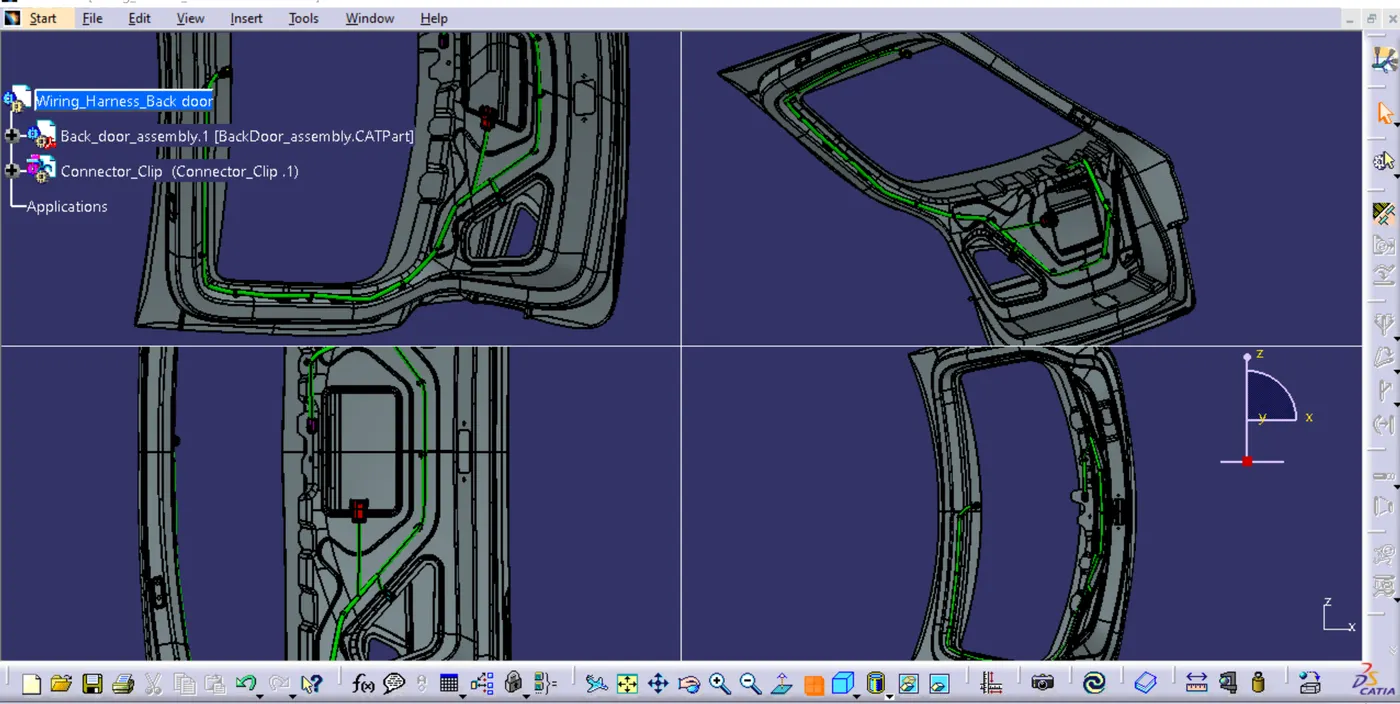

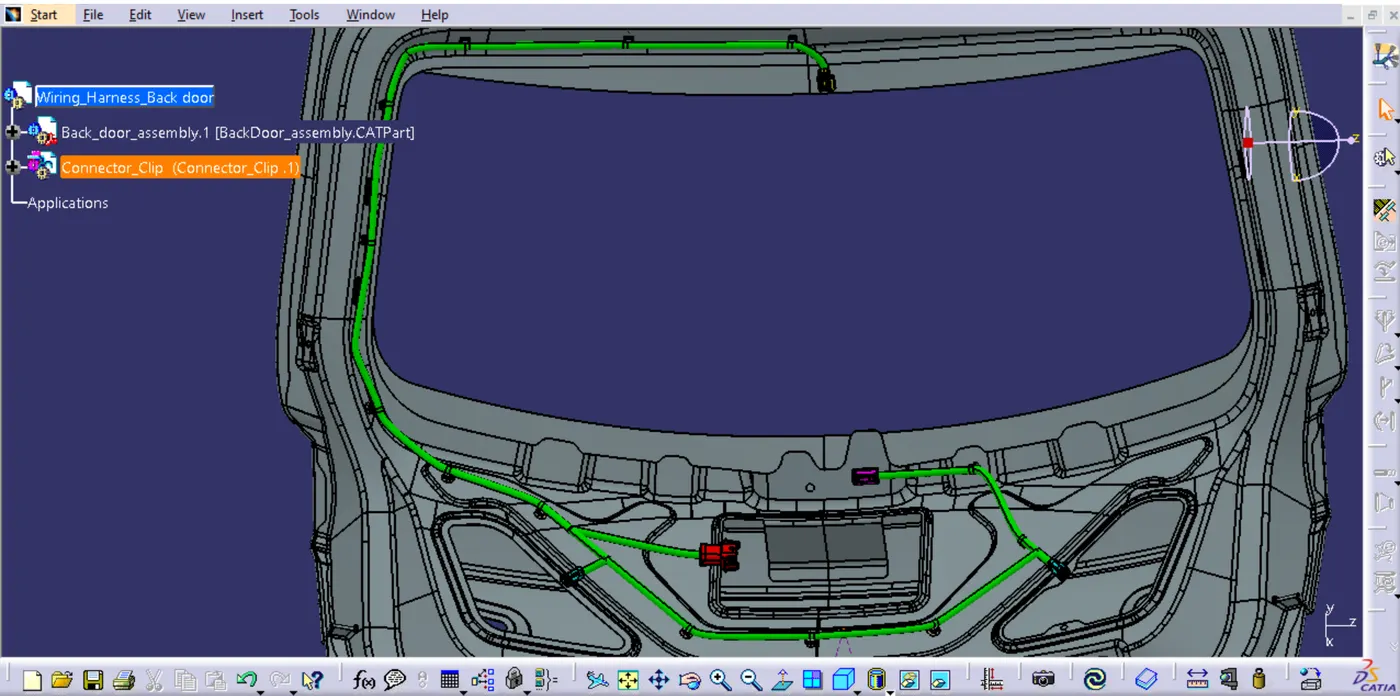

Proper routing of bundle:

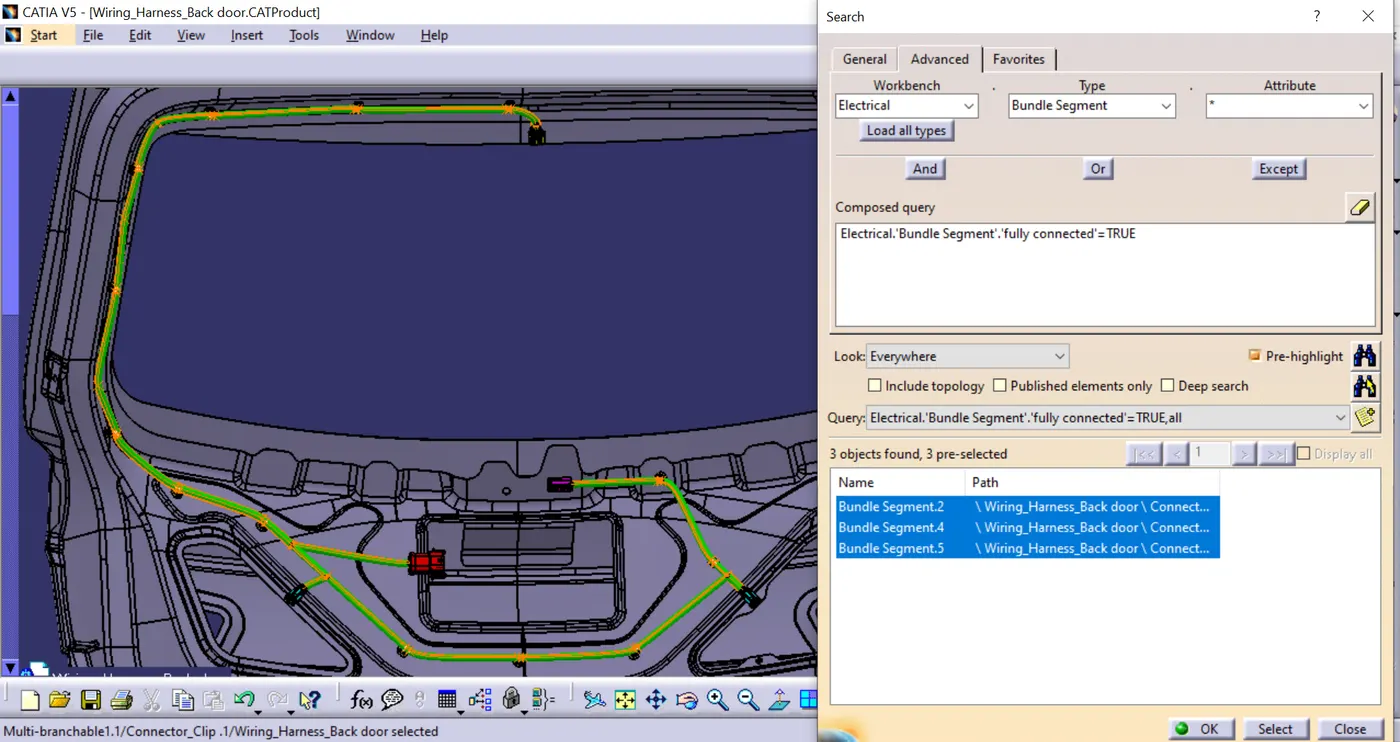

Bundle connectivity check:

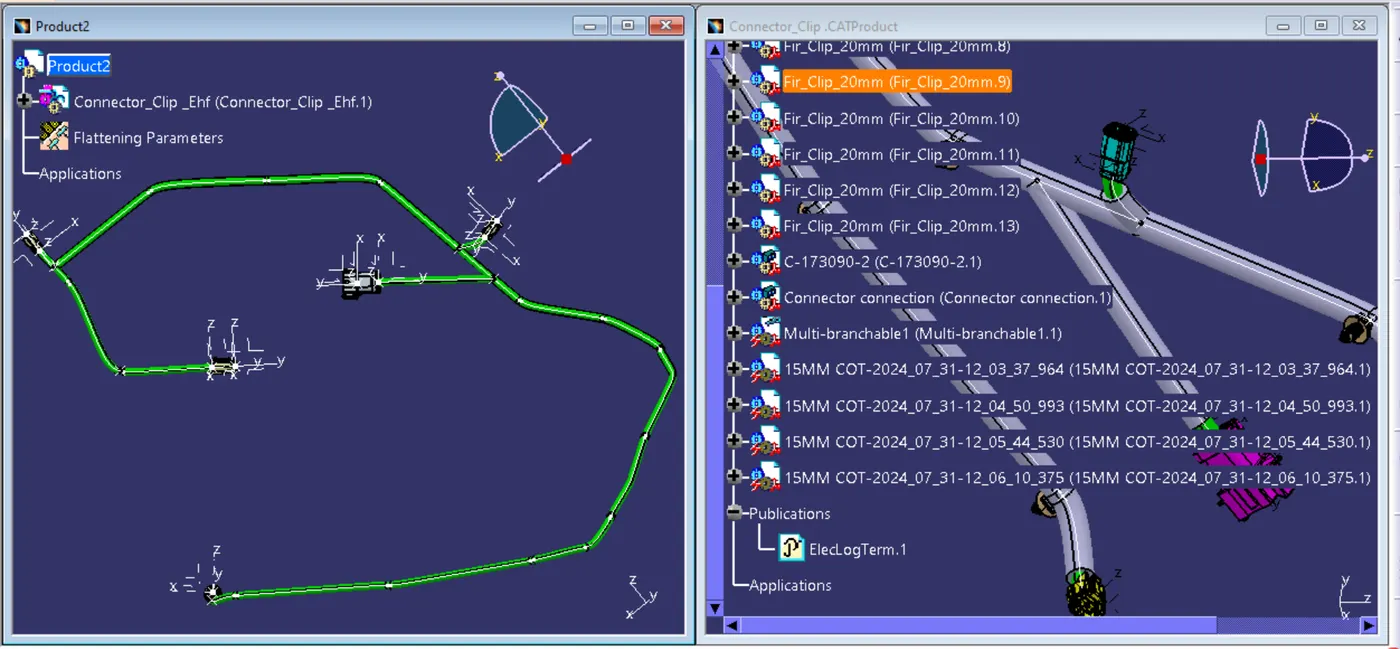

Corrugated tube:

Plastic-based insulating material pipes with diameters varying in a corrugated shape. Manufactured from a rigid material, the pipes are dimensionally stable, while the surface corrugation increases the product's flexibility, particularly in moving applications.

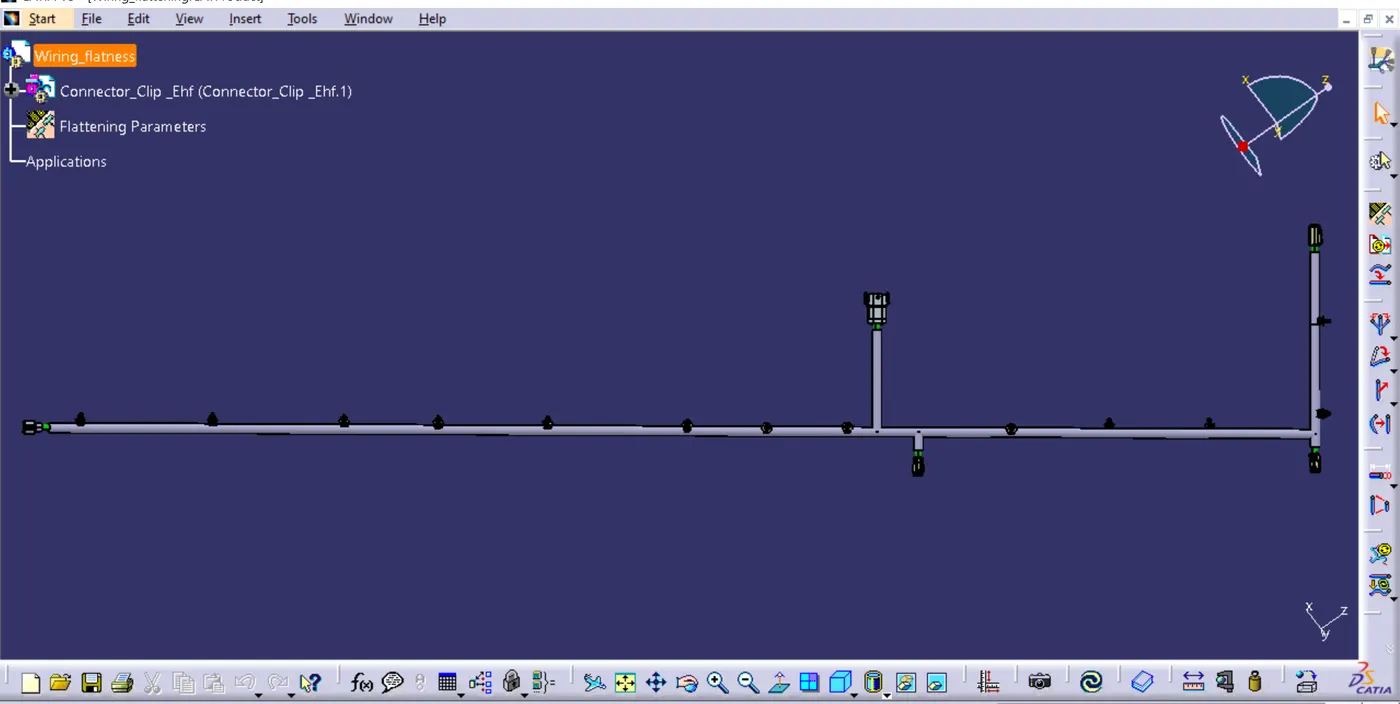

Flattening:

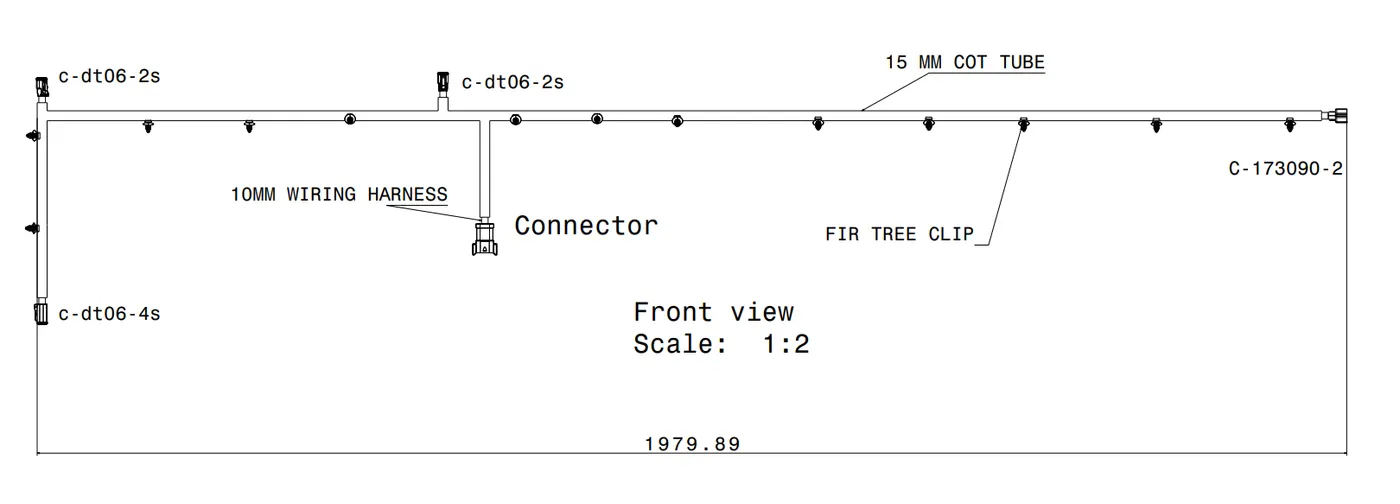

2D drawing using Drafting workbench:
