Project 1 - Parsing NASA thermodynamic data

AIM: To write a code that extracts the 14 coefficients to perform the required operations for all the species in the given data file.

OBJECTIVES: 1) To plot the specific heat (Cp), Enthalpy(H) and Entropy(S) for the specific local temperature range from low-temperature to high-temperature for each species.

                    2) To save the plots as images with appropriate names and put them in separate folders for each species with a suitable name which will generate automatically.

                    3) To calculate the molecular weight of each species and to display it in the command window.

GOVERNING EQUATIONS:

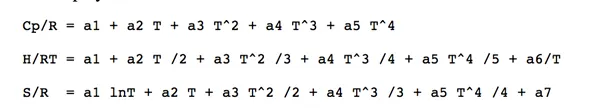

                     The following equations will be used to calculate the values for Cp, H, and S.

                     Where,

                                R is the universal gas constant   &

                                T is the temperature

                     The FIRST 7 coefficients from (a1 to a7) are HIGH-temperature coefficients and the SECOND 7 coefficients from (a8 to a14) are LOW-temperature coefficients. The above equations will be the same for low-temperature coefficients. Just replace the a1 to a7 coefficient with the a8 to a14.

THEORY:

                       To parse data or information means to break it down into component parts so that its syntax can be analyzed, categorized, and understood to perform the required operations. In this topic , coefficients of the different species will be read to calculate values of specific heat, enthalpy, and entropy with its molecular weight.

                      Here we are reading all the data from the ' THERMO.dat ' file which is NASA Thermodynamic Data.

CODE:

Programming language: MATLAB

clear all
close all
clc

DATA = fopen('THERMO.dat','r');
fgetl(DATA);

temperature_line = fgetl(DATA);

temp_split = strsplit(temperature_line,' ');

Global_low_temp = str2double(temp_split{2});
Global_med_temp = str2double(temp_split{3});
Global_high_temp = str2double(temp_split{4});

% Skipping the  3 lines

for s = 2:4
    tline = fgetl(DATA);
end

for g = 1:53

first_ele_line = fgetl(DATA);
a  = strsplit(first_ele_line,' ');

l = length(a);  % length of string

element_name = (a{1});

loc_lo_temp = str2double(a{l-3});
loc_hi_temp = str2double(a{l-2});
loc_med_temp = str2double(a{l-1});

t1 = loc_lo_temp;
t2 = loc_hi_temp;
t3 = loc_med_temp;

first_line = fgetl(DATA);  % 1st line of coefficient for O


% For first line
location_E = strfind(first_line,'E');  % Locating the E in co efficient of 1st line

E1 = location_E;

 E1(1); % Individual positiion number


% Getting whole value of co efficient

a1 = first_line(1:E1(1)+3);
a1 = str2double(a1);

a2 = first_line(E1(1)+4:E1(2)+3);
a2 = str2double(a2);

a3 = first_line(E1(2)+4:E1(3)+3);
a3 = str2double(a3);

a4 = first_line(E1(3)+4:E1(4)+3);
a4 = str2double(a4);

a5 = first_line(E1(4)+4:E1(5)+3);
a5 = str2double(a5);


% For second line

second_line = fgetl(DATA); % 2nd line of coefficient for O


location_E2 = strfind(second_line,'E');  % Locating the E in co efficient of 1st line

E2 = location_E2;

 E2(1); % Individual positiion number


% Getting whole value of co efficient

a6 = second_line(1:E2(1)+3);
a6 = str2double(a6);

a7 = second_line(E2(1)+4:E2(2)+3);
a7 = str2double(a7);

a8 = second_line(E2(2)+4:E2(3)+3);
a8 = str2double(a8);

a9 = second_line(E2(3)+4:E2(4)+3);
a9 = str2double(a9);

a10 = second_line(E2(4)+4:E2(5)+3);
a10 = str2double(a10);

% For third line

third_line = fgetl(DATA); % 3rd line of coefficient for O

location_E3 = findstr(third_line,'E');  % Locating the E in co efficient of 1st line

E3 = location_E3;

 E3(1); % Individual positiion number


% Getting whole value of co efficient

a11 = third_line(1:E2(1)+3);
a11 = str2double(a11);

a12 = third_line(E2(1)+4:E2(2)+3);
a12 = str2double(a12);

a13 = third_line(E2(2)+4:E2(3)+3);
a13 = str2double(a13);

a14 = third_line(E2(3)+4:E2(4)+3);
a14 = str2double(a14);


% Enthalpy

T = linspace(t1,t2,1000);
R = 8.314 ;

for m = 1:length(T)
if T(m) > t3

Cp(m) = (a1 + a2*T(m) + a3*T(m)^2 + a4*T(m)^3 + a5*T(m)^4)*R;
H(m) = (a1 + a2*T(m)/2 + a3*T(m)^2/3 + a4*T(m)^3/4 + a5*T(m)^4/5 + a6/T(m))*R*T(m);
S(m) = (a1*log(T(m)) + a2*T(m) + a3*T(m)^2/2 + a4*T(m)^3/3 + a5*T(m)^4/4 + a7)*R;

else

Cp(m) = (a8 + a9*T(m) + a10*T(m)^2 + a11*T(m)^3 + a12*T(m)^4)*R;
H(m) = (a8 + a9*T(m)/2 + a10*T(m)^2/3 + a11*T(m)^3/4 + a12*T(m)^4/5 + a13/T(m))*R*T(m);
S(m) = (a8*log(T(m)) + a9*T(m) + a10*T(m)^2/2 + a11*T(m)^3/3 + a12*T(m)^4/4 + a14)*R;

end
end

% Creating

mkdir('I:\JACK\SKILL-Lync\Matlab for Mechanical\',element_name)
cd(['I:\JACK\SKILL-Lync\Matlab for Mechanical\',element_name])

% plotting

figure(1)
plot(T,Cp,'linewidth',2)
xlabel('Temperature');
ylabel('Specific Heat  (Cp)');
title(element_name)

saveas(1,'Cpval.jpg')

figure(2)
plot(T,H,'linewidth',2)
xlabel('Temperature');
ylabel('Enthalpy  (H)');
title(element_name)

saveas(2,'Hval.jpg')

figure(3)
plot(T,S,'linewidth',2)
xlabel('Temperature');
ylabel('Entropy  (S)');
title(element_name)

saveas(3,'Sval.jpg')



% Finding molecular weight
element = ['H','O','C','N','A','S'];
atomic_weight = [1 16 12 14 40 32];
Mo_wt = 0;
for i = 1:length(element_name);
    for j = 1:length(element);
         if  strcmp(element_name(i),element(j));
            Mo_wt = Mo_wt +  atomic_weight(j);
            position = j;
         end
    end
         n = str2double(element_name(i));
         if n >1
             Mo_wt = Mo_wt + atomic_weight(position);
         end
end
sprintf('Molecular weight of %s is %f u',element_name,Mo_wt)
end

fclose(DATA);

CODE EXPLANATION:

1) fopen command is used to open and read  the dat  file which is stored in DATA

2) fgetl command is used to extract the 1^st line of DATA  as it contains global  temp .The data we get here in terms of combine string ,so we use strsplit command to split the long sring in the string for individual purpose. Now str2double command is used to get integer value from string. This command will give digit converting character property. (Now from here onwards  fgetl, strsplit, str2double commands will be used for respe purpose in the code.)

3) for loop is use to skip further 3 comment lines.

4) Now for loop is stated for number of iteration from 1 to 53 as there are 53 elements in THERMO,dat file ,which will end after all the executions are done with respective data for every element.

5) After the start of the above for loop :-1st line for each element is called using fgetl command and splitted  them with separate string using strsplit command .Length of whole string is defined which will help to locate local temperature values  automatically  with use of str2double

6) Again fgetl command is used to to get 1^st line of coefficient for respective elements and located the position of E. The purpose of locating the position of E is that with the help of defined position of E, all the coefficient can be extracted using simple formulation. So in the first line of coefficient all 5 coefficient will be called. Now same concept will be use for second coefficient  line to extract 5 values an for 3^rd line to extract remaining 4 values. In this way all 14 Coefficients will be extracted for each specie.

7) Now to calculate Cp, H & S , all formulas are specified in the separate for loop , in which if-else command is used according to situation mention in the problem about the local temperature. If T(m)>t3 (local medium temperature)  them ‘if’ condition will execute or condition is not satisfy then ‘else’ command will execute automatically in loop for each temperature value for every element.

8) Now ‘mkdir’ command is used to create the folder in the current directory.Next to that cd command is used to change current folder to new folder to store the plots of graph of every element in separate folder. There will separate folder for every

9) To find the molecular weight of the elements for loop is executed in which strcmp command is used to compare the logic of strings mention in the i and j. If value is match then it returns the values of atomic weight of  that particular element will be added. Sprintf command is used to display the molecular weight of  each element and fclose command is used to close the file.

OUTPUTS:

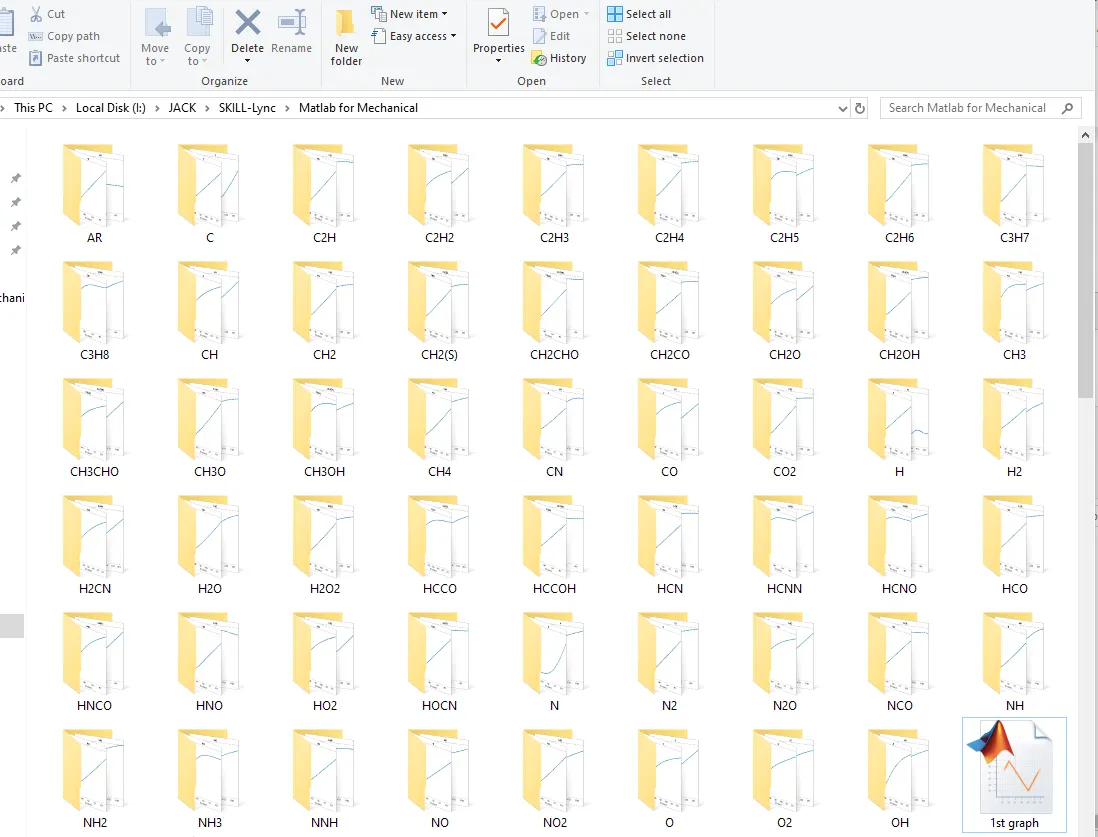

1) Screenshot of Location where folders are saved:-

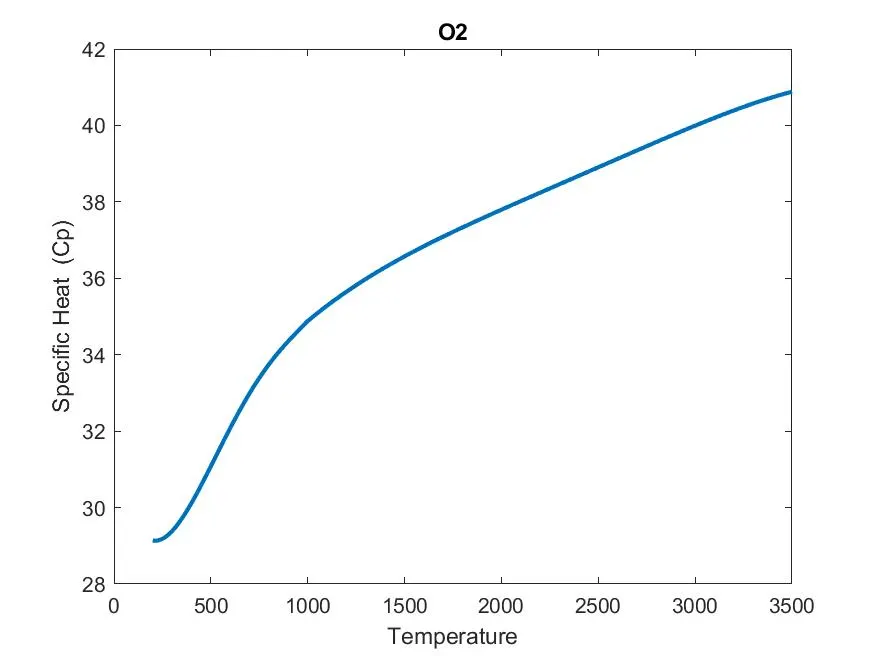

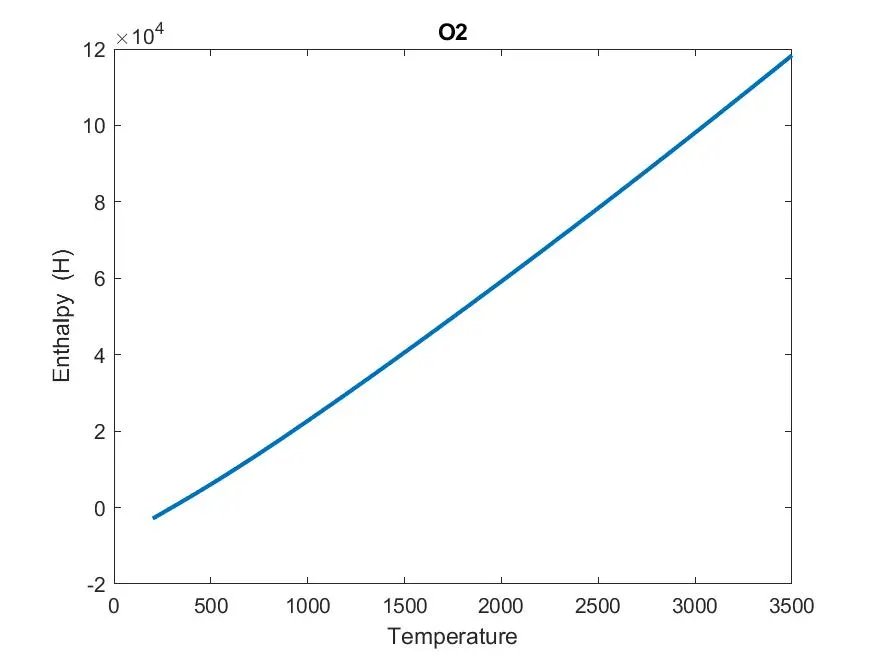

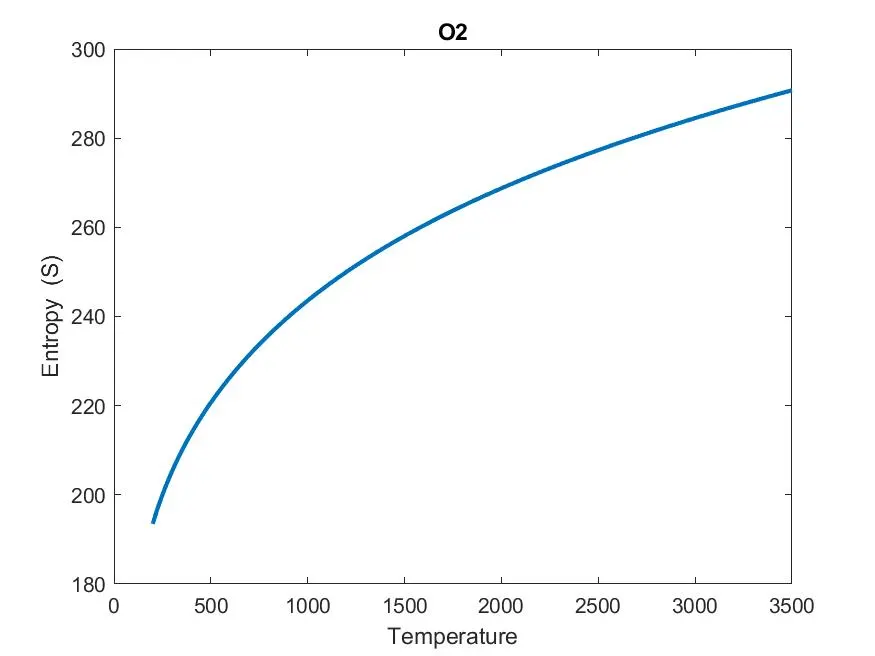

2) Plots of Cp,H, and S for O2:-

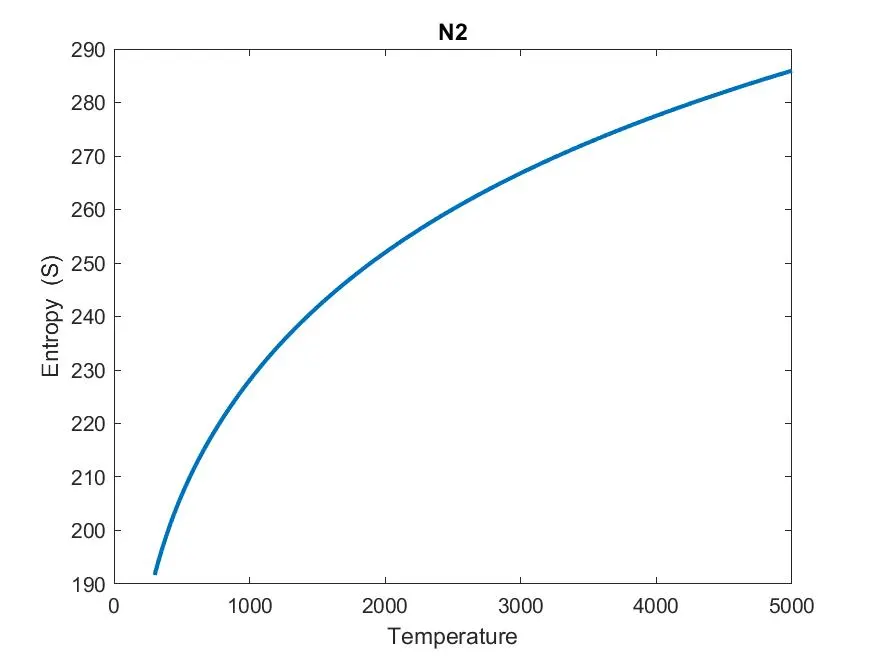

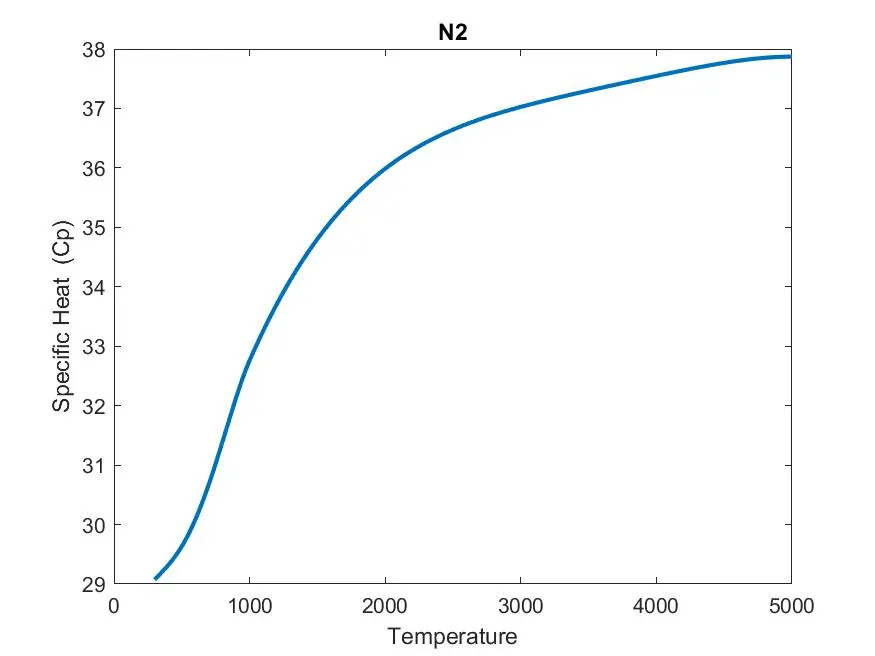

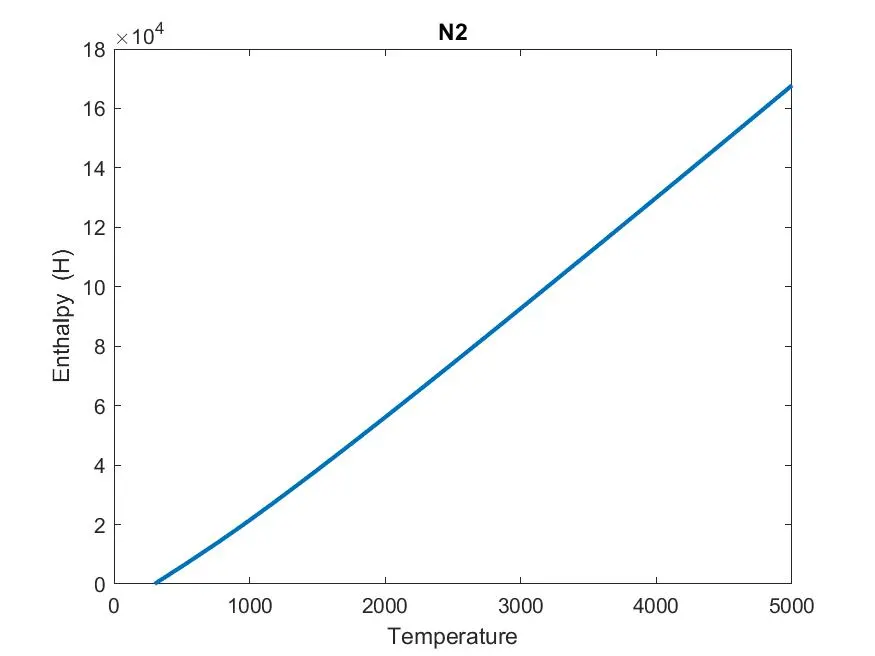

3) Plots of Cp,H, and S for N2

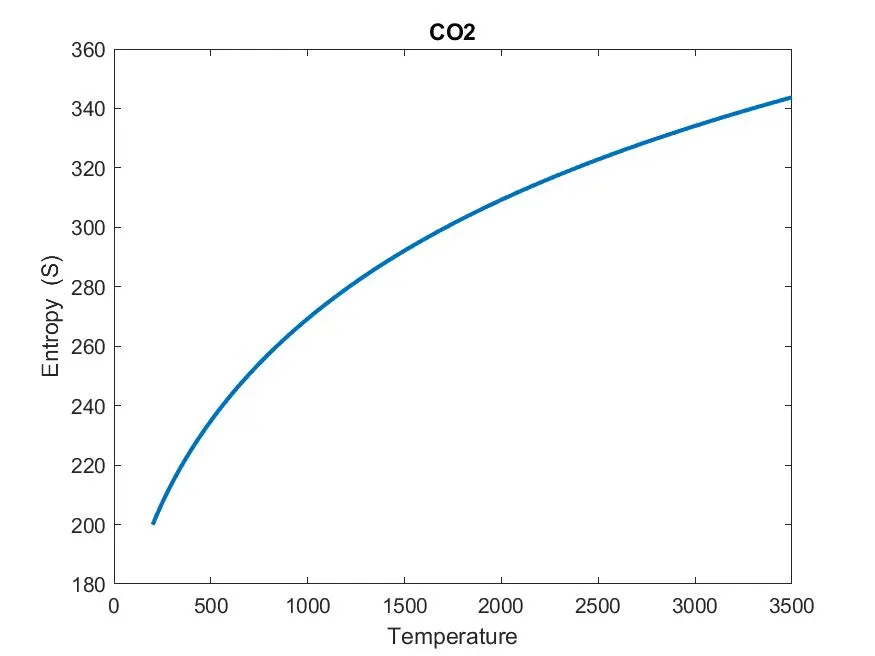

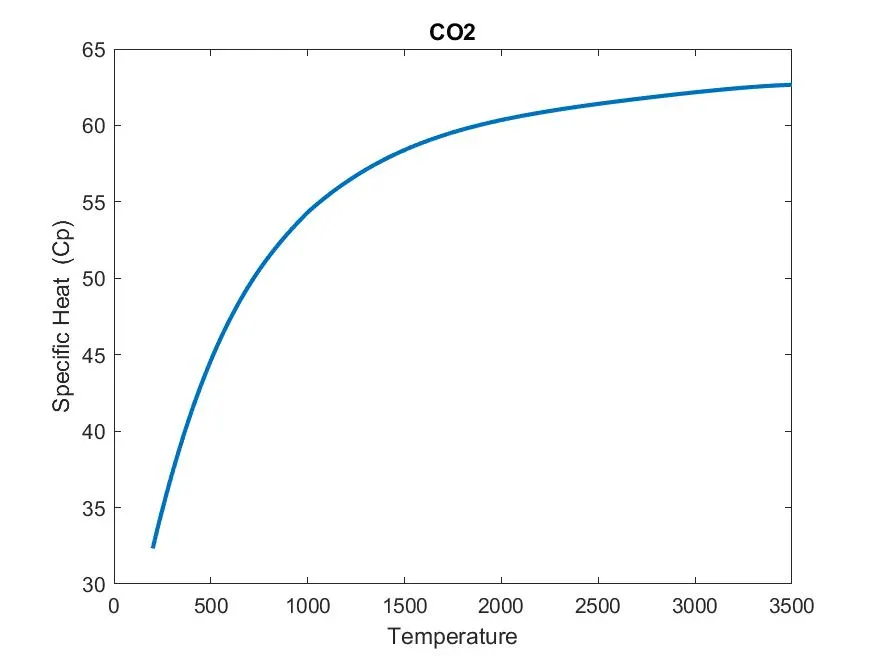

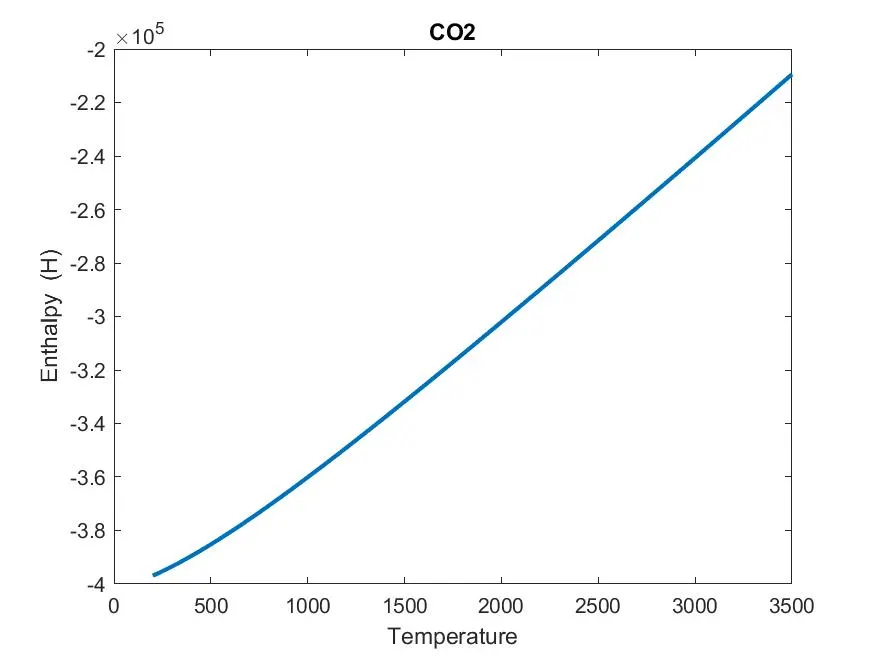

4) Plots of Cp,H, and S for CO2:-

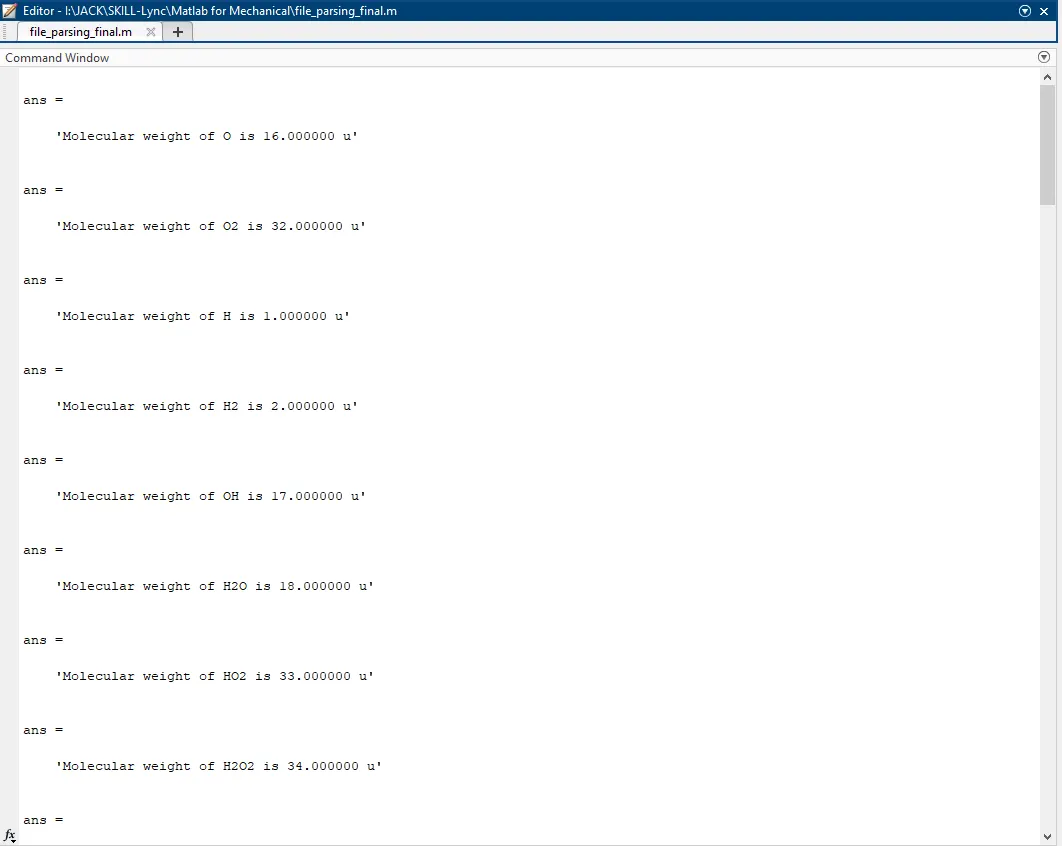

5) Display of 'Molecular Weights' of elements in the 'Command Window':-

CONCLUSION:

                   Here the data is read and extracted successfully from NASA Thermodynamic Data file for different species and all the values of Cp, H, and S are calculated along with plots which are stored in a separate respective folder for each element. From this, we can conclude that the file can parse in MATLAB to perform the various required operations using the data contained in the files.
