Mechanical design of battery pack
Objective:
Battery pack capacity: 18 kWh
Cell: ANR26650M1-B
Prepare a detailed battery pack drawing along with its enclosure. State your assumptions.
Solution:
To make the battery pack, we have to first finalize the voltage and capacity of the pack. Either it will be in term of volt, mAh/Ah or Wh.
Total required battery pack capacity is 18000 wh.
The individual cell: ANR2650M1-B has
Nominal voltage = 3.3 V
Current capacity= 2.5 Ah
So, let us assume that for 18 kwh battery pack we need supply voltage of 200V and 90 Ah
200V = 3.3* Cell in series
Cell in series= 200/3.3 = 60.60=60
Now, as we know that battery pack capacity(Wh) = Total current* Total voltage=(2.5* cell in parallel)* 200
18000= (2.5* cell in parallel)* 200
Cell in parallel = 18000/(2.5*200)=36
Module capacity
The required battery pack combination is 60S36P
For this we decided to choose a5 series and 3 parallel module connections.
Each 5S3P configuration module voltage capacity = 5*3.3=16.5 V
Each 5S3P configuration Current Module capacity =3*2.5=7.5Ah
So, total capacity of 1 Module is =16.5*7.5 = 123.75 Wh
Total cells
Total number of cells = cell in 1 module*144
Total number of cells = (5*3)*144
Total number of cells=2160
1 cell capacity=3.3*2.5=8.25Wh
so, total cell capacity=2160*8.25
total cells capacity =17820 Wh=17.82Kwh
Note: We should always target more KWH then required considering the losses and connection limitations.
Weight of one cell= 76g=0.076Kg
So, battery pack cell weight =0.076*2160=164.16kg
Module connection:
For 18Kwh of total 200V and 90 Ah battery pack capacity we need 18000/123.75= 145.5 modules.
For simplicity of configuration we took 12*12= 144 modules of 5S3P
we have to connect the cells in parallel to reach the desired capacity and connect such parallel group in series to achieve the nominal voltage (volt)'
In this way, to achieve 200V battery voltage, number of 5S3P configuration in series connected modules are=200/16.5= 12.12=12
For 90 Ah battery current, now we connected 12(90/7.5=12) times such(series of 12 modules of 200v) in parallel to get 90 A current from htis battey pack.

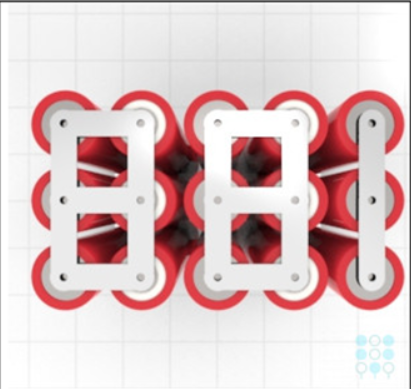

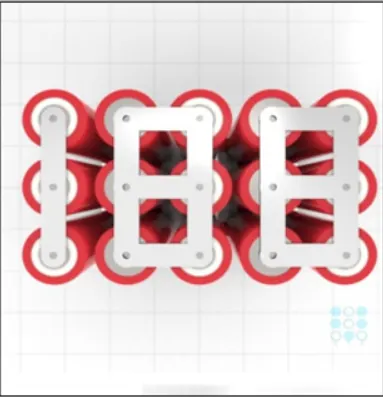

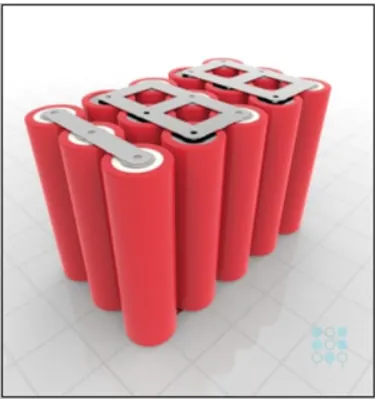

The 5S3P connection of ANR26650M1-B cell is shown below.
A typical bill of materials(BOM) includes the following
Step 1: Select the ANR2660M1- B cells for the battery pack
Step 2: Check the cell voltage

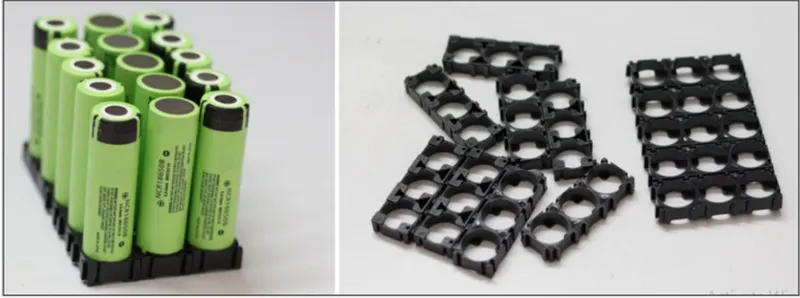

Step 3: Assemble the ANR2660M1 - B cells

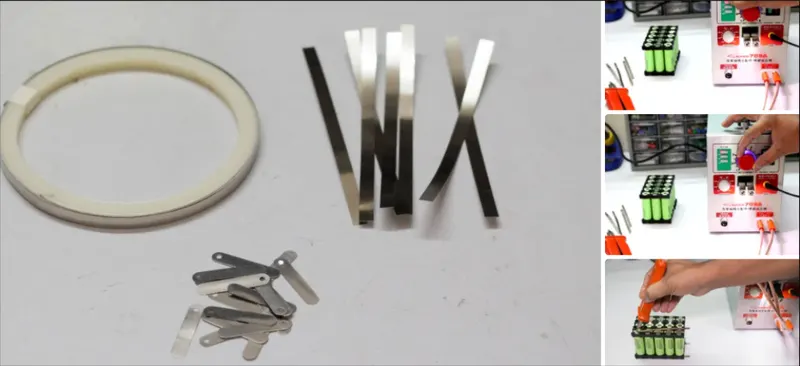

Step 4: Choosing the Right Battery strips and spot weld the Nickel strips
We have 2 options to connect the ANR26650M1 Cells together.
1. Soldering
2. Spot welding
The best choice is always spot welding but spot welder is much costlier than a good quality soldering iron.

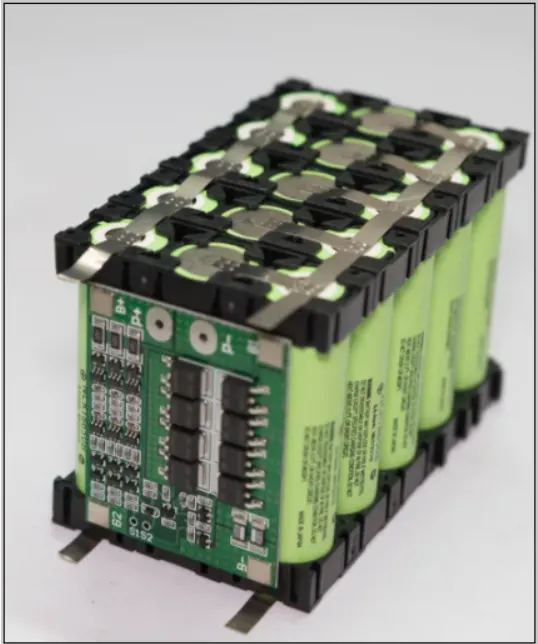

Step 5: Adding the BMS
A Battery managment system us any electronic system that manages a lithium battery pack and the main functionalites are
1. Monitors all of the parallel groups in the battery pack and disconnect it from the input power source when fully charged.
2. Balamce all the cells voltage equally
3. Doesn't allow the pack from over-discharged

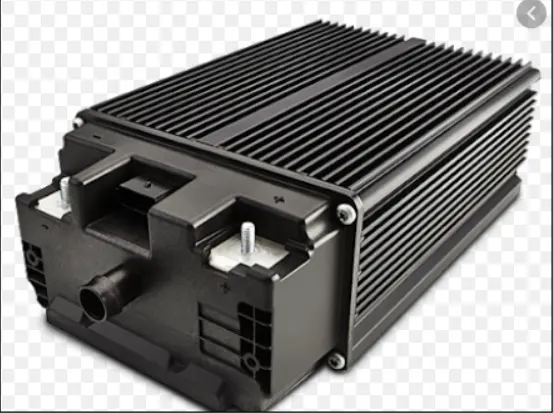

The battery pack have all around exposed nickel strips, to avoid any accidental shorting on Enclosure used,.
Referernce:-
https://www.instructables.com/DIY-proffesional-18650-Battery-pack/
