Preparing Schedule & Cost Estimation for a building using REVIT

Q1)

Aim: Shortcut keys for mentioned tasks

a)Using 3D model create a section box =BX

b)To create similar doors and windows in a floor plan layout =CS

c)To reduce the thickness of lines visible in plan views =TL

d) To apply override settings to a floor in the model section view = EOD

e)To increase the range of visibility in a plan view =VR

f) to select the previously selected items =CTRL+ <

g)To add annotations to the model views =DI

h) To bring the model elements in line =AL

I)To rotate the model elements = RO

j) To move an object to another location = MV

k) To copy a model element = CO

l) To mirror an element about an axis = MM

m) To create an array of model elements = AR

Q2)

Aim: To prepare a schedule for walls, doors, windows materials, etc. For the project which was created last week

Procedure :

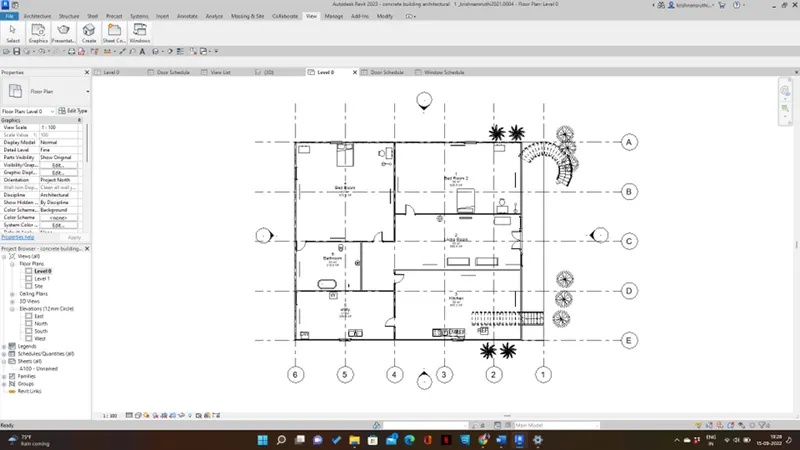

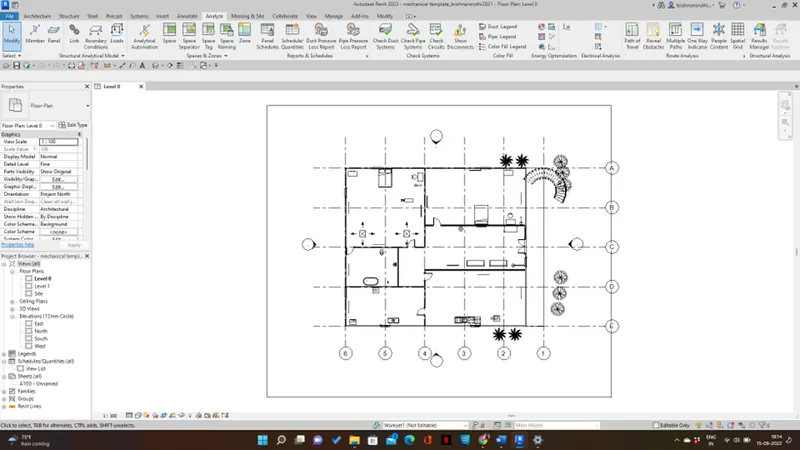

Step 1: Open the architecture file created last week

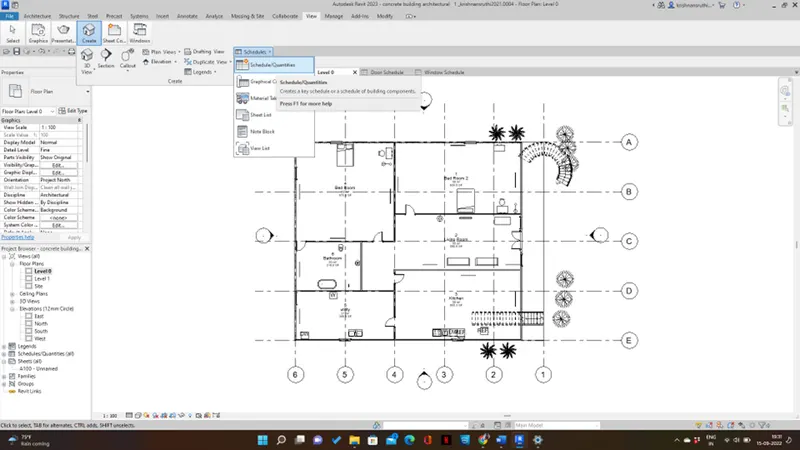

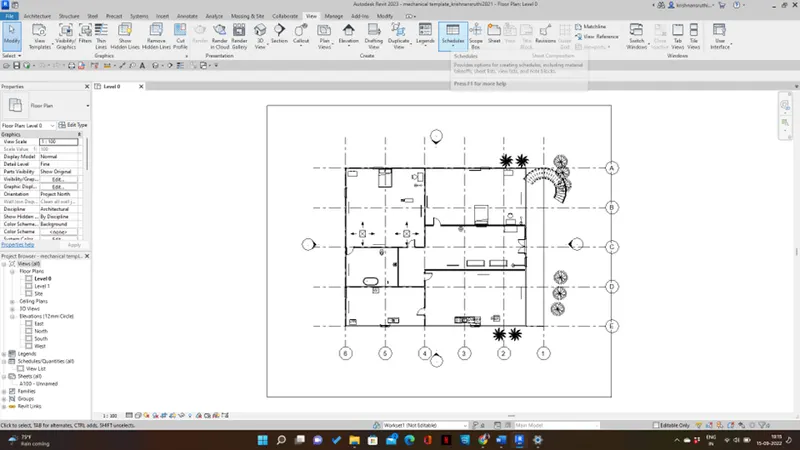

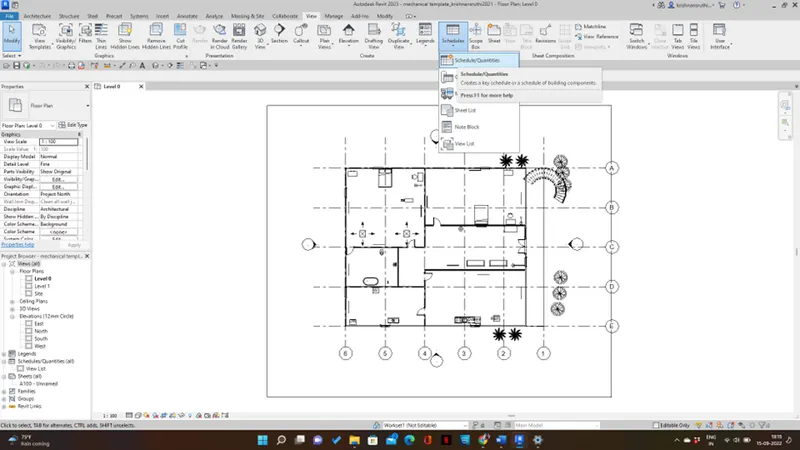

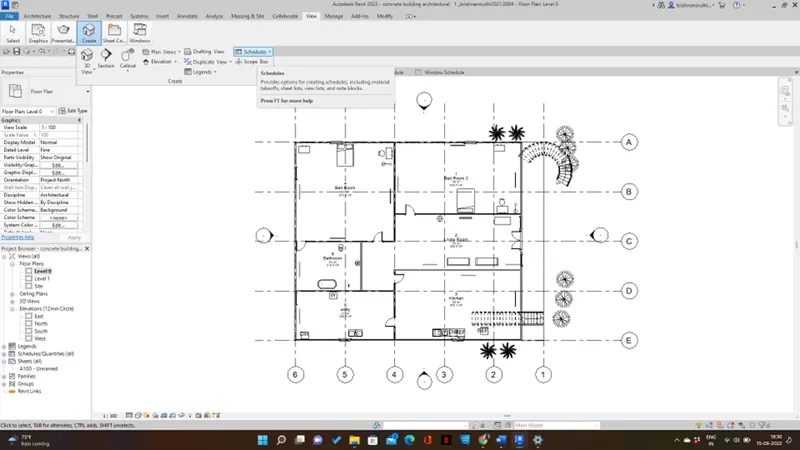

Step 2: Go to the view tab and select schedules

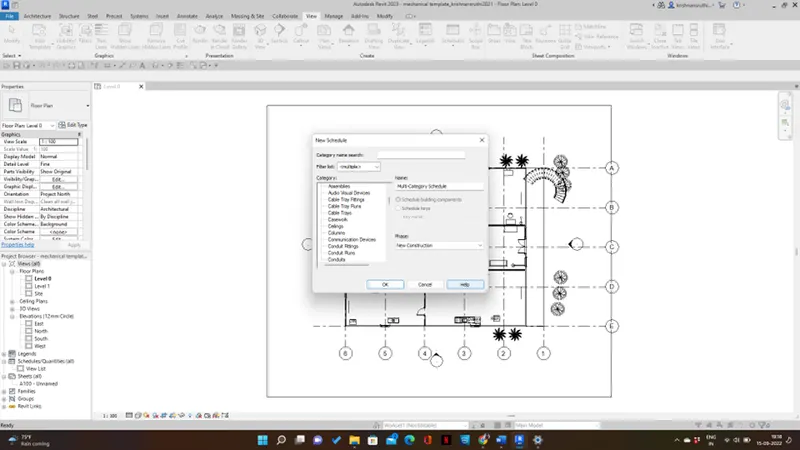

Step 3: Select schedule quantities from the option displayed

Step 4: A dialog box will appear, select all required elements

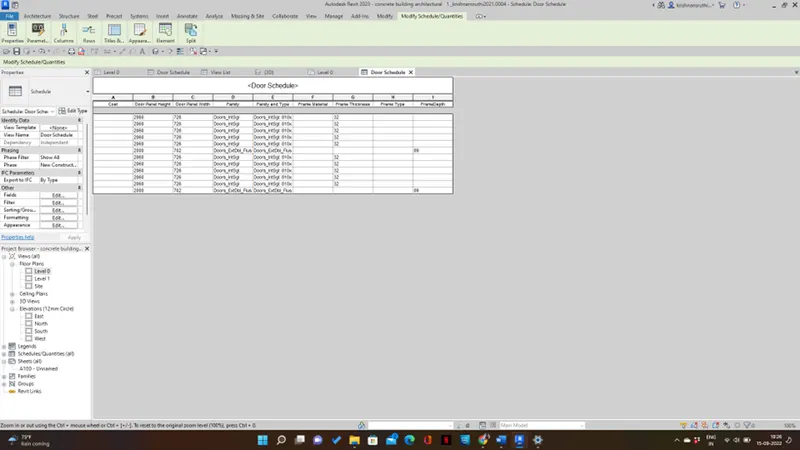

Step 5: Select components like doors from the dialog box and click ok and select the items like height width etc to be displayed and ok

Step 6: Do the same for all

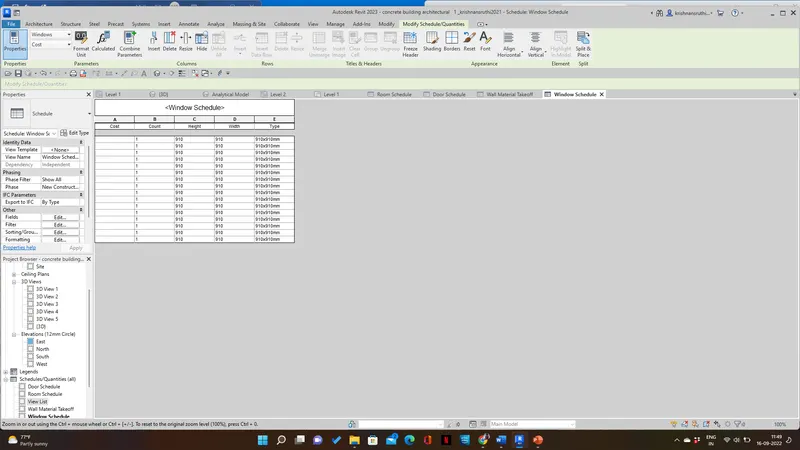

Window Schedule

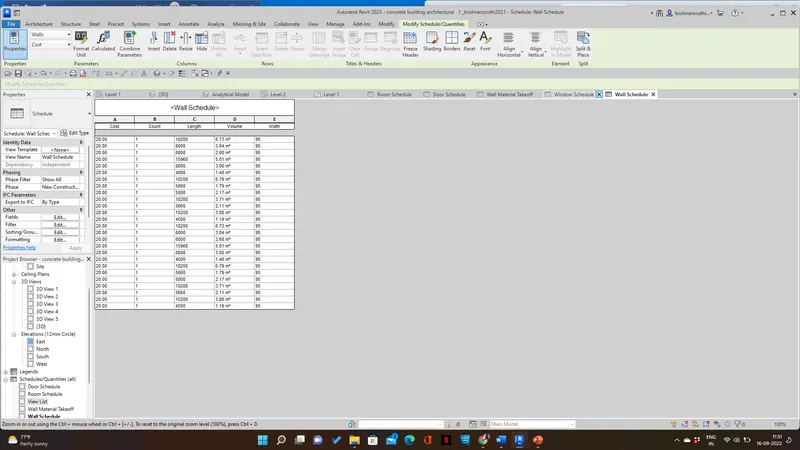

Wall schedule

RESULT: All schedules prepared

Q3)

Aim: To calculate the area and volume of each room in the model with appropriate room tags applied to each room and to prepare a schedule report for the area and volume of each room

Procedure :

Step 1: Open the architecture file created last week

Step 2: Go to the view tab and select schedules

Step 3: Select schedule quantities from the option displayed

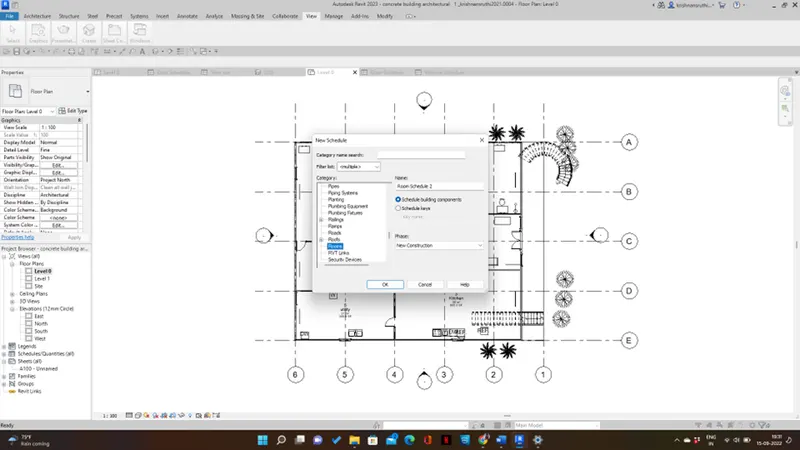

Step 4: A dialog box will appear, select room from that and click ok

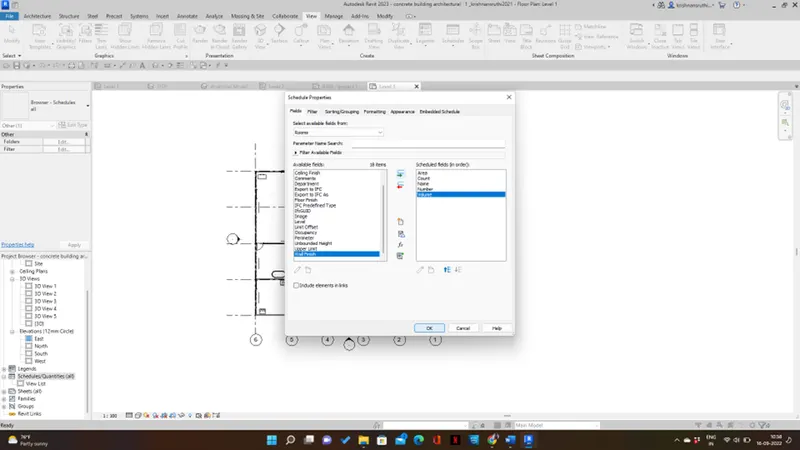

Step 5: Select area and volume name count

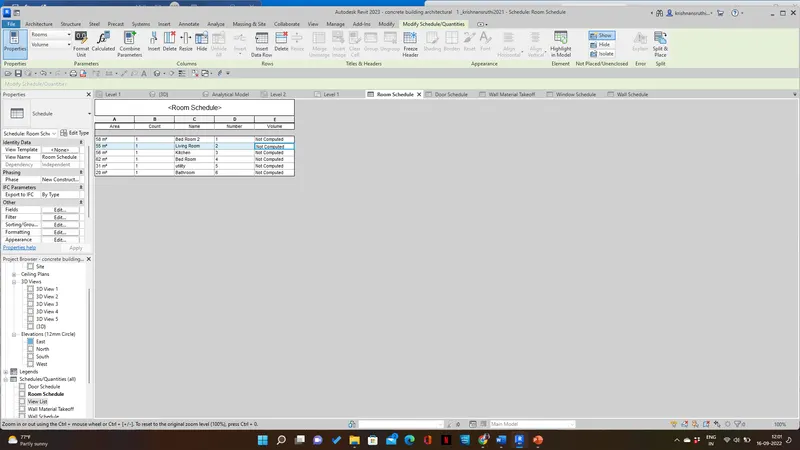

RESULT: A schedule of the area and volume of each room is successfully prepared and the area and volume of each room are calculated by the room tag

Q4)

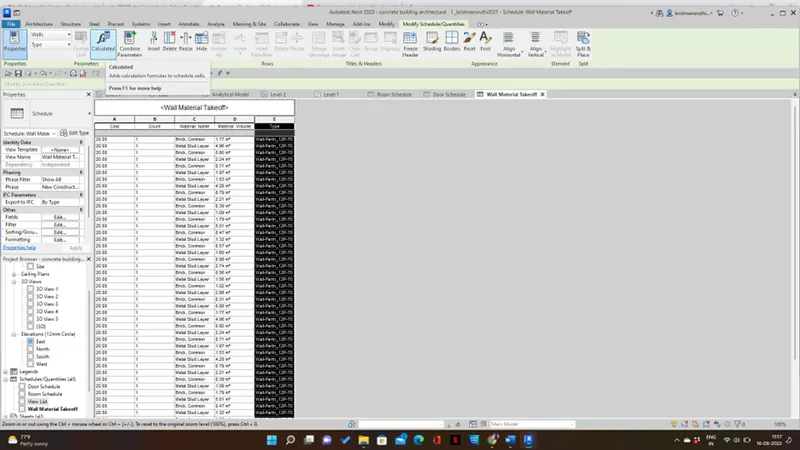

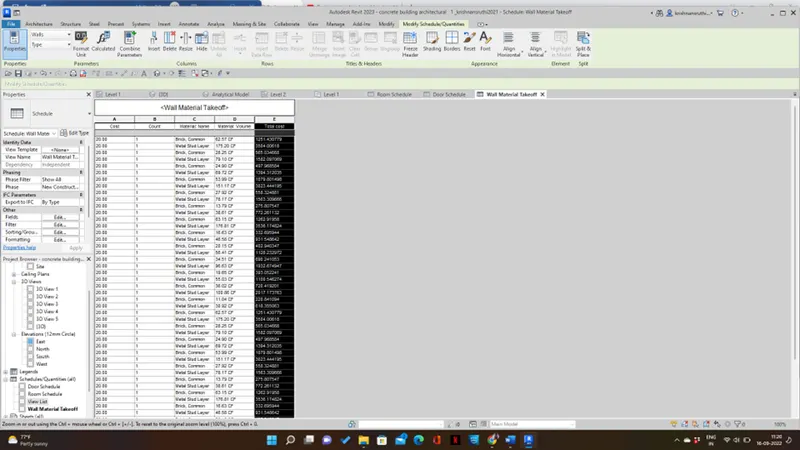

Aim: To prepare the total cost of material and individual materials take-off schedule

Procedure :

Step 1: Open the architecture file created last week

Step 2: Go to the view tab and select schedules

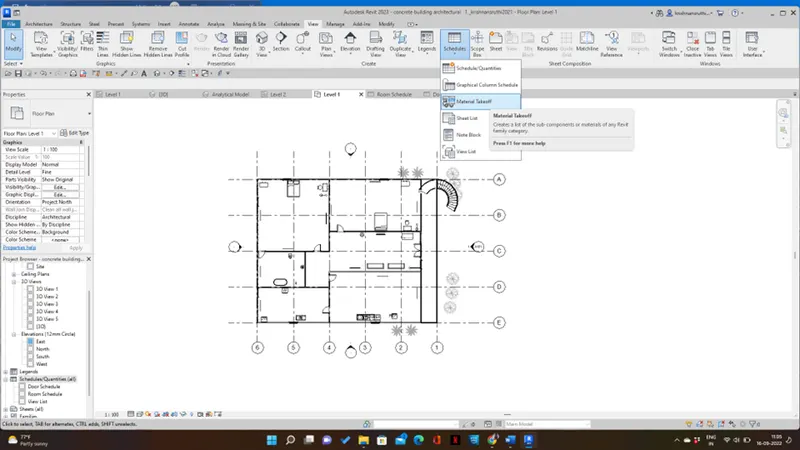

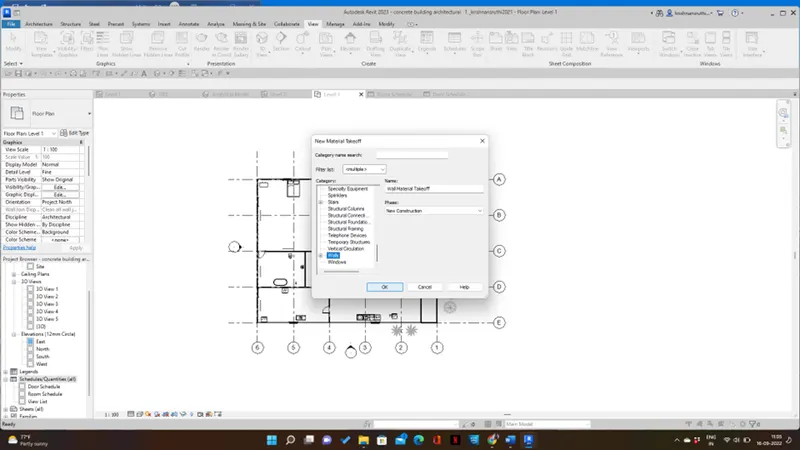

Step 3: Select material take off from the option displayed

Step 4: A dialog box will appear, select material eg, wall and click ok

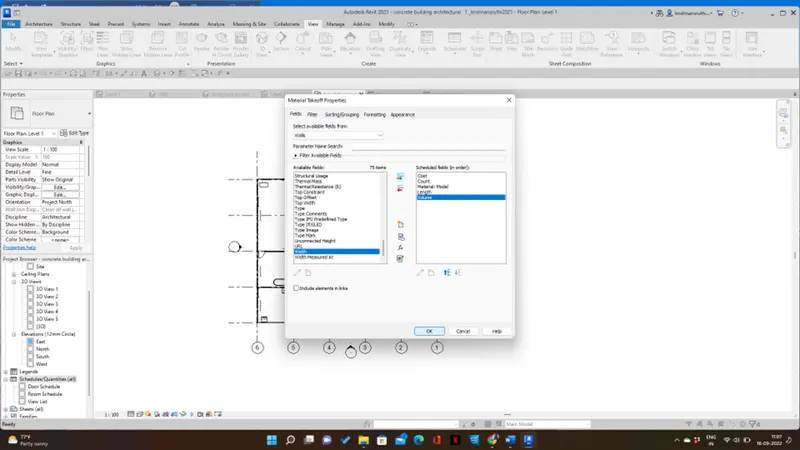

Step 5: Select required elements to prepare a schedule and click ok

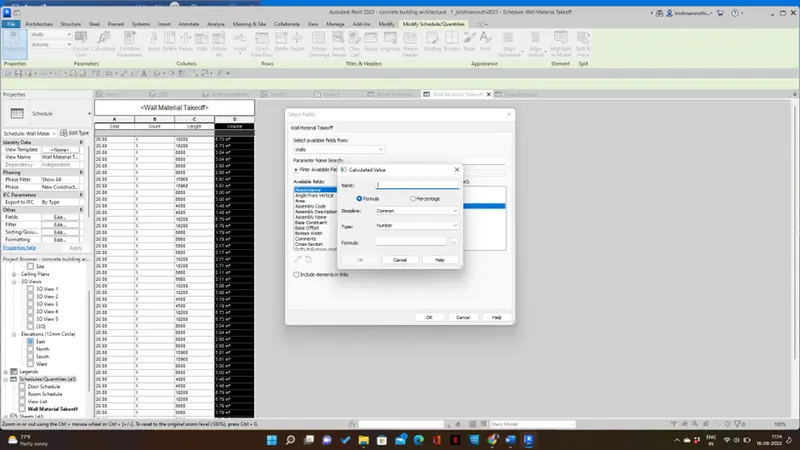

Step 6: Select calculate from the tab

Step 7: A dialog box will appear, fill required details and click ok

Step 8: Total cost will be calculated

Step 10: Do the same for all

RESULT: Successfully calculated the total cost of materials

Q5 )

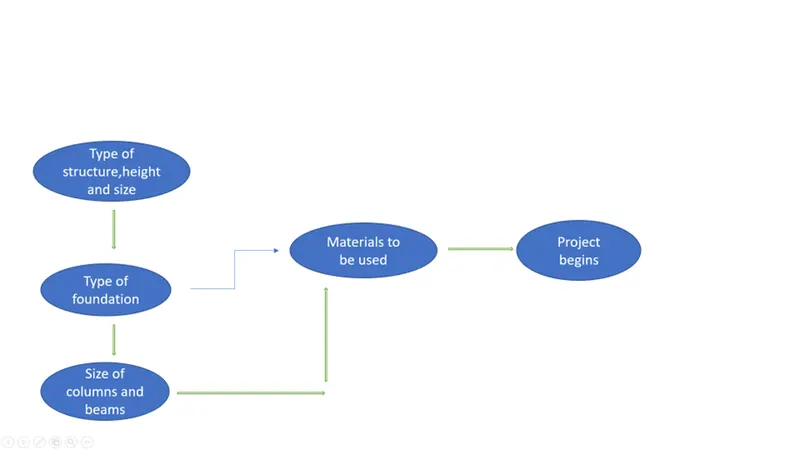

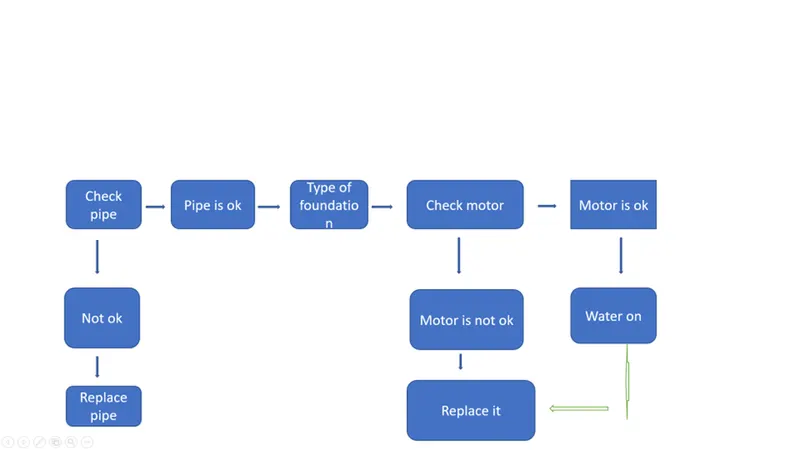

a)

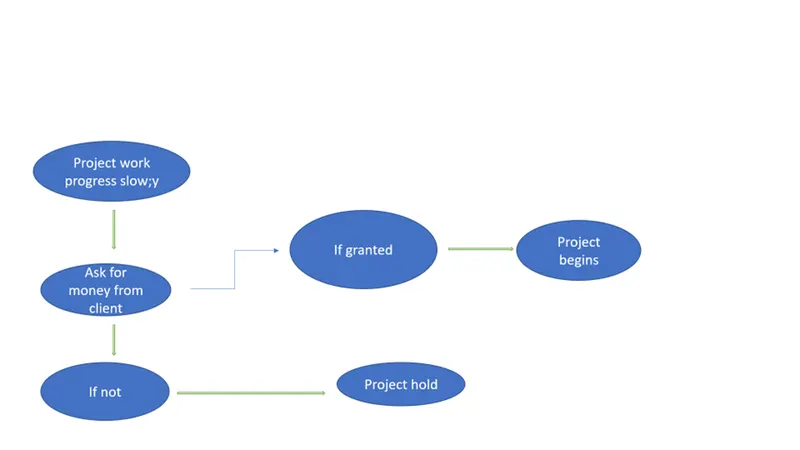

b)

c)

Q6)

Aim: To list the parameters associated with each model element given below

a)Wall :

• type
• length
• width
• Height
• Cost estimate
• Thickness
• Material used
• b) Floor:

• Type
• length
• Width
• Area
• Volume
• Cost
• Thickness

c)Door :

• Type
• Height
• length
• Width
• Thickness
• Material

d) Window

• Type
• Height
• length
• Width
• Thickness
• Material

e) Table

• Type
• Height
• length
• Width
• Purpose
• Material

f) Building

• Type
• Height
• length
• Width
• of floors
• Area
• Set back
