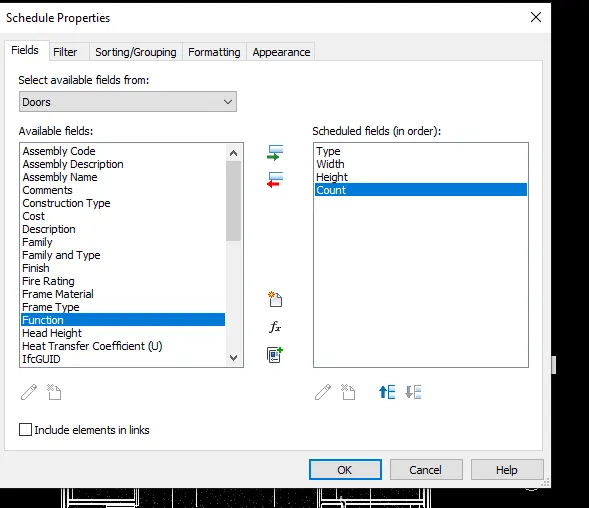

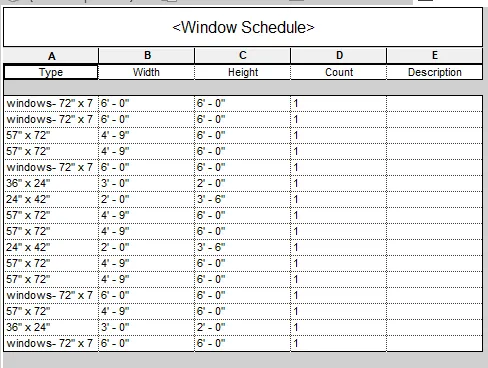

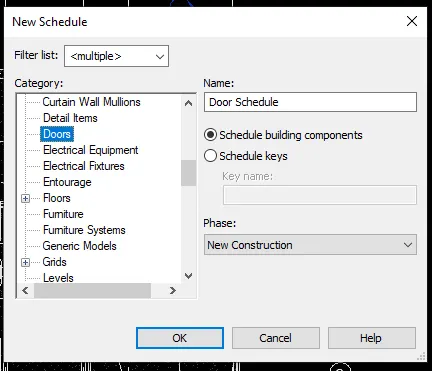

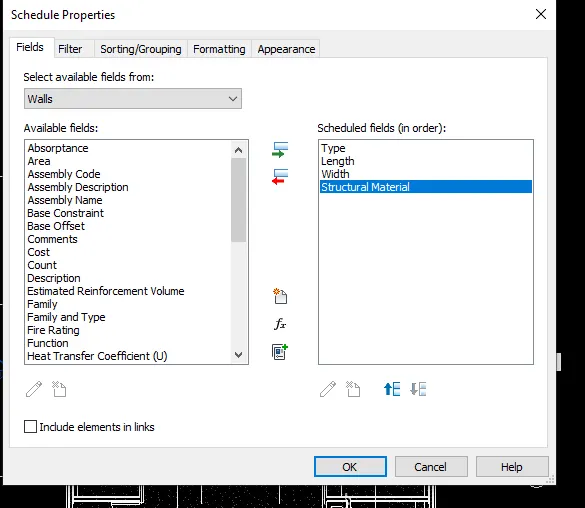

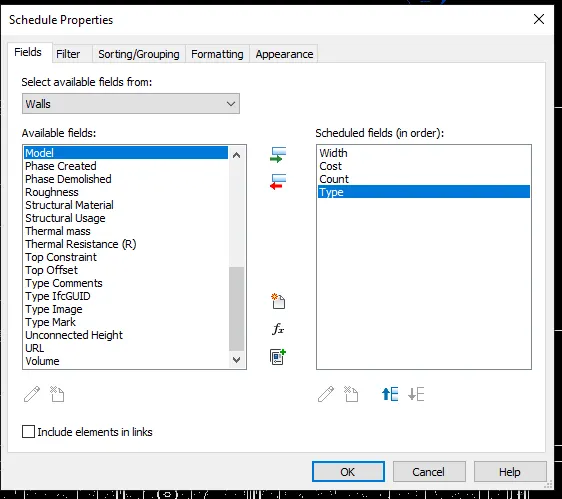

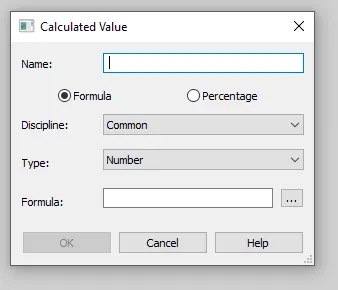

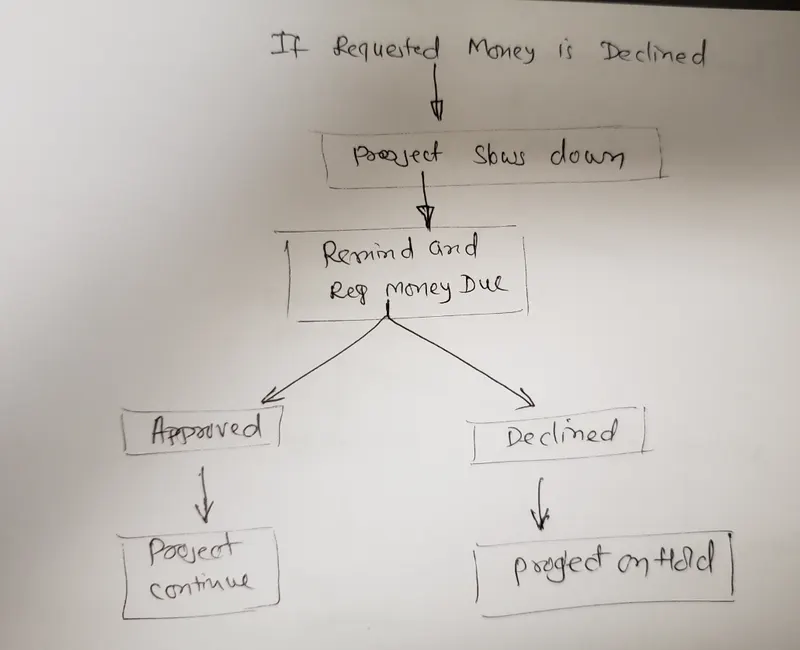

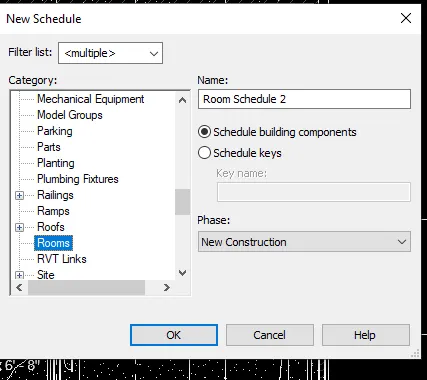

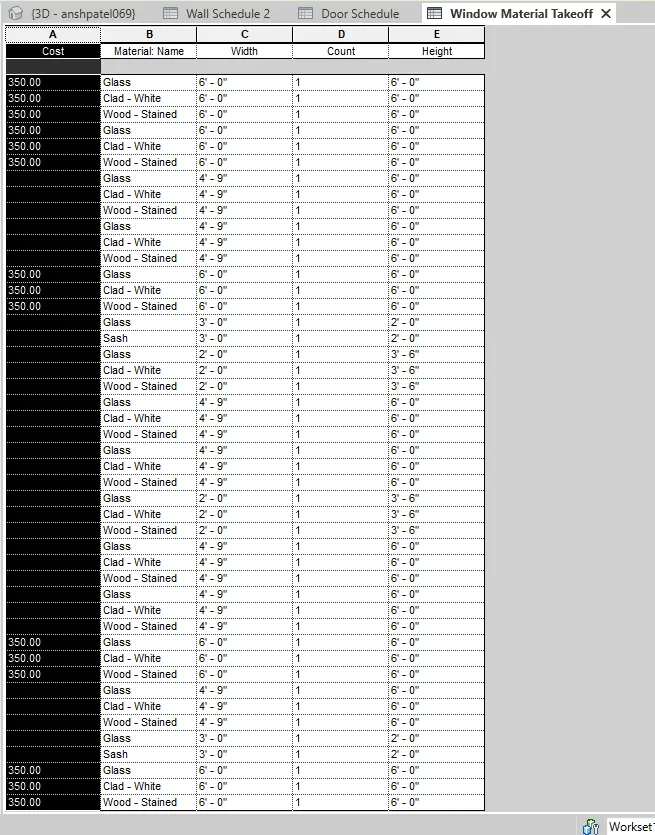

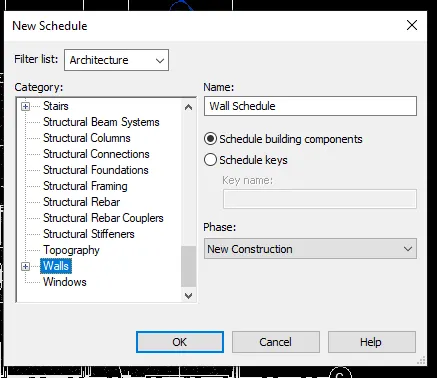

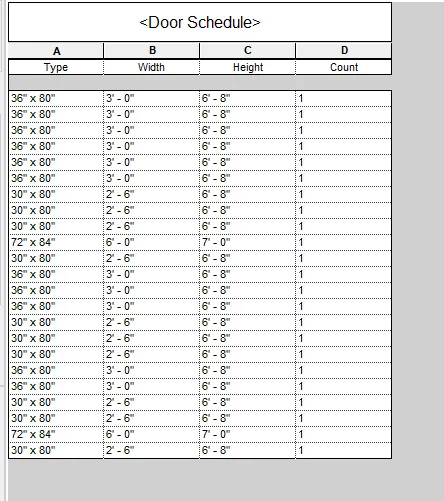

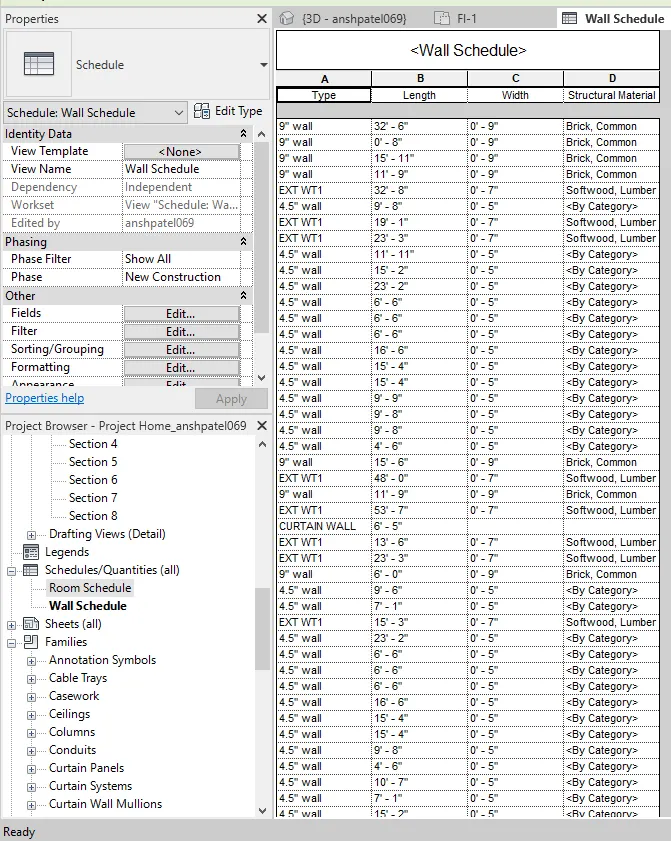

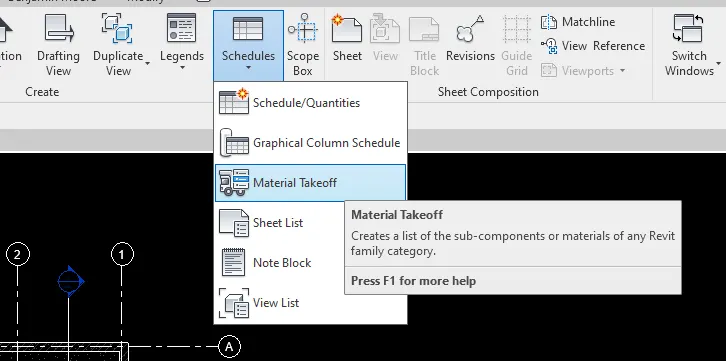

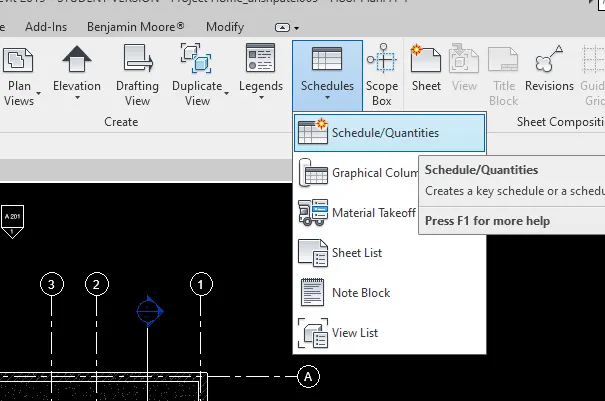

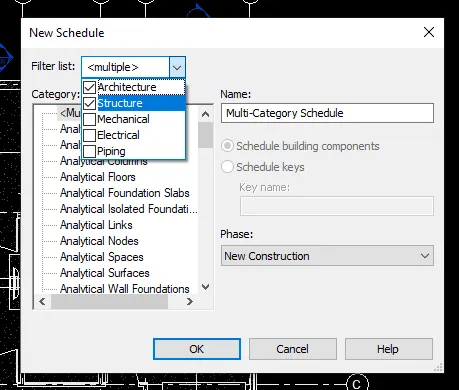

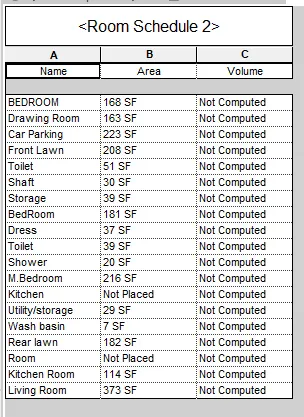

Preparing Schedule & Cost Estimation for a building using REVIT

Ans 1> following parameters requires 1: code block ( multiple blocks)  2: range 3: Point by Co-ordinates 4: Number of slides 5: product 6: addition 7:Line numbercurve 8: Interger Slider 9: Custom node property 10: List create 11: Surface by loft ANS 2> 1: Number of Slides 2: Point by co ordinates 3: line by startpoint…

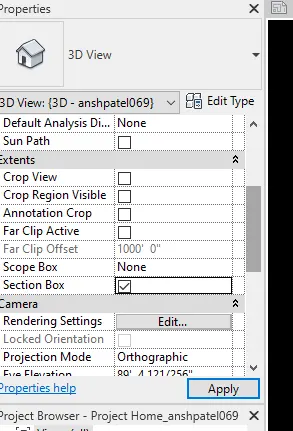

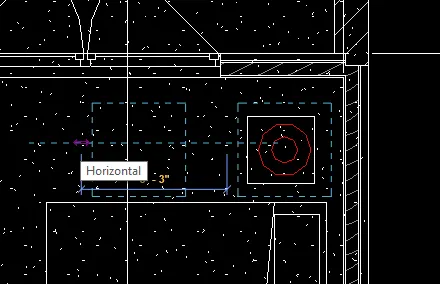

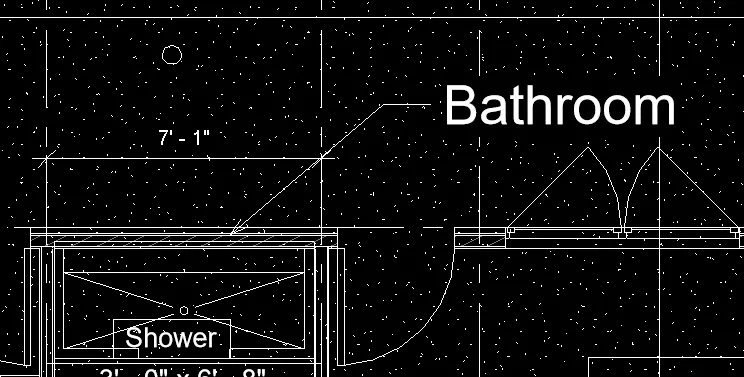

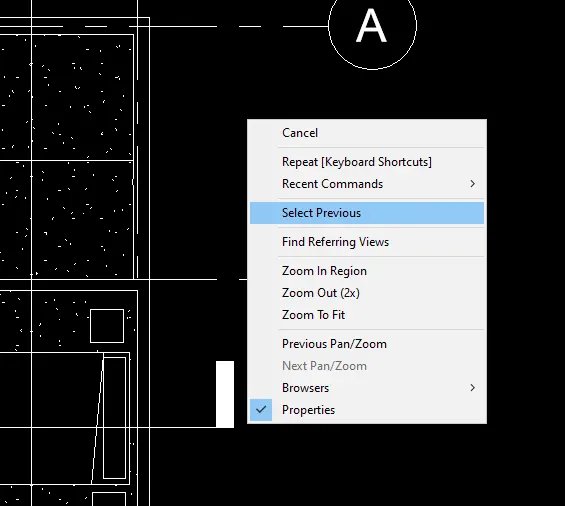

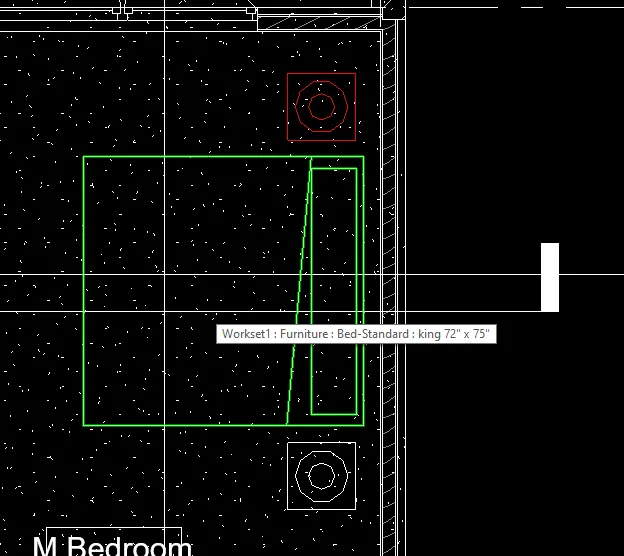

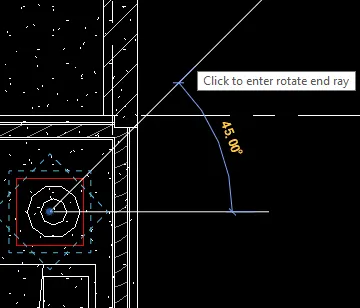

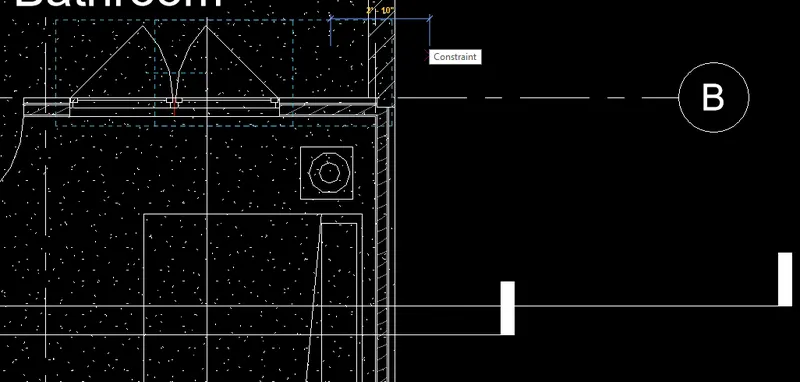

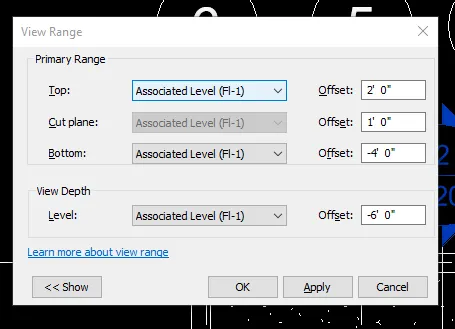

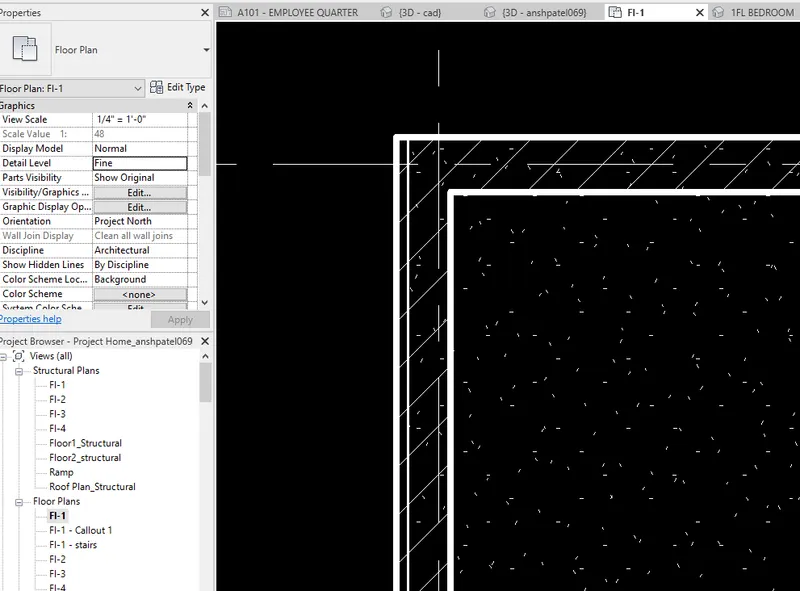

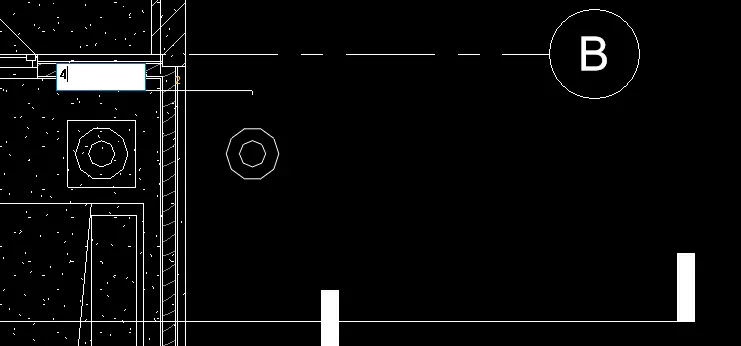

Ans 1: a>  Turn On Section box under Property.  Adjust the sizes by dragging arrow keys. 2>Select Door or windows or any elements &  Type CS  and drag it to new location.   c> Go to Structural or Floor  plan and Type TL will make Thin line or make thick line depending on the setting…

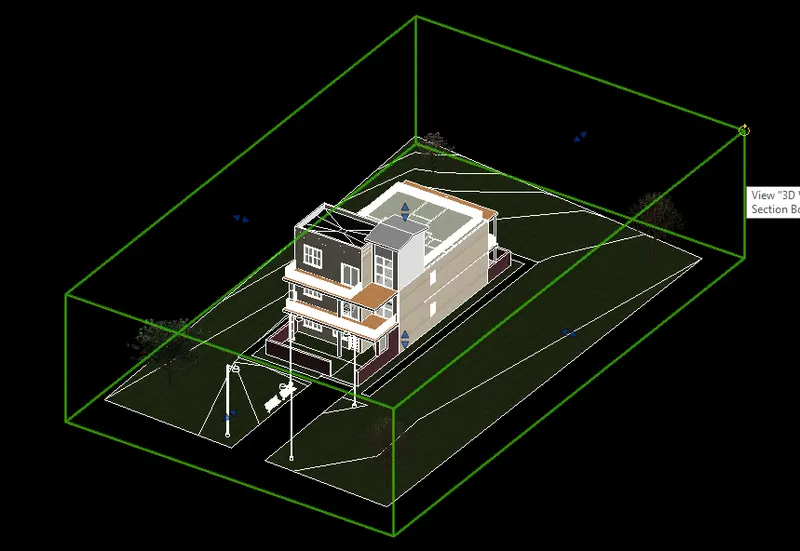

A1.  Installed NW Exported from autodesk and Installed. save to folder Arch model file.  Saved Structural file      Ans 2: Walk around Walk around recorded to make animation. Frames are on the right side   Ans 3: Above is Realism walk though from outside of Home to Inside the Kitchen. Ans…

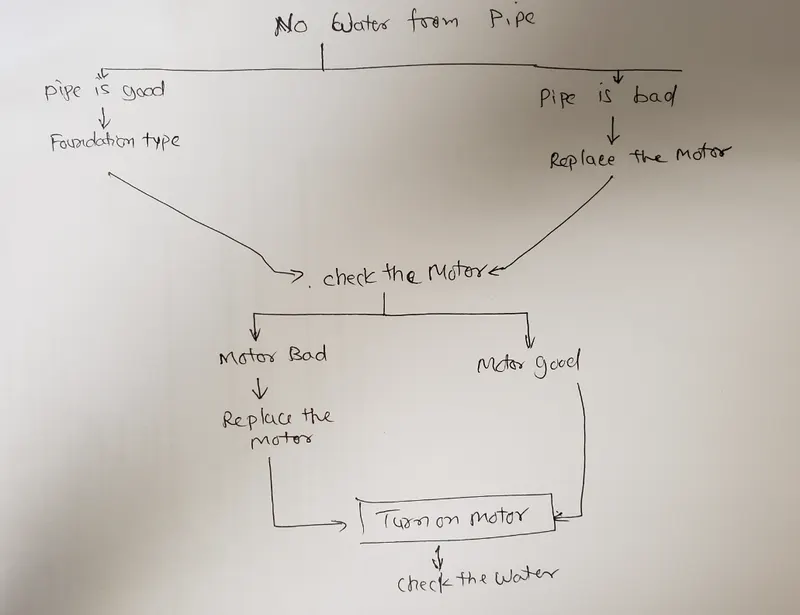

Ans2> split systems, hybrid systems, duct-free systems, and packaged heating and air systems (PTAC) They are essential to control the climate ( temp, humidity) within the buiding compare to outdoor weather.  HVAC sytems help to incease efficiency of humans, equipments.  ANS2> Added HVAC  system…

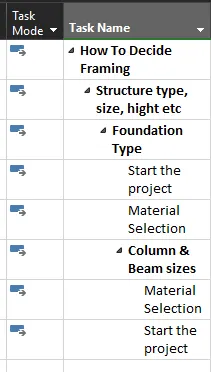

ANS1: I SELECTED RES. HOME WITH 3 STOREY.  ANS 2: OK ANS3:  a> added foundation . b> added column and beam . c>bean connection FILED. in need SUPPORT for why connection shows WARNING ( caution sign) , then I would be able to add connectiion to base and top.  d>ADDED truss under the roof.  …

ANS1: AIM MANAGE>SPECIFY CO-ORDINATE>SELECT HOR GRID> NORTH/SOUTH   = 0 SELECT VERT 1ST GRID> EAST/WEST  = 0 SAVE. ANS2: AIM FILE>NEW>STRUCT TEMPL>PROJECT >OK...SAVE....   ANS3: COLLABORATE>  SAVE AS IN NETWORK> ANS4 STRUCTURE>GRID ANS 5:  OPEN >CLOSE>SAVE…

ANS1:  BUILDING CODES ENSURE THE STRUCTURAL INTEGRITY LIKE ELECTRICAL, MECHANICAL PLUMBING - ALL THE TRADES SAFETY AS WELL AS ACCESSIBILTY AND PRACTICAL AND ACHIVABLE LEVELS OF ENERGY EFFICIENT. ALL THE ARCHITECT, ENGINEERS, BUILDERS, INSPECTORS, AUTHORITY, AND DEVELOPER FOLLOWS THE BUILDING    ANS2: RESIDENTIAL,…

A1 ARCHITECT>CEILING> CHOOSE THE TYPE OF CEILING >SKETCH CEILING> DRAW BOUNDARY>CLICK TO FINISH.     Aim is to hide electrical wire for devices like Lights, HVAC ducts etc.. CHECK THE RESULT ON 1ST FLOOR.    A2.  ARCHITECT>ROOF>SELECT ROOF TYPE>ROOF MOVE TO FL-4, CLICK…

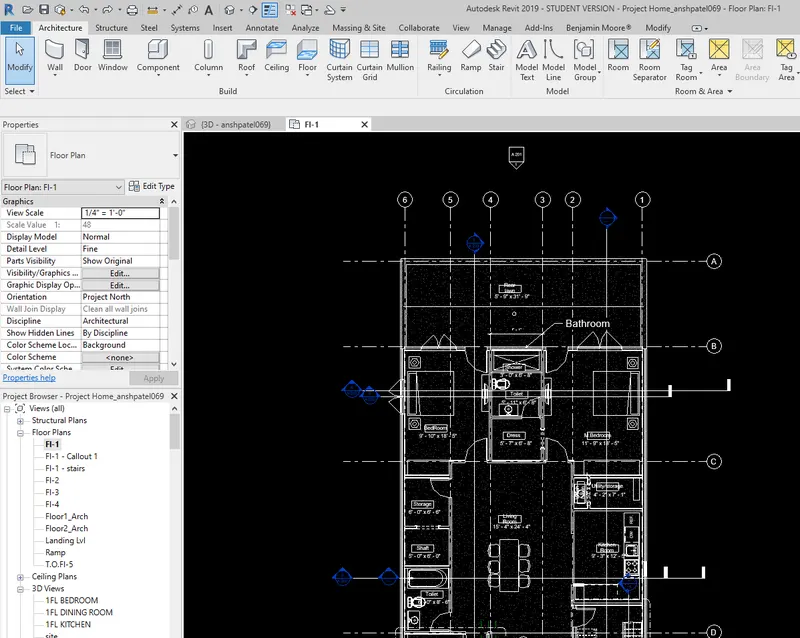

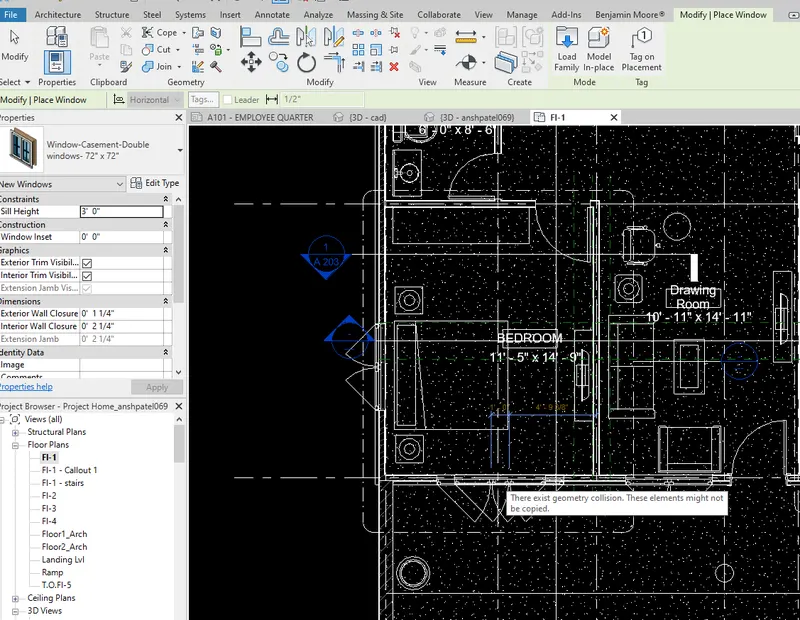

A1. click on Arch> Floor and Floor Architect> Select Generic 12"> Pick the line from sketch.>complete the boundary as necessory ARCH>LEVELS CREATED LEVELS as below. ARCH>GRID. CREATED GRIDS as below.     A2. ARCH>WALL- CREATED 9" WALLS AND DRAWN ALL 9" WALLS as per 2d drawing layout  …

A1. Building Information Modeling (Bim) allows professionals to explore a project’s key physical and functional characteristics digitally, before it’s built. . It is used by many trades for design, construct, operate and maintenance for gas, electric, roads, railways, bridge etc.  Aim is to find and fix the mistakes before…

1.1 open the revit > New>project>select template file>choose Project>ok 2.1 File>save>choose folder( or create new)> name of the file>save 2.2 file>close  File>open>choose folder>select file>open 3.1 Architect>wall>select type of wall>selct rect >  apply dimension…
