Photo Realistic Rendering

OBJECTIVE

• The main objective of this project is to model different parts of a custom designed American Chopper using SOLIDWORKS.
• To assemble the different parts modeled for the American Chopper.
• To create a photo realistic view of the American Chopper by rendering the model using SOLIDWORKS photo view 360 and solid works Visualize.

PART MODELING:

• Modelling in general means to create a virtual prototype of an item. it can be used for various purposes. Consider an engine of a car, it has hundreds of parts. Each part can be modelled separately and then can be assembled together to get the engine's final form. This type of modelling is called part modelling.

FEATURES DESCRIPTION

SKETCH:

• Sketch is the two dimensional representation of the model with respect to the plane/view from the outside of the model. In solidworks there are different sketch options available to create a sketch. These are known as Entities in solid works. The following are the entities available in solid works Line, Arc, Spline, Circles, Rectangle.

OFFSET:

• one or more sketch entities, selected model edges, or model faces by a specified distance. For example, you can offset sketch entities such as splines or arcs, sets of model edges, loops, and so on. You can offset finite lines, arcs and splines.

EXTRUDE BOSS/BASS:

• Extrude is a type of feature available in solid works to convert a 2D sketch into the 3D model.

FILLET:

• Fillet/Round creates a rounded internal or external face on the part. You can fillet all edges of a face, selected sets of faces, selected edges, or edge loops.

LOFTED BOSS/BASS:

• the loft feature allows you to generate complex geometry in a single feature. It does this by interpolating the surfaces between various cross sections of a model. These cross sections can be sketches, faces, or edges. In the loft interface, these cross sections are cosidered "Loft Profiles".

DOME:

• Select one or more planar or non planar faces. You can apply domes to faces whose centroid lies outside the face. This allows you to apply domes to irregularly shaped contours.

EXTRUDE CUT:

• Extrude cut is another cool feature which helps to remove materials from the 3D model. It is just yhe opposite to exrtude boss/base feature, because it cus a sketch profile while extruding. You can cut in both directions and mainly used for creating holes, channels, slots etc.

SPLIT:

• The split tool is used to project an entity (sketch, solid, surface, face,plane or surface spline) onto other surfaces or curved/planar faces. you are also able to split faces on multiple bodies with one command.

TRIM ENTITIES:

• Select the trim type based on the entities you want to trim or extend. All trim types are available with 2D sketches and 2D sketches on 3D planes. You can use any of the following trim options: Power Trim.

REVOLVE:

• To crate a revolve feature: Create a sketch that contains one or more profiles and a centerline, line or edge to use as the axis ground which the feature revolves. Click one of the following revolve tools.

DYNAMIC MIRROR:

• Dynamic mirror is the imporatnt tool in solid works. As you sketch the entities, they are mirrored about the pre-selected sketch entity.

APPEARANCES:

• An apperance defines the visual properties of a model, including color and texture. Appearance do not effect physical properties, which are defined by the materials. Every material is assigned a default appearnce that emulates the look of the material.

COMBINE:

• Combine is the type of feature available in solid works to manually combine the two bodies.

SHELL:

• The Shell definition property manager is used to define the thickness of thin and thick shell elements.

CHAMFER:

• A cut on the edge or corner of something that makes it slope slightly rather than being perfectly circularly.

LINEAR PATTERN:

• The linear pattern bodies/features are used to create a different number of instances required to create the pattern linearly.

CIRCULAR PATTERN:

• The circular pattern bodies/features are used to create a different number of instances required to create the pattern circularly.

SURFACE MODELLING:

• Surface modelling gives you the ability to build out a visual representation of an object's exterior ans its contours. In other words, it's a surface.
• Parts like seat, fuel tank of classic 350 are surface modeled.

FEATURES DESCRIPTION:

LOFTED SURFACE:

• loft surfaces are surfaces generated by mutliple 3D curves or existing edges creating a smooth tangency between the selected curves.

SWEPT SURFACE:

• Sweep surfaces are surfaces that are generated from a section curve positioned along a path.

FILLED SURFACE:

• The filled surace feature constructs a surface patch with any number of sides, within a boundary defined by existing model edges, sketches, or curves, including composite curves.

EXTEND SURFACE:

• Extend surface is used to extend the surface which is already created. There are different options available on the extended surface. We can extend the surface as same surface or we can extend the surface tangent to the surface.

SURFACE KNIT:

• surface knit is used o knit the two free edges/open edges of the surfaces together. Also it reduces the gap between the two edges of the surface.

PARTS MODELED FOR AMERICAN CHOPPER:

• Thje following parts of the American Chopper are modeled in solid-works and assembled together.
• Transmission Belt
• kickstand
• Front fender
• Rear fender
• Chain
• Oil Tank
• Pedal
• Front Wheel
• Rear Wheel
• Front Fork
• Chassis
• Engine
• Gas Tank

DESCRIPTION OF THE PARTS AND FEATURS USED:

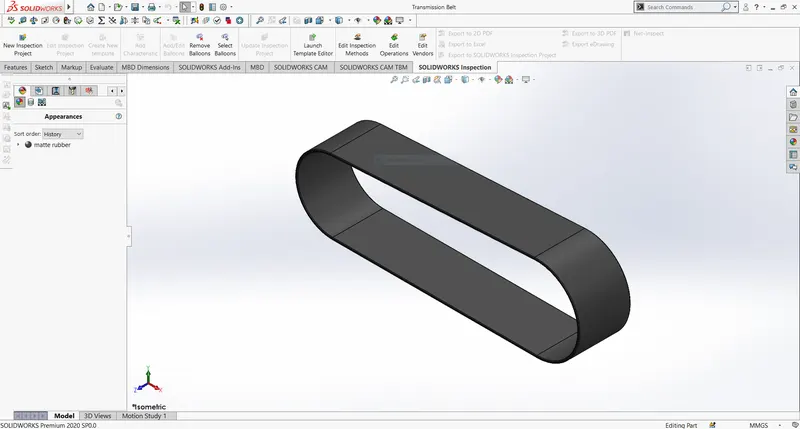

1. Transmission Belt:

It is a loop of flexible material used to link two or more rotating shafts mechanically. Most often parallel. Belts may be used as a source of motion, to transmit power efficiently or to tracl relative movement.

FEATURS USED:

• Boss Extrude
• Fillet

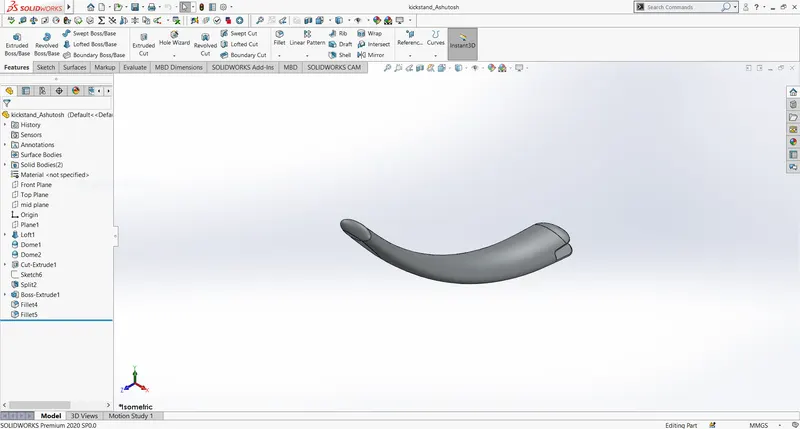

2. KICKSTAND:

A Kickstand is a device on a motorcycle that allows the bike to be kept upright without leaning against another object or the aid of a person. A kickstand is usually a piece of metal that flips down from the frame and makes contact with the ground. It is genrally located in the middle of the bike or towards the rear.

FEATURES USED:

• Loft
• Dome
• Cut exrtude
• Split
• Boss extrude
• Fillet

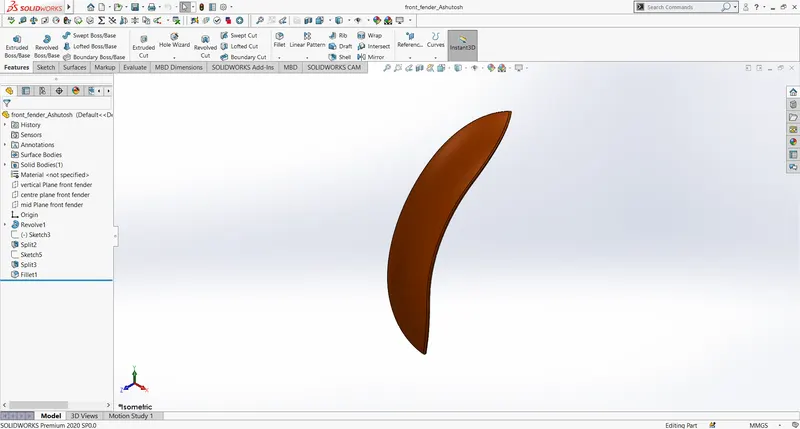

3. FRONT FENDER:

Fender is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire.

FEATURES USED:

• Revolved Boss
• Split
• Fillet
• Shell

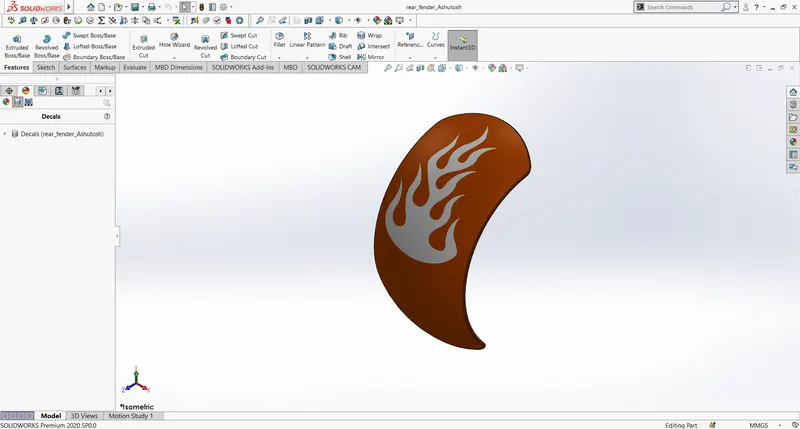

4. REAR FENDER:

Fender is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire.

FEATURES USED:

• Revolved Boss
• Split
• Fillet
• Shell

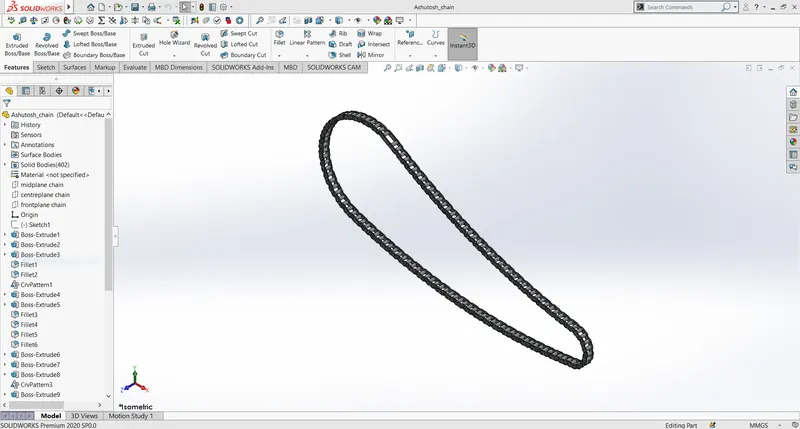

5. CHAIN

The chain on the bike, is responsible for transferring the mechanical power from the engine to the rear wheel of the bike.

FEATURES USED:

• Extruded boss
• fillet
• projected curves
• curve pattern
• mirror

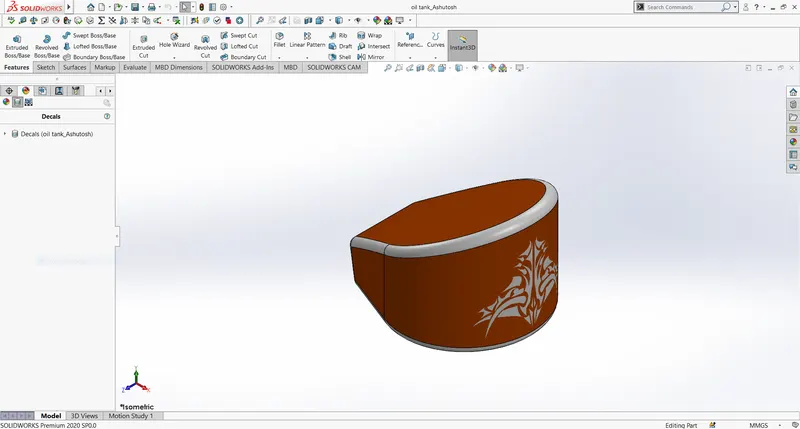

6. OIL TANK :

A oil tank has the purpose of storing lube oil to lubricate the engine parts to avoid wear and tear due to extreme heat.

FEATURES USED:

• Exrtruded boss
• fillet
• shell
• combine

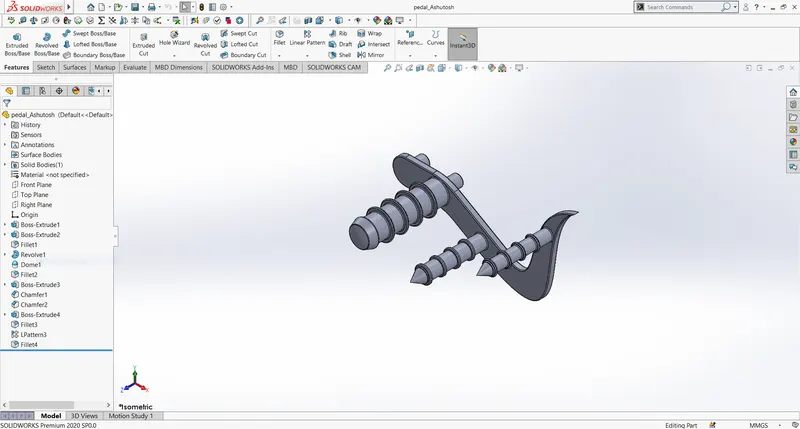

7. PEDAL:

A pedal has the function of shifting the gears to get the desired the speed from the engine and also apply the breaking force.

FEATURES USED:

• Extruded boss
• fillet
• revolved boss
• dome
• chamfer
• linear pattern

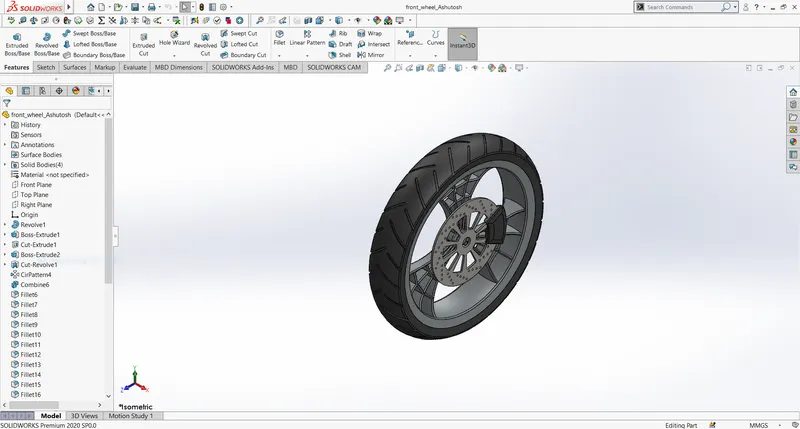

8. FRONT WHEEL

A wheel is a circular block of a hard and durable material where the center has been bored with a circular hole through an axle bearing about which the wheel rotates.

FEATURES USED:

• Extruded boss
• cut extrude
• revolved cut
• circular pattern
• combine
• fillet
• chamfer

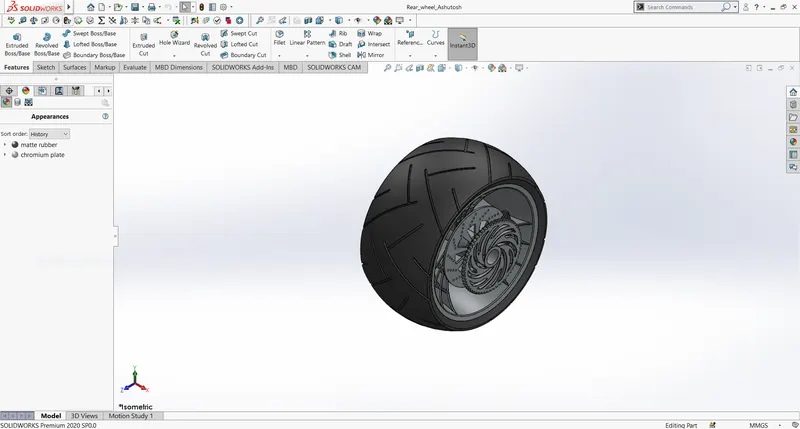

9. REAR WHEEL

A wheel is a circular block of a hard and durable material where the center has been bored with a circular hole through an axle bearing about which the wheel rotates.

FEATURES USED:

• Extruded boss
• cut extrude
• revolved cut
• circular pattern
• combine
• fillet
• chamfer

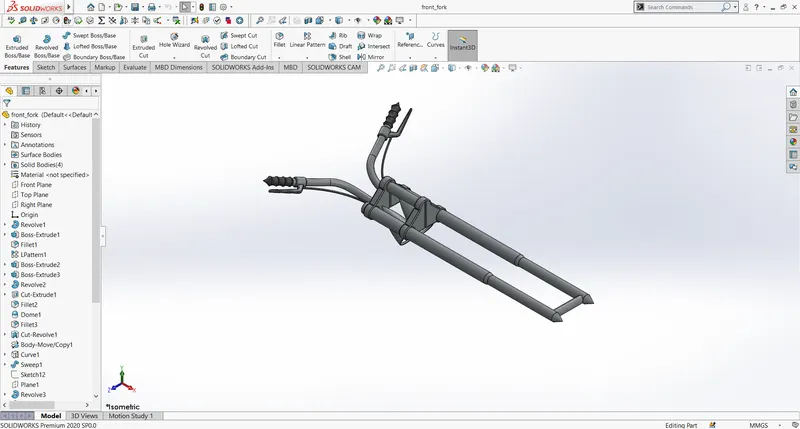

10. FRONT FORK

A bicycle fork is the part of a bike that holds the front wheel. A fork typically consists o two blades which are joined at the top by a frok crown.

FEATURES USED:

• Extruded boss
• revolved boss
• fillet
• extruded cut
• dome
• revolved cut
• swept boss
• project curve
• mirror
• combine

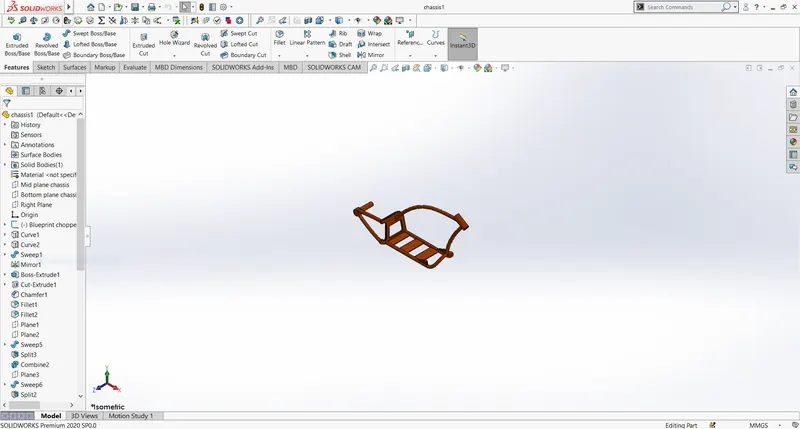

11. CHASSIS

The chassis mostly consits of hollow tube which serves as a skeleton for the gearbox, engine and front fork and rear wheel of a bike to be mounted.

FEATURES USED:

• swept boss
• project curve
• mirror
• extruded boss
• fillet
• extruded cut
• dome
• combine
• chamfer
• split
• revolved boss

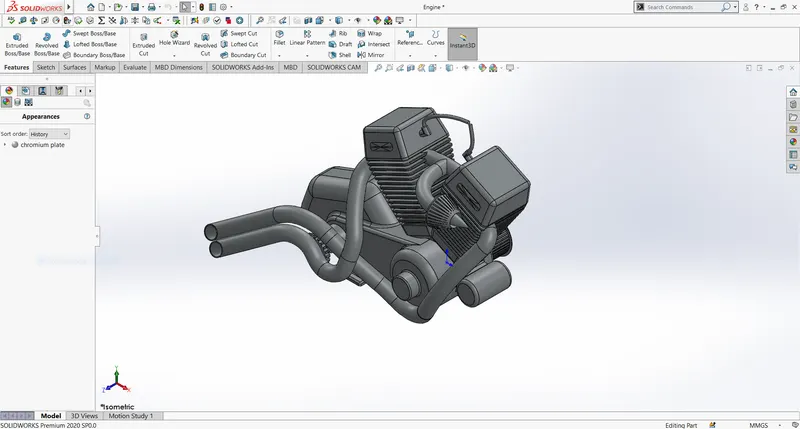

12. ENGINE:

An engine or motor is a machine designed to convert one form of energy into mechanical energy. Heat engines , like the internal combustion engne, burn a fuel to create heat which is then used to do work.

FEATURES USED:

• swept boss
• project curve
• mirror
• extruded boss
• fillet
• extruded cut
• dome
• chamfer
• split
• revolved boss
• linear pattern
• circular pattern
• composite curve

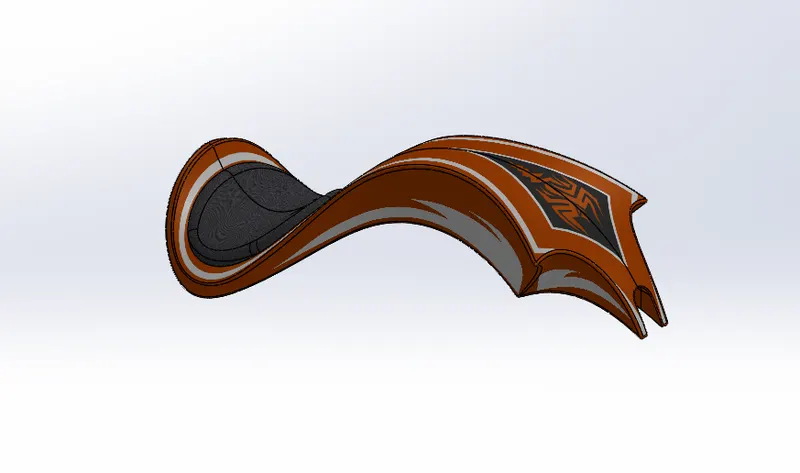

13. GAS TANK

A gas tank opr petrol tank is a safe container for flammable fluids. though any storage tank for fuel may be so called, the term is typically applied to part of an engine system in which the fuel is stored and propelled or released into the an engine.

FEATURES USED:

• Surface loft
• |Surface knit
• Project curve
• Fillet
• Swept surface
• Split
• Mirror
• Swept cut
• plane

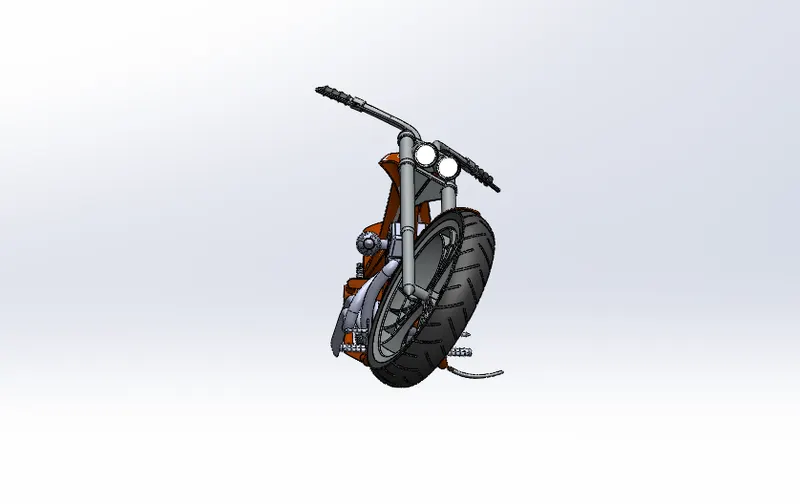

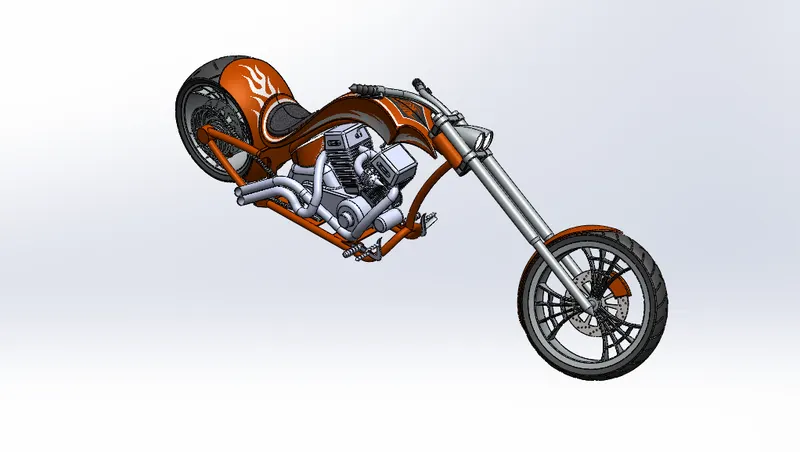

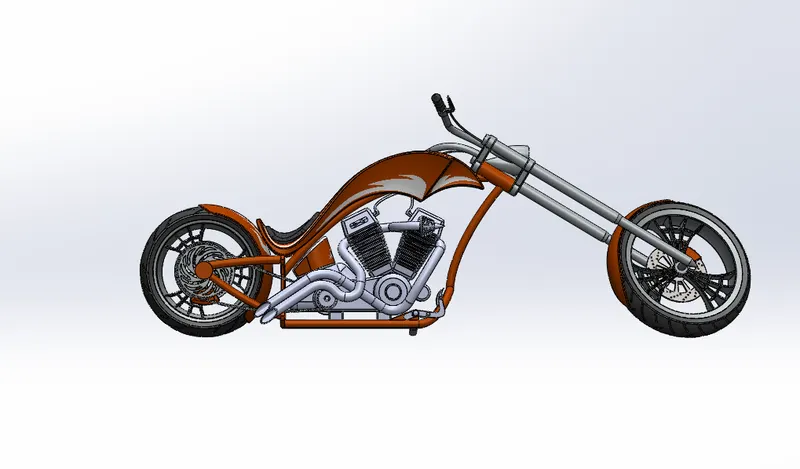

ASSEMBLY OF AMERICAN CHOPPER

• MAIN ASSEMBLY
• Initially, the Chassis part is inserted in the assembly by using insert parts in the option. After that the part is inserted in the assembly environment and clicked okay to fix the chassis.
• After that the other parts of the chopper are inserted into the assembly and given positive mate conditions.
• FEATURES USED TO ASSEMBLE AMERICAN CHOPPER:
• Mates
• Insert part

Mates:

Mates create geometric relationships between assembly components. As we add mates, we define the allowable directions of linear or rotational motion of the components. We can move a component within its degree of freedom, visualizing the assembly behaviour.

Insert parts:

We can insert the other componetnts whch need to be mated with the prime fixed component.

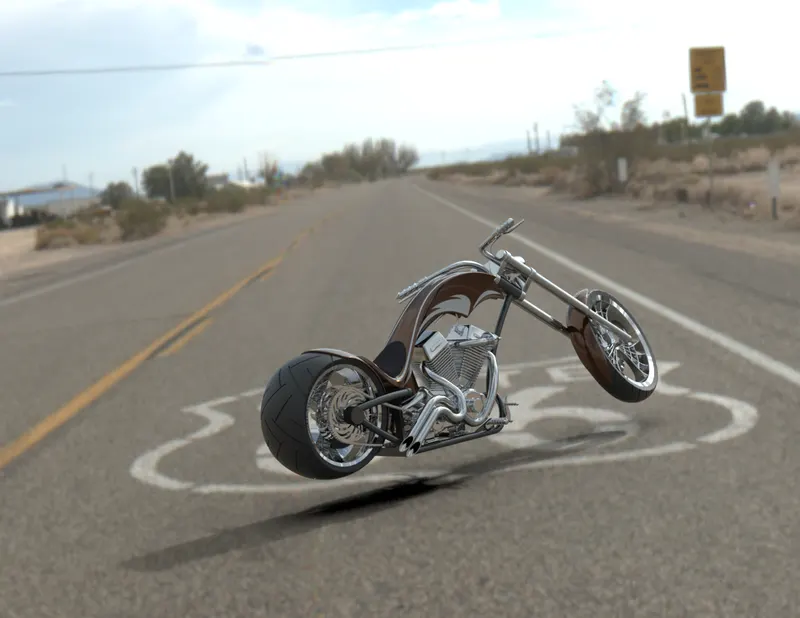

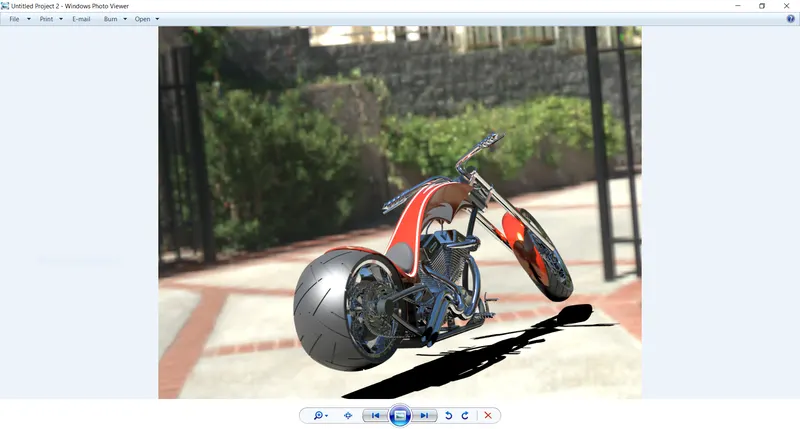

RENEDERING :

1. Rendering is the process of creating realastic images of the photorealistic model with the environment.
2. Rendering has been done in two ways in solid works. The following are the two ways.

• Photo view 360
• Solid works visualiz

3. In the photo realistic model some of the mate conditions and positions are changed to render realistic models.

4. Then the photo realisitic model is rendered into realistic images with different views.

5. Here I have used both the photo view 360 and visualise for rendering the assembled model.

CONCLUSIONS:

• The parts of the American Chopper are modeled.
• The perts are inserted into the assembly environment and American Chopper is assembed.
• The photo realistic image was rendered with the use of the photo view 360 and solid works Visualise
• I wold like to thank my mentor Mr. Soundar Rajan for helping me with the challenges i faced while modelling this beautiful beast.
