2021
	SKILL-LYNC car hood design

By

ABHIJNA K

CHAPTER 1

INTRODUCTION

The hood or bonnet is the hinged cover over the engine of motor vehicles. Hoods can open to allow access to the engine compartment for the maintenance and repair. In design perspective hood should meet some specific conditions like pedestrian safety, hood head zone for the lock striker, force distribution when subjected to frontal collision, manufacturability etc.

A typical hood assembly consists of hood outer panel, inner panel, latch and striker, hinge, hood stay. Hood stay is an apparatus for supporting the engine hood of a moto vehicle in its open position. The purpose of opening the engine hood is for inspecting engine room, replenishing cooling water and engine oil, changing parts and making repairs etc. Common types of hood stays are Support Rod and Gas Stay. Support rods are manually operated and they are cost effective and simple to design whereas gas stays require no man power but they are costly. Hood are typically made out of the same material as the rest of the bodywork. This may include steel and aluminium. Deep drawing, hemming, blanking and piercing are the common sheet metal operations that are used in manufacturing hoods in automotive industries.

OBJECTIVES

• To design hood using NX-Cad sheet metal applications.
• To familiar about the usage of tools while designing a hood.

DESIGN CONSIDERATIONS FOR CAR HOOD:

• Head clearance zone:

Head clearance zone is the clearance such that when the hood is in fully open condition it does not hurt the head of the person that is stand next to the hood, this is controlled by the opening angle of the hood. the opening angle of the hood is decided for the region the car is manufactured. Some region may have people with average height of 5.5 ft and another region may have people with average height of 6 ft. So deciding the right opening angle for the hood is an important criteria.

• Consideration of Noise Vibration Harshness (NVH):

Noise, vibration, and harshness (NVH), also known as noise and vibration (N&V), is the study and modification of the noise and vibration characteristics of vehicles, particularly cars and trucks. While noise and vibration can be readily measured, harshness is a subjective quality, and is measured either via "jury evaluations, or with analytical tools that can provide results reflecting human subjective impressions.

• Pedestrian safety:

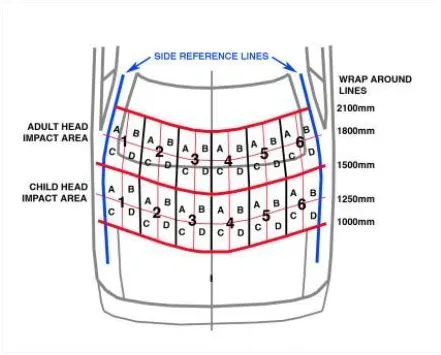

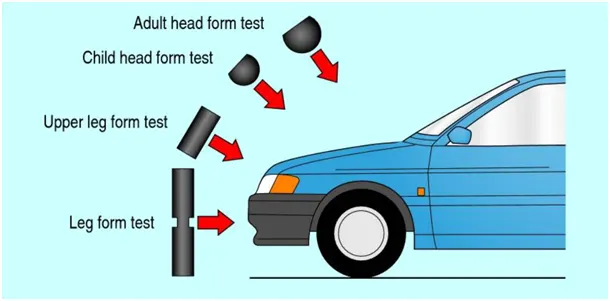

Pedestrian safety is important consideration while designing the hood. According to the wrap around distance and pedestrian head impact zone hood is designed. Safety is the most important criteria in automobile designs which concentrates on both pedestrian and occupant safety. The pedestrians are the most vulnerable road users and are at high risk of traffic accidents. The major reason for the fatality of the pedestrian in traffic accident is due to the head injury resulting from the hard impact of the head against the stiffer hood or the ground. This leads to the necessity of new inner hood panel which is less stiffer and pedestrian friendly. The area at the head impact zone is made softer to reduce the impact force during accident.

Figure 1.2.1: Design considerations 1.

Figure 1.2.2: Design considerations 2.

• Design parameters

Hood Thickness Information

Outer Panel Thickness = 0.75mm

Inner Panel Thickness = 0.75mm

Reinforcement Thickness=1.5mm

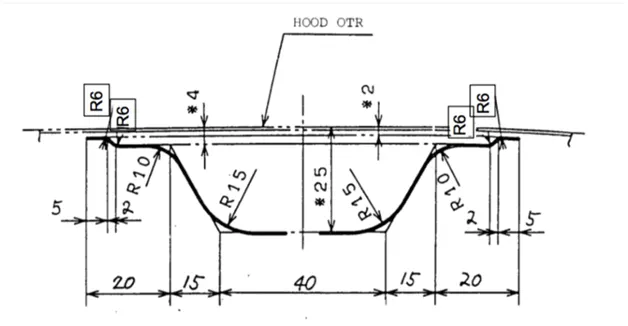

Master session:

Figure 1.3: Master session.

CHAPTER 2

COMPONENTS

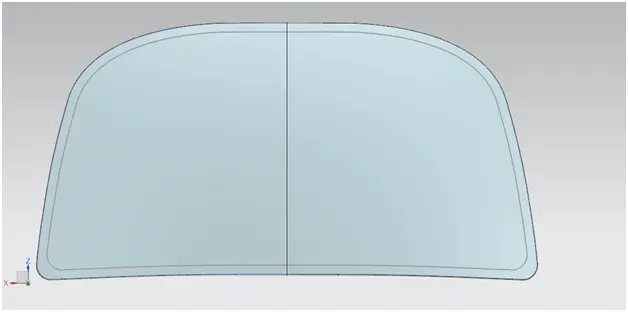

• Hood outer pannel:

Outer panels are the aesthetic elements of a car. It is the styling team who provides the skin for the outer panel. The shape, position and size of the hood should satisfy the safety norms. So while designing the hood we should give more importance to pedestrian safety. The outer panel is attached to the inner panel by hemming. So, it is necessary to provide required hemming flange and reliefs for the hemming operation. We also provide mastic sealants between outer panel and inner panel to reduce vibration.

Figure 2.1: Hood outer pannel.

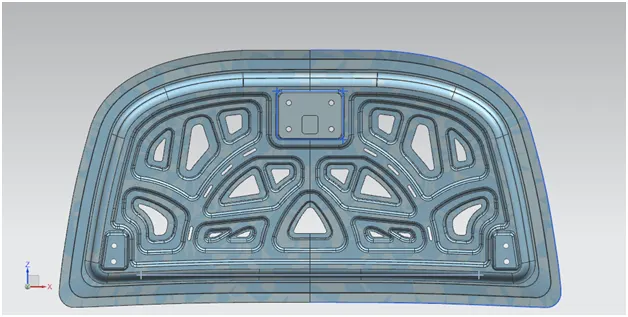

• Hood inner pannel:

Inner panel is the part that gives strength and rigidity to the outer panel. The master section represents the initial emboss shape and-size. Then we provide the emboss for the latch and hinge elements after fixing the location.

Figure 2.2: Hood inner pannel.

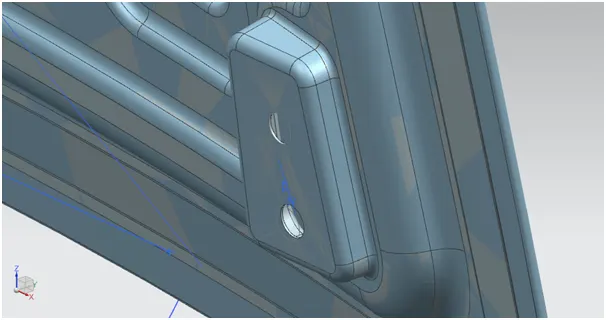

• Reinforcement:

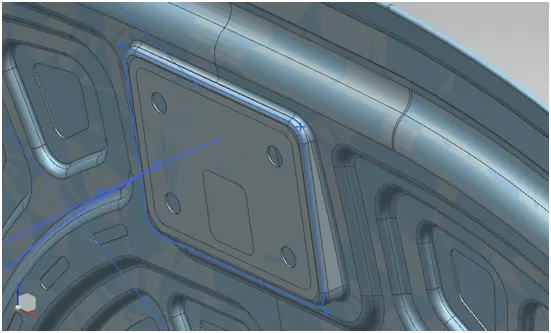

Reinforcements are provided according to the design requirements. Mainly it is provided at the hinge and latch regions to improve the strength locally. Usually thickness of reinforcements will be higher than that of the inner panels and the value varies according to cost and requirement. According to the design requirement here it is given 1.5mm thickness to both hinge and latch reinforcements.

Figure 2.3: Reinforcement.

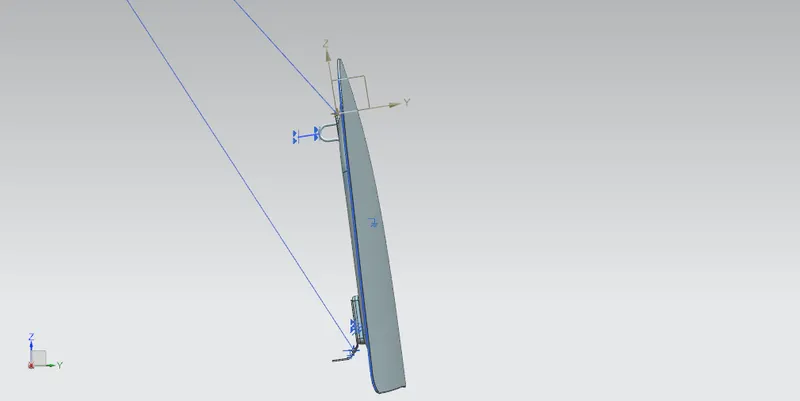

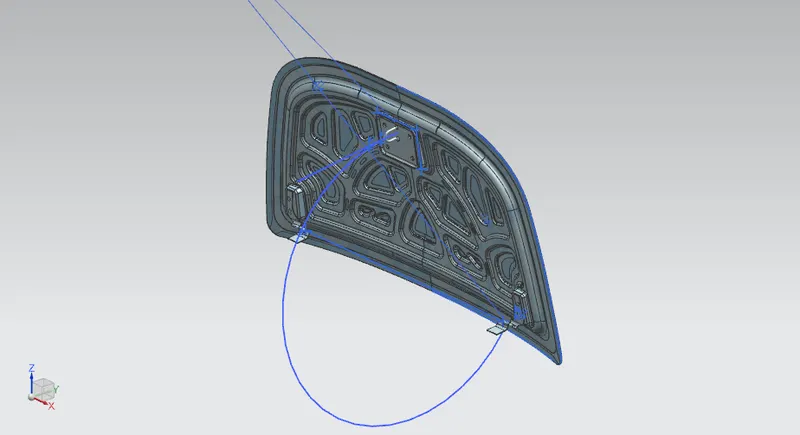

• Latch Trajectory:

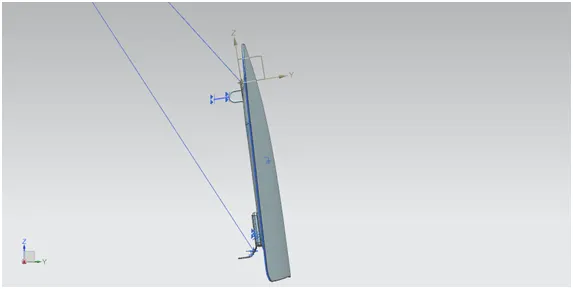

Latch trajectory is given by the circle drawn from the hinge axis point. Hinge axis point is the centre point of the hinge axis. First, we can fix either the latch or the hinge. If we havfixed the hinge position then we should plot the Trajectory circle for the latch. For proper mating condition the striker axis through the tip of the striker should be tangential to the latch trajectory.

Figure 2.4: Latch trajectory.

• Emboss:

We provide different embosses throughout the inner panel. We can increase the stiffness of the inner panel through these embosses. The shape and size of the embosses also determines the direction of the force distribution resulted from frontal collision. The force should be always distributed away from the passengers. Here in the figure the embosses are designed in such a way that the force is directed to either sides of the car.

Figure 2.5.1: emboss 1.

Figure 2.5.2: Emboss 2.

• Mastic Sealant Data:

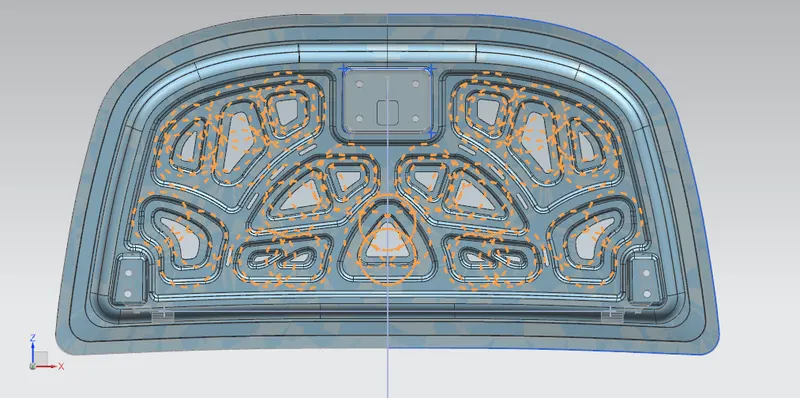

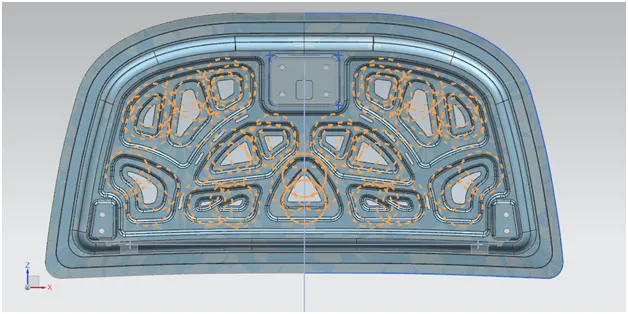

Hood commonly possess large surface area and hemming can only be provided through its boundary. We cannot use other joining techniques like welding, riveting etc because they leave marks on the outer panel which spoil its aesthetic appearance. So, mastic sealants are used to stick the inner surfaces of outer panel and inner panel. Mastic sealants are elastic compound that behave like rubber. It is applied between the inner and outer panels at specified spots. Each spot of mastic sealants has its effect around a circular region of 80mm diameter. Thus, the mastic points are arranged in such a way that it covers the areas away from the hemming which are more vulnerable to vibrate.

Figure 2.6: Mastic sealant data.

• Hemming:

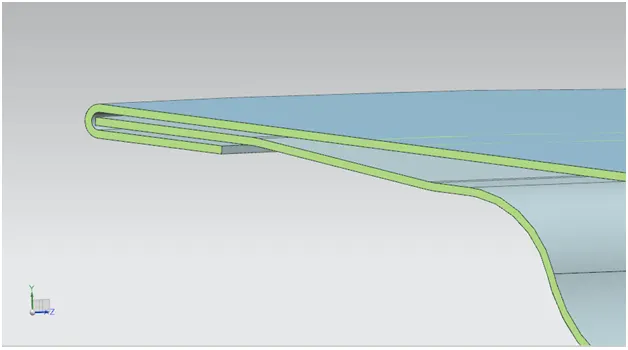

Hemming is a forming operation in which the edges of the sheet are folded or folded over another part in order to achieve a tight fit. Normally hemming operations are used to connect parts together, to improve the appearance of a part and to reinforce part edges. In car part production, hemming is used in assembly as a secondary operation after deep drawing, trimming and flanging operations to join two sheet metal parts (outer and inner) together. Typical parts for this type of assembly are hoods, doors, trunk lids and fenders. The accuracy of the hemming operation is very important since it affects the appearance of the surface and surface quality. Material deformations, which occur during the hemming process, can lead to dimensional variations and other defects in parts. Typical hemming defects are splits or wrinkles in the flange, material overlaps in the corner areas or material roll in. It is important to provide required reliefs at the corners.

There are two types of hemming operations:

• Conventional die Hemming
• Roll hemming

Figure 2.7: Hemming.

CHAPTER 3

MODEL IMAGES

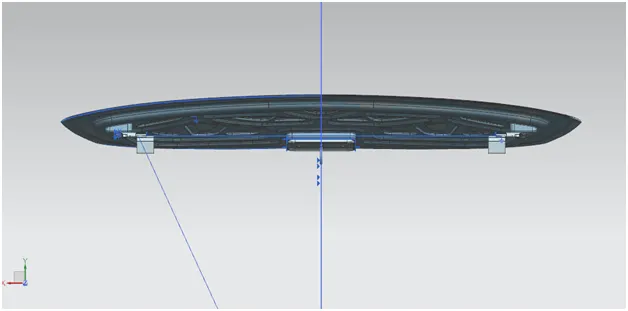

THE DIFFERENT VIEWS OF HOOD ASSEMBLY:

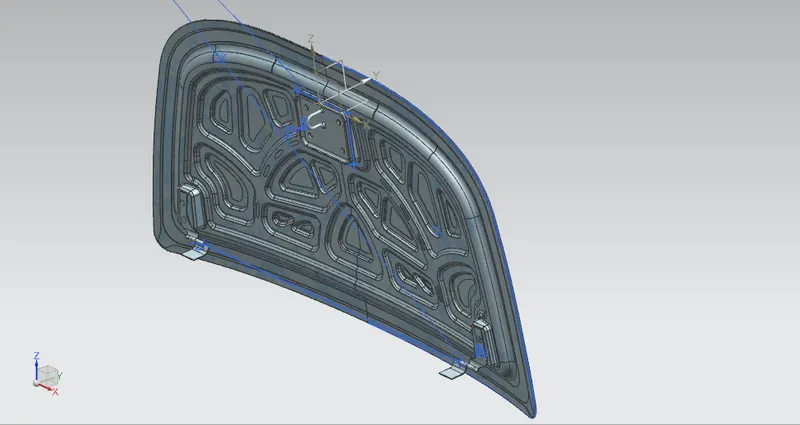

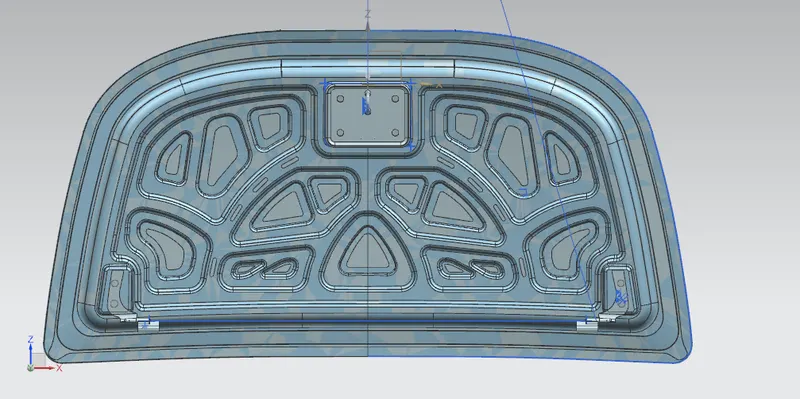

3.1. Hood assembly 1:

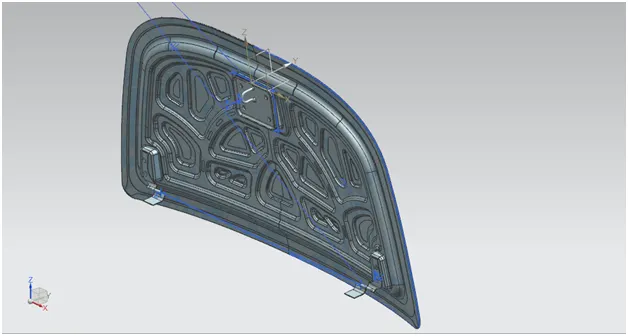

Figure 3.1: Hood assembly 1.

3.2. Hood assembly 2:

Figure 3.2: Hood assembly 2.

3.3. Hood assembly 3:

Figure 3.3: Hood assembly 3.

3.4. Hood assembly 4:

Figure 3.4: Hood assembly 4.

CHAPTER 5

CONCLUSSION

In this challenge I learned to design the hood inner panel, outer panel with the help of master sketch and the styling surface. And also learnt the assembly of Hood inner panel, Outer panel, and the reinforcements like latch and hinge assembly
