	SKILL-LYNC         ADVANCED SHEET METAL DESIGN OF CASING USING SIEMENS NX











By

ABHIJNA K





CHAPTER 1

INTRODUCTION



            NX is one of the world’s most advanced and tightly integrated CAD/CAM/CAE product development solutions. Spanning the entire range of product development, NX delivers immense value to enterprises of all sizes. It simplifies complex product designs, thus speeding up the process of introducing products to the market.

          NX formerly known as "UNIGRAPHICS" is an advanced high end CAD/CAM/CAE, which has been owned since 2007 by Siemens PLM Software. It is used among other tasks for Design, Engineering analysis, Manufacturing.





• OBJECTIVES

• To design casing using NX-Cad sheet metal applications.
• To familiar about the usage of tools while designing a casing.





CHAPTER 2

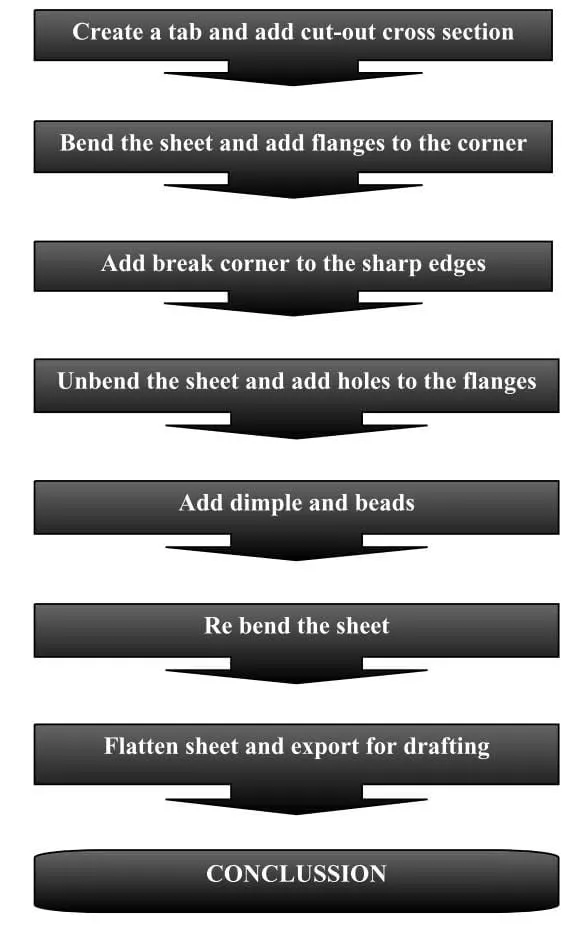

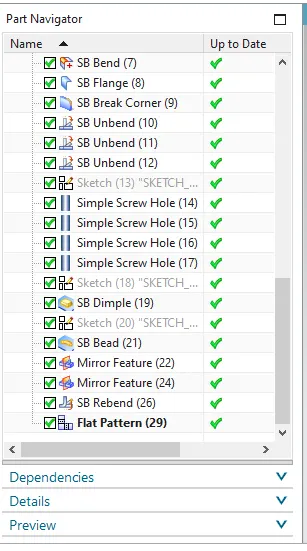

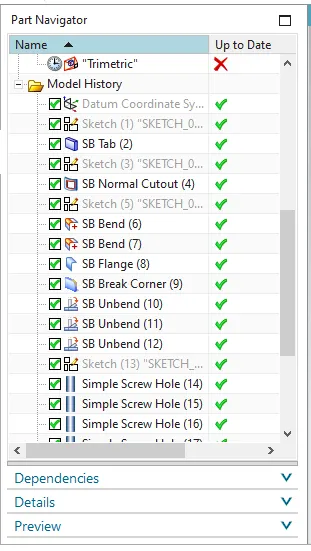

METHODOLOGY





CHAPTER 3

FEATURES

• Sketch:

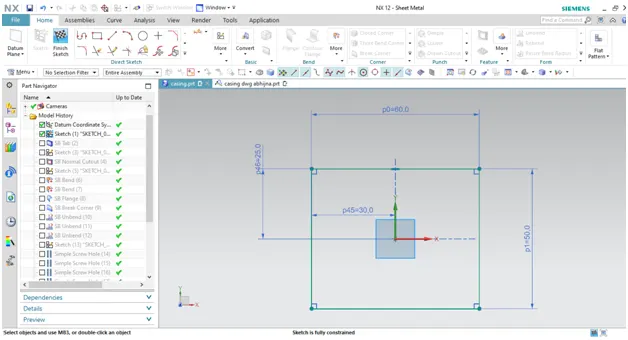

            The sketch is the fundamental base element for any feature in the design of any sheet metal component. The very first step is to create sketch which is then used to create tab or the base feature.



Figure 3.1: sketch.



• Tab:

 The tab is the very first feature in any sheet metal design process. All the other feature of the sheet metal in Siemens NX are based on the base feature or tab. A tab is created after sketch is created in any of the plane. The tab is always the parent feature for other feature following it.

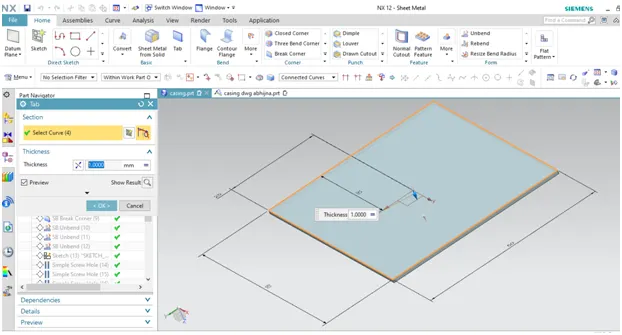

Figure 3.2: Tab.



• Bend:

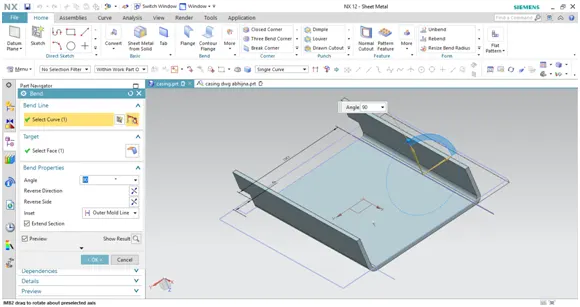

              Bend feature is added wherever the bend in the sheet metal required. A sketch is required to create a bend. It can be an open profile and it can be either a straight line or curve.

Figure 3.3: Bend.



• Flange:

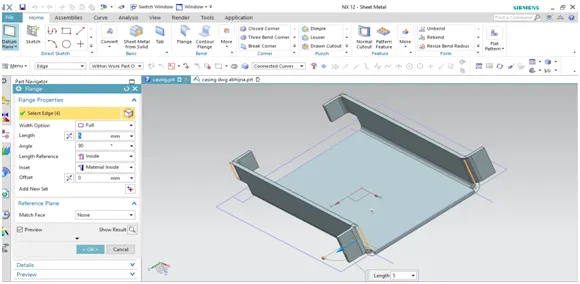

             The flange is an additional face created automatically from any edge of the existing sheet metal component. It is additional material connected to any face or edge which is bent from the respective face or edge.



Figure 3.4: Flange.



• Break corner:

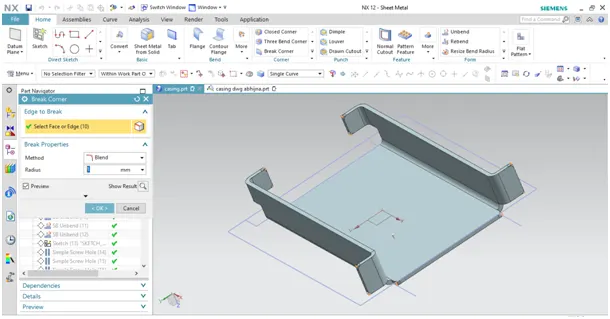

             Break corner feature breaks the sharp edge in the corner and make it round or adds chamfer. It prevents the fracture breaking of the sharp corners.



Figure 3.5: Break corner.



• Unbend:

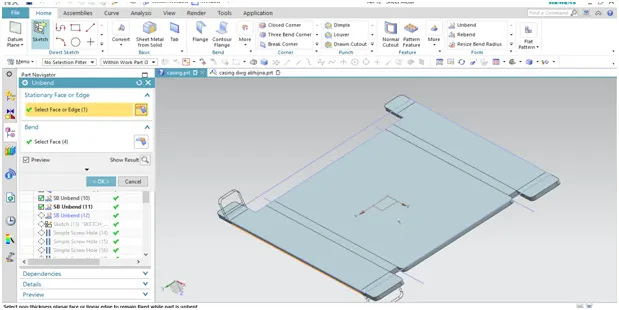

              Unbend is the very powerful and useful tool in the Siemens NX. It allows all the bend made by various feature to the unbend state at once.



Figure 3.6.1: Unbend.



• Hole:

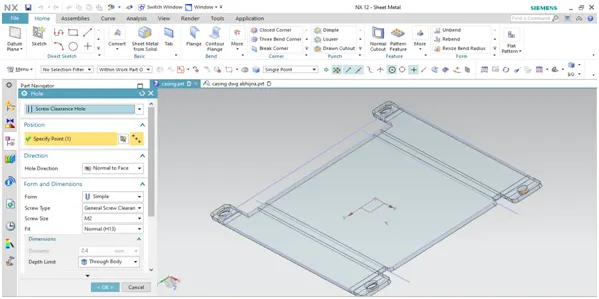

              Hole feature in the sheet metal workbench is just like in the model workbench. It can be created simple, counter bore, counter sink or tapered holes.



3.7.1: Hole.



• Dimple:

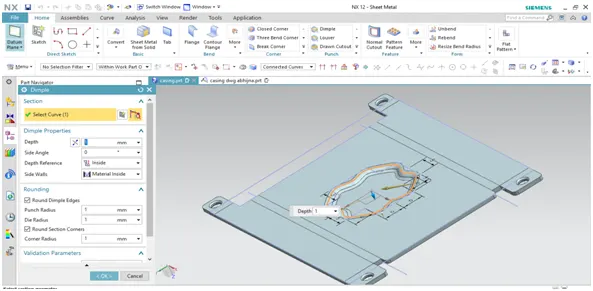

             Dimple in the sheet metal component provides more strength and rigidity to the flat structure of the component. Dimple features is created using the sketch created in any face or any flange in the sheet metal components.



Figure 3.8: Dimple.



• Beads:

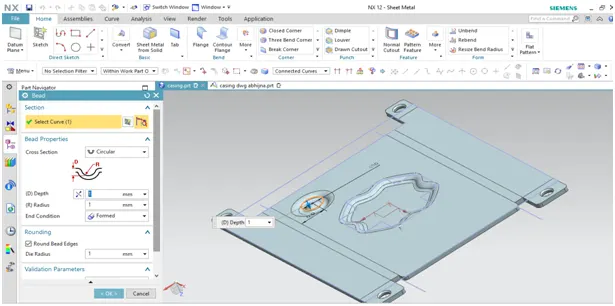

              Beads are the features added in the sheet metal components in order to increase the stiffness of the component. Beads require a sketch in order to apply the feature. It can be either open or closed profile.

Figure 3.9: Beads.



• Mirror feature:

              Mirror feature is used to make symmetry by selecting a feature in respect of user defined plane or sketch.

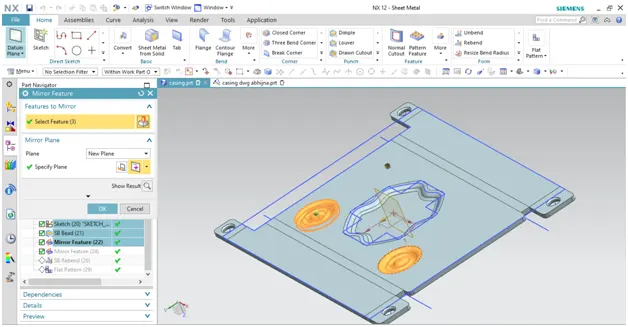

Figure 3.10: Mirror feature.



• Re bend:

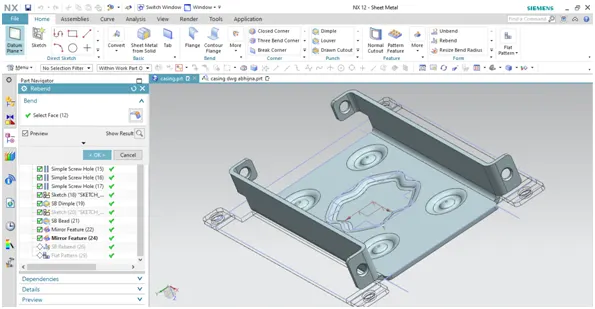

              All feature added after the unbend feature are added in the unbend state itself. After the addition of sketches and additional features are completed, the sheet metal components has to be re bend to the required position.

Figure 3.11: Re bend.



• Flat pattern:

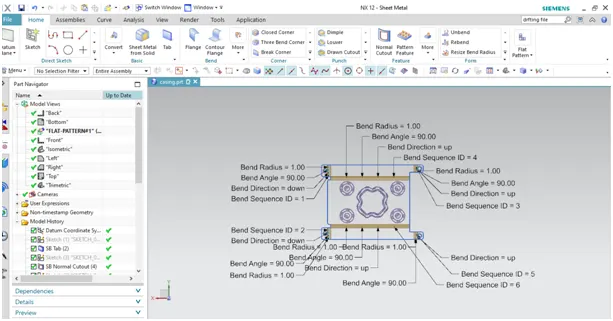

               Flat pattern is the representation of the entire sheet metal component in the 2D form of the flat sheet metal with all the additional feature in the form of lines or edges. It removes the possible errors such as interference or collision with in the same component.

Figure 3.12: Flat pattern.



• Drafting:

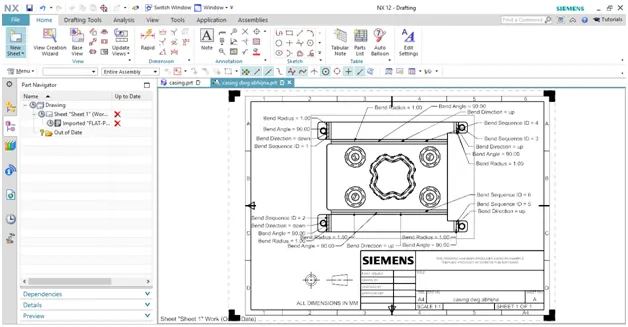

              After the design is complete, the execution or the manufacturing of the component requires a technical drawing of the component with the provided scale and with accuracy.



Figure 3.13: Drafting.





CHAPTER 4

MODEL IMAGES



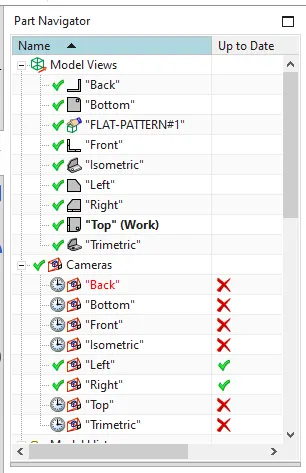

THE DIFFERENT VIEWS OF ADVANCED SHEET METAL DESIGN OF CASING:



4.1. Front view of casing:

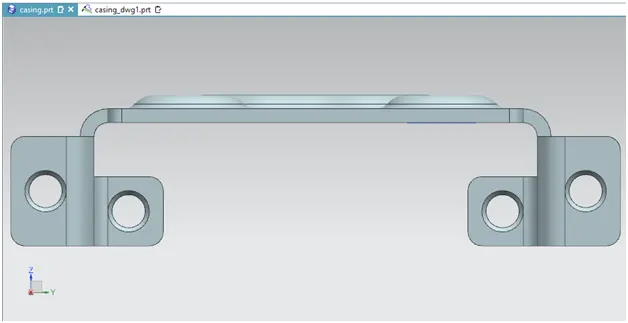

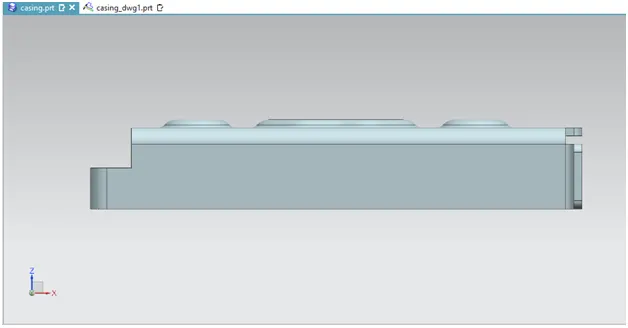

Figure 4.1: Front view.



4.2. Right view of casing:

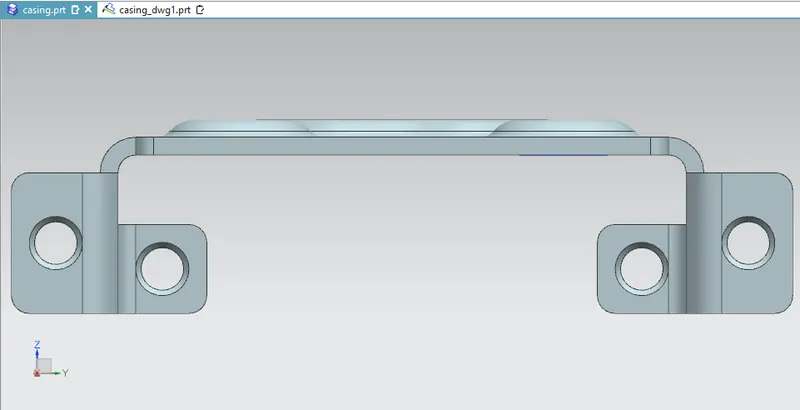

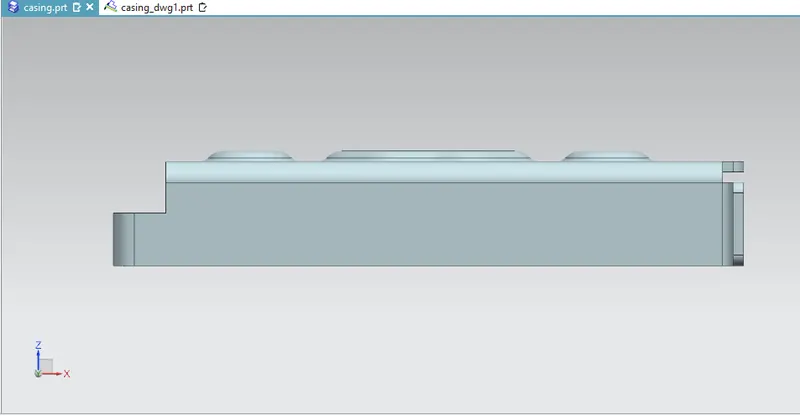

Figure 4.2: Right view.

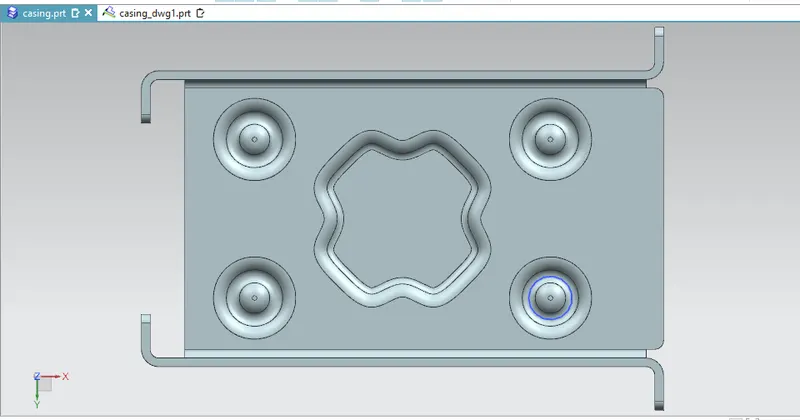

4.3. Top view of casing:

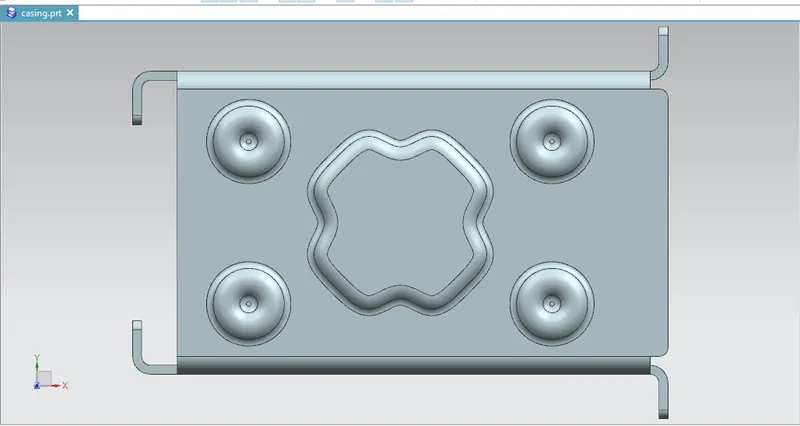

Figure 4.3: Top view.



4.4. Bottom view of casing:



Figure 4.4: Bottom view.



4.5. Isometric view of casing:



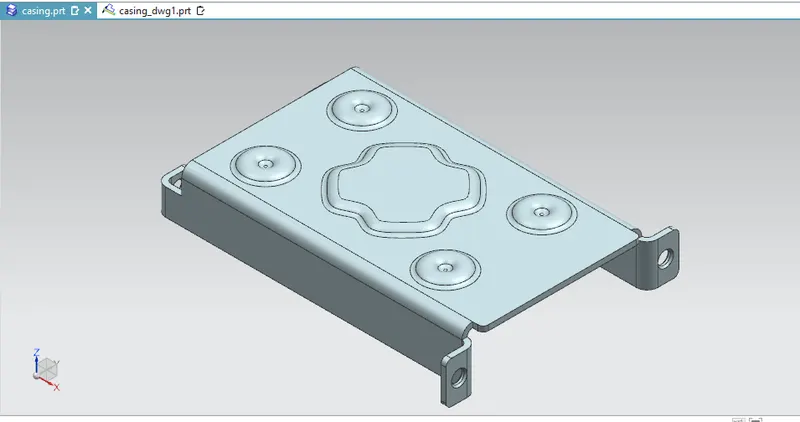

Figure 4.5: Garage door





CHAPTER 5

RENDERING IMAGES

SOME OF THE RENDERING IMAGES OF CASING:

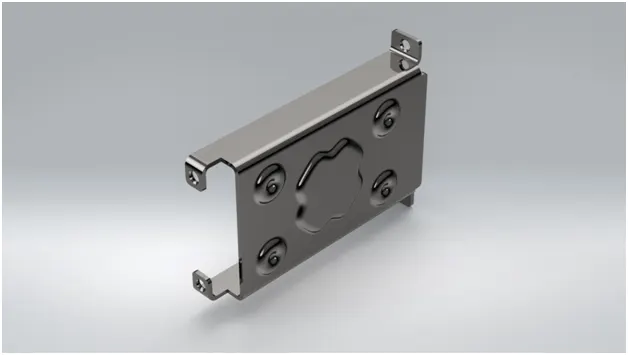

Figure 5.1: Rendering image 1





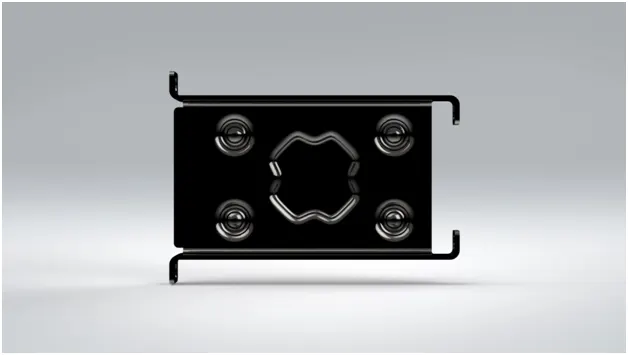

Figure 5.2: Rendering image 2





Figure 5.3: Rendering image 3





Figure 5.4: Rendering image 4





CHAPTER 6

CONCLUSSION

          In this project, a sheet metal casing is successfully designed in the sheet metal work piece of Siemens NX
