Frequency Analysis of a rotating shaft using Solidworks

AIM:  To conduct frequency analysis on rotating shafts and find the resonant frequencies and 5 modal shapes respectively THEORY: All objects have a natural frequency or set of frequencies at which they vibrate. The quality of the sound produced by a vibrating object is dependent upon the natural frequencies…

    • Amith Anoop Kumar

      updated on 16 Apr 2021

    AIM:  To conduct frequency analysis on rotating shafts and find the resonant frequencies and 5 modal shapes respectively

    THEORY:

    All objects have a natural frequency or set of frequencies at which they vibrate. The quality of the sound produced by a vibrating object is dependent upon the natural frequencies of the sound waves produced by the objects. Some objects tend to vibrate at a single frequency and they are often said to produce a pure tone. For example a flute tends to vibrate at a single frequency, producing a very pure tone.

    PROCEDURE:

    The flywheel shaft was designed in SolidWorks according to our set of dimensions.

    Frequency simulation was selected

    Alloy Steel material is applied to all parts

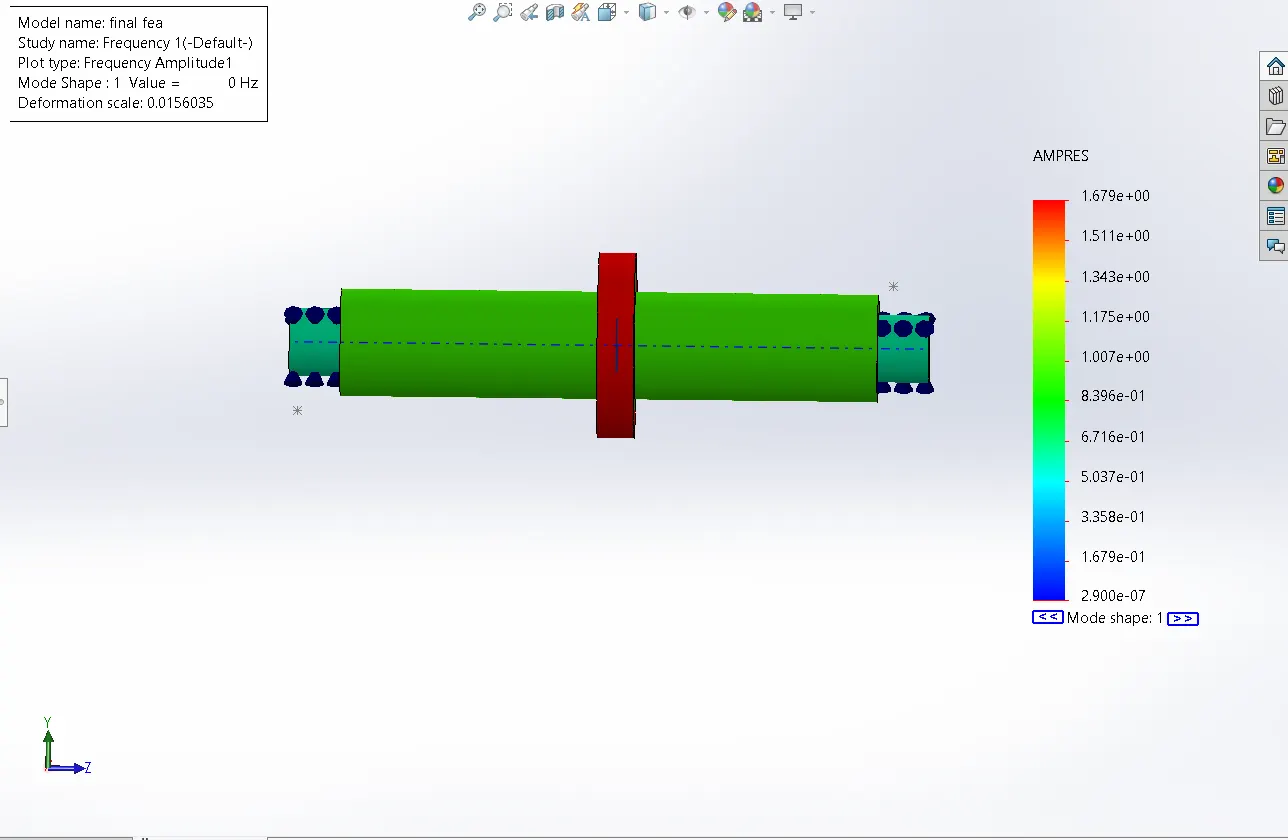

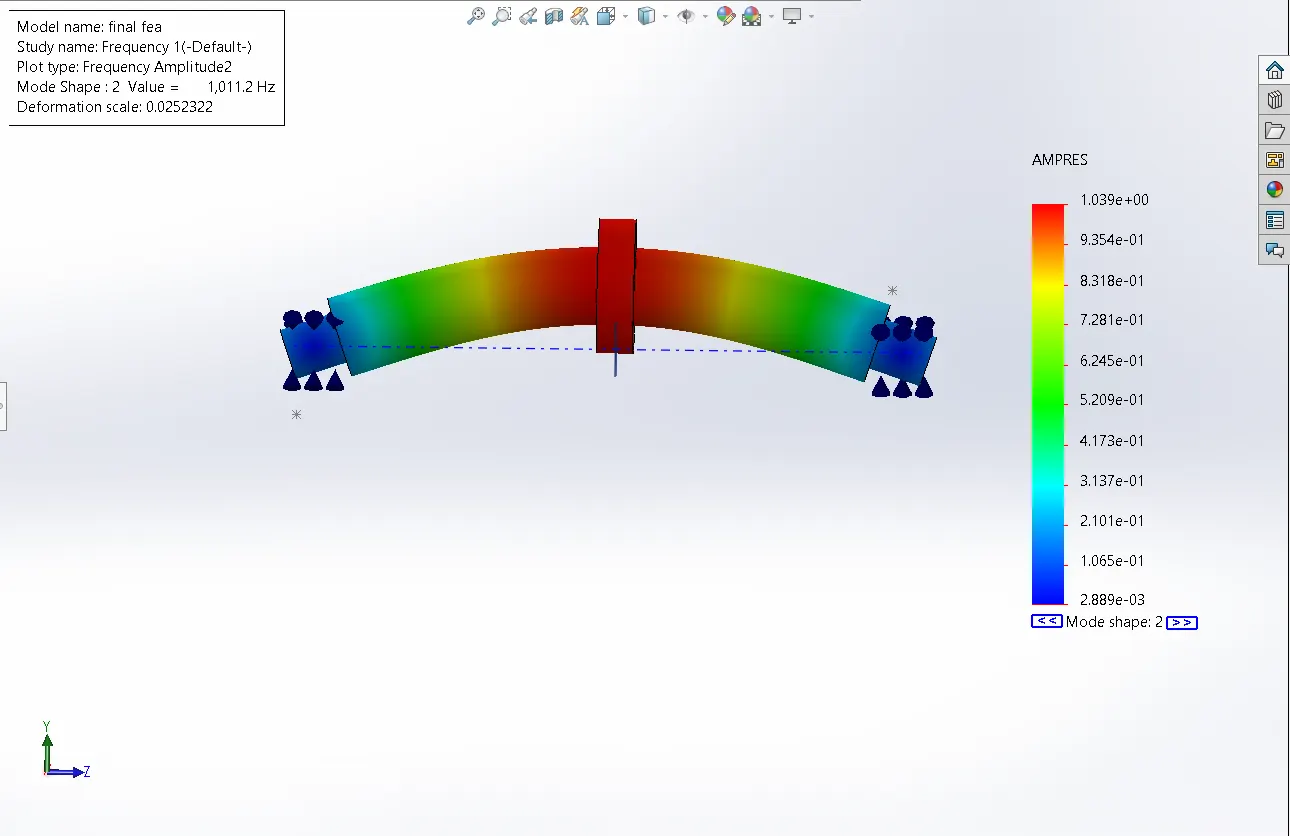

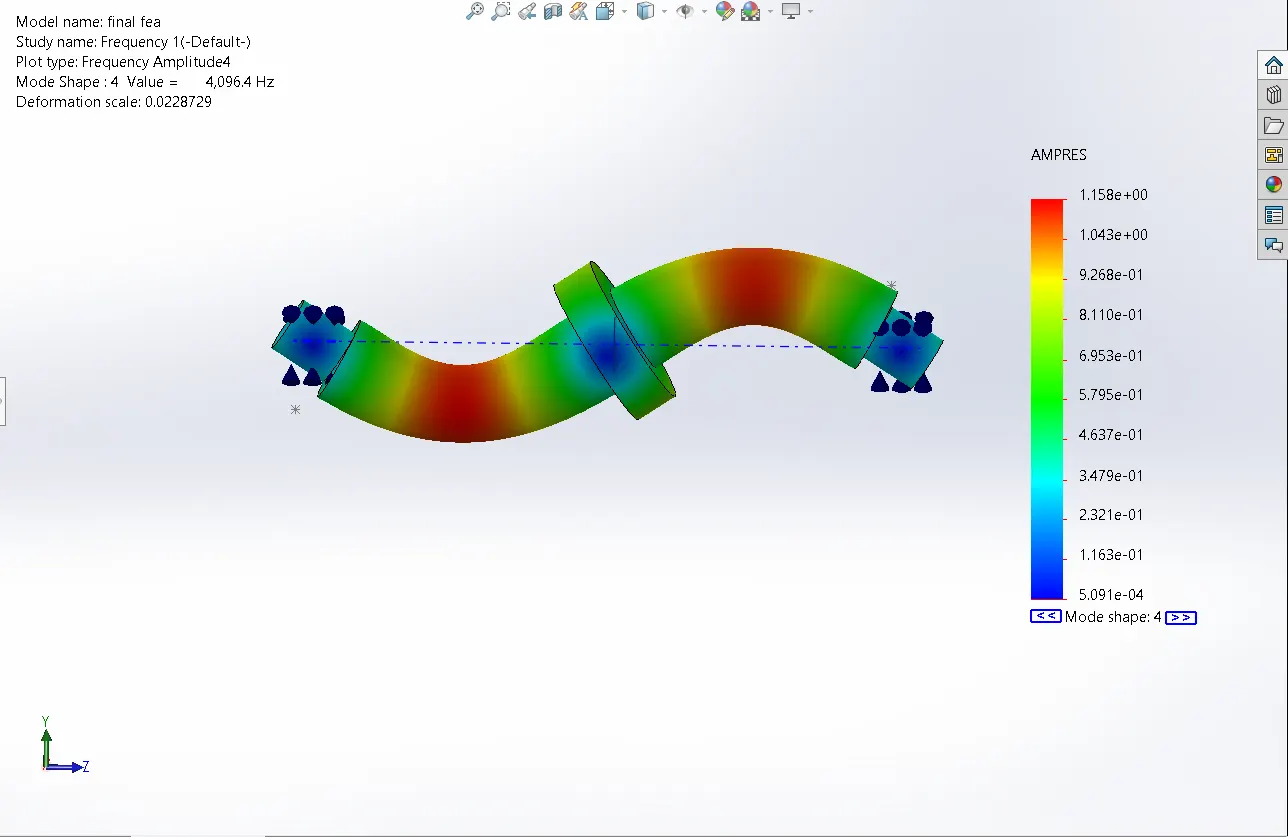

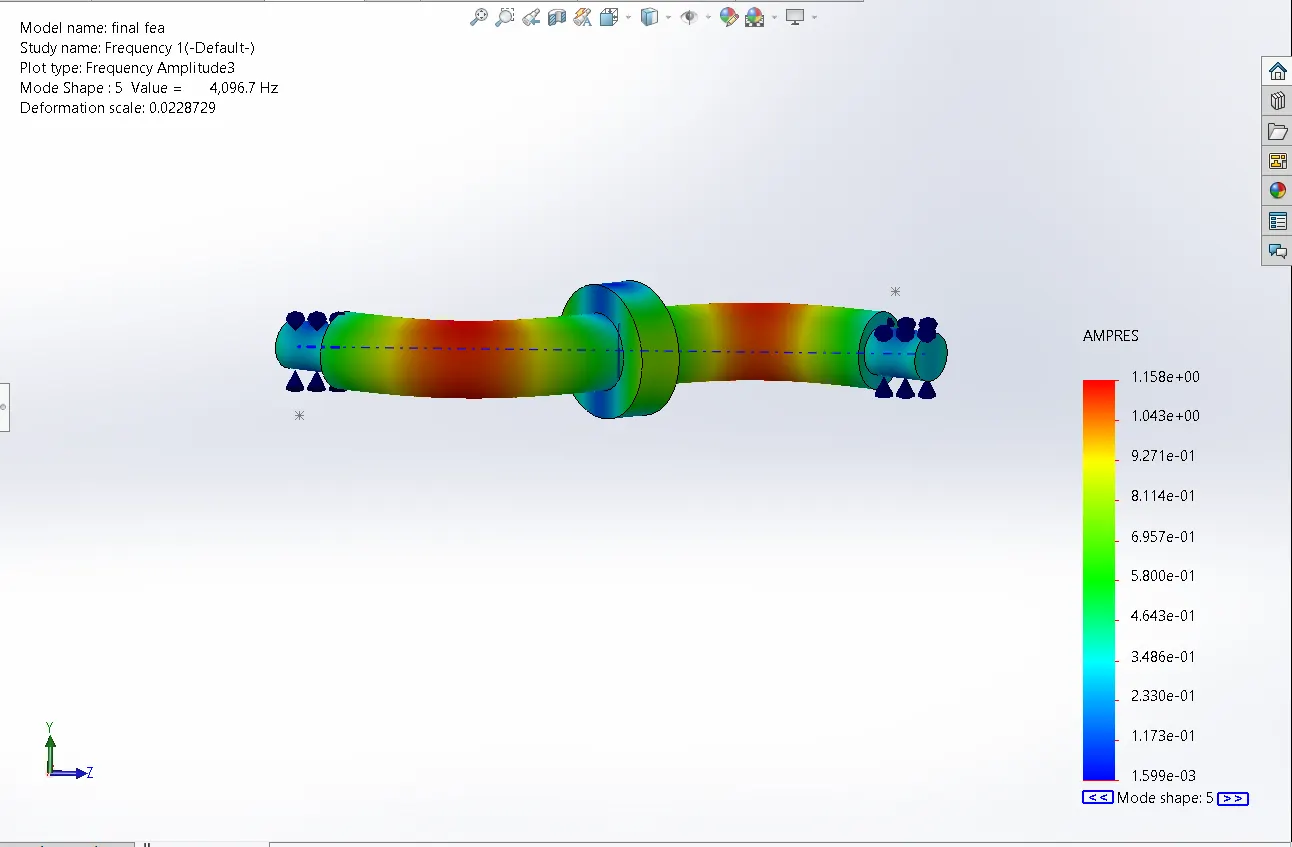

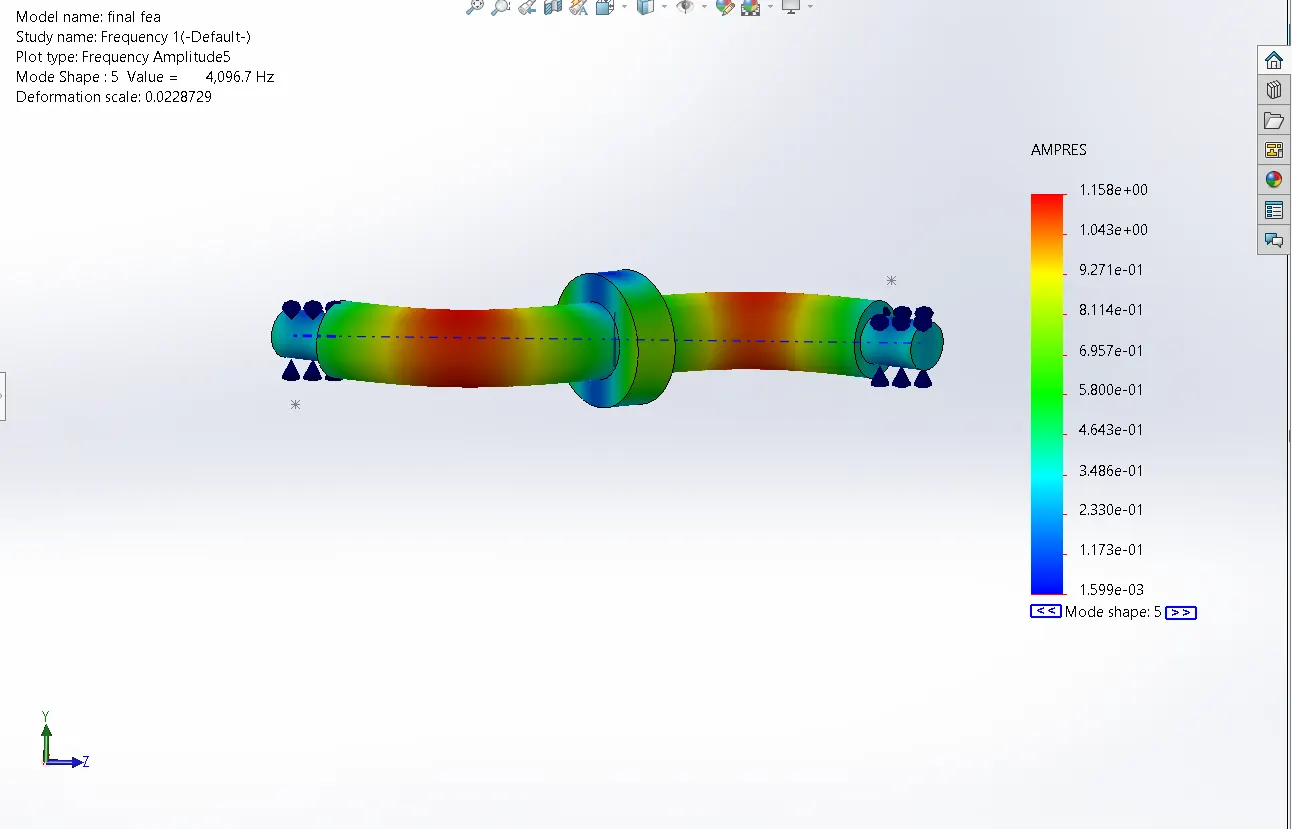

    A frequency analysis was performed for 5 modes and respective outputs were obtained



    RESULTS:

    CONCLUSIONS:

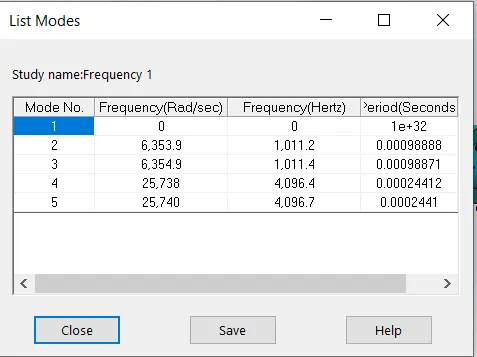

    The shown are the natural frequencies of the first 5 modal shapes. Any loading conditions resulting in vibrations of above frequencies tend to damage of the object hence frequencies above this range should be maintained
