Fender Design - Wheel Arch Challenge

Report On

Clearance Check for Front Fender And Wheel To The European Regulation.

For the European regulations

These four points should clear a safety gap of 10mm.

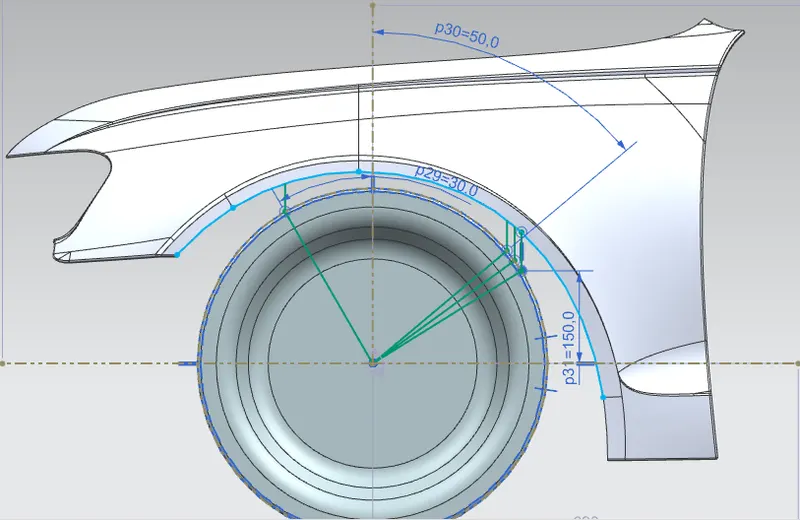

The points will be at

1st at 30 deg forward from the wheel center on wheel outer dia

2nd at 50 deg rearword.

3rd at 150mm above wheel center, intersecting at wheel outer dia.

And 4th at bisecting last two points on the wheel outer dia.

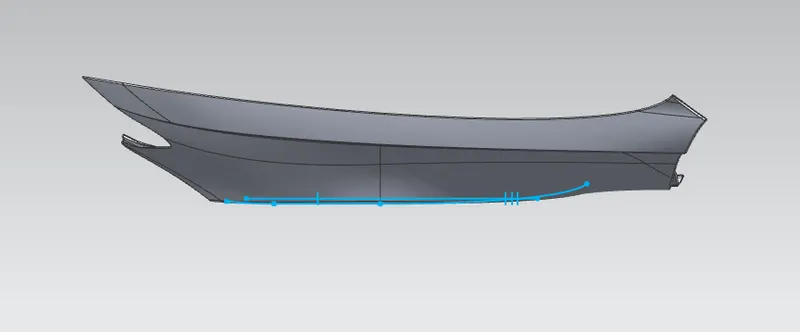

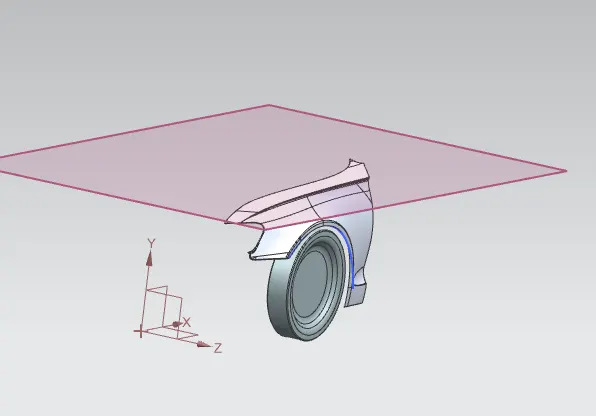

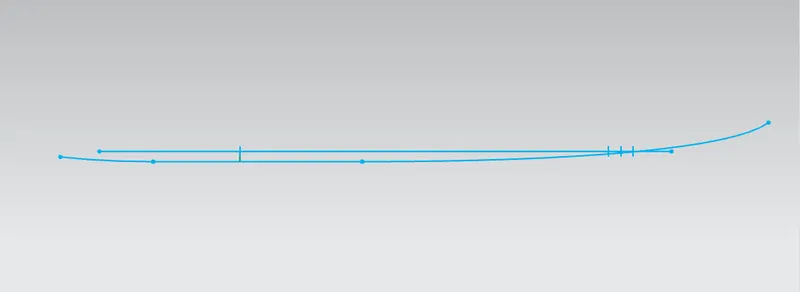

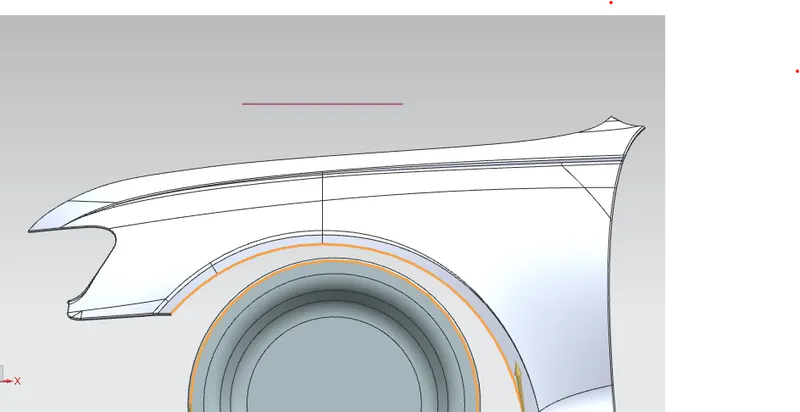

Projecting outer surfaces of fender and wheelon the top plane

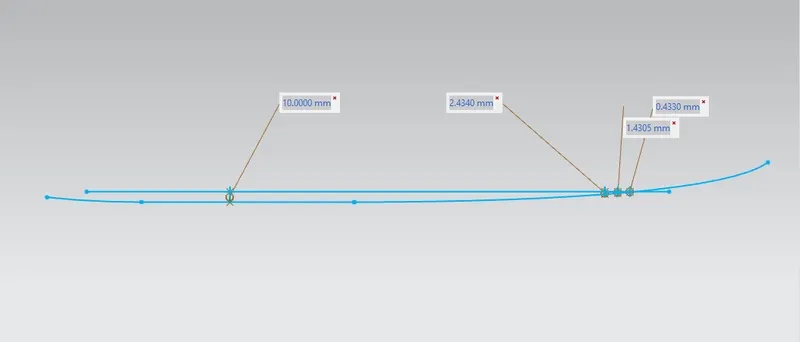

At first point there is a gap of 10mm.

At second, third and fourth points there's a gap less than 10mm i.e.. 2.4mm, 1.4mm and 0.43mm respectively.

For the European regulations there should be minimum gap of 10mm at these points.

conclusion for this report is, this design does not satisfy the European regulations.
