Fender Design - Wheel Arch Challenge

Wheel Arch Calculation Using NX CAD



     Wheel Arch :

• The wheelarch is the semicircular part positioned above the wheel of a vehicle. It should be placed and design in such a way that it could protect Engine Compartment, Pedestrian from the splashing of water, mud & stones etc.…
• The Wheel arch design must be fulfilled all the Regulatory & Standard requirement in the different country
• There are different standard for clearance between the fender and the wheel in different country
• Japan Standard
• European Standard
• American Standard

                                                  .

Aim/Objectives: The Main objective here to calculate/measure the wheel arch area & to prove that if this will qualify the European standard or Not.

Regulation	Japan	European		American
Check Point	3	5		21
Clearance Condition	>5mm	>10mm		>5mm
Clearance Check (Top View)	End point of Line (Side view), projected on outer edge of tire & Fender in top view for evaluation of clearance
Lines through Center point of wheel arch (Side view)	Vertical (90°) Forward (30°) Backward (50°)		Forward (30°) 50° between the midpoint arch & above X-axis with vertical length 150 mm		Forward (30°)  Backward (50°) from Central vertical axis

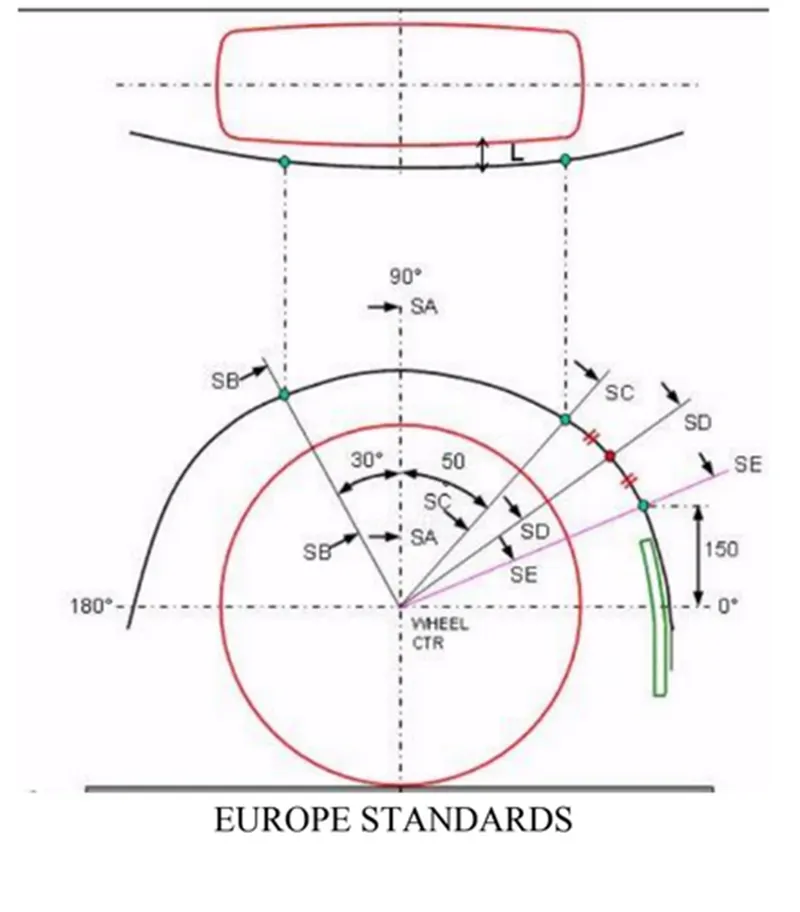

European Standard For wheel Arch:

Note:

1. The Clearance “L” Shown in the figure at all five Section SA, SB, SC, SD & SE the value must be Greater then 10 mm
2. The distance “a” between Tire and fender must be greater than 5 mm

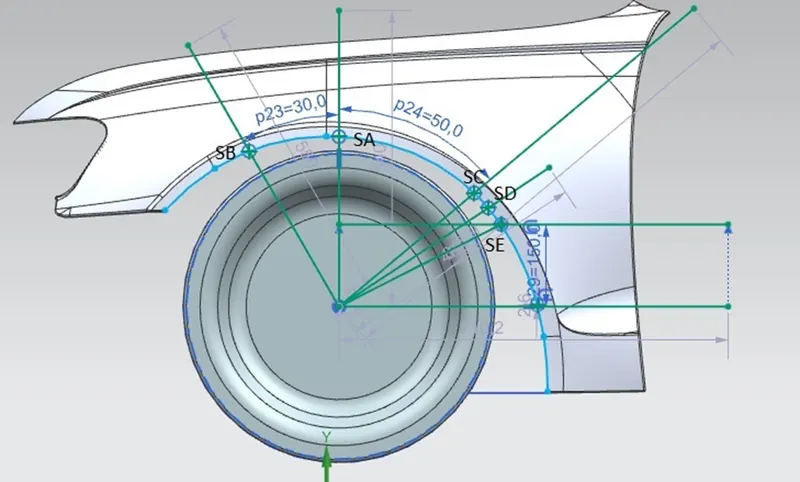

           Skin Data Provided for Wheel Arch Calculation

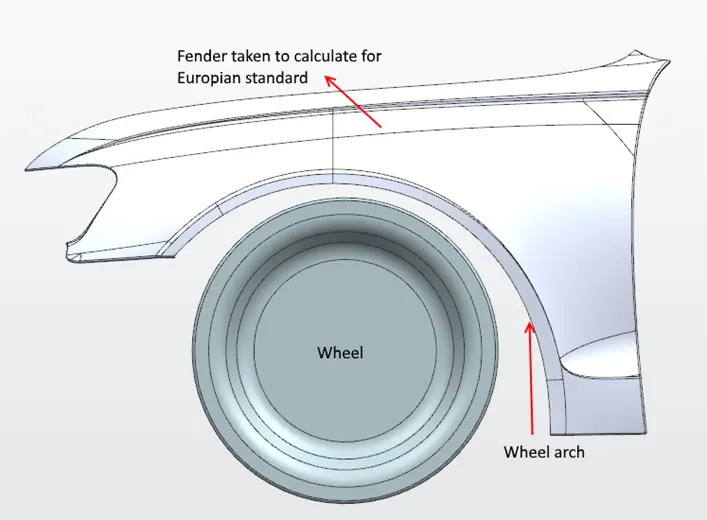

Image:



A. Obtaining the Value of “L” at different section

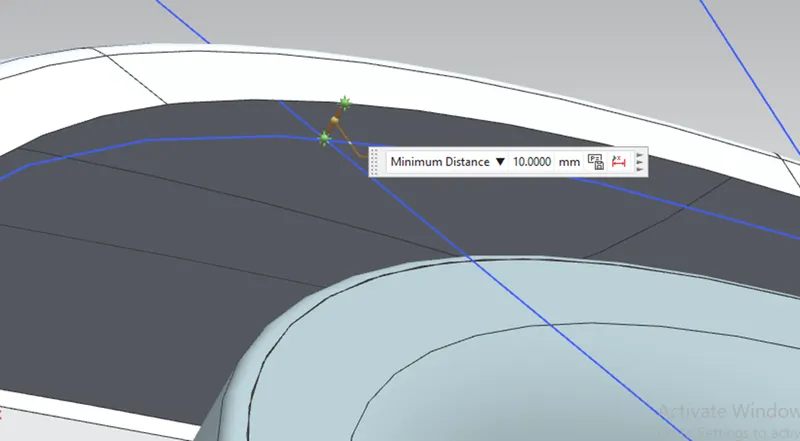

1. Section SA

     2. Section SB

     3. Section SC

      4. Section SD

        5. Section SE

Measured Value/Final Analysis

Section	Required Clearance (L)	Actual Clearance (L)	Clearance Needed	Result

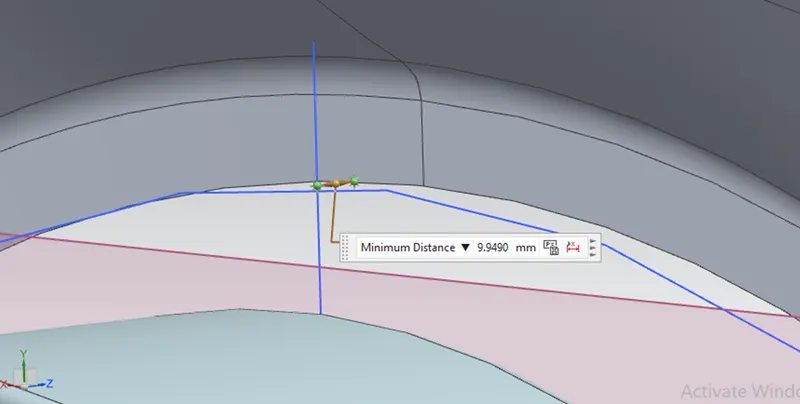

SA	>10.0000 mm	9.9490 mm	0.051 mm	Fail
SB	>10.0000 mm	10.0000 mm	Nil	Pass

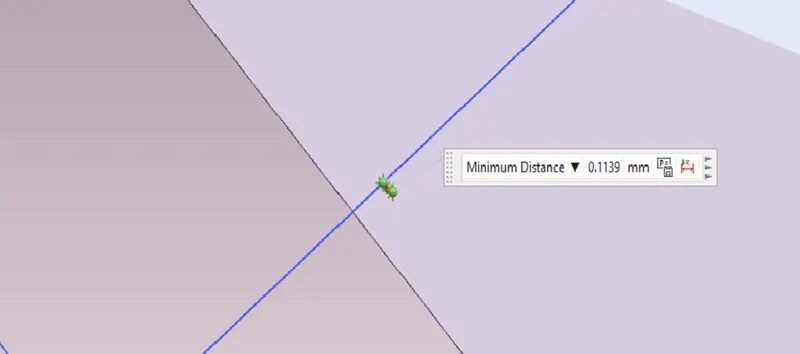

SC	>10.0000 mm	0.1139 mm	9.8861 mm	Fail

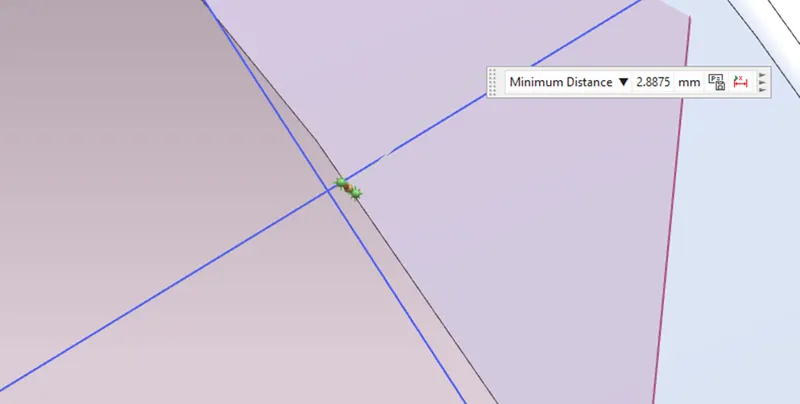

SD	>10.0000 mm	2.8875 mm	7.1125 mm	Fail

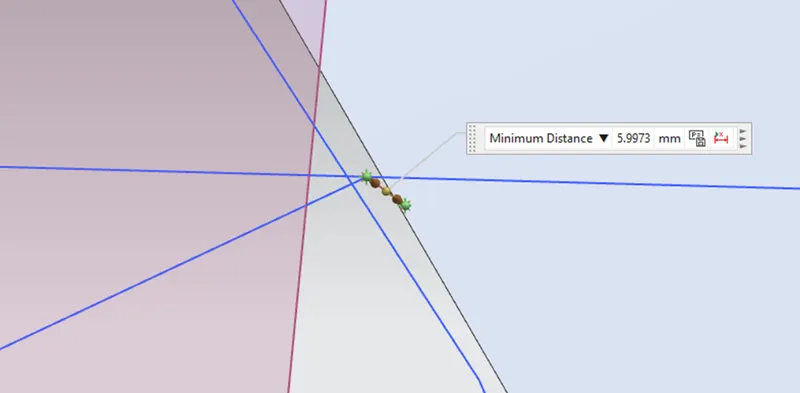

SC	>10.0000 mm	5.9973 mm	4.0027 mm	Fail

B. Obtaining the Distance between Fender & Tire “a”

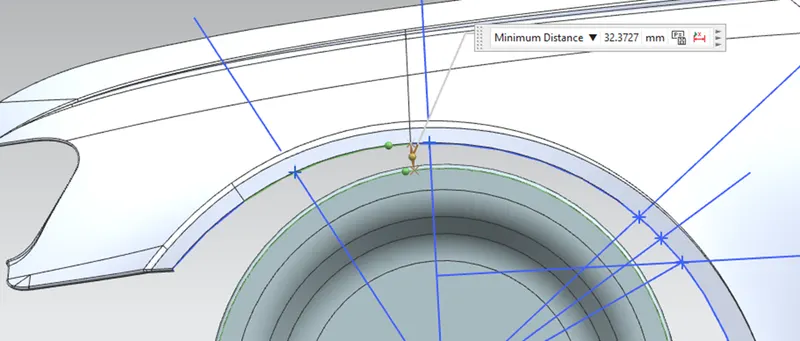

Vertical Distance “a” b/w tire and fender is 32.3737 mm which is greater than 5 mm

C. Obtaining the wheel arch area of the given fender

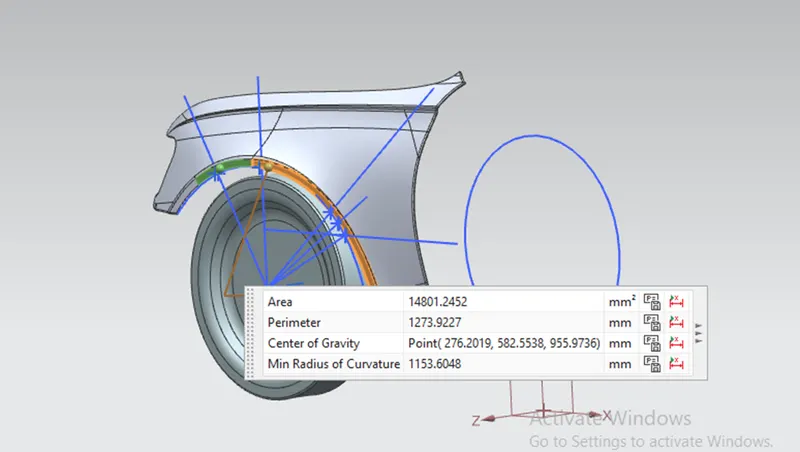

1. Wheel Arch Area = 2452 mm
2. Arch Radius = 6048 mm
