Fender Design Challenge

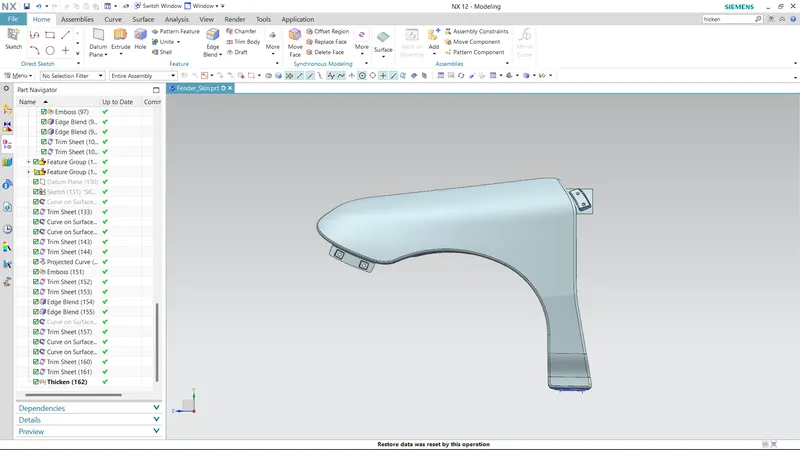

Fender design using NX.

Commands used in designing fender: Curve on surface, trim sheet, law extension, edge blend, thicken.

Steps followed:

- Flange area were generated to make drip area, sill area, bumper, baffle, A pillar by using offset curve, curve on face and trim sheet.

- Then drip area was generated by using law extension as per given length, angle in master section. Create sketch to generate emboss and drill area for fitting purpose, then apply face blend command to remove sharp edge.

- Similarly for bumper, baffle, sill area create sketch apply emboss and trim sheet where ever required.

- For A-pillar assumed that its shape is same as it looks on fender and it is embossed in upward direction so that it is assembled easily.

- Thicken command is applied to give thickness of 0.75 mm.
