Fender Design Challenge

FRONT FENDER DESIGN

AIM: To design the front fender of a car from styling data provided.

OBJECTIVE:

To design the front fender of a car and provide with

• Drip area mounting
• A pillar mounting area.
• Sill mounting area.
• Bafflle mounting are.
• Bumper mounting area.

FENDER

Fender is a curved portion beside the hood which houses the wheel. The purpose of a fender is pretty straightforward, Its purpose is to stop mud, rocks, and different road rubble from being thrown around by the tires. In different words, the fender may be a housing for the wheels that keeps road rubble contained. If there was nothing covering the wheels, all types of rubble would be kicked up by the rotating tires.

The fender not solely protects the automotive from sustaining injury from road rubble however it prevents this rubble from being thrown up at different vehicles on the road and also important for pedestrian safety. Highlighted section in figure 1 shows location of front fender.

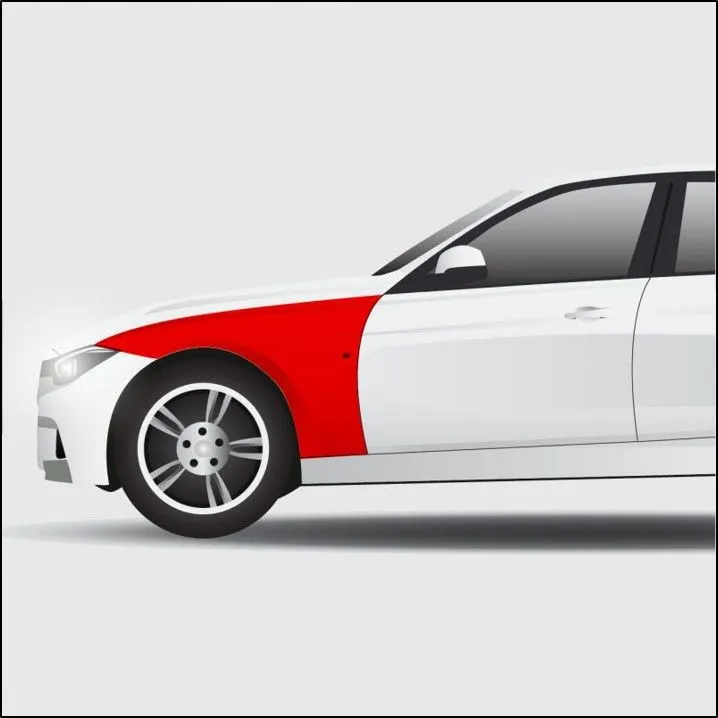

Fig 1: Location of front fender (smartcarrepair.in)

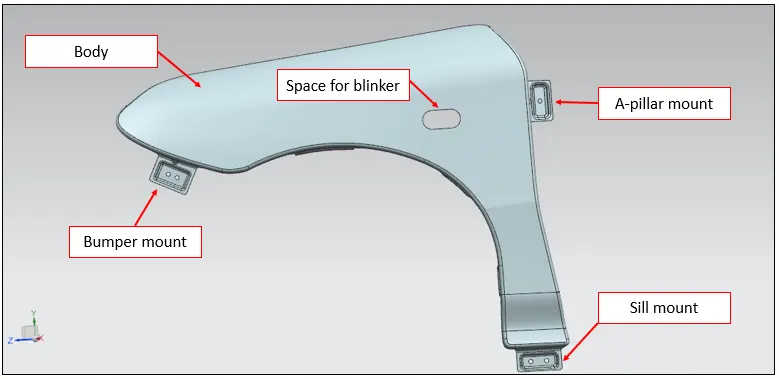

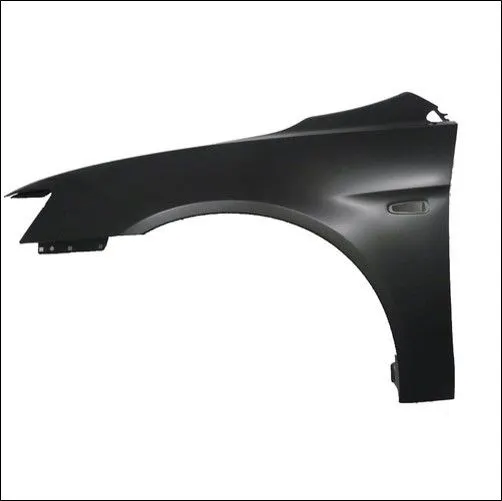

Fig 2: Front fender

In this project styling data is provided and master section data for drip area is provided. Figure 3 and 4 represent the styling surface and master section data for drip area respecctively.

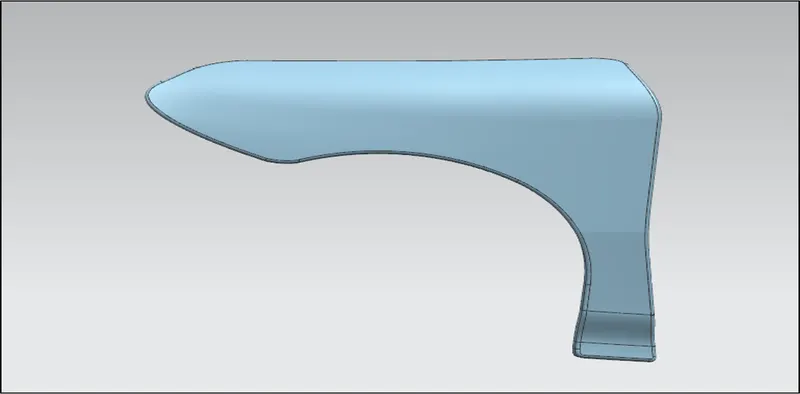

Fig 3: Styling data

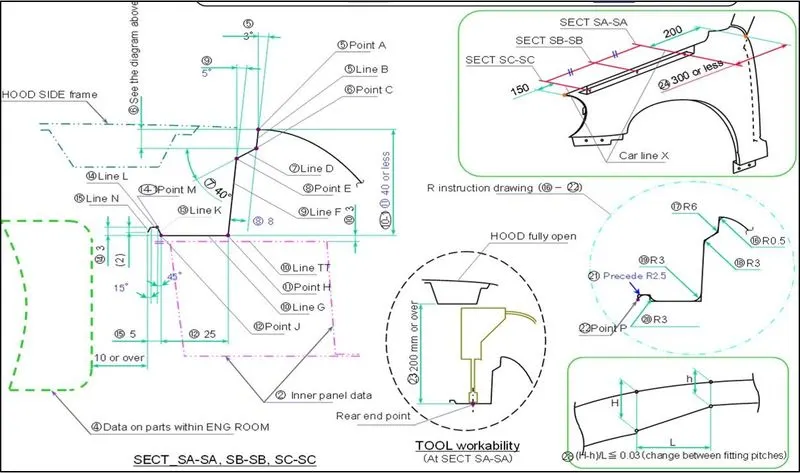

Fig 4: Master section data for drip area

Fig 5: Front view of fender

Fig 6: Rear view of fender

DRIP MOUNT AREA

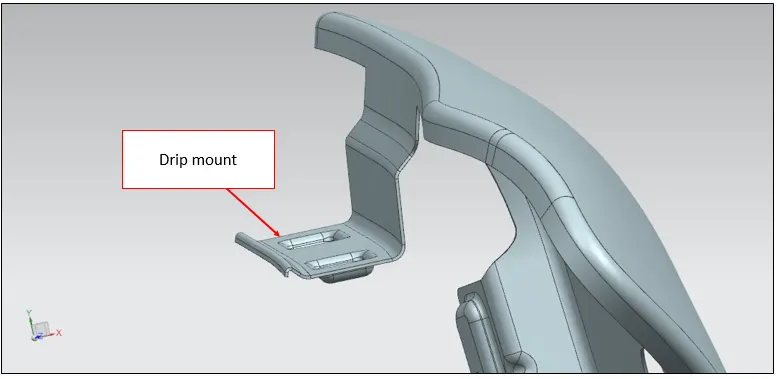

Fig 7: Drip mount

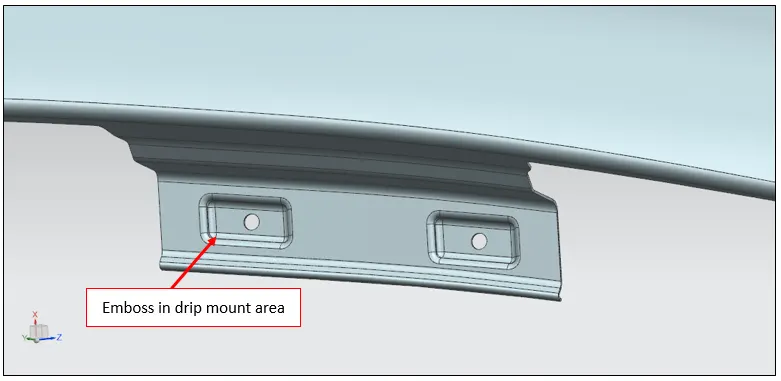

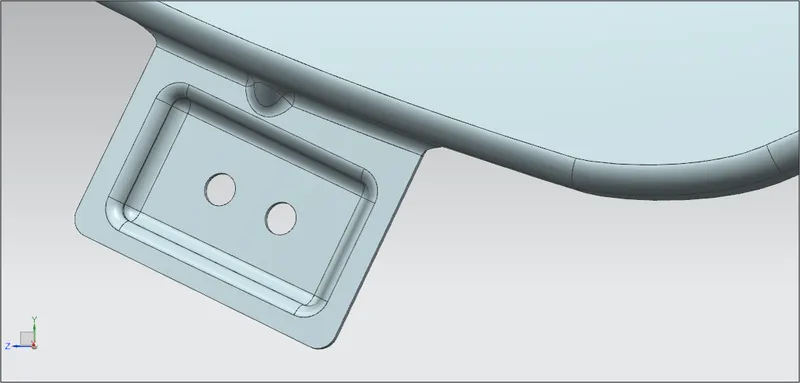

Fig 8: Emboss in drip mount area

A PILLAR MOUNT

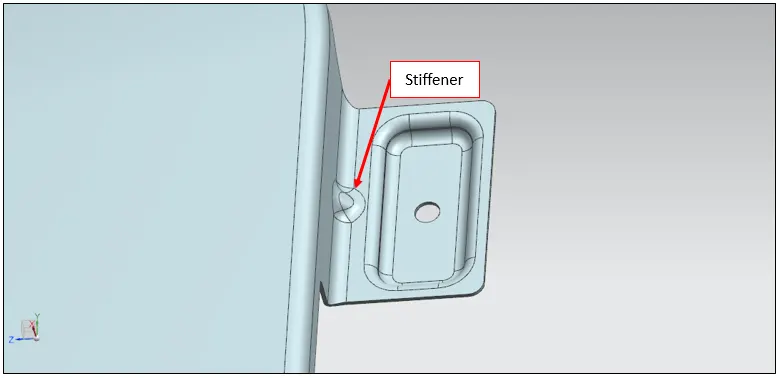

Darts act as a stiffeners and provide strength to mounts and reduce flutter.

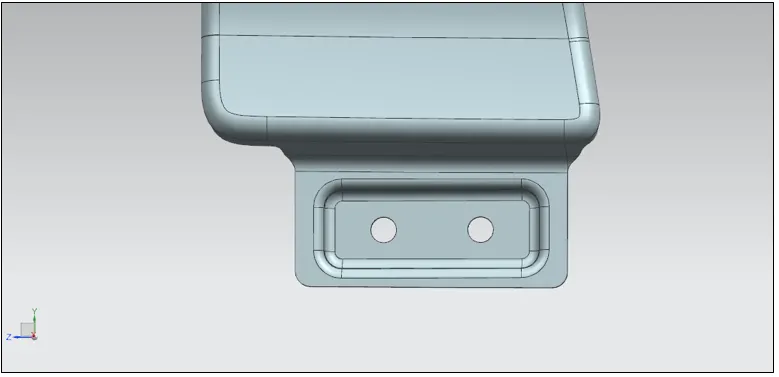

Fig 9: A-pillar mount

SILL MOUNT

Fig 10: Sill mount

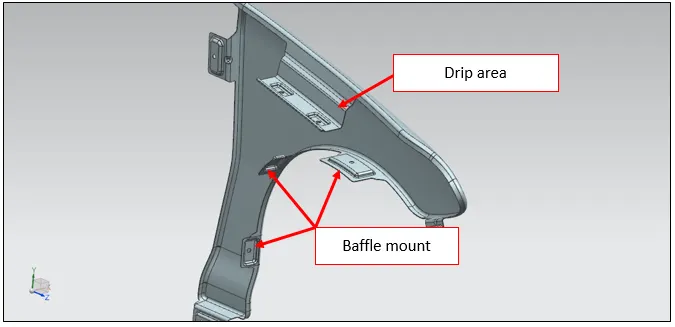

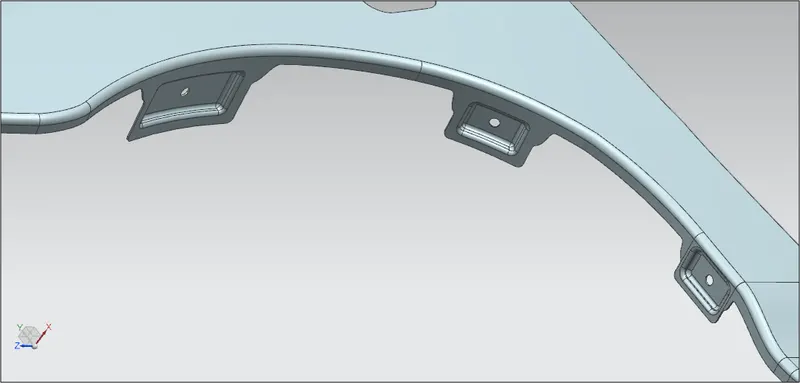

BAFFLE MOUNT

Fig 11: Baffle mount

BUMPER MOUNT

Fig 12: Bumper mount

CONCLUSION

Front fender is designed with the help of styling surface provided along with mounts for different regions like drip area, sill, A pill, baffle and bumper.
