SECTION MODULUS CALCULATION AND OPTIMAZTION IN HOOD

AIM: Calculate the sectiton modulus of the hood and optimize the section modulus

OBJECTIVE:

• To calculate the moment of inertia for the designed hood.
• To find out the section modulus.
• To modify the designed hood.
• To find out the section modulus and draw its inference.

SECTION MODULUS

Section modulus is the measure of how strong a structural member is. Higher the section modulus higher is the strength of the member. Section modulus is given by the formula below

S= I/y

Where,

S = Section Modulus in mm3

I = Moment of Inertia in mm4

y = distance between the neutral axis and the extreme end of the object in mm

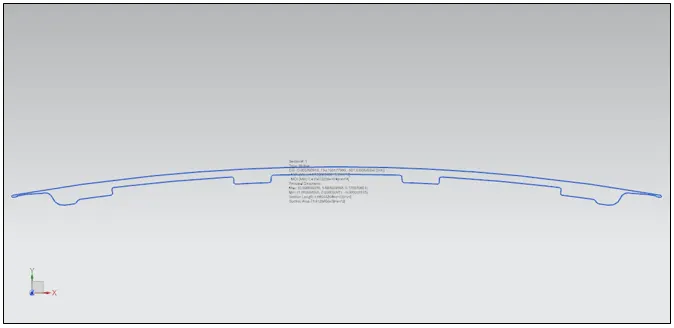

Fig 1: Section of hood

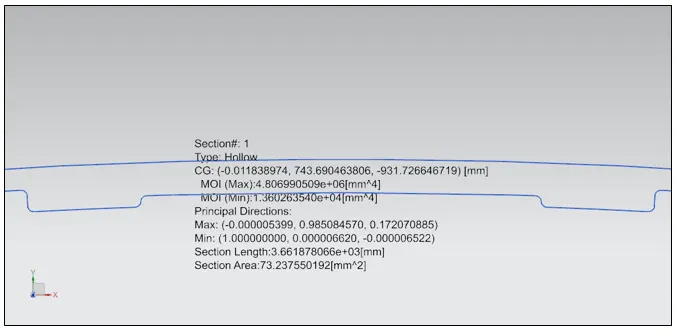

Fig 2: MOI of the hood

Section modulus (S)=13610/439.7

S =31 mm3

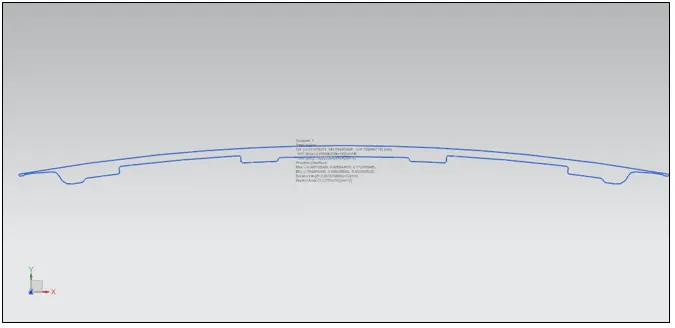

Fig 3: Section of modified hood

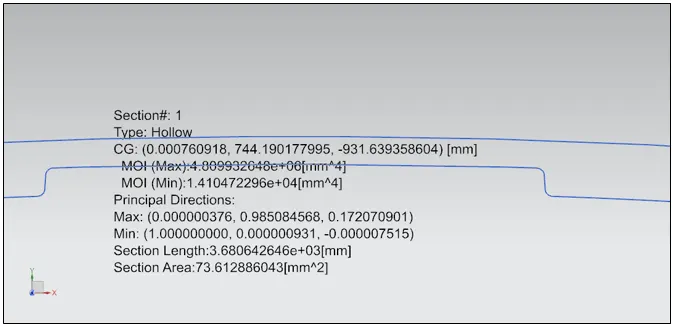

Fig 4: MOI of modified hood

Section modulus (S)=14110/439.7

S =33 mm3

From the above values it is clear that the modified hood has higher section modulus. So, modified hood is stronger than the earlier section.

The modification adopted is to increase the height of emboss thus by reducing the distance between inner and outer panel.

CONCLUSION

Section modulus of the hood is found and an optimized hood design is suggested.
