Fender Design

Report:

- Given base model is opened using CATIA V5.

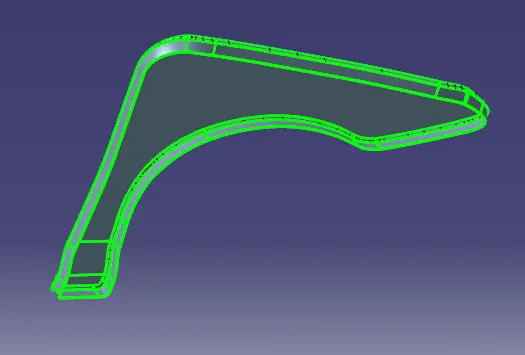

- Parallel curves are taken considering edges.

- Parallel curves, Split, Connect commands are used to make base sweeps to accomodate mountings.

- Then these sweeps are taken and embosses are made.

- Holes are made on these embosses to complete mounts.

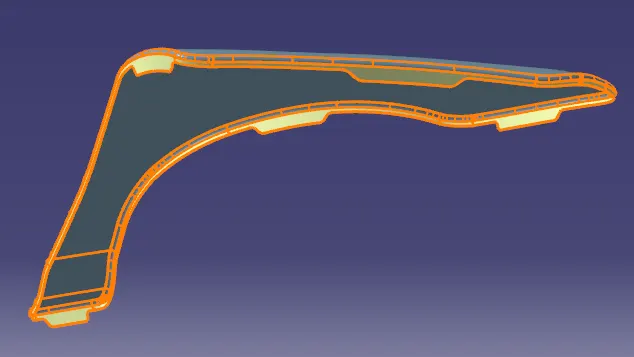

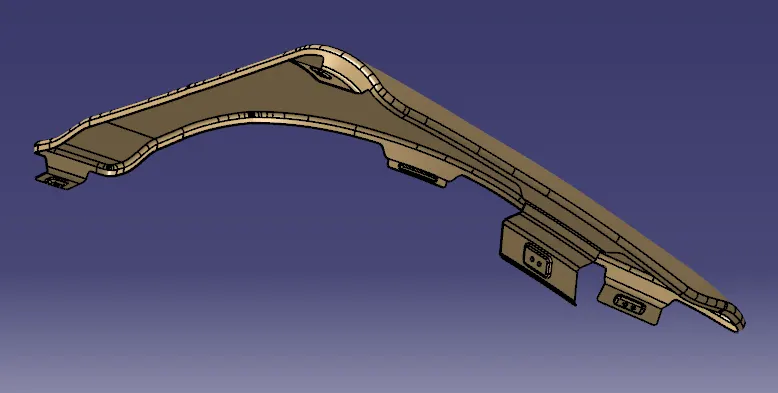

- The below image shows the final product of fender with mountings on all sides.

- Hence, the required Fender Part body is created.
